Hot Point RB526DH User Manual
rB526Dh
CENTER LINE
REAR
WALL
2-1/4
7-1/2
7
7-1/2
2-1/4
3-1/2
5
30
" Free-Standing Electric
Single Oven Range
Dimension and installation information (in inches)
Single Oven Range

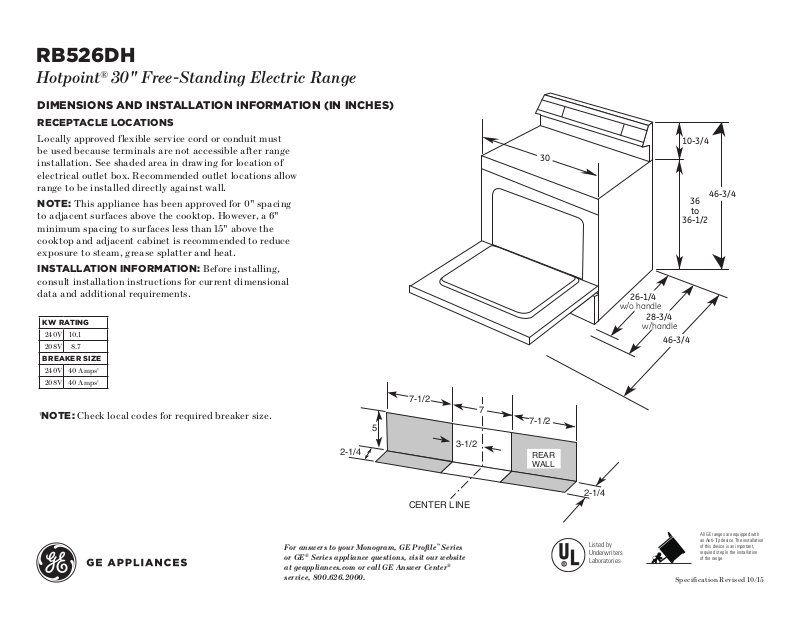

Hotpoint® 30" Free-Standing Electric Range
Dimensions anD installation information (in inches)
Receptac l e locations
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
note: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
installation i n foRmati o n : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW R atin g
240V 10.1
208V 8.7
BReaKeR size
240V 40 Amps
208V 40 Amps
†
note: Check local codes for required breaker size.
†
†
2-1/4
7-1/2
5
7
3-1/2
7-1/2
REAR
WALL
30
10-3/4
46-3/4
36
to
36-1/2
26-1/4
w/o handle
28-3/4
w/handle
46-3/4
CENTER LINE
For answers to your Monogram, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
2-1/4
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Speci fication Revised 10/15
RB526DH
Hotpoint® 30" Free-Standing Electric Range
featuRes and Benefits
Standard clean oven – Smooth surface and rounded corners make
clean-up quick and easy
Coil heating elements – Provide even heat and easy cleanup
Electronic clock and timer – Help cooks coordinate meal preparation
and cooking
Standard window – Provides a convenient viewing area to check
the progress of food
Porcelain upswept cooktop – Raised edges contain spills, while
the surface is easy to wipe clean
Two oven racks – Durable to securely hold any cookware
5.0 cu. ft. oven capacity – Cook more dishes at once
Removable full-width storage drawer – Store cookware
or kitchen accessories
Element “On” indicator light – Know when an element is on
Model RB526DHBB – Black on black
Model RB526DHWW – White on white
Model RB526DHCC – Bisque on bisque
OVEN TEMP
F
F
O
B
R
Oven
Light
Burner On
5:26
O
I
L
M
R
5
0
A
0
W
0
0
4
2
5
0
0
4
5
0
2
0
0
0
3
3
5
0
