Hotpoint RB526CWW User Manual

Specification Revised 6/00

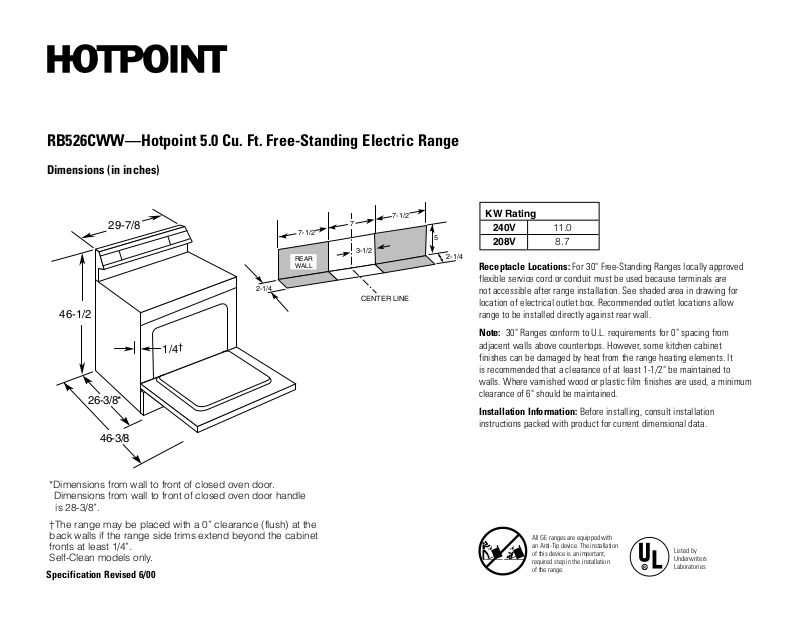

RB526CWW—Hotpoint 5.0 Cu. Ft. Free-Standing Electric Range

Dimensions (in inches)

R

Listed by
Underwriters
Laboratories

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

26-3/8*

46-3/8

29-7/8

46-1/2

1/4

†

Receptacle Locations: For 30" Free-Standing Ranges locally approved
flexible service cord or conduit must be used because terminals are
not accessible after range installation. See shaded area in drawing for
location of electrical outlet box. Recommended outlet locations allow
range to be installed directly against rear wall.

Note: 30" Ranges conform to U.L. requirements for 0" spacing from
adjacent walls above countertops. However, some kitchen cabinet
finishes can be damaged by heat from the range heating elements. It
is recommended that a clearance of at least 1-1/2" be maintained to
walls. Where varnished wood or plastic film finishes are used, a minimum
clearance of 6" should be maintained.

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

CENTER LINE

2-1/4

7-1/2

7-1/2

7

5

2-1/4

3-1/2

REAR
WALL

*Dimensions from wall to front of closed oven door.

Dimensions from wall to front of closed oven door handle

is 28-3/8”.

†The range may be placed with a 0” clearance (flush) at the
back walls if the range side trims extend beyond the cabinet
fronts at least 1/4”.
Self-Clean models only.

KW Rating

240V 11.0
208V 8.7

Specification Revised 6/00

RB526CWW—Hotpoint 5.0 Cu. Ft. Free-Standing Electric Range

FRONT

REAR

REAR

FRONT

O

V

E

N

C

Y

C

L

E

S

U

R

F

A

C

E

U

N

IT

S

OFF

HI

LO

MED

OFF

HI

LO

MED

OFF

HI

LO

MED

OFF

HI

LO

MED

T

IM

E

R

O

N

/O

F

F

C

L

O

C

K

O

V

E

N

T

E

M

P

5

0

0

4

5

0

4

0

0

3

5

0

3

0

0

2

5

0

2

0

0

W

M

O

F

F

B

R

O

I

L

Features and Benefits

• Super Large 5.0 cu. ft. Oven Capacity

• Upswept Porcelain-Enameled Cooktop

• Two 8" and Two 6" Plug-In Calrod

®

Heating Elements

• Electronic Clock and Kitchen Timer

• Standard Clean Oven

• Chrome Removable One-Piece Drip Bowls

• 2 Oven Shelves

• Surface Element “On” Light

• Oven “On” Light

• Frameless Porcelain-Enameled Oven Door With Window

• Designer Style Handle

• Storage Drawer

• Model RB526CWW - White on white

• Model RB526CAA - Almond on almond
