Hotpoint RAS240DMWW Specifications

RAS240DMWW

23 3/4"

min

3"

8"

0"

minimum
to cabinets
below
cooktop

36"

24"

19 3/8"

2 5/16"

Side Wall

23 3/4" min

30" min

DIMENSIONS AND CLEARANCES (CONT.)

ELECTRICAL OUTLET LOCATIONS

DIMENSIONS AND CLEARANCES (CONT.)

ELECTRICAL OUTLET LOCATIONS

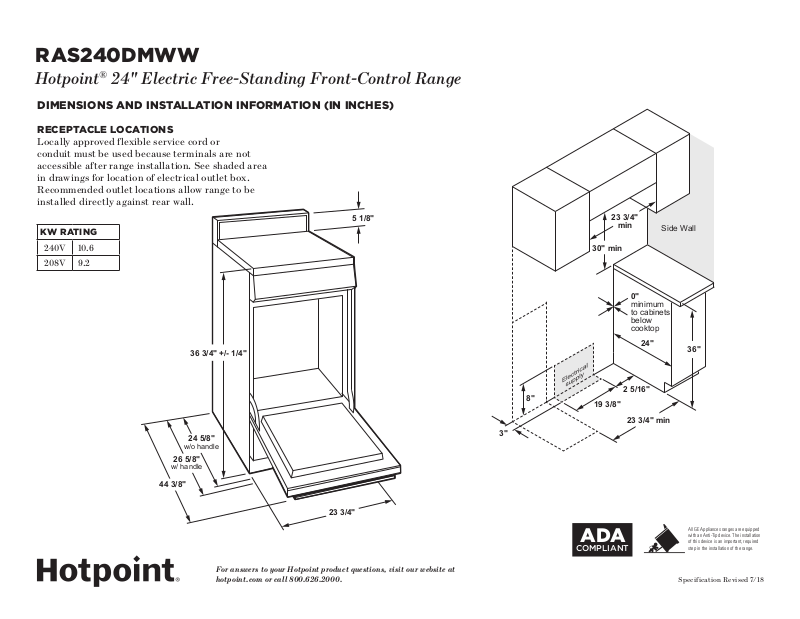

Hotpoint® 24" Electric Free-Standing Front-Control Range

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

RECE PTAC LE LOCATION S
Locally approved flexible service cord or
conduit must be used because terminals are not
accessible after range installation. See shaded area
in drawings for location of electrical outlet box.
Recommended outlet locations allow range to be
installed directly against rear wall.

5 1/8"

KW RATING

240V 10.6

208V 9.2

36 3/4" +/- 1/4"

24 5/8"

w/o handle

26 5/8"

w/ handle

44 3/8"

For answers to your Hotpoint product questions, visit our website at
hotpoint.com or call 800.626.2000. Speci fication Revise d 7/18

23 3/4"

3"

8"

23 3/4"

min

30" min

19 3/8"

ADA

COMPLIANT

0"

minimum
to cabinets
below
cooktop

24"

2 5/16"

23 3/4" min

Side Wall

36"

All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.

RAS240DMWW

Hotpoint® 24" Electric Free-Standing Front-Control Range

FEATURES AND BENEFITS

Front controls – Minimize need to reach

Sensi-Temp Technology – Enjoy the same cooking power as a traditional
coil with an added safety feature that meets new regulation UL858
Household Electric Ranges Standard for Safety

Lift-up cooktop with porcelain-enameled subtop – Access messes under
the cooktop for easy cleanability

Two oven racks – Feature a durable construction to help accommodate
any size or type of cookware

Standard clean oven – Smooth surface makes cleaning by hand easier

One-piece durable handle – Strong and long-lasting

Chrome drip bowls – Contain spills and remove for easy cleaning

Standard window – Provides a convenient viewing area to check the
progress of food

Cooktop "ON" Indicator Light – Know when an element is on

Model RAS240DMWW – White

Speci fication Revise d 7/18
