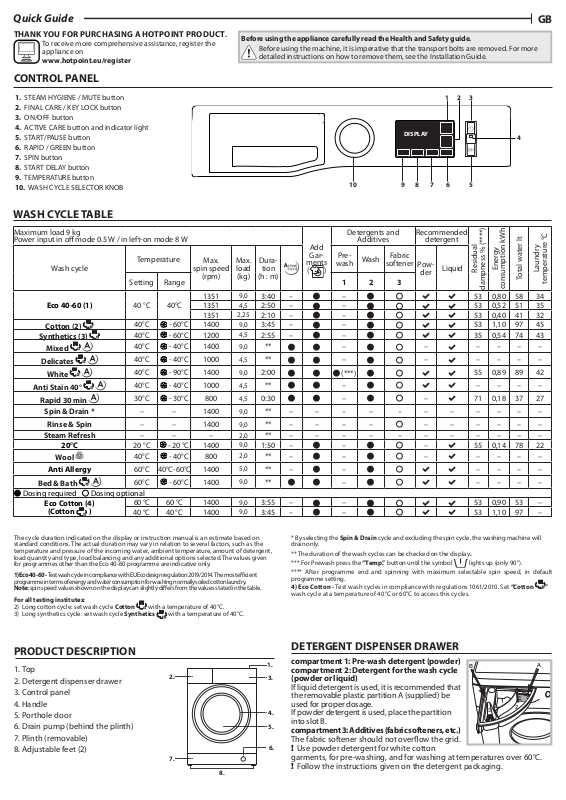

HOTPOINT NM11 945 BC A UK N Daily Reference Guide
Quick Guide
1
2
3
A
B
THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.
To receive more comprehensive assistance, register the
appliance on
www.hotpoint.eu/register
CONTROL PANEL
1. STEAM HYGIENE / MUTE button
2. FINAL CARE / KEY LOCK button
3. ON/OFF button
4. ACTIVE CARE button and indicator light
5. START/PAUSE button
6. RAPID / GREEN button
7. SPIN button
8. START DELAY button
9. TEMPERATURE button
10. WASH CYCLE SELECTOR KNOB
WASH CYCLE TABLE
Before using the appliance carefully read the Health and Safety guide.
Before using the machine, it is imperative that the transport bolts are removed. For more
detailed instructions on how to remove them, see the Installation Guide.
1 2
3
DISPLAY
8
10
9
67
5
GB
4
Maximum load 9 kg
Power input in o mode 0.5 W / in left-on mode 8 W
Temperature
Wash cycle
Setting Range 1 2 3
Eco 40-60 (1) 40 °C 40°C
Cotton (2)
Synthetics (3)
Mixed
Delicates
White
Anti Stain 40°
Rapid 30 min
40°C
40°C
40°C
40°C
40°C
40°C
30°C
- 60°C
- 60°C
- 40°C
- 40°C
- 90°C
- 40°C
- 30°C
Spin & Drain * – – 1400
Rinse & Spin – – 1400
Steam Refresh – – –
20°C 20 °C
Wool
40°C
- 20 °C
- 40°C
Anti Allergy 60°C 40°C - 60°C 1400
Bed & Bath
60°C
- 60°C
Dosing required Dosing optional
Eco Cotton (4)
(Cotton
)
60 °C 60 °C 1400
40 °C 40 °C 1400
Max.
spin speed
(rpm)
1351
1351
1351
1400
1200
1400
1000
1400
1000
800
1400
800
1400
Max.
load
(kg)
9,0
4,5
2,25
9,0
4,5
9,0
4,5
9,0
4,5
4,5
9,0
9,0
2,0
9,0
2,0
5,0
9,0
9,0
9,0
Dura-
tion
(h : m)
3:40 –
2:50 –
2:10 –
3:45 –
2:55 –
**
**
2:00
**
0:30
Detergents and
Pre-
wash
–
–
–
–
–
–
–
Additives
Wash
softener
Add
Gar-
ments
(
)
(***)
–
–
Fabric
Recommended
detergent
Pow-
Liquid
der
–
–
–
Energy
Residual
consumption kWh
dampness % (****)
53 0,80 58 34
53 0,52 51 35
53 0,40 41 32
53 1,10 97 45
35 0,54 74 43
– – – –
– – – –
55 0,89 89 42
– – – –
71 0,18 37 27
** – – – – – – – – – – –
** – – – –
– – – – – –
** – – – – – – – – – – –
1:50 –
** –
** –
**
3:55 –
3:45 –
–
–
–
–
–
–
–
–
55 0,14 78 22
– – – –
– – – –
– – – –
53 0,90 53 –
53 1,10 97 –
Total water lt
Laundry
temperature °C
The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as the
temperature and pressure of the incoming water, ambient temperature, amount of detergent,
load quantity and type, load balancing and any additional options selected.The values given
for programmes other than the Eco 40-60 programme are indicative only.
1) Eco 40- 60 - Test wash cycle in com pliance with EU Ecod esign regulati on 2019/2014. The most ef ficient
programm e in terms of energ y and water consumpt ion for washing n ormally soile d cotton laundr y.
Note: spin spe ed values shown on th e display can slightl y differs fro m the values state d in the table.
For all testing institutes:
2) Long cotton cycle: set wash cycle Cotton with a temperature of 40°C.
3) Long synthetics cycle: set wash cycle Synthetics with a temperature of 40°C.
PRODUCT DESCRIPTION
1. Top
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
2.
7.
8.
* By selecting the Spin & Drain cycle and excluding the spin cycle, the washing machine will
drain only.
** The duration of the wash cycles can be checked on the display.
*** For Prewash press the “Temp.” button until the symbol lights up (only 90°).
****
After programme end and spinning with maximum selectable spin speed, in default
programme setting.
4) Eco Cotton - Test wash cycles in compliance with regulations 1061/2010. Set
wash cycle at a temperature of 40°C or 60°C to access this cycles.
DETERGENT DISPENSER DRAWER
compartment 1: Pre-wash detergent (powder)
1.
compartment 2: Detergent for the wash cycle
3.
(powder or liquid)
If liquid detergent is used, it is recommended that
the removable plastic partition A (supplied) be
used for proper dosage.
4.
If powder detergent is used, place the partition
into slot B.
5.
compartment 3: Additives (fabric softeners, etc.)
The fabric softener should not overow the grid.
6.
! Use powder detergent for white cotton
garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
“Cotton ”
WASH CYCLES
END
DDEEMMOO
hh
Follow the instructions on the symbols of the garment’s wash
care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.
Eco 40-60
For washing normally soiled cotton garments declared to be washable
at 40 °C or 60 °C, together in the same cycle. This is the standard cotton
programme and the most ecient in terms of water and energy
consumption.
Cotton
Normally to heavily soiled and robust cottons.
Synthetics
Suitable for washing moderately soiled garments made of synthetic bres
(e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.
Mixed
For washing lightly to normally soiled resilient garments in cotton, linen,
synthetic bres and mixed bres.
Delicates
For washing very delicate garments. It is advisable to turn the garments
inside out before washing them. For best results, use liquid detergent on
delicate garments.
White
For washing normally to heavily soiled towels, underwear, table and bed
linen, etc in resilient cotton and linen. Only when the temperature is
selected at 90°C the cycle is provided with a prewash phase before main
washing phase. In this case it is recommended to add detergent both, in
the prewash and main wash section.
Anti Stain 40°
The programme is suitable to heavily-soiled garments with resistant
colours. It ensures a washing class that is higher than the standard class (A
class). When running the programme, do not mix garments of dierent
colours. We recommend the use of powder detergent. Pre-treatment with
special additives is recommended if there are obstinate stains.
Rapid 30 min
For washing lightly soiled garments quickly. This cycle lasts only 30
minutes, saving time and energy.
Spin & Drain
Spins the load then empties the water. For resilient garments. If you
exclude the spin cycle, the machine will drain only
Rinse & Spin
Rinses and then spins. For resilient garments.
Steam Refresh
The garments will be damp once the cycle is completed, so we recommend
hanging them to dry (2 kg, roughly 3 items). This programme refreshes
garments by removing bad odours and relaxing the bres. Insert dry items
only (that are not dirty) and select programme “Steam Refresh”. Garments
will be a little damp at the end of the cycle and can be worn after a few
minutes. The “Steam Refresh” programme makes ironing easier.
! Do not add softeners or detergents.
! Not recommended for wool or silk garments.
20°C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
Wool - Woolmark Apparel Care - Green:
The “Wool” wash cycle is approved by the Woolmark Company for
washing wool garments classied as “hand-washable”, provided that the
wash complies with the instructions appearing on the garment’s label
and with those provided by the manufacturer of this washing machine.
(M1127)
In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certication
trade mark.
Anti Allergy
Suitable for removing major allergens such as pollen, mites and cat or dog hair.
Bed & Bath
For washing home linen in a single cycle. It optimises the use of fabric
softener and allows for saving time and electricity. We recommend the
use of powder detergent.
Eco Cotton
For washing normally soiled cotton garments. At 40°C and 60°C.
DISPLAY
The display is useful when programming the washing machine and
provides plenty of information.
C
B
C
A
C
C
C
The duration of the available wash cycles and the remaining time of a
running cycle appear in section A (the display will show the maximum
duration of the cycle chosen, which may decrease after several minutes,
since the eective duration of the programme varies depending on the
wash load and the settings chosen); if the DELAYED START option has been
set, the countdown to the start of the selected wash cycle will appear.
Pressing the corresponding button allows you to view the maximum spin
speed and temperature values attained by the machine during the set
wash cycle, or the values selected most recently, if these are compatible
with the set wash cycle.
The “wash cycle phases” corresponding to the selected wash cycle and the
“wash cycle phase” of the running wash cycle appear in section B:
Main wash
Rinse
Spin + Pump out
References C indicate the wash options available (See “Options” section).
The “Start Delay” symbol , when lit, indicates that the set “delayed start”
value has appeared on the display.
The symbol indicates the possibility of inserting an additional garments
load with the washing program started (See “Adding Garments” section).
The symbol indicates the possibility to silence the key tones
While the mute is active, almost all sounds will be turned o. Only the sound
signals and the alarms remain active, as well as the sound of the end of cycle.
For activate/deactivate the mute press and hold button.
DISPLAY INDICATORS
Failure: Call Service
Refer to Troubleshooting section
Failure: Water lter clogged
Water cannot be drained; water lter might be blocked
Failure: No water
No or not sucient inlet water.
In the event of any failure, refer to the “Troubleshooting” section.
Key Lock
To lock the control panel, press and hold the “Key lock” button for
approximately 3 seconds. The symbol will light up on the display to
indicate that the control panel has been locked (with the exception of the
“ON/OFF“ button). This prevents unintentional changes to programmes,
especially with children near the machine. To unlock the control panel,
press and hold the “Key lock” button for approximately 3 seconds .
Locked door indicator
When lit, the symbol indicates that the door is locked. To prevent any
damage, wait until the symbol turns o before opening the door.
To open the door while a cycle is in progress, press the START/PAUSE
button ; if the symbol is o, the door can be opened.
FIRSTTIME USE
Once the appliance has been installed, and before you use it for the rst
time, run a wash cycle with detergent and no laundry, using the wash
cycle White (60°).
DAILY USE
Prepare the laundry by following the suggestions appearing under the
“TIPS AND SUGGESTIONS” section.
- Press the ON/OFF button .
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the wash cycle table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments, as described in the “DETERGENT DISPENSER
DRAWER” section.
- Close the door.
- The machine automatically displays the default temperature and spin
speed values for the selected cycle, or the most recently used settings if
they are compatible with the selected cycle.
- Select the desired wash cycle.
- Select the desired options.
- Press the START/PAUSE button to start the wash cycle; the door will
lock ( symbol on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE button again. To start
the wash cycle from the point at which it was interrupted, press the
START/PAUSE button again.
OPENING THE DOOR, IF NECESSARY
Once a cycle starts, the symbol turns on to signal that the door cannot
be opened. While a wash cycle is running, the door remains locked. To
open the door while a cycle is under way, for example, to add or remove
garments, press the START/PAUSE button to pause the cycle. If the
symbol is not lit, the door may be opened. Press the START/PAUSE
button again to continue the cycle.
ADDING GARMENTS
An icon on the display will signal when additional garments can be
introduced into the washing machine, without decreasing the washing
performance. To add garments, rst stop the washing machine by pressing
Loading...
