DAILY REFERENCE
WWW
GUIDE
EN
THANK YOU FOR PURCHASING A HOTPOINT
PRODUCT
To receive more comprehensive help and support,
please register your product at www.hotpoint-
ariston.com/register
Read the safety instructions carefully before using the product

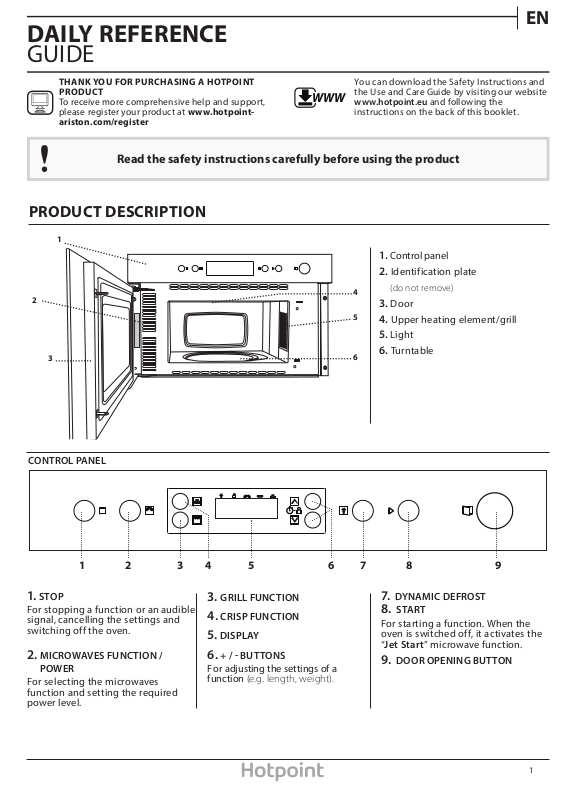

PRODUCT DESCRIPTION
1
2
3
You can download the Safety Instructions and
the Use and Care Guide by visiting our website
www.hotpoint.eu and following the
instructions on the back of this booklet.
1. Control panel
2. Identification plate
(do not remove)
4
3. Door
5
4. Upper heating element/grill
5. Light
6. Turntable
6
CONTROL PANEL
1 2 3 4 6 7
1. STOP
For stopping a function or an audible
signal, cancelling the settings and
switching off the oven.
2. MICROWAVES FUNCTION /
POWER
For selecting the microwaves
function and setting the required
power level.
3. GRILL FUNCTION
4. CRISP FUNCTION
5. DISPLAY
6. + / - BUTTONS
For adjusting the settings of a
function (e.g. length, weight).
8 95
7. DYNAMIC DEFROST
8. STAR T
For starting a function. When the
oven is switched off, it activates the
“Jet Start” microwave function.
9. DOOR OPENING BUTTON
1
Page 2
ACCESSORIES
WWW
Download the Use and Care Guide at
www.hotpoint.eu for more information
TURNTABLE
Placed on its support, the
glass turntable can be used
with all cooking methods.
The turntable must always be
used as a base plate for other
containers and accessories.
TURNTABLE SUPPORT
Only use the support for the glass
turntable. Do not rest other
accessories on the support.
CR I SP PLATE
Only for use with the specific
“Dynamic Crisp” function.
The crisp plate must always
be placed in the centre of the
glass turntable and can be
preheated when empty, using the special function
for this purpose only. Place the food directly on the
crisp plate.
HANDLE FOR THE CRISP PLATE
Useful for removing the hot
crisp plate from the oven.
WIRE SHELF
This allows you to place food
closer to the grill, for perfectly
browning your dish. Place the
wire shelf on the turntable,
making sure that it does not
come into contact with other surfaces.
COVER IF SUPPLIED
Useful for covering food while it
is cooking or heating in the
microwave.
The cover reduces splashes,
keeps foods moist and can also
be used to create two cooking
levels. It is not suitable with any of the grill
functions (including “Dynamic Crisp”)
.
Other accessories that are not supplied can be purchased separately from the After-sales Service.
There are a number of accessories available on the
market. Before you buy, ensure they are suitable for
microwave use and resistant to oven temperatures.
Metallic containers for food or drink should never be
used during microwave cooking.
Always ensure that foods and accessories do not
come into contact with the inside walls of the oven.
Always ensure that the turntable is able to turn freely
before starting the oven. Take care not to unseat the
turntable whilst inserting or removing other
accessories.
FUNCTIONS
MICROWAVES
For quickly cooking and reheating food or
drinks.
WWW
www.hotpoint.eu for more information
DYNAMIC CRISP
For perfectly browning a dish, both on the
top and bottom of the food. This function must only
be used with the special crisp plate.
POWER RECOMMENDED FOR
Quickly reheating drinks or other foods
750 W
with a high water content or meat and
vegetables.
Cooking fish, meaty sauces, or sauces
500 W
containing cheese or egg. Finishing
off meat pies or pasta bakes.
350 W
160 W
0 W
Slow, gently cooking. Perfect for
melting butter or chocolate.
Defrosting frozen food or softening
butter and cheese.
When using the timer only
DURATION
(min)
3 - 4 Cookies (8- 10 pieces)
7 - 8 Frozen pizza (350 g)
7 - 9 Sponge cake (500 g)
8 - 10 Fish fingers (8 pieces)
9 - 10 Pizza (350 g)
10 - 14 French fries (200 g - 300g)
13 - 15 Quiche Lorraine (500 g)
Required accessories: Crisp plate, handle for the crisp plate
Download the Use and Care Guide at
RECOMMENDED FOR
2
Page 3
EN
GRILL
For browning, grilling and gratins when used
alone. We recommend turning the food
during cooking. For best results, preheat the grill for
3-5 minutes. For quickly cooking and gratinating
dishes, combines with microwaves.
POWER
500 W 14 - 18 Lasagne (400 - 500 g)
500 W 10 - 14 Fish (600 g)
500 W 40 - 50 Chicken (whole; 1-1.2 kg)
350 W 15 - 18 Fish gratin (600 g)
0 W - Browning only
Recommended accessories: wire shelf
DURATION
(min)
RECOMMENDED FOR
DAILY USE
. SELECT A FUNCTION
Simply press the button for the function you require to
select it.
. SET THE LENGTH
After selecting the function you require,
use or to set the length for it to
run.
The time can be changed during cooking by pressing
or or by increasing the length for 30 seconds
each time by pressing
. SET THE POWER OF THE MICROWAVE
Press as many times as required to
select the power level for the microwave.
To use the microwave in combination with the grill,
select the "Grill" function by pressing and then use
to set the microwave power.
Please note: You can also change this setting during cooking by
pressing .
. DYNAMIC DEFROST
Press , then use or to set the
weight of the food.
During defrosting, the
function will pause briefly
to allow you to turn the food.
Once the operation is complete, close the door and
press .
. ACTIVATE THE FUNCTION
Once you have applied the settings you require, press
to activate the function.
You can press at any time to pause the function
that is currently active.
DYNAMIC DEFROST
For quickly defrosting food such as meat,
poultry and fish weighing between 100 g and 2 kg.
Food should be placed directly onto the glass
turntable. Turn the food when prompted.
. SAFETY LOCK
This function is automatically activated
to prevent the oven from being switched
on accidentally. Open and close the door, then press
to start the function.
. PAUSE
To pause an active function, for example to stir or turn
the food, simply open the door. To start it up again,
close the door and press
. JET START
When the oven is switched off, press
cooking with the microwave function set at full power
(750 W) for 30 seconds.
Every time the
time will be increased by a further 30 seconds.
button is pressed again, the cooking
to activate
. SET THE TIME
With the oven switched off, press
until the two digits for the hour (on the
left) starting flashing.
Use or to set the correct hour and press to
confirm: The minutes will flash on the display.
Use or to set the minutes and press to
confirm.
Please note: You may need to set the time again following
lengthy power outages.
. TIMER
When the oven is switched off, the display can be used
as a timer. To activate the function and set the length of
time you require, use
power to 0 W, then press to activate the countdown.
Please note: The timer does not activate any of the
cooking cycles.
To stop the timer at any time, press
or . Press to set the
WWW
Download the Use and Care Guide from www.hotpoint.eu for helpful cooking tables and the table of tested
recipes, compiled for the certification authorities in accordance with standards IEC 60705 and IEC 60350.
3
Page 4
CLEANING
Do not use steam cleaners. Do not use wire wool, abrasive scourers or
abrasive/corrosive cleaning agents, as these could
damage the surfaces of the appliance.
INTERIOR AND EXTERIOR SURFACES
• Clean the surfaces with a damp cloth. If they are very
dirty, add a few drops of pH-neutral detergent. Finish off
with a dry cloth.
• Clean the glass in the door with a suitable liquid
detergent.
• At regular intervals, or in case of spills, remove the
ACCESSORIES
All accessories are dishwasher safe with the exception of
the crisp plate.
The crisp plate should be cleaned using water and a
mild detergent. For stubborn dirt, rub gently with a
cloth. Always leave the crisp plate to cool down before
cleaning.
turntable and its support to clean the bottom of the
oven, removing all food residue. • The grill does not
need to be cleaned as the intense heat burns away any
dirt. Use this function on a regular basis.
TROUBLESHOOTING
WWW
Problem Possible cause Solution
The oven does not work Power cut.
Disconnection from the mains.
Check for the presence of mains electrical
power and whether the oven is connected to
the electricity supply. Turn off the oven and
restart it to see if the fault persists.
Download the Use and Care Guide at
www.hotpoint.eu for more information
The display is showing “Err”. Software fault. Contact you nearest After-sales Service
Centre and state the letter or number that
follows “Err”.
TECHNICAL SPECIFICATION
WWW
A complete specication for the product,
including energy eciency ratings, can be downloaded
from our website
www.hotpoint.eu
CONTACTING OUR AFTER-SALES SERVICE
You can nd our contact details in the warranty manual.
When contacting our After-sales Service, please state
the codes provided on
your product's
HOW TO OBTAIN THE USE AND CARE GUIDE
WWW
>
from our website
Download the Use and Care Guide
www.hotpoint.eu
identication plate.
(you can use this QR code), specifying the
product's commercial code.
> Alternatively, contact our After-sales
Service
XXX/XXX
001
4
400010855555
