Hotpoint KRA 631 T C S, KRA 640 B S, KRA 640 X S User Manual

KRA 640 X S KRA 640 B S KRA 640 C (PL) S KRA 631 T C S KRC 640 X KRC 631 T X KRC 640 B KRC 641 D X KRC 641 D B KRC 741 D Z KRC 631 T B

English

Operating Instructions

HOB Contents

Operating Instructions,1 WARNING,2 Description of the appliance-Control Panel5 Installation,8 Start-up and use,12 Precautions and tips,16 Care and maintenance,17 Technical description of the models,18

Português

Instruções para a utilização

PLANO Índice

Instruções para a utilização,1 ATENÇÃO,2 Descrição do aparelho-Painel de comandos,5 Instalação, 41 Início e utilização, 45 Precauções e conselhos,49 Manutenção e cuidados,50 Descrição técnica dos modelos,51

Français

Mode d’emploi Manutenção e cuidados

TABLE DE CUISSON

Sommaire

Mode d’emploi,1 ATTENTION,2 Description de l’appareil-Tableau de bord, 5 Installation,19 Mise en marche et utilisation,23 Précautions et conseils, 27 Nettoyage et entretien,28 Description technique des modèles,29

Español

Manual de instrucciones

ENCIMERA Sumario

Manual de instrucciones,1 ATENCIÓN,2 Descripción del aparato-Panel de control,5 Instalación,30 Puesta en funcionamiento y uso,34 Precauciones y consejos,38 Mantenimiento y cuidados,39 Descripción técnica de los modelos,40

Deutsch

Bedienungsanleitung KOCHFELD

Inhaltsverzeichnis

Bedienungsanleitung,1

ZUR BEACHTUNG,2

Beschreibung des Gerätes- Bedienfeld,5 Installation, 52 Inbetriebsetzung und Gebrauch,56 Vorsichtsmaßregeln und Hinweise, 60 Reinigung und Pflege, 61 Technische Beschreibung der Modelle, 62

Italiano

Istruzioni per l’uso

PIANO COTTURA Sommario

Istruzioni per l’uso,1 ATTENZIONE,2 Descrizione dell’apparecchio- Pannello di controllo,5 Installazione, 63 Avvio e utilizzo,67 Precauzioni e consigli,71 Manutenzione e cura,72 Descrizione tecnica dei modelli,72

English

WARNING!

• WARNING: The appliance and

its accessible parts become hot during use.

• Care should be taken to avoid

touching heating elements.

• Children less than 8 years of

age shall be kept away unless continuously supervised.

• This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: Unattended cooking

on a hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with

water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do

not store items on the cooking surfaces.

• WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock.

•Never use steam cleaners

or pressure cleaners on the appliance.

•The appliance is not intended to be

operated by means of an external timer or separate remote control system.

Français

ATTENTION !

• ATTENTION : cet appareil ainsi que

ses parties accessibles deviennent très chauds pendant leur fonctionnement.

• Il faut faire attention de ne pas toucher

les éléments chauffants.

•Ne laisser s’approcher les enfants de

moins de 8 ans à moins qu’ils ne soient sous surveillance constante.

• Le présent appareil peut être utilisé par

des enfants de plus de 8 ans et par des personnes présentant des capacités physiques, sensorielles ou mentales réduites ou n’ayant pas l’expérience ou les connaissances nécessaires, à condition qu’ils soient sous bonne surveillance ou qu’ils aient reçu les instructions nécessaires pour une utilisation de l’appareil en toute sécurité et à condition qu’ils se rendent compte des dangers encourus. Les enfants ne doivent pas jouer avec l’appareil. Les opérations de nettoyage et d’entretien ne doivent pas être effectuées par des enfants non surveillés.

• ATTENTION : laisser un récipient de

cuisson contenant de l’huile ou de la graisse sur le foyer est dangereux et risque d’entraîner un incendie

• Il ne faut JAMAIS essayer d’éteindre

une flamme ou un incendie avec de l’eau ! Il faut éteindre l’appareil et couvrir la flamme avec un couvercle, par exemple, ou avec une couverture anti-feu.

• ATTENTION : risque d’incendie : ne

pas laisser d’objets sur les surfaces de cuisson.

• ATTENTION : si la surface

vitrocéramique est fêlée, éteindre l’appareil afin d’éviter tout risque d’électrocution.

• Ne jamais nettoyer l’appareil avec des

nettoyeurs vapeur ou haute pression.

•Cet appareil ne peut pas être allumé au

moyen d’un temporisateur extérieur ou d’un système de commande à distance séparé.

Español

ATENCIÓN !

Português

ATENÇÃO !

• ATENCIÓN: Este aparato y sus

partes accesibles se calientan mucho durante el uso.

• Por lo tanto, es importante evitar

tocar los elementos calentadores.

• Mantenga alejados a los niños

menores de 8 años si no son continuamente vigilados.

• El presente aparato puede ser

utilizado por niños mayores de 8 años y por personas con capacidades físicas, sensoriales o mentales disminuidas o sin experiencia ni conocimientos, si se encuentran bajo una adecuada vigilancia o si han sido instruidos sobre el uso del aparato de modo seguro y comprenden los peligros relacionados con el mismo. Los niños no deben jugar con el aparato. Las operaciones de limpieza y de mantenimiento no deben ser realizadas por niños sin vigilancia.

• ATENCIÓN: Dejar un quemador

con grasas o aceites sin vigilancia puede ser peligroso y provocar un incendio.

• NUNCA intente apagar una llama/

incendio con agua, se debe apagar el aparato y cubrir la llama, por ejemplo, con una tapa o con una manta ignífuga.

• ATENCIÓN: Riesgo de incendio: no

deje objetos sobre las superficies de cocción.

• ATENCIÓN: Si la superficie de

vitrocerámica está agrietada, apague el aparato para evitar sacudidas eléctricas.

• No utilice nunca limpiadores a

vapor o de alta presión para la limpieza del aparato.

• El aparato no se debe poner en

funcionamiento a través de un temporizador externo o de un sistema de mando a distancia.

• ATENÇÃO: Este aparelho e as suas

partes acessíveis aquecem muito durante a utilização.

• É preciso ter atenção e evitar tocar os

elementos que aquecem.

• Manter afastadas as crianças com

menos de 8 anos, caso não estejam a ser vigiadas.

• O presente aparelho pode ser

utilizado por crianças com mais de 8 anos e por pessoas com capacidades físicas, sensoriais ou mentais reduzidas ou com pouca experiência e conhecimentos, caso sejam adequadamente vigiadas ou caso tenham recebido instruções em relação ao uso do aparelho de forma segura e tenham conhecimento dos perigos associados. As crianças não devem brincar com o aparelho. As operações de limpeza e manutenção não devem ser efectuadas por crianças sem vigilância.

• ATENÇÃO: Deixar um fogão com

gordura e óleo sem vigilância pode ser perigoso e provocar um incêndio.

• NUNCA tente apagar as chamas

com água. É necessário desligar o aparelho e cobrir as chamas com uma tampa ou com uma manta ignífuga.

• ATENÇÃO: Risco de incêndio: não

deixe objectos sobre as superfícies de cozedura.

• ATENÇÃO: Se a superfície

vitrocerâmica estiver rachada, desligue o aparelho para evitar a possibilidade de choques eléctricos.

• Nunca utilize equipamento de limpeza

a vapor ou de alta pressão para limpar o aparelho.

• O aparelho não é destinado a ser

colocado em funcionamento por meio de um temporizador externo ou por um sistema de comando à distância separado.

Deutsch

ZUR BEACHTUNG !

Italiano

ATTENZIONE!

• ZUR BEACHTUNG: Bei Gebrauch wird

dieses Gerät und alle zugänglichen Teile sehr heiß.

• Es ist darauf zu achten, dass die

Heizelemente nicht berührt werden.

• Kinder unter 8 Jahren, die nicht ständig

beaufsichtigt sind, von dem Gerät fernhalten.

• Das Gerät darf von Kindern ab 8 Jahren

und Personen mit eingeschränkten körperlichen, geistigen oder Wahrnehmungsfähigkeiten oder aber ohne ausreichende Erfahrung und Kenntnis verwendet werden, vorausgesetzt sie werden ausreichend überwacht oder sie wurden in den sicheren Gebrauch des Geräts eingewiesen und haben eine ausreichende Wahrnehmung der mit dem Gebrauch des Geräts verbundenen Gefahren. Erlauben Sie Kindern nicht, mit dem Gerät zu spielen. Reinigungsund Wartungsarbeiten dürfen nicht von unbewachten Kindern ausgeführt werden.

• ZUR BEACHTUNG: Lassen Sie keine

Fette oder Öle unbewacht auf dem Herd stehen. Das ist gefährlich und kann einen Brand verursachen.

• NIEMALS eine Flamme/Brandherd mit

Wasser löschen. Schalten Sie das Gerät aus und ersticken Sie die Flamme mit einem Deckel oder einer feuerfesten Decke.

• ZUR BEACHTUNG: Brandgefahr: Keine

Gegenstände auf den Kochstellen liegen lassen.

• ZUR BEACHTUNG: Sollte die

Glaskeramitoberfläche gesprungen sein, schalten Sie das Gerät aus, um so mögliche Stromschläge zu vermeiden.

• Verwenden Sie zur Reinigung des

Kochfeldes keine Dampf- oder Hochdruckreinigungsgeräte.

• Dieses Gerät kann nicht mit einem

externen Timer oder einem getrennten Fernsteuerungssystem betrieben werden.

• ATTENZIONE: Questo apparecchio e

le sue parti accessibili diventano molto caldi durante l’uso.

• Bisogna fare attenzione ed evitare di

toccare gli elementi riscaldanti.

• Tenere lontani i bambini inferiori agli 8

anni se non continuamente sorvegliati.

• Il presente apparecchio puo’ essere

utilizzato dai bambini a partire dagli 8 anni e da persone con ridotte capacita’ fisiche, sensoriali o mentali oppure con mancanza di esperienza e di conoscenza se si trovano sotto adeguata sorveglianza oppure se sono stati istruiti circa l’uso dell’apparecchio in modo sicuro e se si rendono conto dei pericoli correlati. I bambini non devono giocare con l’apparecchio. Le operazioni di pulizia e di manutenzione non devono essere effettuate dai bambini senza sorveglianza.

• ATTENZIONE: Lasciare un fornello

incustodito con grassi e olii puo’ essere pericoloso e puo’ provocare un incendio.

• Non bisogna MAI tentare di spegnere

una fiamma/incendio con acqua, bense bisogna spegnere l’apparecchio e coprire la fiamma per esempio con un coperchio o con una coperta ignifuga

•ATTENZIONE: Rischio di incendio:

non lasciare oggetti sulle superfici di cottura.

•ATTENZIONE: Se la superficie

vetroceramica e’ incrinata, spegnere l’apparecchio per evitare la possibilit? di scossa elettrica.

•Non utilizzare mai pulitori a vapore

o ad alta pressione per la pulizia dell’apparecchio.

•L’apparecchio non e’ destinato a

essere messo in funzione per mezzo di un temporizzatore esterno oppure di un sistema di comando a distanza separato.

3 5

9 10

The control panel described in this manual is only a representative example: it may not exactly match the panelon your appliance.

Description of the appliance

Control panel

1 INCREASE POWER button switches on the hotplate

and controls the power (see Start-up and use).

2 REDUCE POWER button controls the power and

switches off the hotplate (see Start-up and use).

3 COOKING ZONE SELECTOR indicator shows a

particular cooking zone has been selected and therefore various adjustments are possible.

4 COOKING ZONE SELECTOR button is used to

select the desired cooking zone.

5 POWER indicator provides a visual display for the

current heat level.

6 ON/OFF button switches the appliance on and off. 7 ON/OFF indicator light shows whether the appliance

is on or off.

8 PROGRAMME TIMER* button controls the cooking

programme times (see Start-up and use).

9 PROGRAMME TIMER* display shows which

programme has been selected (see Start-up and use).

10 COOKING ZONE PROGRAMMED* indicator lights

show which cooking zones are being used during a cooking programme (see Start-up and use).

11 CONTROL PANEL LOCK button prevents

accidental changes to the hob settings (see Start-up and use).

12 CONTROL PANEL LOCK indicator light shows the

control panel has been locked (see Start-up and use).

13 TIMER* indicator light shows that the timer has been

activated

! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the .off mode.. The appliance resumes the operating mode once the ON/OFF button is pressed.

Le tableau de bord qui est décrit n.a qu.une valeur d.exemple :

il peut ne pas correspondre au modèle acheté.

Description de l’appareil

Tableau de bord

1 Touche AUGMENTATION DE PUISSANCE pour allumer

le foyer et régler sa puissance (voir Mise en marche et utilisation).

2 Touche DIMINUTION DE PUISSANCE pour régler la

puissance et éteindre le foyer (voir Mise en marche et utilisation).

3 Voyant FOYER SELECTIONNE pour signaler que le foyer

correspondant a été sélectionné et que les régulations sont donc possibles.

4 Touche SELECTION FOYER pour sélectionner le foyer

souhaité

5 Indicateur de PUISSANCE : une colonne lumineuse pour

signaler le niveau de puissance atteint.

6 Touche ON/OFF pour allumer ou éteindre l’appareil. 7 Voyant ON/OFF : il signale si l’appareil est allumé ou

éteint.

8 Touche PROGRAMMATEUR* pour programmer la durée

d’une cuisson (voir Mise en marche et Utilisation).

9 Afficheur PROGRAMMATEUR* : pour afficher les choix

correspondant à la programmation (voir Mise en marche et utilisation).

10 Voyants FOYER PROGRAMMÉ* : ils indiquent les foyers

quand une programmation est lancée (voir Mise en marche et utilisation).

11 Touche VERROUILLAGE DES COMMANDES pour

empêcher toute intervention extérieure sur les réglages de la table de cuisson (voir Mise en marche et Utilisation).

12 Voyant COMMANDES VERROUILLEES : pour signaler

le verrouillage des commandes (voir Mise en marche et Utilisation).

13 Voyant MINUTEUR* il signale que le minuteur est activé

! Ce produit est conforme à la nouvelle Directive Européenne sur la réduction de la consommation d’énergie en mode standby. Sans opérations pendant 2 minutes, après l’extinction des voyants de chaleur résiduelle et l’arrêt du ventilateur (si existants), l’appareil se place automatiquement en “off mode”. Pour remettre l’appareil en mode de fonctionnement normal, appuyer sur la touche ON/OFF.

* Only available in certain models. * N’existe que sur certains modèles

Descripción del aparato

Panel de control

Descrição do aparelho

Painel de comandos

El panel de control se describe a continuación a modo de ejemplo: puede no ser una exacta reproducción del modelo adquirido.

1 Botón AUMENTO DE POTENCIA para encender

la placa y regular la potencia (ver Puesta en funcionamiento y uso).

2 Botón DISMINUCIÓN DE POTENCIA para regular

la potencia y apagar la placa (ver Puesta en funcionamiento y uso).

3 Piloto ZONA DE COCCIÓN SELECCIONADA indica

que ha sido seleccionada dicha zona de cocción y, por lo tanto, se pueden realizar las distintas regulaciones

4 Botón SELECCIÓN DE ZONA DE COCCIÓN para

seleccionar la zona de cocción deseada

5 Indicador de POTENCIA: indica visualmente el nivel

de calor alcanzado.

6 Botón ON/OFF para encender y apagar el aparato. 7 Piloto ON/OFF: indica si el aparato está encendido o

apagado.

8 Botón TEMPORIZADOR DE PROGRAMACIÓN*

para programar la duración de una cocción (ver Puesta en funcionamiento y uso).

9 Display TEMPORIZADOR DE PROGRAMACIÓN*:

visualiza las selecciones correspondientes a la programación (ver Puesta en funcionamiento y uso).

10 Pilotos ZONA DE COCCIÓN PROGRAMADA*:

indican las zonas de cocción cuando comienza una programación (ver Puesta en funcionamiento y uso).

11 Botón BLOQUEO DE MANDOS para impedir

modificaciones fortuitas a las regulaciones de la encimera (ver Puesta en funcionamiento y uso).

12 Piloto MANDOS BLOQUEADOS: indica que se ha

producido el bloqueo de los mandos (ver Puesta en funcionamiento y uso).

13Piloto CONTADOR DE MINUTOS* indica que se ha

activado el contador de minutos

! Este producto satisface los requisitos establecidos por la nueva Directiva europea sobre la limitación de los consumos energéticos en standby. Si no se realizan operaciones por 2 minutos, una vez que se apagan los luces piloto del calor residual y del ventilador (si están presentes), el aparato se coloca de forma automática en el modo .off mode.. El aparato vuelve al modo operativo utilizando la

tecla ON/OFF.

O painel de comandos descrito a seguir está representado para fins explicativos: pode não ser uma exacta reprodução do modelo comprado.

1 Botão AUMENTO POTÊNCIA para ligar a chapa e

regular a potência (veja Início e utilização).

2 Botão DIMINUIÇÃO POTÊNCIA para regular a

potência e desligar a chapa (veja Início e utilização).

3 Indicador luminoso ZONA DE COZEDURA

SELECCIONADA indica que a zona de cozedura relativa foi seleccionada e são portanto possíveis as várias regulações.

4 Botão SELECÇÃO ZONA DE COZEDURA para

seleccionar a zona de cozedura desejada.

5 Indicador POTÊNCIA sinaliza visualmente o nível de

calor alcançado.

6 Botão ON/OFF para ligar e desligar o aparelho. 7 Indicador ON/OFF: sinaliza se o aparelho está

aceso ou apagado.

8 Botão TIMER DE PROGRAMAÇÃO para regular a

programação da duração de uma cozedura (veja Início e utilização).

9 Display TIMER DE PROGRAMAÇÃO: visualiza

as escolhas relativas à programação (veja Início e utilização).

10 Indicadores luminosos ZONA DE COZEDURA

PROGRAMADA: indicam as zonas de cozedura quando se inicia uma programação (veja Início e utilização).

11 Botão BLOQUEIO DOS COMANDOS para impedir

modificações acidentais das regulações do plano de cozedura (veja Início e utilização).

12 Indicador luminoso COMANDOS BLOQUEADOS:

sinaliza o bloqueio dos comandos (veja Início e utilização).

13 Indicador luminoso CONTADOR DE MUNITOS*

indica que está activo o contador de minutos.

! Este produto satisfaz os requisitos impostos pela nova Directiva Europeia sobre a limitação dos consumos energéticos em stand-by. Se não se efectuarem operações por 2 minutos, depois que os indicadores de calor resíduo e da ventoinha (se presentes) se desligarem, o aparelho coloca-se automaticamente na modalidade .off mode.. O aparelho voltará para a modalidade operativa ao carregar na tecla ON/OFF.

* Presente sólo en algunos modelos.

* Há somente em alguns modelos.

Beschreibung des Gerätes

Bedienfeld

Descrizione dell’apparecchio

Pannello di controllo

Das hier beschriebene Bedienfeld dient nur als Beispiel, es handelt sich nicht unbedingt um eine genaue Widergabe des von Ihnen erworbenen Modells.

1 Taste ERHÖHEN DER LEISTUNG: Zum Einschalten

sowie zur Leistungsregelung der Kochzone (siehe Inbetriebsetzung und Gebrauch).

2 Taste HERABSETZEN DER LEISTUNG: Zur

Leistungsregelung sowie zum Ausschalten der Kochzone (siehe Inbetriebsetzung und Gebrauch).

3 Kontrollleuchte GEWÄHLTE KOCHZONE: Diese zeigt an,

dass die der Kontrollleuchte entsprechende Kochzone gewählt wurde und die gewünschten Einstellungen demnach vorgenommen werden können.

4 Taste WAHL DER KOCHZONE: Mittels dieser wird die

gewünschte Kochzone gewählt.

5 LEISTUNGSANZEIGE: Auf dieser ist der jeweils erreichte

Heizwert ersichtlich.

6 Taste ON/OFF: Zum Ein- bzw. Ausschalten des Gerätes.

7 Kontrollleuchte ON/OFF: Diese zeigt an, ob das Gerät ein-

oder ausgeschaltet ist.

8 Taste PROGRAMMIERUNGSTIMER*: Mittels dieser Taste

kann die für jede Kochzone jeweils programmierte Zeit reguliert werden (siehe Inbetriebsetzung und Gebrauch).

9 Display PROGRAMMIERUNGSTIMER*: Auf diesem

Display werden die jeweils programmierten Zeiten angezeigt (siehe Inbetriebsetzung und Gebrauch).

10 Kontrollleuchten PROGRAMMIERTE KOCHZONE*: Diese

zeigen die Kochzonen an, die programmiert wurden (siehe Inbetriebsetzung und Gebrauch).

11 Taste SPERRE DER SCHALTELEMENTE: Um

versehentliche Änderungen der am Kochfeld erfolgten Einstellungen zu verhindern (siehe Inbetriebsetzung und Gebrauch).

12 Kontrollleuchte SCHALTELEMENTE GESPERRT: Diese

signalisiert, dass die Schaltelemente gesperrt wurden (siehe Inbetriebsetzung und Gebrauch).

13Kontrollleuchte KURZZEITWECKER*: Diese signalisiert,

dass der Kurzzeitwecker läuft

Il pannello di controllo che qui viene descritto è rappresentato a fini esemplificativi: può non essere una esatta riproduzione del modello acquistato.

1 Tasto AUMENTO POTENZA per accendere la

piastra e regolare la potenza (vedi Avvio e utilizzo).

2 Tasto DIMINUZIONE POTENZA per regolare la

potenza e spegnere la piastra (vedi Avvio e utilizzo).

3 Spia ZONA DI COTTURA SELEZIONATA indica

che la zona di cottura relativa è stata selezionata e quindi sono possibili le varie regolazioni

4 Tasto SELEZIONE ZONA DI COTTURA per

selezionare la zona di cottura desiderata

5 Indicatore POTENZA: segnala visivamente il livello

di calore raggiunto.

6 Tasto ON/OFF per accendere e spegnere

l’apparecchio.

7 Spia ON/OFF: segnala se l’apparecchio è acceso o spento. 8 Tasto TIMER DI PROGRAMMAZIONE* per regolare

la programmazione della durata di una cottura (vedi Avvio e utilizzo).

9 Display TIMER DI PROGRAMMAZIONE*: visualizza

le scelte relative alla programmazione (vedi Avvio e utilizzo).

10 Spie ZONA DI COTTURA PROGRAMMATA*:

indicano le zone di cottura quando si avvia una programmazione (vedi Avvio e utilizzo).

11 Tasto BLOCCO DEI COMANDI per impedire

modifiche fortuite alle regolazioni del piano cottura (vedi Avvio e utilizzo).

12 Spia COMANDI BLOCCATI: segnala l’avvenuto

blocco dei comandi (vedi Avvio e utilizzo).

13Spia CONTAMINUTI* indica che è attivo il

contaminuti

! Questo prodotto soddisfa i requisiti imposti dalla nuova Direttiva Europea sulla limitazione dei consumi energetici in standby. Se non si eseguono operazioni per 2 minuti, dopo lo spegnimento delle spie di calore residuo e della ventola (ove presenti), l’apparecchio si dispone automaticamente in modalità “off mode”. L’apparecchio ritorna in modalità operativa agendo sul tasto ON/OFF.

! Dieses Produkt entspricht den Vorschriften der neuen Europäischen Richtlinie zur Einschränkung des Energieverbrauchs im Standby. Werden für 2 Minuten keine Tasten gedrückt, dann stellt sich das Gerät nach Ausschalten der Anzeigen für Resthitze und des Lüfters (wenn vorhanden) automatisch in den “off mode”. Das Gerät kehrt durch Drücken der Taste ON/OFF in den Betriebsmodus zurück.

* Nur bei einigen Modellen.

* Presente solo in alcuni modelli.

Installation

690

520

560 +/- 1

490 +/- 1

! Before operating your new appliance please read

this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to any new owners of the appliance.

Positioning

! Keep all packaging material out of the reach of

children. It may present a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified

professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance functions properly.

• The supporting surface must be heat-resistant up to a temperature of approximately 100°C.

• If the appliance is to be installed above an oven, the oven must be equipped with a forced ventilation cooling system.

• Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances.

• Depending on the hob you want to install, the cabinet must have the following dimensions (see  gure):

590

520

574

504

5 mm

UNDERSIDE OF HOB

min. 20 mm

COMPARTMENT

min. 40 mm

min. 20 mm

FAN-ASSISTED

OVEN

min. 40 mm

FRONT SIDE OF HOB

SUPPORTING SURFACE

560 +/- 1

490 +/- 1

560 +/- 1

Ventilation

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

• At a minimum distance of 40 mm from the back panel.

• So that a minimum distance of 20 mm is maintained between the installation cavity and the cabinet underneath.

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.

490 +/- 1

Fixing

The appliance must be installed on a perfectly level

supporting surface. Any deformities caused by improper fixing could affect the features and operation of the hob.

The thickness of the supporting surface

into account when choosing

the length of the screws for

should be taken

the fixing hooks:

• 30 mm thick: 17.5 mm screws

• 40 mm thick: 7.5 mm screws Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment springs in the holes provided at the central point of each side of the hob.

2. Place the hob in the cavity, make sure it is in a central position and push down on the whole perimeter until the hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob into its cavity, insert the 4 fixing hooks (each has its own pin) into the lower edges of the hob, using the long pointed screws to fix them in place, until the glass is stuck to the supporting surface.

! The screws for the alignment springs must remain

accessible.

! In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it has been installed.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a tool.

Electrical connection

connection. Connect the wires in accordance with the instructions given in the following table and diagrams:

Voltage and

mains frequency

230-240V 1+N ~ 220-240V 1+N ~

50/60 Hz

Electrical cable Wire connection

: yellow/green

: the two blue wires together

: brown and black together

Other types of connection

If the mains supply corresponds with one of the following:

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

• 230-240V 3 ~ 50/60 Hz

• 400V - 2+2N ~ 50/60 Hz

Separate the wires and connect them in accordance with the instructions given in the following table and diagrams:

Voltage and

mains frequency

400V - 2+N ~

50/60 Hz

230-240V 3 ~ 220-240V 3 ~

50/60 Hz

400V - 2+2N ~

50/60 Hz

Electrical cable Wire connection

: yellow/green;

N: the two blue wires together

L1: black L2: brown

: yellow/green;

N1: blue N2: blue L1: black L2: brown

If the mains supply corresponds with one of the following: Voltage and mains frequency

• 400V 3 - N ~ 50/60 Hz proceed as follows:

! The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety purposes and to make extracting the oven easier.

Terminal board

On the lower part of the appliance there is a connection box for the different types of electricity

supply (the picture is only

UNDERSIDE OF HOB

an indication and is not an exact representation of the purchased model).

Single-phase connection

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase

! The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher, with the right dimensions (cable cross section: 25 mm).

2. To open the terminal board, use a screwdriver as a lever under the side tabs of the cover (see Terminal board picture).

3. Loosen the cable clamp screw and the terminal board screws in accordance with the type of connection required and position the connection supports as shown in the following table and diagrams.

4. Position the wires in accordance with the information given in the following table and diagrams and connect the appliance by tightening all the screws for the springs as much as possible.

Voltage and

mains frequency

400V 3-N ~

50/60 Hz

Electrical connections Terminal board

Three-phase 400

5. Secure the power supply cable by fastening the

cable clamp screw, then put the cover back on.

Phase Phase Phase

replacement/removal of the original power supply cable. Replacement can only be accepted when carried out by personnel authorised by INDESIT and using an original spare part.

Three-phase 400

Connecting the

Earth

Neutral

U-bolt

connection support

electricity supply cable to the mains

If the appliance is being connected directly to the electricity mains an omnipolar switch must be installed with a minimum opening of 3 mm between contacts.

! The installer must ensure that the correct electrical

connection has been made and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself.

• The voltage falls within the range of values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only.

! The manufacturer declines any liability should

these safety measures not be observed.

! Do not remove or replace the power supply cable for any reason. Its removal or replacement will void the warranty and the CE marking. INDESIT does not assume liability for accidents or damage arising from

Extendable cooking zones

OVAL HOTPLATE ON

indicator light

OVAL PLATE ON

button

Certain models are fitted with extendable cooking zones. These may be circular or oval and may vary in their extensibility (they may be double or triple hotplates). A list of controls is given below (these controls are only present in models with the extendable cooking zone option).

Circular extendable hotplate

DOUBLE HOTPLATE ON

indicator light

DOUBLE HOTPLATE ON

button

TRIPLE HOTPLATE ON

indicator light

TRIPLE HOTPLATE ON

button

• DOUBLE HOTPLATE ON button switches on the

double hotplate (see Start-up and use).

• DOUBLE HOTPLATE ON indicator light shows

the double hotplate has been switched on.

• TRIPLE HOTPLATE ON button switches on the

triple hotplate (see Start-up and use).

• TRIPLE HOTPLATE ON indicator light shows the

triple hotplate has been switched on.

Oval extendable hotplate

• OVAL HOTPLATE ON button switches on the oval

hotplate (see Start-up and use).

• OVAL HOTPLATE ON indicator light shows the oval

hotplate has been switched on.

Start-up and use

! The glue applied on the gaskets leaves traces of

grease on the glass. Before using the appliance, we recommend you remove these with a special nonabrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

! A few seconds after the hob is connected to the

electricity supply, a buzzer will sound. The hob may now be switched on.

! If the - or + button is pressed for an extended

period of time, the display scrolls quickly though the power levels and timer minutes.

Switching on the hob

To switch the hob on, press and hold the button for approximately one second.

Switching on the cooking zones

Each cooking zone is controlled using a selector button

To switch off a cooking zone, select it using the

corresponding selector button

• Press the will progressively decrease until it is switched off.

- button: the power of the cooking zone

and:

Heating elements

Two types of heating element may be installed, depending on the appliance model: halogen and radiant elements. Halogen elements emit heat via radiation from the halogen lamps they contain. They have similar properties to gas burners: they are easy to control and reach set temperatures quickly, allowing you to see the power level instantly. Radiant elements consist of a series of coils which allow heat to be distributed evenly at the base of the cookware, so that all slow-flame cooking may be performed successfully, for example stews, sauces or reheated dishes.

Programming the cooking duration

and a power adjustment device consisting of a

double

• To begin operating a cooking zone, press the corresponding control button and set the desired

power level (between 0 and 9) using the buttons

and

- and + button.

Power function

The power function for the cooking zones may be used to shorten heating-up times. Activate and set the power

level for the desired cooking zone in the previous paragraph. Press and hold the selector

button corresponding to the desired cooking zone for at least 2 seconds. The display, the power level indicator, will alternately show the letter “P” and the power level set previously until the desired power level has been reached. Once this level has been reached, the display will revert to showing the set power level. To deactivate this function, press and hold – for at least 2 seconds - the selector button corresponding to

the cooking zone on which the activated; alternatively, select a different power level

using the buttons

- and +.

as described

function has been

Switching off the cooking zones

! All the cooking zones may be programmed simultaneously, for a duration between 1 and 99 minutes.

1. Select the cooking zone using the corresponding selector button.

2. Adjust the power level of the cooking zone.

3. Press the light corresponding to the selected zone will start flashing.

4. Set the cooking duration using the buttons.

5. Confirm by pressing the selection occurs after 10 seconds. The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished. Repeat the above procedure for each hotplate you wish to programme.

Using multiple programmes and the display

If one or more hotplates are programmed, the display will show the data for the hotplate with the least time remaining, and the light corresponding to the position of the hotplate will flash. The lights corresponding to the other hotplates

programming button. The indicator

- and +

button or automatic

programmed will be switched on. To visualise the time remaining for the other programmed

hotplates, press the remaining for each hotplate will be shown sequentially in a clockwise order, starting from the front left hotplate.

Changing the programme

1. Press the you wish to change is shown.

2. Use the

buttons to set the new duration.

button repeatedly: the time

button repeatedly until the duration

Press the button to switch the appliance off. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function.

“Demo” mode

It is possible to set the hob to a demonstration mode where all the controls work normally but the heating elements do not switch on. To activate the “demo” mode the hob must be switched on, with all the hotplates switched off.

3. Confirm by pressing the

To cancel a programme, follow the above instructions.

At step 2, press the progressively until it reaches 0 and switches off. The programme resets and the display exits programming mode.

- button: the duration decreases

button.

Timer

The hob must be switched on. The timer can be used to set a duration up to 99 minutes.

1. Press the

indicator light is illuminated

2. Set the desired duration using the

3. Confirm by pressing the The timer begins counting down immediately. When the time has elapsed, a buzzer will sound (for one minute).

programming button until the timer

- and + buttons.

button.

• Press and hold the simultaneously for 6 seconds. When the 6 seconds have elapsed, the ON/OFF and CONTROLS LOCKED indicator lights will flash for one second.

Release the button;

• The display will show the text DE and MO and the hob will be switched off.

• When the hob is switched on again it will be set to the “demo” mode.

To exit this mode, follow the procedure described above. The display will show the text DE and OF and the hob will be switched off. When it is next switched on, the hob will function normally.

+ and - buttons

+ and - buttons and press the

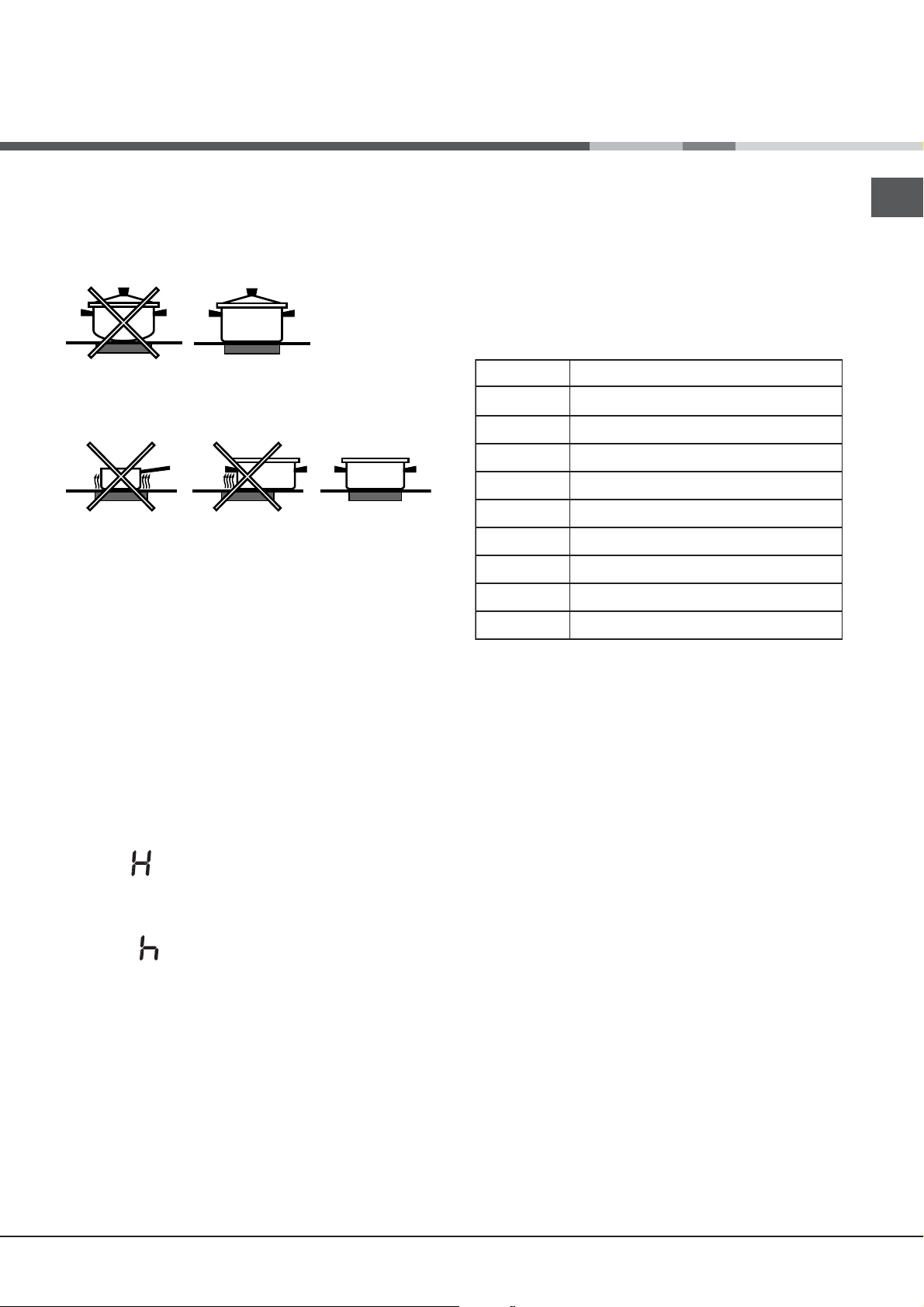

Practical advice on using the appliance

To obtain the best results from your hob:

• Use pans with a thick, flat base in order to fully utilise the cooking zone.

Control panel lock

When the hob is switched on, it is possible to lock the oven controls in order to avoid accidental changes being made to the settings (by children, during

cleaning, etc.). Press the panel: the indicator light above the button will switch on. To use any of the controls (e.g. to stop cooking), you

must switch off this function. Press the few moments, the indicator light will switch off and the lock function will be removed.

button to lock the control

button for a

Switching off the hob

• Always use pans with a diameter which is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the base of the cookware is always clean and dry, in order to fully utilise and extend the life of both the cooking zones and the cookware.

• Avoid using the same cookware which has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly.

Safety devices

Residual heat indicators

Each cooking zone is equipped with a residual heat indicator. This indicator signals which cooking zones are still at a high temperature. If the power display

shows for example, to keep a dish warm or melt butter or chocolate. As the cooking zone cools, the power

display will show cooking zone has cooled sufficiently.

Overheating protection

If the electronic elements overheat, the hob switches

off automatically and followed by a flashing number. When the temperature has reached a suitable level, this message disappears and the hob may be used again.

Safety switch

The appliance has a safety switch which automatically switches the cooking zones off after they have been in operation for a certain amount of time at a particular power level. When the safety switch has been triggered, the display shows “0”.

, the cooking zone is still hot. It is possible,

. The display switches off when the

F appears on the display,

For example: the right rear hotplate is set to 5 and will switch off after 5 hours of continuous operation, while the front left hotplate is set to 2 and will switch off after 8 hours.

Power level

Maximum operating time in hours

Buzzer

This can also indicate several irregularities:

• An object (a pan, cutlery, etc.) has been placed on

the control panel for more than 10 seconds.

• Something has been spilt on the control panel.

• A button has been pressed for too long. All of the

above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off.

Practical cooking advice

cooking

Very high-flame

•

cooking

High-flame

¶ ¶

Pressure cooking Pressure cooker

Grilling Boiling

Crêpes Cooking on a high flame and browning

Fast thickening (liquid juices) Boiling water (pasta, rice, vegetables) Milk

Slow thickening (dense juices)

Frying

(roasts, steaks, escalopes, fish fillets, fried eggs)

Medium-flame cookingLow-flame

S ¢

cooking

™ ™

Very

cooking

low-flame

Bain-marie cooking Pressure cooking after whistle

Low-flame cooking (stews)

Chocolate sauce Keeping food hot

Reheating dishes

Precautions and tips

! This appliance has been designed and manufactured

in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance conforms to the following European Economic Community directives:

- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments;

- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments;

- 93/68/EEC dated 22/07/93 and subsequent amendments.

- 1275/2008 stand-by/off mode.

General safety

! Make sure that the air inlet behind the fan grille is

never obstructed. The built-in hob should, in fact, be provided with suitable ventilation for the cooling of the electronic components used in the appliance.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance when barefoot or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board.

• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob.

• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use).

• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces which are still hot, they may cause serious damage to the hob.

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not look at the halogen lamps in the cooking zones for long if they are present.

• Do not let children play with the appliance.

• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot..

• The appliance is not intended to be operated by

means of an external timer or separate remotecontrol system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For further information relating to the correct

disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Care and maintenance

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

Never use steam cleaners or pressure cleaners on the

appliance.

• It is usually sufficient simply to wash the hob using

a damp sponge and dry it with absorbent kitchen towel.

• If the hob is particularly dirty, rub it with a special

glass ceramic cleaning product, then rinse well and dry thoroughly.

• To remove more stubborn dirt, use a suitable

scraper. Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can achieve excellent results by using a rust-proof steel wire sponge specifically designed for glass ceramic surfaces soaked in soapy water.

Stainless steel frame (only in models with outer frame) Stainless steel can be marked by hard water which has

been left on the surface for a long time, or by cleaning products containing phosphorus. After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly.

Some hobs have an aluminium frame which is

similar to stainless steel. Do not use any cleaning or degreasing products which are not suitable for use with aluminium.

Disassembling the hob

If it is necessary to disassemble the hob:

1. Loosen the screws fixing the alignment springs on each side.

2. Loosen the screws holding the fixing hooks in each corner.

3. Take the hob out of its installation cavity.

! Do not attempt to repair the appliance yourself. If the

appliance breaks down, contact a Service Centre.

• If any plastic or sugary substances are accidentally

melted on the hob, remove them immediately with the scraper, while the surface is still hot.

• Once it is clean, the hob may be treated with

a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance task should be carried out while the appliance is warm (not hot) or cold.

• Always remember to rinse the appliance well with

clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Hobs

Cooking zone

Back Left

Back Right

Front Left

Front Right

Total power

Power (W)

H 2300

H 1400

H 1200

H 1800

Diameter (mm)

210

160

145

180

6700

Power (W)

HD 2200/1000

H 1400

H 1200

H 1800

Diameter (mm)

210/140

160

145

180

6600

Hobs

Cooking zone

Back Right

Centre Left

Front Right

Total power

Power (W)

H 1400

HT 2700/1950/1050

H 1800

Diameter (mm)

160

270/210/145

180

5900

KRC 641 D X KRC 641 D B KRC 741 D Z

KRA 640 B S KRA 640 C (PL) S KRC 640 B KRC 640 X

KRA 631 T C S KRC 631 T X KRC 631 T B

KRA 640 X S

Technical description of the models

This table provides a model-by-model list of the energy absorption values, type of heating elements and diameters of each cooking zone.

Key:

H = single hilight HO = oval hilight HD = double hilight HT = triple hilight A = single halogen AD = double halogen

Installation

560 +/- 1

490 +/- 1

590

520

5 mm

min. 20 mm

min. 40 mm

TIROIR

5 mm

min. 40 mm

CHALEUR

TOURNANTE

! Conserver ce mode d’emploi pour pouvoir le

consulter à tout moment. En cas de vente, de cession ou de déménagement, veiller à ce qu’il suive l’appareil pour informer le nouveau propriétaire sur son fonctionnement et lui fournir les conseils correspondants.

! Lire attentivement les instructions : elles contiennent

des conseils importants sur l’installation, l’utilisation et la sécurité de cet appareil.

Positionnement

! Les emballages ne sont pas des jouets pour

enfants, il faut les mettre au rebut en respectant la réglementation sur le tri sélectif des déchets (voir Précautions et conseils).

! L’installation doit être effectuée par un professionnel

du secteur conformément aux instructions du fabricant. Une mauvaise installation peut causer des dommages à des personnes, des animaux ou des biens.

Encastrement

Pour garantir le bon fonctionnement de l’appareil, il faut que le meuble possède des caractéristiques bien précises :

• le matériau du plan d’appui doit pouvoir résister à

une température d’environ 100°C;

• en cas d’installation de la table de cuisson au-

dessus d’un four, il faut que ce dernier soit équipé d’un dispositif de refroidissement par ventilation forcée ;

• éviter d’installer la table de cuisson au-dessus d’un

lave-vaisselle : si c’est le cas, prévoir une séparation étanche entre les deux appareils ;

• selon la table de cuisson à installer (voir  gures),

la découpe du meuble doit avoir les dimensions suivantes :

TABLE DE CUISSON RETOURNÉE

CÔTÉ AVANT DE LA TABLE DE CUISSON

PLAN DE TRAVAIL

574

490 +/- 1

560 +/- 1

690

490 +/- 1

520

560 +/- 1

Aération

Pour permettre une bonne aération et pour éviter toute surchauffe des surfaces autour de l’appareil, la table de cuisson doit être positionnée :

• à au moins 40 mm de distance du mur arrière;

• de manière à ce qu’il reste au moins 20 mm de

distance entre la découpe d’encastrement et le meuble en dessous.

• Les meubles jouxtant la table, dont la hauteur

504

TABLE DE CUISSON RETOURNEE

dépasse celle du plan de cuisson, doivent être placés à au moins 600 mm du bord du plan.

Fixation

Il est impératif d’assurer l’encastrement de l’appareil sur

un plan d’appui parfaitement plat. Les déformations provoquées par une mauvaise fixation risquent d’altérer les caractéristiques de la table de cuisson ainsi que ses performances.

La longueur de la vis de réglage des crochets

fixation doit être réglée avant leur montage

selon

l’épaisseur du plan d’appui :

• épaisseur 30 mm : vis 17,5 mm;

• épaisseur 40 mm : vis 7,5 mm Pour sa fixation, procéder comme suit :

1. Se servir des vis courtes sans pointe pour visser les 4 ressorts de centrage dans les trous prévus sur chaque côté de la table, en leur milieu;

2. insérer la table de cuisson dans la découpe prévue, bien au centre et bien appuyer tout autour du cadre pour que la table adhère parfaitement au plan d’appui.

3. pour les tables avec profils latéraux : après avoir encastré la table de cuisson dans la découpe, insérer les 4 crochets de fixation (chacun avec son goujon) sur le périmètre inférieur de la table de cuisson et visser avec les vis longues à pointe jusqu’à ce que le verre adhère bien au plan d’appui.

! Il faut absolument que les vis des ressorts de

centrage soient accessibles.

! Conformément aux normes de sécurité, après

encastrement de l’appareil, il ne doit plus y avoir possibilité de contact avec les parties électrifiées.

! Toutes les parties qui servent de protection doivent

être fixées de manière à ne pouvoir être enlevées qu’avec l’aide d’un outil.

Raccordement électrique

! Le branchement électrique de la table de cuisson

et celui d’un éventuel four à encastrer doivent être effectués séparément, pour des raisons de sécurité électrique et pour pouvoir démonter plus facilement le four en cas de besoin.

de raccordement à plusieurs types d’alimentation

électrique (la figure n’est qu’indicative, elle peut ne pas correspondre au modèle acheté).

Raccordement monophasé

La table est fournie déjà équipée d’un cordon d’alimentation prévu pour raccordement monophasé. Procéder au raccordement des fils en suivant les indications du tableau et des dessins suivants :

Tension type et

fréquence réseau

230-240V 1+N ~ 220-240V 1+N ~

50/60 Hz

Cordon électrique Raccordement fils

: jaune/vert;

: les 2 fils bleus ensemble

: le marron avec le noir

Autres types de branchement

Si l’installation électrique correspond à une des caractéristiques suivantes :

Tension type et fréquence réseau

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

• 230-240V 3 ~ 50/60 Hz

• 400V - 2+2N ~ 50/60 Hz

Séparer les câbles et procéder au raccordement des fils en suivant les indications du tableau et des dessins suivants :

Tension type et

fréquence réseau

400V - 2+N ~

50/60 Hz

230-240V 3 ~ 220-240V 3 ~

50/60 Hz

400V - 2+2N ~

50/60 Hz

Cordon électrique Raccordement fils

: jaune/vert;

N: les 2 fils bleus ensemble

L1: noir L2: marron

: jaune/vert;

N1: bleu N2: bleu L1: noir L2: marron

Si l’installation électrique correspond à une des caractéristiques suivantes : Tension type et fréquence réseau

• 400V 3 - N ~ 50/60 Hz procéder comme suit :

Bornier

L’appareil est équipé, sur le dessous, d’un boîtier

! Le câble éventuellement fourni n’est pas prévu pour

ces types d’installation.

1. Utiliser un câble d’alimentation approprié, type H05RR-F ou supérieur, aux dimensions adéquates (section câble : 25 mm).

2. Faire levier à l’aide d’un tournevis sur les languettes du couvercle du bornier pour l’ouvrir (voir  gure Bornier).

3. Dévisser la vis du serre-câble et les vis des bornes

Cavalier

Neutre

Terre

Phase Phase Phase

correspondant au type de raccordement nécessaire et positionner les cavaliers de raccordement conformément aux indications du tableau et des figures ci-dessous.

4. Positionner les fils conformément aux indications du tableau et des figures ci-dessous et procéder au raccordement en serrant à fond toutes les vis des bornes.

5. Fixer le câble d’alimentation dans le serre-câble correspondant et fermer le couvercle.

Triphasé 400

direct au réseau, il faut intercaler entre l’appareil et le réseau un interrupteur à coupure omnipolaire ayant au moins 3 mm d’écartement entre les contacts.

! L’installateur est responsable du bon raccordement

électrique de l’appareil et du respect des normes de sécurité.

Avant de procéder au branchement, s’assurer que :

• la prise est bien munie d’une terre conforme à la loi;

• la prise est bien apte à supporter la puissance maximale de l’appareil, indiquée sur la plaque signalétique de l’appareil ;

• la tension d’alimentation est bien comprise entre les valeurs indiquées sur la plaque signalétique;

• la prise est bien compatible avec la fiche de l’appareil. Si ce n’est pas le cas, remplacer la prise ou la fiche, ne pas utiliser de rallonges ni de prises multiples.

! Après installation de l’appareil, le câble électrique et

la prise de courant doivent être facilement accessibles

! Le câble ne doit être ni plié ni excessivement écrasé.

Branchement du câble d’alimentation au réseau électrique

En cas de raccordement

! Le câble doit être contrôlé périodiquement et ne peut

être remplacé que par un technicien agréé.

! Nous déclinons toute responsabilité en cas de non

respect des normes énumérées ci-dessus.

! Ne retirer ou ne remplacer en aucun cas le câble

d’alimentation. Toute opération d’enlèvement ou de remplacement annule automatiquement la garantie et la marque CE INDESIT décline toute responsabilité en cas d’accidents ou de dommages dérivants de l’enlèvement ou du remplacement du câble d’alimentation original. Seul le remplacement effectué par un technicien agréé INDESIT utilisant une pièce détachée originale est autorisé.

Foyers extensibles

Certains modèles sont équipés de foyers extensibles. Ces derniers peuvent avoir soit une forme circulaire soit une forme ovale et s’étendre pour former des foyers doubles ou triples. Illustration des commandes présentes sur les modèles équipés de ces options.

Foyer extensible circulaire

Voyant

FOYER DOUBLE ALLUMÉ

Touche

ALLUMAGE FOYER DOUBLE

Voyant

FOYER TRIPLE ALLUMÉ

Touche

ALLUMAGE FOYER TRIPLE

• Touche ALLUMAGE FOYER DOUBLE pour activer

le foyer double (voir Mise en marche et Utilisation).

• Voyant FOYER DOUBLE ALLUMÉ : il signale

l’allumage du foyer double.

• Touche ALLUMAGE FOYER TRIPLE pour activer le

foyer triple (voir Mise en marche et Utilisation).

• Voyant FOYER TRIPLE ALLUMÉ : il signale

l’allumage du foyer triple.

Foyer extensible ovale

Voyant

FOYER OVALE ALLUMÉ

Touche

ALLUMAGE FOYER OVALE

• Touche ALLUMAGE FOYER OVALE pour activer le

foyer ovale (voir Mise en marche et Utilisation).

• Voyant FOYER OVALE ALLUMÉ : il signale

l’allumage du foyer ovale.

+ 50 hidden pages
