Instructions for Installation and Use
50cm Free Standing Electric Cooker
HW160EC
HW160EW
HW170EK
HW170EW
To the Installer
Before installation fill in the product details on the back cover this book.
The information can be found on the rating plate.
To the User
You must read the instructions prior to installing and using the appliance and
then retain them for future reference.
Contents
Introduction 3
Installation 4
Safety Information 6
Features 8
Control Panel 9
Use of hotplates 10
Hotplates General Information Notes 10
Choosing Your Utensils 13
Grilling 14
Grill Chart 15
Main Oven - Fan Cooking 16
Fan Oven cooking charts - Meat 17
Fan Oven cooking charts - Baking 18
Care and Cleaning 19
Cooking Results Not Satisfactory? / Disposal of the appliance 20
Something Wrong With Your Cooker? 21
Technical Characteristics 21
Key Contacts Back Cover
You must read these instructions prior to using your appliance and retain them
for future use.
2
Introduction
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance
has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other
installation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use.
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and
that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the
room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any
moisture absorbed by the insulation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c ) Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d) Has been correctly installed.
3
Installation
WARNING – THIS APPLIANCE MUST BE EARTHED.
Electrical connection
Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which
conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after removing
the back panel of the cooker itself with a screwdriver.
N.B.: the following installation procedure must be carried out by a qualified electrician. The electrical installation must
comply with the IEE Regulations, Building & local By-Lays.
For the installation of the feeding cable carry out the following operations:
1 Open the terminal board by inserting a screwdriver into the side tabs of the
cover. Use the screwdriver as a lever by pushing it down to open the cover (see
diagram).
2 Loosen the cable clamp screw and remove it, using a screwdriver as a lever
(see figure).
3 Remove the wire contact screws L-Nheads, respecting the colour code: Black/Blue (N), Red/Brown (L) and Bare Wire/
Yellow-Green (
l Once the connections have been made, tighten all the terminal screws fully.
l Fasten the supply cable in place with the clamp and close the cover of the
terminal board.
).
, then fasten the wires under the screw
4
Installation
Positioning the Cooker
150 mm
650 mm
Moving the Cooker
150 mm
The height of the cooker can be adjusted by means of adjustable feet in the plinth
(900mm - 915mm). Adjust the feet by tilting the cooker from the side. Then install the
product into position.
NOTE: This appliance must not be fitted on a platform.
The cooker is designed to fit between kitchen cabinets spaced 500mm apart. The
space either side need only be sufficient to allow withdrawal of the cooker for servicing.
It can be used with cabinets one side or both as well as in a corner setting. It can also
be used free-standing.
Adjacent side walls which project above hob level, must not be nearer to the cooker
than 150mm and should be protected by heat resistant material. Any overhanging
surface or cooker hood should not be nearer than 650mm.
Before moving your cooker check that it is cool, and switch off at the cooker
control unit.
Movement of your cooker is most easily achieved by lifting the front as follows:
Open the grill door sufficiently to allow a comfortable grip on the underside front
edge of the oven roof, avoiding any grill elements.
Note: Take care in moving the cooker as it is heavy.
Take care to ensure that any floor covering is not damaged.
Splashplate optional, apply to Parts Department (see Back Cover for contact
number.)
5
Safety Information
When used properly your appliance is completely safe but as with any electrical product there are certain
precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
Always
l Remove all packing from inside the oven and grill compartments before switching on for the first time.
l Understand the controls prior to using the appliance.
l Keep children away from the appliance when grilling as the surfaces will get extremely hot during and after use.
l Turn controls off when you have finished cooking and when not in use.
l Stand back when opening an oven door to allow any build up of steam or heat to disperse.
l Use dry good quality oven gloves when removing items from the oven/grill.
l Place pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot
become heated by other hotplate/pans.
l Take care to avoid heat/steam burns when operating the controls.
l Turn off the electricity supply at the wall switch before cleaning and allow the appliance to cool.
l Make sure the shelves are in the correct position before switching on the oven.
l Keep the oven and grill doors closed when the appliance is not in use.
l Take care when removing items from the grill when the lower oven is on as the contents will be hot.
l Keep the appliance clean, as a build up of grease or fat from cooking can cause a fire.
l Follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.
l Keep ventilation slots clear of obstructions.
l Refer servicing to a qualified appliance service engineer.
l Take care to avoid touching heating elements inside the oven, as during use the oven becomes hot.
l Before operating the product, remove all plastic film from the sides of the appliance.
l The appliance should not be operated by people (including children) with reduced physical, sensory or mental
capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals
should, at the very least, be supervised by someone who assumes responsibility for their safety or receive
preliminary instructions relating to the operation of the appliance.
l The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in
this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous.
The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of
the appliance.
6
Safety Information
Never
l Never line the interior of the oven with foil as this may cause the appliance to overheat.
l Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during
and after its use.
l Do not allow children or persons who are not familiar with the appliance to use it, without supervision.
l Never allow anyone to sit or stand on any part of the appliance.
l Never store items above the appliance that children may attempt to reach.
l Never leave anything on the hob surface when unattended and not in use.
l Never remove the oven shelves whilst the oven is hot.
l Never heat up unopened food containers as pressure can build up causing the container to burst.
l Never store chemicals/food stuffs, pressurised container in or on the appliance, or in cabinets immediately
above or next to the appliance.
l Never place flammable or plastic items on or near the hob.
l Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
l Never operate the grill with the grill door closed as this will cause the appliance to overheat.
l Never use the appliance as a room heater.
l Never use the grill to warm plates.
l Never dry any items on either the hob or oven doors.
l Never install the appliance next to curtains or other soft furnishings.
l Never use steam cleaners.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the
fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by
picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force
of the extinguisher is likely to tip the pan over.
Never use water to extinguish oil or fat fires.
7
Features
HOB VENTILATION SLOTS
1500W

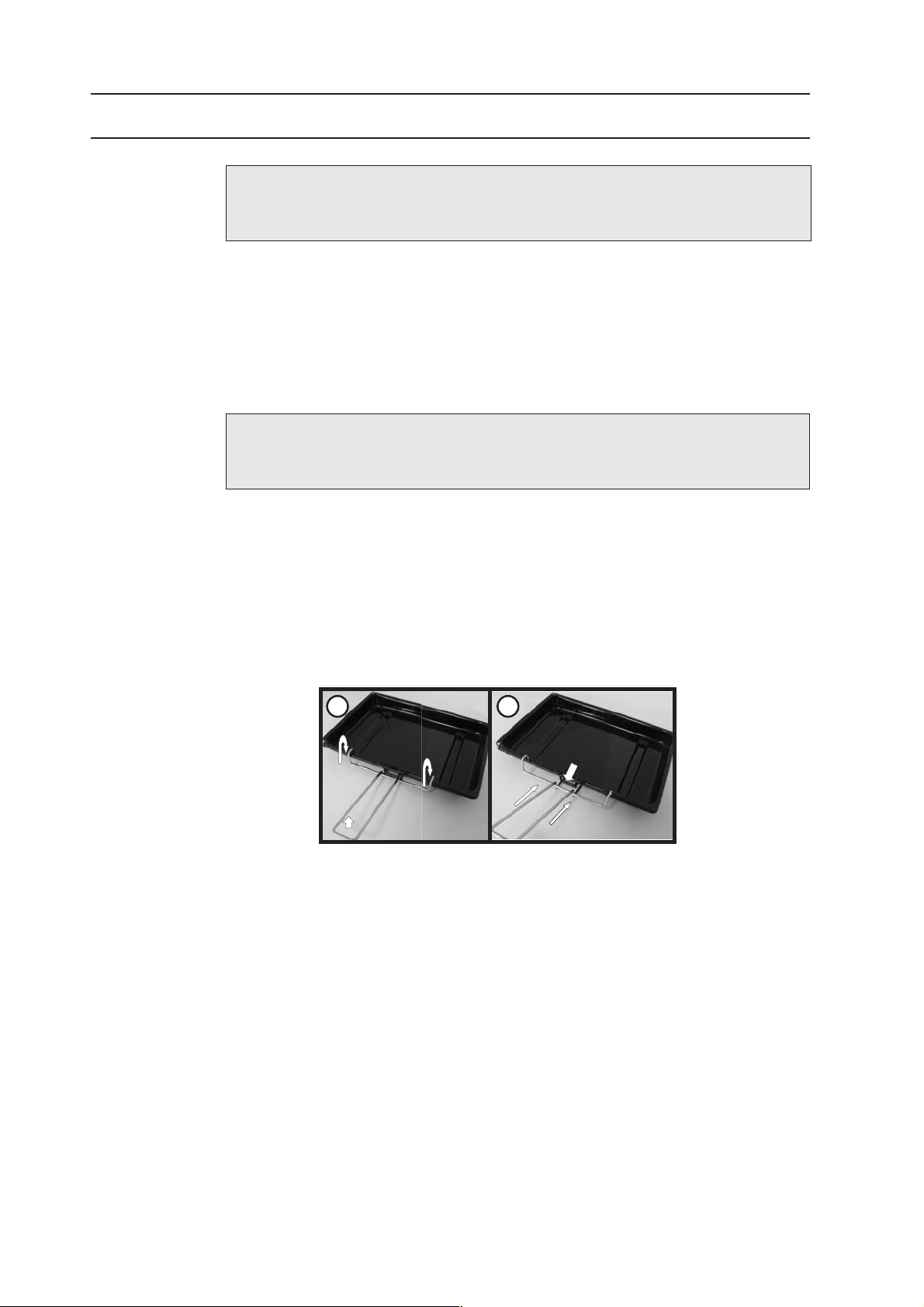

GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
GRILL DOOR SWITCH
GRILL DOOR
REMOVABLE
INNER GLASS
DOOR
2000W
GRILL
1500W
2000W
CONTROL
PANEL
MODEL & SERIAL
NUMBER
MAIN OVEN
WIREWORK
SHELF
SUPPORTS
OVEN ROD
SHELVES
8
Control Panel
MAIN OVEN
THERMOSTAT
INDICATOR
Control Knobs
MAIN OVEN/GRILL
INDICATOR
LIGHT
MAIN
GRILL LEFT
OVEN
The knobs for the hotplates can be rotated in either direction to provide variable heat control, the
Main Oven knob can only be rotated clockwise from the Off position.
Note: Always ensure that all controls are in the OFF position, when the appliance is not
in use.
LIGHT
FRONT
PLATE
LEFT
REAR
PLATE
PLATE
INDICATOR
LIGHT
RIGHT
REAR
PLATE
RIGHT
FRONT
PLATE
Operating the
control when
the grill is in use
In common with all cookers having controls sited above the grill compartment, care must be taken
when setting the controls, due to hot air being emitted from the grill compartment.
9
Use of Hotplates
Note:
The controls set the hotplates at six pre-set power levels. Each control can be used to select one of six temperature
settings from a minimum at position 1 to a maximum at position 6.
Before using the hot plates for the first time, you should heat them at maximum temperature for approximately 4
minutes, without any pans. During this initial stage, their protective coating hardens and reaches its maximum
resistance.
Under no circumstances should the hob be used with aluminium foil in contact with the hob
surface.
Hotplates General Information Notes
CONTROL SETTINGS GUIDE
This is provided only as a guide – settings also depend on the type of pan used and the quality of food.
Knob Position Type of food
1 To melt butter, chocolate, etc.
1 or 2 To heat food gently.
To keep small amounts of water simmering.
To heat sauces, containing egg yolks and butter.
To simmer: stews, meat, fish, vegetables, fruit.
3 To heat solid and liquid foods.
Keep water boiling.
Thaw frozen vegetables.
Make 2-3 egg omelettes.
4 or 5 To cook foods, just above simmering.
To maintain 'rolling' boil for preserve making.
5 or 6 To seal meat and fry fish.
6 Frying potatoes.
Bringing water to the boil.
Deep fat frying.
Dissolve sugar for preserve making.
Safety
requirements
for deep fat frying
10
1. Use a deep pan, large enough to completely cover the appropriate heating area.
2 . Never fill the pan more than one-third full of oil.
3 . Never leave oil or fat unattended during the heating or cooking period.
4. Never try to fry too much food at a time, especially frozen food. This only lowers the
temperature of the oil or fat too much, resulting in greasy food.
5 . Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods,
in particular, will cause frothing and spitting, if added to quickly.
6 . Never heat fat, or fry, with a lid on the pan.
7 . Keep the outside of the pan clean and free from streaks of oil or fat.
Hotplates General Information Notes
PANS SHOULD
Not be concave (bowed in)
Not be convex (bowed out)
Not be rimmed
Not be deeply ridged
But essentially Flat
✓suitable ✗unsuitable
*care should be taken
when using any pans
on these surfaces not to
drag and cause
scratching.
syawlA
✓✓✓✓
Use good quality flat-based
cookware on all electric heat
sources.
Always ensure pans have
clean, dry bases before
use.
Ensure pans match size of
heating area.
Remember good quality pans
retain heat well, so generally
only a low or medium heat is
necessary.
Ensure pan handles are
positioned safely and away
from heat sources.
Always lift pans, do not drag. Drag or slide utensils, along
Always use pan lids except
when frying.
Deal with spillages
immediately but with care.
Use gauze, metal pan
diffusers, asbestos mats and
stands e.g. Wok stands - they
can cause overheating.
Use utensils with skirts or
rims e.g. buckets and some
kettles.
Use badly dented or distorted
pans.
Leave an element switched
on when not cooking.
Cook food directly on the
ceramic glass.
the hob surface.
reveN
✗✗✗✗
THE BEST COMBINATIONS
This table is a general guide to the types of pan suitable for different types of hobs and
cookers. Remember pans should be good quality, with smooth, flat bases. For any further
information refer to manufacturers’ instructions.
Ceramic*
Aluminium
Stainless steel with single layer copper
base
Stainless steel with sandwich bases of
aluminium and stainless or aluminium
and copper
Enamelled steel
Enamelled aluminium
Enamelled based cast iron
With Extra Care
Copper
Toughened glass or ceramic / glass /
pottery
Not Recommended
Mild steel, Ferro-magnetic or stainless
with a magnetic sandwich base
11
Hotplates General Information Notes
Do Not
Do not
Do not use the hob as a worktop surface as damage may occur to the smooth surface of the hob.
Do not drag or slide utensils on the hob surface, as this will cause scratches in the surface of the hob.
Do not allow a cooking utensil to come into contact with the hob surround.
Do not
Do not leave any utensils, food or combustible items on the hob when it is not in use.
Do not place aluminium or plastic foil, or plastic containers on the hob.
Do not
cook directly on the hob surface without a cooking utensil, as this will result in damage to the surface of the
hob.
place anything between the base of the utensil and the ceramic hob, e.g. do not use asbestos mats, aluminium
or wok stand.
leave the hotplates or cooking areas switched On unless they are being used. We recommend not to place
large preserving pans or fish kettles across two heating areas.
Do not
We recommend not to use a utensil with a base diameter greater than 25cm (l0ins).
Pressure cookers or other large pans should be used on the front cooking areas.
Always ensure that saucepan handles are positioned safely.
leave utensils partly covering the heated areas. Always ensure that they are placet centrally over the heated
areas and have the same diameter as the heating area used.
12
Choosing Your Utensils
Do not use utensils with rough bases.
Do not use lightweight utensils with thin, distorted or uneven bases.
Do not use lightweight enamelled steel utensils.
Do not use cast iron utensils.
Do not use utensils with recessed, scrolled or ridged bases.
Do not
Do not use a utensil with a convex base.
Do not use glass ceramic utensils.
Do not use use lightweight saucepans with plain thin copper bases on ceramic or halogen hot plates.
Note: All copper pans are excellent conductors of heat, and are hard wearing and strong, but need quite a lot of
care. They can be very heavy and do not usually have completely flat bases. The interiors are usually lined with a
different material such as tin.
A stainless steel pan with a sandwich base of aluminium and stainless steel is an excellent conductor of heat and is
suitable for use on ceramic and halogen hobs, providing they are used in accordance with the saucepans
manufacturers’ recommendations.
Stainless steel pans with a sandwich base of aluminium and copper are excellent conductors of heat. If using
stainless steel saucepans with aluminium and copper sandwich bases on ceramic and halogen hobs, the use of
these pans must be in accordance with the saucepan manufacturers’ recommendations.
Extra care should be taken to ensure the base of the pan and the hob is cleaned, and the hob conditioned, after
each and every use, when using this type of saucepan.
If these recommendations are not followed, the result will be a build up of small copper deposits on the surface of
your hob which, if not cleaned after each use, will result in permanent marking of your hob.
Always lift the pan from the hob, do not drag or slide across the hob surface as damage may occur.
use a utensil which has a base concavity greater than l mm as this will reduce the performance of the hob.
13
Grilling
CAUTION: ACCESSIBLE PARTS WILL BECOME HOT WHEN THE GRILL
To operate the grill proceed as follows:
l Open the grill door.
l Pre-heat the grill on setting 6 for approximately 5 minutes (see chart on guide to grilling).
Grill Pan Handle
Fixing the Grill Pan
Handle
l Fix the grill pan handle securely in position. See below.
l Food which only requires browning should be placed directly on/in the grill pan in the grill pan
runner, or on the floor of the grill compartment. (the grill pan grid may be removed.)
l Leave the control on setting 6 for toast, sealing and fast cooking of foods. For thicker foods
requiring longer cooking turn the control to a lower setting after the initial sealing, on both sides,
on setting 6. The thicker the food the lower the control should be set.
Warning: Take care as the grill will be hot – always wear oven gloves. Always ensure
that the grill pan is clean BEFORE use. Excess fat build up in the bottom of the pan
could cause a fire hazard. Never line grill pan with foil.
The grill pan handle is detachable from the pan to facilitate cleaning and storage. Fix the pan
handle securely before use:
1. Fit the handle to the grill pan so that the external ‘hooks’ embrace the edge of the pan (fig. 1)
2. Make sure that the middle part of the handle fits exactly the protruding support of the pan
(fig .2) and holds the pan from the bottom.
The food must be placed on the rack in the grill pan.
Position the grill pan on top of the oven rack. The best results are achieved by placing the oven
rack on the uppermost shelves. Pouring a little water into the grill pan will make the collection of
grease particles more efficient and prevent the formation of smoke. .
GRILLING MUST BE DONE WITH THE GRILL DOOR OPEN.
CONTROL KNOBS MAY BECOME HOT DURING GRILLING.
IS USED - CHILDREN SHOULD BE KEPT AWAY.
Grill Compartment
as a ‘Hotcupboard’
1
The food to be cooked should be placed on the grill pan/grill pan food support.
Place the grill pan on the runners and push back to the stop position when the grill pan is
correctly positioned beneath the grill element.
Plates and dishes placed on the floor of the grill compartment will be heated when the oven is
in use.
Do not operate the grill control when using the compartment as a hotcupboard.
Do take care when removing plates, dishes and utensils from the grill compartment when the oven
is in use as they may become quite hot.
You may need to use oven gloves when removing warmed items.
2
14
Grill Chart
GRILL CHART
Pre - heat the grill for 5 minutes on maximum control setting before grilling
Food Grill Setting Approximate Cooking time
Toasting of Bread
products
Small cuts of meat,
sausages, bacon, etc.
Chops etc. Gammon
steaks Chicken
pieces
Fish: fingers W ho le
Fillets
Fish in breadcrumbs 5 15 - 20 mins.
Pre - Cooked potato
products
Pizzas 5 12 - 15 mins. in the base of the grill pan.
Browning of food 6
63 - 10 mins.
5-6 15 - 20 mins.
5
5
5 15 - 20 mins.
20 - 25 mins. Wire food support used in
up turne d po sition fo r c hicken.
10 - 2 0 mins. Whole fish and fille ts placed in the
base of the grill pan.
8 - 10 mins. Dish placed directly on base of the
grill pan and p a n placed on the bas e o f the gr ill
compartment.
The settings in the above guide have been developed to cook food successfully without excessive fat spitting and
splashing.
15
Main Oven - Fan Cooking
This control switches on the main oven. To select Fan Cooking - Turn thecontrol clockwise and select
any temperature between 100°C and Max. As the control is turned the fan will start.The main oven light
will immediately come on.
The thermostat light indicates that the main oven is heating. When it turns off, the temperature inside
the oven has reached the setting made with the thermostat knob. At this point, the light will turn on and
off as the oven maintains the temperature at a constant level.
The fan and the oven interior light will remain on throughout cooking. The red main oven thermostat
light will come on until the oven reaches therequired temperature. It will then cycle off and on as the
oven thermostat maintains the correct temperature.
The heat for fan cooking in the main oven is provided by an element situated at the back of the oven,
around the fan.
Fan cooking is ideal for large poultry or joints of meat, reducing cooking times and often eliminating the
need for pre-heating the oven. It is also ideal for batch cooking where food is cooked on morethan one
level, because the forced circulation of hot air gives aneven temperature from the top to the bottom of
the oven.
To use the oven
proceed as follows:
l The shelves should be evenly spaced. To avoid unnecessary cleaning, shelves which are not in use
should be removed from the oven.
l Set the main oven control to the required temperature. Pre-heating is not normally necessary, but
some foods such as bread, scones and Yorkshire pudding do benefit from being placed in a hot oven
(see cooking charts).
l Place the food to be cooked in the centre of each shelf to allow for even air circulation around the
food.
16
Fan Oven - Cooking Chart MEAT
Note: Where times are stated, they are approximate only.
Fan Oven - Meat
Meat Pre-
Beef No 160/180
Lamb No 160/180
Pork No 160/180
Veal No 160/170
Chicken/Turkey
up to 4kg (8 lb)
Te mpe r at ure
heat
No 160/180
°C
Time (approx.)
25-30 mins per 450g
(1lb) + 25 mins over.
20-30 mins per 450g
(1lb) + 25 mins over.
25-30 mins per 450g
(1lb) + 25 mins over.
30-35 mins per 450g
(1lb) + 25 mins over.
18-20 mins per 450g
(1lb) + 20 mins over.
Turkey 4 to 5.5kg
(8 to 12lb)
over 5.5kg (12lb) No
Casserole No 140-150 1½-2 hrs
If using aluminium foil, never:
1. Allow foil to touch sides of oven.
2. Cover oven interior with foil.
3. Cover shelves with foil.
The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer
into the thickest part of a joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer
will indicate when the required internal temp has been reached.
Beef: Rare: 60°C Lamb: 80°C Poultry: 90°C
Medium: 70°C Pork: 90°C
Well Done: 75°C Veal: 75°C
No
13-15 mins per 450g (1lb) at
150/160°C
allow 12 mins per 450g at
150°C
17
Fan Oven - Cooking Chart BAKING
Fan Oven Cooking
Food
Scones Yes 210/220 9-12
Small Cakes 170/180 25-35
Victoria Sandwich Yes 160/170 20-25
Pre-
heat
Tempe ra ture °C Time in mins.
Sponge Sandwich
(Fatless)
Swiss Roll Yes 190/200 12-15
Semi-rich Fruit cakes 140/150 60-75 7 inch
Rich Fruit C akes 130/140 Depending on size
Shortcrust Pastry 190/200 Depending on use
Puff Pastry 190/200 Depending on use
Yorkshire Pudding Yes 180/190 30-45
Individual Yorkshire
Puddings
Milk Pudding 130/140 105-135
Baked Custard 140/150 40-50
Bread Yes 200/210 45-50
Meringues 80-90 180-240
Yes 170/190 15-20
Yes 190/200 20-25
Note:
If soft margarine is used for cake making, temperatures recommended by the manufacturers should be followed.
Temperatures recommended in this chart refer to cakes made with block margarine or butter only.
18
Care and Cleaning
Electric sealed
hotplates
Grill
Control Panel
Decorative Trims
Doors
The cleaning of sealed hotplates should be done when they are cold, using a soap filled Brillo pad,
following the grain of the hotplate. This will ensure that any stubborn, burnt on spillages are
removed. Wipe over with a damp clean cloth, making sure that all the cleaner has been removed.
Finally, turn on hotplate to warm for a few minutes, then smear with a little cooking oil to provide a
protective coating, or the restorative agent Homecare Four Hob, available from our spares
department or leading supermarkets. The bezels will mellow with use to a burnished gold colour, a
soap filled Brillo pad will help to keep them bright, care should be taken not to damage the vitreous
enamel hob surface.
Note: We do not recommend the use of decorative covers over the hot hotplates as these can hold
condensation and cause corrosion. Accidental operation with a cover in place can cause intense
heat. Never place saucepan lids on the hotplates, as this may cause corrosion.
Remove the grill pan and the wire grid food support, it is best to wash these items immediately
after use to prevent stains from being burnt on when used again. Wipe out the Grill compartment,
use a fine steel wool soap pad to remove stubborn stains from the grill runners and the floor of the
compartment. Wipe over the control panel with a damp cloth and polish with a dry cloth.
Do not use cream cleaners, oven cleaners or aerosols, scouring pads or abrasive powder for
cleaning the plastic knobs as damage will occur.
It is advisable to clean the decorative trims regularly to prevent any build up of soiling. The
recommended method of cleaning is to wipe over the trims with a soft cloth wrung out in warm
water or mild non-abrasive cleaner. (If in doubt try the cleaner on a small area of trim which is not
noticeable in normal use). Then, after wiping with a cloth wrung out in clear water, dry with a soft
clean cloth.
Wipe over the outer door glass panels with a cloth wrung out in warm soapy water, then after
wiping with a cloth wrung out in clear water, dry with a soft clean cloth. Ensure that glass doors
are not subjected to any sharp mechanical blows.
Glass Inner Door Panel (where fitted) – open the door fully and unscrew the two screws securing
the glass panel, taking care not to allow the glass to fall. The glass panel may now be washed at
the sink. Stubborn stains can be removed by using a fine steel wool soap pad. Ensure the glass
panel is not subjected to any sharp mechanical blows. Take particular care not to damage the
inner surface which is coated with a heat reflective layer. After cleaning, rinse and dry with a soft
cloth. For slight soiling the inner glass panel may be cleaned, while still warm, without removing it
from the door.
Warning: Oven must not be operated with inner door glass removed.
Take care during cleaning not to damage or distort the door seals. Do not lift the door seal from
the oven chassis, if necessary remove the seal by carefully unhooking the corner clips.
Take care that the rating label edges are not lifted during cleaning, and furthermore that the
lettering is not blurred or removed.
Ovens
Oven Shelf
Supports
Oven Lamp
Replacement
Remove the rod shelves and grill pan. Use a fine steel wool soap pad to remove stubborn stains
from the rod shelves, grill pan and the floor of the oven.
sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough
abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to
crack.
The shelf supports are removable and dishwasher safe.
To remove hold the support at the front and pull away from the oven side, this can then be cleaned
in a sink or a dishwasher. When removed it allows access to the oven side, which can be cleaned
with warm soapy water.
To refit the support, insert the longer leg into the rear fixing hole and push in the front leg.
Open the oven door and remove the rod shelves. Using a suitable cloth to protect the fingers grip
the light glass dome, unscrew anti-clockwise and lift. Reach into the aperture with fingers, and
unscrew the lamp anticlockwise. Fit replacement lamp (25W 300°C rated SES), refit dome.
WARNING: To avoid electric shocks - please ensure that the electricity supply to the
appliance is switched off and the appliance is fully cold, before removing the lamp lens.
Clean the glass part of the oven door using a
19
Cooking Results Not Satisfactory?
Problem Check
Grilling
Uneven cooking front to
back
Fat splattering Ensure that the grill is not set to too high a
Ensure that the grill pan is positioned centrally below
the grill element.
temperature.
Oven Baking
Uneven rising of cake
Sinking of cakes The following may cause cakes to sink:
Over/Under cooking
Fast/Slow cooking
Uneven cooking of
cakes
Uneven rising of cake Ensure that the shelf is level (see above) and that the
Food is taking too long
to cook
Ensure that the oven shelves are level by using a
spirit level on the rod shelf and adjusting, using
suitable packing e.g. wood, under the feet of the
appliance. This should be checked both left to right
and front to back. Ensure that the food is positioned
centrally in the oven.
1. Cooking at too high a temperature.
2. Using normal creaming method with soft margarine.
Refer to the cooking times and temperatures given in
the oven temperature charts, however, it may be
necessary to increase or decrease temperatures by
10°C to suit personal taste.
Do not use utensils greater than 2¼ ins in height.
1. Too large baking sheet used. (See 'Cookery Notes')
2. Over loading of oven and always ensure even air
gaps around baking tins.
food is positioned centrally in the oven.
Only cook one item at a time to avoid overloading the
oven.
Disposal of your product
To minimise the risk of injury to children please dispose of your product carefully and safely. Remove all
doors and lids. Remove the mains cable (where fitted) by cutting off flush with the appliance and always
ensure that no plug is left in a condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of your product.
This appliance conforms to the following EEC Directives:
This appliance conforms with the following European Economic Community directives:
- 2006/95/EC of 12/12/06 (Low Voltage) and subsequent modifications;
- 2004/108/EC of 15/12/04 (Electromagnetic Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent modifications (only for models which use gas);
- 93/68/EEC of 22/07/93 and subsequent modifications.
- 2002/96/EC
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that
old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
Old appliances must be collected separately in order to optimise the recovery and recycling of the materials
they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin”
symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be
separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of
their old appliance.
20
Something Wrong with your Cooker?
Before contacting your nearest Service Centre/Installer, check the problem guide below; there may be nothing wrong
with your cooker.
Problem
Slight odour or small amount of
smoke when using the cooker
for the first time.
Nothing Works Is the main cooker wall switch turned on?
Oven temperature seems too
high or too low.
Oven does not cook evenly. Check that the temperature and shelf position are as recommended in the
Hotplates are slow to boil or
will not simmer
Marks appearing on hotplates.
Can not clean hob / hotplates.
Grill not working. The grill door MUST be open.
Grill keeps turning on and off. When the grill control is operated at a setting less than maximum, this is
Condensation on the wall at
the rear of the cooker.
This is normal and should cease after a short period.
There may be no electricity supply.
Check that the temperature has been set in accordance with the temperature
charts. It may be necessary to increase or decrease the recommended
temperature by up to 10°C to suit your taste.
temperature charts.
Check that the containers being used in the oven allow sufficient air flow
around them.
Check that the cooker is level.
Check that your pans conform to the recommendations in these instructions.
The hob surround can be cleaned with warm soapy water and a cream
cleaner, such as Cif. The sealed hotplates should be cleaned regularly,
(please refer to the Care and Cleaning section for further information. Please
note that replacement hob cleaning kits are available from our parts
department, see Key Contacts, back page.
normal regulator operation, not a fault.
Steam and/or condensation may appear from the vent at the rear of the
appliance when using an oven particularly for foods with a high water content
e.g. frozen chips, roast chicken etc. This is normal and any excess should be
wiped off.
Steam / Condensation in the
oven after use.
Steam is a by-product of cooking any food with a high water content. To help
minimise always:
a) Try to avoid leaving food in the oven to cool after being cooked.
b) Use a covered container, wherever possible
Technical Characteristics
Main Oven
Voltage and Frequency
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for Natural convection Class
Dimensions (HxWxD): 34x39x41 cm
Volume: 54 Litres
Max. Oven Power Absorption: 1700 W
240V~ 50/60Hz
heating mode: Fan oven
21
Guarantee
12 months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer's guarantee, which covers the cost
of breakdown repairs for twelve months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be
defective because of either workmanship or materials, we will, at our discretion, either
repair or replace the appliance at no cost to you.
The guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our
operating and maintenance instructions.
- The appliance is only used on the electricity or gas supply printed on the rating plate.
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained, dismantled or otherwise
interfered with by any person not authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts removed during repair work or any appliance that is replaced become our
property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect or interference or as a
result of improper installation.
- Replacement of any consumable item or accessory. These include but are not limited
to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THE GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN
COMMERCIAL OR NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Hotpoint also offers you a FREE 5 year parts guarantee. This additional guarantee is
conditional on you registering your appliance with us and the parts being fitted by one of
our authorised engineers. There will be a charge for our engineer's time. To activate the
extra parts warranty on your appliance, simply call our registration line on 08448 24 24 24
(ROI 01 230 0800)
Extended Guarantees
We offer a selection of protection plans that enable you to fully cover yourself against the
expense of repair bills for the life of your policy. To find the ideal plan for you please call
our advice line on 08448 226 22
6 (ROI 01 230 0233)
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your
appliance if you experience any technical difficulties within the first 90 days of ownership.
Simply call our Hotpoint Service Hotline on 08448 224 224 (ROI 0818 313 413) for
telephone assistance, or, where necessary, to arrange for an engineer to call.
22
After Sales Service
No one is better placed to care for your Hotpoint appliance during the course of its
working life than us - the manufacturer.
Essential Contact Information
Hotpoint Service
We are the largest service team in the country offering you access to 400 skilled
telephone advisors and 1100 fully qualified engineers on call to ensure you receive
fast, reliable, local service.
UK: 08448 224 224
Republic of Ireland: 0818 313 413
www.hotpoint.co.uk
Please note: Our advisors will require the following information:
Model number
Serial number
Parts & Accessories
We supply a full range of genuine replacement parts as well as accessory products that
protect and hygienically clean your appliance to keep it looking good and functioning
efficiently throughout its life.
UK: 08448 225 225
Republic o
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership. To activate your FREE 5
year parts guarantee you must register your appliance with us.
Republic of Ireland: 01 230 0800
www.hotpointservice.co.uk
As part of Hotpoint's continued commitment to helping the environment, Hotpoint
reserves the right to use quality, recycled components to keep down customer costs
and minimise material wastage.
f Ireland: 0818 313 413
UK 08448 24 24 24
Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB
Indesit Company, Unit 49 Airways Industrial Estate, Dublin 17
23
24
05/2010 - 19506030905
Loading...
