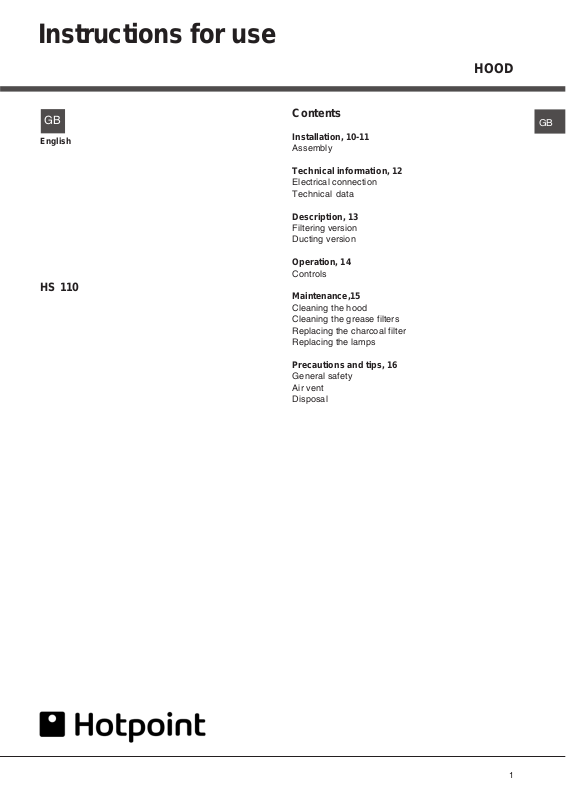

Hotpoint HS 110 User Manual
Instructions for use
HOOD
GB
English
HS 110
Contents
GB
Installation, 10-11
Assembly
Technical information, 12
Electrical connection
Technical data
Description, 13
Filtering version
Ducting version
Operation, 14
Controls
Maintenance,15
Cleaning the hood
Cleaning the grease filters
Replacing the charcoal filter
Replacing the lamps
Precautions and tips, 16
General safety
Air vent
Disposal
1
Installation
GB
Assembly
Before proceeding with the assembly operations,
remove the grease filters so that the hood is easier to
handle (for the instructions see the paragraph
“Cleaning the grease filters” in the chapter on
“Maintenance”).
Fixing to the wall
1) Draw a line on the wall along the vertical axis of the
hob. Mark the 2 holes (A) to be made in the wall
respecting the measurements indicated in the figure
below.
2) Drill the holes (8 mm ø) and fit the 2 screw anchors
(provided).
3) Fix the metal bracket (B) to the wall with 2 screws
using the 2 holes drilled. Use the 2 triangles cut into
the bracket to position it exactly along the vertical
axis of the hood.
4) Then hook the hood onto the metal bracket.Adjust
the horizontal position by moving the hood to the
right or left as required to align it with the wall
units.
5) Once adjusted, finally fix the hood with a further
6 screws (D): Mark the 6 holes to be drilled on the
wall, unhook the hood and drill the holes marked (8
mm diameter); then use the screw anchors and
the screws provided for final fixing.
FOR CORRECT FUNCTIONING, THE HOOD
MUST BE FIXED USING ALL 6 SCREWS (D)!
6) For the hoods in filtering version, fit the reducer
(E).
Securing the decorative flue
1) Assemble the support bracket of the decorative flue
and adjust the width with the 2 screws (F).
Then, using the screw anchors and the screws (G),
secure it to the ceiling in such a way that it is in line
with the hood.
2) For the filtering version, the air vent grilles (H) must
be positioned at the top. For the ducting version,
turn the upper flue upside down so that the air vent
grilles are at the bottom.
2
3) Ducting version:
a) Connect the air vent of the hood to the air vent
hole using a flexible hose of 15 cm diameter.
Lock the flexible hose with hose clamps (hose
and clamps not provided).
b) Make the electrical connection of the hood by
means of the power cable (refer to the paragraph
“Electrical connection”).
c) Fit the decorative flue resting it on the hood. Lift
the upper flue up to the ceiling and secure it by
means of the 2 screws (L).
GB
d) Make the electrical connection of the hood by
means of the power cable (refer to the paragraph
“Electrical connection”).
e) Lower the lower flue resting it on the hood.
f) Check if the charcoal filter (P) has been
installed. If not yet installed, proceed by sliding
the 2 filter clips into their seats and turn the
filter upwards.
4) Filtering version:
a) Fit the baffle (M) to the upper flue using 4 flat-
headed screws (N). Connect a flexible hose of
12.5 cm diameter to the baffle locking it with a
hose clamp (hose and clamp not provided).
b) Take the decorative flue and rest it on the hood.
Lift the upper flue up to the ceilingand secure it
using the 2 screws (L).
c) Lift the lower flue holding it firm with some
adhesive tape and connect the flexible hose to
the reducer (E) with a hose clamp (not provided).
3
