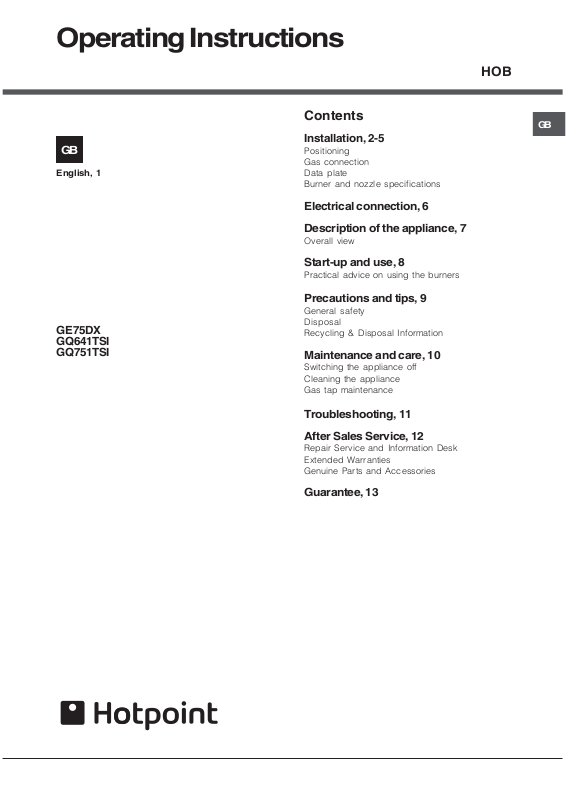

Page 1
Operating Instructions
HOB
GB
English, 1
GE75DX
GQ641TSI
GQ751TSI
Contents
GB
Installation, 2-5
Positioning
Gas connection
Data plate
Burner and nozzle specifications
Electrical connection, 6
Description of the appliance, 7
Overall view
Start-up and use, 8
Practical advice on using the burners
Precautions and tips, 9
General safety
Disposal
Recycling & Disposal Information
Maintenance and care, 10
Switching the appliance off
Cleaning the appliance
Gas tap maintenance
Troubleshooting, 11
After Sales Service, 12
Repair Service and Information Desk
Extended Warranties
Genuine Parts and Accessories
Guarantee, 13
Page 2
Installation
A
Examples of ventilation holes
for comburant air.
GB
Before operating your new appliance please read this
instruction booklet carefully. It contains important information
for safe use, installation and care of the appliance.
Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
Positioning
Keep packaging material out of the reach of children. It
can become a choking or suffocation hazard (see
Precautions and tips).
The appliance must be installed by a qualified professional
according to the instructions provided. Incorrect installation
may cause harm to people and animals or may damage
property.
This unit may be installed and used only in permanently
ventilated rooms in accordance with British Standard Codes
Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891
Current Editions. The following requirements must be
observed:
The room must be equipped with an air extraction system
that expels any combustion fumes. This may consist of a
hood or an electric fan that automatically starts each time
the appliance is switched on.
also be equipped with vents to allow gas to escape in
the event of a leak. As a result LPG cylinders, whether
partially or completely full, must not be installed or
stored in rooms or storage areas that are below ground
level (cellars, etc.). It is advisable to keep only the
cylinder being used in the room, positioned so that it is
not subject to heat produced by external sources
(ovens, fireplaces, stoves, etc. ) which could raise the
temperature of the cylinder above 50°C.
Fitting the appliance
Gas and mixed hobs are manufactured with type X
degree protection against overheating. The following
precautions must be taken when installing the hob:
Kitchen cabinets adjacent to the appliance and taller
than the top of the hob must be at least 600 mm from
the edge of the hob.
Hoods must be installed according to their relative
installation instruction manuals and at a minimum
distance of 650 mm from the hob.
Place the wall cabinets adjacent to the hood at a
minimum height of 420 mm from the hob (see figure).
If the hob is installed beneath a
wall cabinet, the latter must be
600mm min.
situated at a minimum of 700 mm
above the hob (see figure).
700mm min.
540mm min.
In a chimney stack or branched flue.
(exclusively for cooking appliances)
Directly to
the Outside
The room must also allow proper air circulation, as air is
needed for combustion to occur normally. The flow of air
must not be less than 2 m
3
/h per kW of installed power.
The air circulation system may
take air directly from the outside
by means of a pipe with an inner
cross section of at least 100 cm
the opening must not be
vulnerable to any type of
blockages.
Adjacent
Room
Room to be
Vented
The system can also provide the
air needed for combustion
indirectly, i.e. from adjacent rooms
fitted with air circulation tubes as
described above. However, these
Enlarging the ventilation slot
between window and floor.
rooms must not be communal
rooms, bedrooms or rooms that
may present a fire hazard.
Liquid petroleum gas sinks to the floor as it is heavier
than air. Therefore, rooms containing LPG cylinders must
The installation cavity should have the dimensions
indicated in the figure. Fastening hooks are provided,
allowing you to fasten the hob to tops that are between
20 and 40 mm thick. To ensure the hob is securely
fastened to the top, we recommend you use all the
hooks provided.
55
mm
2
;
555
mm
475
m
m
Before fastening the cooktop in place, position the seal
(supplied) along the perimeter of the countertop, as
shown in the figure.
2
Page 3
Hook fastening diagram
Hooking position Hooking position
for top H=20 mm for top H=30 mm
Front
Hooking position Back
for top H=40 mm
Use the hooks contained in the accessory pack
Where the hob is not installed over a built-in oven, a
wooden panel must be installed as insulation. This
must be placed at a minimum distance of 20 mm from
the lower part of the hob.
Ventilation
To ensure adequate ventilation, the back panel of the
cabinet must be removed. It is advisable to install the
oven so that it rests on two strips of wood, or on a
completely flat surface with an opening of at least 45 x
560 mm (see diagrams).
45 mm.
560 mm.
Gas connection
The appliance should be connected to the main gas
supply or to a gas cylinder in compliance with current
national regulations. Before carrying out the connection,
make sure the cooker is compatible with the gas supply
you wish to use. If this is not the case, follow the
instructions indicated in the paragraph Adapting to
different types of gas.
When using liquid gas from a cylinder, install a pressure
regulator which complies with current national regulations.
Check that the pressure of the gas supply is consistent
with the values indicated in Table 1 (Burner and nozzle
specifications). This will ensure the safe operation and
longevity of your appliance while maintaining efficient
energy consumption.
Connection with a rigid pipe (copper or steel)
Connection to the gas system must be carried out in
such a way as not to place any strain of any kind on the
appliance.
There is an adjustable L-shaped pipe fitting on the
appliance supply ramp and this is fitted with a seal in
order to prevent leaks. The seal must always be replaced
after rotating the pipe fitting (seal provided with
appliance). The gas supply pipe fitting is a threaded 1/2
gas cylindrical male attachment.
Connecting a flexible jointless stainless steel pipe to a
threaded attach
The gas supply pipe fitting is a threaded 1/2 gas
cylindrical male attachment.
These pipes must be installed so that they are never longer
than 2000 mm when fully extended. Once connection has
been carried out, make sure that the flexible metal pipe
does not touch any moving parts and is not compressed.
Only use pipes and seals that comply with current
national regulations.
Checking the tightness of the connection
When the installation process is complete, check the
pipe fittings for leaks using a soapy solution. Never use a
flame.
ment
GB
! The hob can only be installed above built-in ovens with a
cooling ventilation system.
Adapting to different types of gas
To adapt the hob to a different type of gas other than
default type (indicated on the rating plate at the base of
the hob or on the packaging), the burner nozzles should
be replaced as follows:
1. Remove the hob grids and slide the burners off their
seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and
replace them with nozzles for the new type of gas (see
table 1 Burner and nozzle characteristics).
3. Reassemble the parts following the above procedure in
the reverse order.
3
Page 4
GB
4. Once this procedure is finished, replace the old rating
sticker with one indicating the new type of gas used.
Sticker are available from any of our Service Centres.
Adjusting the burners primary air :
Does not require adjusting.
Setting the burners to minimum:
1. Turn the tap to the low flame position.
2. Remove the knob and adjust the adjustment screw,
which is positioned in or next to the tap pin, until the
flame is small but steady.
3. Having adjusted the flame to the required low setting,
while the burner is alight, quickly change the position of
the knob from minimum to maximum and vice versa
several times, checking that the flame does not go out.
4. Some appliances have a safety device (thermocouple)
fitted. If the device fails to work when the burners are
set to the low flame setting, increase this low flame
setting using the adjusting screw.
5. Once the adjustment has been made, replace the seals
on the by-passes using sealing wax or a similar
substance.
If the appliance is connected to liquid gas, the regulation
screw must be fastened as tightly as possible.
Once this procedure is finished, replace the old rating
sticker with one indicating the new type of gas used.
Stickers are available from any of our Service Centres.
Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet pipe (in order
to comply with current national regulations).
DATA PLATE
Electrical
connections
See data plate
This appliance conforms to the
following European Economic
Community directives:
-73/23/EEC dated 19/02/73 (Low
Voltage) and subsequent
amendments
- 89/336/EEC dated 03/05/89
(Electromagnetic Compatibility)
and subsequent amendments
- 93/68/EEC dated 22/07/93 and
subsequent amendments.
- 90/336/EEC dated 29/06/90
(Gas) and subsequent
amendments.
- 2002/96/EC
4
Page 5
Burner and nozzle specifications
GB
Tab le 1
Burner Diameter
(mm)
Reduced Fast
(RR)
Semi Fast (S)
Auxiliary (A)
Mini WOK (MW)
Supply
Pressures
100 2,60 0,70 41 39 80 189 186 110 248
75 1,65 0.40 30 28 64 120 118 96 157
55 1,00 0,40 30 28 50 73 71 79 95
110 3,50 1,30 - 57 91 254 250 138 333
Thermal power
kW (p.c.s.*)
Nomin. Ridot. (1) (mm) *** ** (mm)
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50.37 MJ/kg.
*** Butane P.C.S. = 49.47 MJ/kg.
Natural P.C.S. = 37.78 MJ/m
3
(1) Only for appliances with the security device.
A
RR
By-Pass
1/100
(mm)
Liquid Gas Natural Gas
Nozzle
1/100
28-30
20
35
Flow*
g/h
Nozzle
1/100
37
25
45
S
Flow*
l/h
20
17
25
RR MW
S
GQ641TSI
A
GE75DX
GQ751TSI
MW
S
5
Page 6
Electrical Connection
GB
THIS APPLIANCE MUST BE EARTHED.
The hob is designed to work with alternating current,
the supply voltage and frequency indicated on the
rating plate (situated under the hob). Make sure that
the local supply voltage corresponds to the voltage
indicated on the rating plate.
Connecting the supply cable to the mains
electricity supply
For models supplied without a plug, fit a standard
plug suitable for the load indicated on the rating
plate, onto a cable and connect to a suitable socket.
To connect direct to the mains supply, a double pole
switch with a contact separation of at least 3mm
suitable for the load and complying with current
standards and regulations must be fitted between
the appliance and the mains supply outlet.
The green-yellow earth wire must not be interrupted
by the switch.
The supply cable must be positioned so that no part
of it reaches a temperature of 50°C above room
temperature. For installation above a built-under
oven, the hob and the oven must be connected
separately to the electricity supply, both for safetly
reasons and for easy removal of the oven for repair,
maintenance etc.
DO NOT use adapters as they could cause
overheating or burning.
Before connecting to the power supply, make sure
that:
the limiter switch and the domestic system can
withstand the load from the appliance (see rating
plate).
the supply system is efficiently earthed according
to standards and laws in force.
the socket or double-pole switch are easily
accessible when the appliance is installed.
The wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the wires in the mains lead may
not correspond with the coloured markings
identifying the terminals in your plug, proceed as
follows:
Connect the Green & Yellow wire to terminal marked
E or
Connect the Brown wire to the terminal marked L or
coloured Red or Brown.
Connect the Blue wire to the terminal marked N or
coloured Black or Blue.
FAILURE TO OBSERVE THE ACCIDENTPREVENTION REGULATIONS RELIEVES THE
MANUFACTURER OF ALL LIABILITY.
Replacing the cable
Use a rubber cable of the type H05RR-F with a
suitable cross section 3 x 0.75 mm².
The yellow-green earth wire must be 2-3 cm longer
than the other wires.
or coloured Green or Green & Yellow.
6
Page 7

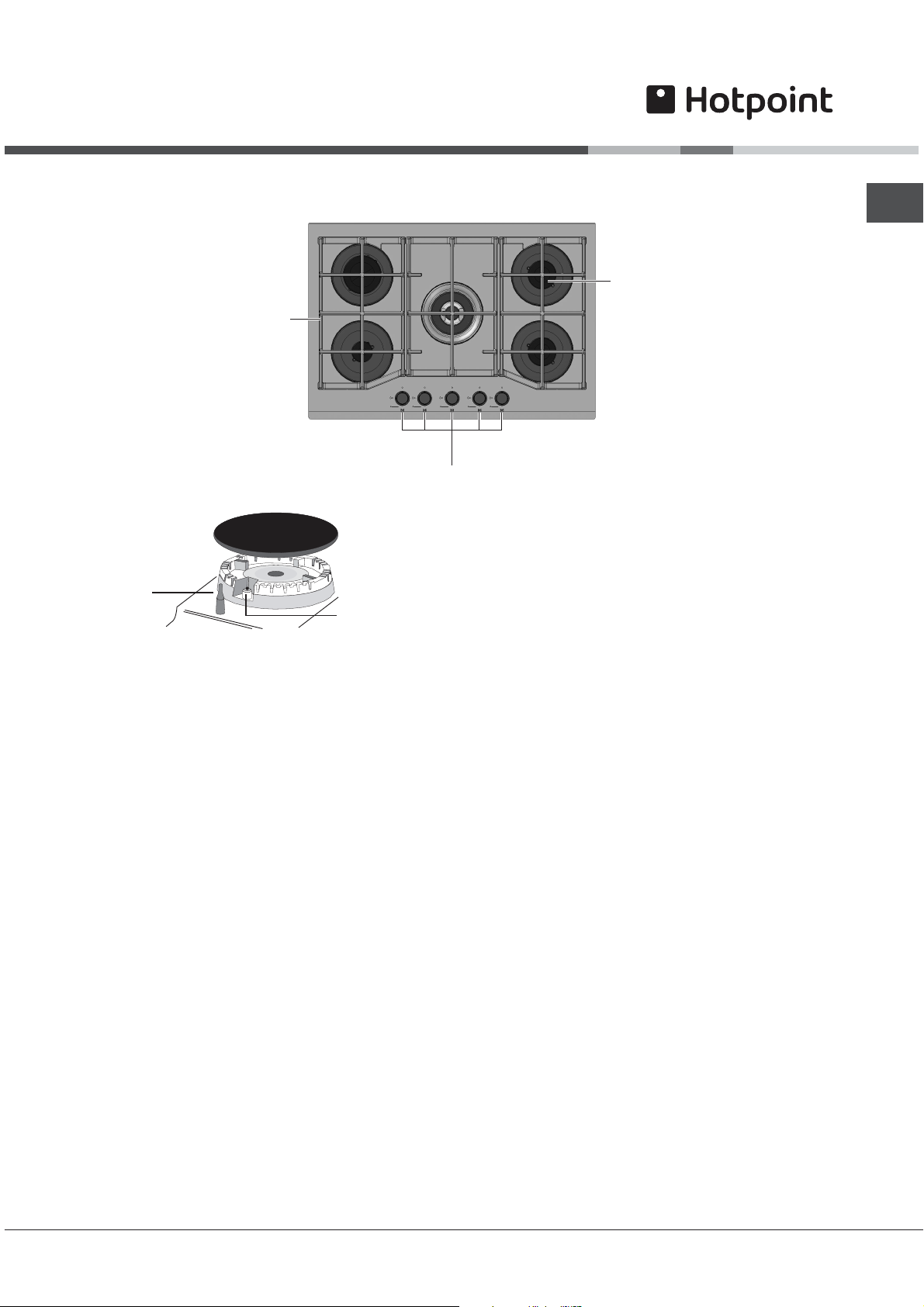

Description of the
appliance
Overall view
SAFETY
DEVICES *
GB
GAS BURNERS
Support Grid for
COOKWARE
Control Knobs for
GAS BURNERS
Ignition for
GAS BURNERS *
GAS BURNERS differ in size and power. Use the
diameter of the cookware to choose the most
appropriate burner to cook with.
Control Knobs for GAS BURNERS adjust the
power or the size of the flame.
GAS BURNER ignition* enables a specific burner
to be lit automatically.
SAFETY DEVICE* stops the gas flow if the flame
is accidentally extinguished.
Only available on certain models.
*
7
Page 8
Start-up and use
GB
The position of the corresponding gas burner is shown
on every knob.
Gas burners
Each burner can be adjusted to one of the following
settings using the corresponding control knob:
Off
Maximum
Minimum
To turn on one of the burners, place a lighted match or
lighter near the burner, press the knob all the way in and
turn it anti-clockwise to the "High" setting.
On those models fitted with a safety device (F), the knob
must be pressed in for about 6 seconds until the device
that keeps the flame lit warms up.
Some models are equipped with an ignition button
incorporated into the control knob. If this is the case, the
ignitor is present, but not the button.
To light a burner, simply press the corresponding knob all
the way in and then turn it anti-clockwise to the "High"
setting, keeping it pressed in until the burner lights.
If a flame is accidentally extinguished, turn off the control
knob and wait for at least 1 minute before trying to relight
it.
Practical advice on using the burners
To ensure the burners operate efficiently:
Use appropriate cookware for each burner (see table)
so that the flames do not extend beyond the bottom of
the cookware.
Always use cookware with a flat base and a cover.
When the contents of the pan reach boiling point, turn
the knob to minimum.
Burner ø Cookware diameter (cm)
Reduced Rapid (RR) 24 – 26
Semi-Rapid (S) 16 – 20
Auxilliary (A) 10 – 14
Mini WOK (MW) 24 – 26
To identify the type of burner, refer to the designs in the
section entitled, "Burner and Nozzle Specifications".
To switch off the burner, turn the knob in a clockwise
direction until it stops (when reaches the position).
Only available on certain models.
*
8
Page 9
Precautions and tips
This appliance has been designed and manufactured in
compliance with international safety standards. The
following warnings are provided for safety reasons and
must be read carefully.
General safety
This is a class 3 built-in appliance.
Gas appliances require regular air exchange to
maintain efficient operation. When installing the
hob, follo w the in
paragraph on Positioning the appliance.
These instructions are only valid for the countries
whose symbols
serial number plate.
The appliance was designed for domestic use inside
the home and is not intended for commercial or
industrial use.
The appliance must not be installed outdoors, even in
covered areas. It is extremely dangerous to leave the
appliance exposed to rain and storms.
Do not touch the appliance with bare feet or with wet or
damp hands and feet.
The appliance must be used by adults only, to cook
food according to the instructions in this manual.
Ensure that the power supply cables of other electrical
appliances do not come into contact with the hot parts
of the oven.
The openings used for ventilation and dispersion of
heat must never be covered.
Always make sure the knobs are in the l/
when the appliance is not in use.
structions provided in the
appear in the manual and on the
¡ position
Always make sure that pan handles are turned towards
the centre of the hob in order to avoid accidental burns.
Do not close the glass cover (if present) when the gas
burners or electric hotplates are still hot.
Do not use unstable or deformed pans.
The appliance should not be operated by people
(including children) with reduced physical, sensory or
mental capacities, by inexperienced individuals or by
anyone who is not familiar with the product. These
individuals should, at the very least, be supervised by
someone who assumes responsibility for their safety or
receive preliminary instructions relating to the operation
of the appliance.
Disposal
When disposing of packaging material: observe local
legislation so that the packaging may be reused.
The European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE), requires that old
household electrical appliances must not be disposed
of in the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to
optimise the recovery and recycling of the materials
they contain and reduce the impact on human health
and the environment. The crossed out wheeled bin
symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be
separately collected.
Consumers may take their old appliance to public
waste collection areas, other communal collection
areas, or if national legislation allows return it to a
retailer when purchasing a similar new product.
All major household appliance manufacturers are active
in the creation of systems to manage the collection and
disposal of old appliances.
GB
When unplugging the appliance always pull the plug from
the mains socket, do not pull on the cable.
Never carry out any cleaning or maintenance work
without having detached the plug from the mains.
In case of malfunction, under no circumstances should
you attempt to repair the appliance yourself. Repairs
carried out by inexperienced persons may cause injury
or further malfunctioning of the appliance. Contact a
Service Centre (see Assistance).
Recycling & Disposal Information
As part of Hotpoint's continued commitment to helping
the environment, Hotpoint reserves the right to use quality
recycled components to keep down customer costs and
minimise material wastage.
Please dispose of packaging and old appliances
carefully.
To minimise risk of injury to children, remove the door,
plug and cut mains cable off flush with the appliance.
Dispose of these parts separately to ensure that the
appliance can no longer be plugged into a mains socket,
and the door cannot be locked shut.
9
Page 10
Maintenance and care
GB
Switching the appliance off
Disconnect your appliance from the electricity
supply before carrying out any work on it.
Cleaning the appliance
Do not use abrasive or corrosive detergents such
as stain removers, anti-rust products, powder
detergents or sponges with abrasive surfaces: these
may scratch the surface beyond repair.
Never use steam cleaners or pressure cleaners on
the appliance.
It is usually enough to wash the hob with a damp
sponge and dry it with absorbent kitchen roll.
The removable parts of the burners should be
washed frequently with warm water and soap and
any burnt-on substances removed.
For hobs which ligth automatically, the terminal
part of the electronic instant lighting devices
should be cleaned frequently and the gas outlet
holes should be checked for blockages.
Gas tap maintenance
Over time, the taps may become jammed or difficult
to turn. If this happens, the tap must be replaced.
This procedure must be performed by a
qualified technician authorised by the
manufacturer.
Stainless steel can be marked by hard water that
has been left on the surface for a long time, or by
aggressive detergents containing phosphorus.
After cleaning, rinse and dry any remaining drops
of water.
10
Page 11
Troubleshooting
It may happen that the appliance does not function properly or at all. Before calling the service centre for
assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and
electrical supplies, and, in particular, that the gas valves for the mains are open.
GB
Problem
The burner does not light or the flame is not
even around the burner.
The flame dies in models with a safety device.
The burner does not remain lit when set to
m
inimum.
The cookware is unstable.
If, despite all these checks, the hob does not function properly and the problem persists, call the nearest
Customer Service Centre. Please have the following information handy:
The appliance model (Mod.).
The serial number (S/N).
This information can be found on the data plate located on the appliance and/or on the packaging.
Possible causes/Solution
The gas holes on the burner are clogged.
All the movable parts that make up the burner are
mounted correctly.
There are draughts near the appliance.
You pressed the knob all the way in.
You keep the knob pressed in long enough to activate the
safety device.
The gas holes are not blocked in the area corresponding
to the safety device.
The gas holes are not blocked.
There are no draughts near the appliance.
The minimum setting has been adjusted properly.
The bottom of the cookware is perfectly flat.
The cookware is positioned correctly at the centre of the
burner.
The pan support grids have been positioned correctly.
Never use unauthorised technicians and never accept replacement parts which are not original.
11
Page 12
After Sales Service
GB
After Sales Service
No one is better placed to care for your Hotpoint appliance during the course of its working life than
us - the manufacturer.
Essential Contact Information
Hotpoint Service
We are the largest service team in Europe offering you access to 400 skilled telephone advisors and
1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.
UK: 08709 066 066
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Please note: Our advisors will require the following information:
Model number:
Serial number:
Parts and Accessories
We supply a full range of genuine replacement parts as well as accessory products that protect and
hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.
UK: 08709 077 077
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts
guarantee you must register your appliance with us.
UK: 0870 6092094
Republic of Ireland: 01 230 0800
www.hotpointservice.co.uk
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate,Dublin 17
Recycling & Disposal Information
As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality,
recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door,
plug and cut the mains
appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.
cable off flush with the appliance. Dispose of these parts separately to ensure that the
12
Page 13
Guarantee
Guarantee
12 Months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturers guarantee, which covers the cost of breakdown
repairs for twelve months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be defective
because of either workmanship or
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our
operating and maintenance instructions.
- The appliance is used only on the electricity or
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained, dismantled, or otherwise
interfered with by any person not authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
removed during repair work or any appliance that is replaced become our property.
materials, we will, at our discretion, either repair or replace the
appliance at no cost to you.
gas supply printed on the rating plate.
GB
- Damage resulting from transportation, improper use, neglect or interference or as a result
of improper installation.
- Replacement of any consumable item or
cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR
NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Hotpoint also
registering your appliance with us and the parts being fitted by one of our authorised engineers.
There will be a charge for our engineer's time. To activate the extra parts warranty on your appliance,
We offer a selection of repair protection plans that enable you to fully cover yourself against the
expense of repair bills for the life of your policy. To find the ideal plan for you please call our advice
offers you a free 5 year parts guarantee. This additional guarantee is conditional on you
simply call our
registration line on 0870 6092094 (ROI 01 230 0800).
line on 08709
accessory . These include but are not limited to: plugs,
Extended Guarantees
088 088 (ROI 01 230 0233).
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your appliance if you
experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint
Service Hotline on 08709 066 066 (ROI 0818 313 413) for telephone
to arrange for an engineer to call. If we cannot resolve the technical problem we will replace your
machine or, if you prefer, give you your money back.
assistance, or, where necessary,
13
Page 14
GB
Notes
14
Page 15
Notes
GB
15
Page 16
GB
Notes
11/2007 - 195061218.01
XEROX BUSINESS SERVICES
16
Loading...
