Page 1

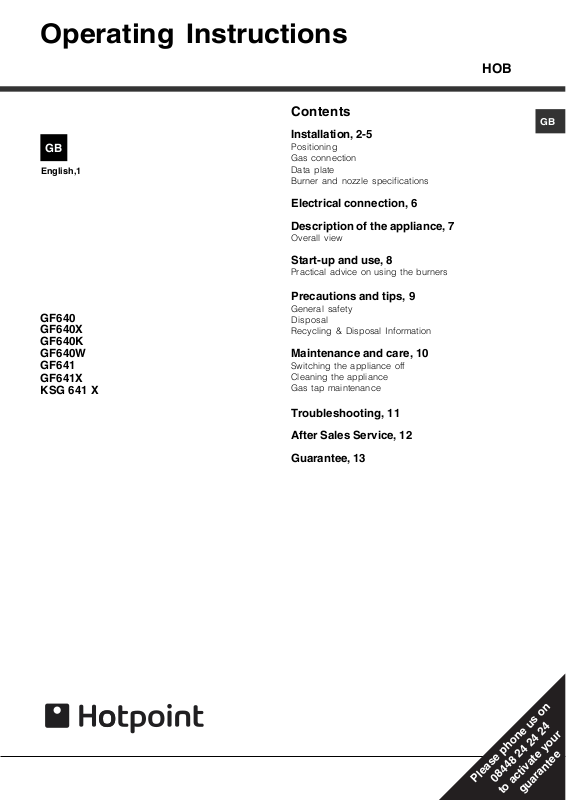

Operating Instructions

Please phone us on

08448 24 24 24

to activate your

guarantee

HOB

English,1

GF640 GF640X GF640K

GF640W GF641 GF641X KSG 641 X

Contents

Installation, 2-5

Positioning Gas connection Data plate Burner and nozzle specifications

Electrical connection, 6

Description of the appliance, 7

Overall view

Start-up and use, 8

Practical advice on using the burners

Precautions and tips, 9

General safety Disposal Recycling & Disposal Information

Maintenance and care, 10

Switching the appliance off Cleaning the appliance Gas tap maintenance

Troubleshooting, 11

After Sales Service, 12

Guarantee, 13

Page 2

Installation

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (

see Precautions and tips

! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:

• The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

In a chimney stack or branched flue. (exclusively for cooking appliances)

• The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m kW of installed power.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of

Examples of ventilation holes for comburant air.

at least 100 cm must not be vulnerable to any type of blockages.

Directly to the Outside

; the opening

/h per

Adjacent Room

Room to be Vented

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above.

Enlarging the ventilation slot between window and floor.

However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

• Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc. ) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.

• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob.

• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (

figure

see

If the hob is installed beneath a wall cabinet, the latter must

600mm min.

700mm min.

be situated at a minimum of 700 mm above the hob (

figure

600mm min.

see

• The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 3

555 mm

55 mm

475 mm

Hook fastening diagram

Hooking position Hooking position for top H=30 mm for top H=40 mm

Front

Hooking position Back for top H=20 mm

! Use the hooks contained in the “accessory pack”

• Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (

see diagrams

560 mm.

45 mm.

Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (

figure

see

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph “Adapting to different types of gas.” When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (“Burner and nozzle specifications”). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind

on the appliance. There is an adjustable pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

L-shaped

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 4

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off

their seats.

2. Unscrew the nozzles using a 7 mm socket

spanner, and replace them with nozzles for the new type of gas (see table 1 “Burner and nozzle characteristics”).

3. Reassemble the parts following the above

procedure in the reverse order.

4. Once this procedure is finished, replace the old

rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

• Adjusting the burners’ primary air :

Does not require adjusting.

! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.

! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.

! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

• Setting the burners to minimum:

1. Turn the tap to the low flame position.

2. Remove the knob and adjust the adjustment

screw, which is positioned in or next to the tap pin, until the flame is small but steady.

3. Having adjusted the flame to the required low

setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

4. Some appliances have a safety device

(thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.

5. Once the adjustment has been made, replace the

seals on the by-passes using sealing wax or a similar substance.

DATA PLATE

Electrical connections

see data plate

This appliance conforms to the following European Economic Community directives:

- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments

- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments

- 93/68/EEC dated 22/07/93 and subsequent amendments.

- 2009/142/EEC dated 30/11/09 (Gas) and subsequent amendments.

- 2002/96/EC and subsequent amendments.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 5

Burner and nozzle specifications

Table 1 Liquid Gas Natural Gas

Burner Diameter

(mm)

Thermal Power

kW (p.c.s.*)

By-pass

Nom. Red.

Reduce Fast (RR)

Semi Fast (Medium) (S)

Auxiliary (Small) (A)

Triple Crown (TC)

Supply pressures

100

130

2.60

1.65

1.00

3.25

Nominal (mbar)

Minimum (mbar)

0.70

0.40

1.50

Maximum (mbar)

* At 15°C and 1013 mbar-dry gas ** Propane P.C.S. = 50.37 MJ/kg. *** Butane P.C.S. = 49.47 MJ/kg. Natural P.C.S. = 37.78 MJ/m

(1) Only for appliances with the security device.

1/100

(mm)

(1)

Nozzle

1/100

(mm) ***

28-30

189

120

236

20 35

Flow*

g/h

186

118

232

37 25 45

Nozzle

1/100

Flow*

l/h

Nozzle

1/100

(mm) (mm)

110

133

248

157

309

135

105

150

20 17 25

Flow*

l/h

248

157

303

6,5

GF640 GF640X GF640K

GF640W GF641 GF641X KSG 641 X

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 6

Electrical Connection

! THIS APPLIANCE MUST BE EARTHED. The hob is designed to work with alternating current, the supply voltage and frequency indicated on the rating plate (situated under the hob). Make sure that the local supply voltage corresponds to the voltage indicated on the rating plate.

Connecting the supply cable to the mains electricity supply

For models supplied without a plug, fit a standard plug suitable for the load indicated on the rating plate, onto a cable and connect to a suitable socket. To connect direct to the mains supply, a double pole switch with a contact separation of at least 3mm suitable for the load and complying with current standards and regulations must be fitted between the appliance and the mains supply outlet. The green-yellow earth wire must not be interrupted by the switch. The supply cable must be positioned so that no part of it reaches a temperature of 50°C above room temperature. For installation above a built-under oven, the hob and the oven must be connected separately to the electricity supply, both for safetly reasons and for easy removal of the oven for repair, maintenance etc. DO NOT use adapters as they could cause overheating or burning. Before connecting to the power supply, make sure that:

• the limiter switch and the domestic system can

withstand the load from the appliance (see rating plate).

• the supply system is efficiently earthed according

to standards and laws in force.

• the socket or double-pole switch are easily

accessible when the appliance is installed.

! The wires in the mains lead are coloured in accordance with the following code: Green & Yellow - Earth Blue - Neutral Brown - Live As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: Connect the Green & Yellow wire to terminal marked

“E” or Connect the Brown wire to the terminal marked “L” or coloured Red or Brown. Connect the Blue wire to the terminal marked “N” or coloured Black or Blue. FAILURE TO OBSERVE THE ACCIDENT-PREVENTION REGULATIONS RELIEVES THE MANUFACTURER OF ALL LIABILITY.

Replacing the cable

Use a rubber cable of the type H05RR-F with a suitable cross section 3 x 0.75 mm². The yellow-green earth wire must be 2-3 cm longer than the other wires.

or coloured Green or Green & Yellow.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

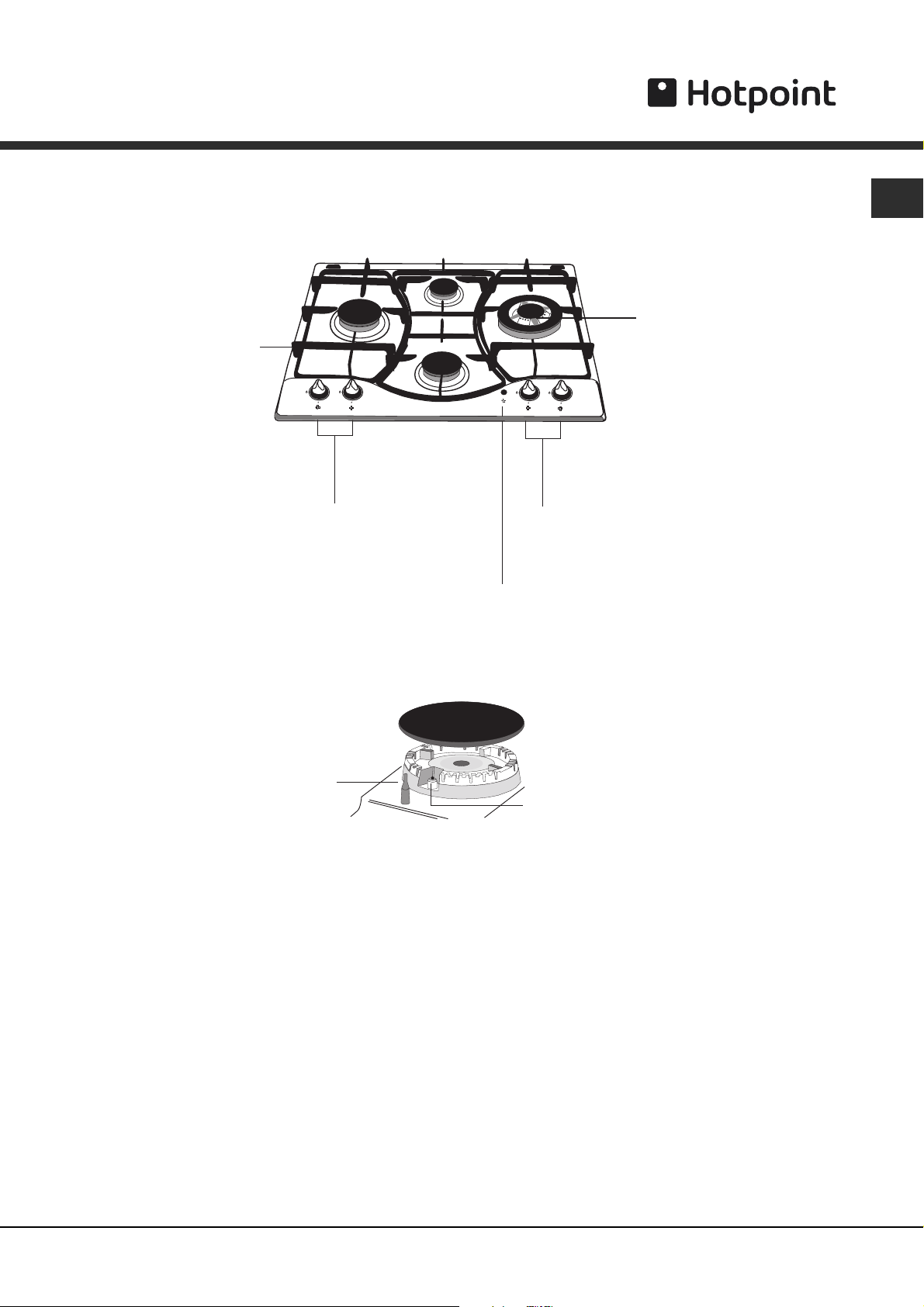

Page 7

Description of the appliance

Overall view

Support Grid for

COOKWARE

Control Knobs for

GAS BURNERS

Control Knobs for

GAS BURNERS

Ignition Button for

GAS BURNERS *

SAFETY

DEVICES *

• GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.

• Control Knobs for GAS BURNERS adjust the power or the size of the flame.

Only available on certain models.

Ignition for

GAS BURNERS *

• GAS BURNER ignition* enables a specific burner to be lit automatically.

• SAFETY DEVICE* stops the gas flow if the flame is accidentally extinguished.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 8

Start-up and use

! The position of the corresponding gas burner or electric hotplate* is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

• Off

Maximum

Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting. Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up. When using models with an ignition button, light the desired burner by first pressing the gas burners

button (identifiable by the pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting. Some models are equipped with an ignition switch incorporated into the control knob. If this is the case, the ignitor is present, but not the switch (the symbol is located near each knob). To light a burner, simply press the corresponding knob all the way in and then turn it in the counterclockwise direction to the "High" setting, keeping it pressed in until the burner lights.

symbol), then

• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner

Reduced Fast (RR)

Semi Fast (S)

Auxiliary (A)

Triple Crown (TC)

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

Ø Cookware Diameter (cm)

22 - 24

16 - 20

10 - 14

24 - 26

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the “•” position).

Practical advice on using the burners

For best performance, follow these general guidelines:

• Use the appropriate cookware for each burner (see table) in order to prevent the flame from reaching the sides of the pot or pan;

• Alwasy use cookware with a flat bottom and keep the lid on;

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 9

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.

• Gas appliances require regular air exchange to

maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on “Positioning” the appliance.

• These instructions are only valid for the

countries whose symbols appear in the manual and on the serial number plate.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp hands and feet.

• The appliance must be used by adults only for

the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always make sure the knobs are in the “!”/“ position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having detached the plug from the mains.

• In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• Do not close the glass cover (if present) when the gas burners are still hot.

see Assistance

”

• Do not use unstable or deformed pans.

• The appliance is not intended to be operated

by means of an external timer or separate remote-control system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 10

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.

• The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.

• For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 11

Troubleshooting

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

Problem

The burner does not light or the flame is not even around the burner.

The flame dies in models with a safety device.

The burner does not remain lit when set to minimum.

The cookware is unstable.

If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy:

• The appliance model (Mod.).

• The serial number (S/N). This information can be found on the data plate located on the appliance and/or on the packaging.

Possible causes/Solution

• The gas holes on the burner are clogged.

• All the movable parts that make up the burner are mounted correctly.

• There are draughts near the appliance.

• You pressed the knob all the way in.

• You keep the knob pressed in long enough to activate the safety device.

• The gas holes are not blocked in the area corresponding to the safety device.

• The gas holes are not blocked.

• There are no draughts near the appliance.

• The minimum setting has been adjusted properly.

• The bottom of the cookware is perfectly flat.

• The cookware is positioned correctly at the centre of the burner.

• The pan support grids have been positioned correctly.

! Never use unauthorised technicians and never accept replacement parts which are not original.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 12

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its working life than

us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in Europe offering you access to 400 skilled telephone advisors and

1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.

UK: 08709 066 066

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement parts as well as accessory products that protect and

hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.

UK: 08709 077 077

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts

guarantee you must register your appliance with us.

UK: 0870 6092094

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial Estate,Dublin 17

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door, plug and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 13

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of breakdown

repairs for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective

because of either workmanship or materials, we will, at our discretion, either repair or replace the

appliance at no cost to you.

This guarantee is subject to the following conditions:

The appliance has been installed and operated correctly and in accordance with our

operating and maintenance instructions.

The appliance is used only on the electricity or gas supply printed on the rating plate.

The appliance has been used for normal domestic purposes only.

The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any person not authorised by us.

Any repair work must be undertaken by us or our appointed agent.

Any parts removed during repair work or any appliance that is replaced become our property.

The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

Damage resulting from transportation, improper use, neglect or interference or as a result

of improper installation.

Replacement of any consumable item or accessory . These include but are not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you

registering your appliance with us and the parts being fitted by one of our authorised engineers.

There will be a charge for our engineer's time. To activate the extra parts warranty on your appliance,

simply call our registration line on 0870 6092094 (ROI 01 230 0800).

Extended Guarantees

We offer a selection of repair protection plans that enable you to fully cover yourself against the

expense of repair bills for the life of your policy. To find the ideal plan for you please call our advice

line on 08709 088 088 (ROI 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint

Service Hotline on 08709 066 066 (ROI 0818 313 413) for telephone assistance, or, where necessary,

to arrange for an engineer to call. If we cannot resolve the technical problem we will replace your

machine or, if you prefer, give you your money back.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 14

Notes

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 15

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Page 16

Notes

02/2012 - 195036404.06

XEROX FABRIANO

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
