Page 1

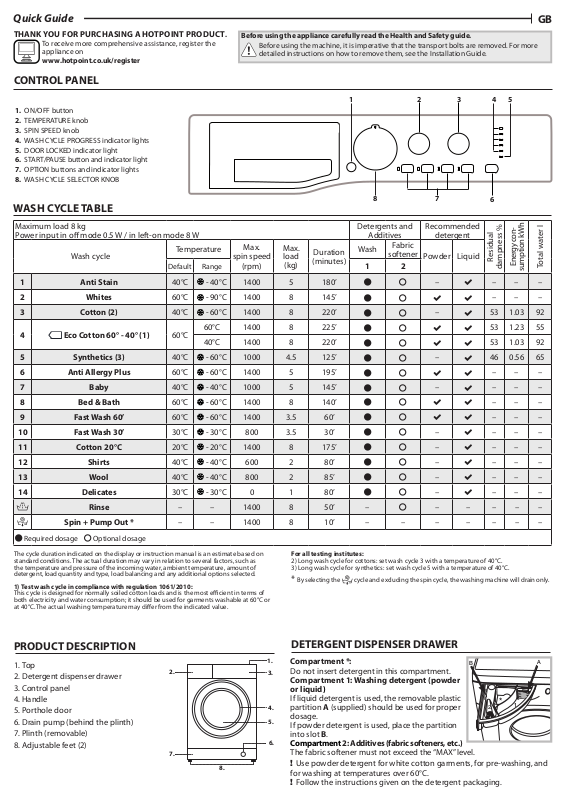

Quick Guide
1
2
A
B
*
THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.
To receive more comprehensive assistance, register the
appliance on
www.hotpoint.co.uk/register
CONTROL PANEL
1. ON/OFF button
2. TEMPERATURE knob
3. SPIN SPEED knob
4. WASH CYCLE PROGRESS indicator lights
5. DOOR LOCKED indicator light
6. START/PAUSE button and indicator light
7. OPTION buttons and indicator lights
8. WASH CYCLE SELECTOR KNOB
Before using the appliance carefully read the Health and Safety guide.
Before using the machine, it is imperative that the transport bolts are removed. For more
detailed instructions on how to remove them, see the Installation Guide.
1
2
3
4
GB
5
WASH CYCLE TABLE
Maximum load 8 kg
Power input in o mode 0.5 W / in left-on mode 8 W
Wash cycle
1 Anti Stain 40°C
2 Whites 60°C
3 Cotton (2) 40°C
4
Eco Cotton 60° - 40° (1)
5 Synthetics (3) 40°C
6 Anti Allergy Plus 60°C
7 Baby 40°C
8 Bed & Bath 60°C
9 Fast Wash 60’ 60°C
10 Fast Wash 30’ 30°C
11 Cotton 20°C 20°C
12 Shirts 40°C
13 Wool 40°C
14 Delicates 30°C
Temperature
Default Range
- 40°C 1400 5 180’
- 90°C 1400 8 145’
- 60°C 1400 8 220’
60°C
60°C 1400 8 225’
40°C 1400 8 220’
- 60°C 1000 4.5 125’
- 60°C 1400 5 195’
- 40°C 1000 5 145’
- 60°C 1400 8 140’
- 60°C 1400 3.5 60’
- 30°C 800 3.5 30’
- 20°C 1400 8 175’
- 40°C 600 2 80’
- 40°C 800 2 85’
- 30°C 0 1 80’
Rinse – – 1400 8 50’ –
Spin + Pump Out * – – 1400 8 10’ – – – – – – –
Required dosage Optional dosage
The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as
the temperature and pressure of the incoming water, ambient temperature, amount of
detergent, load quantity and type, load balancing and any additional options selected.
1) Test wash cycle in compliance with regulation 1061/2010:
This cycle is designed for normally soiled cotton loads and is the most ecient in terms of
both electricity and water consumption; it should be used for garments washable at 60°C or
at 40°C. The actual washing temperature may dier from the indicated value.
Max.
spin speed
(rpm)
8
Detergents and
Additives
Max.
load
(kg)
Duration
(minutes)
Wash
Fabric
softener
1 2
For all testing institutes:
2) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.
3) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.
7
6
Recommended
detergent
Powder Liquid
Residual
dampness %
–
– – –
– – –
–
53 1.03 92
53 1.23 55
53 1.03 92
–
46 0.56 65
– – –
–
– – –
– – –
– – –
–
–
–
–
–
– – –
– – –
– – –
– – –
– – –
– – – – –
Energy con-
sumption kWh
* By selecting the cycle and excluding the spin cycle, the washing machine will drain only.
Total water l
PRODUCT DESCRIPTION
1. Top
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
DETERGENT DISPENSER DRAWER
1.
Compartment *:
2.
7.
8.
Do not insert detergent in this compartment.
3.
Compartment 1: Washing detergent (powder
or liquid)
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
4.
dosage.
5.
If powder detergent is used, place the partition
into slot B.
6.
Compartment 2: Additives (fabric softeners, etc.)
The fabric softener must not exceed the “MAX” level.
! Use powder detergent for white cotton garments, for pre-washing, and
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
Page 2
WASH CYCLES
END
Follow the instructions on the symbols of the garment’s wash
care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.
Anti Stain
The programme is suitable to heavily-soiled garments with resistant
colours. It ensures a washing class that is higher than the standard class (A
class). When running the programme, do not mix garments of dierent
colours. We recommend the use of powder detergent. Pre-treatment with
special additives is recommended if there are obstinate stains.
Whites
Heavily soiled whites and resistant colours.
Cotton
Lightly soiled resistant and delicate colours.
Eco Cotton 60° - 40°
Suitable for washing moderately soiled cotton garments. At 40°C and
60°C it is the standard cycle for washing cotton garments, and is the most
ecient in terms of combined water and electricity consumption.
Synthetics
Suitable for washing moderately soiled garments made of synthetic bres
(e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.
Anti Allergy Plus
Suitable for removing major allergens such as pollen, mites and cat or dog hair.
Baby
Use the special wash cycle to remove the soiling typically caused by
babies, while removing all traces of detergent from nappies in order to
prevent the delicate skin of babies from suering allergic reactions. The
cycle has been designed to reduce the amount of bacteria by using a
greater quantity of water and optimising the eect of special disinfecting
additives added to the detergent.
Bed & Bath
Use programme to wash bed linen and towels in one single cycle: it
optimises softener performance and helps you save time and energy. We
recommend the use of powder detergent.
Fast Wash 60’
For washing normal soiled garments in a short time. Not suitable for wool,
silk and garments to be washed by hand.
Fast Wash 30’
For washing lightly soiled garments in a short time. Not suitable for wool,
silk and garments to be washed by hand.
Cotton 20°C
The programme ideal for lightly soiled cotton loads. The eective
performance levels achieved at cold temperatures, which are comparable
to washing at 40°, are guaranteed by a mechanical action which operates
at varying speed, with repeated and frequent peaks.
Shirts
Use the special wash cycle to wash shirts in dierent fabrics and colours
to guarantee they receive the best possible care.
Wool - Woolmark Apparel Care - Green:
The “Wool” wash cycle is approved by the Woolmark
Company for washing wool garments classied as
“hand-washable”, provided that the wash complies with
the instructions appearing on the garment’s label and
with those provided by the manufacturer of this washing
machine. (M1127)
Delicates
For washing very delicate garments. It is advisable to turn the garments
inside out before washing them. For best results, use liquid detergent on
delicate garments. Use liquid detergent on delicate garments for best results.
To wash silk garments and curtains select cycle 14 and then option “Easy Iron”;
the machine will end the cycle while the laundry is soaking, the “Easy Iron” and
START/PAUSE indicator lights will ash (orange) and the RINSE phase will
remain lit in a xed manner. To drain the water so that the laundry may be
removed, press the START/PAUSE button or the “Easy Iron” button.
Rinse
Designed for rinsing and spinning.
Spin + Pump out
Designed for spinning and draining the water.
INDICATOR LIGHTS
The indicator lights provide important information. This is what they can tell you:
Wash cycle phase indicator lights
Once the desired wash cycle has been selected and has begun, the
indicator lights switch on one by one to indicate which phase of the cycle
is currently in progress.
Wash
Rinse
Spin
Pump out
End of wash cycle
Door locked indicator light
If this indicator light is on, the appliance door is locked to prevent it from
being opened accidentally; to avoid any damage, wait for the indicator
light to switch o before you open the appliance door (wait
approximately 3 minutes).
! If the START/PAUSE indicator light (orange) ashes rapidly at the same
time as the option indicator light, this indicates a problem has occurred
(see “Troubleshooting”).
FIRSTTIME USE
Once the appliance has been installed, and before it is used for the rst
time, run a wash cycle with detergent and no laundry, by setting the
“Auto-Clean” cycle.
DAILY USE
Prepare the laundry by following the suggestions appearing under the
“TIPS AND SUGGESTIONS” section.
- Press the ON/OFF button ; all the indicator lights will turn on for a few
seconds, then only the indicator lights relative to the selected programme
settings will remain lit and the START/PAUSE indicator light will ash.
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the wash cycle table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments, as described in the “DETERGENT DISPENSER
DRAWER” section.
- Close the door.
- Select the desired wash cycle.
- Set the washing temperature.
- Set the spin speed.
- Select the desired options.
- Press the START/PAUSE button to start the wash cycle; the relative
indicator light will light up steady green and the door will lock (the
indicator light will switch on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE button again; the
indicator light will ash amber. To start the wash cycle from the point at
which it was interrupted, press the START/PAUSE button again.
OPENING THE DOOR, IF NECESSARY
Once a cycle starts, the indicator light turns on to signal that the door
cannot be opened. While a wash cycle is running, the door remains
locked. To open the door while a cycle is under way, for example, to add
or remove garments, press the START/PAUSE button to pause the
cycle; the indicator light will ash amber. If the indicator light is not lit,
the door may be opened. Press the START/PAUSE button again to
continue the cycle.
CHANGING A RUNNING WASH CYCLE
To change a wash cycle while it is in progress, pause the washing machine
using the START/PAUSE button (the relative indicator light will ash
amber), then select the desired cycle and press the START/PAUSE
button again.
! To cancel a cycle that has already begun, press and hold the ON/OFF
button. The cycle will be stopped and the machine will switch o.
AT THE END OF THE WASH CYCLE
At the end of the wash cycle the indicator light will switch on; when
the indicator light switches o, the door may be opened (wait
approximately 3 minutes). Open the door, unload the laundry and switch
o the machine. If you do not press ON/OFF button, the washing
machine will switch o automatically after about a half of an hour.
OPTIONS
- If the selected option is not compatible with the programmed wash
cycle, the corresponding indicator light will ash and a sound alert (3
beeps); the option will not be activated.
- If a option which is incompatible with another function selected
previously, only the most recent selection will remain active.
Super Wash
This option oers a high-performance wash due to the greater quantity of
water used in the initial phase of the cycle, and due to the increased wash
cycle duration, is particularly useful for the removal of stubborn stains.
Extra Rinse
Selecting this option allows for enhancing rinsing eciency and fully
removing the detergent. It is particularly useful for sensitive skin.
Easy Iron
By selecting this function, the wash and spin cycles will be modied in
order to reduce the formation of creases. At the end of the cycle the
washing machine will perform slow rotations of the drum; the EASY IRON
and START/PAUSE indicator lights will ash (orange) and the phase
will remain lit in a xed manner. To end the cycle, press the START/PAUSE
button or the EASY IRON button.
Timer Saver
If you select this option, the wash cycle duration will be reduced by up to
50%, depending on the selected cycle, thereby guaranteeing
simultaneous water and energy saving. Use this cycle for lightly soiled
garments.
Page 3
Temperature
Turn the TEMPERATURE knob to set the wash temperature (see Wash
cycles table).
The temperature may be lowered, or even set to a cold wash ( ).
The washing machine will automatically prevent you from selecting a
temperature which is higher than the maximum value set for each wash cycle.
Spin
Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.
The spin speed may be lowered, or the spin cycle can be excluded
altogether by selecting the symbol .
The washing machine will automatically prevent you from selecting a spin
speed which is higher than the maximum speed set for each wash cycle.
TIPS AND SUGGESTIONS
Divide the laundry according to:
Type of fabric (cotton, mixed bres, synthetics, wool, garments to be
hand-washed). Colour (separate coloured garments from whites, wash
new coloured garments separately). Delicates (small garments – such as
nylon stockings – and items with hooks – such as bras: insert them in a
fabric bag).
Empty the pockets:
Objects such as coins or lighters can damage the washing machine and
the drum. Check all buttons.
CARE AND MAINTENANCE
Before performing cleaning and maintenance, switch the washing machine
o and disconnect it from the mains power. Do not use ammable liquids to
clean the washing machine.
Cutting o the water and electricity supplies
Close the water tap after every wash. This will limit wear on the hydraulic
system inside the washing machine and help to prevent leaks.
Unplug the washing machine when cleaning it and during all
maintenance work.
Cleaning the washing machine
The outer parts and rubber components of the appliance can be cleaned
using a soft cloth soaked in lukewarm soapy water. Do not use solvents or
abrasives.
The washing machine has a “Auto-Clean” cycle for its internal parts; it
must be run without any load in the drum.
To optimise this cycle, it is possible to use either detergent (10% of the
quantity specied for lightly soiled garments) or special additives to clean
the washing machine. We recommend running a cleaning cycle every 40
wash cycles.
To start the cycle press buttons “Super Wash” and “Extra Rinse”
simultaneously for 5 seconds.
The cycle will start automatically and will run for about 70 minutes. To
stop the cycle, press the START/PAUSE button.
Cleaning the detergent dispenser drawer
Remove the dispenser drawer by lifting and pulling it outwards. Wash it
under running water; this procedure should be eected regularly.
Caring for the door and drum
Always leave the porthole door ajar in order to prevent unpleasant
odours from forming.
Cleaning the pump
The washing machine is tted with a self-cleaning pump that does not
require any maintenance. Small items (such as coins or buttons) may
sometimes fall into the protective pre-chamber situated at the base of the
pump.
! Make sure that the wash cycle has ended and unplug the appliance.
To access the pre-chamber:
1. remove the covering panel on the front side of the machine by
inserting a screwdriver in the centre and sides of the panel and using it as
a lever;
2. loosen the drainage pump cover by turning it anti-clockwise: it is
normal for some water to leak out;
3. clean the inside thoroughly;
4. screw the cover back on;
5. put the panel back in place, making sure the hooks slot in place before
pushing the panel onto the appliance.
Checking the water inlet hose
Check the water inlet hose at least once a year. If it is cracked or broken, it
must be replaced: during wash cycles, the high pressure of the water
could suddenly split the hose open.
! Never use hoses that have already been used.
LOAD BALANCING SYSTEM
Before every spin cycle, to avoid excessive vibrations before every
spin and to distribute the load in a uniform manner, the drum rotates
continuously at a speed which is slightly greater than the washing
rotation speed. If, after several attempts, the load is not balanced
correctly, the machine spins at a reduced spin speed. If the load is
excessively unbalanced, the washing machine performs the distribution
process instead of spinning. To encourage improved load distribution and
balance, we recommend small and large garments are mixed in the load.
ACCESSORIES
Contact our Technical Assistance Service to check whether the following
accessories are available for this washing machine model.
Stacking kit
With this accessory you can secure the tumble dryer to the upper part of
your washing machine to save space and facilitate loading and unloading
of the tumble dryer.
TRANSPORT AND HANDLING
Do not lift the washing machine by gripping it from the upper section.
Unplug the appliance and close the water tap. Check that the door and
detergent dispenser drawer are tightly closed. Detach the lling hose
from the water tap then detach the drain hose. Empty all the water
remaining in the hoses and secure the latter so that they do not get
damaged during transport. Apply the transport bolts back on. Repeat, in
reverse order, the transport bolt removal procedure described in the
“Installation instructions”.
Important: Not emptying contents from pockets may cause pump or drain
blockages, or may damage the machine.
Do not wash items which do not have a wash label, or wash items that are
not intended as machine washable.
Page 4
TROUBLESHOOTING
Your machine could occasionally fail to work. Before contacting the Technical Assistance Service, make sure that the problem cannot be easily solved
using the following list.
Anomalies Possible causes / Solution
The machine does not switch on.
The wash cycle does not start.
The machine does not ll with water or
the indicator light for the rst wash cycle
stage ashes rapidly.
The machine continuously lls with water
and continually drains away or Water left
in the drum or Stuck on wash.
The machine does not drain or spin - (error
lights ashing).
The machine does spin.
The machine does not heat or poor wash
results.
The programme takes too long.
The washing machine vibrates a lot during
the spin cycle.
The machine is noisy.
The machine leaks from the
dispenser.
The appliance is not plugged into the socket fully, or not enough to make contact.
There is no power to the socket, or the fuse has blown in the mains plug.
The door is not closed properly.
The ON/OFF button has not been pressed.
The START/PAUSE button has not been pressed.
The water tap has not been turned on to allow water to ow into the machine.
A delayed start has been set.
The water inlet hose is kinked.
The water inlet hose is not connected to the water supply.
The water pressure is too low.
The water tap has not been turned on to allow water to ow into the machine.
There is no water supply to the house.
The inlet valve lter is blocked.
The START/PAUSE button has not been pressed.
The top of the drain hose is too low - It must be tted at a height between 65 and 100 cm from the oor.
The drain hose is connected incorrectly to the sink trap allowing water to run into the machine, the drain hose
must be positioned higher than the bottom of the sink to prevent water owing down the drain hose.
The end of the drain hose has been pushed too far down the standpipe, the ‘U’ bracket should be tted 100
mm from the end of the drain hose.
The Pump lter is blocked.
The drain hose is kinked.
New Installation - The blanking cap or spigot has not been removed if connected under a sink.
The drain hose or sink trap is blocked.
The ‘Spin’ Speed is set to “ ” position.
The ‘Temperature’ is set to “ ” position.
Programme times will vary due to water pressure, the incoming water temperature and if the wash load
goes out of balance. This will increase the programme times accordingly.
The feet have not been adjusted, enabling the machine to rock.
New Installation - Either the Transit Bolts including the plastic spacers, or the Polystyrene Packaging have not
been removed when installing the machine.
The machine is trapped between cabinets and/or walls.
The load is in a slight out of balance condition and machine is spinning, but at a lower speed.
There will always be some motor, pump and drum noise during spin.
The dispenser drawer is blocked with detergent and requires cleaning.
The water pressure is too high and requires turning down - turn down the tap on the water supply pipe slightly and try again.
The machine is tilting forwards - It must be level when in its nal position.
The indicator lights on the console are
ashing rapidly.
The machine smells. The machine requires a service wash. Run a auto clean wash cycle with detergent and no laundry.
The water level is too low when the
machine is washing.
There is too much foam.
Switch o the machine and unplug it, wait for approximately 1 minute and then switch back on again. If the
problem persists contact Technical Assistance Centre.
The water level is correct if it can be seen at the bottom of the door.
The detergent is not suitable for machine washing (it should display the text
‘for washing machines’ or ‘hand and machine wash’ or the like).
Your washing machine contains sensors that monitor progress during the wash cycle (eg: Water Levels,
General.
Temperatures, Out of Balance loads, Wash time/progress). Normally, if your machine successfully
completes the cycle, there is unlikely to be anything wrong!
You can download the SAFETY AND INSTALLATION INSTRUCTIONS, OPERATING MANUAL, TECHNICAL
SHEET and ENERGY DATA by:
xxxxxxxxxxxx
• Visiting the website http://docs.hotpoint.eu.
• Using the QR code.
• Alternatively, contact our Technical Assistance Service (the telephone number is indicated in the warranty
booklet). When contacting the Technical Assistance Service, provide the codes shown on the adhesive label applied
to the inside of the door.
11290879
xxxx
Loading...
