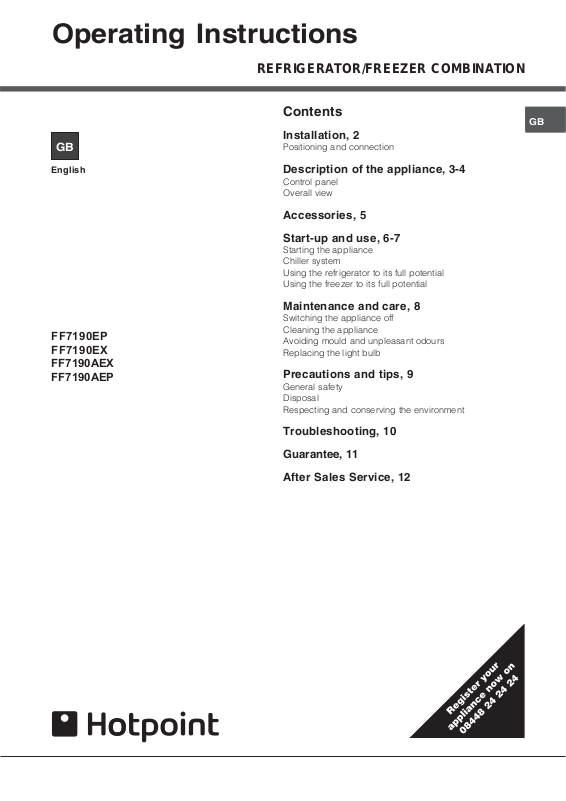

Hotpoint FF7190EX, FF7190EP, FF7190AEP, FF7190AEX User Manual

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION

English

FF7190EP FF7190EX FF7190AEX FF7190AEP

Contents

Installation, 2

Positioning and connection

Description of the appliance, 3-4

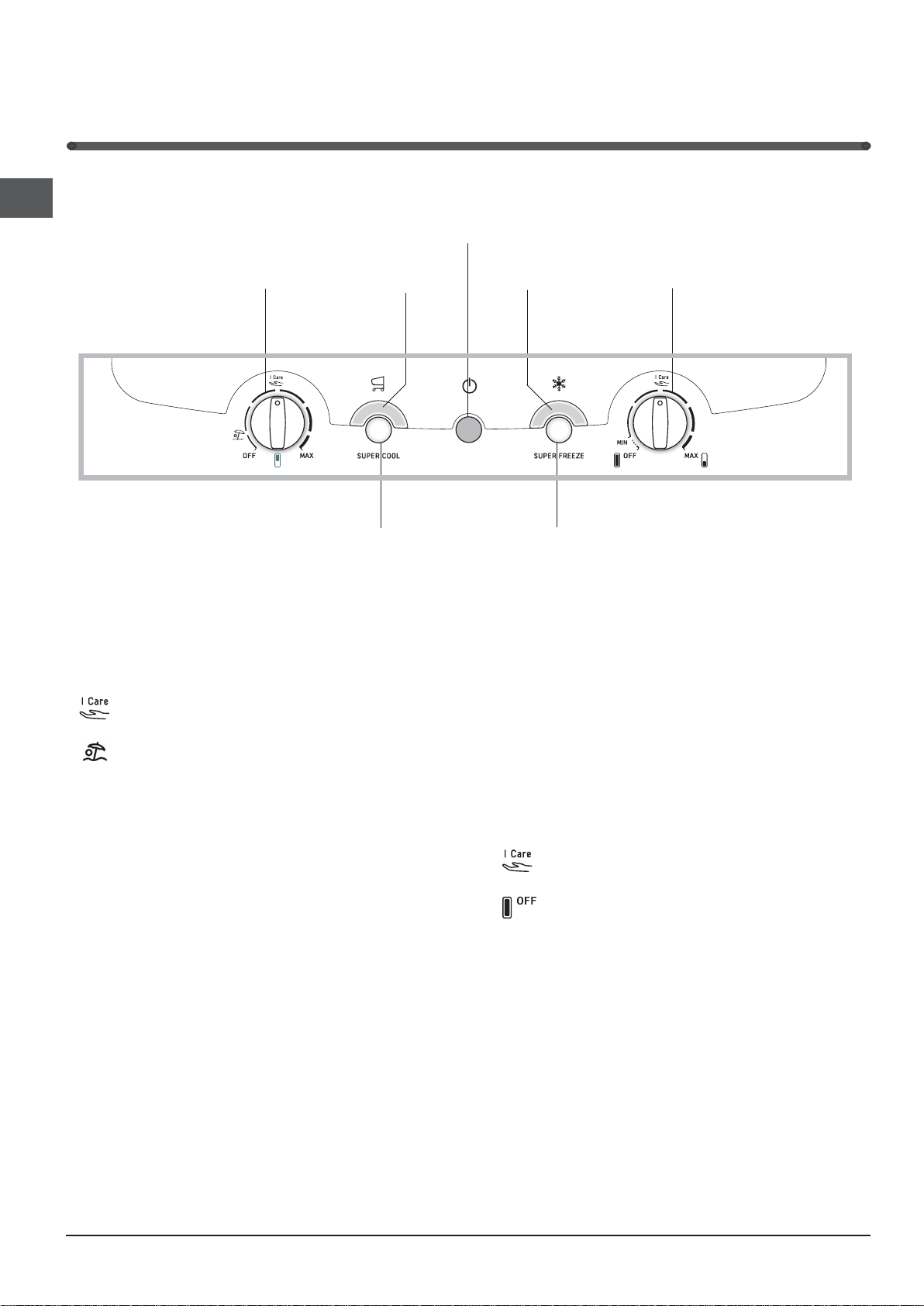

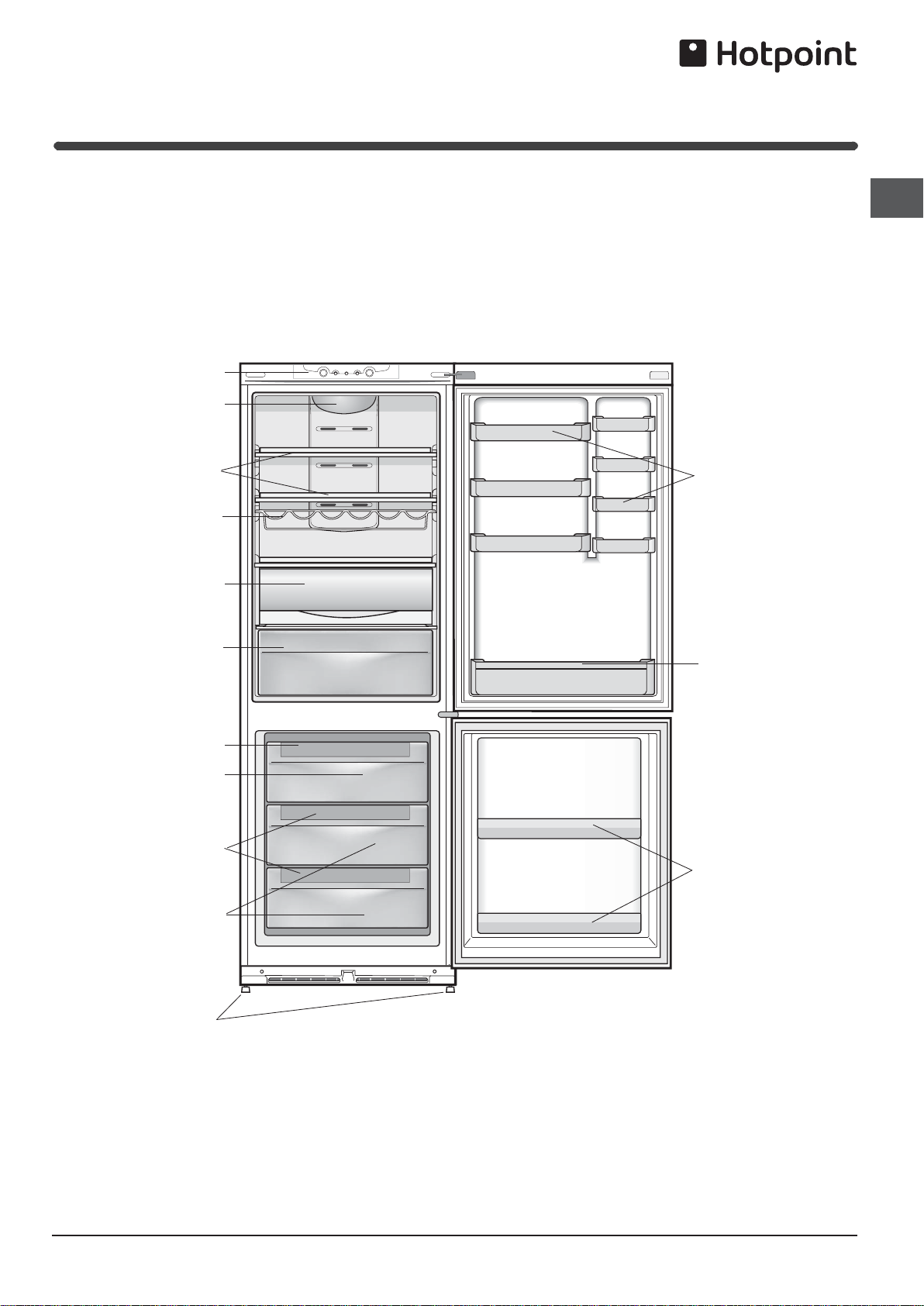

Control panel Overall view

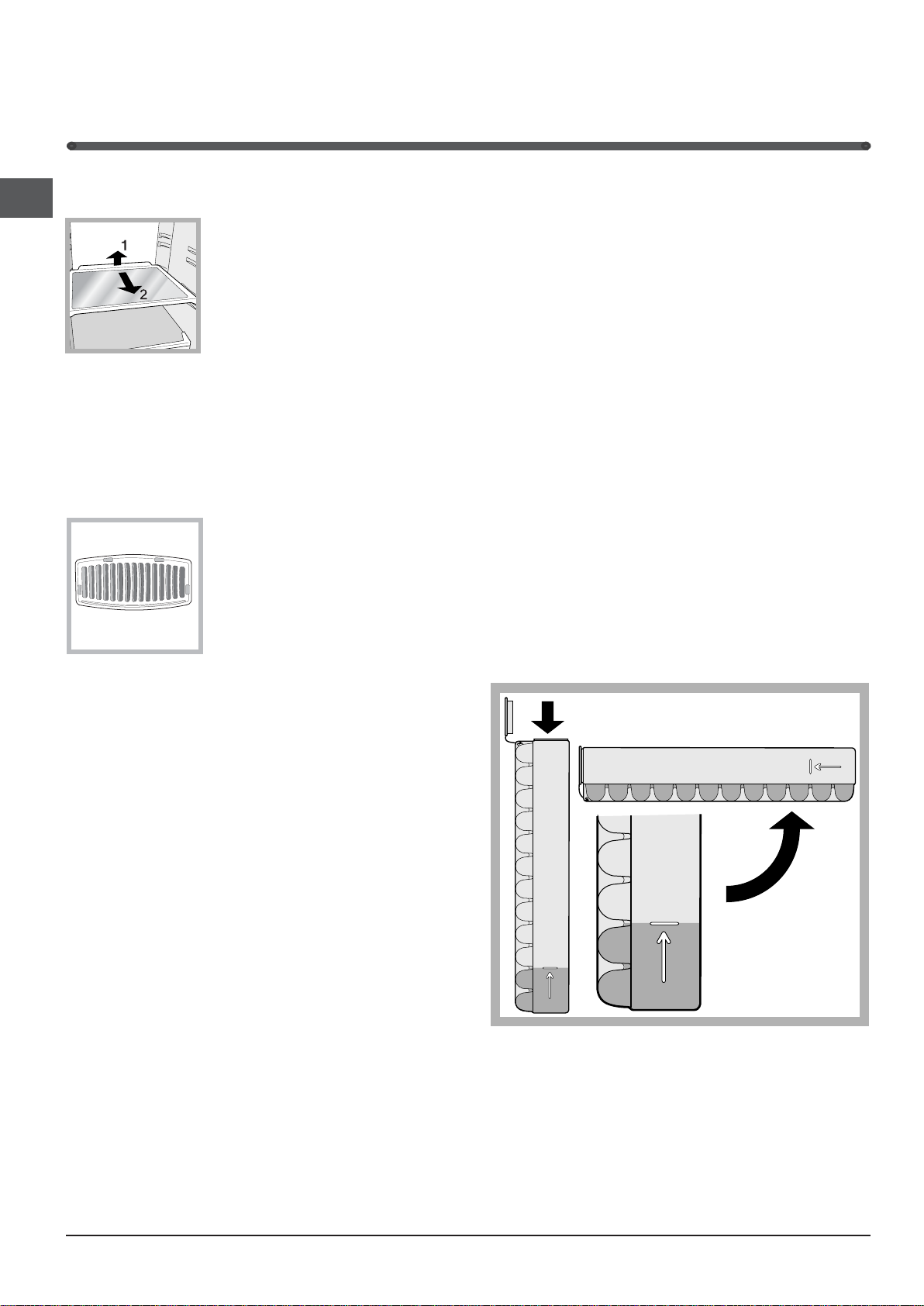

Accessories, 5

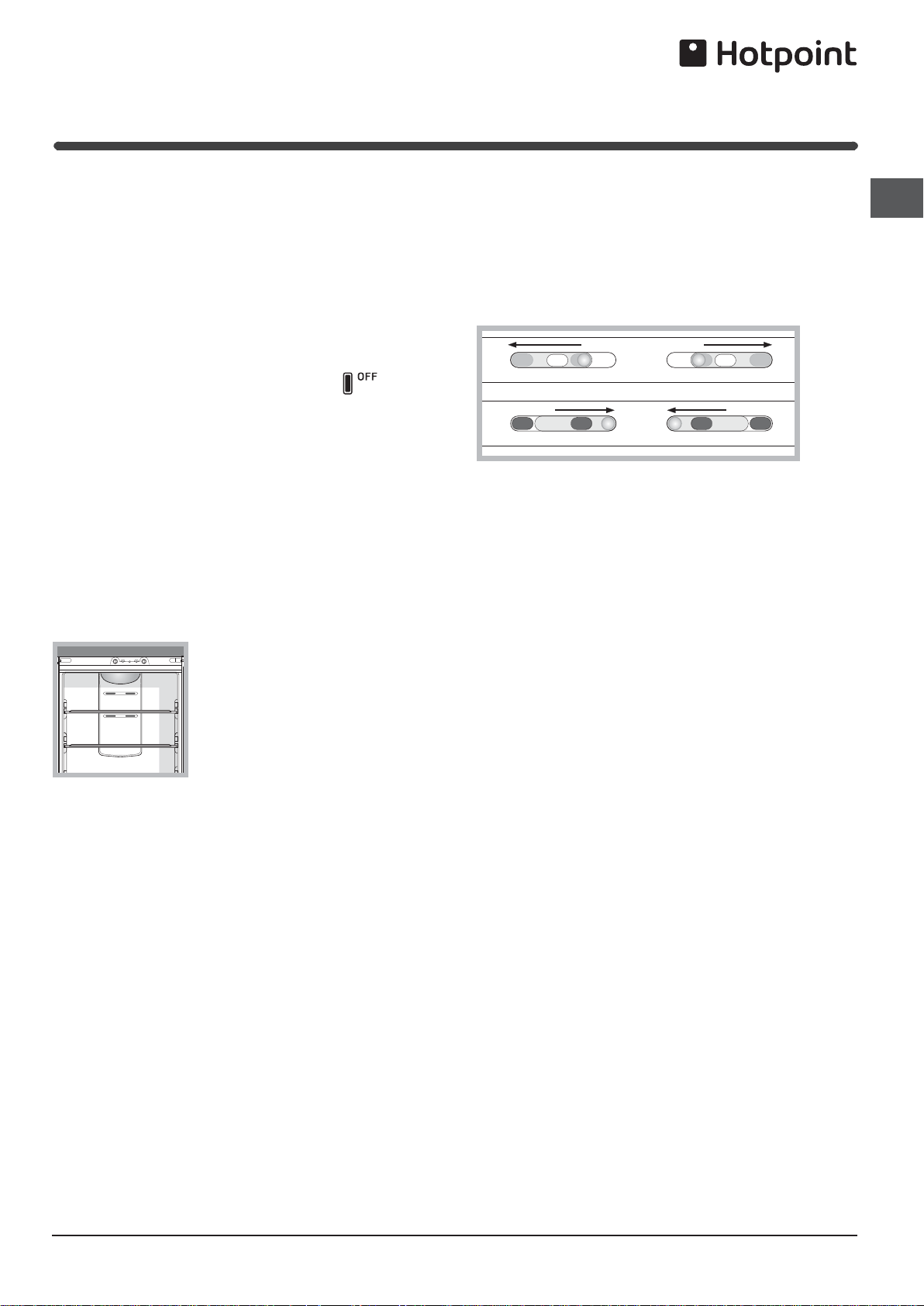

Start-up and use, 6-7

Starting the appliance Chiller system Using the refrigerator to its full potential Using the freezer to its full potential

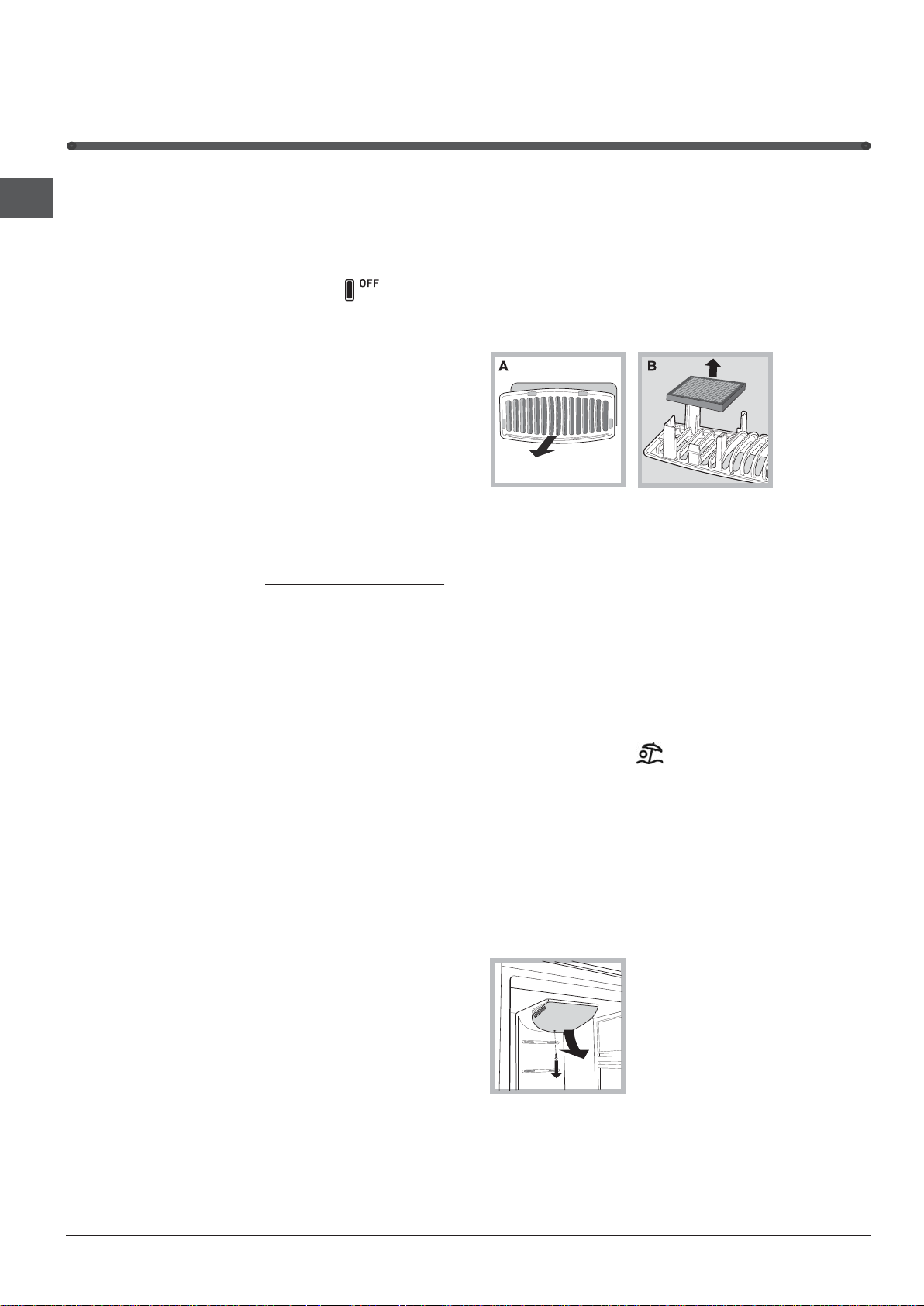

Maintenance and care, 8

Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Replacing the light bulb

Precautions and tips, 9

General safety Disposal Respecting and conserving the environment

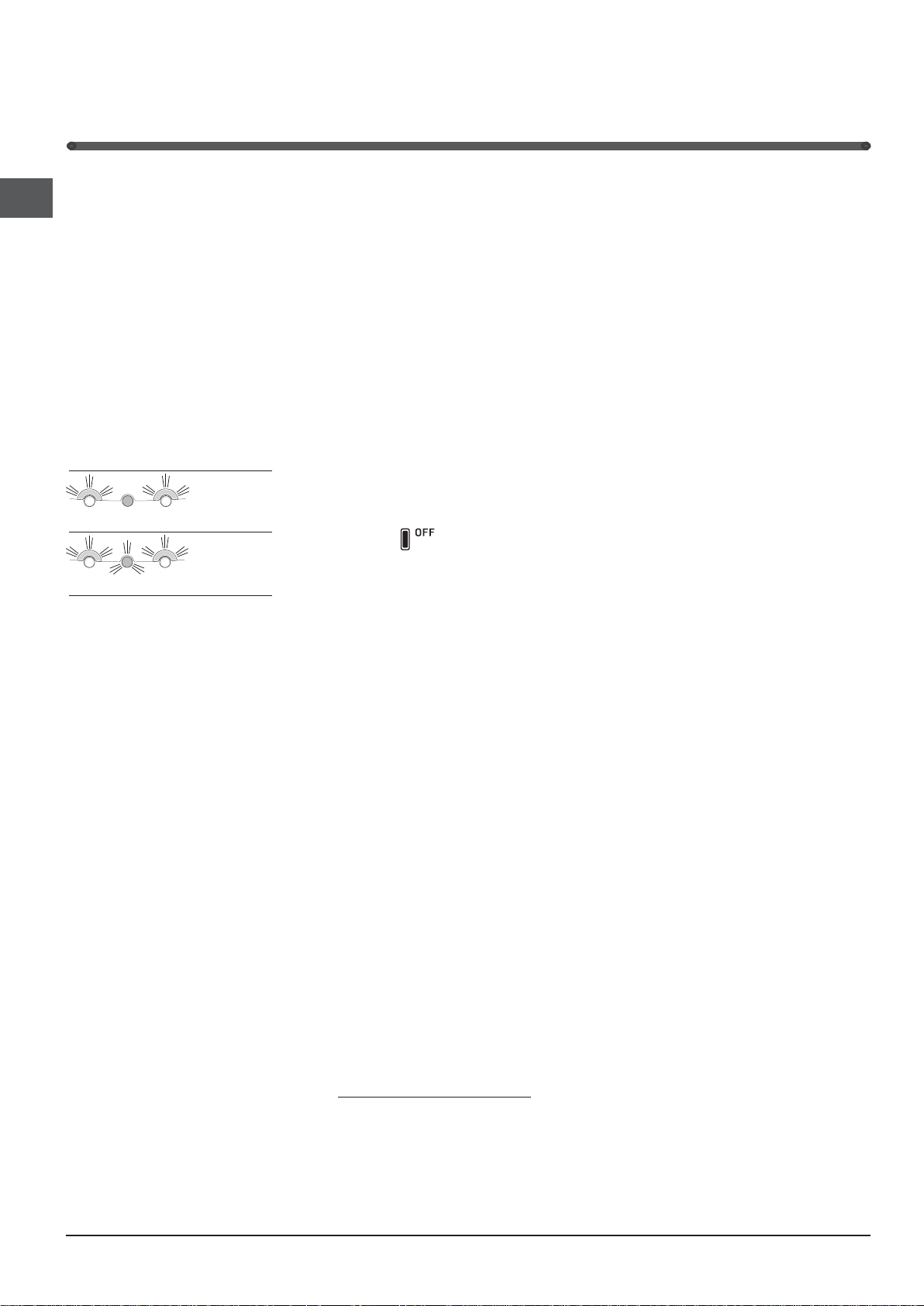

Troubleshooting, 10

Guarantee, 11

After Sales Service, 12

Installation

! Before placing your new appliance into operation

please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.

2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

! The manufacturer declines any liability should these

safety measures not be observed.

Your appliance is supplied with a 13amp fused plug that can be plugged into a 13amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING: THIS APPLIANCE MUST BE EARTHED.

Replacing fuse covers:

When replacing a faulty fuse, a 13amp ASTA approved fuse to BS 1362 should always be used and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug.

Leveling

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant

with the law.

• The socket can withstand the maximum power of the

appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).

• The voltage must be in the range between the values

indicated on the data plate located on the bottom left side (e.g. 220-240V).

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it ( Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

see Assistance

Changing the plug:

Removing the plug

If your appliance has a non-rewireable moulded plug and you should wish to remove it to add a longer cable or to re-route the mains cable through partitions, units etc. please ensure that either:

- The plug is replaced by a fused 13amp rewireable plug bearing the BSI mark of approval.

- The mains cable is wired directly into a 13amp cable outlet, controlled by a switch (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug

Cut off and dispose of the supplied plug if it does not fit your socket. The cable should be cut as close as possible to the moulded plug. Remove the fuse.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

WARNING:

T o avoid a shock hazard do not insert the discarded plug into a socket anywhere else.

Fitting a new plug

IMPORTANT

:: WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE...

Green and Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

- Connect Green and Yellow wire to terminal marked

'E' or

or coloured Green and Yellow.

- Connect Brown wire to terminal marked 'L' or

coloured red or brown.

- Connect Blue wire to terminal marked 'N' or

coloured Black or Blue.

If a 13amp plug (BS 1363) is used it must be fitted with a 13amp fuse. A 15amp plug must be protected by a 15amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

CE Marking certifies that this appliance conforms to the following EEC directives : Low Voltage Equipment - 73/23/EEC & 93/68 EEC Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

Reversing the Doors

plug I food into insulated containers whist carrying out this operation.

1. Lay down the appliance on its back.You may require assistance to carefully lay the appliance on to

*appliance lied down, must have protected the back side components (by using soft supports, EPS)

)gnigakcap lanigiro .e.i( lairetam evitcetorp elbatius a otno kcab sti

2. Working from the top of the appliance, remove the screws from the

door header cover .Remove the cover Fig.1

3. Unscrew the Hinge Pin securing the top of the Fridge door using

a suitable flat bladed screwdriver.Fig.2

4. Gently lift and slide the top door away from centre hinge pin and carefully

place to one side.Fig.3

5. Remove centre hinge block (2 screws) and spacer (if fitted).Fig.4

6. Slide bottom door upwards and away from lower hinge pin an

d place to

one side.Fig.5

7. Unscrew the bottom hinge pin from the white plastic block using

a suitable flat bladedscrewdriver.Fig.6

8. R

elease the bottom hinge block by removing two large hexagonheaded

bolts from underneath hinge plate, and the two plinthscrews (this then

releases the plinth and the white plastic hingeblock).

9. Slide out the blanking cover from plinth and refit on oppositeside.

10. Pass the white block through the space in plinth on the left side.

he plinth and block simultaneously.

Refit t

11. Refit 2 large bolts into white hinge block and the screws into theplinth.

They must be secure, but do not overtighten.

Hinge Block

Exploded View

Hinge Pin

Hinge Block

Hinge plate

Hexagon bolts

Foot

2. Place the bottom hinge pin in the outer hole on the hinge blockand

1 screw in securely with a suitable flat bladed screwdriver.

13. Remove and transfer all blanking caps and screws from thecentre left transom, over to the

holes on right vacated by thecentre hinge screws.

14.Refitting the Doors: Examine the tops and bottoms of both doors a

nd wherenecessary

transfer all hinge pin blanking plugs / plates to theopposite side - where fitted. They can be prised

out with smallflat bladed screwdriver.

15. Position

and slide the Freezer door onto the lower hinge pin.Ensure this is fully engaged.

16. Refit Centre Hinge (and spacer if fitted). Make sure the screwsare fully tightened. See Fig.4.

17. Remove the hinge blanking plate from top of the fridge. Remove right hand top hinge. Invert and

transfer over to left side using the original screws. Refit the blanking plate

to the opposite side.

18. Place the fridge door onto centre hinge pin and align with top hinge arm. Screw the top hinge pin

in securely.

19. Refit the door header cover to the fridge door with original screws

20. Finally check fri

dge and freezer door operation and stand the appliance upright.

21.Note:Replace loose items / fittings back into the appliance and leave it to stand for at least 2

hours before plugging in and switching on.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

Top Hinge Arm

Door header cover

Fig.1

Fig.3

Top Hinge Pin

Fig.2

Step 5

Step 16

Fig.4

Step 6

Fig.5

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

Fig.6
