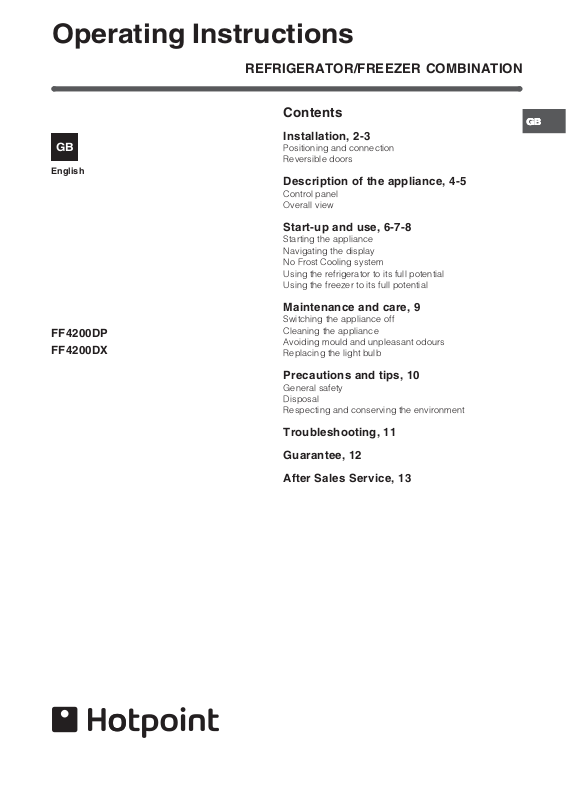

Hotpoint FF4200DP, FF4200DX Operating Instructions

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION

GB

English

FF4200DP
FF4200DX

Contents

Installation, 2-3

Positioning and connection
Reversible doors

Description of the appliance, 4-5

Control panel
Overall view

Start-up and use, 6-7-8

Starting the appliance
Navigating the display
No Frost Cooling system
Using the refrigerator to its full potential
Using the freezer to its full potential

Maintenance and care, 9

Switching the appliance off
Cleaning the appliance
Avoiding mould and unpleasant odours

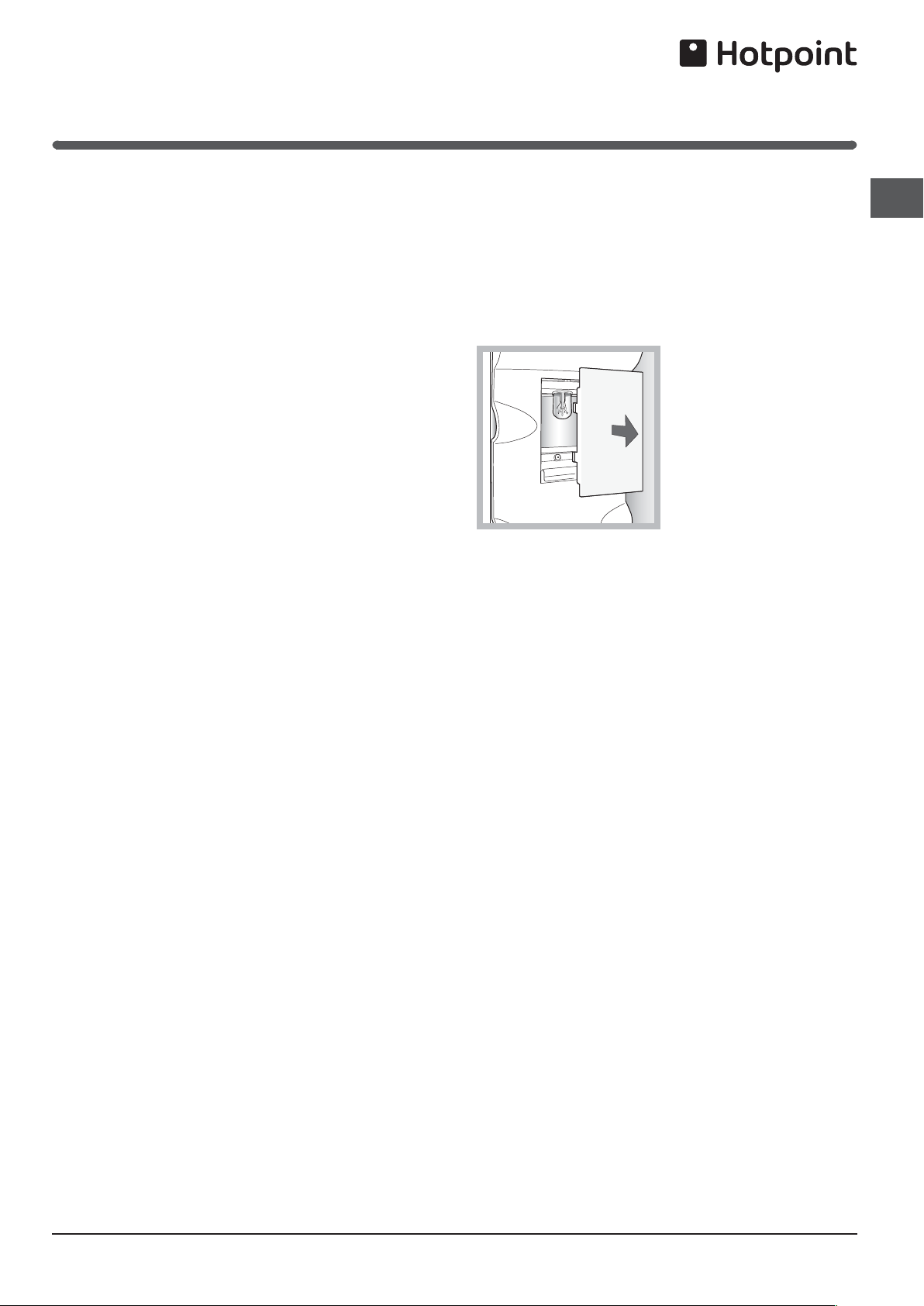

Replacing the light bulb

Precautions and tips, 10

General safety
Disposal
Respecting and conserving the environment

GBGB

GB

GBGB

Troubleshooting, 11

Guarantee, 12

After Sales Service, 13

Installation

! Before operating your new appliance, please read

GB

these operating instructions carefully. They contain
important information for safe use, installation and care
of the appliance.

! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free
room.

2. Do not obstruct the airflow under and behind the
appliance. The compressor and condenser give off
heat and require good ventilation to operate correctly
and save energy.

3. Ensure the appliance is far away from any sources of
heat (direct sunlight, electric stove, etc.).

Electrical connections

After transportation of the appliance, carefully place it
vertically and wait at least 3 hours before connecting it
to the electricity mains. Before inserting the plug into the
electrical socket ensure the following:

 The appliance is earthed and the plug is compliant

with the law.

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate
located on the bottom left side of the fridge (e.g. 150
W).

 The voltage must be in the range between the values

indicated on the data plate located on the bottom left
side (e.g. 220-240V, 50Hz).

 The socket is compatible with the plug of the

appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (see After Sales
Service). Do not use extension cords or multiple
sockets.

! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by

authorised technicians only (see After Sales Service).

! The manufacturer declines any liability should these
safety measures not be observed.

Your appliance is supplied with a 13amp fused plug that
can be plugged into a 13amp socket for immediate use.
Before using the appliance please read the instructions
below.

WARNING:
THIS APPLIANCE MUST BE EARTHED.

Replacing fuse covers:

When replacing a faulty fuse, a 13amp ASTA approved
fuse to BS 1362 should always be used and the fuse
cover re-fitted.
If the fuse cover is lost, the plug must not be used until
a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the
correct colour as indicated by the coloured marking or the
colour that is embossed in words on the base of the plug.

Changing the plug:

Removing the plug

If your appliance has a non-rewireable moulded plug
and you should wish to remove it to add a longer cable
or to re-route the mains cable through partitions, units
etc. please ensure that either:

- The plug is replaced by a fused 13amp re­wireable plug bearing the BSI mark of
approval.

or

- The mains cable is wired directly into a
13amp cable outlet, controlled by a
switch (in compliance with BS 5733)
which is accessible without moving the
appliance.

Disposing of the plug

Cut off and dispose of the supplied plug if it does not fit
your socket. The cable should be cut as close as
possible to the moulded plug.
Remove the fuse.

WARNING:

T o avoid a shock hazard do not insert the discarded
plug into a socket anywhere else.

2

Fitting a new plug

IMPORT ANT:

WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE...

Green and Yellow - Earth
Blue - Neutral
Brown - Live

As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

- Connect Green and Yellow wire to terminal marked
'E' or

- Connect Brown wire to terminal marked 'L' or
coloured red or brown.

- Connect Blue wire to terminal marked 'N' or
coloured Black or Blue.

or coloured Green and Yellow.

Reversible doors

GB

If it is necessary to change the direction in which the
doors open, please contact the Hotpoint Service
(see After Sales Service).

If a 13amp plug (BS 1363) is used it must be
fitted with a 13amp fuse. A 15amp plug must be
protected by a 15amp fuse, either in the plug or adaptor
or at the distribution board.

If you are in any doubt about the electrical
supply to your machine, consult a qualified
electrician before use.

CE Marking certifies that this appliance conforms to
the following EEC directives :
Low Voltage Equipment - 73/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC
& 93/68/EEC

3

Description of the
appliance

Control panel

GB

ALARM RESET

REFRIGERATOR

temperature adjustment

ALARM

FREEZER

temperature adjustment

HOLIDAY

I CARE

ICE PARTY

ON/OFF

The entire product (both the refrigerator and freezer
compartments) may be switched on by pressing this
button. The red LED indicates that the product is switched
off, while the green LED shows that it is operating.

REFRIGERATOR - and + temperature adjustment

Used to modify the temperature setting of the refrigerator;
confirmation corresponding to the selected temperature
appears on the display.

REFRIGERATOR display

Shows the set temperature for the refrigerator
compartment.

I-CARE

Controls the activation and deactivation of the I-CARE
function (optimal operating temperature at minimal energy
consumption). When this function is activated, the I-CARE
LED on the keypad lights up. Ten minutes after the most
recent user interaction, the display enters its energy saving
mode (see STANDBY function).

ALARM

An alarm situation has been detected in the product (see
Troubleshooting section).

STANDBY (display energy saving mode)

Used to activate the energy saving mode of the display: all
LEDs on the display switch off apart from the ON/OFF
indicator. To exit the energy saving mode, simply press
any button or open the refrigerator door.

ALARM RESET

Used to reset any product alarm statuses which have
occurred (freezer temperature or refrigerator door open).

ON/OFF

STANDBY (display energy
saving mode)

REFRIGERATOR display

FREEZER display

SUPER COOL

CHILD LOCK

SUPER FREEZE

FREEZER - and + temperature adjustment

Used to modify the temperature setting of the freezer;
confirmation corresponding to the selected temperature
appears on the display.

FREEZER display

Shows the set temperature for the freezer compartment.

SUPER COOL

Activates or deactivates the SUPER COOL function (rapid
cooling). The SUPER COOL LED on the keypad lights up
and SC appears on the refrigerator display.

SUPER FREEZE

Activates or deactivates the SUPER FREEZE function
(rapid freezing). The SUPER FREEZE LED on the keypad
lights up and SF appears on the freezer display.

HOLIDAY

Activates or deactivates the HOLIDAY function (the HOLIDAY
LED on the keypad lights up), while the temperature values
+12°C and -18°C appear on the displays respectively. Ten
minutes after the most recent user interaction, the display
enters its energy saving mode (see STANDBY function).

ICE PARTY

Activates the ICE PARTY function (the temperature is
decreased for the amount of time it takes to cool a bottle).
The ICE PARTY LED on the keypad lights up.

CHILD LOCK

Activates or deactivates the control panel button lock in order to
avoid the risk of the various functions being activated
accidentally by children. The CHILD LOCK LED on the keypad
lights up.

4

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.

LAMP

(see Maintenance)

Removable lidded
shelf with EGG TRAY

GB

SHELVES

WINE RACK

FRUIT and

VEGETABLE bin

FREEZER and

STORAGE

compartment

ICE CARE ice tray

STORAGE

compartment

ICE CARE ice tray



Removable multipurpose

*

SHELVES

BOTTLE shelf





Levelling FEET

 Varies by number and/or position.

Available only on certain models.

*
