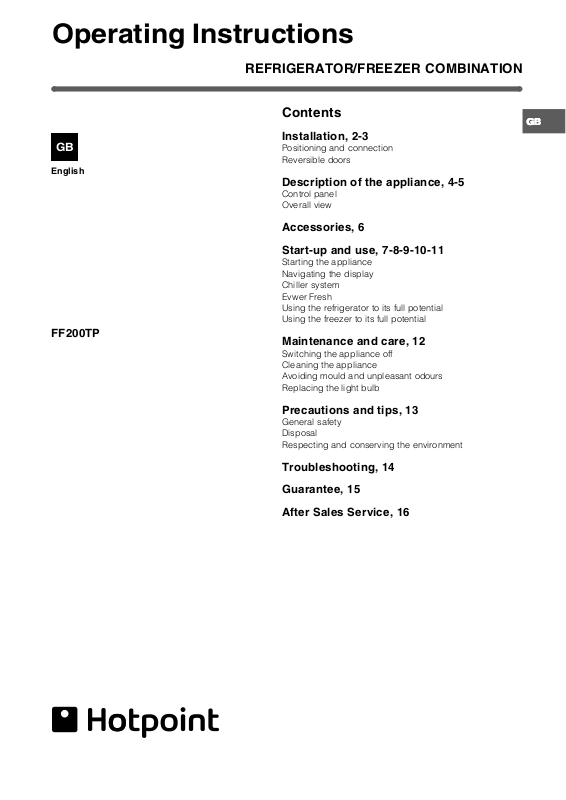

Hotpoint FF200TP User Manual

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION

GB

English

FF200TP

Contents

Installation, 2-3

Positioning and connection
Reversible doors

Description of the appliance, 4-5

Control panel
Overall view

Accessories, 6

Start-up and use, 7-8-9-10-11

Starting the appliance
Navigating the display
Chiller system
Evwer Fresh
Using the refrigerator to its full potential
Using the freezer to its full potential

Maintenance and care, 12

Switching the appliance off
Cleaning the appliance
Avoiding mould and unpleasant odours
Replacing the light bulb

GBGB

GB

GBGB

Precautions and tips, 13

General safety
Disposal
Respecting and conserving the environment

Troubleshooting, 14

Guarantee, 15

After Sales Service, 16

Installation

! Before operating your new appliance, please read

GB

these operating instructions carefully. They contain
important information for safe use, installation and care
of the appliance.

! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free
room.

2. Do not obstruct the rear fan grills. The compressor
and condenser give off heat and require good ventilation
to operate correctly and save energy.

3. Ensure the appliance is far away from any sources of
heat (direct sunlight, electric stove, etc.).

Electrical connections

After transportation of the appliance, carefully place it
vertically and wait at least 3 hours before connecting it
to the electricity mains. Before inserting the plug into the
electrical socket ensure the following:

• The appliance is earthed and the plug is compliant
with the law.

• The socket can withstand the maximum power of the
appliance, which is indicated on the data plate
located on the bottom left side of the fridge (e.g. 150
W).

• The voltage must be in the range between the values
indicated on the data plate located on the bottom left
side (e.g. 220-240V).

• The socket is compatible with the plug of the
appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (
Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by

authorised technicians only (

! The manufacturer declines any liability should these
safety measures not be observed.

see Assistance

see Assistance

Your appliance is supplied with a 13amp fused plug that
can be plugged into a 13amp socket for immediate use.
Before using the appliance please read the instructions
below.

WARNING:
THIS APPLIANCE MUST BE EARTHED.

Replacing fuse covers:

When replacing a faulty fuse, a 13amp ASTA approved
fuse to BS 1362 should always be used and the fuse
cover re-fitted.
If the fuse cover is lost, the plug must not be used until
a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the
correct colour as indicated by the coloured marking or the
colour that is embossed in words on the base of the plug.

Changing the plug:

Removing the plug

If your appliance has a non-rewireable moulded plug
and you should wish to remove it to add a longer cable
or to re-route the mains cable through partitions, units
etc. please ensure that either:

- The plug is replaced by a fused 13amp re­wireable plug bearing the BSI mark of
approval.

or

- The mains cable is wired directly into a
13amp cable outlet, controlled by a
switch (in compliance with BS 5733)
which is accessible without moving the
appliance.

).

Disposing of the plug

Cut off and dispose of the supplied plug if it does not fit
your socket. The cable should be cut as close as
possible to the moulded plug.
Remove the fuse.

WARNING:

).

To avoid a shock hazard do not insert the discarded
plug into a socket anywhere else.

2

Fitting a new plug

IMPORTANT

WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE...

Green and Yellow - Earth
Blue - Neutral
Brown - Live

As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

- Connect Green and Yellow wire to terminal marked
'E' or

- Connect Brown wire to terminal marked 'L' or
coloured red or brown.

- Connect Blue wire to terminal marked 'N' or
coloured Black or Blue.

If a 13amp plug (BS 1363) is used it must be
fitted with a 13amp fuse. A 15amp plug must be
protected by a 15amp fuse, either in the plug or adaptor
or at the distribution board.

:

or coloured Green and Yellow.

Reversible doors

GB

If it is necessary to change the direction in which the
doors open, please contact the Technical Assistance
Centre.

If you are in any doubt about the electrical
supply to your machine, consult a qualified
electrician before use.

CE Marking certifies that this appliance conforms to
the following EEC directives :
Low Voltage Equipment - 73/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC
& 93/68/EEC

3

Description of the
appliance

Control panel

GB

REFRIGERATOR

Display

ALLARMS

REFRIGERATOR

Temperature

Adjustment

COOL CARE ZONE

FREEZER

Temperature

Adjustment

FREEZER

Display

ON/OFF

ON/OFF

It is possible to switch the whole product (both the
refrigerator and freezer compartments) on by pressing
this button. The red LED indicates that the product is
switched off, while the green LED shows that it is
operating. To switch the product off, press and hold the
ON/OFF button for at least two seconds.

I CARE

This is used to activate and deactivate the I Care
function (the optimal temperature for energy saving
levels). When activated, the AUTO LED and the I Care
LED illuminate simultaneously.

ALARMS

This controls all the alarm signals connected to product
operation.

Child Lock

Enables the buttons on the control panel to be locked in
order to avoid various functions being activated accidentally
by children. To enable the Child Lock function, the ALARM
button must be pressed for 2 seconds.

REFRIGERATOR + and - Temperature Adjustment

Enable the temperature setting of the refrigerator to be
modified, with the relative confirmation of the
temperature selected shown on the display. It is also
possible to use these buttons to deactivate the
refrigerator compartment only (the display shows “- -”).

FREEZER + and - Temperature Adjustment

Enable the temperature setting of the freezer to be
modified, with the relative confirmation of the
temperature selected shown on the display.

REFRIGERATOR Display

Indicates the set temperature relating to the refrigerator

SUPER COOL

SUPER FREEZE

EVER FRESH

ICE PARTY

HOLIDAY

I CARE

compartment or shows that it has been deactivated (in
this case the display shows “- -”).

FREEZER Display

Shows the set temperature relating to the freezer
compartment.

COOL CARE ZONE

Used to set the Cool Care Zone. By pressing this button,
it is possible to set any of the 4 operating modes relating
to the Cool Care Zone: the strawberry (-8°C), the ice­cream (-12°C) or the bottle (-18°C). If none of the three
icons is illuminated, the Cool Care Zone will operate as a
normal freezer compartment.

SUPER COOL

Activates or deactivates the SUPER COOL function (rapid
cooling). The refrigerator display shows the text “SC”).

SUPER FREEZE

Activates or deactivates the SUPER FREEZE function
(rapid freezing), The freezer display shows the text “SF”).

EVER FRESH

Activates or deactivates the Ever Fresh function. When
the LED is illuminated, the vacuum-packing system is
operating; when the LED switches off the operation is
complete and the container airtight. A red LED signals
that a problem has been encountered.

HOLIDAY

Activates or deactivates the HOLIDAY function (the
AUTO LED illuminates).

ICE PARTY

Activates or deactivates the ICE PARTY function (It
reduces the temperature of the freezer for the period of
time required to cool a bottle.).

4

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.

LAMP

see Maintenance

(

)

Removable lidded
shelf with EGG TRAY

GB

SHELVES

EVER FRESH

FRUIT and

VEGETABLE VEGETABLE

VEGETABLE bin

VEGETABLE VEGETABLE

COOL CARE ZONE

and FREEZER

compartment

ICE CARE ice tray



CAN RACK

Removable multipurpose

SHELVES

*



•

BOTTLE shelf



STORAGE

compartment

Levelling FEET

 Varies by number and/or position.

Available only on certain models.

*
