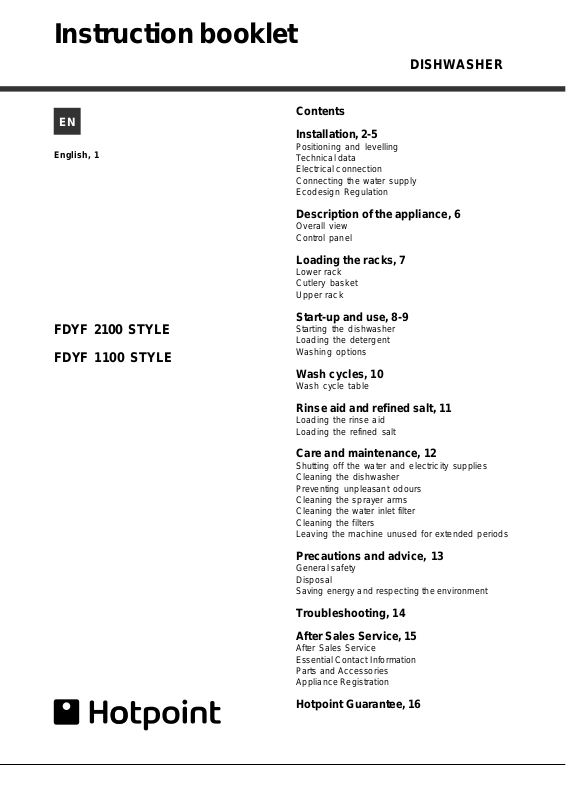

Hotpoint FDYF 1100, FDYF 2100 User Manual

Instruction booklet

English, 1

DISHWASHER

Contents Installation, 2-5

Positioning and levelling Technical data Electrical connection Connecting the water supply Ecodesign Regulation

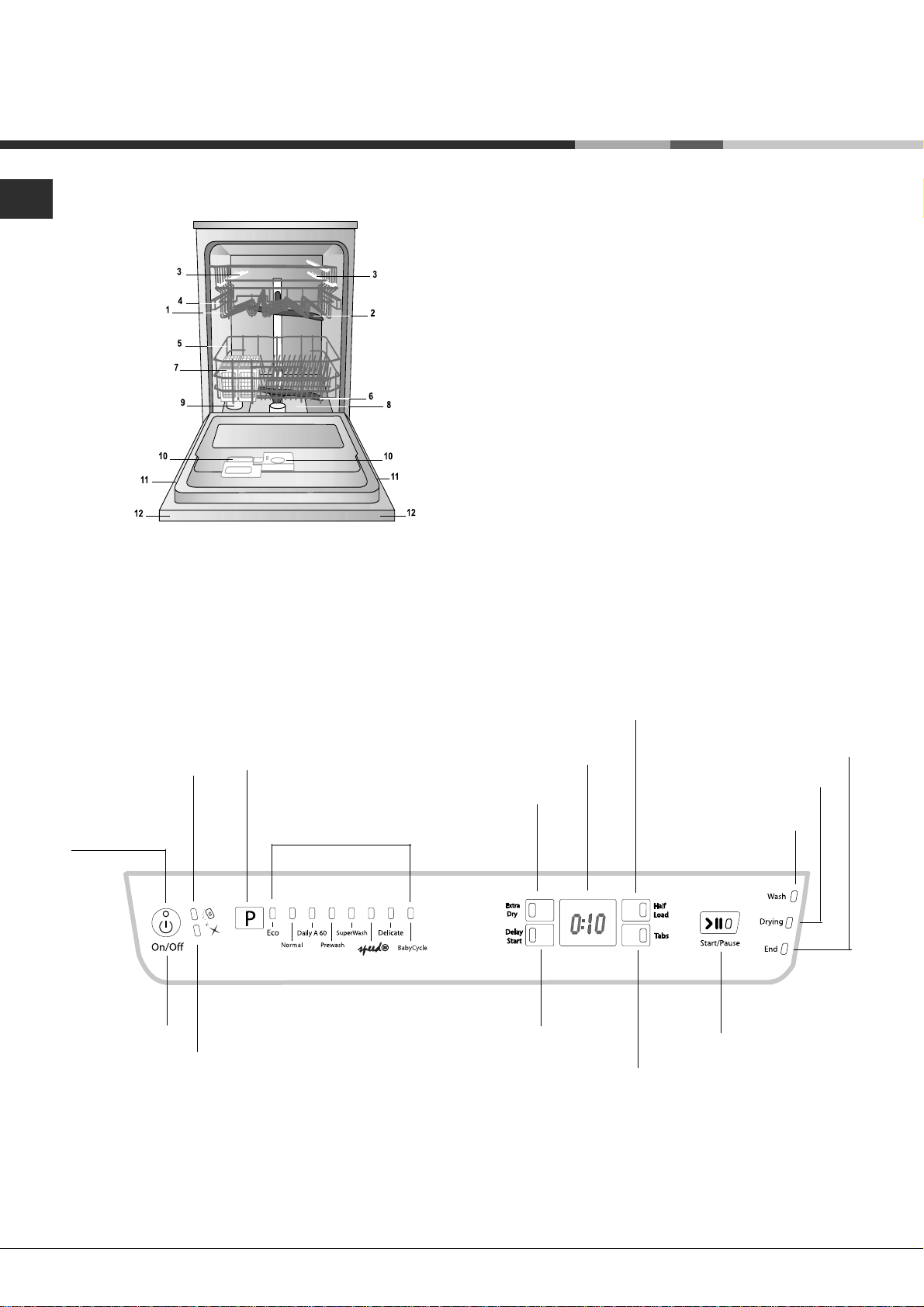

Description of the appliance, 6

Overall view Control panel

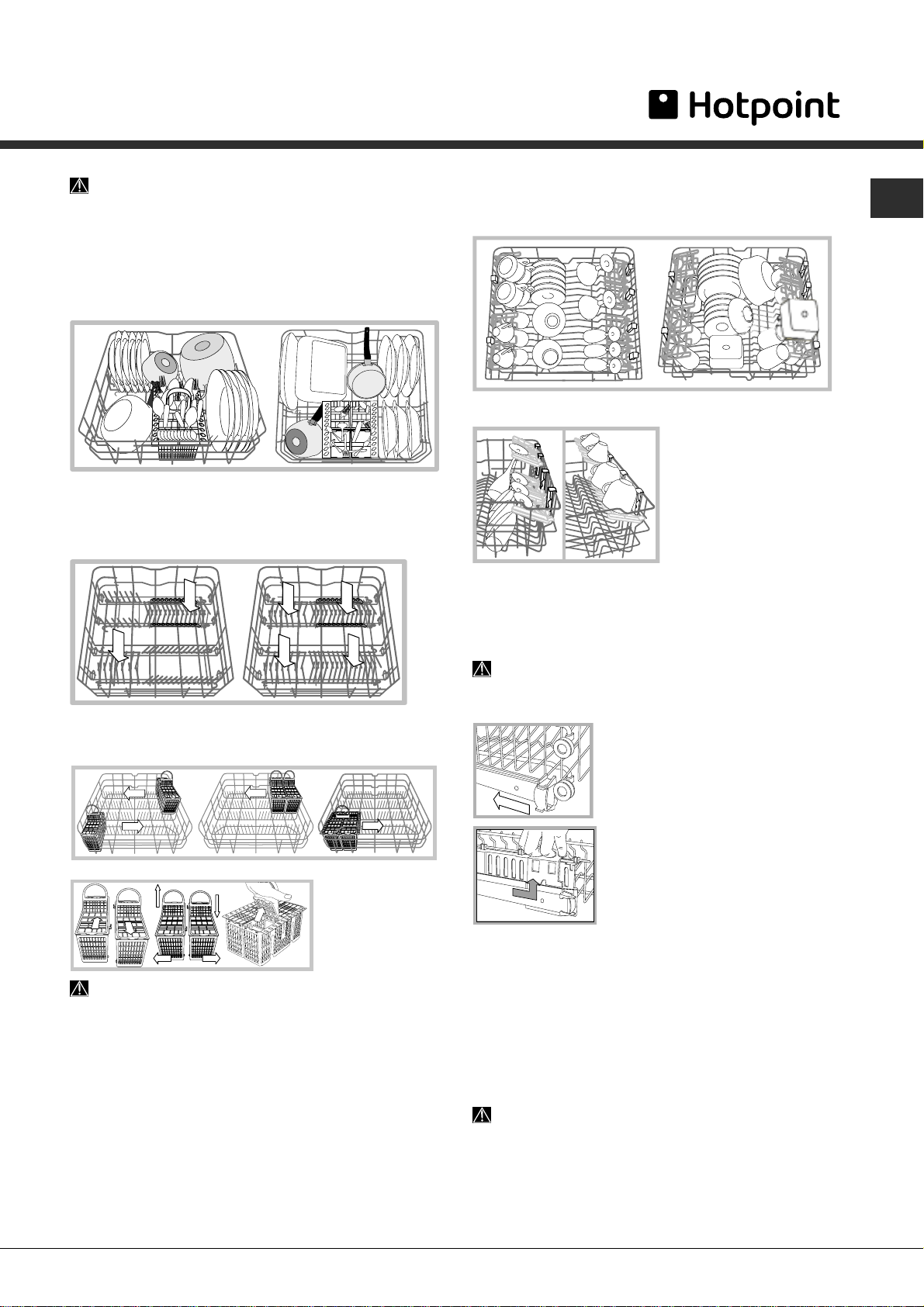

Loading the racks, 7

Lower rack Cutlery basket Upper rack

FDYF 2100 STYLE FDYF 1100 STYLE

Start-up and use, 8-9

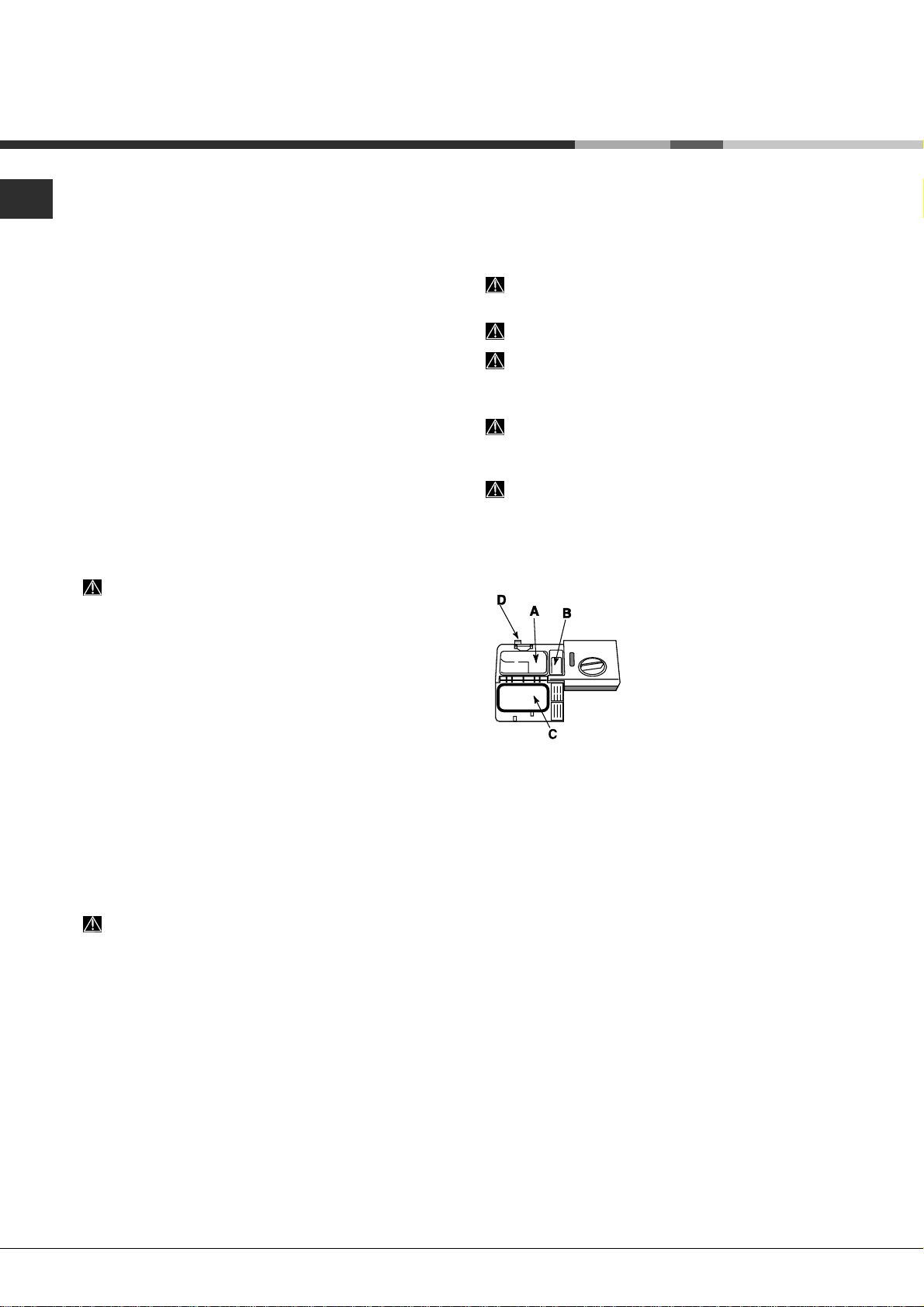

Starting the dishwasher Loading the detergent Washing options

Wash cycles, 10

Wash cycle table

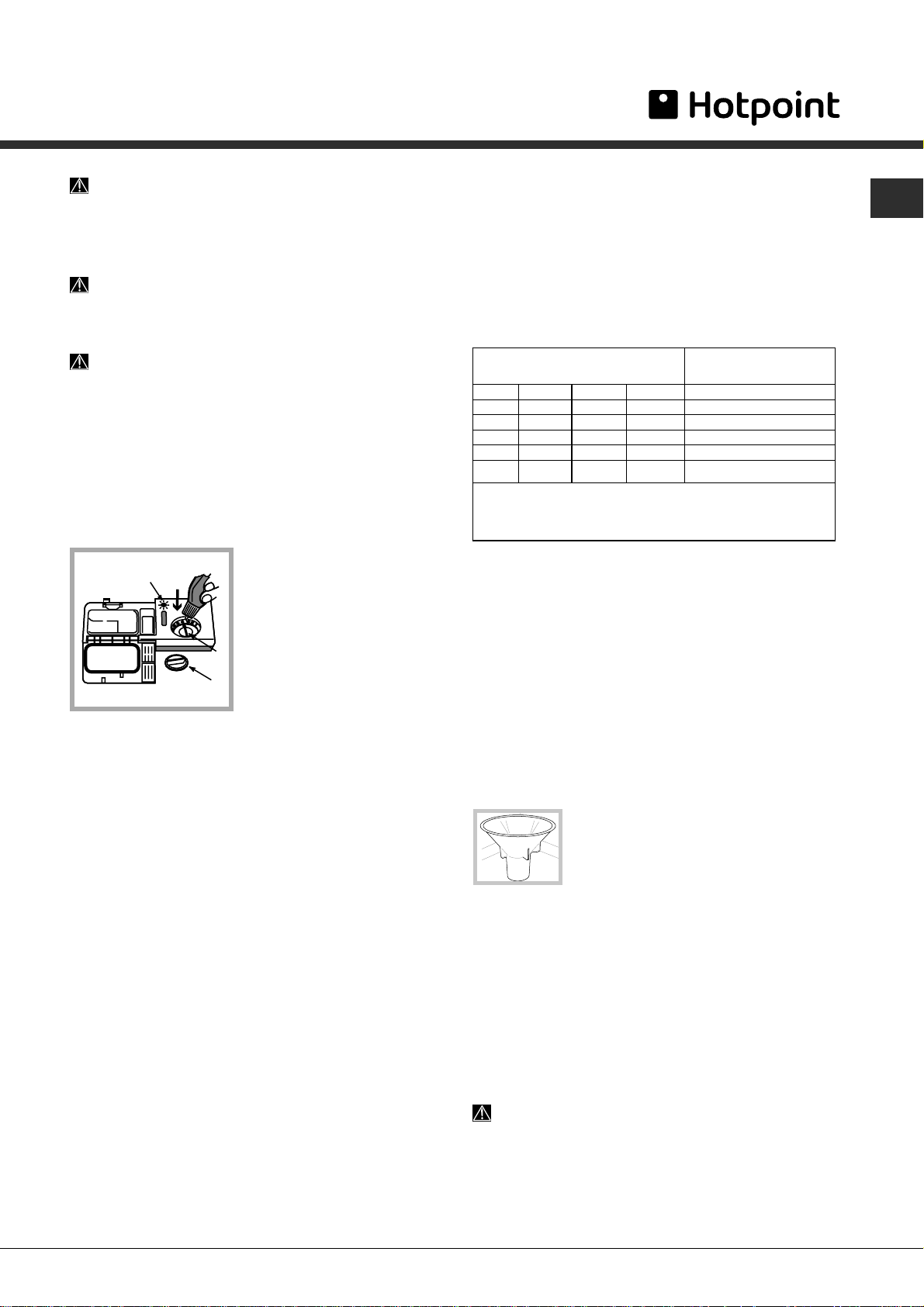

Rinse aid and refined salt, 11

Loading the rinse aid Loading the refined salt

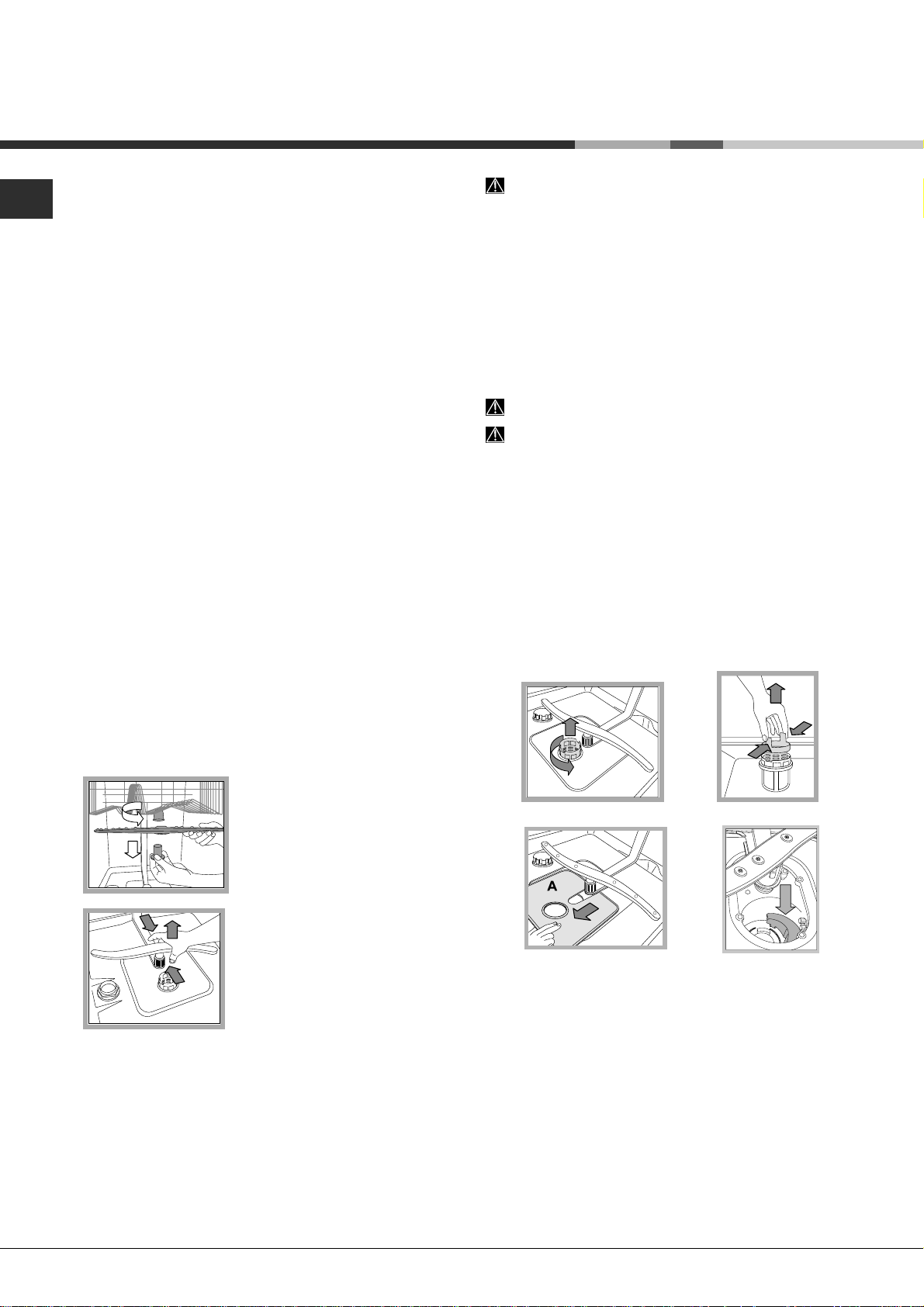

Care and maintenance, 12

Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods

Precautions and advice, 13

General safety Disposal Saving energy and respecting the environment

Troubleshooting, 14 After Sales Service, 15

After Sales Service Essential Contact Information Parts and Accessories Appliance Registration

Hotpoint Guarantee, 16

Installation

Keep this instruction manual in a safe place for future

reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains

important information regarding the safe installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed

* (

under a single worktop

sheet

3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

see the Assembly instruction

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add only then approximately 1 kg

see chapter entitled Rinse aid and refined salt

of salt ( water may overflow: this is normal and is not a cause for concern. Select the water hardness value (

entitled Rinse aid and refined salt

been poured into the machine, the LOW SALT indicator light* switches off.

If the salt container is not filled, the water softener and

the heating element may be damaged as a result.

Technical data

Dimensions

Capacity 12 standard place-settings Water supply

pressure Power supply voltage See appliance data plate

Total absorbed power See appliance data plate Fuse See appliance data plate

width 60 cm height 85 cm depth 60 cm

0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi

This dishwasher conforms to the following European Communi ty Directives:

-2006/95/EC (Low Voltage)

-2004/108/EC (Elec tromagnetic Compatibility)

-2005/32/EC (Comm. Reg. 1275/2008) (Ec odesign)

-97/17/EC (Labelling)

-2002/96/EC (W aste Electrical and Electronic Equipment) (WEEE)

). - After the salt has

). The

see chapter

*. Adjust the height of the rear foot from the front of the

4 appliance* on the central lower part of the dishwasher, turning a hexagonal spanner (red color) with an opening of 8 mm in a clockwise direction to increase the height or in an anticlockwise direction to decrease the height.

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation that may form.

* Only available in selected models.

The dishwasher meets the requirements set out by the

regulations in force concerning safety and electrical equipment.

Any technical checks should be conducted exclusively by a trained and authorised technician: Repairs carried out by unaithorised persons will invalidate the guarantee, as well as posing a potential hazard to the user.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit

your socket.

To avoid a shock hazard DO NOT insert the

discarded plug into a socket anywhere else.

The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component or from the use of non-original spare parts.

Electrical Connection

Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current

regulations;

• the socket can withstand the maximum load of the

appliance, which is indicated on the data plate located on the inside of the door (

appliance

• the power supply voltage falls within the values

indicated on the data plate on the inside of the door;

• the socket is compatible with the plug of the appliance.

If this is not the case, ask an authorised technician to replace the plug ( extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See After Sales Service)

);

see After Sales Service

This appliance must be earthed.

Fuses:your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only those rated at 13A and ASTA approved to BS1362 should be used. If you lose the fuse cover, a replacement may be obtained from your local authorised Service Centre or Electrical company. Correct replacement is identified by colour coding or the marking on base of plug. DO NOT use the plug unless the fuse cover is fitted.

see Description of the

); do not use

Wires in the mains lead are coloured accordance with

the following code:

Green/Yellow - Earth Blue - Neutral Brown - Live

If you change the plug, the colour of the wires in the mains lead may not correspond with the terminal markings in the plug, which if not coloured, could be:

EARTH ‘E’ or NEUTRAL ‘N’ LIVE ‘L’

Changing the Mains Lead

A lead can be ordered from Hotpoint Service UK: 08709 066 066 or Republic of Ireland: 1850 302 220

- If you have damaged the existing lead or require a longer one a charge will be made. It is strongly advised that this work is carried out by a qualified electrician.

- If the domestic wiring includes a residual current-operated circuit breaker, ensure that it conforms to the latest regulations.

The dishwasher must not be connected to the electricity

supply while installation is being carried out.

- This appliance should only be connected to a 230/240V AC source, via a properly installed earthed socket.

- Use the dishwasher solely in a domestic environment.

- DO NOT stand or place heavy objects on the door when it is open, this could damage the door or cause the appliance to tip forward.

The Company shall not be held responsible for any

incidents that occur if these regulations are not observed.

Connecting the water supplies

Connection to the water and electricity supplies should

only be performed by a qualified technician.

The dishwasher should not stand on top of the water

hoses or the electricity supply cable.

Connecting the water inlet hose

The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.

• To a suitable hot water connection point: your dishwasher may be provided with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist

store or an authorised technician (

see Assistance

Sink Waste System

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 32 mm.

The outlet hose must be at a height ranging from 40 to 80 cm (from 15’’ to 31’’) from the floor / surface where the dishwasher rests (A).

• before connecting the drain hose, remove any internal restrictions; this will prevent a build up of debris which could cause a blockage

• remove any restrictions from the waste spigot and ensure that the sealing bung is removed (B).

It MUST NOT be connected to a surface water drain.

• Untie the end of the GREY drainage hose from the rear of

the appliance.

The water pressure must be within the values indicated

in the Technical data table (

see Installation

The hose should not be bent or compressed.

The appliance must be connected to the water supply network using new hoses. Do not use old hoses. Ensure that the new hose supplied is connected and the old hose is disposed of safely.

DO NOT overtighten the hose connector, hand tight is sufficient.

Ensure the fill hose is not kinked.

Tap connections*: A range of adaptors are available to suit your tap.

DO NOT connect the dishwasher to a single outlet instantaneous water heater or an electric heater.

• If fitting an under sink waste disposal unit, cut out the membrane, bung or blanking plug.

Ensure the drain hose is securely attached, to prevent it coming away while the machine is in use and causing a flood.

Fit hose to waste securely using a “Jubilee” type clip.

* Only available in selected models.

Anti-flooding protection*

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device

New Acqua Stop

*, which guarantees anti-

flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

The Company shall not be held responsible for any

incidents that occur if these regulations are not observed.

ECODESIGN REGULATION

ECO wash cycle is the standard cycle to which the energy label data refers; this cycle can be used to wash crockery with a normal soil level and is the most efficient in terms of energy and water consumption for this type of crockery. To reduce consumption even further, only run the dishwasher when it is full. Standby consumption: Left-on mode consumption: 3 W – Off mode consumption: 1,3 W

Consumption data table for the main cycles

INTENSIVE NORMAL

Standard conditions* User conditions** Energy consumpti on

(kWh/cycle)

1,60 16 150 1,40 15 135 1,30 16 120 1,10 15 110

Water consumption (l/cycle)

Duration (min/cycle)

Energy consumpti on (kWh/cycle)

Water consumption (l/cycle)

Duration (min/cycle)

* Cycle data refers to the values recorded in a laboratory, in accordance with European standard EN 50242. ** Data is obtained by recording values when the appliance is operational and loaded with user crockery.
