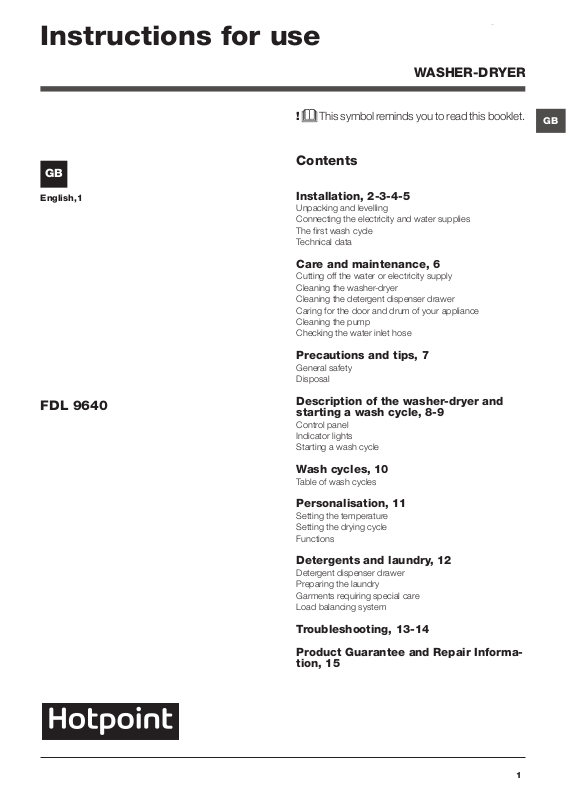

Hotpoint FDL 9640 Instruction manual

Instructions for use

WASHER-DRYER

English,1

! This symbol reminds you to read this booklet.

Contents

Installation, 2-3-4-5

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Care and maintenance, 6

Cutting off the water or electricity supply Cleaning the washer-dryer Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Precautions and tips, 7

General safety Disposal

FDL 9640

Description of the washer-dryer and starting a wash cycle, 8-9

Control panel Indicator lights Starting a wash cycle

Wash cycles, 10

Table of wash cycles

Personalisation, 11

Setting the temperature Setting the drying cycle Functions

Detergents and laundry, 12

Detergent dispenser drawer Preparing the laundry Garments requiring special care Load balancing system

Troubleshooting, 13-14

Product Guarantee and Repair Information, 15

Installation

! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washerdryer to inform the new owner as to its operation and features. ! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

! This is a separate part of the polystyrene base and should be removed with the base.

! IMPORTANT check when unpacking your machine.

1. Unpack the washer-dryer.

2. Check whether the washer-dryer has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the 4 protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washer-dryer needs to be moved to another location. ! Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washer-dryer on a flat sturdy floor, without resting it up against walls, cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loose-

ning the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washer-dryer.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tap using a 3/4 gas threaded connection (see

figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washerdryer, screwing it onto the appliance’s cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within

the values indicated in the Technical details table (on the page 5).

! If the water inlet hose is not long enough,

contact a specialist store or an authorised serviceman.

! Ensure that the supply taps are allowing wa-

ter through. Old taps may seize in the closed position and thus prevent water reaching the machine.

! Never use second-hand or old inlet hoses; use the products supplied with the machine.

Connecting the drain hose

65 - 100 cm

Where it connects to the waste water pipe cut end off spigot or remove the blanking cap

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks or removable ends have been taken off the spigot.

If it is placed over the edge of a basin or sink be sure the free end of the hose should not be underwater.

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self -syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with

the applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated on the Technical Data Plate fixed on the machine;

• the supply voltage is included within the

values indicated on the Technical Data Plate fixed on the machine.

• the socket is compatible with the washer-

dryer’s plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere rewireable plug bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

As the colours of the wires in the lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E or or coloured Green or Green & Yellow. Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt regarding the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug: The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the programme “Auto Clean” (see “Cleaning the

washer-dryer”).

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described on the previous page.

! The washer-dryer should not be installed in an outdoor environment, not even where the area is sheltered, because it may be very dangerous to leave it exposed to damp, rain and thunderstorms.

! When the washer-dryer is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent

or dangerously compressed.

Technical data

Model

Dimensions

Capacity

Electrical connections

Water connections

Spin speed

Energy rated programmes according to regulation EN 50229

FDL 9640 width 59.5 cm

height 85 cm depth 54 cm

from 1 to 9 kg for the wash programme from 1 to 6 kg for the drying programme

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure

0.05 MPa (0.5 bar) drum capacity 58 litres

up to 1400 rotations per minute

Wash: programme 5; temperature 60°C; using a load of 9 kg. Drying: select the “Drying Cotton” programme and set the drying level to “ ”, for both loads. The first drying cycle must be carried out with the nominal load.

This appliance conforms to the following EC Directives:

- EMC 2014/30/EU (Electromagnetic Compatibility)

- LVD 2014/35/EU (Low Voltage)

- 2012/19/EU - WEEE
