FDFSM 33121
English
GB
Operating instructions
DISHWASHER - Contents
Operating instructions,1
Precautions and advice, 2-3
Product Data, 3
Installation, 4-5
Description of the appliance, 6
Refined salt and rinse aid, 7
Loading the racks, 8-9
Detergent and dishwasher use, 10
Wash cycles, 11
Special wash cycles and options, 12
Care and maintenance, 13
Troubleshooting, 14
Product Guarantee and Repair Information,15
GB
Precautions and advice
This appliance was designed and
manufactured in compliance with international
safety standards. The following information
has been provided for safety reasons and
should be read carefully.
Keep this instruction manual in a safe place
for future reference. If the appliance is sold,
given away or moved, make sure the manual
is kept with the machine.
Read the instructions carefully, as they
include important information on safe
installation, use and maintenance.
This appliance was designed for domestic
use or similar applications, for example:
- use by guests in hotels, motels and other
residential settings;
- bed & breakfasts.
Remove the appliance from all packaging
and make sure it was not damaged during
transportation. If it was damaged, contact the
retailer and do not proceed any further with
the installation process.
General safety
• This appliance should not be operated
by children younger than 8 years, people
with reduced physical, sensory or mental
capacities, or inexperienced people who
are not familiar with the product, unless they
are given close supervision or instructions
on how to use it safely and are made aware
by a responsible person of the dangers its
use might entail.
• Children must not play with the appliance.
• It is the user's responsibility to clean and
maintain the appliance. Children should
never clean or maintain it unless they are
given supervision.
• The appliance was designed for domestic
use inside the home and is not intended for
commercial or industrial use.
• The appliance must be used to wash
domestic crockery in accordance with the
instructions in this manual.
• The appliance must not be installed
outdoors, even in covered areas. It is
extremely dangerous to leave the machine
exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always
pull the plug from the mains socket. Do not
pull on the cable.
• The water supply tap must be shut off
and the plug should be removed from
the electrical socket at the end of every
cycle and before cleaning the appliance
or carrying out any maintenance work.
• The maximum number of place settings is
shown in the product sheet.
• If the appliance breaks down, do not under
any circumstances touch the internal parts
in an attempt to perform the repair work
yourself.
• Do not lean or sit on the open door: this
may cause the appliance to overturn.
• The door should not be left open as it may
create a dangerous obstacle.
• Keep detergent and rinse aid out of reach
of children.
• The packaging material should not be used
as a toy.
• Knives and other utensils with sharp
edges must be placed either with the
points/blades facing downwards in the
cutlery basket or horizontally on the tip-up
compartments or in the tray/third basket,
if available.
• Connect the appliance to the water mains
using the new supply hose provided with
the appliance. Do not re-use the old hose.
• Install the back side of a free-standing
dishwasher against a wall.
Disposal
• To dispose of any packaging materials,
follow local legislation so that the
packagings may be reused.
• The European Directive 2012/19/EU
relating to Waste Electrical and Electronic
Equipment (WEEE) states that household
appliances should not be disposed of
using the normal solid urban waste cycle.
Exhausted appliances should be collected
separately in order to optimise the cost of
reusing and recycling the materials inside
the machine, while preventing potential
damage to the atmosphere and public
health. The crossed-out dustbin symbol
shown on all products reminds the owners
of their obligations regarding separated
waste collection.
For further information relating to the correct
disposal of household appliances, owners
may contact the relevant public authority
or the local appliance dealer.
2
GB
Saving energy and respecting the
environment
Saving water and energy
• Only begin a wash cycle when the
dishwasher is full. While waiting for the
dishwasher to be filled, prevent unpleasant
odours with the Soak cycle
Wash Cycles).
• Select a wash cycle that is suited to the
type of crockery and to the soil level using
the Table of Wash Cycles:
- For dishes with a normal soil level, use
the Eco wash cycle, which guarantees low
energy and water consumption levels.
- If the load is smaller than usual activate
the Half Load option
and options, if available).
(see Special wash cycles
• If your electricity supply contract gives
details of electricity-saving time bands, run
the wash cycles when electricity prices are
lower. The Delay Timer option can help you
organise the wash cycles accordingly
Special wash cycles and options, if available).
(if available, see
(see
Product Data (product fiche)
Product Fiche
Brand
Model
Rated capacity in standard place settings (1)
Energy efciency class on a scale from A+++ (low consumption) to D (high consumption)
Energy consumption per year in kWh (2)
Energy consumption of the standard cleaning cycle in kWh
Power consumption of the off-mode in W
Power consumption of the left-on mode in W
Water consumption per year in litres (3)
Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)
Programme time for standard cleaning cycle in minutes
The duration of the left-on mode in minutes
Noise in dB(A) Re 1pW
Built-in model
NOTES
1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally soiled
tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard cleaning cycle
corresponds to the Eco cycle.
2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy
consumption depends on how the appliance is used.
3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.
HOTPOINT
FDFSM 33121
14
A++
265
0.93
0.5
5.0
1680
A
240
12
44
No
3
GB
Installation
If the appliance must be moved at any time, keep it in an
upright position; if absolutely necessary, it may be tilted onto its
back.
Positioning and levelling
1. Position the dishwasher on a level sturdy floor. If the floor is
uneven, the front feet of the appliance may be adjusted until it
reaches a horizontal position. If the appliance is levelled correctly,
it will be more stable and much less likely to move or cause
vibrations and noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive
transparent strip* under the wooden shelf in order to protect it
from any condensation which may form.
3. Place the dishwasher so that its sides or back panel are in
contact with the adjacent cabinets or the wall. This appliance
can also be recessed under a single worktop*
instruction sheet)
4*. To adjust the height of the rear foot, turn the red hexagonal
bushing on the lower central part at the front of the dishwasher
using a hexagonal spanner with an opening of 8 mm. Turn the
spanner in a clockwise direction to increase the height and in an
anticlockwise direction to decrease it.
.
(see Building-in instruction
(see the Assembly
sheet attached to the documentation)
The dishwasher meets the requirements set out by the regulations
in force concerning safety and electrical equipment.
Any technical checks should be conducted exclusively by a
trained and authorised technician: Repairs carried out by
unaithorised persons will invalidate the guarantee, as well as
posing a potential hazard to the user.
The manufacturer declines all responsibility for damage to
persons or property resulting from failure to observe the above
precautions, from tampering with even a single component or
from the use of non-original spare parts.
Connecting the water supply
Adaptation of the water supply for installation should only be
performed by a qualified technician.
The water inlet and outlet hoses may be positioned towards the
right or the left in order to achieve the best possible installation.
Make sure the dishwasher does not bend or squash the hoses.
Tap connections*: A range of adaptors are available to suit
your tap.
Connecting the drain hose
Connect the drain hose (without bending) to a drain duct with a
minimum diameter of 2 cm. (A)
The drain hose connection must be at a height ranging from 40
to 80 cm (from 15’’ to 31’’) from the floor or surface where the
dishwasher rests.
MAX 80 cm
MIN 40 cm
• before connecting the drain hose, remove any internal
restrictions; this will prevent a build up of debris which could
cause a blockage.
• remove any restrictions from the waste spigot and ensure that
the sealing bung is removed (B).
It MUST NOT be connected to a surface water drain.
Ensure the drain hose is securely
attached, to prevent it coming away
while the machine is in use and
causing a flood.
Fit hose to waste securely using
a “Jubilee” type clip.
Anti-flooding protection
To ensure floods do not occur, the dishwasher:
- is provided with a special system which blocks the water supply
in the event of anomalies or leaks from inside the appliance.
Some models are also equipped with the supplementary safety
device New Acqua Stop*, which guarantees anti-flooding
protection even in the event of a supply hose rupture.
WARNING: HAZARDOUS VOLTAGE!
Connecting the water inlet hose
• To a 3/4” gas cold or hot water connection point (max. 60°C).
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn off the tap.
If the inlet hose is not long enough, contact a specialist store
or an authorised technician
The water pressure must be within the values indicated in
the Technical Data table - otherwise the dishwasher may be
function properly.
Make sure the hose is not bent, compressed or kinked.
DO NOT overtighten the hose connector, hand tight is
sufficient.
4
(see Repairs and After Sales)
.
Under no circumstances should the water inlet hose be cut as it
contains live electrical parts.
Electrical connection
Before inserting the plug into the electrical socket, make sure that:
• The socket is earthed and complies with current regulations;
• the socket can withstand the maximum load of the appliance
as shown on the data plate located on the inside of the door
(see chapter Description of the appliance);
• The power supply voltage falls within the values indicated on
the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If
this is not the case, ask an authorised technician to replace
* Only available in selected models.
GB
the plug (
cables or multiple sockets.
Once the appliance has been installed, the power supply
cable and the electrical socket should be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by
the manufacturer or its authorised Technical Assistance Service
in order to prevent all potential hazards.
see Repairs and After Sales
). Do not use extension
(See Repairs and After
Sales)
The Company shall not be held responsible for any incidents,
if these regulations are not observed.
This appliance must be earthed.
Fuses:your appliance comes fitted with a plug and a 13A fuse. If
you need to replace the fuse, only those rated at 13A and ASTA
approved to BS1362 should be used. If you lose the fuse cover, a
replacement may be obtained from your local authorised Service
Centre or Electrical company. Correct replacement is identified
by colour coding or the marking on base of plug.
DO NOT use the plug unless the fuse cover is fitted.
- Use the dishwasher solely in a domestic environment.
- DO NOT stand or place heavy objects on the door when it is
open, this could damage the door or cause the appliance to tip
forward.
The machine has a buzzer/set of tones
dishwasher model
been implemented: power on, cycle end etc.
The symbols/indicator lights/LEDs on the control panel/
display may vary in colour and may have a flashing or fixed
light
(depending on the dishwasher model)
The display provides useful information concerning the
type of wash cycle, wash cycle phase, remaining time,
temperature etc.
) to inform the user that a command has
(depending on the
.
Switching the appliance on for the first time
Advice regarding the first wash cycle
After the installation, remove the stoppers from the racks and the
retaining elastic elements from the upper rack
(if any).
Changing the Plug
Cut off and dispose of the supplied plug if it does not fit your
socket.
To avoid a shock hazard DO NOT insert the discarded plug
into a socket anywhere else.
Wires in the mains lead are coloured accordance with the
following code:
Green/Yellow - Earth
Blue - Neutral
Brown - Live
If you change the plug, the colour of the wires in the mains lead
may not correspond with the terminal markings in the plug, which
if not coloured, could be:
EARTH ‘E’ or
NEUTRAL ‘N’
LIVE ‘L’
Changing the Mains Lead
A lead can be ordered from Hotpoint Service:
- If you have damaged the existing lead or require a longer one
a charge will be made. It is strongly advised that this work is
carried out by a qualified electrician.
- If the domestic wiring includes a residual current-operated
circuit breaker, ensure that it conforms to the latest regulations.
The dishwasher must not be connected to the electricity supply
while installation is being carried out.
- This appliance should only be connected to a 230/240V AC
source, via a properly installed earthed socket.
* Only available in selected models.
Water softener settings
Before starting the first wash cycle, set the hardness level of
the water from the mains supply.
(see chapter Rinse aid and
refined salt).
First load the softener tank with water, then introduce about 1 kg
of salt. It is perfectly normal for water to flow out.
As soon as this procedure is complete, run a wash cycle.
Only use salt that has been specifically designed for dishwashers.
After the salt has been poured into the machine, the LOW SALT
indicator light* switches off.
If the salt container is not filled, the water softener and the
heating element may be damaged as a result.
Technical data
width 60 cm
Dimensions
Capacity 14 standard place-settings
Water supply pressure
Power supply voltage See appliance data plate
Total absorbed power See appliance data plate
Fuse See appliance data plate
height 85 cm
depth 60 cm
0,05 ÷ 1MPa (0.5 ÷ 10 bar)
7,25 psi – 145 psi
This dishwasher conforms to the
following European Community
Directives:
-2006/95/EC (Low Voltage)
-2004/108/EC (Electromagnetic
Compatibility)
-2009/125/EC (Comm. Reg.
1016/2010) (Ecodesign)
-97/17/EC (Labelling)
-2012/19/ CE Waste Electrical
and Electronic Equipment (WEEE)
5
GB
Description of the
appliance
Overall view
1. Upper rack
2. Upper spray arm
3. Tip-up dispensers
4. Rack height adjuster
5. Lower rack
6.
Lower spray arm
7. Washing filter
8. Salt dispenser
9. Detergent and rinse-aid dispensers
10. Data plate
11. Control panel***
On-Off/Reset
button and
indicator light
Extra Drying option button
Zone Wash option button
Display
Wash-Cycle Selection buttons
Multi-functional
Tablets option
button (Multi Tabs)
Low Salt indicator light
Washing and Drying indicator lights
Low Rinse Aid indicator light
Control Panel
Display
Remaining Time indicator
Blocked Filter indicator light
Tap Shut-Off indicator light
Delay Timer option buttons
Start/Pause
button and
indicator lights
Quick Time option button
Wash cycle
Zone Wash indicator lights
Extra Drying indicator light Multi-Functional Tablets indicator light (Tabs)
Quick Time option indicator light
Wash cycle
Delayed Start indicator light
***Only in completely built-in models. * Only available in selected models.
The number and type of wash cycles and options may vary depending on the dishwasher model.
6
GB
Refined salt and
M
A
X
rinse aid
Only use products which have been specifically designed
for dishwashers. Do not use table salt or industrial salt.
Follow the instructions given on the packaging.
If you are using a multi-function product, we recommend
that you add salt in any case, especially if the water is hard
or very hard.
If you do not add salt or rinse aid, the LOW SALT* and
LOW RINSE AID
(Follow the instructions given on the packaging.)
* indicator lights will remain lit.
Measuring out the refined salt
The use of salt prevents the formation of LIMESCALE on the
dishes and on the machine's functional components.
• It is important that the salt dispenser be never empty.
• It is important to set the water hardness.
The salt dispenser is located in the lower part of the dishwasher
(see Description)
• When the LOW RINSE AID indicator light in the control panel
is lit *;
• When the green float* on the cap of the salt dispenser is no
longer visible.
• See autonomy in the water hardness table.
(approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the
opening; rinse the cap under running water and then screw it on.
It is advisable to perform this procedure every time you add salt
to the container.
Make sure the cap is screwed on tightly, so that no detergent can
get into the container during the wash cycle (this could damage
the water softener beyond repair).
Whenever you need to add salt, we recommend carrying out
the procedure before the washing cycle is started.
Setting the water hardness
For perfect water softener operation, it is essential that the
adjustment be based on the water hardness in your house. Ask
your local water supplier for this information. The factory setting
is for medium water hardness.
• Switch the dishwasher on using the On/Off button.
• Switch it off using the On/Off button
• Hold down the START/PAUSE button
you hear a beep.
• Switch it on using the On/Off button
• The display shows the current selection level number and the
salt indicator light.
• Press button ECO to select the desired hardness level
Hardness Table).
• Switch it off using the On/Off button
• Setting is complete!
Even if using multi-functional tablets, the salt dispenser should
still be filled.
and should be filled:
1. Remove the lower rack and unscrew the
container cap (anticlockwise).
2. Only the first time you do this: fill the water
dispenser up to the edge.
3. Position the funnel
fill the salt container right up to its edge
(see figure)
for 5 seconds until
and
(see
Average autonomy
Water Hardness Table
level °dH °fH mmol/l months
1 0 - 6 0 - 10 0 - 1 7 months
2 6 - 11 11 - 20 1.1 - 2 5 months
3 12 - 17 21 - 30 2.1 - 3 3 months
4 17 - 34 31 - 60 3.1 - 6 2 months
5 34 - 50 61 - 90 6.1 - 9 2/3 weeks
For values between 0°f and 10°f, we do not recommend the use
of salt. A setting of 5 may increase cycle duration.
(°dH = hardness measured in German degrees - °f = hardness
measured in French degrees – mmol/l = millimoles per litre)
salt dispenser with 1
wash cycle per day
Measuring out the rinse aid
Rinse aid makes dish DRYING easier. The rinse aid dispenser
should be filled:
• When the LOW RINSE AID indicator light on the panel/display
is lit *;
• When the dark optical indicator* on the dispenser door “D”
becomes transparent.
1. Open the dispenser “D” by pressing and pulling up the tab
on the lid;
2. Carefully introduce the rinse aid as far as the maximum
reference notch in the filling space - avoid spilling it. If this
happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the tub.
Adjusting the amount of rinse aid
If you are not completely satisfied with the drying results, you
may want to adjust the quantity of rinse aid used.
• Switch the dishwasher on using the On/Off button.
• Switch it off using the On/Off button
• Press the START/PAUSE button
heard.
• Switch it on using the On/Off button
• The display shows the current selection level and the rinse aid
indicator light.
• Press button ECO to select the level of rinse aid quantity to be
supplied.
• Switch it off using the On/Off button
• Setting is complete!
If the rinse aid level is set to ZERO, the rinse aid will not be
supplied and the low rinse aid indicator light will not be lit if you
run out of it.
A maximum of 4 levels can be set according to the dishwasher
model. The factory setting is for a medium level.
• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes,
set a high number (3-4).
3 times - a beep will be
* Only available in selected models.
7
GB
Loading the racks
Tips
Before loading the racks, remove all food residues from the
crockery and empty liquids from glasses and containers. No
preventive rinsing is needed under running water.
Arrange the crockery so that it is held in place firmly and does
not tip over; and arrange the containers with the openings facing
downwards and the concave/convex parts placed obliquely,
thus allowing the water to reach every surface and flow freely.
Make sure that the lids, handles, trays and frying pans do not
prevent the spray arms from rotating. Place any small items in
the cutlery basket.
Since plastic dishes and non-stick frying pans usually retain more
water drops, their drying will be not so good as that of ceramic
or stainless-steel dishes.
Lightweight items such as plastic containers should be placed in
the upper rack and arranged so that they cannot move.
After loading the appliance, make sure that the spray arms can
rotate freely.
Lower rack
The lower rack can hold pans, lids, dishes, salad bowls, cutlery
etc. Large plates and lids should ideally be placed at the sides.
Several dishwasher models are fitted with tip-up sectors
They can be used in a vertical position when arranging dishes
or in a horizontal position (lower) to load pans and salad bowls
easily.
*.
Cutlery basket
The modular basket can slide to optimise the space inside the
lower rack. It is equipped with top grilles for improved cutlery
arrangement. The cutlery basket should be positioned only at
the front of the lower rack.
Very soiled dishes and pans should be placed in the lower rack
because in this sector the water sprays are stronger and allow
a higher washing performance.
* Only available in selected models.
Upper rack
Load this rack with delicate and lightweight crockery such as
glasses, cups, saucers and shallow salad bowls.
Several dishwasher models are fitted with tip-up sectors
They can be used in a vertical position when arranging tea/
dessert saucers or in a lower position to load bowls and food
containers.
*.
8
GB
Tip-up compartments with adjustable position
The side tip-up compartments can be positioned at three different
heights to optimize the arrangement of the crockery inside the
rack.
Wine glasses can be placed safely in
the tip-up compartments by inserting
the stem of each glass into the
corresponding slot.
For optimum drying results incline
the tip-up compartments more. To
change the inclination, pull up the
tip-up compartment, slide it slightly
and position it as you wish.

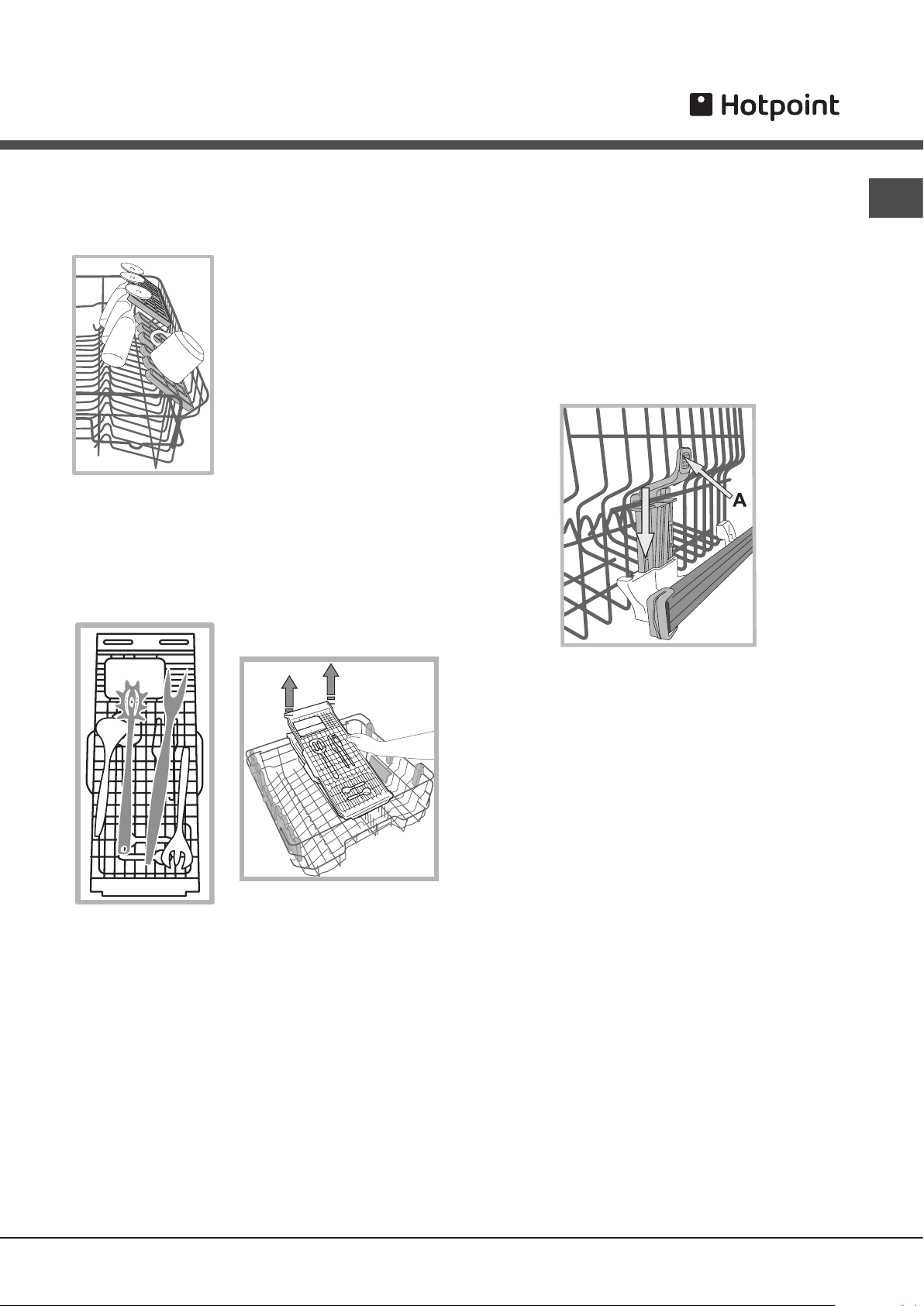

Cutlery tray*
Some dishwasher models are fitted with a sliding tray which
can be used to hold serving utensils or small cups. For optimum
washing performance avoid positioning bulky crockery directly
below the tray. The cutlery tray can be removed
(see Figure).
The upper rack can be adjusted for height based on requirements:
high position to place bulky crockery in the lower rack and low
position to make the most of the tip-up compartments/sectors
by creating more space upwards.
Adjusting the height of the upper rack
In order to make it easier to arrange the crockery, the upper rack
may be moved to a higher or lower position.
The height of the upper rack should be adjusted WHEN THE
RACK IS EMPTY.
NEVER raise or lower the rack on one side only.
If the rack is equipped with a Lift-Up
it up by holding its sides. To restore the lower position, press
the levers (A) at the sides of the rack and follow the rack down.
device*
(see figure)
, lift
Unsuitable crockery
• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique
crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high
temperatures.
• Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
The colours of glass decorations and aluminium/silver pieces
can change and fade during the washing process. Some types
of glass (e.g. crystal objects) can become opaque after a number
of wash cycles too.
Damage to glass and crockery
Caused by:
• Type of glass and glass production process.
• Chemical composition of detergent.
• Water temperature of rinse cycle.
Tips:
• Only use glasses and porcelain guaranteed by the
manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery.
• Collect glasses and cutlery from the dishwasher as soon as
the wash cycle is over.
*Only available in selected models with different numbers and
positions.
9
GB
Detergent and
dishwasher use
Measuring out the detergent
A good wash result also depends on the correct amount of
detergent being used. Exceeding the stated amount does not
result in a more effective wash and increases environmental
pollution.
Based on how soiled the items are, the amount can be
adjusted to individual cases using powder or liquid
detergent.
In the case of normally soiled items, use approximately either
35 gr (powder detergent) or 35 ml (liquid detergent). If tablets
are used, one tablet will be enough.
If the crockery is only lightly soiled or if it has been rinsed
with water before being placed in the dishwasher, reduce the
amount of detergent used accordingly.
For good washing results also follow the instructions shown
on the detergent box.
For further questions please ask the detergent producers.
To open the detergent dispenser use the opening device “A”.
Introduce the detergent into the dry dispenser “B” only.
Place the amount of detergent for pre-washing directly
inside the tub.
1. When measuring out the detergent refer to the Table of wash
cycles to add the proper quantity. Compartment B comprises a
level showing the maximum quantity of liquid or powder detergent
that can be added to each cycle.
2. Remove detergent residues from the edges of the dispenser
and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until
the closing device is secured in place.
The detergent dispenser automatically opens up at the right time
according to the wash cycle.
If all-in-one detergents are used, we recommend using the TABS
option, because it adjusts the cycle so that the best washing and
drying results are always achieved.
Only use detergent which has been specifically designed
for dishwashers.
DO NOT USE washing up liquid.
Using excessive detergent may result in foam residues
remaining in the machine after the cycle has ended.
To achieve the best washing and drying results, the combined
use of detergent, rinse aid liquid and refined salt is required.
We recommend using detergents that do not contain
phosphates or chlorine, as these products are harmful
to the environment.
Starting the dishwasher
1. Turn the water tap on.
2. Press the ON/OFF button: The ON/OFF indicator light and the
display light up.
3. Open the door and pour in a suitable amount of detergent
measuring the detergent).
4. Load the racks
5. Select the wash cycle in accordance with the type of crockery
and its soil level
wash-cycle selection buttons.
6. Select the wash options
7. Start the cycle by pressing the Start/Pause button: The wash
indicator light comes on and the time left to the end of the cycle
appears on the display.
8. At the end of the cycle, the display shows END. Switch off the
appliance by pressing the ON/OFF button, shut off the water tap
and unplug the appliance from the electricity socket.
9. Wait for a few minutes before removing the crockery in order
to avoid burns. Unload the racks, beginning with the lower level.
The machine will switch off automatically during long
periods of inactivity in order to minimise electricity
consumption.
(see Loading the racks)
(see Table of wash cycles)
(see Special wash cycles and Options).
and shut the door.
by pressing the
(see
Changing a wash cycle in progress
If a mistake was made in the wash cycle selection process, it is
possible to change the cycle provided that it has only just begun:
once the wash cycle has started, in order to change the wash
cycle switch off the machine by pressing and holding the ON/
OFF/Reset button. Switch it back on using the same button and
select the desired wash cycle and options.
Adding extra crockery
Press the Start/Pause button and open the door, taking care to
avoid the escaping steam, and place the crockery inside the
dishwasher. Press the Start/Pause button: The cycle will start
again after a long beep has been emitted.
If the delay timer has been set, at the end of the countdown
the wash cycle will not start. It will stay in Pause mode.
Press the Start/Pause button to pause the machine; the wash
cycle is stopped.
At this stage it is not possible to change the wash cycle.
Accidental interruptions
If the door is opened during the wash cycle or there is a power
cut, the cycle stops. It starts again from the point at which it was
interrupted once the door has been shut or the electricity supply
is restored.
* Only available in selected models.
10
GB
Wash cycles
Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242.
Based on the different conditions of use, the wash-cycle duration and data can change.
The number and type of wash cycles and options may vary depending on the dishwasher model.
Wash cycle
1. Eco Yes
2. Auto Intensive Yes
3. Auto Normal Yes
4. Auto Daily No Delay Timer – Multi Tabs 00:40’ - 01:20’ 13,0 – 14,5 1,15 – 1,25
5. Duo wash Yes
6. Crystal Yes
7. Express 30’ No Delay Timer – Multi Tabs 00:30’ 9,0 0,50
8. Soak No Delay Timer 00:12’ 4,5 0,01
Wash cycle
which include
drying
Options
Delay Timer –
Multi Tabs – Extra Dry
Delay Timer – Zone Wash – Multi
Tabs – Extra Dry – Quick Time
Delay Timer – Zone Wash – Multi
Tabs – Extra Dry – Quick Time
Delayed start – Tabs
– Extra Dry – Quick Time
Delay Timer –
Multi Tabs – Extra Dry
Approximate
duration of wash
cycles h:min.
04:00’ 6,0 0,93
02:00’ – 03:10’ 14,0 – 15,5 1,50 – 1,80
01:30 - 02:30’ 14,5 – 16,0 1,20 – 1,35
02:00’ 18,0 1,30
01:40’ 11,0 1,10
Water
consumption
(l/cycle)
Energy
consumption
(kWh/cycle)
Instructions on wash-cycle selection and detergent dosage
1. The ECO wash cycle is the standard cycle to which the energy label data refers. It can be used to wash crockery with a normal
soil level and is the most efficient cycle in terms of energy and water consumption for this type of crockery.
29 gr/ml + 6 gr/ml** – 1 Tab
2. Heavily soiled dishes and pans (not to be used for delicate items). 35 gr/ml – 1 Tab
3. Normally soiled pans and dishes. 29 gr/ml + 6 gr/ml** – 1 Tab
4. Limited quantity of daily soiling (ideal for 4 place settings) 25 gr/ml – 1 Tab
5. Wash spread over the two racks: delicate on upper rack and heavy-duty for pans on lower rack. 35 gr/ml – 1 Tab
6. Cycle for delicate items, which are more sensitive to high temperatures 35 gr/ml – 1 Tab
7. Fast cycle to be used for slightly dirty dishes (ideal for 2 place settings) 25 gr/ml – 1 Tab
8. Pre-wash while awaiting completion of the load with the dishes from the next meal. No deterge
Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W.
(**Quantity of pre-washing detergent)
11
GB
Special wash cycles
and Options
Notes:
Optimum performance levels when using the “Daily wash”
and “Express 30’” cycles can be achieved by respecting the
specified number of place settings.
To reduce consumption even further, only run the dishwasher
when it is full.
Note for Test Laboratories: for information on comparative EN
testing conditions, please send an email to the following address:
assistenza_en_lvs@indesitcompany.com
Wash options
The OPTIONS may only be set, changed or reset after the
wash cycle has been selected and before the Start/Pause
button has been pressed.
Only the options which are compatible with the type of wash
cycle set may be selected. If an option is not compatible
with the selected wash cycle
corresponding symbol flashes rapidly 3 times.
If an option is selected which is not compatible with another
(previously selected) option, it will flash 3 times and switch
off, while the most recently selected option will remain active.
To deselect an option which has been set by mistake, press
the corresponding button again.
(see Table of wash cycles)
, the
Multi-functional Tablets option (Multi Tabs)
This option optimises washing and drying results.
When using multi-functional tablets, press the
MULTI-FUNCTIONAL TABLETS button; the corresponding
symbol will light up. If the button is pressed again, the option
will be deselected.
The “Multi-functional tablets” option results in a longer
wash cycle.
Extra Drying option
To improve the dryness level of the crockery, press
the EXTRA DRYING button and the symbol will
light up. If it is pressed again, the option will be deselected.
A higher temperature during the final rinsing and a longer
drying phase improve the dryness level.
The EXTRA DRYING option increases the duration of the
wash cycle.
Quick Time option
This option can be used to reduce the duration of
the main wash cycles while, maintaining the same
washing and drying performance levels. After selecting the
wash cycle, press the QUICK TIME button; the illumination
of the corresponding indicator light indicates its selection.
Press it again to deselect it.
Delay Timer option
It is possible to delay the start time of the cycle by
1 to 24 hours:
1. Select the desired wash cycle and any other options
required, press the DELAY TIMER button. The relevant symbol
starts flashing. Use the buttons + and - to select when the
wash cycle will start (h01, h02 etc.)
2. Confirm with the START/PAUSE button. The symbol stops
flashing and the countdown begins.
3. Once this time has elapsed, the DELAY TIMER symbol
switches off and the wash cycle begins.
To deselect the DELAY TIMER option, press the DELAY TIMER
button until the text OFF appears.
The Delay Timer function cannot be set once a wash
cycle has been started.
Zone Wash
This option makes it possible to carry out the wash
cycle in the selected rack only. Select the wash cycle
and then press the ZONE WASH button: the selected rack
lights up and the wash cycle starts in the selected rack only.
Press the button again to deselect the option.
The option is available with the following wash cycles:
Intensive and Normal.
Select the option and the Intensive cycle to start the
ULTRAINTENSIVE ZONE washing. This wash cycle is ideal
for very soiled mixed loads, e.g. pans and saucepans, dishes
with heavy encrustation or difficult-to-clean crockery (grater,
vegetable mill, dirty cutlery). The spraying pressure is
stronger and the washing temperature higher, thus ensuring
optimum handling of stubborn stains.
Select the option and the Normal cycle to start the SAVING
ZONE washing. This function makes it possible to reduce
energy consumption. Cycle duration might change.
Remember to load the crockery in the selected rack only.
* Only available in selected models.
12
GB
Care and maintenance
Shutting off the water and electricity
supplies
•
Turn off the water tap after every wash cycle to avoid leaks.
•
Always
performing maintenance work.
unplug the appliance when cleaning it and when
Cleaning the dishwasher
•
The
external surfaces of the machine and the control panel
can be cleaned using a non-abrasive cloth which has been
dampened with water. Do not use solvents or abrasive
products.
•
Any
marks on the inside of the appliance may be removed
using a cloth dampened with water and a little vinegar.
Preventing unpleasant odours
•
Always
keep the door of the appliance ajar in order to avoid
moisture from forming and being trapped inside the machine.
•
Clean
the seals around the door and detergent dispensers
regularly using a damp sponge. This will avoid food becoming
trapped in the seals, which is the main cause behind the
formation of unpleasant odours.
Cleaning the spray arms
Food residue may become encrusted onto the spray arms
and block the holes used to spray the water. It is therefore
recommended that you check the arms from time to time and
clean them with a small non-metallic brush.
The two spray arms may both be removed.
To remove the upper spray arm,
turn the plastic locking ring in an
anti-clockwise direction. The upper
spray arm should be replaced
so that the side with the greater
number of holes is facing upwards.
Cleaning the filters
The filter assembly consists of three filters which remove food
residues from the washing water and then recirculate the water.
They must be cleaned if you wish to achieve the best results in
every wash.
Clean the filters regularly.
The dishwasher must not be used without filters or if the filter
is loose.
• After several washes, check the filter assembly and if necessary
clean it thoroughly under running water, using a non-metallic
brush and following the instructions below:
1. Turn the cylindrical filter C in an anti-clockwise direction and
pull it out
2. Remove the cup filter B by exerting a slight pressure on the
side flaps
3. Slide out the stainless-steel plate filter A.
4. Inspect the trap and remove any food residues. NEVER
REMOVE the wash-cycle pump protection
(fig. 1).
(fig. 2);
(fig. 3).
(black detail) (fig.4).
The lower spray arm can be
removed by pressing on the side
tabs and pulling it upwards.
Cleaning the water inlet hose*
If the water hoses are new or have not been used for an extended
period of time, let the water run to make sure it is clear and free
of impurities before performing the necessary connections. If this
precaution is not taken, the water inlet could become blocked
and damage the dishwasher.
Clean the water inlet filter at the tap outlet regularly.
- Turn off the water tap.
- Unscrew the end of the water inlet hose, remove the filter and
clean it carefully under running water.
- Re-place the filter and screw the water hose back into position.
After cleaning the filters, re-place the filter assembly and fix it
in position correctly; this is essential for maintaining the efficient
operation of the dishwasher.
Leaving the machine unused for extended
periods
• Disconnect the appliance from the electricity supply and shut
off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is
empty.
* Only available in selected models.
13
GB
Troubleshooting
Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.
Problem: Possible causes / Solutions:
The dishwasher does not start
or cannot be controlled.
The door won’t close.
No water drain out of the
dishwasher.
The dishwasher makes
excessive noise.
The dishes and glasses are
covered in a white lm or
limescale deposits.
The dishes and glasses are
streaked or have a bluish
tinge.
The crockery has not been
dried properly.
The dishes are not clean. • The crockery has not been arranged properly.
The dishwasher won’t load
any water.
It is blocked with ashing lights.
• The water supply tap is not turned on.
• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately
one minute and reset the wash cycle.
• The appliance has not been plugged in properly or another electricity socket should be used.
• The dishwasher door has not been closed properly.
• Make sure that the racks were inserted all the way.
• The lock was released. Strongly push the door until a “clacking” noise is heard.
• The wash cycle has not nished yet.
• The water drain hose is bent
• The drain duct is clogged up.
• The lter is clogged up with food residues.
• Check the height of the drain hose.
• The dishes are rattling against each other or against the spray arms. Place the dishes
properly and make sure the spray arms can rotate freely.
• Too much foam: the detergent has not been measured out correctly or it is not suitable for use
in dishwashers.
• No rened salt.
• Water hardness adjustment is not suitable: increase the relevant values.
and Rinse Aid.)
• The salt and rinse-aid dispenser cap has not been closed properly.
• The rinse aid has been used up or the dosage is too low.
• The rinse aid dosage is too high.
• A wash cycle without a drying programme has been selected.
• The rinse aid has been used up.
• The rinse aid dispenser setting is not suitable.
• The crockery is made from non-stick material or plastic; the presence of water drops is
normal.
• The spray arms cannot rotate freely, being hindered by the dishes.
• The wash cycle is too gentle
• Too much foam: the detergent has not been measured out correctly or it is not suitable for use
in dishwashers.
• The lid on the rinse aid compartment has not been closed correctly.
• The lter is dirty or clogged up
• The rened salt level is low
• Make sure that the height of the dishes is compatible with the rack adjustment.
• The holes in the spray arms are clogged up.
• There is no water in the mains supply or the tap is shut off.
• The water inlet hose is bent
• The lters are clogged up: they need cleaning.
• The drain duct is clogged up: it needs cleaning.
• After checking and cleaning, switch the dishwasher on and off and start a new wash cycle.
• If the problem persists, turn off the water tap, remove the plug and call the Service Centre.
(See Detergent and dishwasher use.)
(See Detergent and dishwasher use.)
(see Installation).
Do not prewash the dishes by hand.
(See Rened Salt
(See Rened Salt and Rinse Aid.)
(see Wash Cycles).
(see Care and maintenance.)
(See Rened Salt and Rinse Aid.)
(See Care and maintenance.)
(see Installation).
(See Care and maintenance.)
* Only available in selected models.
14
GB
Product Guarantee
and Repair Information
Guarantee
12 Months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer’s
guarantee, which covers the cost of breakdown repairs for twelve months from the date of purchase.
This gives you the reassurance that if, within that time,
your appliance is proven to be defective because of
either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost
to you:
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions.
- The appliance is used only on the electricity or gas
supply printed on the rating plate.
- The appliance has been used for normal domestic
purposes only.
- The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any
person not authorised by us.
- Any repair work must be undertaken by us or our
appointed agent.
- Any parts removed during repair work or any appliance that is replaced become our property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use,
neglect or interference or as a result of improper installation.
- Replacement of any consumable item or accessory.
These include but are not limited to: plugs, cables,
batteries, light bulbs, fluorescent tubes and starters,
covers and filters.
- Replacement of any removable parts made of glass
or plastic.
Recycling and Disposal Information
As part of Hotpoint’s continued commitment to helping
the environment, Hotpoint reserves the right to use
quality, recycled components to keep down customer
costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door, plug, and cut the mains cable off flush
with the appliance. Dispose of these parts separately
to ensure that the appliance can no longer be plugged into mains socket, and the door cannot be locked
shut.
Repairs and After Sales
For product help and advice, repairs, spare parts or
accessories, we’re here to help.
For local repair engineers - 03448 111 606
ROI - 0818 313 413
UK standard local rate applies
ROI local Irish rate applies
For Parts and Accessories visit:
parts.hotpoint.co.uk/shop
Please remember to register your appliance at www.
hotpointservice.co.uk to activate your 10 year parts
guarantee.
How to find your model and serial number:
THIS GUARANTEE WILL NOT APPLY IF THE
APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.
15
GB
195147240.00 - NC
06/2016 jk - Xerox Fabriano
Whirlpool Europe s.r.l.
- Viale Guido Borghi, 27
- 21025 Comerio (Varese) Italy
www.whirlpool.eu
16
www.hotpoint.co.uk
Loading...
