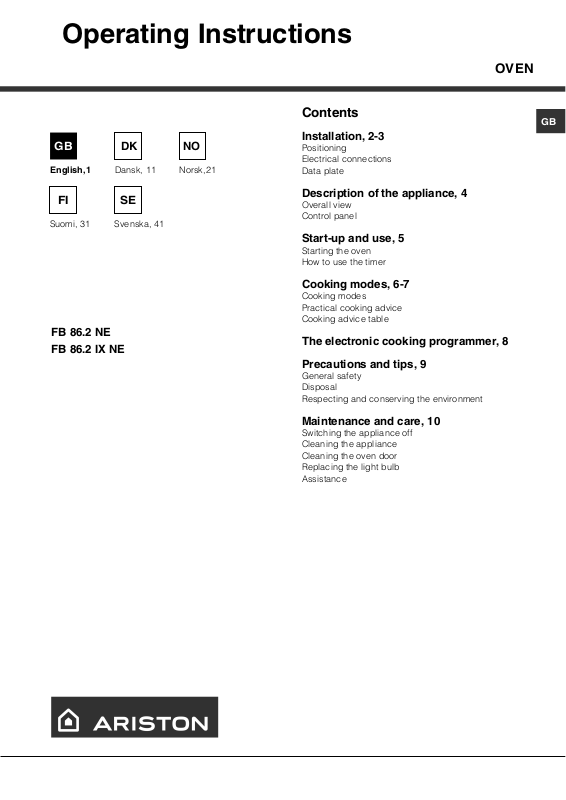

Operating Instructions

OVEN

English,1 Dansk, 11

FI SE

Suomi, 31 Svenska, 41

FB 86.2 NE

FB 86.2 IX NE

Norsk,21

Contents

Installation, 2-3

Positioning

Electrical connections

Data plate

Description of the appliance, 4

Overall view

Control panel

Start-up and use, 5

Starting the oven

How to use the timer

Cooking modes, 6-7

Cooking modes

Practical cooking advice

Cooking advice table

The electronic cooking programmer, 8

Precautions and tips, 9

General safety

Disposal

Respecting and conserving the environment

Maintenance and care, 10

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assistance

Installation

! Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of

the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation

hazard. (see Precautions and tips).

! The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to persons,

animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

 The panels adjacent to the oven must be made of

heat-resistant material.

 Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

to 100°C.

Ventilation

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

45 mm.

560 mm.

Centring and fastening

Position the 4 tabs on the side of the oven according

to the 4 holes of the outer frame. Adjust the tabs

according to the thickness of the cabinet side panel,

as shown below:

thickness of 20 mm: take off

the removable part of the tab

(see diagram)

 to install the oven under the counter (see diagram)

and in a kitchen unit, the cabinet must have the

following dimensions:

567 mm.

45 mm.

558 mm.

593 mm.

23 mm.

595 mm.

5 mm.

595 mm.

545 mm.

24 mm.

! The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

thickness of 18 mm: use the

first groove, which has already

been set in the factory (see

diagram)

thickness of 16 mm: use the

second groove (see diagram)

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

outer frame.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Electrical connections

! Ovens equipped with a three-pole power supply

cable are designed to operate with alternating current

at the voltage and frequency indicated on the data

plate located on the appliance (see below).

Fitting the power supply cable

1. Open the terminal

board by inserting a

screwdriver into the side

tabs of the cover. Use

the screwdriver as a

lever by pushing it down

to open the cover (see

diagram).

2. Install the power

supply cable by

loosening the cable

clamp screw and the

three wire contact

screws L-N-

the wires to the

corresponding

terminals: the Blue wire

to the terminal marked

(N), the Brown wire to the terminal marked (L) and the

Yellow Green wire

to the terminal marked (see

diagram).

3. Secure the cable by fastening the clamp screw.

4. Close the cover of the terminal board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate (see side).

The appliance must be directly connected to the

mains using an omnipolar circuit-breaker with a

minimum contact opening of 3 mm installed between

the appliance and the mains, suitable for the load

indicated and complying with current electrical

regulations (the earthing wire must not be interrupted

by the circuit-breaker). The supply cable must not

come into contact with surfaces with temperatures

higher than 50°C.

! The installer must ensure that the correct electrical

connection has been made and that it is compliant

with safety regulations.

. Connect

Before connecting to the power supply, make sure that:

 The appliance is earthed and the plug is compliant

with the law.

 The socket can withstand the maximum power of

the appliance, which is indicated on the data plate

(see below).

 The voltage must be in the range between the

values indicated on the data plate (see below).

 The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only (see Assistance).

! The manufacturer declines any liability should

these safety measures not be observed.

DATA PLATE

width cm 43.5

Dimensions

Volume Electrical

connections

ENERGY LABEL

height cm 32 depth cm 40

lt. 56 voltage: 230V ~ 50

maximum power absorbed 2800W

Directive 2002/40/EC on the label of electric ovens. Norm EN 50304 Energy consumption for Natural

convection – heating mode: Traditional mode Declared energy consumption for Forced convection Class – heating

mode: This appliance conforms to the

following European Economic Community directives:

-73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments;

- 93/68/EEC of 22/07/93 and subsequent amendments.

- 2002/96/EC

Bakin g

Description of the appliance

Overall view

Control panel

GRILL

DRIPPING PAN

SELECTOR

knob

ELECTRONIC

programmer*

GUIDES for the

sliding racks

position 5 position 4 position 3 position 2 position 1

THERMOSTAT

indicator light

MAX

220

180

100 140

THERMOSTAT

knob

* Only on certain models.

Start-up and use

! The first time you use your appliance, heat the empty

oven with its door closed at its maximum temperature

for at least half an hour. Ensure that the room is well

ventilated before switching the oven off and opening

the oven door. The appliance may produce a slightly

unpleasant odour caused by the burning away of

protective substances used during the manufacturing

process.

Starting the oven

1. Select the desired cooking mode by turning the

SELECTOR knob.

2. Select the desired temperature with the

THERMOSTAT knob. See the Cooking advice table for

cooking modes and the suggested cooking

temperatures (see Cooking Modes).

3. When lit, the THERMOSTAT indicator light indicates

that the oven is heating up to the temperature set.

4. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR

knob.

- change the temperature by turning the

THERMOSTAT knob.

- stop cooking by turning the SELECTOR knob to the

0 position.

Cooling ventilation

In order to cool down the external temperature of the

oven, some models are fitted with a cooling fan that

blows out air between the control panel and the oven

door.

! Once the cooking has been completed, the cooling

fan remains on until the oven has cooled down

sufficiently.

Oven light

It goes on when selecting

knob. It stays on when a cooking mode is selected.

8 with the SELECTOR

! Should the appliance be equipped with an electronic

programmer, to use the electric oven, just press

button

( (the symbol m will appear on the display)

before selecting the desired cooking function.

! Never put objects directly on the oven bottom to

avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided.

Only on certain models

Cooking modes

! A temperature value can be set for all cooking

modes between 60°C and Max, except for

 BARBECUE (recommended: set only to MAX power

level);

 GRATIN (recommended: do not exceed 200°C).

a TRADITIONAL OVEN mode

Both the top and bottom heating elements will come

on. With this traditional cooking mode, it is best to use

one cooking rack only: if more than one rack is used,

the heat will be distributed unevenly.

u BAKING mode

The rear heating element and the fan come on,

guaranteeing the distribution of heat delicately and

uniformly throughout the oven. This mode is ideal for

baking and cooking temperature sensitive foods such

as cakes that need to rise and to prepare certain

tartlets on 3 shelves simultaneously.

v FAST COOKING mode

The heating elements and the fan come on,

guaranteeing the distribution of heat consistently and

uniformly throughout the oven.

Pre-heating is not necessary for this cooking mode.

This mode is especially recommended for cooking

pre-packed food quickly (frozen or pre-cooked). The

best results are obtained if you use one cooking rack

only.

b MULTI-COOKING mode

All the heating elements (top, bottom and circular), as

well as the fan, will come on. Since the heat remains

constant throughout the oven, the air cooks and

browns food uniformly. A maximum of two racks may

be used at the same time.

d BARBECUE mode

The top heating element comes on.

The high and direct temperature of the grill is

recommended for food that requires high surface

temperature. Always cook in this mode with the oven

door closed.

e GRATIN mode

The top heating element, as well as the fan, will come

on. This combination of features increases the

effectiveness of the unidirectional thermal radiation of

the heating elements through forced circulation of the

air throughout the oven. This helps prevent food from

burning on the surface, allowing the heat to penetrate

right into the food. Always cook in this mode with the

oven door closed.

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-

assisted cooking. Excessive direct heat can burn

temperature sensitive foods.

! In the BARBECUE and GRATIN cooking modes,

place the dripping pan in position 1 to collect cooking

residues (fat and/or grease).

MULTI-COOKING

 Use position 2 and 4, placing the food that requires

more heat on 2.

 Place the dripping pan on the bottom and the rack

on top.

BARBECUE

 Insert the rack in position 3 or 4. Place the food in

the centre of the rack.

 We recommend that you set the maximum power

level. The top heating element is regulated by a

thermostat and may not always be on.

PIZZA MODE

w PIZZA mode

The bottom and circular heating elements, as well as

the fan, will come on. This combination heats the oven

rapidly by producing a considerable amount of heat,

particularly from the bottom element. If you use more

than one rack simultaneously, switch the position of

the dishes halfway through the cooking process.

 Use a light aluminium pizza pan. Place it on the

rack provided.

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

time).

 If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

Cooking advice table

Setting made Type of food Weig-

ht (in

kg)

Position of

the rack from

the ov en

bo ttom

Preheating tim e (min.)

Thermostat

se tting

Cooking

tim e

(m in.)

1 Traditional

2 Baking

3 Fast cooking

4 Multicooking

5 Pizza

Duck Roast veal or beef Po rk roa st Biscuits (short pastry)

Tarts

Tarts Fruit cakes Plum cake Sponge cake Stuffed pancakes Sm all cakes (on 2 racks) Cheese puffs (on 2 racks) Cream puffs (on 3 racks) Biscuits (on 3 racks) Meringues (on 3 racks)

Frozen food

Pizza Courgette and prawn pie Coun try style spinach pie

Turnovers Lasagne Golden Rolls Chicken m orsels

Pre-cooked food

Golden chicken wings

Fresh Food

Biscuits (short pastry) Plum cake Cheese puffs

Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Ma ckerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

Pizza Roast veal or beef Chicken

(on 2 racks)

1 1 1

0.5 1

0.7

0.5

1.2

0.6

0.4

0.7

0.5

0.3

0.4

0.5

0.3

0.5

0.4

0.4 2 - 200 20-25

0.3

0.6

0.2 1

1 1

1+1

1 1

0.5

1.0

1.5

0.5 1 1

3 3 3 3 3

2/3

3 2-4 2-4 2-4

1-3-5 1-3-5 1-3-5

2 2-4

2 2-4 2-4

2 2-4

2 2/3

15 15 15 15 15

15 15 15 15 15 15 15 15 15 15

15 10 10 15 10 10 10 10 10 10 15

15 10 10

200 200 200 180 180

180 180 180 160 200 190 210 180 180

Max

200 220 200 200 180 220

200 180 210

230 180 180 200 180 170 190 180 170 170 200

220 220 180

65-75 70-75 70-80 15-20 30-35

20-30 40-45 40-50 25-30

30-35

20-25

15-20 20-25 20-25

180

12 20

30-35

25 35

25-30

15-20

15-18

10-12

15-20

30-35 40-45

60-70

30-35 40-50 20-25

10-15

15-20 20-25 25-30

15-20 25-30

60-70

6 Grill

7 Gratin

N.B.: cooking times are approximate and may vary according to personal taste. When cooking using the grill or gratin, the dripping pan must always be placed on the 1st oven rack from the bottom.

Soles and cuttlefish Squid and prawn kebabs C od file t Grilled vegetables Veal steak Cutlets Ham burgers Ma ckerels

Toasted sandwiches

G rille d ch ic k en Cuttlefish

1 1 1 1 1 1 1 1

n.° 4

1.5

4 4 4

3/4

4 4 4 4 4

3 3

5 5 5 5 5 5 5 5 5

5 5

Max Max Max Max Max Max Max Max Max

200 200

8-10

6-8

10 10-15 15-20 15-20

7-10

15-20

2-3

55-60

30-35

The electronic cooking

programmer

This feature allows you to program the oven or the grill

as follows:

 delayed cooking time for a specified period;

 immediate start for a specified period;

 timer.

Button Functions:

: Timer with hours and minutes;

: cooking time;

: end cooking time;

: Manual change;

(

: set cooking time (to count down);

)

: set cooking time (to start from zero)

How to reset the digital clock

After the appliance has been connected to the power

supply, or after a power cut, the clock display will

automatically reset to 0:00 and begin to blink.  Press the $ and % buttons consecutively and

then reset the time (within 4 seconds) using the

) and * buttons. The button * advances the hours. The button ) decreases the hours.

The time can also be changed in the following two

ways:

1. Repeat all of the steps above.

2. Press the ( button, and then use the ) and *

buttons to reset the time.

Manual operation of the oven

Once the time has been set, the programmer

automatically switches to manual mode.

Note: Press the ( button to restore the manual mode

after every Automatic cooking session.

Delayed cooking time for a specified period

The total cooking time as well as the time at which the

cooking will finish must be set. If we assume that the

time display reads10:00:

1. Turn the oven control knob to the setting and tempe-

rature desired (example: static oven mode at 200°C).

2. Press the button $ and then set the cooking time (within four seconds) using the ) and * buttons.

Supposing the cooking time is set to 30 minutes, the

display will read as follows:

Release the button, and within 4 seconds, the current time

will reappear with the m symbol along with the word auto

3. Press the button % and then use the ) and * buttons

to set the time for when the cooking program should

end. Let us imagine this time to be 1:00 p.m.

4. After the button has been released, the current time

will be displayed after approximately 4 seconds:

When auto is on, it indicates that the length of

cooking time and the time it is due to finish have been

programmed in automatic mode. At this point, the

oven will turn on automatically at 12:30 and turn off

after 30 minutes. When the oven is turned on, the

symbol m will be displayed for the entire cooking time.

The cooking duration can be displayed at any time by

pressing the button $ , and the time it is due to finish may be displayed by pressing the button % .

Once cooking is completed, the timer will ring; to turn

it off, simply press any button except the ) and *

buttons.

Immediate start for a specified period

By programming just the duration (points 1 and 2 of the

Delayed cooking time for specified period section),

cooking will begin immediately.

To cancel a cooking schedule already programmed

Press the $ button, and use the ) button to set the time

to:

then press the manual cooking mode button (.

Timer Feature

The timer feature allows you to enter a specific amount

of time and begins to count down. This feature does not

turn the oven on or off; it merely sounds when the time

has elapsed.

When the button  has been pressed, the display will

read as follows:

Then use the * and ) buttons to set the desired time.

As soon as the button has been released, the timer will

start to count down and the current time will be

displayed.

After the time has expired, an audible signal will be

emitted, which can be turned off by pressing any button

(except the * and ) buttons). At this point the symbol H

will also turn off.

Correction/Cancellation of data

 The data entered can be changed at any time by

pressing the corresponding button and the * or )

buttons.

 When the data for the cooking duration is cancelled,

the data for the time cooking is due to end is also

cancelled automatically, and vice versa.

 If the oven has already been programmed, it will not

accept times for the end of cooking which are before

the start of the programmed cooking process.

Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons

and must be read carefully.

General safety

 The appliance was designed for domestic use

inside the home and is not intended for commercial

or industrial use.

 The appliance must not be installed outdoors, even

in covered areas. It is extremely dangerous to leave

the appliance exposed to rain and storms.

 When handling the appliance, always use the

handles provided on the sides of the oven.

 Do not touch the appliance with bare feet or with

wet or moist hands and feet.

 The appliance must be used to cook food by adults

only and according to the instructions in this

manual.

 When the appliance is in use, the heating

elements and some parts of the oven door

become extremely hot. Make sure you don't

touch them and keep children well away.

 Ensure that the power supply cable of other

electrical appliances does not come into contact

with the hot parts of the oven.

 The openings used for ventilation and dispersion of

heat must never be covered.

 Always grip the oven door handle in the centre: the

ends may be hot.

 Always use oven gloves to place cookware in the

oven or when removing it.

 Do not use aluminium foil to line the bottom of the

oven.

 When unplugging the appliance always pull the

plug from the mains socket, do not pull on the

cable.

 Never carry out any cleaning or maintenance work

without having unplugged the plug from the mains.

 In the case of a malfunction, under no

circumstances should you attempt to repair the

appliance yourself. Repairs carried out by

inexperienced persons may cause injury or further

malfunctioning of the appliance. Contact a Service

Centre (see Assistance).

 Do not rest heavy objects on the open oven door.

Disposal

 Observe local environmental standards when

disposing packaging material for recycling

purposes. Observe existing legislation when

disposing of the old appliance.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE),

requires that old household electrical appliances

must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be

collected separately in order to optimise the

recovery and recycling of the materials they contain

and reduce the impact on human health and the

environment. The crossed out wheeled bin

symbol on the product reminds you of your

obligation, that when you dispose of the appliance

it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

Respecting and conserving the

environment

 By using the appliance in the hours between late

afternoon and early morning, you can help reduce

the work load placed on electrical companies.

 Do not place flammable materials in the oven: if the

appliance is switched on by mistake, it could catch

fire.

 Always make sure the knobs are in the l/

position when the appliance is not in use.

¡

 Always keep the oven door closed when using the

BARBECUE and GRATIN modes: to attain best

results and to save energy (approximately 10%).

 Regularly check the door seals and wipe clean to

ensure they are free of debris so that they stick

properly to the door and do not allow heat to

disperse.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

 The stainless-steel or enamel-coated external parts

as well as the rubber seals may be cleaned using a

sponge that has been soaked in lukewarm water

and neutral soap. If these stains are difficult to

remove, use only specialised products. After

cleaning, rinse and dry thoroughly. Do not use

abrasive powders or corrosive substances.

 Ideally, the inside of the oven should be cleaned

after each use, when it is still lukewarm. Use hot

water and detergent, rinse and dry with a soft cloth.

Do not use abrasive products.

 The accessories can be washed like everyday

crockery (even in your dishwasher).

Cleaning the oven door

Clean the glass door using non-abrasive products and

sponges and dry it with a soft cloth.

To clean more thoroughly, you can remove the oven

door.

Inspecting the seals

Check the door seals around the oven periodically. If

the seals are damaged, please contact your nearest

After-sales Service Centre (see Assistance). We

recommend not using the oven until the seals have

been replaced.

Replacing the light bulb

To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder.

2. Remove the light bulb and replace it with a similar

one: Wattage 25 W, cap E 14.

3. Replace the glass cover (see diagram).

Assistance

1. Open the oven door fully

(see diagram)

2. Lift up and turn the small

levers located on the two

hinges (see diagram)

3. Grip the door on the two

external sides and close it

approximately half way. Then

pull the door towards you lifting

it out of its seat (see diagram).

To replace the door, reverse

this sequence.

Communicating:

 appliance model (Mod.)

 serial number (S/N)

This information is found on the data plate located on

the appliance and/or on the packaging.

Brugervejledning

OVN

English,1 Dansk, 11

FI SE

Suomi, 31 Svenska, 41

FB 86.2 NE

FB 86.2 IX NE

Norsk,21

Oversigt

Installation, 12-13

Placering

Elektrisk tilslutning

Typeskilt

Beskrivelse af ovnen, 14

Samlet illustration

Betjeningspanel

Start og brug, 15

Sådan tændes for ovnen

Brug af timerfunktion

Programmer, 16-17

Tilberedningsprogrammer

Praktiske råd til tilberedning

Skema over tilberedning

Elektronisk programmeringsenhed til

tilberedning, 18

Forskrifter og råd, 19

Generelt om sikkerheden

Bortskaffelse

Spar på energien og værn om miljøet

Vedligeholdelse, 20

Afbrydelse af strømmen

Rengøring af ovnen

Rengøring af ovndør

Udskiftning af pære

Service

Installation

! Det er vigtigt at opbevare dette hæfte et sted, så det

nemt kan konsulteres. Hvis ovnen sælges, overdrages

eller flyttes, skal man sørge for, at brugervejledningen

følger med, så den nye ejer kan få oplysninger om

ovnens funktion og eventuelle advarsler.

! Læs omhyggeligt instruktionerne: De indeholder

vigtige oplysninger om installation, anvendelse og

sikkerhed.

Placering

! Emballagen må ikke betragtes som legetøj til børn,

og den skal bortskaffes i henhold til

bestemmelserne om sortering af affald (se afsnittet

Forskrifter og råd).

! Installationen skal udføres i overensstemmelse

med instruktionerne og af en kvalificeret tekniker. En

fejlagtig installation kan medføre personskade,

skader på dyr samt materielle skader.

Indbygning

For at ovnen skal kunne fungere korrekt, skal

indbygningsskabet være egnet dertil:

 Panelerne på skabene ved siden af ovnen skal

være lavet af materialer, der er

modstandsdygtige over for varme.

Ventilation

For at sikre en god ventilation, er det nødvendigt at

afmontere den bageste væg på indbygningsskabet.

Det tilrådes at installere ovnen, så den støtter på to

trælister eller på en plan overflade med en åbning

på minimum 45 x 560 mm (se figuren).

45 mm.

560 mm.

Centrering og fastgørelse

Placér de 4 stifter på siden af ovnen ud for de 4

huller på omkredsrammen, idet der tages hensyn til

køkkenelementets tykkelse:

Tykkelse på 20 mm: Fjern den

bevægelige del af den

udragende stift (se figuren).

 På skabe af finerplader skal limen være

modstandsdygtig over for temperaturer på 100 ºC.

 Hvis ovnen indbygges i et skab, både ved

montering under en bordplade (se figuren) og ved

søjleopbygning, skal skabet have følgende mål:

567 mm.

45 mm.

558 mm.

593 mm.

23 mm.

595 mm.

5 mm.

595 mm.

545 mm.

24 mm.

! Når ovnen er blevet indbygget, må der ikke være

mulighed for eventuelt kontakt med de elektriske

dele.

Oplysningerne om energiforbrug, angivet på

typeskiltet, er målt på denne type installation.

Tykkelse på 18 mm: Brug den

første rille, som allerede

findes ved levering fra

fabrikken (se figuren).

Tykkelse på 16 mm: Brug den

anden rille (se figuren).

Sådan fastgøres ovnen til køkkenelementet: Åbn

ovndøren, og skru de 4 skruer i de 4 passende

huller på omkredsrammen.

! Alle sikkerhedsdele skal være monteret på en

sådan måde, at de ikke kan fjernes uden brug af

værktøj.

Elektrisk tilslutning

! Ovne, der er udstyret med et trepolet

forsyningskabel er klargjort til funktion med

vekselstrøm ved den spænding og frekvens, der er

anført på ovnens typeskilt (se herunder).

Montering af forsyningskabel

1. Åbn klemrækken

ved at stikke en

skruetrækker ned i

klapperne på siden af

dækslet. Træk og åbn

dækslet (se figuren).

2. Tilslutning af

forsyningskablet: Drej

skruen af

kabelklemmen og de

tre skruer af

kontakterne L-N-

fastgør de små

ledninger under

Gul-grøn

3. Spænd ledningen fast i den passende

kabelklemme.

4. Luk dækslet på kabelrækken.

Tilslutning af strømforsyningskablet til nettet

Anvend et standardstik på kablet til den belastning,

der er anført på typeskiltet (se her ved siden af).

Hvis man ønsker en direkte forbindelse til el-nettet,

skal man indsætte en flerpolet afbryder med en

minimumsåbning mellem kontakterne på 3 mm. i

overensstemmelse med belastningen og i

overensstemmelse med de gældende regler (der

skal ikke være en afbryder på jordforbindelsen).

Forsyningskablet skal være placeret på en sådan

måde, at det ikke når en temperatur på 50º C over

omgivelsestemperaturen på noget punkt.

! Installatøren er ansvarlig for en korrekt elektrisk

tilslutning samt overholdelse af sikkerhedsreglerne.

(se figuren).

skruehovederne i

overensstemmelse med

farverne Blå (N) Brun (L)

Inden tilslutningen udføres, skal man kontrollere

følgende:

 at stikkontakten har jordforbindelse og er i

overensstemmelse med loven,

 at stikkontakten kan bære ovnens maksimale

spændingsbelastning, som angivet på typeskiltet

(se herunder),

 at forsyningsspændingen ligger inden for

værdierne, som angivet på typeskiltet (se

herunder),

 at stikkontakten passer til ovnens stik. I modsat

fald skal man udskifte stikkontakten eller stikket.

Undgå anvendelse af forlængerledninger eller

flerdobbelte stikdåser.

! Når ovnen er installeret, skal man nemt kunne nå

ind til både ledning og stikkontakt.

! Ledningen må ikke bøjes eller trykkes sammen. ! Ledningen skal regelmæssigt kontrolleres og må

kun udskiftes af autoriserede teknikere (se afsnittet

Service).

! Virksomheden fralægger sig ethvert ansvar,

såfremt disse regler ikke overholdes.

TYPESKILT

bredde 43,5 cm

Mål

Volumen Elektriske tilslutning er

ENERGIMÆRK NING

højde 32 cm dybde 40 cm lt. 56 spænding 230V ~ 50H z maks. optaget effekt 2800W Direktiv 2002/40/EF på de elektriske ovnes etikette. Standard EN 50304 Energiforbrug almindelig tilførsel – opvarmningsfunktion:

Statisk:

Erklæret energiforbrug for klasse med forceret varmestrømning -

opvarmningsfunktion: bagværk. Dette apparat er i

overensstemmelse med følgend e E U-direktiver:

- 73/23/EØF af 19/02/73 (Lavspænding) og efterfølgende ændringer

- 89/336/EØF af 03/05/89 (Elektromagnetisk kompatibilitet) og efterfølgende ændringer

- 93/68/EØF af 22/07/93 og efterfølgende ændringer.

- 2002/96/EF

Fint

Beskrivelse af ovnen

Samlet illustration

Betjeningspanel

BRADEPANDE

Betjeningspanel

RIST

Knap til

PROGRAMMER

ELEKTRONISK

programmeringsenhed*

GLIDESKINNER

til pladerne

rille 5

rille 4

rille 3

rille 2

rille 1

Kontrollampe for

TERMOSTAT

MAX

220

180

100 140

Knap til TERMOSTAT

Findes kun på nogle modeller.

Start og brug

! Når ovnen tændes første gang, anbefales det at

lade den være i funktion i tom tilstand i mindst en

time med termostaten indstillet på maksimum og

ovndøren lukket. Herefter skal man åbne ovndøren

og udlufte lokalet. Lugten, der opstår, skyldes

fordampning af beskyttelsesmidlerne i ovnen.

Sådan tændes for ovnen

1. Vælg det ønskede tilberedningsprogram ved at

dreje på PROGRAMKNAPPEN.

2. Indstil temperaturen ved at dreje på knappen

TERMOSTAT. Der findes en liste over tilberedninger

og de anbefalede temperaturer i

tilberedningsskemaet (se afsnittet Programmer).

3. Kontrollampen TERMOSTAT angiver, at ovnen er i

gang med at varme op til den valgte temperatur

4. Under tilberedningen er det altid muligt at:

- ændre programmet ved at dreje på

PROGRAMKNAPPEN,

- ændre temperaturen ved hjælp af

TERMOSTATKNAPPEN,

- afbryde tilberedningen ved at dreje

PROGRAMKNAPPEN over på position 0.

Afkølingsventilation

For at mindske den udvendige temperatur, er nogle

modeller udstyret med en afkølingsblæser.

Blæseren skaber en luftstråle, der blæses ud

gennem betjeningspanelet og ovndøren.

! Ved afsluttet tilberedning fortsætter blæseren med

at være tændt, indtil ovnen er tilstrækkeligt afkølet.

Ovnlys

Lyset tændes ved at indstille PROGRAMKNAPPEN

på

8. Den bliver ved med at lyse, når der vælges

et tilberedningsprogram.

! På ovne udstyret med elektronisk

programmeringsenhed, skal man ved brug af den

elektriske ovn trykke på tasten

vises symbolet

tilberedningsfunktion.

! Undgå at placere genstande i bunden af ovnen, da

det kan beskadige ovnens lakering.

! Placér altid beholderne på den medfølgende rist.

m), inden man vælger den ønskede

( (på displayet

Programmer

Tilberedningsprogrammer

! For alle programmer kan man indstille en

temperatur på mellem 60 °C og MAX, undtagen:

 BARBECUE (det anbefales kun at indstille til MAX).

 GRATIN (det anbefales ikke at indstille en

temperatur på over 200 °C).

a Programmet TRADITIONEL OVN

Det nederste og det øverste varmeelement tændes.

Med traditionel tilberedning anbefales det kun at

anvende én plade. Hvis der anvendes flere plader,

fordeles temperaturen ikke korrekt.

u Programmet FINT BAGVÆRK

Det bageste varmeelement tændes, og blæseren

startes, således at der fås en delikat og jævn varme

internt i ovnen. Programmet er egnet til tilberedning

af mere ømtålelige madvarer (f.eks. kager, der

kræver hævning) samt bagning af små kager på tre

plader samtidigt.

v Programmet FAST COOKING

Varmeelementerne tændes, og blæseren starter,

således at der fås en konstant og jævn varme.

Programmet kræver ikke forvarmning. Programmet

er især velegnet til tilberedning af færdigretter

(frosne eller forbagte retter). Man opnår de bedste

resultater ved kun at anvende én plade.

b Programmet MULTITILBEREDNING

Alle varmeelementer (det øverste, det nederste og

de runde) tændes, og blæseren starter. Da varmen

er konstant og jævn i hele ovnen, tilbereder og

steger luften maden jævnt overalt. Der kan maks.

anvendes to plader samtidig.

w Programmet PIZZA

d Programmet BARBECUE

Det øverste varmeelement tændes.

Det anbefales at anvende grillfunktionen med en

højere og mere direkte temperatur til madvarer, der

kræver en høj overfladetemperatur. Udfør

tilberedningen med ovndøren lukket.

e Programmet GRATIN

Det øverste varmeelement tændes, og blæseren

starter. Denne funktion forener den ensrettede

varmeudsendelse med forceret luftcirkulation i

ovnen. Dette forhindrer forbrænding af overfladen på

maden, således at varmeindtrængningen bliver

større. Udfør tilberedningen med ovndøren lukket.

Praktiske råd til tilberedning

! Ved tilberedning med varmluft skal man undgå at

anvende rillerne 1 og 5. De rammes direkte af den

varme luft, hvilket kan medføre forbrænding af

ømtålelige madvarer.

! Ved brug af programmerne BARBECUE og

GRATIN, skal man placere en bradepande i

nederste rille til opsamling af madrester (sovs og/

eller fedt).

MULTITILBEREDNING

 Brug rillerne 2 og 4, og placér de madvarer, der

kræver størst varme i rille 2.

 Placér bradepanden nederst og risten øverst.

BARBECUE

 Placér risten i rille 3 eller 4, og placér madvarerne

midt på risten.

 Det anbefales at indstille energiniveauet på maks.

Bliv ikke bekymret, hvis det øverste

varmeelement ikke bliver ved med at være tændt.

Funktionen styres af en termostat.

Det nederste varmeelement og det runde

varmeelement tændes, og blæseren starter. Denne

kombination giver en hurtig opvarmning af ovnen

med en stærk varmetilførsel, der hovedsageligt

kommer fra neden. Hvis man anvender flere plader,

skal de byttes rundt midtvejs gennem

tilberedningen.

PIZZA

 Benyt en let aluminiumsbeholder, der skal stilles

på den medfølgende rist.

Hvis der benyttes en bradepande, tager

bagningen længere tid, og det vil være svært at

få en sprød pizza.

 Ved pizza med meget tilbehør anbefales det at

tilføje mozzarellaosten midtvejs i tilberedningen.

+ 36 hidden pages
