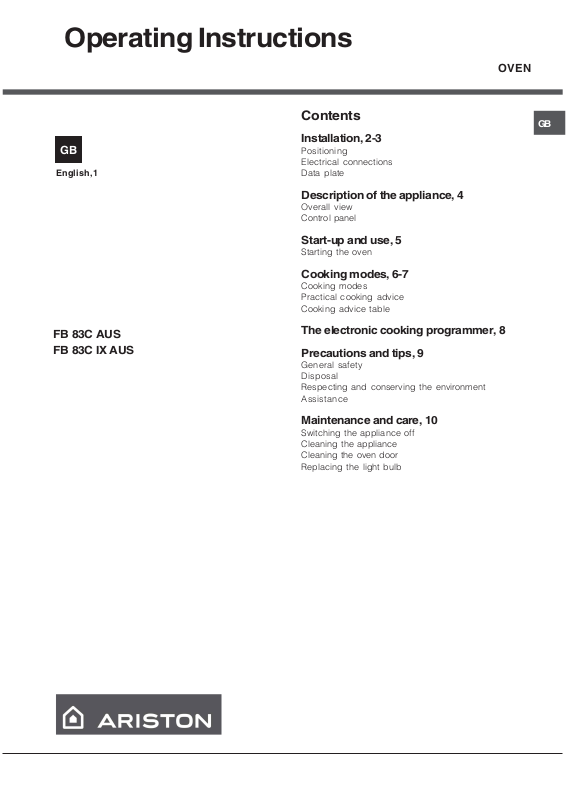

Hotpoint FB 83C IX AUS User Manual
Operating Instructions
OVEN
GB
English,1
FB 83C AUS
FB 83C IX AUS
Contents
Installation, 2-3
Positioning
Electrical connections
Data plate
Description of the appliance, 4
Overall view
Control panel
Start-up and use, 5
Starting the oven
Cooking modes, 6-7
Cooking modes
Practical cooking advice
Cooking advice table

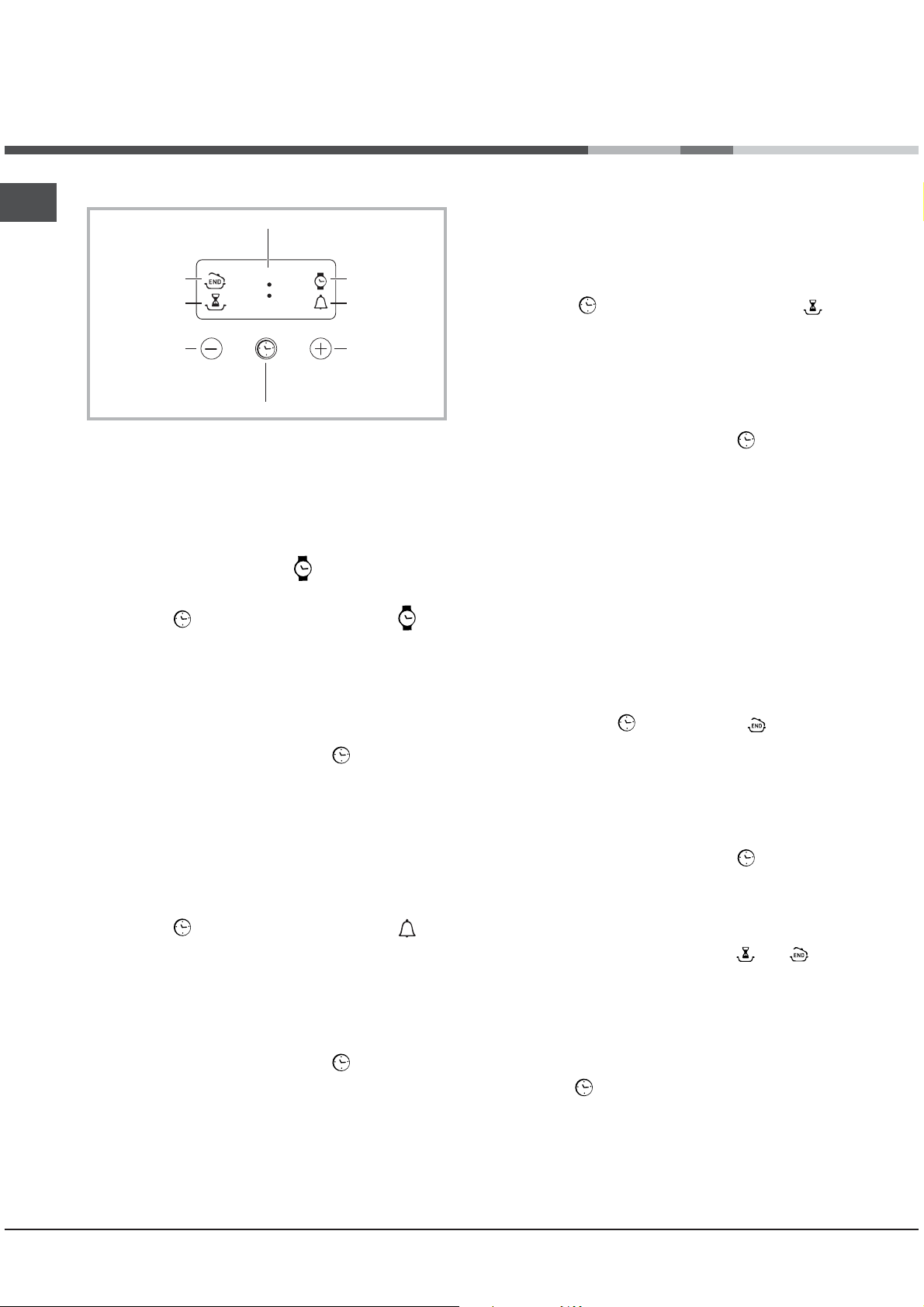

The electronic cooking programmer, 8
Precautions and tips, 9
General safety
Disposal
Respecting and conserving the environment
Assistance
GB

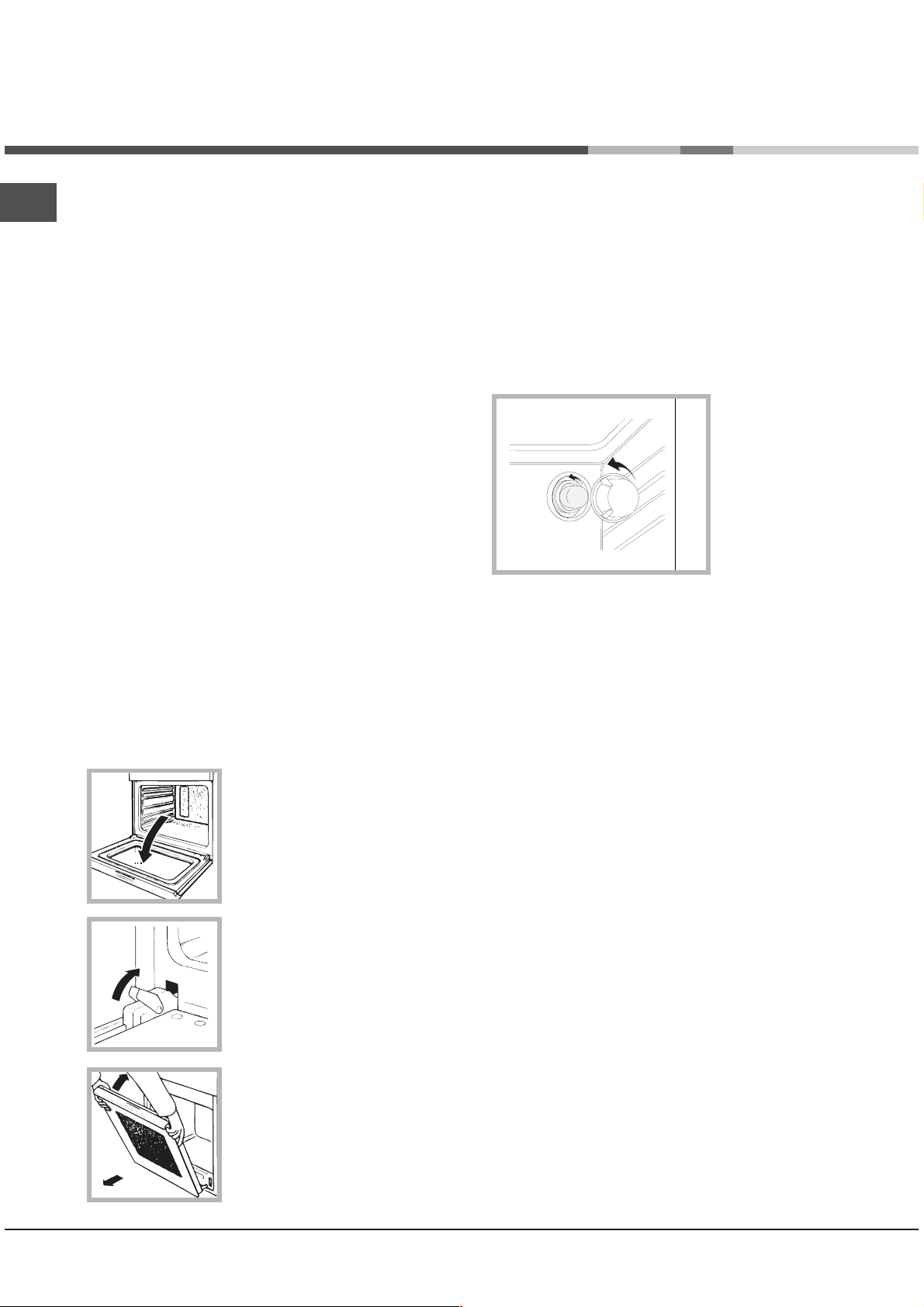

Maintenance and care, 10
Switching the appliance off
Cleaning the appliance
Cleaning the oven door
Replacing the light bulb
Installation
560 m
m
.
45 mm.
GB
Before placing your new appliance into operation
please read these operating instructions carefully.
They contain important information for safe use, for
installation and for care of the appliance.
Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
Positioning
Keep packaging material out of the reach of
children. It can become a choking or suffocation
hazard. (see Precautions and tips).
The appliance must be installed by a qualified
person in compliance with the instructions provided.
Incorrect installation may cause harm to persons,
animals or may damage property.
Fitting the appliance
Use the appropriate cabinet to ensure that the
appliance functions properly.
The panels adjacent to the oven must be made of
heat-resistant material.
Cabinets with a veneer exterior must be
assembled with glues which can withstand
temperatures of up to 100°C.
Ventilation
To ensure good ventilation, the back panel of the
cabinet must be removed. It is advisable to install
the oven so that it rests on two strips of wood, or on
a completely flat surface with an opening of at least
45 x 560 mm (see diagrams).
Centring and fastening
Position the 4 tabs on the side of the oven according
to the 4 holes of the outer frame. Adjust the tabs
according to the thickness of the cabinet side panel,
as shown below:
thickness of 20 mm: take off
the removable part of the tab
(see diagram)
to install the oven under the counter (see diagram)
and in a kitchen unit, the cabinet must have the
following dimensions:
.
in
. m
m
547 m
595 mm.
595 mm.
24 m
23 mm.
5 mm.
545 m
.
m
567 mm.
.
m
45 mm.
558 mm.
593 mm.
The appliance must not come into contact with
electrical parts once it has been installed.
The consumption indications on the data plate have
been calculated for this type of installation.
thickness of 18 mm: use the
first groove, which has already
been set in the factory (see
diagram)
thickness of 16 mm: use the
second groove (see diagram)
Secure the appliance to the cabinet by opening the
oven door and putting 4 screws into the 4 holes of
the outer frame.
! All parts which ensure the safe operation of the
appliance must not be removable without the aid of
a tool.
2
Electrical connections
! Ovens equipped with a three-pole power supply
cable are designed to operate with alternating
current at the voltage and frequency indicated on
the data plate located on the appliance (see below).
Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(see diagram).
2. Loosen the cable
clamp screw and
remove it, using a
screwdriver as a lever
(see figure).
3. Remove the wire
contact screws L-N, then fasten the wires
under the screw heads,
respecting the colour
code: Blue (N), Brown
(L) and Yellow-Green
Verde (
Connecting the supply cable to the mains
Install a standardised plug corresponding to the
load indicated on the data plate (see side).
The appliance must be directly connected to the
mains using an omnipolar circuit-breaker with a
minimum contact opening of 3 mm installed between
the appliance and the mains, suitable for the load
indicated and complying with current electrical
regulations (the earthing wire must not be interrupted
by the circuit-breaker). The supply cable must not
come into contact with surfaces with temperatures
higher than 50°C.
).
The socket can withstand the maximum power of
the appliance, which is indicated on the data
plate (see below).
The voltage must be in the range between the
values indicated on the data plate (see below).
The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it.
Do not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be
easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should
these sa
DATA PLATE
Dimensions
Volume
Electrical
connections
ENERGY LABEL
fety measures not be observed.
width cm 43.5
height cm 32
depth cm 40
lt. 56
voltage 240V ~ 50Hz
maximum power absorbed
3000W
Directive 2002/40/EC on the label
of electric ovens. Norm EN 50304
Energy consumption for Natural
convection - heating mode:
Traditional mode:
Declared energy consumption for
Forced convection Class -
heating mode:
=
Baking.
K
GB
! The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
Before connecting to the power supply, make sure
that:
The appliance is earthed and the plug is
compliant with the law.
This appliance conforms to the
following European Economic
Communi ty directives: 2006/95/EEC of 12/12/06 (Low
Voltage) and subsequent
amendments;- 89/336/EEC of
03/05/89 (Electromagnetic
Compatibility) and subsequent
amendments;- 93/68/EEC of
22/07/93 and subsequent
amendments.- 2002/96/EC
3
Description of the
appliance
GB
Overall view
Control panel
Control panel
GRILL
DRIPPING PAN
GUIDES for the
sliding racks
position 5
position 4
position 3
position 2
position 1
0
SELECTOR
knob
ELECTRONIC
programmer
•• ••
THERMOSTAT
indicator light
MAX
220
180
THERMOSTAT
knob
60
100
140
4
