Instructions for Installation and Use
Electric Hob
Model: ET7424-ET6004-ET6124
T o the Installer
Before installation fill in the product details on the back cover this book.
The information can be found on the rating plate.
T o the User
You must read the instructions prior to installing and using the appliance and
Page 2
CONTENTS
Introduction Advice and recommendations Installation and fastening Electrical connection Cooking zone description The controls Operation The safety devices Maintenance and care After Sales Service Hotpoint Guarantee Key Contacts
3 4 5 6 7 8
9 10 11 12 13
Back Cover
Retention of this Instruction Book
This Instruction Book must be kept handy for ref erence as it contains important details on the safe and proper use of the appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also provided so the new owner can become familiar with the appliance and safety warnings.
If the Book is lost or damaged a copy may be obtained from: INDESIT Company UK LTD, Morley W ay, P eterborough, PE2 9JB
2
Page 3
Introduction
Your new hob is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully. The hob is designed specifically for domestic use and responsibility will not be accepted for use in any other installation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with this booklet. (b) Has been properly connected to a suitable supply voltage as stated on the rating plate, attached to the appliance. (c) Has not been subjected to misuse or accident or been modified or repaired by any person other than the manufacturers authorised employee or agent. (d) Has been correctly installed.
3
Page 4
Advice and recommendations
• This appliance was designed for non-professional,
household use.
• Before using the appliance, read the instructions in the owner’ s manual carefully since it contains all the instruc­tions you require to ensure safe installation, use and maintenance. K eep this owner’ s manual in a saf e place for future reference.
• When you have removed the packing, check whether the appliance is intact. If you have any doubts, contact a qualified professional before using the appliance.
• Never leave the packing components (plastic bags, poly­styrene foam, nails, etc.) within the reach of children since these are a source of potential danger.
• The appliance must be installed by a qualified techni­cian in compliance with the instructions provided by the manufacturer .
• The latter denies all responsibility f or improper installa­tion which may harm persons and animals and damage property.
• The electrical saf ety of this appliance can only be guar­anteed if the latter is correctly and efficiently earthed, in compliance with regulations on electrical safety . Alwa ys ensure that this vital safety measure has been taken. If you have any doubts, call in a qualified technician to check the electrical system thoroughly .
• The manufacturer denies all responsibility for damage resulting from a system which has not been earthed cor­rectly .
• Before powering the appliance, check whether the tech­nical characteristics featured on the appliance data plate correspond with those of the mains electrical system.
• Check that the current load of the mains supply and of the power sockets is suitable for the maximum power of the appliance, indicated on the appliance data plate. If in doubt, contact a qualified professional.
• This appliance must only be used for the pur pose for which it was expressly designed. Any other use (such as heating a room for example) is considered to be im­proper and consequently dangerous.
• The manufacturer denies all responsibility for damage resulting from improper or incorrect use of the appliance.
Make sure that the air inlet behind the fan grille is
never obstructed. The built-in hob should, in fact, be
provided with suitable ventilation for the cooling of the
electronic components used in the appliance.
We advise against the installation of an induction hob
above an under-the-counter refrigerator (heat) or above
a washing machine (vibrations). In fact, there would be
insufficient space for the ventilation of electronic
components.
• Certain fundamental rules must be followed when using electrical appliances. The f ollowing are of particular im­portance:
• do not touch the appliance with wet or damp hands,
• never use the appliance when barefoot,
• never use extensions,
• never pull on the power supply cable or the appliance itself to unplug it from the mains socket,
• never leave the appliance exposed to atmospheric agents (rain, sun, etc.),
• do not allow children or persons who are not familiar with the appliance to use it without supervision.
• Always unplug the appliance from the mains or switch off the main switch before cleaning or performing any cleaning or maintenance operations.
• If the surface of the glass cracks, unplug the appli- ance immediately. For any repairs, contact only an au­thorised after-sales service centre and demand original spare parts. Failure to comply with the abo ve ma y com­promise the safety of the appliance.
• Cut the power supply cable after disconnecting it from the power mains when you decide not to use the appli­ance any longer. Also make all potentially dangerous parts of the appliance safe, above all for children who could play with the appliance.
• The glass ceramic hob is resistant to thermal and me­chanical shocks. Ho wever, it may break due to a shock
caused by a sharp object, such as a tool for exam­ple. In this case, unplug the appliance immediately and contact an authorised after-sales service centre to have it repaired.
• Remember that the heating area stays hot for at least half an hour after being turned off; please refrain from placing any cookware or other items on the cooking zone while still hot.
• Do not turn on the heating zones if aluminium foil or plastic items have been placed on the hob surface.
• Do not go near the heating zones when these are still hot.
• If you use small electric appliances near the hob, mak e sure their power supply cable does not come into con­tact with the hot parts of the hob.
• Make sure all pan handles are always pointing inwards towards the centre of the hob to prevent any accidental spills.
First use: the glue used on the hob seals ma y leave g reasy traces on the glass surface. We recommend you wipe these off before using the appliance, with the aid of a non abrasiv e cleaner . During the first f e w hours of use, you ma y detect a smell of rubber, which will disappear quickly.
4
Page 5
Installation and fastening
The following instructions are intended for a qualified fitter to guide him/her along the installation, adjustment and tech­nical maintenance procedures as correctly as possible and in full compliance with the applicable norms in force.
Important : unplug the hob before all operations.
Installation
• This hob can be b uilt into a worktop simply by cutting out the corresponding slot.
• The w orktop must be made with a material designed to withstand a temperature of approximately 100°C.
• The hob should be positioned at least 40 mm away from the back wall or any other ve rtical surface in order to allow for correct ventilation and to prevent the surfaces around the appliance from overheating.
• If you wish to install the hob on top of an oven, the latter must be fitted with a cooling fan.
• Try to avoid installing the hob on top of a dishwasher; if this is unavoidable, place a watertight separating element between the two appliances.
Fastening Very important: It is vital that you ensure the glass ce-
ramic hob is built into a perfectly flat supporting surface. Deformations due to improper fastening could alter the characteristics of the hob and compromise its perform­ance. The fastening springs are fastened by screws (see dia­gram).
It is vital that these screws be kept accessible at all times.
Insert the hob into the cut-out slot, applying pressure all along the perimeter of the hob frame so that the latter adheres fully to the worktop.
REAR SPRING ASSEMBLY
FRONT OF HOB
KITCHEN WORKTOP
30
40
48
560 +/- 1
48
750 +/- 1
690
785
520
490 +/- 1
510
490+/- 1
10 mm
Distance to
keep between the
cut-out slot and
the cabinet
HOB FROM BELOW
5
Page 6
Electrical connection
• The electrical safety of this appliance can only be guar­anteed if the latter is correctly and efficiently earthed, in compliance with regulations on electrical safety. Al­ways ensure that this vital safety measure has been taken. If you have any doubts, call in a qualified techni­cian to check the electrical system thoroughly.
• The manufacturer denies all responsibility for damage resulting from a system which has not been earthed correctly.
• Before powering the appliance, check whether the tech­nical characteristics featured on the appliance data plate correspond with those of the mains electrical system.
• Check that the current load of the mains supply and of the power sockets is suitable for the maximum power of the appliance, indicated on the appliance data plate. If in doubt, contact a qualified professional.
Disconnect the appliance from the electricity supply before all operations.
Connect your hob to the electrical system by means of a junction box: if the appliance is connected permanently to the mains, an omnipolar circuit breaker, accessib le if necessary, with a minim um contact opening of 3 mm should be installed.
Valid onl y for models without a po wer supply cable
Some models are not fitted with a power supply cable, as the cable should be sized according to the type of electrical connection in use (see connection table below). T o connect the cable, proceed as follows:

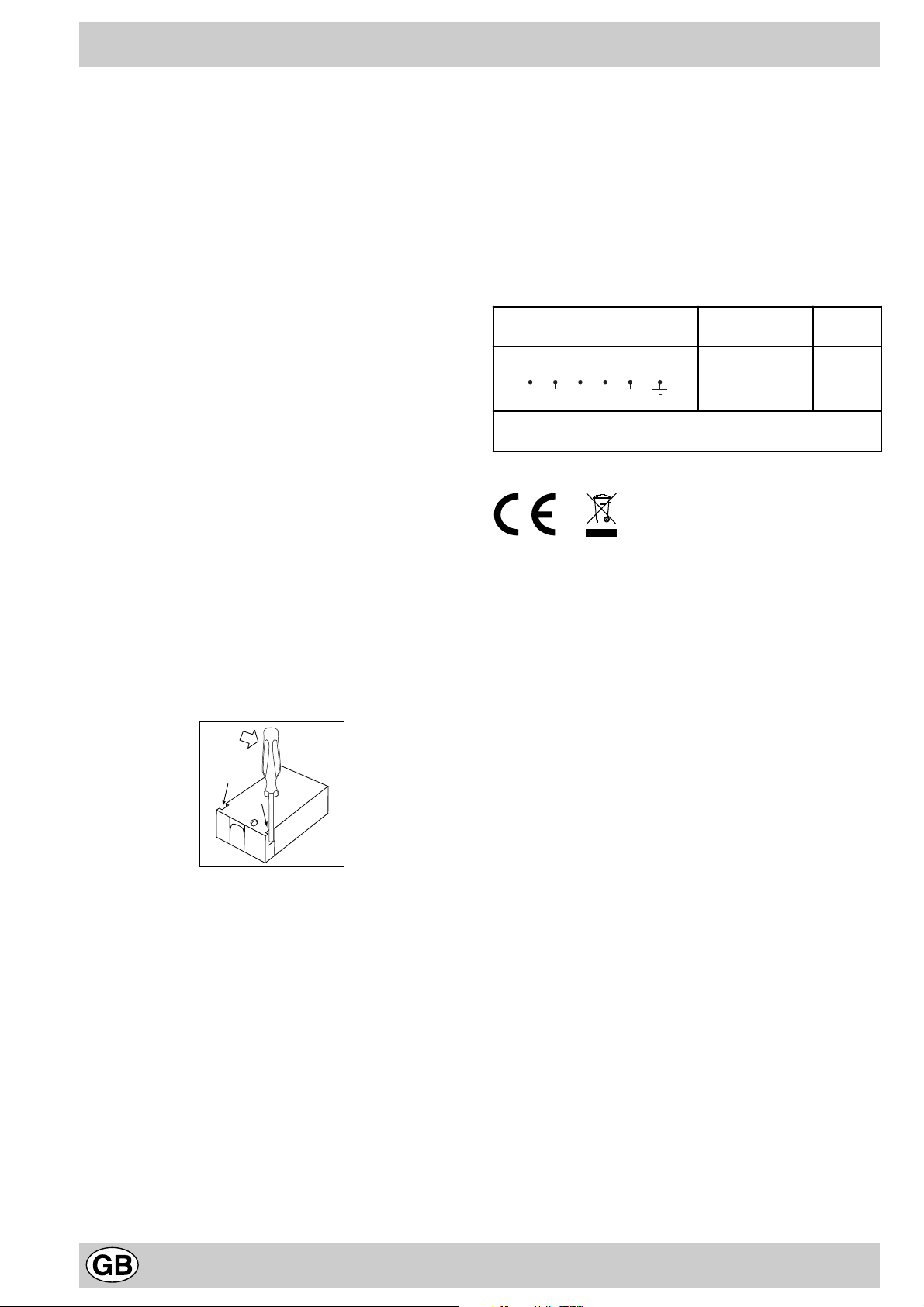

• Using a screwdriver , prise on the side tabs of the terminal board cover;
• Pull open the cover of the terminal board.
To install the cable, proceed as follows:
• unscrew the wire clamp screw and the contact screws.
• to make the desired electrical connection (see table), use the jumpers housed inside the box. Position the power supply cable wires according to the indications in the table.
• once the connections have been made, tighten all the terminal screws fully .
• Fasten the supply cable in place with the clamp and close the cover of the terminal board.
Electrical connections
1 2 3 4 5
L N
* Application of the simultaneity coefficient in accordance with
cei 60335-2-6 norm
Voltage,
Frequency
230V-1+N~50 Hz
Fuses,
Sections
25 A*
2,5 mm²
This appliance conforms with the following European Community Directives:
- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent amendments;
- 89/336/EEC of 03/05/89 (Electromagnetic compatibility) and subsequent amendments;
- 93/68/EEC of 22/07/93 and subsequent amendments;
- 2002/96/EC
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you di­spose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
Warning: If the hob is fitted above a b uilt-in oven, the hob and the oven must be connected to the mains separately for safety reasons and to simplify operations when it is necessary to pull the oven out for some reason.
6
Page 7
Cooking zone description
Induction is the fastest cooking method available. Unlike traditional cooking zones, the induction zone does not heat up the glass surface. The pan itself is the heating element: the pan evenly transfers heat to its contents as long as it is made of ferromagnetic material.
HOBS ET 6004 ET 6124 ET 7424 Cooking zones Power (in W) Power (in W) Power (in W) Back Right (BR) Front Right (F R) Front Left (FL) Back Left (BL )
I 1800 I 1200 I 1800 I 1200
Overall power 6000 6600 7200
è
I
single induction zone
è
IO
oval induction zone
B 3000* 600 if BR*
è the zone can be boosted to 3000 W
è the power of the cooking zone is reduced to 600 W as long as the BR zone is boosted
(for example)
ID 1800 – B 3000*
I 1200 – 600 if BR*
I 1800 I 1200
I 2400 – B 3000*
I 1200 – 600 if BR*
IO 1200/2400 – B 3000*
I 1200 – 600
Each zone is controlled:
• by a selector key whose silk screen printing reproduces the cooking zone drawing,
• and by a power adjustment set comprising two parts (+,-).
As long as the temperature of the cooking zones remains above 60°C, even after use, the residual heat indicators stay
on(the power display indicates H) to prevent the risk of burns.
7
Page 8

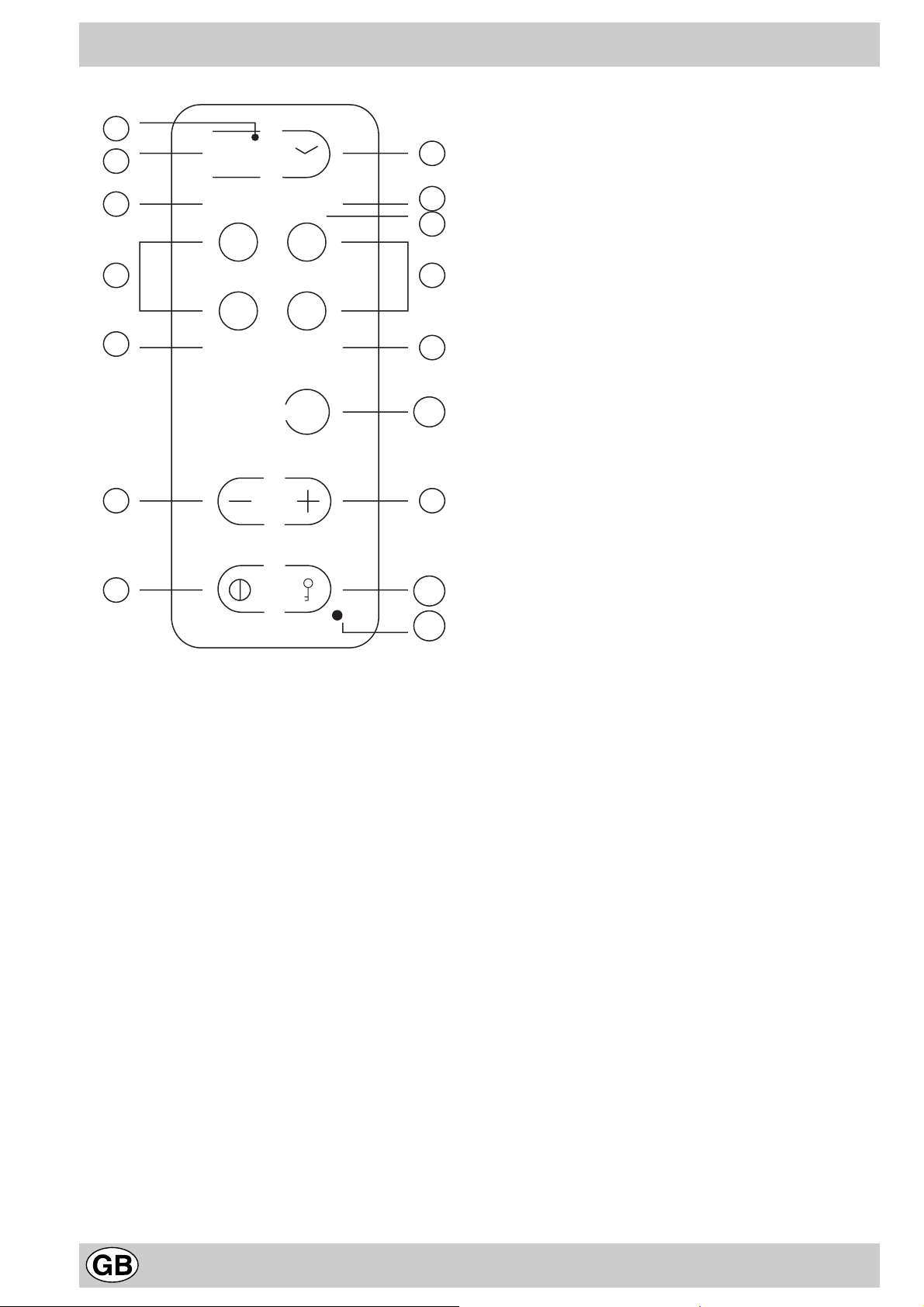

The controls
1. ON/OFF key
9 8
3
15. 0
5.
7 3
4
2 2
3
00
Booster
3
10
6 5
2. Cooking zone selector keys
3. Po wer (from 0 to 9) and residual heat indicators (H)
4. Zone selection indicator:
• on: the corresponding zone is selected and can be modified,
• off: the corresponding zone is not selected, no modi­fication can be made.
5. Po wer increase key
6. Power decrease k ey
7. Timer control key for cooking time programming (only on hobs fitted with a timer)
8. Programmed cooking time indicator
9. Indicator light corresponding to the programmed cook­ing zone
10.Booster key
11.Controls lock key
12.Lock indicator light
1
11 12
8
Page 9
Operation
When you connect the hob to the power supply, a beep will sound after a few seconds: you can now turn the hob on.
T urning on the hob
Press key to turn the hob on.

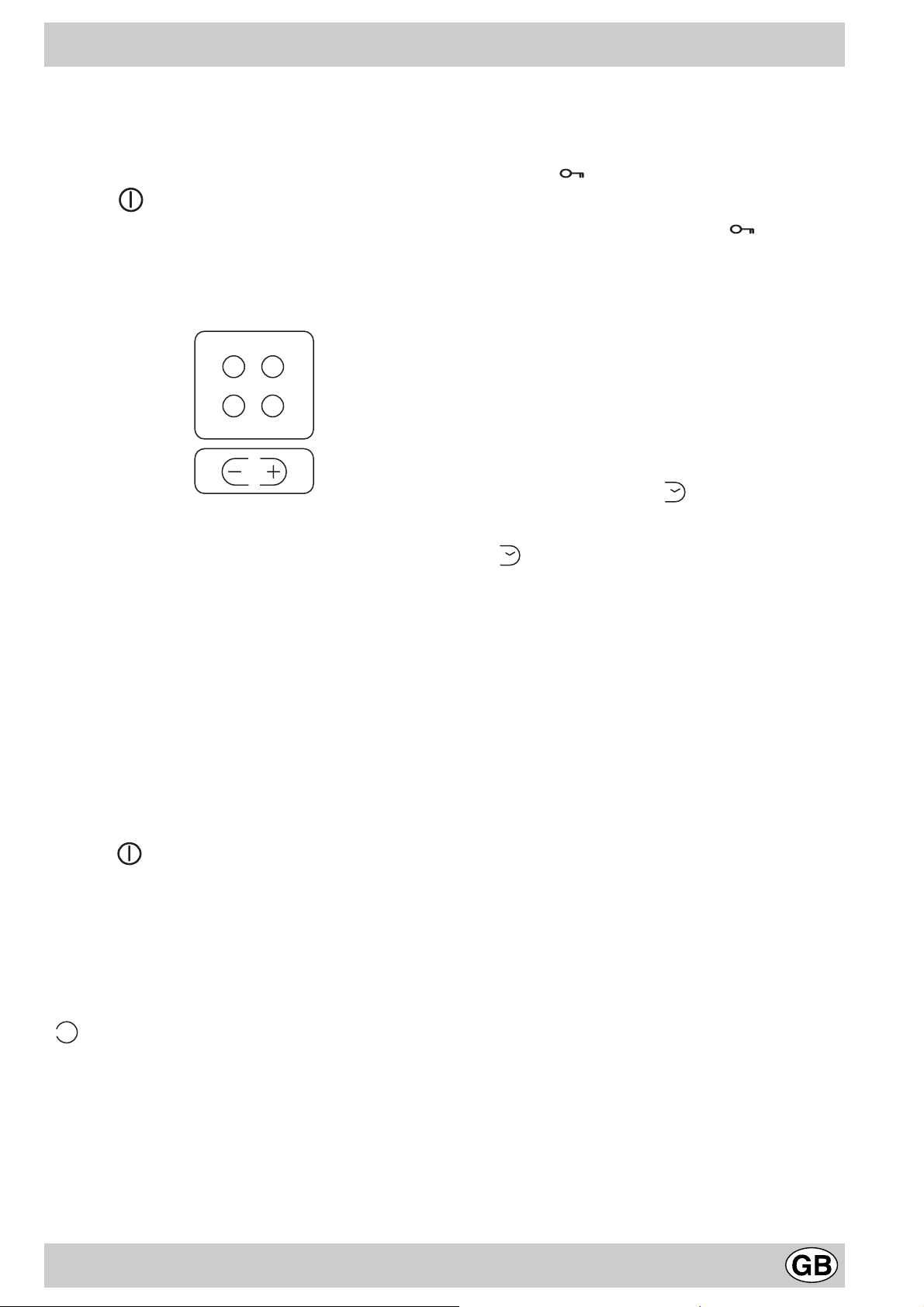

Cooking zone control
Each cooking zone is operated by a control key and by a power adjustment set (+ and -).
0
5.
00
Turning on a cooking zone
• To turn a cooking zone on, press the corresponding con­trol key and set the desired heating power (from 0 to 9) using the “+” and “-” keys.
• To set the maximum power directly (9), press key “-”
briefly.
T urning off a cooking zone
To turn off a cooking zone, press the corresponding con­trol key and:
• press both “+” and “-” simultaneously: the cooking zone power drops immediately to zero and the zone is turned off.
• or press the “-” key: the heating power drops progres­sively until the zone eventually turns off.
Controls lock
When the hob is in use, you can lock the controls to avoid any accidental changes to the settings (by children or when cleaning, for example). Just press the key, the indicator light next to the key lights up and the controls are locked. To change the power level setting or stop cooking, the controls have to be unlock ed: press the key, the indi­cator light turns off and the controls are unlocked. To access the setting of a cooking zone again, select the zone by pressing the corresponding control ke y.
Cooking time programming
you may programme all the cooking zones simultaneously for a maximum cooking time of 99 minutes. Proceed as follows:
• select the cooking zone by pressing the corresponding control key,
• set the desired heating power using the “+” and “-” keys,
• press the programming key ,
• set the desired cooking time using the “+” and “-” keys,
• confirm your programming by pressing the programming key again.
The countdown begins immediately . The end of programmed cooking is signalled by a beep (one minute long) and the cooking zone concerned is turned off.
T urning off the hob
Press the key; the appliance has been turned off. If you have locked the hob controls (see paragraph be-
low), the same will still be locked when you turn the hob back on. Unlock the controls in order to operate the cook­ing zones.
The booster
To speed up the rise in temperature of the cooking zones (see cooking zone table on the previous page), press the
Booster
key.
The power display will indicate “P”. The booster function comes to an automatic stop after 4 minutes. When the booster function is on, certain cooking zones (see the cooking zone table on the previous page) are limited to a maximum power of 600W.
9
Page 10
The safety devices
Pan recognition
Each induction cooking zone is fitted with a pan recogni­tion device. The cooking zone only provides heat in the presence of a pan which is suitable for the cooking zone.
A blinking pan recognition indicator could signal:
• that the pan is made of unsuitable material, which is not ferromagnetic,
• that the diameter of the pan is too small,
• that the pan has been removed.

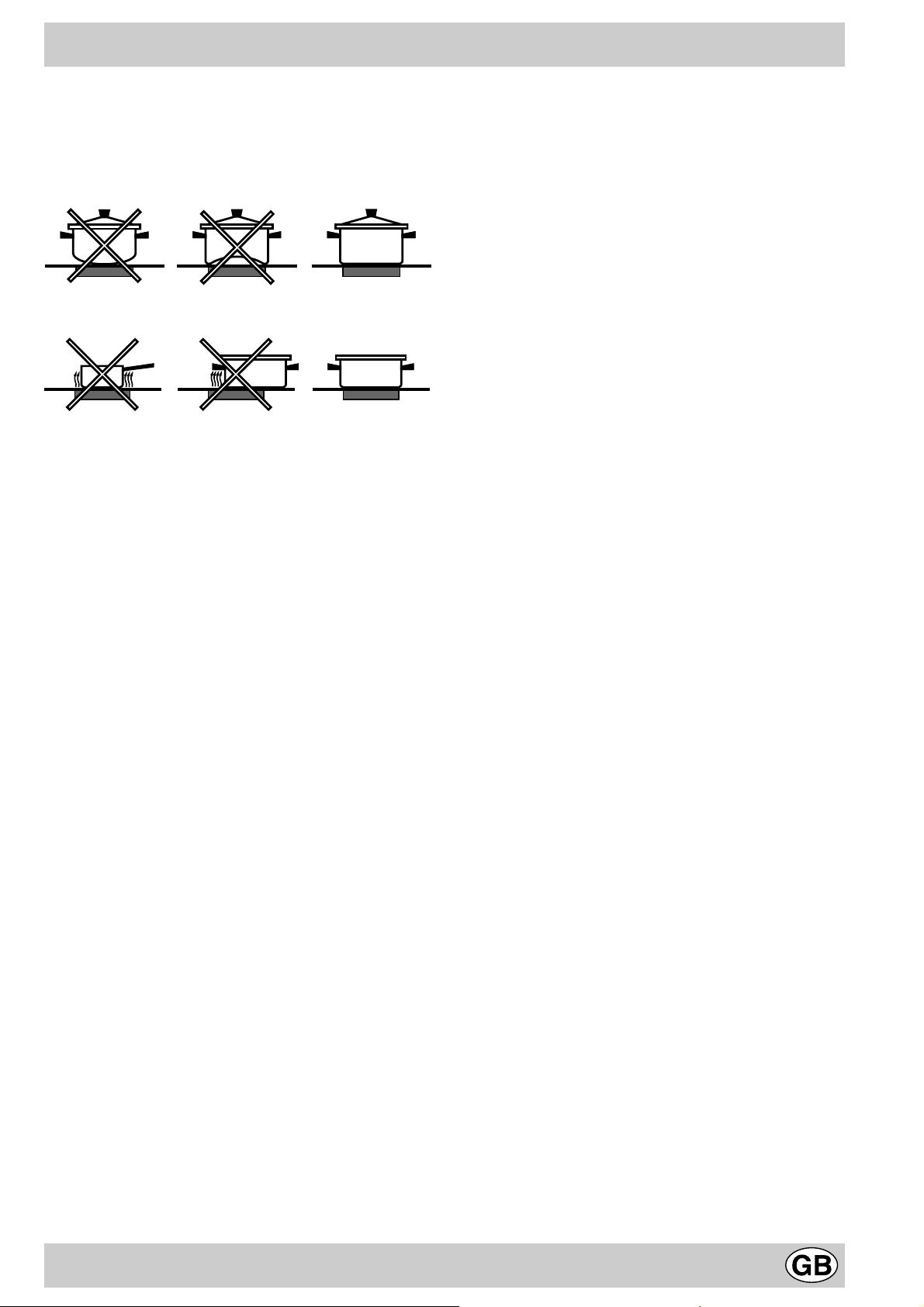

Always match the diameter of the pan with that of the
cooking zones.
Warning: oval cooking zones
Oval cooking zones can only be boosted if the full oval is enabled. Do not place two small saucepans on oval cooking zones.
What cookware to use
Given that induction only exists when the magnetic field is sealed by a metallic recipient, the pan stops being heated as soon as it is taken off the cooking zone. Use cookware made of material which is compatible
with induction (ferromagnetic material). Cast iron, enamelled steel or special induction stain­less steel saucepans are ideal.
Copper, cer amic, earthenware, glass, terracotta, aluminium and non magnetic stainless steel cookware is incompat­ible with induction cooking.

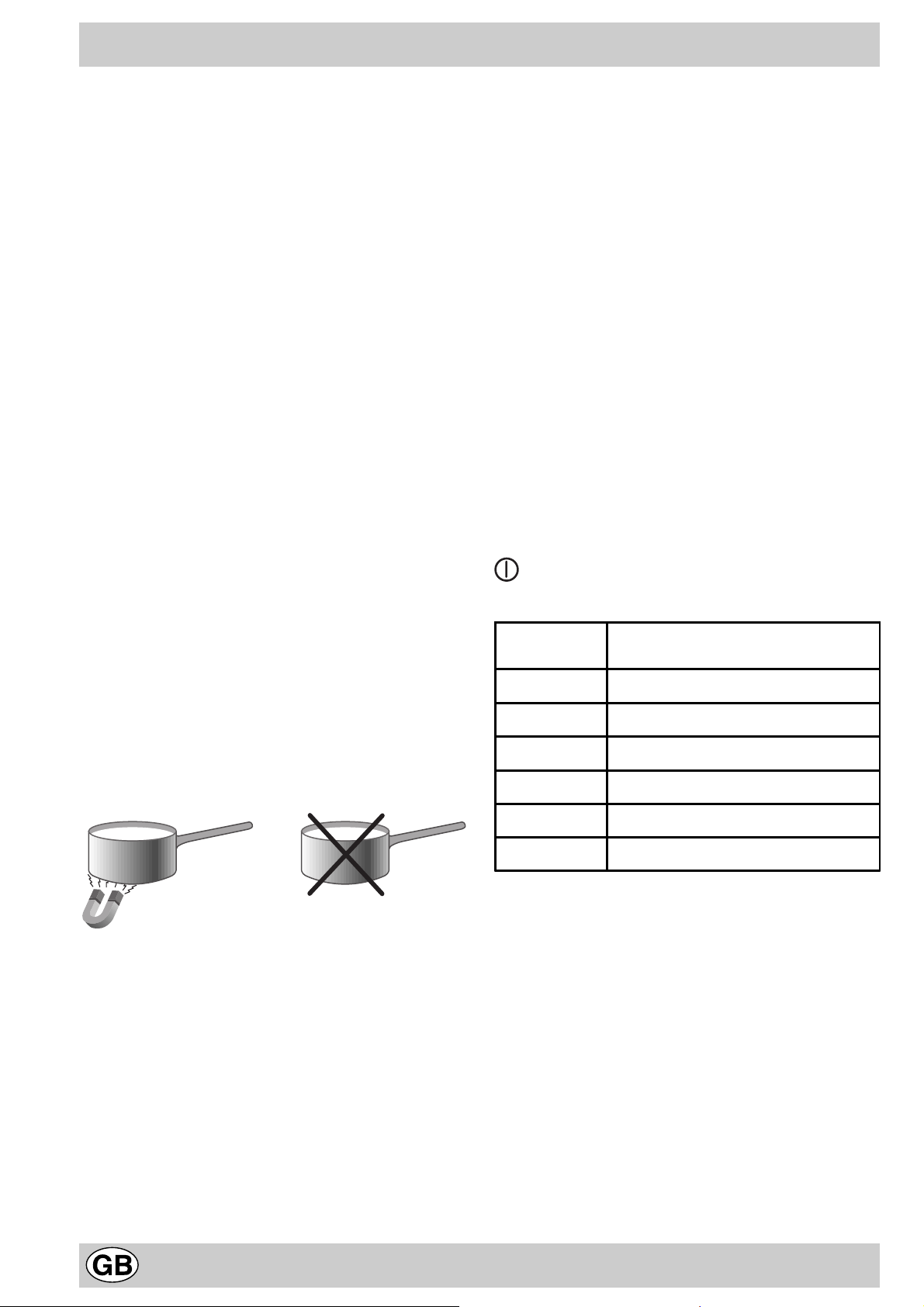

The easiest way to find out whether the pan is suitable is with a magnet. If the magnet is attracted by the pan
bottom and stays “stuck” to the same, the pan is made of ferromagnetic material and can be used on your induction hob. We recommend you use pans with a very flat and thick bottom and avoid at all costs all cookware with irregular rough bases which could scratch the glass surface.
SUIT ABLE
UNSUIT ABLE
Acoustic signal
Anomalies such as:
• an object (such as a saucepan or a lid, etc.) placed for more than 10 seconds on the control zone,
• boiled-over liquids or food spilled on the control zone,
• prolonged pressure on a key,...
could cause a beep to sound and the hob to turn off. T o stop the beep from sounding, remo ve the cause of the
malfunction. To use the hob, turn it back on and re-select the cooking zone(s) you wish to use. Set the desired heating pow er .
Safety cut out
Your appliance is fitted with a safety cut out which inter­venes after a certain amount of time (see table below) depending on the power setting. When the safety cut out has intervened, the power display indicates “0”.
for example: the back right cooking zone is set to 5 and the front left zone is set to 2. The bac k right zone will turn off after 3 hours of operation and the front left zone will turn off after 10 hours of operation.
To unlock the controls, turn the hob off by pressing the
key.
Power level M axim um duration of operation
1-2 10 hours
3 5 hours
4 4 hours 5-6 3 hours 7-8 2 hours
*
Enamelled steel
Special stainless steel
Cast iron
Aluminium, Glass, Earthenware,
Ceramic, non magnetic Stainless steel
Copper,
For the attention of wearers of pacemakers or other active implants:
The hob complies with all current standards on electromagnetic interference. Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation. Your induction hob generates short-range magnetic fields. T o a void any interference between y our induction hob and a pacemaker, the latter must be designed to comply with relevant regulations. In this respect, we can only guarantee our own product conformity . Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility.
9 1 hour
Overheating protection device
Should your appliance’s electronic components o verheat, the hob will turn off automatically and “—” will come up on the power lev el display. The letter will disappear as soon as the temperature drops back down to an acceptable level.
10
Page 11
Maintenance and care
Advice on using your appliance
To get the best from your hob, it is vital that you follow a few fundamental rules during cooking and when preparing food.
• Use pans with a flat bottom so they adhere fully to the heating zone.
• Always use pans whose diameter covers the cooking zone fully so that all the available heat can be used.
• Make sure the pan base is always clean and dry, to guarantee good contact and long life for the cooking zones and pans alike.
• Avoid using pans used normally on gas burners. The concentration of heat on gas burners can warp the bottom of the pan, consequently you would never obtain the desired result when using the pan on the glass ceramic hob.
• Never leave a cooking zone on without a pan on it as the maximum heat lev el would be reached very quickly , which could damage the heating elements.
• The glass ceramic hob is resistant to thermal and mechanical shocks. However, it may break due to a shock caused by a sharp object. In this case, unplug the appliance immediately and contact an authorised after-sales service centre to have it repaired.
Always keep your hob clean. Before proceeding with main­tenance operations, check that all the cooking zones are turned off and have cooled down completely.
Stainless steel frame (only on some models) Stainless steel can stain as an effect of enduring contact with limescale in water or as an effect of highly aggres­sive detergents (containing phosphorus). W e recommend you rinse and dry it thoroughly after maintenance. It is preferable to remo ve an y water spills immediately.
Hob care
The vitroceramic glass used for the heating surface is smooth and poreless and it is also resistant to thermal shocks and to mechanical shocks under normal condi­tions of use. In order to preserve these properties, we rec­ommend you care for your hob as follows:
• for ordinary maintenance, just wipe it with a damp sponge and dry it thoroughly using paper towels.
• If the hob is dirty, rub clean using a special cleaner suitable for vitroceramic glass, rinse off and dry thor­oughly .
• food residue and dirt can be removed using a special scraper. Do this as soon as possible, do not wait for the hob to cool down in order to avoid incrustations. For excellent results, use a special stainless steel wool pad for vitroceramic glass cleaning soaked in soapy water .
• When the hob is clean, y ou can apply a special prod­uct for the care and protection of the same: this type of product leaves an invisible film on the surface of the hob to protect the same against any spills and boiled-over food. It is best if you do this when the hob is lukewarm or cold.
• Make sure you always rinse the hob with clean water and dry it thoroughly: otherwise the cleaning prod­ucts could become encrusted onto the hob during subsequent cooking.
Recommendations
• Never use abrasive or corrosive substances, such
as aerosol cleaners for grills and ovens, stain remov-
ers or rust removers, scouring powders and abrasive sponges: even the delicate ones could scratch the hob surface irre versibly.
• W e recommend you keep all items which could melt
away from the hob, such as plastic utensils, sugar or products with a high sugar content. Should liq-
uid boil over onto the hob surface, remove it immedi­ately (while the hob is still hot) using a razor blade scraper, in order to a void damaging the surf ace.
• Use this hob exclusively for cooking. Do not place
items on the hob when the same is not in use. Do not use the hob as a work surface (by placing lids, sauce­pans or dishcloths on it, for example), nor as a chop­ping board.
• Never leave aluminium wrappers, aluminium foil and
plastic cookware on the hob when hot or still warm.
• Do not use steam cleaners or high pressure cleaners
to clean your appliance.
• Do not place metal items on the hob (such as knives,
spoons, lids, etc.).
• Never heat up unopened tins: they could burst.
The guarantee does not cover damage to the hob caused by incorrect use.
11
Page 12
After Sales Service
"No company is better positioned to offer an after sales service on a
Hotpoint appliance than us - the manufacturer"
As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts
and labour guarantee for the first 12 months. In addition to this you also have the advantage of free
replacement parts for the first 5 years when fitted by a Hotpoint
engineer. When the 12 months parts and labour guarantee expires we off er the following after sales
service options:
Repair Service and Information Help Desk
UK: 08709 066066
www .theservicecentre.co.uk
Republic of Ireland: 1850 302 200
Note: Our operators will require the Model number and the Serial number of your appliance
Available 364 days a year with a fast, effective and value for money service. We have the largest white
goods repair service in the UK with over 1200 of our own fully trained engineers. All repairs include a
parts and labour guarantee for 12 months from the date of the repair.
If you require any information or have any questions about your appliance, our operators are on hand with
help and advice.
All this ensures that you will receive the best available after sales service possible.
Extended Warranties
UK: 08709 088 088
www .theservicecentre.co.uk
Republic of Ireland: 1850 502 200
Whether you have just one or a number of Hotpoint appliances in your kitchen, we offer two service cover
plans to give you total peace of mind.
l Repair Protection Plan - FREE service repairs for a single Hotpoint appliance during the period
of cover.
l Kitchen Cover - FREE service repairs for all your Hotpoint appliances less than 8
years old.
Genuine Parts and AccessoriesUK: 08709 077 077
www .theservicecentre.co.uk
Republic of Ireland: (01) 842 6836
A wide range of genuine parts and accessories are available from our hotline or through our web site.
Genuine parts and accessories, extended warranties and service repairs are all
available on our web-site at:
GB
www .theservicecentre.co.uk
12
Page 13
Guarantee
"Satisfaction guaranteed or your money back"
We give you a unique 'satisfaction guaranteed' promise - valid for 90 days - after you have
purchased your Hotpoint appliance. If there is a technical problem simply call Hotpoint Repair service
or visit our web-site at www.theservicecentre.co.uk and where necessary, we will arrange for an
engineer to call. If the technical problem is not resolved under this guarantee, we will replace your
machine or, if you prefer, give you your money back.
All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer.
Guarantee terms and conditions
Your guarantee is only applicable in the United Kingdom or Republic of Ireland and is subject to the following provisions that your appliance:
l Has been installed and used correctly in accordance with this instruction booklet. l Has been used solely for domestic purposes and is located on domestic premises (ie. not for
commercial or trade use).
l Has been properly connected to a suitable electrical supply voltage as stated on the appliance
rating plate.
l Has not been subject to misuse, accident, modified or repaired by anyone other than one of our
own service engineers.
For pre purchase information on any other Hotpoint product call: 08701 50 60 70
or visit: www.hotpoint.co.uk
Recycling & Disposal Information
As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.
13
GB
Page 14
14
Page 15
15
Page 16
Key Contacts
After Sales Service
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in
both the appliances and services we offer.
Repair Service and Information Desk
UK: 08709 066 066
(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)
www.theservicecentre.co.uk
Republic of Ireland: 1850 302 200
Note: Our operators will require the following information:
Model number:
Serial number:
Extended Warranties
UK: 08709 088 088
(Open 8 to 8 Mon - Sun)
www.theservicecentre.co.uk
Republic of Ireland: 1850 502 200
Genuine Parts and Accessories
UK: 08709 077 077
(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)
www .theservicecentre.co.uk
Republic of Ireland: (01) 842 6836
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB.
02/2006 - 195043663.03
Loading...
