Hotpoint E7134, E6005 User Manual

Instructions for Installation and Use

Electric Hob

Models: E7134-E6005

T o the Installer

Before installation fill in the product details on the back cover of this book.

The information can be found on the rating plate.

T o the User

You must read the instructions prior to installing and using the appliance and

then retain them for future reference.

CONTENTS

Introduction
Advice and recommendations
Installation and fastening
Electrical Connection
Cooking zone description

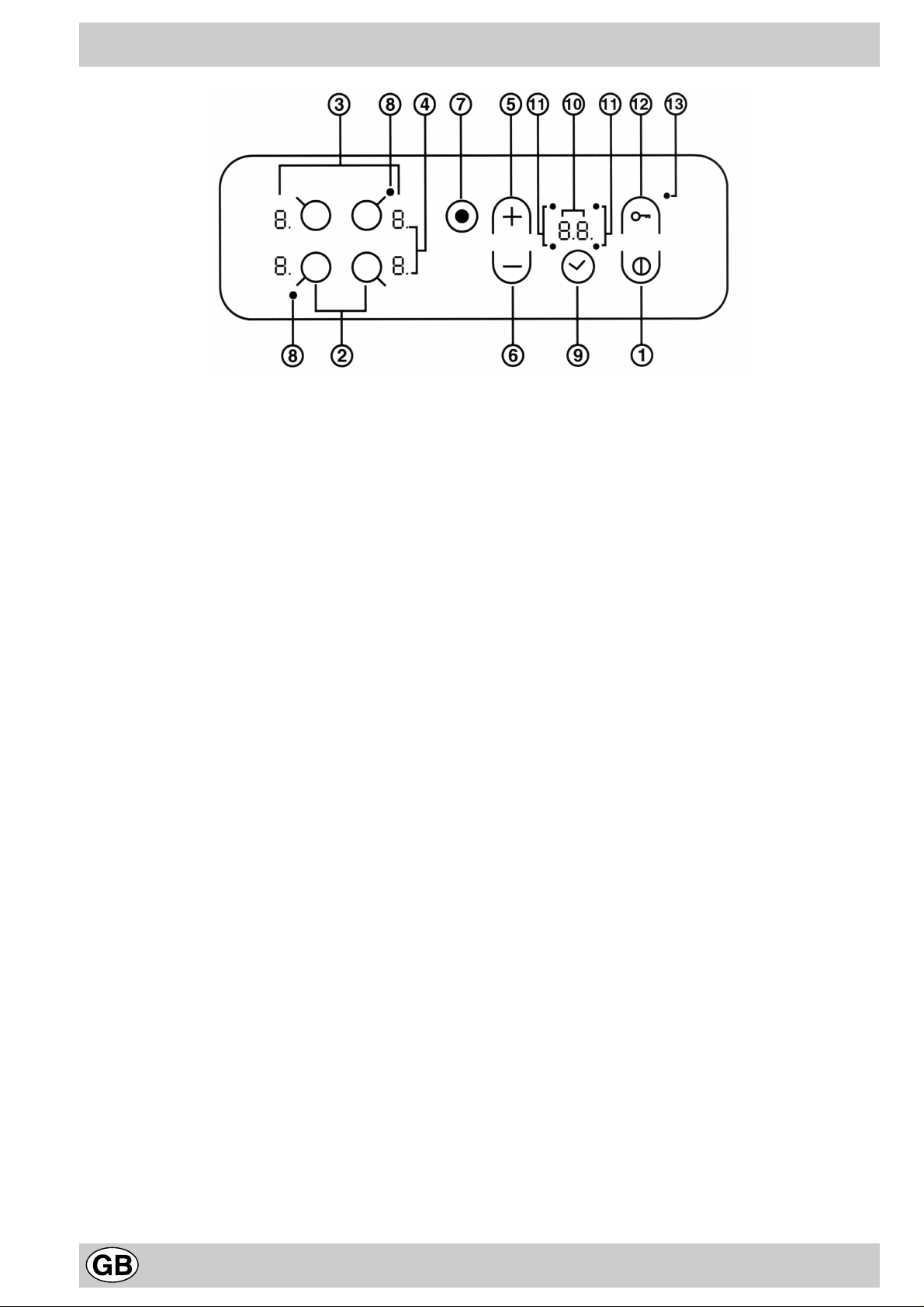

The controls

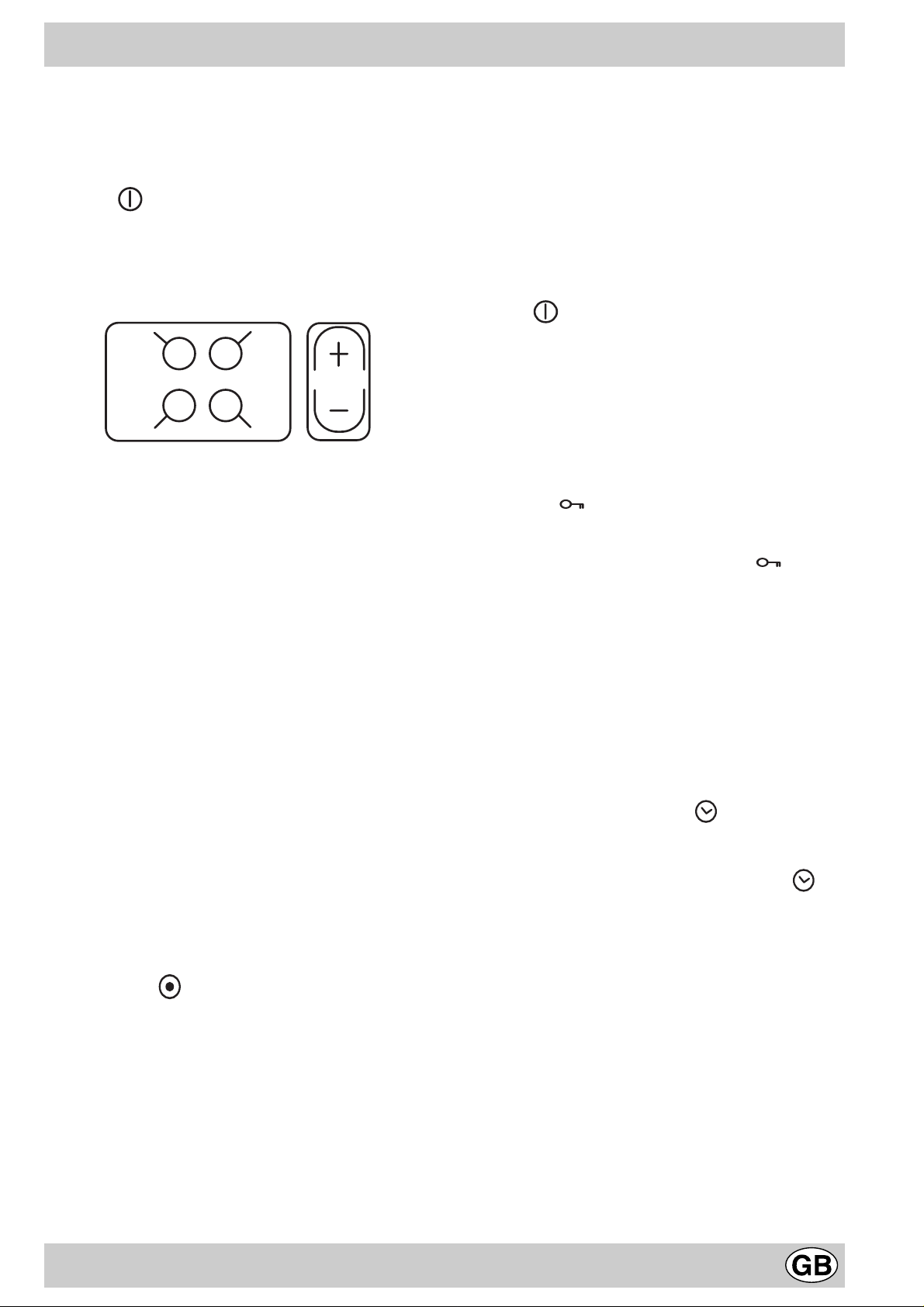

Operation
The safety devices
Maintenance and care
After Sales Service
Hotpoint Guarantee
Key Contacts

3
4
5
6
7
8

9
10
11
12
13

Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for ref erence as it contains important details on the safe and proper use of
the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also
provided so the new owner can become familiar with the appliance and safety warnings.

If the Book is lost or damaged a copy may be obtained from:
Merloni Elettrodomestici L TD , Morley Wa y , P eterborough, PE2 9JB

2

Introduction

Your new hob is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance has been
installed in accordance with the installation instructions detailed in this booklet.

To help make best use of your cooking equipment, please read this booklet carefully.
The hob is designed specifically for domestic use and responsibility will not be accepted for use in any other installation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with this booklet.
(b) Has been properly connected to a suitable supply voltage as stated on the rating plate, attached to the
appliance.
(c) Has not been subjected to misuse or accident or been modified or repaired by any person other than the
manufacturers authorised employee or agent.
(d) Has been correctly installed.

This appliance conforms with the following European Economic Community directives:

- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications;

- 90/396/EEC of 29/06/90 (Gas) and subsequent modifications;

- 93/68/EEC of 22/07/93 and subsequent modifications.

3

Advice and recommendations

• This appliance was designed for non-professional,
household use.

• Before using the appliance, read the instructions in the
owner’s manual carefully since it contains all the
instructions you require to ensure safe installation, use
and maintenance. Keep this owner’ s manual in a safe place
for future reference .

• When you have removed the packing, check whether
the appliance is intact. If you have any doubts, contact a
qualified professional before using the appliance .

• Never leave the packing components (plastic bags,
polystyrene foam, nails, etc.) within the reach of children
since these are a source of potential danger.

• The appliance must be installed by a qualified
technician in compliance with the instructions provided
by the manuf acturer .

• The latter denies all responsibility for improper
installation which may harm persons and animals and
damage property.

• The electrical safety of this appliance can only be
guaranteed if the latter is correctly and efficiently earthed,
in compliance with regulations on electrical safety . Alwa ys
ensure that this vital safety measure has been taken. If
you hav e any doubts, call in a qualified technician to check
the electrical system thoroughly .

• The manufacturer denies all responsibility for damage
resulting from a system which has not been earthed
correctly.

• Before power ing the appliance, check whether the
technical characteristics featured on the appliance data
plate correspond with those of the mains electrical system.

• Check that the current load of the mains supply and of
the power sockets is suitable for the maximum power of
the appliance, indicated on the appliance data plate. If in
doubt, contact a qualified professional.

• This appliance must only be used for the purpose for
which it was expressly designed. Any other use (such as
heating a room for example) is considered to be improper
and consequently dangerous.

• The manufacturer denies all responsibility for damage
resulting from improper or incorrect use of the appliance.

• Certain fundamental rules must be followed when using
electrical appliances. The following are of particular
importance:

• do not touch the appliance with wet or damp hands,

• never use the appliance when barefoot,

• never use extensions,

• never pull on the power supply cable or the
appliance itself to unplug it from the mains socket,

• never lea ve the appliance e xposed to atmospheric
agents (rain, sun, etc.),

• do not allow children or persons who are not familiar
with the appliance to use it without supervision.

• Always unplug the appliance from the mains or s witch
off the main switch before cleaning or performing any
cleaning or maintenance operations.

• If the surface of the glass cracks, unplug the
appliance immediately. For any repairs, contact only an

authorised after-sales service centre and demand original
spare parts. Failure to comply with the above may com­promise the safety of the appliance.

• Cut the power supply cable after disconnecting it from
the power mains when you decide not to use the appliance
any longer. Also make all potentially dangerous parts of
the appliance safe, above all for children who could play
with the appliance.

• The glass ceramic hob is resistant to thermal and
mechanical shocks. However, it may break due to a
shock caused by a sharp object, such as a tool for
example. In this case, unplug the appliance
immediately and contact an authorised after-sales
service centre to have it repaired.

• Remember that the heating area stays hot for at least
half an hour after being turned off; please refrain from
placing any cookware or other items on the cooking zone
while still hot.

• Do not turn on the heating zones if aluminium foil or
plastic items have been placed on the hob surf ace .

• Do not go near the heating zones when these are still
hot.

• If you use small electric appliances near the hob, make
sure their power supply cable does not come into contact
with the hot parts of the hob.

• Make sure all pan handles are always pointing inw ards
towards the centre of the hob to prevent any accidental
spills.

First use: the glue used on the hob seals ma y leave g reasy traces on the glass surface. We recommend you wipe these
off before using the appliance, with the aid of a non abrasiv e cleaner . During the first f e w hours of use, you ma y detect
a smell of rubber, which will disappear quickly.

4

Installation and fastening

The following instructions are intended for a qualified fitter
to guide him/her along the installation, adjustment and
technical maintenance procedures as correctly as possible
and in full compliance with the applicable norms in force.

Important : unplug the hob before all operations .

Installation

• This hob can be built into a worktop simply by cutting
out the corresponding slot.

• The worktop must be made with a material designed
to withstand a temperature of approximately 100°C .

• The hob should be positioned at least 40 mm awa y
from the back wall or any other v ertical surface in order
to allow for correct ventilation and to prevent the
surfaces around the appliance from ov erheating.

• If you wish to install the hob on top of an oven, the
latter must be fitted with a cooling fan.

• T ry to avoid installing the hob on top of a dishwasher;
if this is unavoidable, place a watertight separating
element between the two appliances.

10

Distance to

keep between the

cut-out slot and

the cabinet

Fastening

Very important: It is vital that you ensure the glass

ceramic hob is built into a perfectly flat supporting surface .

Deformations due to improper fastening could alter the
characteristics of the hob and compromise its performan­ce.

The fastening springs are fastened by screws (see
diagram).

It is vital that these screws be kept accessible at all
times.

Insert the hob into the cut-out slot, applying pressure all
along the perimeter of the hob frame so that the latter
adheres fully to the worktop.

REAR SPRING ASSEMBLY

FRONT OF HOB

KITCHEN
WORKTOP

30

40

48

560 +/- 1

HOB FROM BELOW

690

520

490 +/- 1

5

Technical characteristics

Electrical connection

• The electrical safety of this appliance can only be
guaranteed if the latter is correctly and efficiently
earthed, in compliance with regulations on electrical
safety . Alw ays ensure that this vital safety measure has
been taken. If you have any doubts, call in a qualified
technician to check the electrical system thoroughly.

• The manufacturer denies all responsibility for
damage resulting from a system which has not been
earthed correctly.

• Before pow ering the appliance, check whether the
technical characteristics featured on the appliance data
plate correspond with those of the mains electrical
system.

• Check that the current load of the mains supply and
of the power sock ets is suitable for the maximum po wer
of the appliance, indicated on the appliance data plate.
If in doubt, contact a qualified professional.

Disconnect the appliance from the electricity supply
before all operations.

Connect your hob to the electrical system by means of a
junction box: if the appliance is connected permanently
to the mains, an omnipolar circuit breaker, accessib le if
necessary, with a minimum contact opening of 3 mm
should be installed.

V alid only for models with a power suppl y cab le for
three-phase connections

Some models are supplied with a three-phase power
supply cable, and should consequently only be con­nected to the three-phase mains. Observe the wire col­ours, as indicated in the diagram attached.

Some models are not fitted with a power supply cable, as
the cable should be sized according to the type of electrical
connection in use (see connection table below). T o connect
the cable, proceed as f ollo ws:

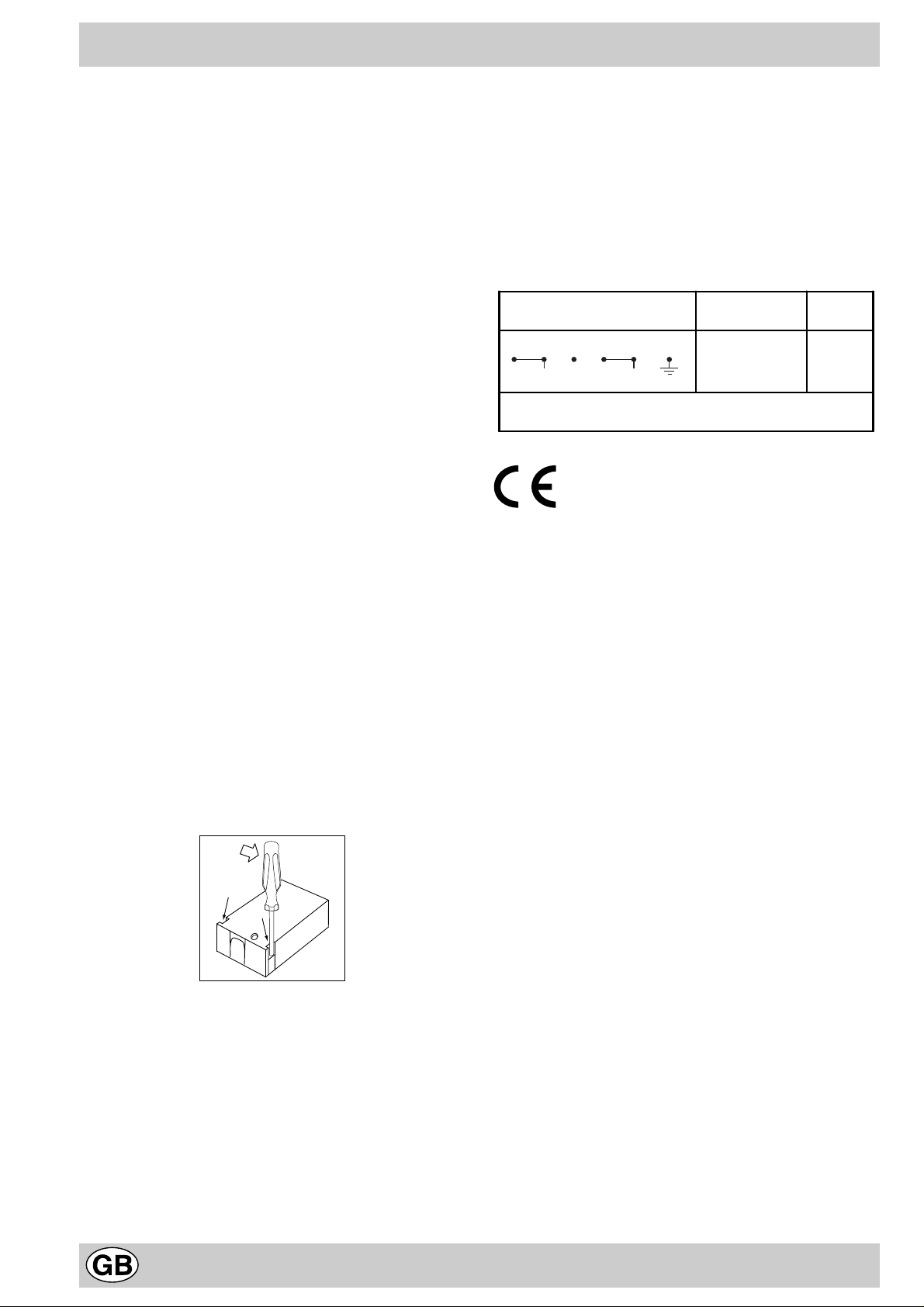

• Using a screwdriver, prise on the side tabs of the
terminal board cover;

• Pull open the cover of the terminal board.

To install the cable, proceed as follows:

• unscrew the wire clamp screw and the contact screws .

• to make the desired electrical connection (see table),
use the jumpers housed inside the box. Position the
power supply cable wires according to the indications
in the table.

• once the connections have been made, tighten all the
terminal screws fully .

• Fasten the supply cable in place with the clamp and
close the cover of the terminal board.

Electrical connections

1 2 3 4 5

L N

* Application of the simultaneity coefficient in accordance with

cei 60335-2-6 norm

Voltage,

Frequency

230V-1+N~50 Hz

Fuses,

Sections

25 A*

2,5 mm²

This appliance conforms with the following European
Community Directives:

- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent
amendments;

- 89/336/EEC of 03/05/89 (Electromagnetic compatibility)
and subsequent amendments;

- 93/68/EEC of 22/07/93 and subsequent amendments;

Warning: If the hob is fitted above a b uilt-in oven, the hob
and the oven must be connected to the mains separately
for safety reasons and to simplify operations when it is
necessary to pull the oven out for some reason.

6

Cooking zone description

Radiant zones

This type of burner consists of several coils that guarantee the e v en distribution of heat over the bottom of the pan and
ensure the success of all cooking on low heat: simmering, sauces or reheating.

HOBS ET7134 ET6004
Cooking zones
Back left

Front left
Back right
Front right

(in W)

RD 1000/2300 230 2300 210
R 1400 160 1200 140
RO 1100/2000 210 1400 160
R 600 100 1800 180

Overall power 6300 6700

H = halogen,

Power

R = simple radiant,
RO = oval radiant,
RD = dual radiant,

Diameter

(in mm)

Diameter

(in mm)

Diameter

(in mm)

The table below features information on how to use the
zones to their full potential.

Power Ty pe of dish

1 Melted butter or chocolate
2
3
4 Preparation of creams and sauces
5 Cooking stews, blanquette, desserts
6 Cooking pasta and rice
7
8
9 Fried food

Reheating liquids

Sealing meat, fish, omelettes

Each zone is controlled:

• by a selector key whose silk screen printing
reproduces the cooking zone drawing,

• and by a power adjustment set comprising two parts
(+,-).

A specific key controls the extension of the zones
(concentric or oval).

As long as the temperature of the cooking zones remains
above 60°C , ev en after use, the residual heat indicators

stay on

risk of burns.

7

(the power indicator displays H)

to prevent the

The controls

1. ON/OFF key

2. Cooking zone selector keys

3. Po wer (from 0 to 9) and residual heat indicators (H)

4. Zone selection indicator:

• on: the corresponding zone is selected and can be
modified,

• off: the corresponding zone is not selected, no
modification can be made.

5. Po w er increase k ey

6. Po w er decrease key

7. Extendable cooking zone(s) (concentric or oval)
extension ke y: f eatured by hobs fitted with 1 or 2 extendab le
zones

8. The maximum zone on indicator light for the extendable

zones (concentric or oval): fitted beside each extendable
cooking zone

9. Timer control key for cooking time progr amming (only

on hobs fitted with a timer)

10.Programmed cooking time indicator

11.Indicator light corresponding to the programmed

cooking zone

12.Controls lock key

13.Lock indicator light

Note

• The extendable zone(s) extension key (7) and the relative indicator lights (8) are only fitted on hobs featuring
extendable cooking z ones (concentric or oval).

• The timer control key (9), the cooking time indicator (10) and zone indicator lights (11) are only fitted on hobs
featuring a timer .

8

Operation

When you connect the hob to the power supply, a beep
will sound after a few seconds: you can now turn the hob
on.

Turning on the hob

Press key for 3 seconds to turn the hob on.

Cooking zone control

Each cooking zone is operated by a control k e y and by a
power adjustment set (+ and -).

8.

8.

8. 8.

Turning on a cooking zone

• To turn a cooking zone on, press the corresponding
control key and set the desired heating power (from 0 to

9) using the “+” and “-” keys.

• To set the maximum power directly (9), press key “-”
briefly.

• To speed up the rise in temperature on a par ticular
cooking zone, proceed as follows:

1. set the cooking zone power to the maximum setting
(9),

2. then press the “+” key: the po w er displa y will indi­cate “A”,

3. now set the power you wish to cook with (for
example 5).

When this temperature is reached, the rapid rise in tem­perature stops automatically and your cooking continues
normally at power setting 5.

Extendable cooking zone operation

(if your hob is fitted with extendable zones, see previous
page)

1. Press the control key corresponding to the cooking
zone,

2. Set the desired heating power (from 0 to 9) using
the “+” and “-” keys,

3. Press the ke y to set the zone to the maximum

power setting.
To go back to the smaller zone, just press the extension
key again.
The indicator light situated beside the extendable zone is
on when the large cooking zone is in use.

Turning off a cooking zone

T o turn off a cooking zone, press the corresponding control
key and:

• press both “+” and “-” simultaneously: the cooking
zone power drops immediately to zero and the z one is
turned off.

• or press the “-” key: the heating power drops
progressively until the zone eventually turns off.

Turning off the hob

Press the key; the appliance has been turned off.
If you hav e locked the hob controls (see paragr aph below),

the same will still be locked when you turn the hob back
on. Unlock the controls in order to operate the cooking
zones.

Controls lock

When the hob is in use, you can lock the controls to a void
any accidental changes to the settings (by children or when
cleaning, for e xample).
Just press the key, the indicator light next to the key
lights up and the controls are locked.
To change the power level setting or stop cooking, the
controls have to be unlocked: press the key, the
indicator light turns off and the controls are unlocked.
To access the setting of a cooking zone again, select the
zone by pressing the corresponding control ke y.

Cooking time programming

A cooking zone can be programmed to cook from 1 minu­te to a maximum of 99 minutes. Proceed as follows:

• select the cooking zone by pressing the
corresponding control key,

• set the desired heating power using the “+” and “-
” keys,

• press the programming key ,

• set the desired cooking time using the “+” and “-”
keys,

• confirm the programming by pressing the key
again.

The countdown begins immediately .
The end of programmed cooking is signalled by a beep
(one minute long) and the cooking zone is turned off.

9

The safety devices

Acoustic signal

Anomalies such as:

• an object (such as a saucepan or a lid, etc.) placed
for more than 10 seconds on the control zone,

• boiled-over liquids or food spilled on the control
zone,

• prolonged pressure on a key,...

could cause a beep to sound and the hob to turn off.
To stop the beep from sounding, remove the cause of the

malfunction.
To use the hob, turn it back on and re-select the cooking
zone(s) you wish to use. Set the desired heating power.

Safety cut out

Your appliance is fitted with a safety cut out which
intervenes after a certain amount of time (see table)
depending on the power setting. When the safety cut out
has intervened, the power display indicates “0”.

for example: the back right cooking zone is set to 5 and
the front left zone is set to 2. The bac k right zone will turn
off after 4 hours of operation and the front left zone will
turn off after 6 hours of operation.

Overheating

Prolonged use of the hob could cause the electronic
components to overheat.
A thermal protection device momentarily sets a reduced
power (setting 3) on the front cooking zones until the
temperature has dropped back down to a suitable level.

To unlock the controls, turn the hob off by pressing the

key.

Power level

1-2 6
3-4 5

54

6-7-8 1,5

91,5

Maximum operati ng

time in hours

10

Maintenance and care

Advice on using your appliance

To get the best from your hob, it is vital that y ou f ollow

a few fundamental rules during cooking and when

preparing food.

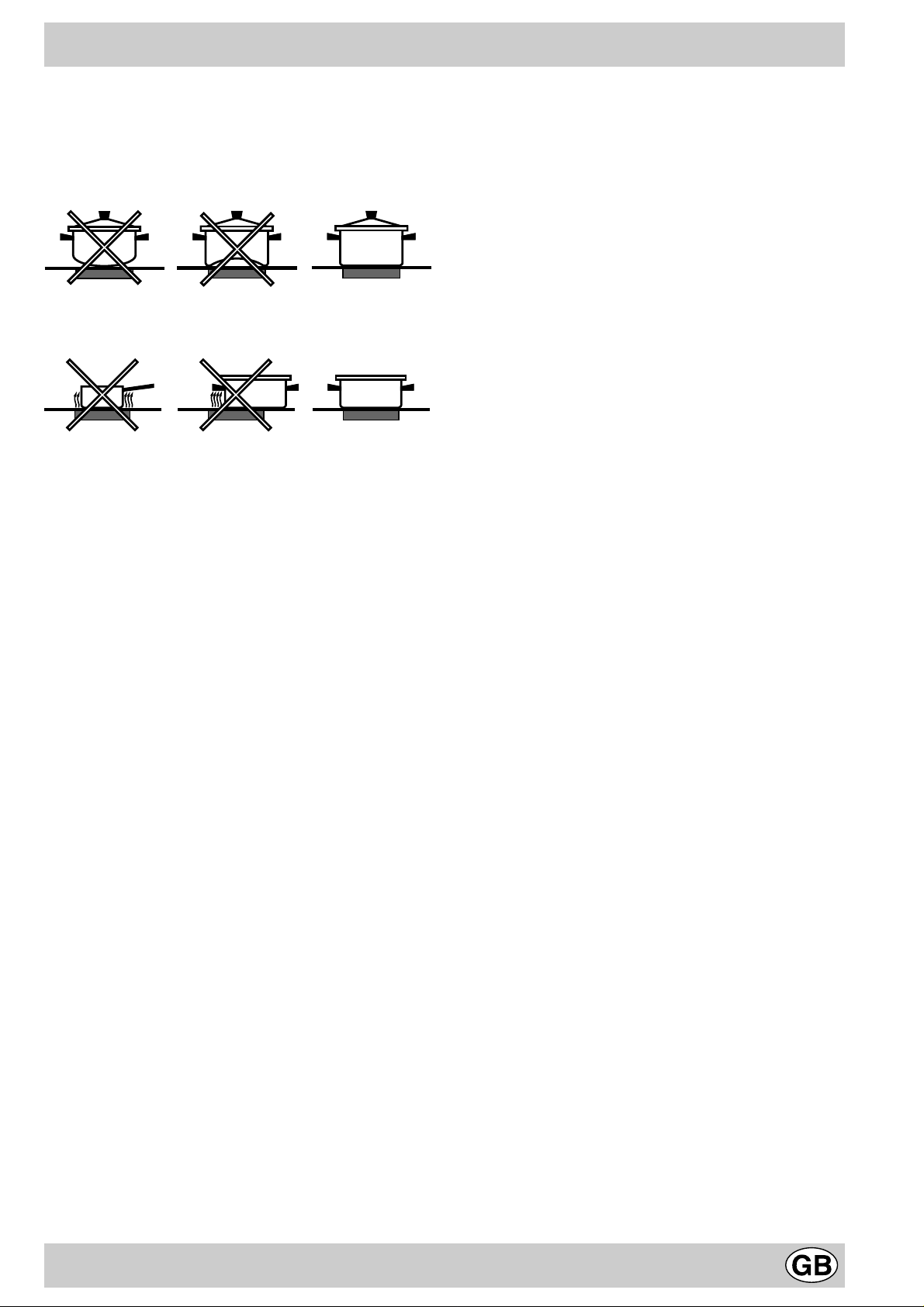

• Use pans with a flat bottom so they adhere fully to

the heating zone.

• Always use pans whose diameter covers the

cooking zone fully so that all the availab le heat can be

used.

• Make sure the pan base is alwa ys clean and dry , to

guarantee good contact and long life for the cooking

zones and pans alike.

• Avoid using pans used normally on gas burners.

The concentration of heat on gas burners can warp

the bottom of the pan, consequently you would ne ver

obtain the desired result when using the pan on the

glass ceramic hob.

• Never leave a cooking zone on without a pan on it

as the maximum heat level would be reached very

quickly, which could damage the heating elements.

• The glass ceramic hob is resistant to thermal and

mechanical shocks. However, it may break due to a

shock caused by a sharp object. In this case, unplug

the appliance immediately and contact an authorised

after-sales service centre to have it repaired.

Always keep your hob clean. Before proceeding with

maintenance operations, check that all the cooking

zones are turned off and have cooled do wn completely .

Stainless steel frame (only on some models)

Stainless steel can stain as an effect of enduring

contact with limescale in water or as an effect of highly

aggressive detergents (containing phosphorus). We

recommend you rinse and dry it thoroughly after

maintenance. It is preferable to remo ve any water spills

immediately .

Hob care

The vitroceramic glass used for the heating surface is
smooth and poreless and it is also resistant to thermal
shocks and to mechanical shocks under normal conditions
of use. In order to preserve these properties, we
recommend you care for y our hob as f ollows:

• for ordinary maintenance, just wipe it with a damp
sponge and dry it thoroughly using paper towels.

• If the hob is dirty , rub clean using a special cleaner
suitable for vitroceramic glass, rinse off and dry
thoroughly.

• food residue and dirt can be removed using a
special scraper. Do this as soon as possible, do not
wait for the hob to cool down in order to avoid
incrustations. For excellent results, use a special
stainless steel wool pad for vitroceramic glass cleaning
soaked in soapy w ater.

• When the hob is clean, you can apply a special
product for the care and protection of the same: this
type of product leaves an invisible film on the surface
of the hob to protect the same against any spills and
boiled-over f ood. It is best if you do this when the hob
is lukew arm or cold.

• Make sure you alwa ys rinse the hob with clean water
and dry it thoroughly: otherwise the cleaning products
could become encrusted onto the hob during
subsequent cooking.

Recommendations

• Never use abrasive or corrosive substances,
such as aerosol cleaners for grills and ovens, stain

removers or rust removers , scouring powders and abra­sive sponges: ev en the delicate ones could scratch the
hob surface irre v ersib ly.

• We recommend you keep all items which could melt

away from the hob, such as plastic utensils, sugar
or products with a high sugar content. Should liquid

boil over onto the hob surf ace, remo ve it immediately
(while the hob is still hot) using a razor blade scraper ,
in order to avoid damaging the surf ace .

• Use this hob exclusively for cooking. Do not
place items on the hob when the same is not in use.
Do not use the hob as a work surface (by placing lids,
saucepans or dishcloths on it, for example), nor as a
chopping board.

• Never leav e aluminium wrappers, aluminium foil and
plastic cookware on the hob when hot or still warm.

• Do not use steam cleaners or high pressure
cleaners to clean your appliance.

11

After Sales Service

"No company is better positioned to offer an after sales service on a

Hotpoint appliance than us - the manufacturer"

As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts

and labour guarantee for the first 12 months. In addition to this you also have the advantage of free

replacement parts for the first 5 years when fitted by a Hotpoint

engineer. When the 12 months parts and labour guarantee expires we off er the following after sales

service options:

Repair Service and Information Help Desk

UK: 08709 066066

www .hotpointservice.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the Model number and the Serial number of your appliance

Available 364 days a year with a fast, effective and value for money service. We have the largest white

goods repair service in the UK with over 1000 of our own fully trained engineers. All repairs include a

parts and labour guarantee for 12 months from the date of the repair.

If you require any information or have any questions about your appliance, our operators are on hand with

help and advice.

All this ensures that you will receive the best available after sales service possible.

Extended Warranties

UK: 08709 088 088

www .hotpointservice.co.uk

Republic of Ireland: 1850 502 200

Whether you have just one or a number of Hotpoint appliances in your kitchen, we offer two service cover

plans to give you total peace of mind.

l Repair Protection Plan - FREE service repairs for a single Hotpoint appliance during the period

of cover.

l Kitchen Cover - FREE service repairs for all your Hotpoint appliances less than 8

years old.

Genuine Parts and AccessoriesUK: 08709 077 077

www .hotpointservice.co .uk

Republic of Ireland: [phone]

A wide range of genuine parts and accessories are available from our hotline or through our web site.

Genuine parts and accessories, extended warranties and service repairs are all

available on our web-site at:

GB

www .hotpointservice.co .uk

12

Guarantee

"Satisfaction guaranteed or your money back"

We give you a unique 'satisfaction guaranteed' promise - valid for 90 days - after you have

purchased your Hotpoint appliance. If there is a technical problem simply call Hotpoint Repair service

or visit our web-site at www.hotpointservice.co.uk and where necessar y, we will arrange for an

engineer to call. If the technical problem is not resolved under this guarantee, we will replace your

machine or, if you prefer, give you your money back.

All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free
replacement parts for the first 5 years provided that they are fitted by a Hotpoint engineer.

Guarantee terms and conditions

Your guarantee is only applicable in the United Kingdom or Republic of Ireland and is subject to the
following provisions that your appliance:

l Has been installed and used correctly in accordance with this instruction booklet.
l Has been used solely for domestic purposes and is located on domestic premises (ie. not for

commercial or trade use).

l Has been properly connected to a suitable electrical supply voltage as stated on the appliance

rating plate.

l Has not been subject to misuse, accident, modified or repaired by anyone other than one of our

own service engineers.

For pre purchase information on any other Hotpoint product call: 08701 50 60 70

or visit: www.hotpoint.co.uk

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to
use quality recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the
appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged
into a mains socket, and the door cannot be locked shut.

13

GB

Key Contacts

After Sales Service

Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in

both the appliances and services we offer.

Repair Service and Information Desk

UK: 08709 066 066

(Open 8 to 8 Mon - Fri, 8:30 to 5:30 Sat, 10 to 4 Sun & Bank Holidays)

www.hotpointservice.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the following information:

Model number:
Serial number:

Extended Warranties

UK: 08709 088 088

(Open 8 to 8 Mon - Sun)

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Genuine Parts and Accessories

UK: 08709 077 077

(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)

www.theservicecentre.co.uk

Republic of Ireland: [phone]

195.043.664.00

Merloni Elettrodomestici UK Ltd, Morley Way, Peterborough, PE2 9JB.

05-2004 Part no. FP157 - 01
