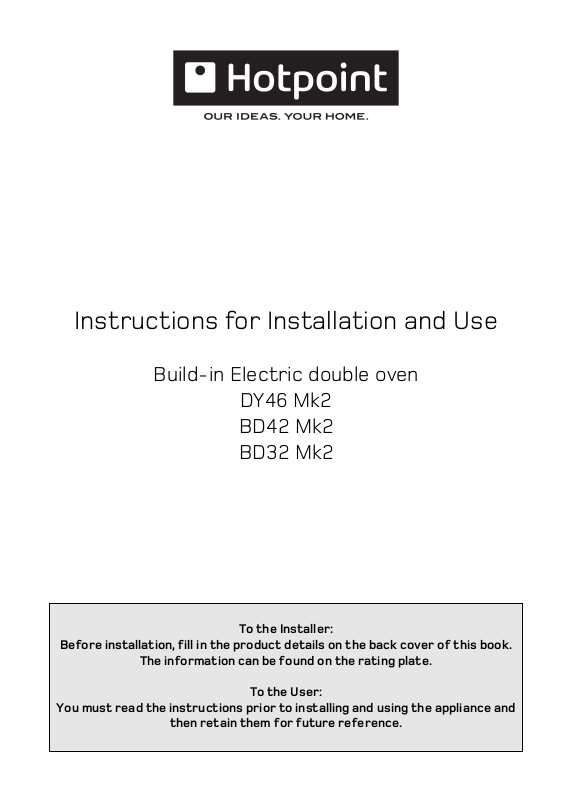

Hotpoint BD42 Mk2, DY46 Mk2, BD32 Mk2 User Manual

Instructions for Installation and Use

Build-in Electric double oven

DY46 Mk2
BD42 Mk2
BD32 Mk2

To the Installer:

Before installation, fill in the product details on the back cover of this book.

The information can be found on the rating plate.

To the User:

You must read the instructions prior to installing and using the appliance and

then retain them for future reference.

PLEASE READ THIS BOOKLET CAREFULLY.

Contents Page

Introduction 3
Safety Information - Always 4

Never 5
The main parts of your Double Oven 6
The cooking systems in your Double Oven 7
Temperature Conversion Chart 8
Controls 9
Oven Timer Operation 10-15
Grill Pan and Handle 16
Operation when using Top Oven for Grilling 17
Guide for Grilling 18
Using the Top Oven as a Convection Oven 19
Operation when using the Top Oven as a Convection Oven 20
Cooking Temperature Charts 21-22
Using the Main Oven for Fan Cooking 23
Operation when using the Main Oven for Fan Cooking 24
Using the Main Oven for other Functions 25-26
Care and Cleaning 27-31
Installation Instructions 32-35
If Something Goes Wrong 36-37
Hotpoint Service Cover 38
Key Contacts Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains
important details on the safe and proper use of the appliance.
If you sell or pass the appliance to someone else, or move house and leave it
behind, make sure this Book is also provided so the new owner can become
familiar with the appliance and safety warnings.

2

Introduction

Your new appliance is guaranteed* and will give lasting service. This guarantee is only
applicable if the appliance has been installed in accordance with the installation
instructions detailed in this booklet.

To help make best use of your cooking equipment, please read this booklet carefully.

The appliance is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.

When the cooker is first used an odour may be emitted,

To help remove the ‘new’ smell, heat up the empty ovens to maximum temperature for a
minimum of two or three hours, keeping the oven doors closed. Ensure that the room is
well ventilated (e.g. open a window or use an extractor fan) and that persons who may be
sensitive to the odour avoid any fumes.
It is suggested that any pets be removed from the room until the smell has ceased.
This odour is due to temporary finish on oven liners and elements and also any moisture
absorbed by the insulation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the

rating plate attached to this equipment.

(c) Has not been subjected to misuse or accident or been modified or repaired by

any person other than the authorised employee or agent.

(d) Has been correctly installed.

This appliance conforms to the following EEC Directives:

this will cease after a period of use

Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC

3

Safety Information

When used properly your appliance is completely safe but as with any electrical

product there are certain precautions that must be observed.

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

Always

Always make sure you remove all packaging and literature from inside the

●

oven and grill compartments before switching on for the first time.
Always make sure you understand the controls prior to using the appliance.

●

Always keep children away from the appliance when in use as the surfaces

●

will get extremely hot during and after cooking.
Always make sure all controls are turned off when you have finished cooking

●

and when not in use.
Always stand back when opening an oven door to allow any build up of steam

●

or heat to disperse.
Always use dry, good quality oven gloves when removing items from the

●

oven/grill.
Always take care to avoid heat/steam burns when operating the controls.

●

Always turn off the electricity supply at the wall switch before cleaning and

●

allow the appliance to cool.
Always make sure the shelves are in the correct position before switching

●

on the oven.
Always keep the oven and grill doors closed when the appliance is not in use.

●

Always take care when removing utensils from the top oven when the main

●

oven is in use as the contents may be hot.
Always keep the appliance clean as a build up of grease or fat from cooking

●

can cause a fire.
Always follow the basic principles of food handling and hygiene to prevent

●

the possibility of bacterial growth.
Always keep ventilation slots clear of obstructions.

●

Always refer servicing to a qualified appliance service engineer.

●

During use the oven becomes hot. Care should be taken to avoid touching

●

heating elements inside the oven,

SAFETY ADVICE

IN THE EVENT OF A CHIP PAN OR ANY OTHER PAN FIRE:

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother
the flames and extinguish the fire.

3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT.
Injuries are often caused by picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of
the extinguisher is likely to tip the pan over. Never use water to extinguish
oil or fat fires.

4

Safety Information

Never

Never leave children unsupervised where a cooking appliance is installed as

●

all cooking surfaces will be hot during and after use.
Never allow anyone to sit or stand on any part of the appliance.

●

Never store items above the appliance that children may attempt to reach.

●

Never remove the oven shelves whilst the oven is hot.

●

Never heat up unopened food containers as pressure can build up causing

●

the container to burst.
Never store chemicals, food stuffs or pressurised containers in or on the

●

appliance, or in cabinets immediately above or next to the appliance.
Never operate the grill with the door closed as this will cause the appliance

●

to overheat.
Never use the appliance as a room heater.

●

Never use the grill to warm plates.

●

Never dry any items on the oven doors.

●

Never install the appliance next to curtains or other soft furnishings.

●

Never allow children to play with the appliance controls.

●

Never use ‘steam cleaners’.

●

5

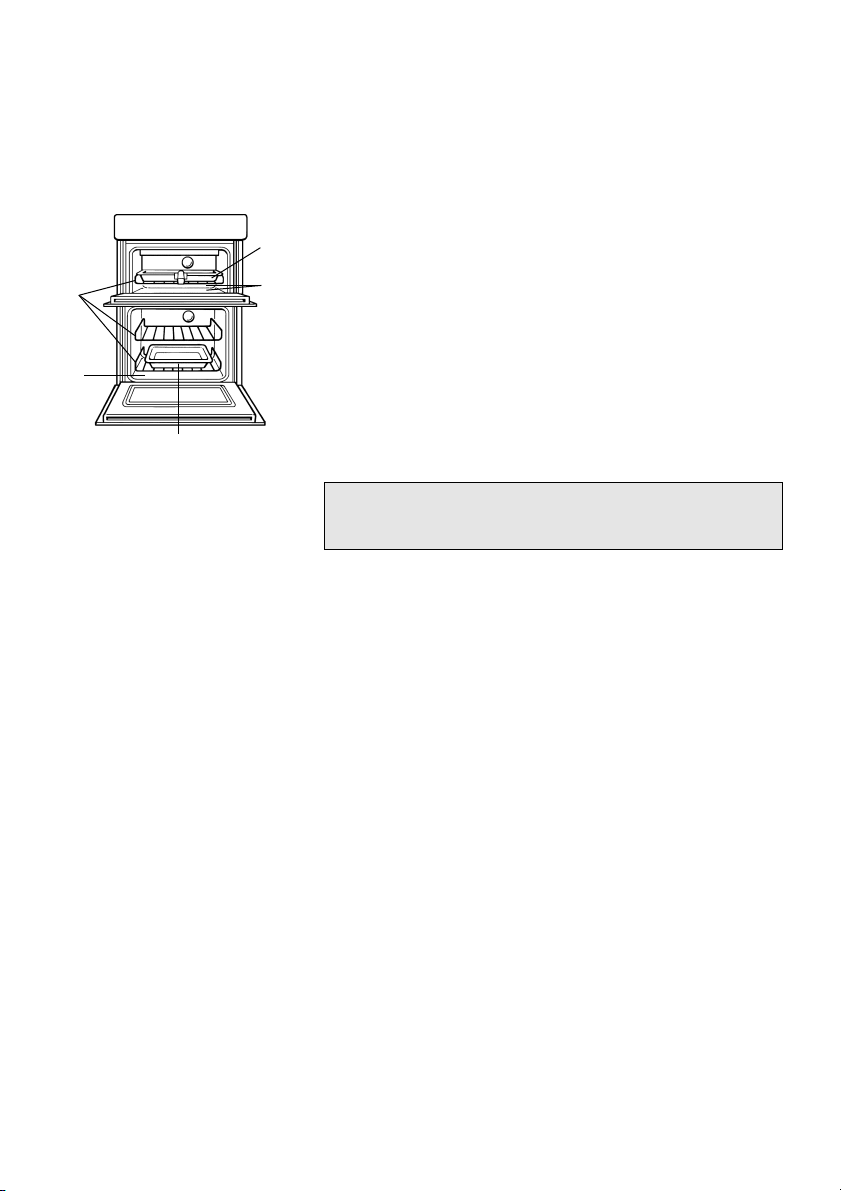

The main parts of your Double Oven

WARNING: DO NOT TOUCH THE GLASS DOORS WHEN THE OVEN IS IN USE AS THESE
AREAS CAN BECOME HOT.

Stay Clean

side liner

Grill pan &
Food
support

Inner Door Glass

Stay Clean back panel

Stay Clean

side liner

Oven Fan

Meat Pan

(NOT ALL MODELS)

Model & Serial number

Top Oven Temperature Control

Grill Control

❍❍

Timer

❍ ❍ ❍ ❍ ❍ ❍

Main Oven Temperature Selector

❍

Grill/top oven
element

Oven Light

Oven Shelf

Top Oven Door

Oven Light

2 Oven Shelves

Inner Door

Glass

NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as

overheating and damage may result.

6

Main Oven Door

Door Handle

The Cooking Systems in your Double Oven

Your new oven is equipped with
three different cooking systems:

1

2

3

1. Conventional Heating
(Top Oven) - with upper and
lower heat. This system is
particularly suitable for roasting
and baking on one shelf only.

2. Grilling (Top Oven) - Has a full
width, fully controllable grill. The
grill also has an economy setting
which enables you to use just the
left section.

NOTE: The oven door should
be open when grilling.

(See page 17.)

3. Fan Cooking (Lower Oven) - the fan
oven operates by constantly blowing
heated air from an element wrapped
around the fan into the oven. This gives
improved efficiency and, in general,
enables the use of lower temperatures
for cooking. It also means that there is
less need to be particular about shelf
positions and that you can bake at
more than one level simultaneously
(Batch Baking).

It should be noted that at the end of a cooking period there may be a momentary puff of
steam when the oven door is opened. This will disperse in a few seconds and is a
perfectly normal characteristic of an oven with a good door seal.

7

Temperature Conversion Chart

The chart below gives details of comparisons of oven settings for gas conventional ovens
and fan oven in degrees ˚F and ˚C

GAS

MARK

1

2

/
1
2
3
4
5
6
7
8
9

CONVENTIONAL

OVEN

˚F ˚C

250 120
275 140
300 150
325 160
350 180
375 190
400 200
425 220
450 230
475 240

FAN

OVEN

˚C

100
120
130
140
160
170
180
200
210
220

8

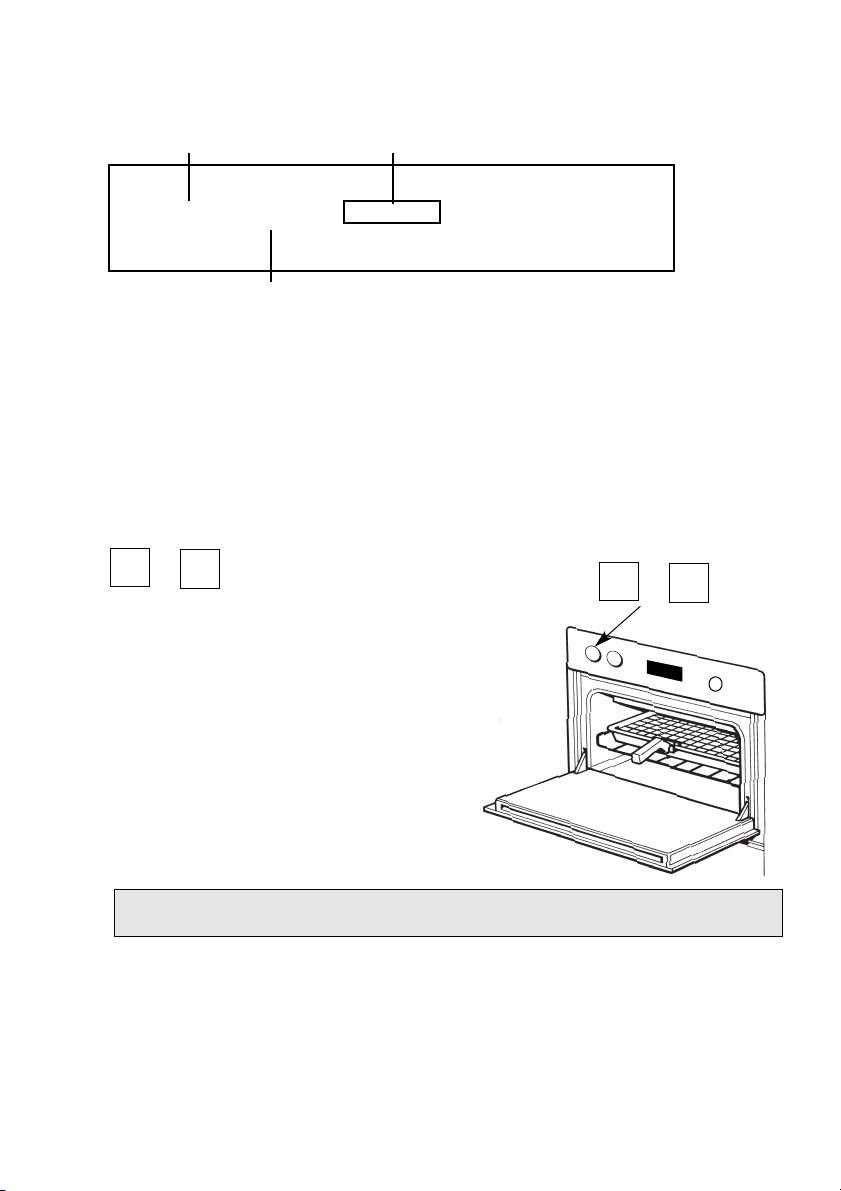

Controls

GRILL SETTING CONTROL MAIN OVEN TEMPERATURE AND FUNCTION CONTROL

A

❍

TOP OVEN TEMPERATURE CONTROL

CONTROL MARKINGS

Control

Knob

A

B

C

Grill Setting Control

Top Oven Temperature

Main Oven Temperature &

Function Control

TIMER

B

❍❍

Description

Control

Function

Selects the heat at which the grill will cook the food.

Grill Control Settings:
1 = Low, 4 = High (BD32/42)
MIN - MAX (DY46)

100 - 220

or MAX

or

or

C

Selects the cooking temperature
(Degrees Centigrade) when using
the top oven as a conventional oven.

Fan Only Setting

- This is used to decrease the amount

Fan

of time required to defrost food

Only

items.

Oven Light Only

Oven

- Switches on the Main Oven Interior

Light

Light Only.

Main Oven Temperature Scale

80 - 230

or MAX

(In Degrees Centigrade).

- When cooking select the required
cooking temperature.

Cooling Fan: A gentle flow of air will be blown below the control panel when the grill

control is used and after a short period of time when the ovens are used.

Note: Whenever the appliance has been used, the cooling fan may run on or

restart itself after all the controls have been turned off. This indicates
that the appliance is still warm.

Oven Interior The oven lights are operated when their respective oven control is used.
Lights (N.B. Not all models have a top oven interior light).

The main oven has a light only position.

Slow Cooking The main oven has a “Slow Cook Setting” this can be used for slow

cooking, keeping food warm and warming plates for a short period.

Note: It is advisable to check that all oven controls have been switched off when
you have finished using the appliance.

9

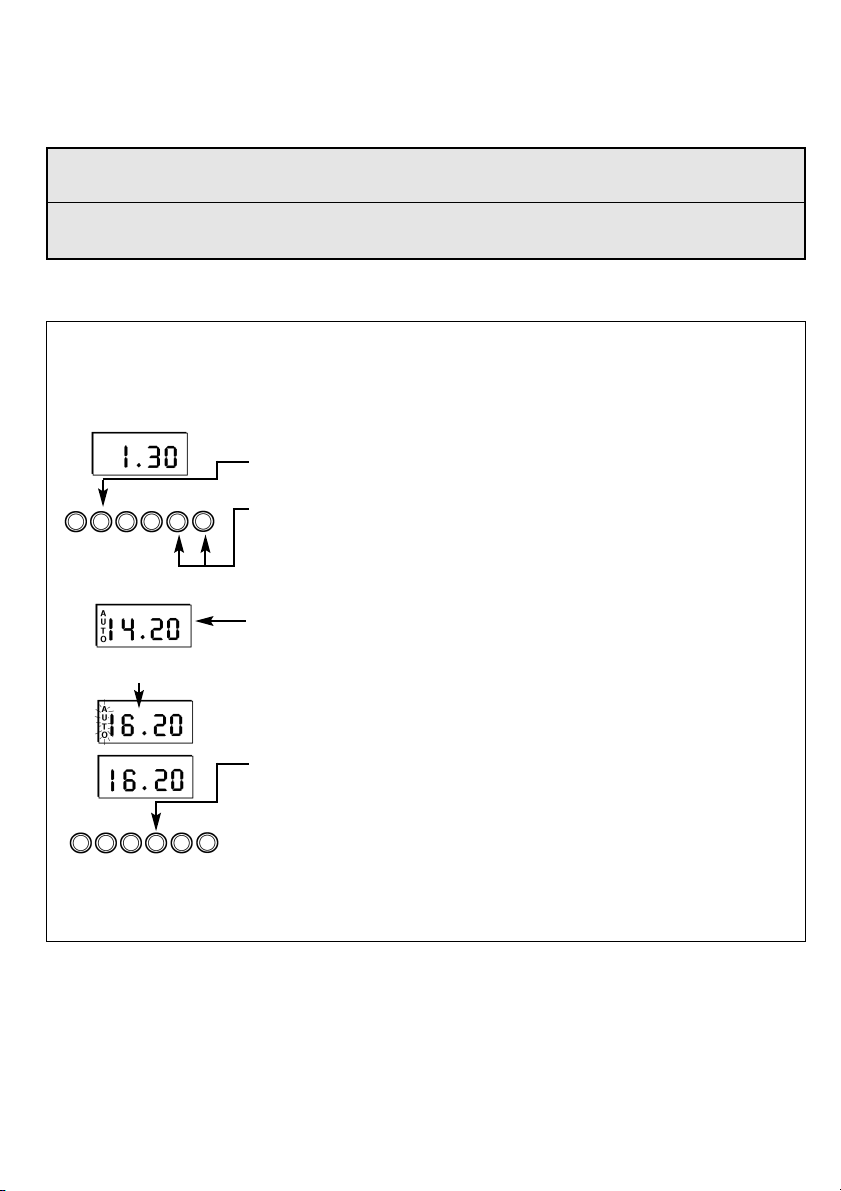

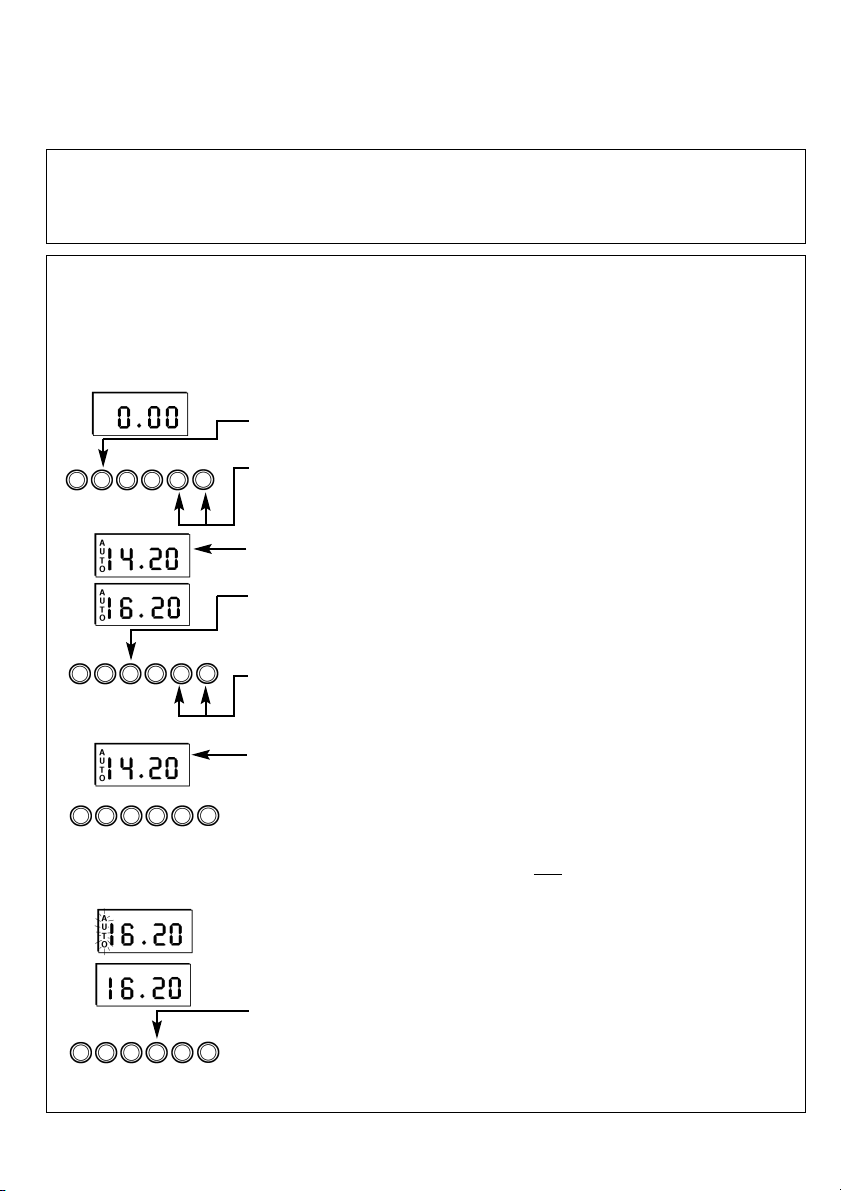

Oven Timer Operation

Note: Timer must be set to ‘Time of Day’ and ‘Manual’ before the ovens
can be used.

AUTOMATIC COOKING

The Top Oven and Main Oven can be controlled by the automatic timer. When the
timer control has been set for one oven, it is possible to use the other oven only
during the same automatic cooking programme.

NEVER operate the grill when the ovens are set to cook automatically
because the oven cavity can become warm and this may cause
bacterial growth in food.

HINTS ON AUTOMATIC COOKING

1. Select foods which will require the same cooking time and temperature.

2. To ensure food does not cool down and require reheating, set the end time
so the food is ready when you require it.

3. Always ensure that meat and poultry is defrosted before placing in the oven.

4. Whenever possible, take food out of the refrigerator and keep it as cool as
possible.

5. If cooking food that requires frying before placing in the oven for auto
cooking, keep the delay start time to a minimum.

6. Never place hot or warm food in the oven for delay start cooking as it could
cause the oven to be warm and produce harmful bacteria in the food.

7. We advise that dishes containing left-over cooked poultry or meat, e.g.
Shepherd's Pie, should not be cooked automatically if there is to be a delay
period.

8. Ensure that delay start times are kept to a minimum to prevent bacterial
growth in food.

9. Wine or beer may ferment and cream may curdle during the delay period so it
is best to add these ingredients just before serving.

10. Foods which discolour should be protected by coating in fat or tossing in
water to which lemon juice has been added, prior to placing food in the oven.

11. Dishes containing liquid should not be filled too full to prevent boiling over.

12. Food should be well sealed (but not airtight) in a container to prevent the
loss of liquid during cooking. Aluminium foil gives a good seal.

13. Always ensure that food is piping hot and cooked thoroughly before serving.

14. Only reheat food once.

10

Know Your Timer

CLOCKFACE

The timer incorporates a 24 hour clock.

Ensure the correct time of day is always set, before using your cooker.

SYMBOLS

A ‘bell’ symbol will light up when you select a Minute Minder Period and will
remain lit for the period set.
At the end of the Minute Minder Period, the timer will emit an audible tone
and the ‘bell’ symbol will disappear.

The ‘cookpot’ symbol will light up either:–
– When the timer is in manual mode, or
– During the actual Cook Period.

‘AUTO’ will light up:–
– When the timer is first turned on it will flash. It will go out when a time

of day is set or when the timer is set to manual.
The ‘AUTO’ symbol will flash at the end of an Auto Cooking programme to
indicate that the programme has finished.

((WWhheenn tthhee ‘‘AAUUTTOO’’ ssyymmbbooll iiss ffllaasshhiinngg,, ttoo rreettuurrnn tthhee oovveenn ttoo MMaannuuaall ooppeerraattiioonn,,
ttuurrnn tthhee oovveenn ccoonnttrroollss ooffff,, eennssuurree tthhaatt tthhee ccoorrrreecctt ttiimmee ooff ddaayy iiss sseett,, aanndd
pprreessss tthhee ““MMaannuuaall”” bbuuttttoonn –– TThhee ‘‘AAUUTTOO’’ ssyymmbbooll wwiillll ggoo oouutt))..

TIMER FUNCTION BUTTONS

Minute Minder
Button

Here you can set a time period of up to 23 hours 59 minutes, that will count
down. When it reaches zero, the timer will emit an audible tone.

For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.

AUTO COOKING PROGRAMME

Cook Period
Button

End Time Button

Manual Button

“+” and “–” Buttons

Cook Period is the actual length of time for which, the timer will switch the
oven(s) on as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).

The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00.

The timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00.
You will hear an audible tone at 11:00, to indicate that the Auto Cooking
Programme has finished.

Notes:

- When setting an Auto Cooking programme you will need to set the oven
control(s) to the required temperature(s) when you set the timer.

- If an Auto Cooking programme has been set the oven(s) will only operate
during the pre-programmed time.

Needs to be pressed to cancel an Auto Cooking programme and return the
oven(s) to Manual operation.

Used to adjust the various timer function settings.

11

Electronic Clock & Automatic Oven Timer
Operation

SETTING THE TIME OF DAY

Step 1 Make sure all oven controls are turned Off.

Step 2 Check the electricity supply to the cooker is turned on.

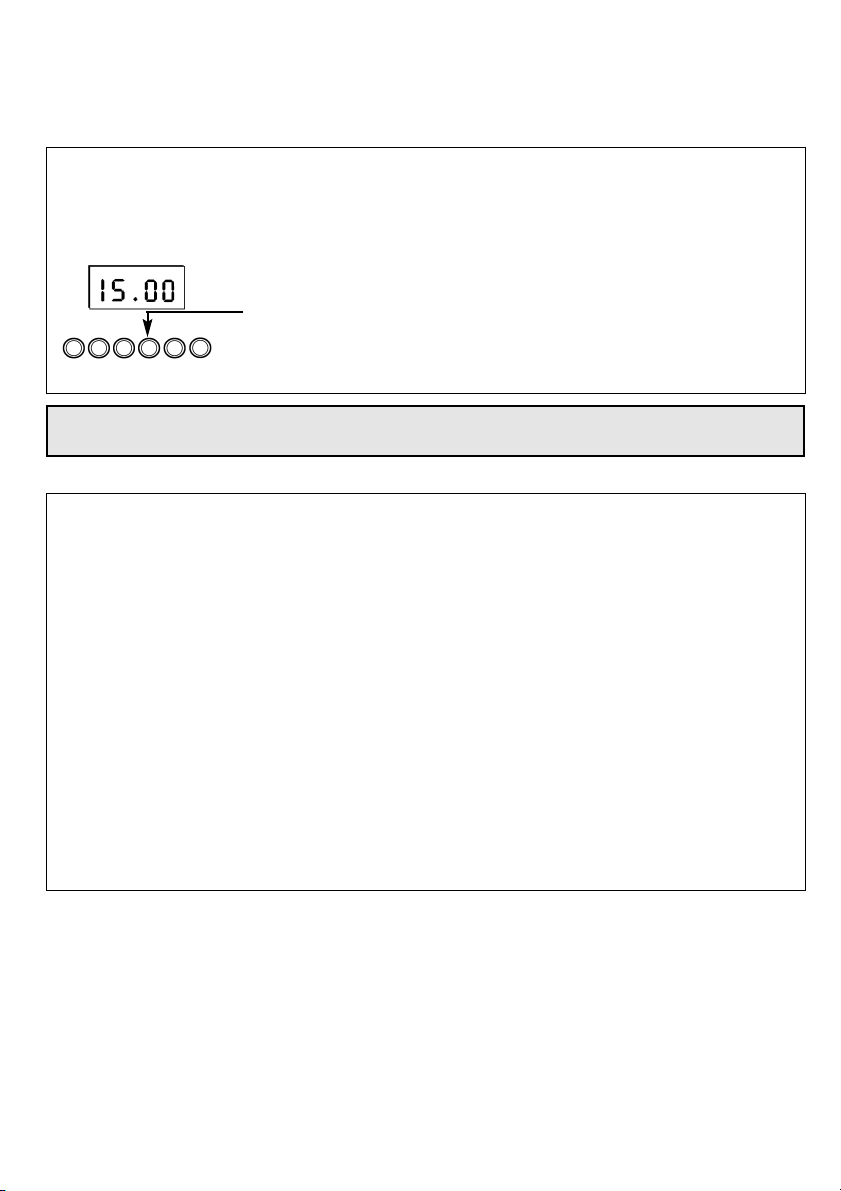

Step 3 When switched on the display will show 0.00 and the Auto symbol,

flashing intermittently.

Step 4 Press & hold in both the Cook Period & End Time buttons together.

Step 5 With the Cook Period & End Time buttons still held in, press either

the “+” or “–” buttons to set the correct time of day.

Step 6 Release all the buttons simultaneously.

THE TIME OF DAY IS NOW SET.

TToo cchhaannggee tthhee ttiimmee ooff ddaayy rreeppeeaatt SStteeppss 44,, 55 && 66 aabboovvee..

Note: You cannot adjust the time of day if the timer has been set for an

Auto Cooking Programme.

SETTING THE MINUTE MINDER

Step 1 Ensure the time of day is set correctly.

Step 2 Press and hold the Minute Minder button.

Step 3 With the Minute Minder button held in, set the required Minute

Minder period using the “+” and “–” buttons. A ‘bell’ symbol will light
up.

Release all buttons and the timer display will revert back to the time of day.
The ‘bell’ symbol will remain lit to signify that a Minute Minder period has
been set.

At the end of the set time an audible tone will be heard, and the ‘bell’ symbol
will disappear.

Step 4 To cancel the audible tone press the Minute Minder button.

Note 1 When the Minute Minder has been set, the time remaining can be checked at any

time by simply pressing the Minute Minder button.

Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by

pressing and holding the Minute Minder button and then at the same time
pressing the “–” button until 0.00 appears in the display window.

12

Electronic Clock & Automatic Oven Timer
Operation

AUTO COOKING PROGRAMMES

There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically

(b) To set timer to switch on immediately and OFF automatically after a set cook period.

a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY

TThhiiss aalllloowwss yyoouu ttoo ccooookk aatt aa ssppeecciiffiieedd ttiimmee ffoorr aa cchhoosseenn ppeerriioodd bbeeffoorree tthhee oovveenn sswwiittcchheess
ooffff AAuuttoommaattiiccaallllyy..

Step 1 Check that the correct time of day is set, if not follow instructions for setting the

time of day.

Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Step 3 Press and hold in the Cook Period button.

The display will read 0.00 with the ‘cookpot’ symbol lit.

Step 4 With the Cook Period button still held in, set the required Cook

Period using the “+” and “–” buttons.

Release the buttons and the timer display will revert to the time of day with
the ‘Auto’ symbol and ‘cookpot’ symbol lit.

Step 5 Press and hold in the End Time button.

The display will read the earliest possible end time for the Cook
Period that you have set above.
The ‘Auto’ symbol and ‘cookpot’ symbol will be lit.

Step 6 With the End Time button still held in, use the “+” and “–” buttons to

set the ‘End Time’ (i.e. The time you require the oven to switch off).

Release all the buttons and the timer will revert back to the time of day.

The ‘Auto’ symbol will remain lit to signify that an Auto Cooking Programme
has been set. The ‘cookpot’ symbol will go out.

Step 7 Turn the oven control(s) to the required temperature, and if

necessary select the appropriate oven function.

NNoottee:: IIff yyoouurr aapppplliiaannccee hhaass ttwwoo oovveennss:: WWhheenn tthhee ttiimmeerr hhaass bbeeeenn sseett ffoorr oonnee
oovveenn iitt iiss ppoossssiibbllee ttoo uussee tthhee ootthheerr oovveenn oonnllyy
pprrooggrraammmmee..

At the end of the Automatic Cook Period the Auto Symbol will flash and an
intermittent bleeping sound will be heard.
The audible tone will continue unless cancelled.
The ‘Auto’ symbol will continue to flash until the timer is returned to Manual
operation (see below).

Step 8 Press the Manual button, the audible tone will be cancelled and the

oven(s) will be returned to Manual.

dduurriinngg tthhee ssaammee AAuuttoommaattiicc

Step 9 Turn the oven control(s) to the OFF position.

13

Electronic Clock & Automatic Oven Timer
Operation

Note 1 When cooking automatically the Cook Period can be checked at any time by

simply pressing the Cook Period button.

Note 2 When cooking automatically the End Time can be checked at any time by simply

pressing the End Time button.

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET

COOK PERIOD

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of

Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the

day.

appropriate oven function.

NOTE: The Cookpot

symbol disappears

Step 4 Press & hold in the Cook Period button, the display will read 0.00 and

the ‘cookpot’ symbol will light up.

With the Cook Period button still held in set the required Cook Period using
the “+” and “–” buttons. Example: 1hr 30 minutes (as shown).

Note: Cook Period is the length of time the food requires to cook.

Step 5 Release all buttons.

The timer display will revert to the time of day with the ‘Auto’ symbol lit &
‘cookpot‘ symbol remaining lit.

At the end of the Cook Period the ‘Auto’ symbol will flash and an intermittent
audible tone will be heard.
The audible tone will continue until cancelled.
The ‘Auto’ symbol will continue to flash until the timer is returned to Manual
operation (see below).

Step 6 Press the Manual button. The audible tone will be cancelled and the

oven(s) will be returned to Manual.

14

Step 7 Turn the oven control(s) to the OFF position.

Electronic Clock & Automatic Oven Timer
Operation

TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.

Step 1 Turn the oven control(s) to the OFF position.

Step 2 Press the Manual button to return the oven(s) to “Manual”

operation.
The ‘Auto’ symbol will go out.

Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing

OTHER NOTES ON TIMER OPERATION

1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the

2. When cooking Automatically the End Time can be checked at any time by simply pressing the End

3. Having set a Cook Period and End Time an electronic device stores the information. The device

4. When setting an Auto Cooking Programme and a mistake is made, to clear:–

5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’, it is likely that the electricity

6. To set each function always press and hold the required function button and at the same time

the Cook Period button.

Cook Period button.

Time button.

within the timer will switch the oven(s) on and off at the required times.

(a) Press & release the Manual button.
(b) Start the sequence again.

supply to the oven has been interrupted. Reset the timer to the correct time of day.

FFoooodd iinn tthhee oovveenn mmaayy,, tthheerreeffoorree,, nnoott hhaavvee bbeeeenn ccooookkeedd,, bbeeffoorree sseerrvviinngg cchheecckk ffoooodd iiss tthhoorroouugghhllyy
hheeaatteedd aanndd ccoommpplleetteellyy ccooookkeedd..

press “+” or “–” buttons.

15

Grill Pan and Handle

The grill pan handle is detachable from the pan, to facilitate cleaning and storage.

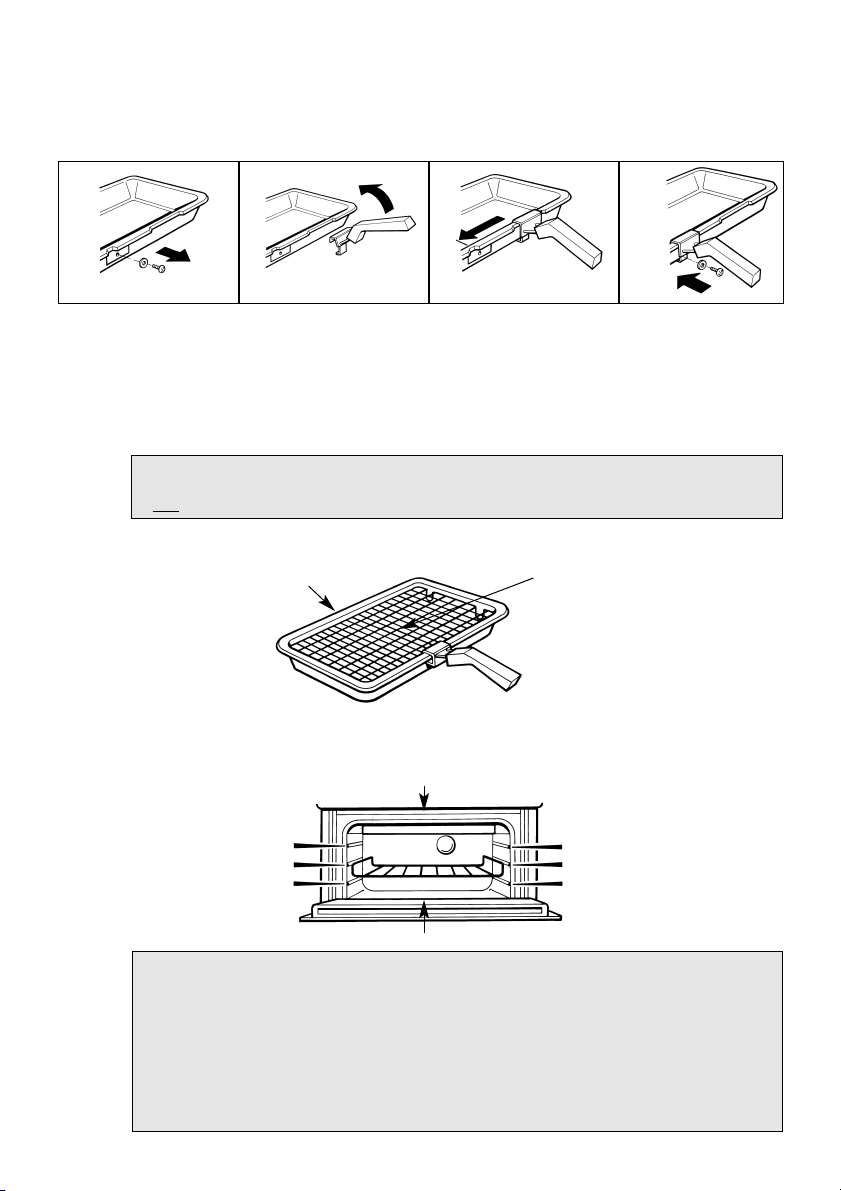

The grill pan handle can be fixed as follows:

(a)

(b)

(c)

Step 1 Step 2 Step 3 Step 4

Step 1 Remove the screw and washers from the grill pan bracket (a).
Step 2 Tilt the handle over the recess (b).
Step 3 Slide it towards the centre of the pan (c).
Step 4 Locate the handle over the bracket (d).

For a fixed handle, replace the screw and washers and ensure they are
fully tightened up. If a detachable handle is required, do not replace the
screw and washers.

Note: If a fixed handle is required, the grill pan cannot be kept in the main oven with the
door closed but may be stored in the top oven with the door closed, when the top oven
is not in use..

Grill Pan and Food Support

GRILL PAN

FOOD SUPPORT

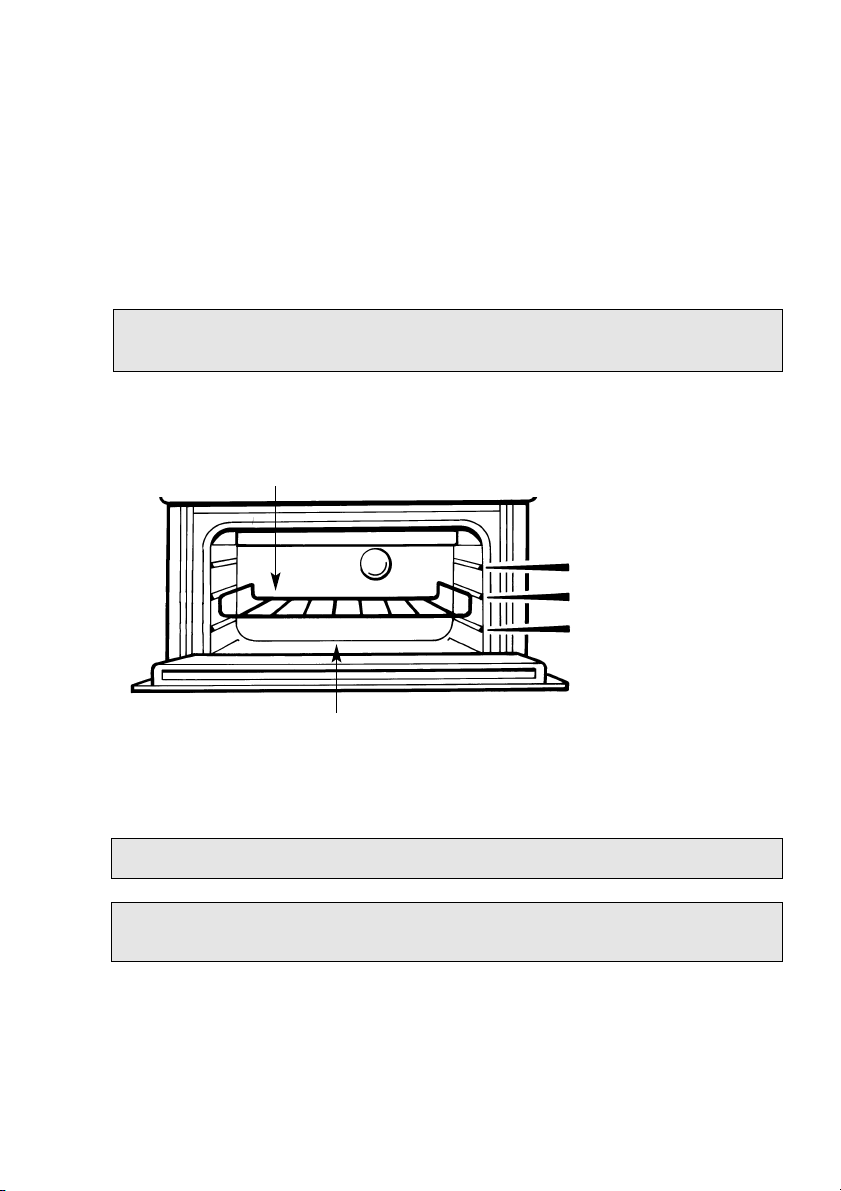

Top Oven Shelf Positioning for Grilling

ENSURE SHELVES ARE FITTED CORRECT WAY UP.

(d)

16

3
2
1

DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR

NOTE: - Preheat the grill if indicated on grill chart.

- The grill pan must be placed on the correct shelf and positioned centrally under the
grill element.

- Leave the control at 4 or MAX (depending on Model) for toast, and for fast cooking
of foods.

- For thicker foods requiring longer cooking, turn the switch to a lower setting after
the initial sealing on both sides at 4 or MAX (depending on Model). The thicker the
food, the lower the control should be set.

- DO NOT line the grill pan with aluminium foil, as this increases the amount of fat
spitting which can cause a fire.

- After use always return both controls to their OFF (0) position.

3
2
1

Operation when using the Top Oven for Grilling

GRILL SETTING CONTROL

A

❍

TOP OVEN TEMPERATURE CONTROL

Step 1 Ensure oven timer is set to manual.

Step 2 Turn knob (A), clockwise for FULL grill or anti-clockwise for HALF grill, to

NOTE: Do not grill with the grill/top

Step 3 After use, turn the grill control (A)

Place the shelf in the correct position (see Grilling Guide).
Place the food/grill pan on the shelf, positioned centrally under the grill
element.
Leave the top oven door fully open.

select the grill setting MIN (1) – MAX (4).

NOTE: MIN (1) = Low, MAX (4) = High.

Grill Controls Example:

OR

4

MAX

oven door closed.

to the off position (0).

B

❍

= High Grill Setting (depending on model)

TIMER

C

❍

4

MAX

OR

DOOR POSITION
FOR GRILLING.

DO NOT allow young children near to the appliance when the grill is in use as the surfaces
get extremely hot.

17

support

PAN TO BE USED

Grill pan and food

support

Grill pan and food

support

Grill pan and food

support

Grill pan and food

support

Grill pan and food

support

Grill pan and food

the shelf

Dish placed directly on

APPROXIMATE

SETTING

Guide to Grilling

FROM THE BASE

SHELF POSITION

5 MINUTES

PREHEAT FOR

COOKING TIME

(depending on Model)

OF THE OVEN

(depending on

5 - 10 minutes

Setting 4 or MAX

3 or 2

Model)

Setting 4 or

Setting 4 or MAX for 4

MAX

10 - 25 minutes

LOWER setting

minutes then reduce to

Setting 4 or MAX for 6-8

3 or 2

MAX

Setting 4 or

Setting 4 or

8 - 12 minutes

20 - 35 minutes

LOWER setting

minutes then reduce to

2

2

MAX

10 - 15 minutes

10 - 20 minutes

Setting 4 or MAX

3

Setting 4 or

15 - 20 minutes

seting

Setting 3 or lower

3

3 or 2

MAX

MAX

Setting 4 or

10 - 20 minutes

Setting 3 or lower

3 or 2

Setting 4 or

10 - 20 minutes

seting

Setting 4 or MAX

3 or 2

MAX

Setting 4 or

MAX

18

FOOD

Products

Toasting of Bread

Sausage, Bacon

Small cuts of meat,

Fillets

Chops etc.

Whole

Gammon steaks

Fish:

Fingers

products

Pre-cooked potato

Pizzas

eg. Cauliflower

Browning of food

Cheese

Using the Top Oven as a Convection Oven

The top oven should be used to cook small quantities of food. The oven is
designed so that the grill element operates at a reduced heat output, this is
combined with a heating element situated underneath the floor of the oven. To
ensure even cooking of the food it is important that cooking utensils are
positioned correctly on the oven shelf so that the element is directly above. As a
guide, the front of the utensil should be approx.100mm (4”) from the front of
the shelf.

Note: Charts are a guide only, to suit personal taste and requirements, it may be
necessary to increase or decrease temperatures by 10˚C. It may also be necessary to
increase or decrease cooking times.

SHELF POSITIONING

ENSURE SHELVES ARE FITTED THE CORRECT WAY UP

3

2

1

DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR

There should always be at least 25mm (1 inch) between the top of the food and
the grill element.

WARNING: Items stored in the top oven will get hot when the main oven is in use.

DO NOT allow young children near to the appliance when the top oven is in use as the
surfaces get extremely hot.

19

Operation when using the Top Oven
as a Convection Oven

TOP OVEN TEMPERATURE CONTROL

Step 1 Check that the timer is in manual.

Step 2 Place the shelf in the correct position (see Oven Temperature Charts).

Step 3 Select the required cooking temperature, (100–220˚C or MAX depending

on Model) using control (B) (see Top Oven Temperature Charts).
The pilot light ( ● ) will immediately come on, and remain on until the oven
reaches the required temperature. The light will then automatically go off
and on during cooking as the oven thermostat maintains the correct
temperature.

Step 4 Place the food centrally on the shelf below the element ensuring the oven

door is closed.

NOTE: At the end of your cooking, always return control (B) to the OFF (O)
position.

PLATE WARMING

Place the plates/dishes on shelf position 1 from the base of the top oven, and turn
top oven temperature control (B) to 100˚C for 10-15 minutes.

Never use the grill setting control (A) when warming plates.

A

❍❍❍

B

C

TIMER

TOP OVEN UTENSILS

Do Not use: Meat Pans and Baking Trays larger than – 225mm x 300mm (9”x12”)

DO NOT use the grill pan or main oven meat pan as a meat pan in the top oven, as the
air circulation will be seriously restricted.

20

8-10

15-25

Time in mins.

20-30

15-20

10-15

75-90

45-50

on size

Depending

on use

40-45

Dependent

20-25

40-50

105-135

45-50

180-240

˚C

210/220

Temperature

Yes

heat

Pre-

Oven

Position in

Runner 2 from

bottom of oven.

10-15

Time in mins.

Top Oven Cooking Fan Oven Cooking

˚C

210/220

Temperature

Oven Temperature Charts – Baking

Yes

heat

Pre-

160/170

170/180

No

Runner 2 from

bottom of oven.

20-25

180/190

Yes

180/190

No

Yes

Runner 2.

Runner 2 from

20-25

20-30

170/180

180/190

Yes

Yes

140/150

190/200

No

Yes

oven

Runner 1 or 2

Runner 2 from

bottom of oven.

from bottom of

bottom of oven.

10-15

60-75 7 inch

150/160

200/210

Yes

Yes

130/140

190/200

No

No

oven

Runner 1 or 2

from bottom of

on size

Time Dependent

140/150

Yes

Runner 1 from

bottom of oven.

Runner 1 or 2 from

on recipe

Time Dependent

Time Dependent

190/200

Yes

180/190

190/200

No

bottom of oven.

on recipe

200/210

Yes

190/200

Yes

Yes

bottom of oven.

Runner 1 or 2 from

Runner 1 or 2 from

20-30

30-40

200/210

190/200

Yes

Yes

130/140

140/150

No

No

Runner 1 from

Runner 1 from

bottom of oven

40-50

90-120

140/150

150/160

Yes

Yes

bottom of oven

bottom of oven.

80-90

200/210

No

Yes

Runner 1 from

Runner 2 from

bottom of oven

bottom of oven.

30-45

150-180

100

200/210

Yes

Yes

Food

Baking

Small Cakes

Scones

Victoria Sandwich

Sponge Sandwich

(fatless)

Swiss Roll

Semi-rich Fruit

cakes

Rich Fruit Cakes

Shortcrust Pastry

Puff Pastry

Yorkshire Pudding

Individual Yorkshire

Puddings

Milk Pudding

Baked Custard

Bread

Meringues

21

Note: If soft margarine is used for cake making, temperatures recommended by the manufacturers should be followed. Temperatures recommended

in this chart refer to cakes made with block margarine only.

Time (approx.)

(1lb) + 20 mins extra

20-25 mins per 450g

(1lb) + 25 mins extra

20-30 mins per 450g

(1lb) + 25 mins extra

25-30 mins per 450g

25-30 mins per 450g

C

o

(1 lb) at 150/160

(1lb) + 25 mins extra

13-15 mins per 450g

(1lb) + 20 mins extra

18-20 mins per 450g

C

o

- 2 hrs

2

/

1

1

450g at 150

allow 12 mins per

˚C

Temperature

heat

Pre-

Meat

Oven

Position in

Time (approx.)

Top Oven Cooking Fan Oven Cooking

Oven Temperature Charts – Meat

35 mins per 450g (1 lb)

160/180

No

Beef

160/180

No

Lamb

(1 lb)

+ 35 mins over.

35-40 mins per 450g

+ 40 mins over

40 mins per 450g (1 lb)

160/180

No

Pork

Runner 1

160/170

No

Veal

from

160/180

No

Chicken/ Turkey

up to 4kg (8 lb)

bottom

of oven.

(1 lb)

(1 lb) + 40 mins over

40-45 mins per 450g

40-45 mins per 450g

40 mins per 450g (1 lb)

150/160

No

Turkey 4 to 5.5kg

(8 to 12 lb)

140-150

No

over 5.5kg (12 lb)

Casserole Stews

hrs

2

/

1

(1 lb)

2-2

(1 lb) + 25 mins over

25-30 mins per 450g

25-30 mins per 450g

22

˚C

Temperature

heat

Pre-

Meat

Meat

170/180

190/200

Yes

Yes

Beef/ Lamb

(slow roasting)

Beef/ Lamb

(foil covered)

170/180

190/200

Yes

Yes

Pork

(slow roasting)

Pork

(foil covered)

170/180

190/200

Yes

Yes

Veal

(slow roasting)

Veal

(foil covered)

170/180

190/200

Yes

Yes

Poultry/Game

(slow roasting)

Poultry/Game

(foil covered)

Casserole

150

Yes

Cooking

If using aluminium foil, never: 1. Allow foil to touch sides of oven. 2. Cover oven interior with foil. 3. Cover shelves with foil.

The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the

thickest part of a joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer will indicate when

Medium: 70˚C Pork: 90˚C

Well Done: 75˚C Veal: 75˚C

the required internal temp has been reached.

Beef - Rare: 60˚C Lamb: 80˚C Poultry: 90˚C

Using the Main Oven for Fan Cooking

Since a circulaire fan oven heats up more quickly and generally cooks food at a
lower temperature than a conventional oven, pre-heating is often unnecessary. For
guides on ‘pre-heating’, ‘cooking temperatures’ and ‘cooking times’ see “Oven
Temperature Charts” later in this book.

Note: Charts are a guide only, to suit personal taste and requirements, it may be

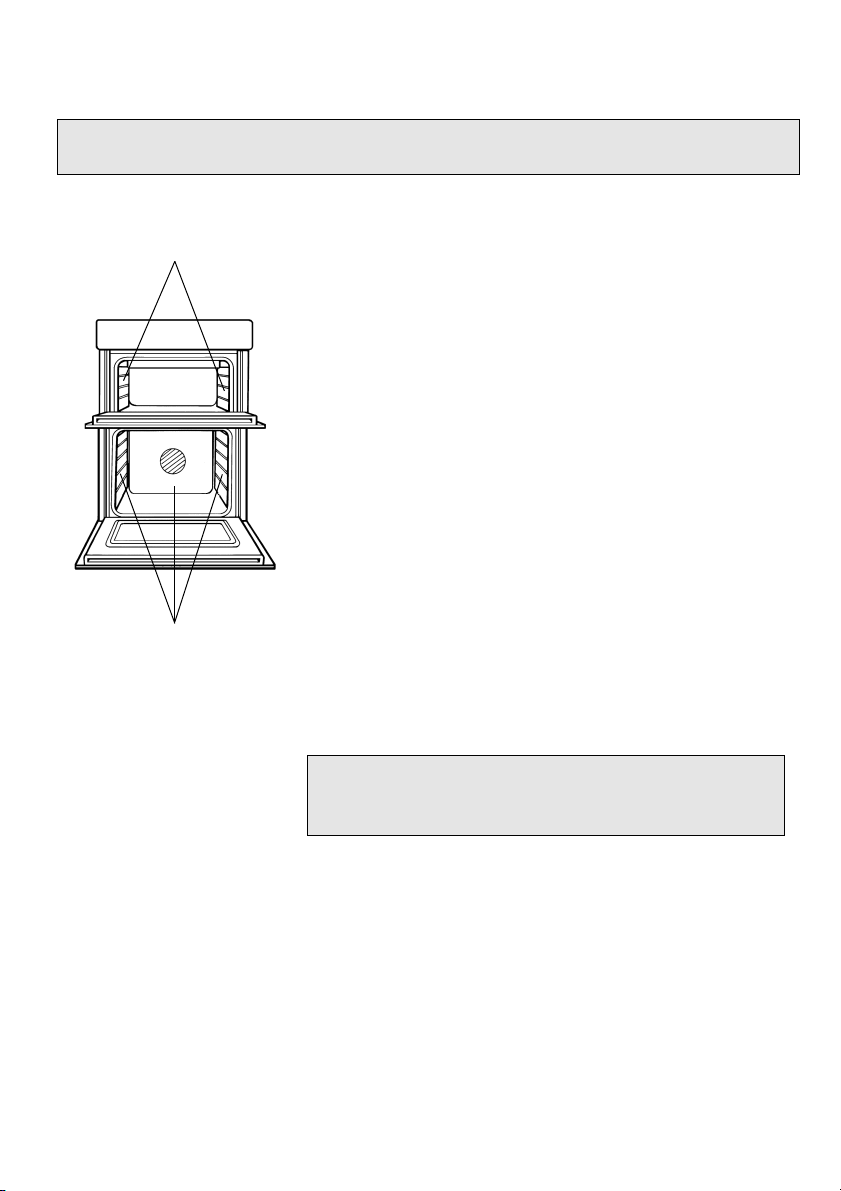

MAIN OVEN SHELF POSITIONING FOR FAN OVEN

Most foods will cook satisfactorily on any shelf position, due to even distribution of
heat in the main oven, but the shelves must be evenly spaced.

The top oven rod shelf can be used in the main oven when cooking large quantities
of food. (NB. Maximum 3 shelves in the main oven).

Food or utensils should never be placed directly on the floor of the oven for cooking.

DO NOT allow young children near to the appliance when the main oven is in use as the
surfaces get extremely hot.

MAIN OVEN UTENSILS

DO NOT use: Meat Pans larger than - 375mm x 300mm (15"x12")

necessary to increase or decrease temperatures by 10˚C. It may also be
necessary to increase or decrease cooking times.

Baking Trays larger than - 325mm x 250mm (13"x10")

TEMPERATURE & TIME

When all three shelves are in use to cook large quantities of food, it may be
necessary to increase the cooking times given in the temperature charts by a few
minutes, to allow for the loss of heat due to extra time taken to load the oven, and
larger mass of food. Baking trays shold have an even gap around the oven.

23

Operation when using the Main Oven
for Fan Cooking

MAIN FAN OVEN OPERATION

MAIN OVEN TEMPERATURE & FUNCTION CONTROL

❍❍❍

TIMER

Step 1 Check that the timer is in manual.

Step 2 Place the shelf/shelves in the correct position (see Main Oven Temperature

Step 3 Place the food centrally on the shelf ensuring the oven door is fully closed.

Step 4 Select the required cooking temperature (80 to 230˚C or MAX, depending on

Note: When you have finished using your cooker, always return the controls to

Charts.

Model) by turning control (C) clockwise. The pilot light ( ● ) will immediately
come on, and remain on until the oven reaches the required temperature. The
light will then automatically go off and on during cooking as the oven
thermostat maintains the correct temperature.

their OFF (O) position. At the end of the cooking period there may be a
momentary puff of steam when the door is opened. This will disperse in a
few seconds and is a perfectly normal characteristic of an oven with a good
door seal.

24

Using the Main Oven for Other Functions

FAN ONLY SETTING

DEFROSTING FROZEN MEAT & POULTRY

Joints of meat and whole birds should be defrosted slowly, preferably in a
refrigerator (allowing 5-6 hours per lb.) or at room temperature (allowing 2-3
hours per lb.).
Frozen meat or poultry must be completely defrosted before cooking in the oven.

However, to decrease the amount of time required to defrost food items, a non­heating fan only setting may be selected for the main oven only.

OPERATION: TO ASSIST IN DEFROSTING:

Place food in the oven and close the oven door.

Turn the Main Oven Temperature and Function Control (C) clockwise to the
setting.

This defrosts by circulating the air around the food, time to defrost will depend
on type and size of the food.

NOTES: DO NOT defrost meat and poultry by warming the food through.

Foods ideally suited to defrosting using the fan only setting are cream/cream
cakes, butter cream filled cakes, gateaux, cheese cakes, iced cakes, quiches,
pastries, biscuits, bread, croissants, fruit and many delicate frozen foods.

If fish, meat and poultry are to be defrosted using the fan only setting, where
possible it is recommended that the food should be small & thin.

The items should be placed so that the maximum amount of surface area is
exposed to the circulating air, and that they are turned regularly to ensure even
defrosting.

Larger cuts of meat and poultry may be defrosted by using the fan only setting
up to a maximum weight of 2 kg (4lb 8oz).

It is important to wash both meat and poultry and cooking utensils immediately
after defrosting and before cooking. Food should be cooked immediately after
defrosting.

It is very important to strictly adhere to the basic principles of food handling and
hygiene to prevent the possibility of bacterial growth.

LIGHT ONLY SETTING

When the Main Oven Temperature & Function Control (C) is turned clockwise to
the setting, the main oven light only will illuminate.

25

Using the Main Oven for Other Functions

‘S’ SLOW COOK SETTING

This is used for slow cooking, keeping food warm and warming plates for short
periods. Extra care should be taken when warming bone china, as it may be
damaged in a hot
oven.

DO NOT place food or plates directly on the oven floor as this could damage both the oven
lining and the plates which are being warmed.

ADVANTAGES OF SLOW COOKING ARE:

The oven stays cleaner because there is less splashing.
Timing of food is not as critical, so there is less fear of overcooking.
Inexpensive joints of meat are tenderised.
Fully loading the oven can be economical.
Cooking times can be extended in some cases by up to 2 hours.

OPERATION:

1. Place the prepared food in the main oven and ensure the door is fully closed.

2. Select Slow Cooking Temperature ‘S’ by turning Main Oven Temperature &
Function Control (C) clockwise.

STORAGE & RE-HEATING OF FOOD:

1. If food is to be frozen or not used immediately, place it in a clean container
and cool as soon as possible.

2. Always thaw frozen food completely in the refrigerator before re-heating.

3. Always reheat food thoroughly and ensure it is piping hot before serving.

4. Only re-heat food once.

POINTS TO CONSIDER WHEN PREPARING FOOD FOR SLOW COOKING

1. Make sure that the dishes to be used will fit into the oven ensuring enough room
for air to circulate.

2. All dishes cooked on the slow setting will require a minimum of 6 hours, however,
it they are cooked for 1-2 hours longer then deterioration in their appearance
may be noticed.

3. Never cook joints of meat over 2.7kg (6 lb) or poultry over 2.0kg (4lb 8oz).
We do not recommend that joints of meat or poultry are stuffed before cooking
on the slow setting.

4. To seal in the meat juices, always cook meat or poultry at 170
before wrapping in foil and placing on a rack over a tin (to allow good air
circulation) before turning the control to the slow setting and cooking
immediately.

5. Always ensure that joints of pork and poultry are thoroughly cooked by checking
with a meat thermometer before serving.

6. Always thaw frozen foods completely before cooking. We do not recommend
placing frozen food in the oven to cook.

7. Always bring soups, liquids and casseroles to the boil before placing in the oven.

8. Ensure that casserole dishes have a good seal (not airtight) and cover to the top
with foil to prevent loss of moisture.

9. Ensure that fruit and vegetables are cut into even sized small pieces to cook
properly.

10. Always adjust seasoning before serving.

11. If using dried red kidney beans it is important that the beans are soaked and
then boiled for a minimum of 10 minutes before using in any dish to destroy any
toxins.

12. When cooking fish or egg dishes it may be necessary to check during cooking to
avoid overcooking.

26

o

C for 30 minutes

Care and Cleaning

Warning: Before cleaning, please ensure that the electricity supply to the appliance is switched off
and the appliance is fully cold.

1. “STAYCLEAN” OVEN LINERS

TOP OVEN SIDES

MAIN OVEN REAR PANEL

AND SIDES

(a) How "Stayclean" works.

The surfaces of the "Stayclean" oven liners (Main Oven
rear panel) are treated with a special vitreous enamel
which absorbs cooking soils. At temperatures of 220°C
(425°F) or above, the special surface enables these soils
to be slowly destroyed.
The higher the temperature the more effective it is.

(b) Cleaning.

In most cases normal cooking operations at 220°C
(425°F) will permit this cleaning operation to proceed
during cooking. However if higher cooking temperatures
are not used regularly, it may be necessary, in order to
prevent heavy soiling, to run the ovens without shelves or
meat pan, at a maximum setting for a couple of hours.
It should not normally be necessary to clean the
"Stayclean" panels with water. If the user feels it is
desirable to do so, wipe them over with a clean, soapy
cloth, followed by a wipe with a clean damp cloth.

DO NOT use biological washing powder, harsh abrasives or
chemical oven cleaners of any kind as this could damage
the “Stayclean” oven liners.

(Top Oven Sides, Main Oven Sides and Rear Panel)

27

Care and Cleaning

2. CLEANING GRILL, TOP OVEN AND MAIN OVEN

(a) Base & Rear of Top Oven and Base of Main Oven.

OVEN
SHELVES

MAIN
OVEN
BASE

MEAT PAN

GRILL
PAN

BASE &
REAR

Wipe out the oven with a damp soapy cloth. For more
stubborn stains on the base of the oven use a well
soaped fine steel wool soap pad.

(b) Grill Pan & Oven Shelves.

To prevent stains from being burnt on to the grill pan,
food support and rod shelf, always wash immediately
after use in warm soapy water.
Use a well soaped fine steel wool soap pad to remove
stubborn stains from the rod shelves, grill pan, meat pan,
anti-splash tray and the base of the oven.

DO NOT use aerosol cleaners on this oven as they could
adversely affect the fan motor unit, and cannot be wiped off
the fan blade.

28

Care and Cleaning

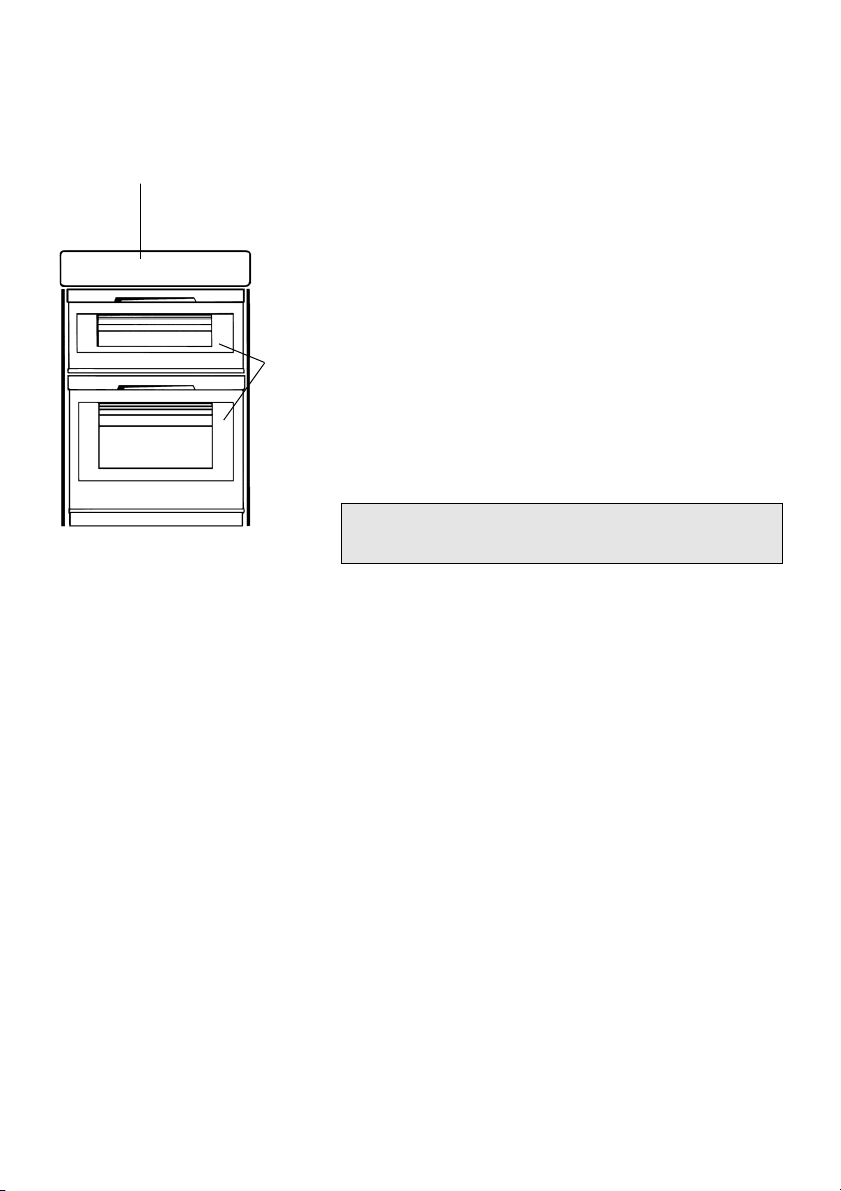

3. OVEN DOORS

CONTROL PANEL

OVEN
DOORS

(a) Control Panel
Regularly wipe with a clean, damp cloth and polish with a
clean, dry cloth.

(b) Inner Door Panels & Glass

Open the door fully. The glass panel may now be washed.
Stubborn stains can be removed by using a well soaped, fine

steel wool soap pad.

(c) Stainless trims (DY46X & BD42SS only)

Regularly wipe with a clean, damp cloth and polish with a
clean dry cloth.

DO NOT use scouring pads, or abrasive powder, which will
scratch the glass.

29

Care and Cleaning

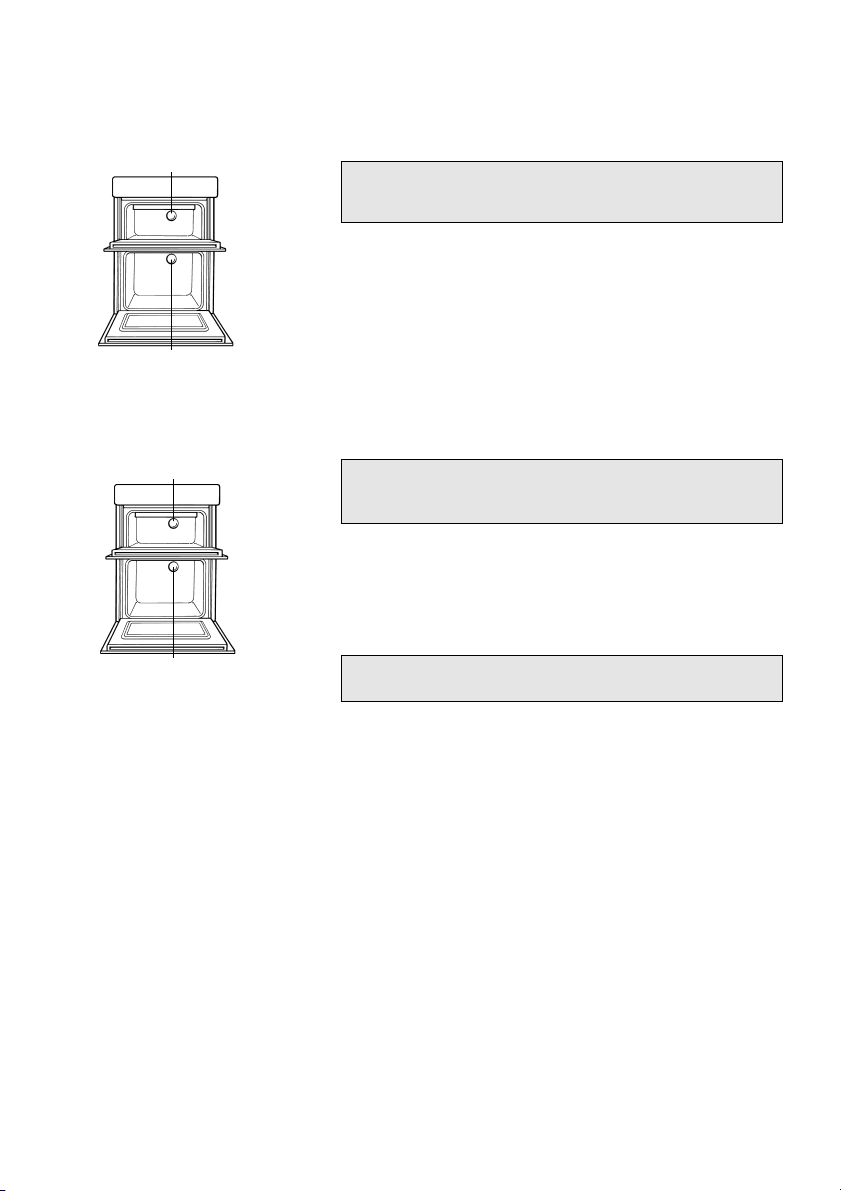

4. REPLACEMENT OF THE OVEN LAMP

TOP OVEN LAMP

Warning: To avoid electric shocks - please ensure that
the electricity supply to the appliance is switched off and
the appliance is fully cold, before removing the lamp lens.

Open the oven door and remove the oven shelves.
Using a thick cloth, grip the lamp lens, unscrew anti­clockwise and remove the lens.
Carefully unscrew the bulb anti-clockwise.
Fit replacement bulb (25W 300°C SES) and refit lens.

MAIN OVEN LAMP

5. HOW TO CLEAN THE LAMP LENS

TOP OVEN LAMP

MAIN OVEN LAMP

Warning: To avoid electric shocks - please ensure that the
electricity supply to the appliance is switched off and the
appliance is fully cold, before cleaning lamp lens.

Open the oven door and remove the oven shelves.

Using a thick cloth, grip the lamp lens, unscrew anti­clockwise and remove.
Clean with a non-abrasive cleansing cream and refit
lamp lens.

DO NOT use scouring pads, or abrasive powder, which will
scratch the glass lens

30

Care and Cleaning

Take particular care not to damage the inner surface of the door inner glass
that is coated with a heat reflective layer. Do not use scouring pads, or
abrasive powder, which will scratch the glass. Ensure that the glass panel is
not subjected to any sharp mechanical blows.

Stubborn stains can be removed by using a fine steel wool pad.
the inner glass panel may be cleaned, while still warm, without removing it from
the door. After cleaning, rinse and dry with a soft cloth.

CLEANING THE DOORS

SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors, except take care
to support the weight of the inner glass when removing and refitting.

DROP DOWN DOORS
Remove the door inner glass as follows.

1. Open the door fully and unscrew the two screws securing the glass
panel so that the securing brackets can be turned. There is no need to
remove the screws completely.

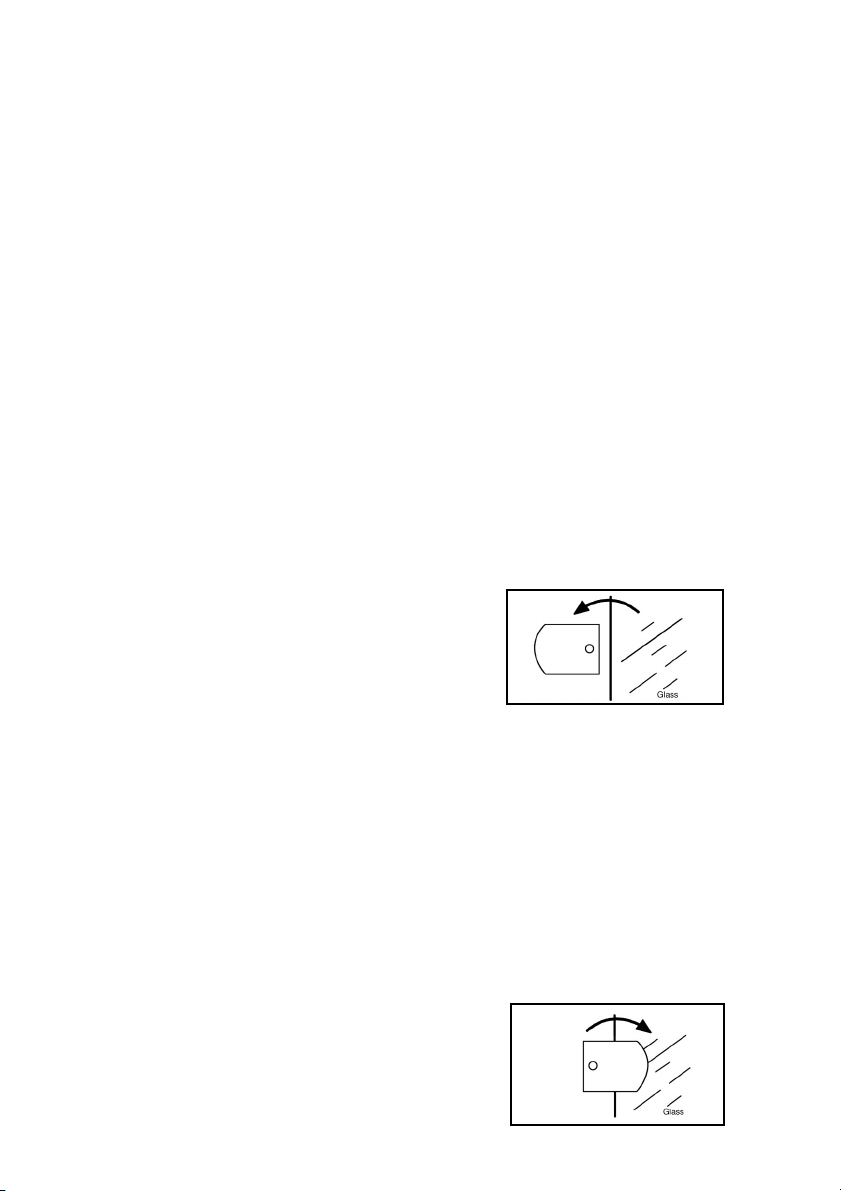

2. Turn the brackets so that the glass can be removed and cleaned at the
sink (Fig. 1.)

For slight soiling

Fig. 1.

3. The inside of the outer door glass can now be cleaned while still fitted
to the cooker.

NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS
IN POSITION.

Refit the door inner glass as follows.

1. NOTE: The inner door glass has a special reflective coating on one side.
Replace the door inner glass so that the statement: “IMPORTANT THIS
FACE TOWARDS THE OVEN” can be read from the inner side of the
door.

2. Turn the two securing brackets back to
their original position to retain the
glass and tighten the screws. (Fig. 2.)

Fig. 2.

31

Installation

Electrical Requirements

For your own safety, we recommend that your cooker is installed by a
competent person such as one who is registered with NICEIC (National
Inspection Council for Electrical Installation Contracting). The cooker should be
installed in accordance with the latest edition of the IEE Regulations.

Warning: This appliance must be earthed.

Electrical Connections

The installer must check that the voltage shown on the rating plate
corresponds with the house electricity supply.
The cooker must be supplied via a suitable double pole isolating switch, having a
contact separation of at least 3mm in all poles placed in a readily accessible
position adjacent to the cooker.
If the cooker is to be wired into a connector unit, this may be positioned behind
the cooker providing the following requirements are met:
i) The connector unit must not project from the wall more than 25mm.
ii) The top of the connector must not be more than 130mm above floor level.

Remove the terminal cover at the rear base of the cooker. Pass the cable
through the cable clamp and connect to the appropriate terminals provided.
Allow sufficient cable for any future servicing.
Tighten the screws on the cable clamp and replace the cover.
Make main connections in the connector unit or cooker control unit.
This appliance conforms to B.S. EN 55014 regarding suppression of Radio and
Television reception interference.
A double Pole control switch having a minimum rating of 32 amps should be used
to feed the cooker using a suitably rated cable.
Where a hob is fitted adjacent to or over the cooker, a 45 amp Double Pole
control switch should be used to feed both units via separate suitably rated
cables.
We recommend a minimum of 4mm
conforming to B.S. 6004 for connection of each appliance.

2

PVC insulated twin and earth cable

32

In all cases adhere to routing details (see fig. 4).

This appliance must not be installed over any other appliance that generates
heat such as a plinth heater.

Note: Due to many different types of installation, a mains cable is not supplied

with this product. The installer will fit the correct type and length of cable.

Installation

Important

It is essential that the lower cupboard is constructed in the manner illustrated
i.e. having side, back, and roof panels so joined as to provide no apertures which
could permit access to the oven unit when installed.

1. General

The appliance is designed for mounting at a safe level into an oven housing which
must be secured to the backing wall.

2. Ventilation

a. The oven housing unit cabinet dimensions must comply with fig. 4.
b. An air gap of 50mm minimum must be provided at the rear of any top or

bottom cupboards or shelves (see fig. 1).

c. It is necessary that the cabinets are provided with unobstructed ventilation,

i.e. from adjacent cabinetry. This can be done by either raising the base of
the cabinets using the adjusting feet (or spacers) or alternatively by
providing a slot in the cabinet plinth to the dimensions in fig. 1.

d. The air gap at rear allows the warmed air to pass out of the inner cabinet

space. Where it is intended to fit cupboards above the oven unit to ceiling
height, it is essential that the warmed air is exhausted through the front of
the cabinet (see fig. 1).

e. If an oven unit is installed adjacent to a tall cabinet, steam escaping from

the oven when the door is opened could condense on and maybe stain the
adjacent surface. To prevent permanent staining, the adjacent surface
should be made of a material that is heat resisting and easy to clean.
Adjacent tall cabinets should not be deeper than the oven housing cabinet.

3. Final Installation

a. Using a spirit level, check that the housing cabinet is level from side to side

and from front to back in its installed position.

b. Correct any unevenness by placing spacers under the bottom of the cabinet.

Make sure that the cabinet rests firmly on the floor without rocking.

c. Before the oven is fitted, the cabinet must be firmly secured to the backing

wall for stability.

d. The oven unit should now be lifted (this is a two person lift) into the cabinet

and pushed fully home.

e. Finally, the oven is secured to the cabinet by means of the four Phillips C/SK

Head screws - two through each side trim.

f. Remove all packaging material from the grill and oven interior.

List of loose items:

4 x Phillips C/SK Head No. 6 x 25mm screws.

33

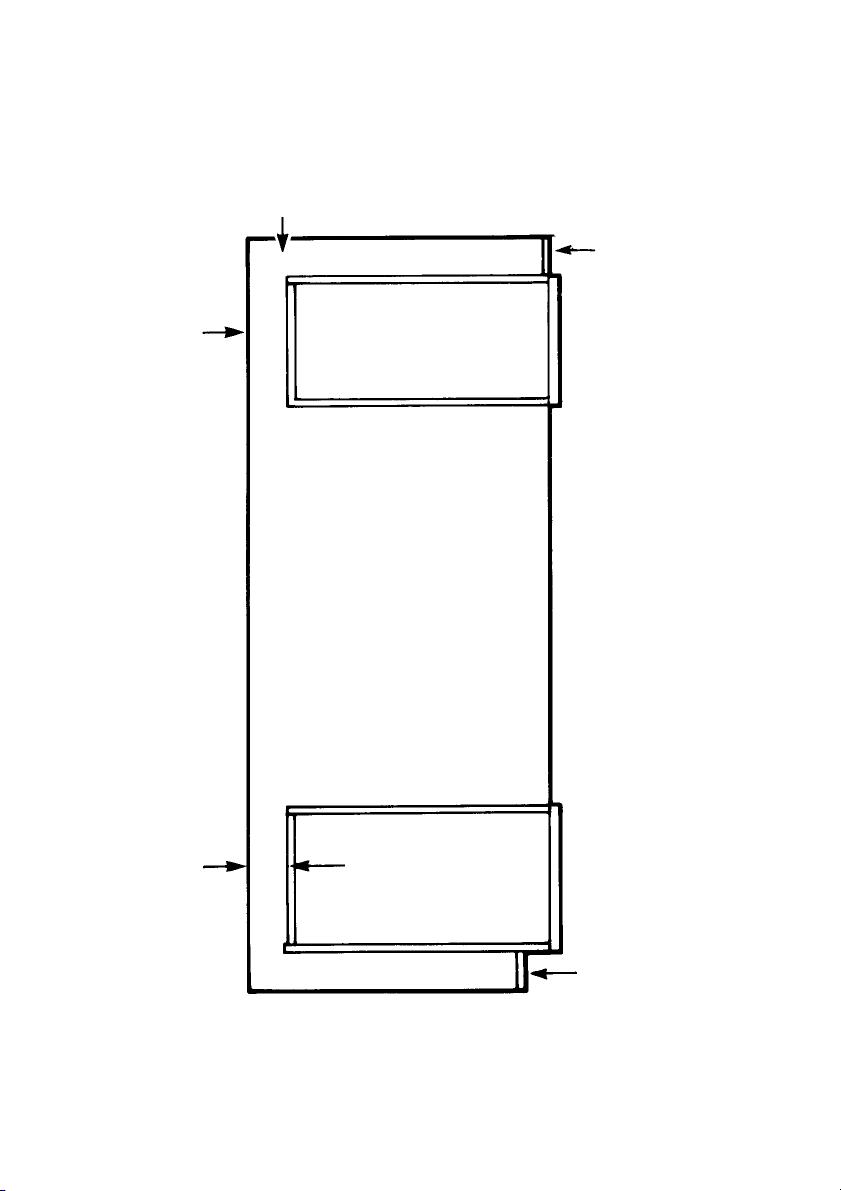

Tall Cabinet Ventilation

Fig. 1

Ventilation Slot required

here if cabinet does not

fit to ceiling -51mm x 457mm min. area

50mm

Air Gap

Ventilation Slot

required

here if the cabinet

does fit to the ceiling

- 51mm x 457mm min.
area

34

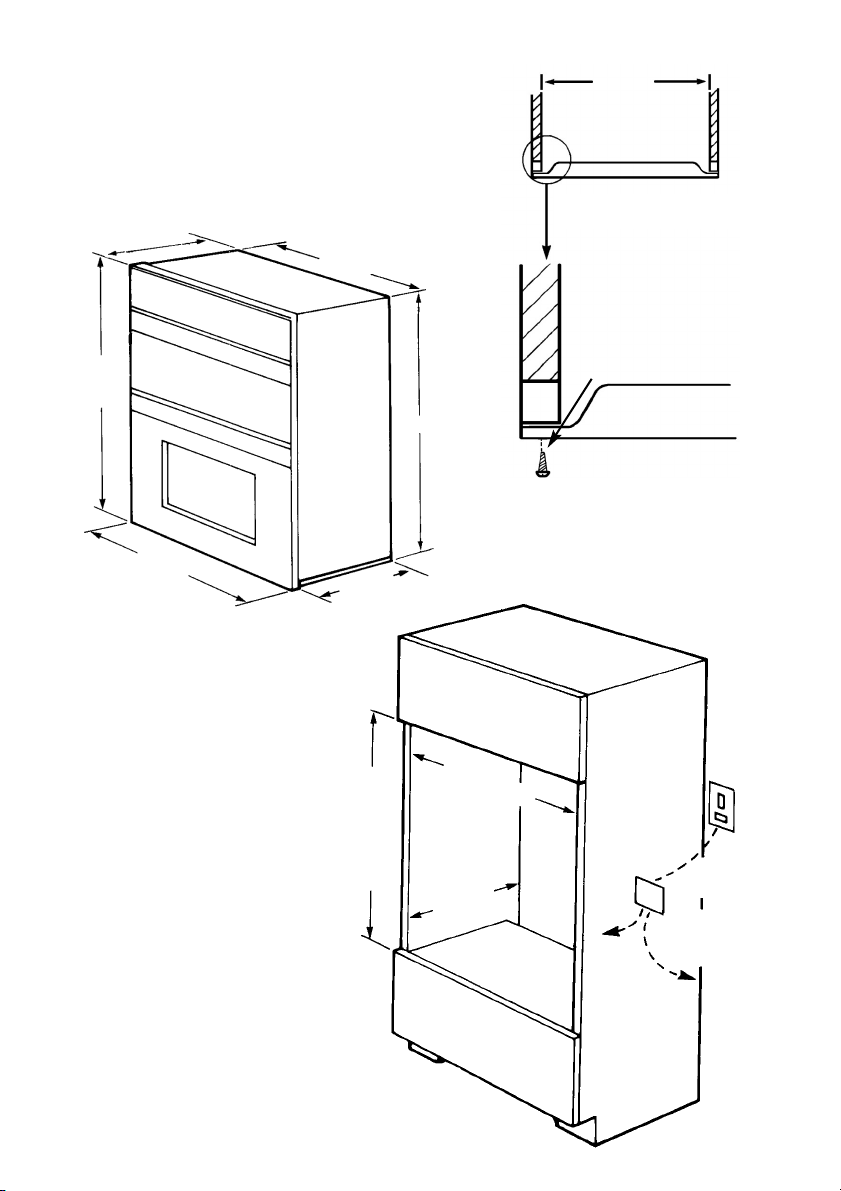

50mm

Air Gap

Ventilation Slot

required here

51mm x 457mm

min. area

562mm

570mm

exc. handle

knobs

882mm

Fig. 2

595mm

561mm

550mm

882mm,

870mm if

cooker

trim

is to

overlap

top edge

of shelf

Fig. 4

870mm

550mm

Cabinet

562mm

min *

Viewed down through cabinet

No. 6 x 25mm screw
(4 supplied)

Fig. 3

Oven Door

Connector

Box

2

4mm
Cable
To Oven

4mm

to Hob if

fitted

2

6mm
Cable

if hob fitted

2

Cable

* excluding pipe work

and other projections

35

If something goes wrong...

Before calling a Service Engineer, please check through the following lists.

THERE MAY BE NOTHING WRONG.

Problem Check

Slight odour or small
amount of smoke when
grill / oven used first
time

Nothing Works

Timer Display shows
"0:00" with "Auto"
Flashing

Main oven and Top
ovens do not work,
but the grill
works.

Top oven and grill
do not work, but
Main oven works.

Grill keeps turning
on and off

This is normal and should cease after a short period.

If you find that the timer display is blank, then it is likely that
there is no electricity supply to your oven. Check:

(i) That the main cooker wall is switched on
(ii) Other appliances, to see if you have had a power cut
(iii) The main circuit breaker for the property

The power supply to your oven has possibly been
interrupted, but has now come back on again. Reset the
timer to the correct day and "Manual" operation using the
instructions given in the timer section of the book.

Your timer may be set for an Auto Cooking programme:
Check the timer to see whether ‘Auto’ is lit or flashing. If it
is then please follow the instructions given in the Timer
section of this book to return the timer to Manual operation.

Operating the cooker under the following conditions may
cause a safety device to operate:
(a) Grilling with the door closed - Always grill with the door

fully open.

(b)Grilling for an excessively long period at maximum setting

- see Grilling guide.
Switch off appliance and allow to cool for approx 30 mins.
Switch the cooker back on and check that the Grill / Top
oven is now operating.

When the Grill control is operating at less than its maximum
setting, the Grill will cycle on and off, this is normal and not
a fault.

Timer buzzer / audible
tone operates continually

Oven temperatures
too high or low

Oven does not cook
evenly

36

To cancel the audible tone press the minute minder button.

Check temperature and shelf positions are as recommended
in the Oven Temperature Charts.
It may be necessary to increase or decrease the
recommended temperature slightly to suit your taste.

Check:
(a) Temperature and shelf positions are as recommended in

the Oven Temperature Charts.

(b)Oven utensils being used allow sufficient air flow around

them.

If something goes wrong...

Problem Check

Grilling is uneven

Oven lamp does not work

Condensation on the wall
at the rear of the
cooker.

Steam / Condensation
in the oven after use.

If you have been through the above list and there is still a problem,

Ensure that Grill pan has been positioned as stated in the
Grilling section of this book.

The oven lamp is not covered by the guarantee. The part is
easily changed (see the section on oven lamp replacement).
A new lamp may be obtained from our Genuine Parts &
Accessories Hotline (see ‘Key Contacts’, back page).

Steam and / or condensation may appear from the vent at
the rear of the appliance when using an oven particularly for
foods with a high water content e.g. frozen chips, roast
chicken etc. This is normal, and any excess should be wiped
off.

Steam is a by - product of cooking any food with a high
water contact. To help minimise always:
a) Try to avoid leaving food in the oven to cool after

being cooked.

b) Use a covered container, wherever possible.

contact Service (see ‘Key Contacts’, back page).

Disposal of your product

To minimise the risk of injury to children please dispose of your product carefully and
safely. Remove all doors and lids. Remove the mains cable (where fitted) by cutting off
flush with the appliance and always ensure that no plug is left in a condition where it
could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal
of your product.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE), requires that old household electrical appliances must not be disposed of in the
normal unsorted municipal waste stream. Old appliances must be collected separately in
order to optimise the recovery and recycling of the materials they contain and reduce
the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance.

37

Hotpoint Service Cover

Satisfaction Guaranteed or Your
Money Back

Hotpoint gives you a unique ‘Satisfaction Guaranteed’
promise – valid for ninety days after you have
purchased your Hotpoint product. If there is a
technical problem with your Hotpoint appliance, just
call Hotpoint Service (see back page). If necessary we
will arrange for an engineer to call. If the technical
problem is not resolved under this Guarantee,
Hotpoint will replace your appliance or, if you prefer,
give you your money back. Your statutory rights are
not affected, and the Guarantee is additional and
subject to the terms of Hotpoint’s Five Year Parts
Guarantee.

Hotpoint’s Free Five Year Guarantee

From the moment your appliance is delivered
Hotpoint guarantees it for FIVE YEARS.

• In the Five Years all replacement parts are FREE
provided that they are fitted by our own Service
Engineer. During the first year our Engineer’s time
and labour is also free.

• Our guarantee covers loss of food in our
refrigeration and freezer products up to £250
during the first year, subject to verification by one
of our engineers.

• After the first year we will charge for our
Engineer’s time and labour. We do, however,
operate a range of Service Plans (see opposite)
which, for an annual payment, enables you to cover
any repair costs which may be necessary.

• All our service repairs are guaranteed for twelve
months in respect of our labour and any parts
fitted.

• The appliance must be used in the United Kingdom,
and must not be tampered with or taken apart by
anyone other than our own Service Engineers.

• You may, however, buy parts which can be safely
fitted without specialist knowledge or equipment.
The correct fitting of such parts, provided they are
genuine Hotpoint spares, will not affect your
Guarantee. Parts are available from our Hotpoint
Spares Centres (see back page).

• Our guarantee does not cover the cost of any
repair, or loss of food in refrigeration products,
due to power failure, accidents or misuse. Nor does
it cover the cost of any visits to advise you on the
use of your appliance. Please read thoroughly the
instruction book supplied with this appliance.

• If at any time during the Guarantee period we are
unable to repair your appliance, we will refund any
repair costs paid to us in the previous twelve
months. We will also offer you a new appliance at a
reduced charge instead of a repair.

• Our Guarantee is in addition to and does not affect
your legal rights.

• Should you need independent advice on your
consumer rights, help is available from your
Consumer Advice Centre, Law Centre, Trading
Standards Department and Citizens Advice Bureau.

• All Hotpoint servicing is carried out by our own
Service Organisation located throughout the
United Kingdom and Eire. We will be happy to deal
with any problems which you may have.

38

Hotpoint’s Extended Warranties

Whether you have just one or a number of Hotpoint
appliances in your kitchen, Hotpoint has a range of
Service Plans to give you complete peace of mind.
They enable you to extend your one year labour
guarantee so that you can have repairs completed
FREE during the membership period.

Service Cover

We offer a number of payment methods; cheque,
credit card or you can spread the cost and pay by
direct debit (full details can be obtained on Free
phone [phone]). This covers you for all repairs
during the period of cover, which can be from 1 to 4
years. Service Cover also includes loss of food, up
to the value of £250, in refrigeration appliances.
There is also an option of Service Cover with
Maintenance at an additional cost. This includes an
annual Electrical and Safety check and replacement
of any parts as necessary.

Kitchen Cover

An annual payment covers you for all repairs for all
your Hotpoint appliances which are less than ten
years old. It also covers the cost of loss of food up
to £250 in our refrigeration and freezer products.
There is also the option of Kitchen Cover with
Maintenance at an additional cost. Any additional
Hotpoint appliances purchased after you have
joined Hotpoint Kitchen Cover will automatically be
included during the annual period of cover without
further charge.

Appliance Registration

To ensure that you have the opportunity to benefit
from any of the above Service Schemes and other
offers you should complete and return immediately
the Appliance Registration Form/Questionnaire
supplied with this appliance. Full details and costs of
our Service Schemes, together with an application
form, will be sent to you at the end of the first year
of the guarantee.

Annual Safety/Maintenance Checks

Hotpoint strongly recommends that all its
appliances are regularly checked for electrical and
mechanical safety, whether or not they are covered
by a Service Plan. Worn door gaskets or hoses may
cause a leak on an appliance, which could become
dangerous if neglected.

Proof of Purchase

For future reference please attach your purchase
receipt to this booklet and keep it in a safe place.

Spares and Accessories

Spares and accessories can be ordered from your
local Hotpoint Spares Centre (see back page), using
the order form enclosed.
NOTE: Our Engineers will use every effort to avoid
damage to floor coverings and adjacent units when
carrying out repairs/service work, but in locations
where the Engineer advises you that it will be
impossible to move appliances without risk of
damage, he will only proceed with your approval
that no liability is accepted.

Notes

39

Key Contacts

After Sales Service

Over 1100 trained specialists, directly employed by us, ensure that you can have

complete confidence in both the appliances and services we offer.

Repair Service and Information Help Desk

UK: 08709 066 066

Monday to Friday, 8am to 7.30pm

Saturday, 8.30am to 5.30pm

Sunday, 9.30am to 3.30pm

www.hotpointservice.co.uk

Note: Our operators will require the following information:

Republic of Ireland: 0818 313 413

Model number

Serial number

Extended Warranties

UK: 08709 088 088

Monday to Sunday, 8am to 8pm

www.hotpointservice.co.uk

Republic of Ireland: 0123 002 333

Genuine Parts and Accessories

Monday to Friday, 8.30am to 5pm

Republic of Ireland: 0818 313 413

Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB

PRINTED BY SIMLEX .FOUR ASHES, WOLVERHAMPTON. 09/2006 Part no. 195059689.00

UK: 08709 077 077

Saturday, 8.30am to 12noon

www.hotpointservice.co.uk

www.hotpoint.co.uk
