Hotpoint DF62 User Manual

Dishwasher / User Manual

EN

DF62

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning

WARNING Serious injury or death risk

RISK OF ELECTRIC SHOCK Dangerous voltage risk

FIRE Fire risk

CAUTION Injury or property damage risk

IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS ................................................................................................ 1

1.1. General Safety Warnings ..............................................................................................1

1.2. Installation Warnings .....................................................................................................1

1.3. During Use.....................................................................................................................2

2.INSTALLATION ................................................................................................................. 6

2.1. Machine Positioning .....................................................................................................6

2.2. Water Connection ..........................................................................................................6

2.3. Water Inlet Hose ............................................................................................................6

2.4. Drain Hose.....................................................................................................................6

2.5. Electrical Connection .................................................................................................... 7

3.TECHNICAL SPECIFICATIONS ....................................................................................... 8

3.1. General Appearance...................................................................................................... 8

3.2. Technical Specifications ................................................................................................8

4.BEFORE USING THE APPLIANCE ................................................................................. 9

4.1. Preparing your Dishwasher for first use .......................................................................9

4.2. Fill the Salt .....................................................................................................................9

4.3. Test Strip ...................................................................................................................10

4.4. Water Hardness Table .................................................................................................10

4.5. Water Softener System ...............................................................................................10

4.6. Setting ...................................................................................................................10

4.7. Detergent Usege .........................................................................................................10

4.8. Filling the Detergent .................................................................................................... 11

4.9. Using Combined Detergents ....................................................................................... 11

4.10. Rinse-aid Usege ........................................................................................................ 11

4.11. Filling the Rinse-aid and Setting ................................................................................ 11

5.LOADING YOUR DISHWASHER ....................................................................................12

5.1. Recommendations....................................................................................................... 1

5.2. Upper Basket ............................................................................................................... 1

5.3. Alternative Basket Loads .............................................................................................1

6.PROGRAMME TABLE .................................................................................................... 14

7.THE CONTROL PANEL .................................................................................................. 15

7.1. Changing a Programme ..............................................................................................1

7.2. Cancelling a Programme ............................................................................................. 1

7.3. Switching the Machine Off ........................................................................................... 1

8.CLEANING AND MAINTENANCE ................................................................................. 17

8.1. Cleaning the Machine and Filters ................................................................................ 1

8.2. Spray Arms .................................................................................................................. 1

9.TROUBLESHOOTING .................................................................................................... 18

10.PRACTICAL INFORMATION ........................................................................................ 20

11.THE PRODUCT FICHE ................................................................................................. 21

EN - 1

1. SAFETY INSTRUCTIONS

1.1. General Safety Warnings

• Carefully read all instructions before using your appliance and keep this manual for future reference.

Check the machine and its packaging for any damage. Never start using a damaged machine, contact an authorised service immediately.

• Unwrap the packaging as indicated and dispose of it

according to the rules provided.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved.Children should not play with the appliance.

Remove packaging and keep it out of reach of

children.

Do not allow children to play with the machine. Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

Ensure old machines do not threaten child safety. Children can lock themselves in old machines. To prevent such a situation, break the door lock and cut the mains cable.

1.2. Installation Warnings

• Choose a suitable and safe place to install your

machine.

EN - 2

• Follow the instructions on installing and connecting

the machine.

• Only original spare parts should be used with the

machine.

Unplug the machine before installation.

Machine should be installed by authorised service

only.

Check whether the indoor electrical fuse system is connected according to regulations.

All electrical connections must match the values on the plate.

Ensure the machine does not stand on the electrical supply cable.

Never use an extension cord or a multiple socket

connection.

The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the

first time.

The machine must not be plugged in during

positioning.

Always use the coated plug supplied with your

machine.

The machine’s electrical cable should be replaced in case of a damage by an authorised service or similarly qualified person to prevent a hazard.

1.3. During Usege

• This machine is for domestic use only; do not use it

for other purposes. Commercial use will void the

EN - 3

• guarantee.

Do not stand, sit or place loads on the open door of

the dishwasher.

Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

Do not drink water from the machine.

Due to the danger of an explosion, do not place any chemical dissolving agents into the machine’s washing section.

• Check the heat-resistance of plastic items before

washing them in the machine.

Cleaning and user maintenance shall not be made by children without supervision.

Do not put unsuitable items for dishwashing into the machine and do not over-fill any basket above its capacity.

• Our company will not be responsible for any

deformation inside of the machine due to misuse.

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

The machine door should not be left open. It may cause accidents.

Place knives and other sharp objects in the cutlery basket in a blade-down position.

For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not force the door close after 1 minute of auto-open. For effective drying,

EN - 4

keep the door open for 30 minutes after a programme is complete. Do not stand in front of the door after the auto-open signal sounds.

In the case of a malfunction, repair should only

be performed by authorised service personnel. Otherwise, the warranty will be void.

Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in

performance levels.

For safety, disconnect the plug once a program has

finished.

To avoid an electric shock, do not unplug the

machine with wet hands.

Pull the plug to disconnect the machine from the mains, never pull on the cord.

RECYCLING

• Some machine components and packaging consist of recyclable materials.

• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )

• The cardboard parts consist of recycled paper. They can be put into waste paper

containers for recycling.

• Material unsuitable for domestic waste must be disposed of at recycling centres.

• Contact a relevant recycling centre to obtain information about disposal of different

materials.

PACKAGING AND THE ENVIRONMENT

• Packaging materials protect your machine from damage that may occur during

transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

EN - 5

EN - 6

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand

on the electrical cable while positioning. Adjust the feet so the machine is level and

balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

2.3. Water inlet hose

WARNING: Use the new water inlet

hose supplied with your machine, do not use an old machine’s hose.

WARNING: Run water through the

new hose before connecting.

WARNING: Connect the hose

directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING: After the connections are

made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished.

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or

twisted.

2.4. Drain Hose

Connect water drain hose directly to water dra-in hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from flor plane.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.

EN - 7

2.5. Electrical connection

WARNING: Your machine is set

operates at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

The earthed plug of the

machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised

electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The indoor fuse current value should be 10-16 A.

EN - 8

3. TECHNICAL SPECIFICATIONS

12

3.1. General appearance

1. Upper basket with racks

2. Upper spray arm

3. Lower basket

4. Lower spray arm

5. Filters

6. Rating plate

7. Control panel

8. Detergent and rinse-aid dispenser

9. Cutlery basket

10. Salt dispenser

11. Upper basket track latch

12. Mini Active Drying Unit: This system

provides better drying performance for your dishes.

3.2. Technical specifications

Capacity

12 place settings

Dimensions Height Width Depth

820-870(mm) 596(mm) 550(mm

Net weight 38 kg

Operating voltage / frequency

220-240V 50 Hz,

Total current (A)

10(A)

Total power (W)

1900(W)

Water supply pressure

Maximum: 1 (Mpa) Minimum:

0.03 (Mpa)

EN - 9

4. BEFORE USING THE APPLIANCE

4.1. Preparing your Dishwasher for first use

• Check whether the electricity and supply

water specifications match the values indicated in the installation instructions for the machine.

• Remove all packaging materials inside

the machine.

• Set the water softener level.

• Fill the rinse aid compartment.

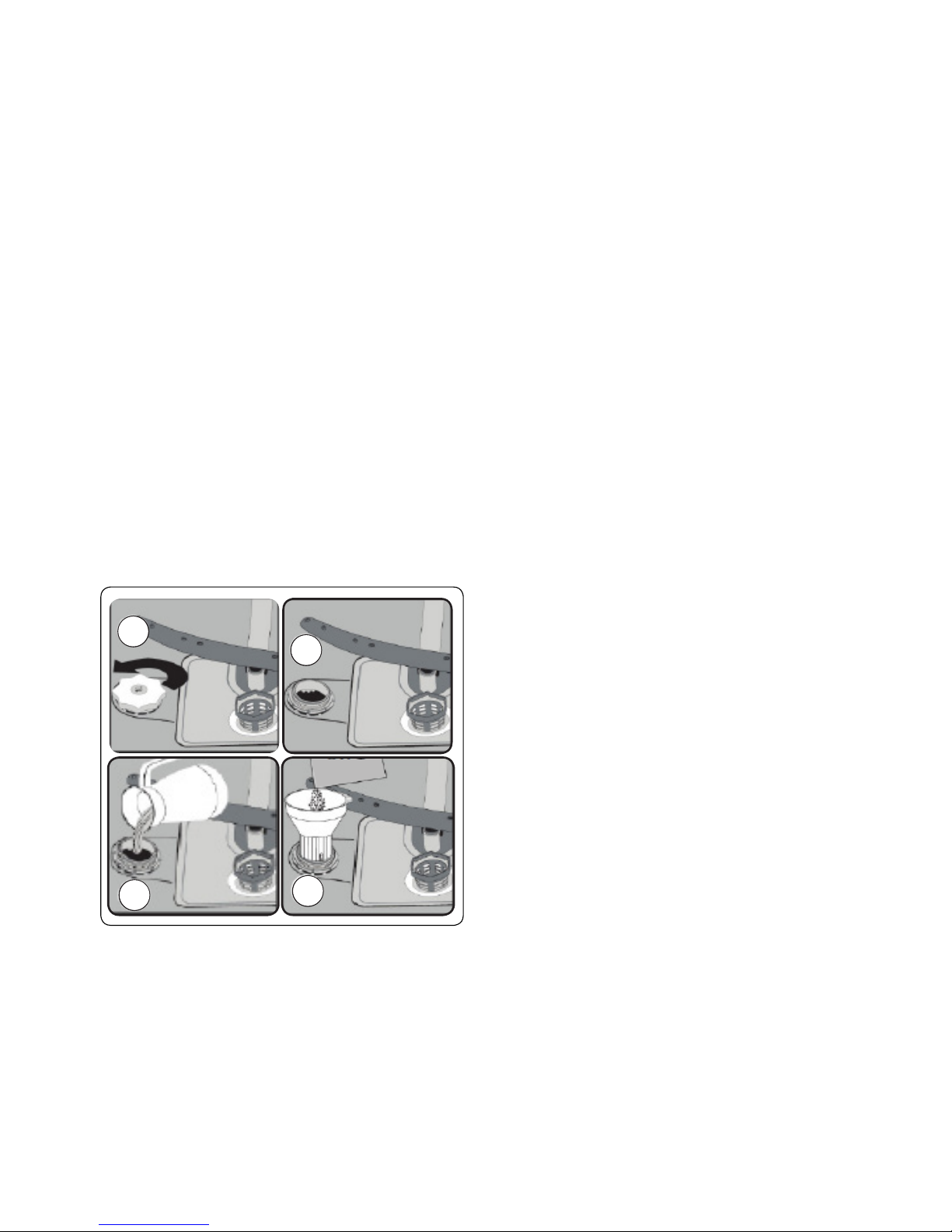

4.2. Fill the salt (IF AVAILABLE)

To fill with softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using the funnel (4) provided will make filling easier. Replace the cap and close it. After every 20th-30th wash, add salt into your machine until it fills up (approx. 1 kg).

SALT

3

4

1

2

Fill the salt compartment with water the first time you fill the salt compartment only.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run

a short washing program to protect your machine against corrosion.

EN - 10

4.3. Test Strip

Run water

through tap

(1min.)

Keep the

strip in

water (1sec)

Shake the

strip.

Wait

(1min.)

Set the hardness level of

your machine.

1 2 3 4 5 6

NOTE: Level is set 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.4. Water Hardness Table

Level German dH

French

dF

British

dE

Indicator

1 0-5 0-9 0-6 P1 LEDs are on.

2 6-11 10-20 7-14 P2 LEDs are on.

3 12-17 21-30 15-21 P3 LEDs are on.

4 18-22 31-40 22-28 P4 LEDs are on.

5 23-31 41-55 29-39 P1-P4 LEDs are on.

6 32-50 56-90 40-63 P2-P4 LEDs are on.

4.5. Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use the test strip (if available).

4.6. Setting

• Turn the knob to the “0/Reset” position.

• Push the “Start/Pause” button and hold down.

• Turn on the machine.

• Hold down the “Start/Pause” button until the lights flash and “SL” disappears.

• The machine will display the last setting.

• Set the level by pushing the “Start/Pause” button.

• Switch off the machine to save the setting.

4.7. Detergent usage

Only use detergents specifically designed for domestic dishwashers. Add the recommended amount of detergent for the selected programme to ensure the best

performance. Keep your detergents in cool, dry places out of reach of children. See the detergent manufacturer’s instructions for a further information.

EN - 11

4.8. Filling the detergent

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

DETERGENT

4.9. Using combined detergents

These products should be used according to the manufacturer’s instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to correct level.

4.10. Rinse-aid usage

Rinse-aid makes dishes sparkle and helps them to dry without spotting. Rinse-aid is required for stain-free utensils and clear glasses. Use only rinse-aid for domestic dishwashers.

4.11. Filling the rinse-aid and setting

To fill the rinse aid compartment, remove the rinse-aid compartment cap by turning it. Fill the compartment with rinse aid until the level indicator goes dark. Replace the cap and close it by turning it. Be careful not to overfill the rinse aid compartment and wipe up any spills.

The rinse-aid compartment has a level adjuster, numbered 1 to 6, which controls how much rinse aid is used in each wash.

The factory setting is “3”. If the dishes are not drying properly or are

spotted, increase the level. If blue stains form on your dishes, decrease level. To do this, remove the cap and rotate the indicator arrow setting then replace the cap.

EN - 12

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

We recommend that you place large items (pots, pans, lids, plates and bowls) which are heavily soiled in the lower basket.

The upper basket is designed for delicate and lighter dishware such as glasses, coffee and tea cups and saucers. Position the dishes so that they will not get moved by the spray of water.

Cutlery should be placed in the cutlery basket. Items should be loaded individually into the appropriate slots with their handles downwards. Long utensils should be placed horizontally on the baskets.

WARNING: Take care not to obstruct

the rotation of spray arms.

5.1. Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: Always place sharp

utensils with the sharp point down and open utensils with their openings down.

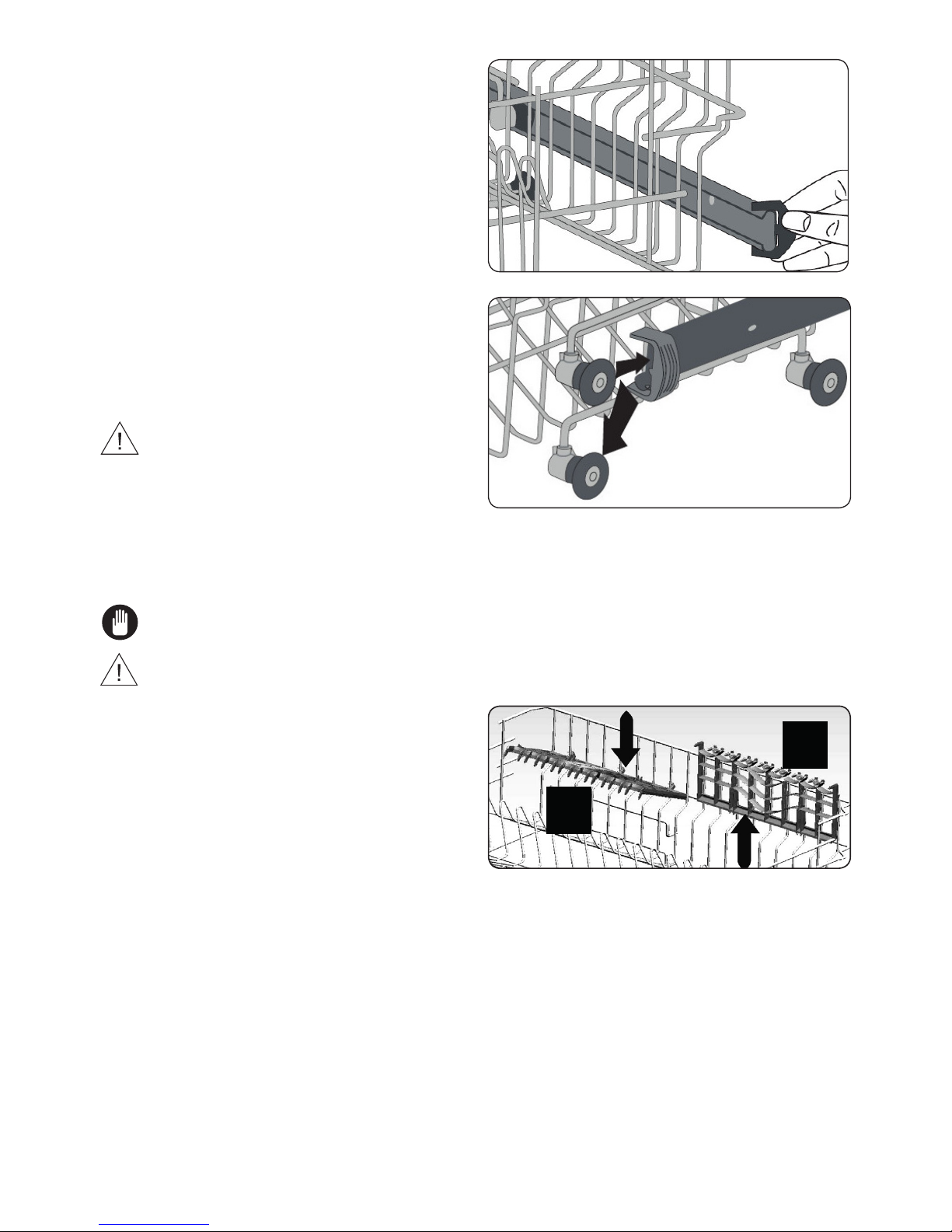

5.2. Upper Basket Height adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Top basket Fixed Rack

Upper basket racks have two positions: open (a) and closed (b). You can place cups on the racks to be washed. You can also place long forks, knives and spoons on the racks laterally.

a

b

EN - 13

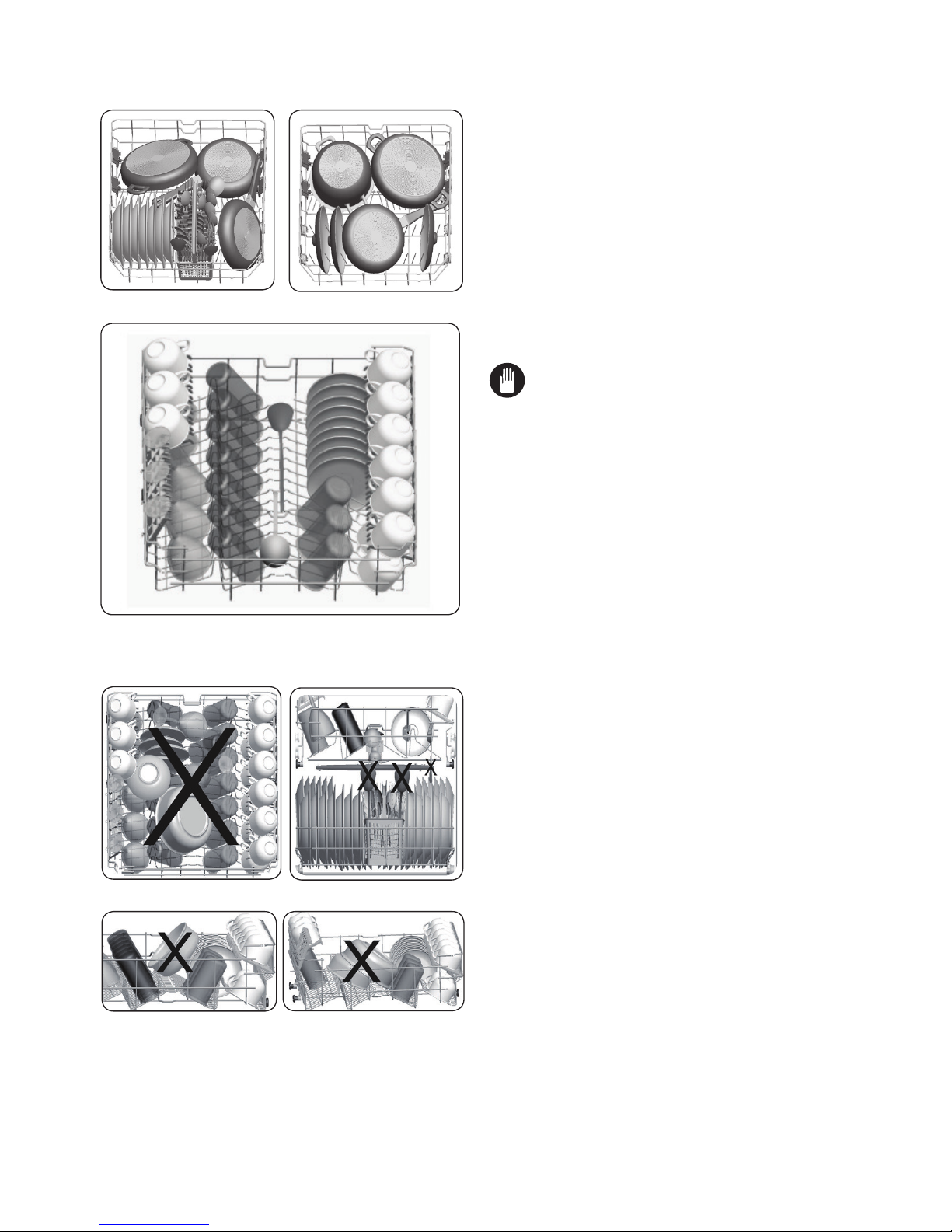

5.3. Alternative basket loads Lower basket

Upper basket

Incorrect loads

Unsuitable items for dishwashing

• Cigarette ashes, candle leftovers,

polish, paint, chemical substances, ironalloy materials.

• Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.

• Temperature-sensitive plastics, copper or tincoated containers.

• Aluminium and silver objects.

• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.

• Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase

dishwasher-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address:

[email protected]

EN - 14

6. PROGRAMME TABLE

Programme

Detergent

A: 5cm³ B1: 15cm³ B2: 25cm³

Duration

(min)

Description

Intensive A+B2 117 For heavily soiled dishes.

Super 50’ A+B2 50 For normally soiled, daily-used dishes with a faster programme.

Eco

(Reference)

A+B2 187 Standard programme for normally soiled, daily-used dishes.

Prewash - 15 To rinse dishes that you plan to wash later.

NOTE: THE PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF DISHES, THE WATER TEMPERATURE, THE AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

• Only use powder detergent for short programmes.

• Short programmes do not include drying.

• To assist drying, we recommend slightly opening the door after a cycle has finished.

EN - 15

7. THE CONTROL PANEL

1

4

2

3

Press the Power On/Off button (1), the End Of Programme Indicator (3) will illuminate.

Select the programme most suitable for your dishes using the Programme Selection button (2).

The light corresponding to the selected program (4) will illuminate and the End Of Programme Indicator will switch off.

The programme will start automatically when the door is closed.

NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections.

NOTE: When there is insufficient softening salt, the Salt Lack Warning Indicator (3) will illuminate to indicate the salt chamber needs filling.

NOTE: When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (3) will illuminate to indicate the rinse aid chamber needs filling.

7.1. Changing a Programme

Follow the steps below to change a programme while in operation.

NOTE: Open the door slightly at rst to stop the programme before it is complete in order to avoid water spillage.

7.2. Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

Open the door and press the

Programme Selection button to

select a new programme.

After closing the door, the new

programme will resume the

course of the old programme.

==

=

Press and hold the Programme

Selection button for 3 seconds. The

End Of Programme Indicator will flash

and the programme light will switch off.

The water discharge process will start

after the door of the machine is closed

and will continue for 30 seconds. When

a programme is cancelled, a buzzer will

sound 5 times and the End Of Programme

Indicator will illuminate.

When the door of your machine is

opened, the light corresponding

to the most recently selected

programme will illuminate.

7.3. Switching the Machine Off

=

When a programme is complete, the End Of

Programme Indicator will illuminate and a

signal will sound 5 times. You can then switch

your machine off using the Power On/Off

button.

Disconnect the plug and turn off

the water tap.

NOTE: Do not open the door before a

programme is complete.

NOTE: Leave the door of your machine slightly open at the end of a programme to speed up drying.

EN - 16

NOTE: If the door of the machine is opened or the power is cut during operation, the programme will continue when the door is closed or the power returns.

NOTE: If the power is cut or the machine door is opened during drying, the program will terminate. Your machine will be ready for new programme selection.

EN - 17

8. CLEANING AND MAINTENANCE

Cleaning your Dishwasher is important to maintain the machine’s service life.

Oil and lime may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with

dishwashers.

• Wipe the door seals regularly

with a damp cloth to remove any accumulated residue.

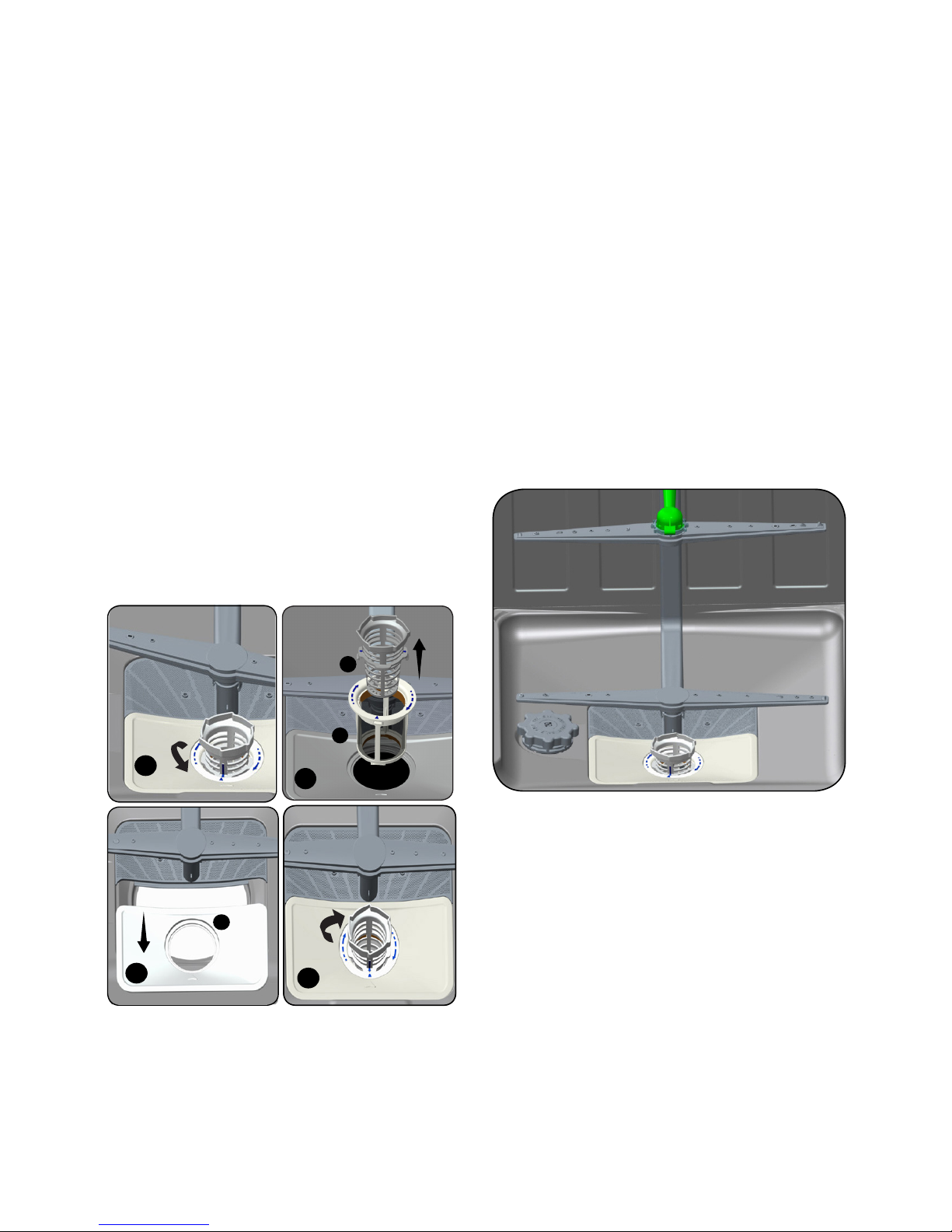

8.1. Cleaning machine and filters

Clean the filters and spray arms at least once a week. If any food waste remains on the coarse and fine filters, remove them and clean them thoroughly with water.

a)

Micro Filter b) Coarse Filter

c) Metal Filter

2

b

a

1

3

4

c

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove the metal filter (3).Rinse the filter with lots of water until it is free of residue. Reassemble

the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your Dishwasher without a filter.

• Incorrect fitting of the filter will reduce the washing effectiveness.

• Clean filters are necessary for proper running of the machine.

8.2. Spray arms

Make sure that the spray holes are not clogged and that no food waste is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

EN - 18

9. TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING

The programme does

not start.

Your Dishwasher is not plugged in. Plug your Dishwasher in.

Your Dishwasher is not switched on.

Switch your Dishwasher on by pressing the

On/Off button.

Fuse blown. Check your indoor fuses.

Water inlet tap is closed. Turn on the water inlet tap.

Your Dishwasher door is open. Close the Dishwasher door.

Water inlet hose and machine filters

are clogged.

Check the water inlet hose and machine

filters and make sure they are not clogged.

Water remains inside

the machine.

Water drain hose is clogged or

twisted.

Check the drain hose, then either clean or

untwist it.

The filters are clogged. Clean the filters.

The programme is not finished yet. Wait until the programme is finished.

Machine stops during

washing.

Power failure. Check mains power.

Water inlet failure. Check water tap.

Shaking and hitting

noises are heard during

a wash operation.

The spray arm is hitting the dishes in

the lower basket.

Move or remove items blocking the spray

arm.

Partial food wastes

remain on the dishes.

Dishes placed incorrectly, sprayed

water not reaching affected dishes.

Do not overload baskets.

Dishes leaning each another.

Place dishes as instructed in the section on

loading your dishwasher.

Not enough detergent used.

Use the correct amount of detergent, as

instructed in the programme table.

Wrong wash programme selected.

Use the information in the programme table

to select the most appropriate programme.

Spray arms clogged with food waste.

Clean the holes in the spray arms with thin

objects.

Filters or water drain pump clogged

or filter misplaced.

Check the drain hose and filters are

correctly fitted.

EN - 19

FAULT POSSIBLE CAUSE TROUBLESHOOTING

Whitish stains remains

on dishes.

Not enough detergent used.

Use the correct amount of detergent, as

instructed in the programme table.

Rinse aid dosage and/or water

softener setting set too low.

Increase rinse aid and/or water softener

level.

High water hardness level. Increase water softerner level and add salt.

Salt compartment cap not closed

properly.

Check that the salt compartment cap is

closed properly.

Dishes do not dry.

Drying option is not selected. Select a programme with a drying option.

Rinse aid dosage set too low. Increase rinse aid dosage setting.

Rust stains form on the

dishes.

Stainless-steel quality of the dishes

is insufficient.

Use only dishwasher-proof sets.

High level of salt in wash water.

Adjust the water hardness level using water

hardness table.

Salt compartment cap not closed

properly.

Check that the salt compartment cap is

closed properly.

Too much salt spilled in the

Dishwasher while filling it with salt.

Use funnel while filling salt to the

compartment to avoid spillage.

A poor mains grounding. Consult a qualified electrician immediately.

Detergent remains in the

detergent compartment.

Detergent was added when the

detergent compartment was wet.

Make sure detergent compartment is dry

before use.

EN - 20

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE POSSIBLE FAULT WHAT TO DO

P1 P2 P3 P4

Insufficient water

Make sure the water inlet tap is open and water

is flowing.

Separate the inlet hose from the tap and clean

the filter of the hose.

Contact for service if the error continues.

Continuous water input

Close the tap and contact for service.

Inability to discharge

water

Water discharge hose and filters may be

clogged.

Cancel the programme.

If the error continues, contact for service.

Contact for service.

Faulty heater and

heater senor

Contact for service.

Overflow

Unplug the machine and close the tap.

Contact for service.

Faulty electronic card Contact for service.

10. PRACTICAL INFORMATION

1. When the machine isn’t in operation:

• Disconnect the plug and close the tap.

• Leave the door slightly open to prevent odour formation.

2. Select the dry option to remove water droplets.

3. Place dishes in the machine properly to achieve the best energy consumption, washing

and drying performance. Please see the programme and consumption table for more information.

4. Rinse dirty dishes before placing them in the dishwasher.

5. Only use the Prewash programme when necessary.

6. Do not place the machine near a refrigerator because it will reach high temperatures.

7. If the machine is located in an area that is at risk of freezing, close the tap, disconnect

the inlet hose from the tap and drain the water inside the hose and the machine completely.

EN - 21

11. THE PRODUCT FICHE

Supplier's trade mark NORDMENDE

Supplier's model DF62

Capacity of dishwasher 12

The energy efficiency class A++

Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* 258

Energy consumption (Et) (kWh per cycle) 0,90

Off-mode power consumption (W) (Po) 0,50

Left-on mode power consumption (W) (Pı) 1,00

Annual water consumption in litres per year (AWc) ( 280 Cycle )** 3360

Drying efficiency class*** A

Standard programme name**** Eco

Programme time for standard cycle ( min) 187

Duration of the left-on mode (Tı ) (min) -

Airborne acoustical noise emissions ( dB(A) re 1 pW ) 49

Freestanding/Built-in Built-in

* Energy consumption 258 kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes. Actual energy consumption will depend on how the appliance is used.

** Water consumption 3360 litres per year based on 280 standard cleaning cycles. Actual

water consumption will depend on how appliance is used. *** Drying efficiency class A on a scale from G (least efficient) to A (most efficient). **** The “Eco” is the standard cleaning cycle to which the information in the label and the

fiche relates. This programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption.

EN - 22

.................................................................................................................................................

............................................................................................................................................. ...

.................................................................................................................................................

.......................................................................................................................................... ......

.................................................................................................................................................

....................................................................................................................................... .........

.................................................................................................................................................

.................................................................................................................................... ............

.................................................................................................................................................

................................................................................................................................. ...............

.................................................................................................................................................

.............................................................................................................................. ..................

.................................................................................................................................................

........................................................................................................................... .....................

.................................................................................................................................................

........................................................................................................................ ........................

.................................................................................................................................................

..................................................................................................................... ...........................

.................................................................................................................................................

.................................................................................................................. ..............................

.................................................................................................................................................

............................................................................................................... .................................

.................................................................................................................................................

......................................................................................

52198221 R24
