HOTPOINT CIU 642 F B User Manual
GB
English

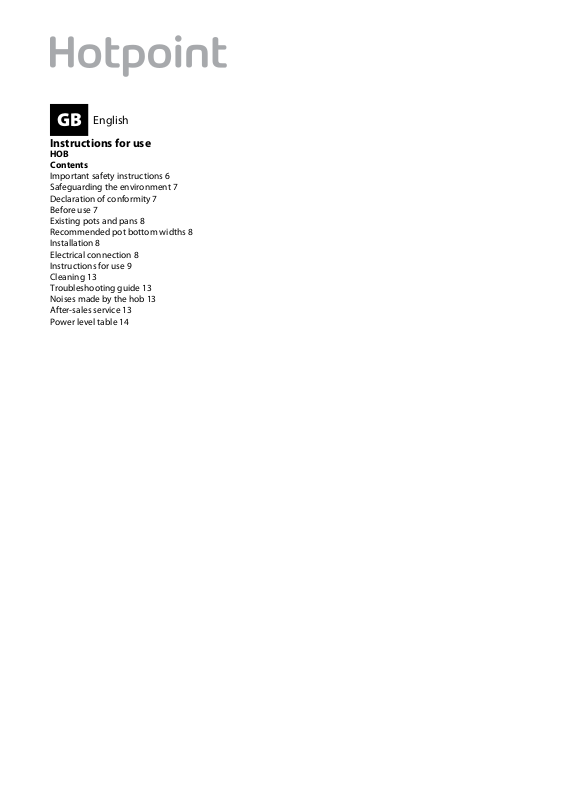

Instructions for use
HOB
Contents
Important safety instructions 6
Safeguarding the environment 7
Declaration of conformity 7
Before use 7
Existing pots and pans 8
Recommended pot bottom widths 8
Installation 8
Electrical connection 8
Instructions for use 9
Cleaning 13
Troubleshooting guide 13
Noises made by the hob 13
After-sales service 13
Power level table 14
145 mm 145 mm
HD FLEXI HD FLEXI HD FLEXI 280/180mm
HD FLEXI 210 mm 210 mm 145mmHD FLEXI210 mm 180mm
AVAILABLE HOB CONFIGURATION
GB
A
52 mm
580
650
700 mm
483 mm
510 mm
553 mm
0
+1
30 mm
560 mm
0
+2
490 mm
0
+2
513 mm
0
+2
0
+2
583 mm
0
+2
560 mm
R = 11,5 mm
R = Min. 6,5 mm
Max. 8 mm
R = 11,5 mm
490 mm
Min. 50 mm
0
+2
B
52 mm
483 mm
770 mm
742 mm
510 mm
0
+1
30 mm
R = Min. 6,5 mm
490 mm
Min. 50 mm
513 mm
Max. 8 mm
0
+2
750 mm
0
+2
0
+2
773 mm
0
+2
R = Min. 6,5 mm
Max. 8 mm
0
+2
750 mm
R = 11,5 mm
6 mm
R = Min. 6,5 mm
Max. 8 mm
Min. 50 mm
R = 11,5 mm
0
+2
490 mm
6 mm
C
52 mm
325 mm
770 mm
742 mm
350 mm
0
+1
30 mm
750 mm
0
+2
330 mm
R = Min. 6,5 mm
0
+2
Max. 8 mm
Min. 50 mm
4
Min. 10 cm
X 4
Min. 3 cm
Max. 6 cm
Min. 5 mm
1 2
3
Min. 5 mm
5
ENGLISH Installation Page 4 Instructions for use Page
These instructions shall also be available on website: www.hotpoint.eu
IMPORTANT SAFETY INSTRUCTIONS
YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT
This manual and the appliance itself provide important safety messages, to be read and always observed.
This is the danger symbol, regarding safety, warning of potential risks to users and others.
All safety messages will be preceded by the danger symbol and the following words:
DANGER
WARNING
Indicates a hazardous situation which, if not avoided, will result in serious injury.
Indicates a hazardous situation which, if not avoided, could cause serious injury.
All messages relevant to safety specify the potential risk to which they refer and indicate how to reduce
the risk of injury, damage and electric shocks due to incorrect use of the appliance. Make sure to comply
with the following:
- Use protective gloves to perform all unpacking and installation operations.
- The appliance must be disconnected from the power supply before carrying out any installation
operation.
- Installation and maintenance must be carried out by a specialised technician, in compliance with the
manufacturer’s instructions and the local safety regulations in force. Do not repair or replace any part
of the appliance unless specifically stated in the user manual.
- The appliance must be earthed.
- The power cable must be long enough for connecting the appliance, fitted in the cabinet, to the
power supply.
- For installation to comply with the current safety regulations, an omnipolar switch with minimum
contact gap of 3mm is required.
- Do not use multi-sockets or extension cords.
- Do not pull the appliance’s power cable.
- The electrical parts must not be accessible to the user after installation.
- The appliance is designed solely for domestic use for cooking food. No other use is permitted
(e.g. heating rooms). The Manufacturer declines any liability for inappropriate use or incorrect setting
of the controls.
- The appliance and its accessible parts become hot during use. Care should be taken to avoid touching
heating elements. Very young (0-3 years) and young children (3-8 years) shall be kept away unless
continuously supervised.
- Children from 8 years and above and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge can use this appliance only if they are supervised or have been
given instructions on safe appliance use and if they understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
EN6
