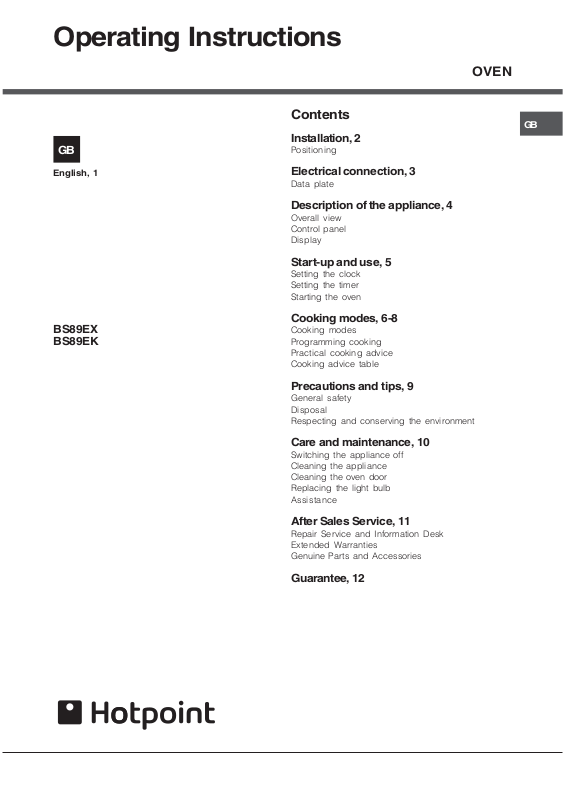

Hotpoint BS89EK, BS89EX User Manual

Operating Instructions
OVEN
GB
English, 1
BS89EX BS89EK
Contents
GB
Installation, 2
Positioning
Electrical connection, 3
Description of the appliance, 4
Overall view Control panel Display
Start-up and use, 5
Setting the clock Setting the timer Starting the oven
Cooking modes, 6-8
Cooking modes Programming cooking Practical cooking advice Cooking advice table
Precautions and tips, 9
General safety Disposal Respecting and conserving the environment
Care and maintenance, 10
Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb Assistance
After Sales Service, 11
Repair Service and Information Desk Extended Warranties Genuine Parts and Accessories
Guarantee, 12
Installation
560 mm.
45 mm.
GB
! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
Positioning
! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. (see Precautions and tips).
! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.
Built-in appliance
Use the appropriate cabinet to ensure that the appliance functions properly.
 The panels adjacent to the oven must be made of
heat-resistant material.
Ventilation
To ensure adequate ventilation is provided, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).
Centring and fixing
Position the 4 tabs on the side of the oven, in line with the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below:
20 mm thick: take off the removable part of the tab (see diagram).
 Cabinets with a veneer exterior must be
assembled with glues which can withstand temperatures of up to 100°C.
 to install the oven under the counter (see diagram)
or in a kitchen unit, the cabinet must have the following dimensions:
.
in
. m
m
m
7
4
5
567 mm.
45 mm.
558 mm.
593 mm.
23 mm.
595 mm.
5 mm.
595 mm.
545 mm.
24 mm.
! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation.
18 mm thick: use the first groove, which has already been set in the factory (see diagram).
16 mm thick: use the second groove (see diagram).
Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame.
! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.
2
Electrical Connection
Electrical connection
The electrical connection to the mains must be made on the appliance. The power voltage and frequency are as indicated on the rating plate.
! THIS APPLIANCE MUST BE EARTHED.
Connecting the power supply cable
To open the terminal board:
 Using a screwdriver, press on the tabs situated
on each side of the terminal board cover.
 Pull open the terminal board cover.
To connect the power supply cable, proceed as follows:
_ Unscrew the cable clamp screw and the contact
screws L-N-$.
 Fasten the wires beneath the screwheads using
the following colour scheme: Blue (N) Brown (L)
Yellow-Green$
 Fasten the power supply cable in the
corresponding cable clamp and close the cover.
Electrical Connection:
Voltage Frequency: 230 V-1+N 50Hz Fuse Section: 16A Supply cable: 3x1.5mm
2
42 NL
Power cable supply connection to the electrical mains:
We recommend you use a power supply cable which is long enough to allow you to take the oven out of its recess in the event of maintenance operations (only use HAR - H 05 - RRF quality cables fitted with a plug conforming to the regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations, even when replacing the oven lamp.
Using the appliance without correct earthing is highly dangerous.
! After connecting the appliance cable, tighten all the screws on the terminal board.
TABLE OF CHARACTERISTICS
width 43.5 cm
Dimensions
Volume
Electrical connections
height 32 cm depth 40 cm
56 l
voltage: 220 - 240 V~ 50/60Hz maximum power absorbed 2800 W (see data plate)
Directive 2002/40/EC on the label of electric ovens. Standard EN 50304
to the flexible
ENERGY LABEL
Energy consumption for Natural convection – heating mode: Traditional mode
Declared energy consumption for Forced convection Class – heating mode: Baking
GB
You can connect your oven to the system means of a terminal board. Refer to above information for the minimal cable sections and the calibration of the protective elements according to the connection. If the appliance is installed with a junction box, an omnipolar circuit breaker - with a minimum contact opening of 3mm - should be installed between the appliance and the mains.
This appliance conforms to the following European Economic Community directives: 73/23/EEC dated 19/02/73 (Low Voltage) and subsequent amendments ­89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments ­93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EC
3
Description of the appliance
GB
Overall view
Control panel
Control panel
GRILL
DRIPPING PAN
SELECTOR Knob
DISPLAY
GUIDES for the sliding racks
position 5
position 4 position 3 position 2 position 1
THERMOSTAT
knob
Display
4
Preheating
indicator
LIGHT
button
TIMER
icon
TIME SETTING button
TIMER knob
TEMPERATURE
and TIME digits
CLOCK
icon
END OF COOKING icon
DURATION icon
