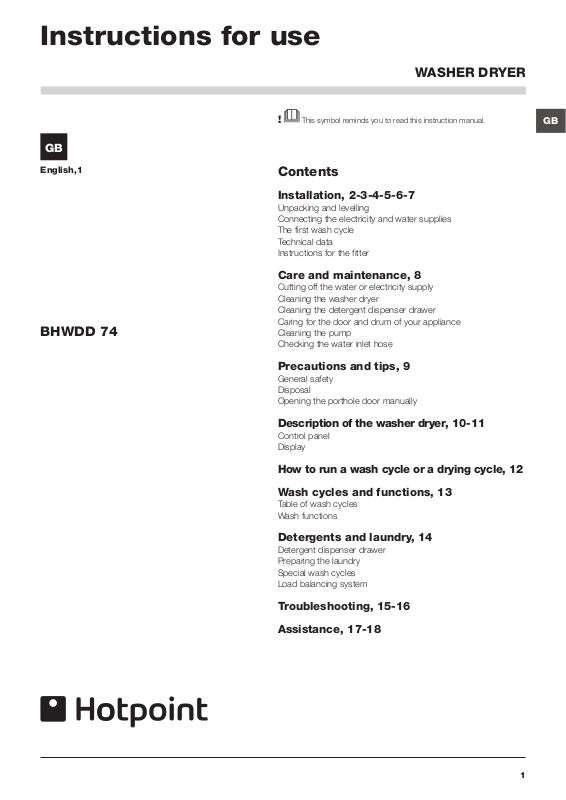

Hotpoint BHWDD 74 User Manual
Instructions for use
WASHER DRYER
GB
English,1
BHWDD 74
! This symbol reminds you to read this instruction manual.
Contents
Installation, 2-3-4-5-6-7
Unpacking and levelling
Connecting the electricity and water supplies
The first wash cycle
Technical data
Instructions for the fitter
Care and maintenance, 8
Cutting off the water or electricity supply
Cleaning the washer dryer
Cleaning the detergent dispenser drawer
Caring for the door and drum of your appliance
Cleaning the pump
Checking the water inlet hose
Precautions and tips, 9
General safety
Disposal
Opening the porthole door manually
GB
Description of the washer dryer, 10-11
Control panel
Display
How to run a wash cycle or a drying cycle, 12
Wash cycles and functions, 13
Table of wash cycles
Wash functions
Detergents and laundry, 14
Detergent dispenser drawer
Preparing the laundry
Special wash cycles
Load balancing system
Troubleshooting, 15-16
Assistance, 17-18
1
Installation
GB
! Keep this instruction manual in a safe place for
future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual
accompanies the washing machine to inform the
new owner as to its operation and features.
! Read these instructions carefully: they contain
vital information on installation, use and safety.
Unpacking and levelling
Unpacking
! This is a separate part
of the polystyrene base
and should be removed with the base.
! IMPORTANT check
when unpacking your
machine.
1. Unpack the washing machine.
2. Check whether the washing machine has
been damaged during transport. If this is the
case, do not install it and contact your retailer.
3. Remove the 4 protective screws and the
rubber bush with the
respective spacer, situated on the rear of the
appliance (see also the
installation leaflet).
4. Seal the gaps using the plastic plugs provided.
5. Keep all the parts: you will need them again
if the washing machine needs to be moved to
another location.
! Packaging materials are not children’s toys.

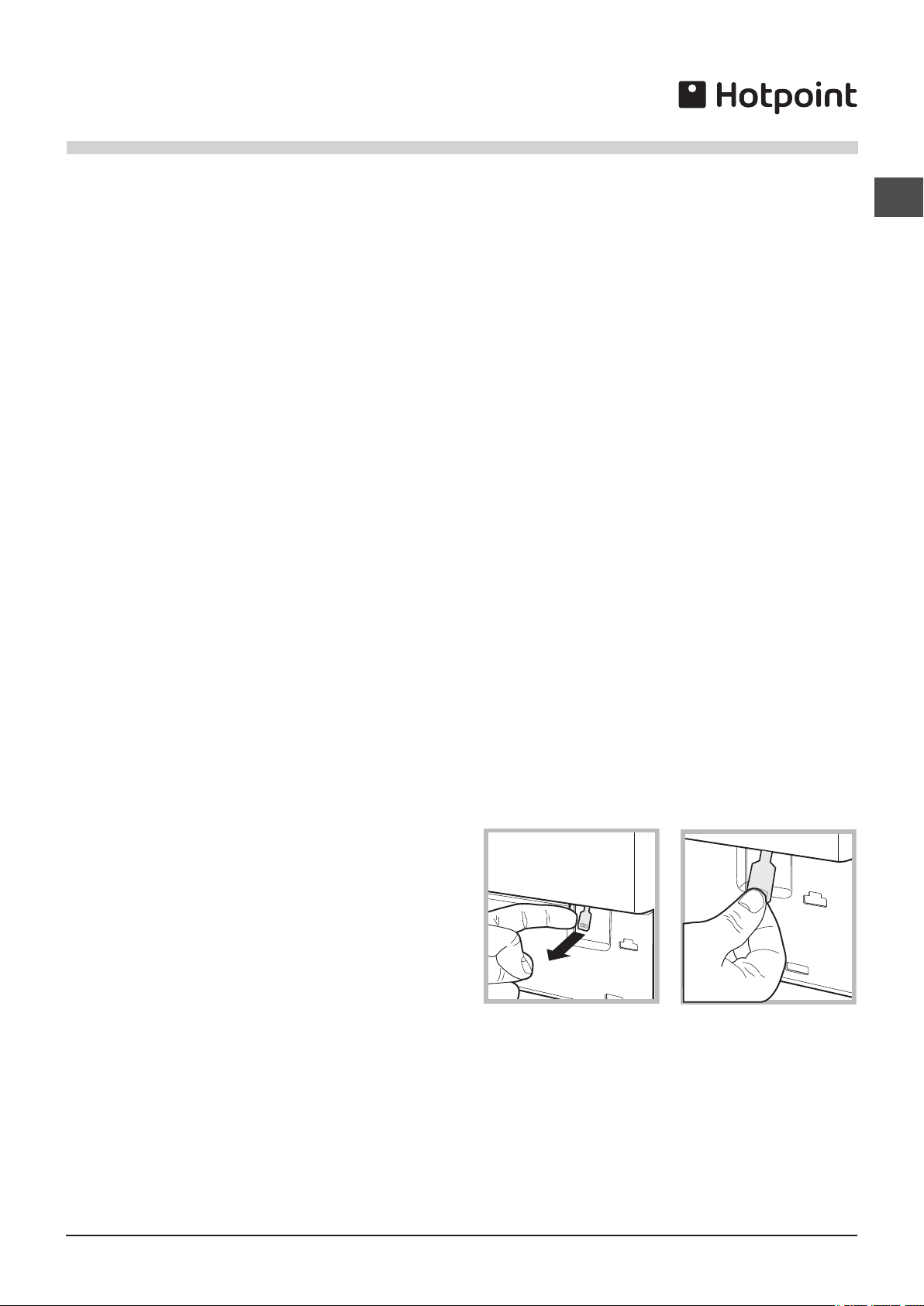

2. If the floor is not perfectly level, compensate
for any unevenness by tightening or loosening
the adjustable front feet (see figure); the angle of inclination, measured according to the
worktop, must not exceed 2°.
Levelling your appliance correctly will provide
it with stability and avoid any vibrations, noise
and shifting during operation. If it is placed on
a fitted or loose carpet, adjust the feet in such
a way as to allow enough room for ventilation
beneath the washing machine.
Electric and water connections
Connecting the water inlet hose
1. Connect the supply
pipe by screwing it to
a cold water tap using
a
3/4 gas threaded connection (see figure).
Before performing the
connection, allow the
water to run freely until it is perfectly clear.
2. Connect the other
end of the water inlet
hose to the washing
machine,
screwing it onto the
appliance’s cold water
inlet, situated on the
top right-hand side on
the rear of the appliance (see figure).
3. Make sure there are no kinks or bends in the
hose.
Levelling
Your machine may make a considerable amount
of noise if the two front feet have not been adjusted correctly.
1. Install the washing
machine on a flat sturdy
floor, without resting it up
against walls, furniture
cabinets or other.
2
! The water pressure at the tap must be within
the values indicated in the Technical details
table
(on the page 5).
! If the water inlet hose is not long enough,
contact a specialist store or an authorised
serviceman.
! Ensure that the supply taps are allowing wa-
ter through. Old taps may seize in the closed
position and thus prevent water reaching the
machine.
Connecting the drain hose
65 - 100 cm
Where it connects to
the waste water pipe
cut end off spigot or
remove the blanking cap
Co nn ec t th e d ra in
hose, without bending
it, to a draining duct or
a wall drain situated
between 65 and 100
cm from the floor;
• the supply voltage is included within the values
indicated on the Technical Data Plate fixed on
the machine.
• the socket is compatible with the washing
machine’s plug. If this is not the case, replace
the socket or the plug.
Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for
immediate use. Before using the appliance please
read the instructions below.
GB
The drain hose may
be connected to an
under-sink trap. Before
connecting the drain
hose from the machine
ensure that any blanks or removable ends
have been taken off the
spigot.
If it is placed over the
edge of a basin or sink
be sure the free end of
the hose should not
be underwater.
! We advise against the use of hose extensions; in
case of absolute need, the extension must have
the same diameter as the original hose and must
not exceed 150 cm in length.
Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than
15cms (6 inches). If the hose is pushed down too
far, this may cause the machine to self -syphon
ie. continuously empty as it is filling.
WARNING - THIS APPLIANCE MUST BE EARTHED.
THE FOLLOWING OPERATIONS SHOULD BE
CARRIED OUT BY A QUALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA
approved fuse to BS 1362 should always be
used, and the fuse cover re-fitted. If the fuse
cover is lost, the plug must not be used until a
replacement is obtained.
Replacement fuse covers:
If a replacement fuse cover is fitted, it must be of
the correct colour as indicated by the coloured
marking or the colour that is embossed in words
on the base of the plug. Replacements can be
obtained directly from your nearest Service Depot.
Removing the plug:
If your appliance has a non-rewireable moulded
plug and you should wish to re-route the mains
cable through partitions, units etc., please ensure that either:
the plug is replaced by a fused 13 ampere rewireable plug bearing the BSI mark of approval.
or:
the mains cable is wired directly into a 13 amp
cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without
moving the appliance.
Electric connection
Before plugging the appliance into the mains
socket, make sure that:
• the socket is earthed and in compliance with
the applicable law;
• the socket is able to sustain the appliance’s
maximum power load indicated in the Technical
details table;
Disposing of the plug:
Ensure that before disposing of the plug itself,
you make the pins unusable so that it cannot be
accidentally inserted into a socket.
Instructions for connecting cable to an alternative
plug:
Important: the wires in the mains lead are coloured in accordance with the following code:
Green & Yellow Earth
Blue Neutral
Brown Live
3
GB
GREEN &
YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR
CORD GRIP
As the colours of the wires in the lead may not
correspond with the coloured markings identifying the terminals in your plug, proceed as
follows:
Connect Green & Yellow wire to terminal
marked E or or coloured Green or Green &
Yellow.
Connect Brown wire to terminal marked L or
coloured Red.
Connect Blue wire to terminal marked N or
coloured Black.
If a 13 amp plug (BS 1363) is used it must be
fitted with a
13 amp fuse, either in the plug or adaptor or
at the distribution board.
If you are in any doubt regarding the electrical
supply to your machine, consult a qualified
electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in
accordance with the following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN & YELLOW EARTH (E)
! The power supply cable must only be replaced by an authorised serviceman.
Warning! The company denies all liability if and
when these norms are not respected.
The first wash cycle
Once the appliance has been installed, and
before you use it for the first time, run a wash
cycle with detergent and no laundry, using the
wash cycle (60°C).
Disposing of the appliance:
When disposing of the appliance please remove
the plug by cutting the mains cable as close as
possible to the plug body and dispose of it as
described above.
! The washing machine should not be installed
in an outdoor environment, not even where
the area is sheltered, because it may be very
dangerous to leave it exposed to damp, rain
and thunderstorms.
! When the washing machine is installed, the
mains socket must be within easy reach.
! Do not use extensions or multiple sockets.
! The power supply cable must never be bent
or dangerously compressed.
4
Technical data
- 2004/108/EC (Electromagne-
GB
Model
Dimensions
Capacity
Electrical
connections
Water connections
Spin speed
Energy rated
programmes
according to
regulation
EN 50229
BHWDD 74
width 59,5 cm
height 81,5 cm
depth 54,5 cm
from 1 to 7 kg for the wash
programme
from 1 to 5 kg for the drying
programme
please refer to the technical
data plate fixed to the machine
maximum pressure 1 MPa
(10 bar)
minimum pressure 0.05
MPa (0.5 bar)
drum capacity 52 litres
up to 1400 rotations per
minute
Wash: programme
;
temperature 60°C (1st press
of the button); using a load of
7 kg.
Drying: the smaller load
must be dried by selecting
the “IRON DRY” dryness level. The load must consist of
2 sheets, 1 pillowcase and 1
hand towel;
the remainder of the load
must be dried by selecting
the “CUPBOARD DRY” dryness level.
This appliance conforms to
the following EC Directives:
tic Compatibility)
- 2006/95/EC (Low Voltage)
- 2002/96/EC
5
GB
Tur seite
Instructions for the fitter

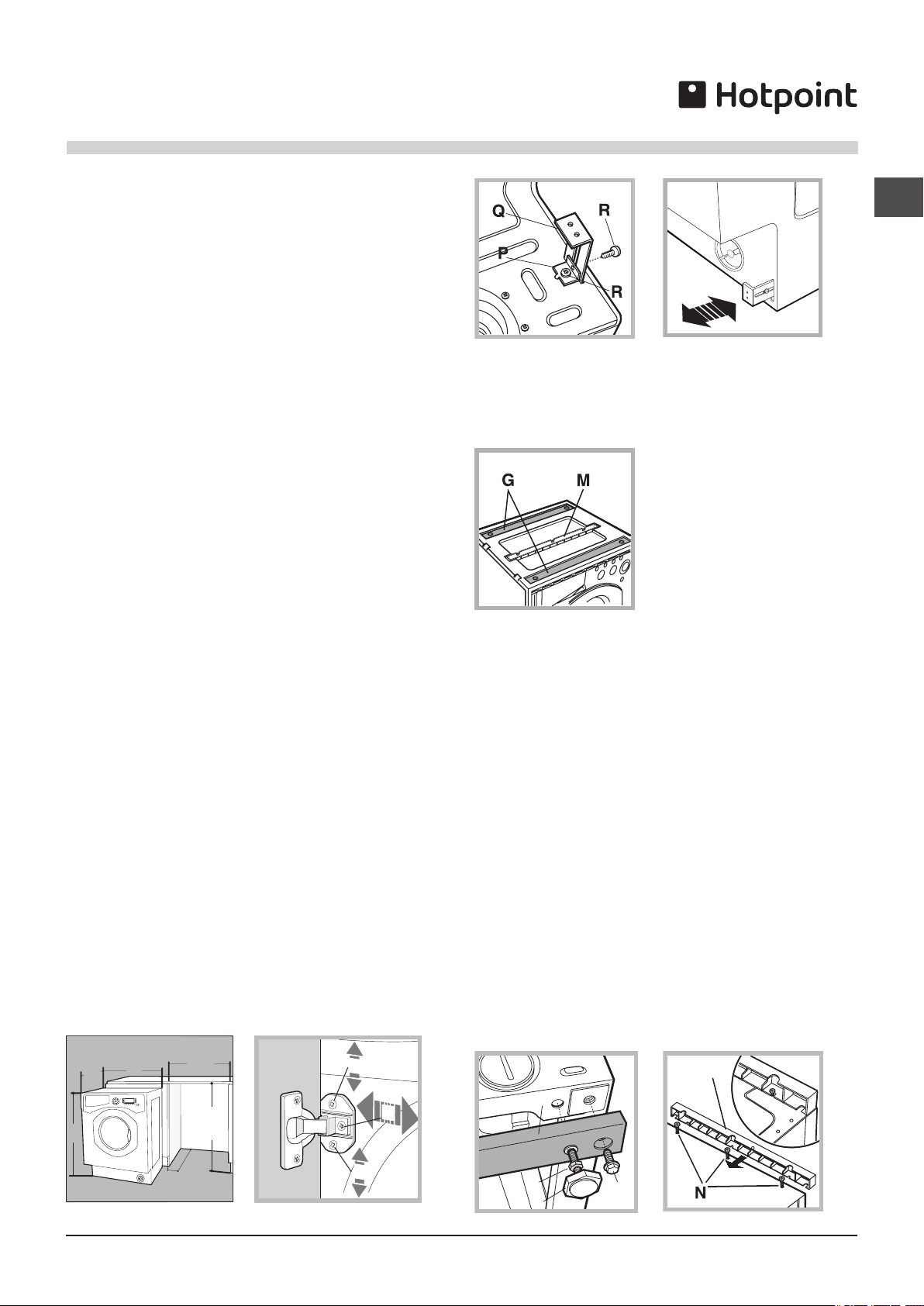

Mounting the wooden panel onto the door
and inserting the machine into cabinets:
In the case where the machine must be shipped
for final installation after the wooden panel has
been mounted, we suggest leaving it in its original packaging. The packaging was designed
to make it possible to mount the wooden panel
onto the machine without removing it completely
(see figures below).
The wooden panel that covers the face of
the machine must not be less than 18 mm in
thickness and can be hinged on either the right
or left. For the sake of practicality when using
the machine, we recommend that the panel be
hinged on the same side as the door for the
machine itself - the left.
Door Mounting Accessories (Fig. 1-2-3-4-5).
N° 2 Hinge Supports
Fig. 1
N° 1 Magnet N° 1 Magnet plate
Fig. 3 Fig. 4
Fig. 2
N° 2 Hinges
A
C
E
B
D
N° 1 Rubber plug
Fig. 5
Fig. 4/B
N° 4 Spacers
- No. 6 type A self-threading screws, l =13 mm.
- No. 2 type B metric, countersunk screws, l =25;
for fastening the magnet plate to the cabinet.
- No. 4 type C metric screws, l =15 mm; for
mounting the hinge supports to the cabinet.
- No. 4 type D metric screws, l =7 mm; for
mounting the hinges on the supports.
Mounting the Parts onto the Face of the
Machine.
- Fit the hinge supports to the appliance front
panel, positioning the hole marked with an arrow
in fig. 1 so that it is on the inner side of the front
panel. Fit a spacer (fig. 4/B) between the surfa-
ces using type C screws.
- Fit the magnet plate at the top of the opposite
side, using type B screws to fix two spacers (fig.
4/B) between the plate and the surface.
6
Loading...
