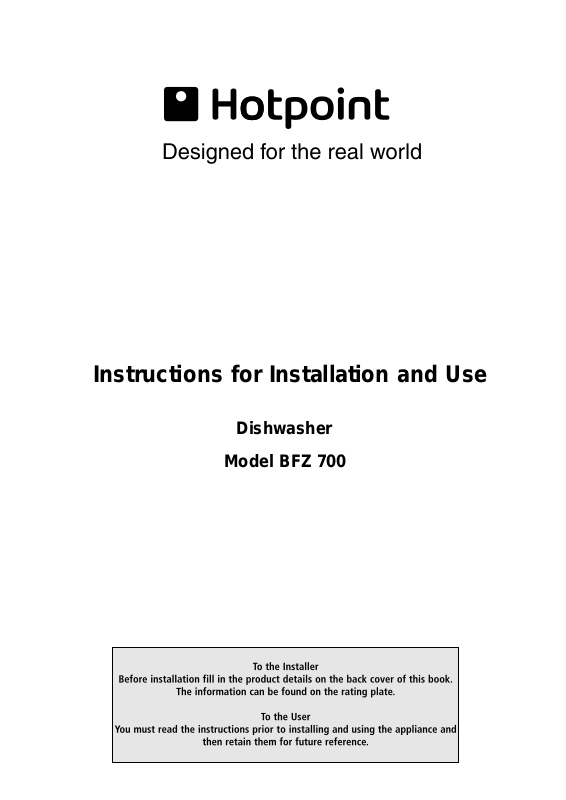

Hotpoint BFZ 700 User Manual

Instructions for Installation and Use

Dishwasher

Model BFZ 700

ISHWASHER

D

Contents

Electrical Connection
For Your Safety
Installation
Getting to know your Dishwasher
The Controls
How to use your Dishwasher
Programme Chart
Before Using your Dishwasher
Loading your Dishwasher
Care and Cleaning
Troubleshooting
Information for Test Labs
After Sales Service
Hotpoint Guarantee
Notes
Key Contacts

3
4
5
6
6
7
8

9-10

11
12
13
14
15
16

17-18-19

Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the
appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also
provided so the new owner can become familiar with the appliance and safety warnings.

If the Book is lost or damaged a copy may be obtained from:

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB.

2

Electrical Connection

WARNING: This appliance must be earthed.

ISHWASHER

D

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to
replace the fuse, only those rated at 13A and ASTA approved to
BS1362 should be used. If you lose the fuse cover, a replacement
may be obtained from your local authorised Service Centre or
Electrical company. Correct replacement is identified by colour coding
or the marking on base of plug.

WARNING: DO NOT use the plug unless the fuse cover is fitted.

Safety Information

At the time of delivery...
All functions of your dishwasher have been thoroughly tested at the
factory. A small number of water marks may have been left as a
result, they will disappear when the appliance is used for the first time.

WARNING: The dishwasher must not be connected to the electricity
supply while installation is being carried out.

- This appliance should only be connected to a 230/240V AC

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: T o avoid a shock hazard DO NOT insert the discarded plug
into a socket anywhere else.

IMPORTANT: WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
Green/Yellow - Earth
Blue - Neutral
Brown - Live

If you change the plug, the colour of the wires in the mains lead may
not correspond with the terminal markings in the plug, which if not
coloured, could be:
EARTH ‘E’ or
NEUTRAL ‘N’
LIVE ‘L’

- Use the dishwasher solely in a domestic environment.

- DO NOT stand or place heavy objects on the door when it is

If your family includes children...

- DO NOT allow children to play with the appliance or tamper

- Keep detergents and rinse aids away from children. Keep

source, via a properly installed earthed socket.

open, this could damage the door or cause the appliance to tip
forward.

with its controls.
children away from the open door of a dishwasher, there could

still be some detergent left inside.

Changing the Mains Lead

A lead can be ordered from Hotpoint Service
UK: 08709 066 066 or
Republic of Ireland: 1850 302 220
If you have damaged the existing lead or require a longer one a
charge will be made. It is strongly advised that this work is carried out
by a qualified electrician.

If the domestic wiring includes a residual current-operated circuit
breaker, ensure that it conforms to the latest regulations.

CAUTION:

The dishwasher meets the requirements set out by the regulations in
force concerning safety and electrical equipment.
Any technical checks should be conducted exclusively by a trained
and authorised technician: Repairs carried out by unaithorised
persons will invalidate the guarantee, as well as posing a potential
hazard to the user.

The manufacturer declines all responsibility for damage to persons or
property resulting from failure to observe the above precautions, from
tampering with even a single component or from the use of non­original spare parts.

3

ISHWASHER

D

For your Safety

This manual forms an integral part of the appliance. It must always be kept handy for reference. Read through all the instructions contained in this manual
before using the dishwasher.

Installation must be performed by a qualified technician, in compliance
with the regulations in force, including the prevention and elimination of
radio frequency interference.

The dishwasher is designed for washing and drying dishes, any
other use shall be considered improper. The manufacturer declines
all responsibility for uses other than those described above.

1. Seperate the various
packaging materials and
dispose of safely - DO NOT
leave discarded packaging
material around the home.

2. After removing the packaging,
check to make sure your
appliance is intact. If in doubt,
contact a qualified
professional.

3. DO NOT use extension leads
and multiple plugs. If the
electricity supply wire is not
long enough, then have it
replaced with one of the correct
length and remember that it
should be free of bends or
dangerous kinks.

4. In the event of any damage to
the power cord have it
replaced by a qualified
technician.

5. The mains plug must be
easily accessible after
installation.

6. If the appliance is not
operating properly or if
maintenance operations are
necessary, disconnect the
dishwasher from the mains
power supply (unplug it!).

7. DO NOT install outdoors, not
even if the area is covered by
a roof: it is extremely
dangerous to leave it exposed
to rain and thunderstorms.

8 . If installed on a carpeted or

covered floor, ensure that the
openings on the underside are
not obstructed.

9. Do not touch the heating
element during or straight after
a wash cycle.

10. If the appliance malfunctions,
turn off the water inlet tap and
disconnect the plug from the
wall socket. Then read the
section entitled
"Troubleshooting". If you
cannot resolve the problem,
then call Hotpoint Service
(see KEY CONTACTS, back
page).

The rating plate, featuring the
technical data, serial number
and markings, is visibly
positioned on the inner edge of
the door.
DO NOT remove the rating plate.

The dishwasher is intended for use by adults. DO NOT allow children
to come near or play with the controls.

Keep children away from detergents and clear of the dishwasher door
when open.
Keep all packaging material away from children.

1 . DO NOT use solvents, such as alcohol or turpentine which may

cause an explosion.

2. DO NOT load dishes to wash that are soiled with ash, wax or paints.

3. DO NOT lean, sit or stand on any part of the dishwasher - this could
cause injury and/or damage the appliance.

4. DO NOT drink any water residues from inside the dishwasher.

4

Installation

ISHWASHER

D

Choose where you want to install
your dishwasher, you can place it
so that its sides or back panel are
side by side with furniture or up
against the wall. The dishwasher is
provided with water supply and drain
hoses, which can be directed
towards the left or right to facilitate
appropriate installation.

Levelling.

Once the appliance is positioned,
adjust the feet by screwing them in
or out depending on how high you
want it and to level it so that it is
horizontal. Make sure that it is not
inclined more than 2 degrees. If the
appliance is level, it will help ensure
its correct operation.

Height Adjustment

Insert the appliance into the cutout
and then adjust the height using the
screws located on the front bottom
part of the machine. Use a
screwdriver to turn the screws in
the clockwise or anti-clockwise
direction to increase or decrease
the height respectively.

Adjusting the Back Feet

Insert the appliance into the cutout
and then adjust the height using the
screws located on the front bottom
part of the machine. Use a
screwdriver to turn the screws in
the clockwise or anti-clockwise
direction to increase or decrease
the height respectively.

Cold water connection.

Connect the cold water supply hose
to a 3/4 gas threaded connection,
taking care to screw it tightly onto
the tap. If the water hoses are new
or have been out of use for an
extended period of time, let the water
run to make sure it is clear and free
of impurities before making the
connection. If this precaution is not
taken, the water inlet could get
blocked, causing damage to your
dishwasher.

Anti-flooding protection

Your dishwasher has a special
system which stops the water
supply in the event of leaks inside
the appliance.
It is equipped with a water inlet that
has a clear outer hose and an inner
high pressure hose which turns
bright red if it breaks.
Leaks are prevented as the clear
outer hose now contains the water.
It is vital that you check it on a
regular basis, if you see it has turned
bright red, you know you need to
replace it as soon as possible.
Call for an authorised technical
engineer to come and replace it.

Condensation-proof tape.

On some models, a transparent
condensation-proof adhesive tape
has been provided.
It should be stuck onto the lower
side of your wooden worktop to
protect it from the formation of
condensation.
When not provided, this tape can
be requested as a spare part from
authorised retailers.

Drain hose connection.

WARNING: Connect your
dishwasher drain hose to pipes
which connect to the foul drain
system and not to surface water
drains.
IMPORTANT: For the correct
operation of your dishwasher, it is
essential to comply with the following
information:-

Standpipe:

Ensure that the hose is not pushed
too far down the standpipe.
If the end of your drain hose is
fitted with ‘retaining flaps’, ensure
they are inserted fully into the
standpipe. This will prevent the
pipe from jumping out during
installation and use.

DO NOT position the standpipe
near an electrical outlet.
ENSURE that the drain hose is not
kinked and it is routed as shown in
the diagram.

The standpipe should have a bore
of at least 38mm (11/2”). It should
be installed as shown, have a trap
fitted and must discharge into the
same drain system as your
household sink.
It MUST NOT be connected to a
surface water drain.

Sink Waste System:

For under sink drainage:
Before connecting the drain hose,
remove any internal restrictions ­This will prevent a build up of debris
which could cause a blockage.
Remove any restrictions from the
waste spigot and ensure that the
sealing bung is removed. The hose
should be routed, such that it is
raised to a minimum height of
800mm (31/2”).

NOTE: Ensure the sink outlet
pipe has a minimum diamtere of
32mm.

1. Untie the end of the GREY
drainage hose from the rear of
the appliance.

2. Reposition the ‘Hooked End
Support’ as required along the
GREY drainage hose.

3. If fitting an under sink waste
disposal unit, cut out the
membrane, bung or blanking
plug.

Ensure the drain hose is
securely attached, to prevent
it coming away while the
machine is in use and causing
a flood.

5

ISHWASHER

D

Getting to know your Dishwasher

E. Upper basket
F. Top spray arm
G. Basket height adjuster
H. Lower basket

I. Bottom spray arm
J. Salt container cap
K. Washing filter
L. Detergent and rinse aid

The Controls

A . ON-OFF Button

Press this button to turn the
appliance on.

C . Door opening handle

Use this handle to open the
dishwasher door.

D. Display (LCD)

Buttons and indicator lights to
program the appliance.

G. Cycle phase indicator light

(pre-wash, wash, rinses, drying)

H. Extra drying button

Press this button for greater
drying

I. Delayed start select button

This button delays the start of

the wash cycle you selected by
1 to 24 hours.

L. Multifunction numeric

indicator
It informs you as to: the
duration of the cycle, the
amount of time left to wait and
any error codes.

M. Cycle selection knob

Turn it to select the desired
wash cycle.

N. Half load selection button

To allow you to wash a half­load on the upper rack.

R. Start/Reset Button

S. Low salt indicator light

T . Low rinse aid indicator light

U. Delayed start indicator light

V . Half load indicator light

To indicate that the half loading has

Z. Extra drying indicator light

dispenser

With Start, the wash cycle
begins, whereas all the settings
are cleared with Reset.

This light warns you that it is
time to add more salt.

This light warns you that it is
time to add more rinse aid.

This indicates that the
delayed start has been set

been set.

To indicate that the extra drying
has been set.

Technical Characteristics

Technical characteristics

Width cm. 59,5

Depth cm. 57
Height cm. 82
Capacity 12 standard place settings
Mains water pressure 4,3 psi - 145 psi (30 KPa÷ 1MPa) (0,3 ÷10 bar)

Power voltag e See data pl at e

Total absorber power See data plate
Fuse See data plate

6

This dishwasher conforms to the
following European Community
Directives:

 73/23/EEC of 19/02/73

(Low Voltage) and subsequent
modifications;

 89/336/EEC of 03/05/89

(Electromagnetic Compatibility)

and subsequent modifications;

 97/17/CE

(Labelling)

 2002/96/CE

(Waste Electrical
andElectronic
Equipment)

How to use your Dishwasher

ISHWASHER

D

First of all.

- Turn on the water supply
tap completely.

- Add the correct amount
of detergent.

- Load the baskets cor­rectly.

- Check that the spray
arms rotate freely.

- Close the door securely.

-

Press the ON-OFF button "A":
The display turns on and 3 dashes
appear, these indicate that the dish­washer is now awaiting instruc­tions.

Select the wash cycle.

Turn knob "M" until the reference
notch on the knob corresponds with
the number or symbol for the cycle
you wish to set (see programme
chart). Press the Start button "R"
and the wash cycle starts up, the
approximate amount of time left until
the end of the wash cycle is
displayed. After a few seconds, you
will hear a short beep: the wash
cycle has begun and indicator "G"
displays the symbol corresponding
to the cycle starting phase.The
counter "L" will indicate the
estimated amount of time left until
the end of the wash cycle

Indicator lights.

Your dishwasher is provided with
an indicator light "G" with 4 sym­bols which come on as the appli­ance carries out each phase of the
selected programme.
These indicator lights represent
each phase corresponding to:

pre-wash, wash, rinses, drying.
At all times your dishwasher tells
you what phase it is at.

Modifying a wash cycle in
progress.

But if you have chosen the wrong
cycle, not to worry! You can modify
the wash cycle in progress only if it
has only just started.
Keep the Reset button "R" pressed
for about 3 seconds:
a prolonged beep will sound,
followed by three short beeps. The
cancelled cycle time will flash on
the display. Turn the knob to select
a new wash cycle.

You've left out a dish?

Interrupt the wash cycle by press­ing the ON-OFF button, open the
door and insert the dish you had
forgotten, close the door and press
the ON-OFF button again.
The cycle will start up from where
you interrupted it.

Cycle end

The end of the wash cycle is
indicated by two short beeps and
the word "END" flashes on the
display.

Warning!

Turn the appliance off by
pressing button “A”, unplug the
appliance from the electricity
socket to cut off the power
supply; the power supply cable
should consequently be easily
accessible.

Turn off the water tap.
Wait a few minutes before unload­ing the dishes: they are very hot! If
you wait a little while, they dry better
due to the steam.

Make sure the wash cycle has
ended before removing the dishes!

Empty the lower basket first.

There's been a power
failure or you opened the
dishwasher door

The wash cycle stops and then
restarts when the electricity comes
back on or when you close the door.

You decide
when it starts.

When you have loaded the dishes,
you can choose when to start your
dishwasher before setting the wash
cycle desired.
Press button "I" repeatedly to
postpone the start of the wash cycle
from 01 hour to 24h.
If you press the button again, the
word "OFF" is displayed (no
selection made).
Once you have made your
selection, make sure the appliance
door is shut and start the wash cycle
by pressing the START button.
Symbol "U" lights up on the display
and the countdown begins.
Once the countdown is up, the wash
cycle begins and the approximate
amount of time left until the end of
the wash cycle is displayed. A
quick look at the indicator lights will
keep you informed of the countdown
progress at all times.

Have you changed your
mind?

If you change your mind, you can
set a shorter time delay: press
button "I" to select it. You need not
reset the wash cycle.
If you have changed your mind and
wish to start the wash cycle
immediately, press button "I" until
the countdown is fully reset.
Indicator light "U" will turn off and
the cycle will start at the sound of a
beep.
The indicator light corresponding
to the cycle phase under way will
come up on the display and the
countdown to the estimated cycle
end begins.

Half load.

Your dishwasher also allows you
to wash half a load When you only
have little cutlery to wash, you can
run just half a load on the upper
rack, saving on both water and
electricity.
Press button "N"; you will hear a
beep and the symbol ‘V’
corresponding to the half load will

light up.
Once you have made your setting,
start the wash cycle by pressing
the START button.

- This option is available with all
wash cycles.. Press it once more
to reset the rack selection and the
dishwasher will consequently wash
on both racks.

How to programme
“extra” drying

If you want your dishes to be
perfectly dry, follow the instructions
below.
Press button "H". After a prolonged
beep, indicator light "Z" lights up
and the time corresponding to the
wash cycle selected on the knob
will flash on the display.
To disable the extra drying option,
press the same button and indicator
light "Z" will be turned off after a
beep is sounded.
This option is incompatible with the
soak cycle. Remember that with
extra drying, the wash cycle will
last longer, to provide you with drier
dishes.

7

ISHWASHER

D

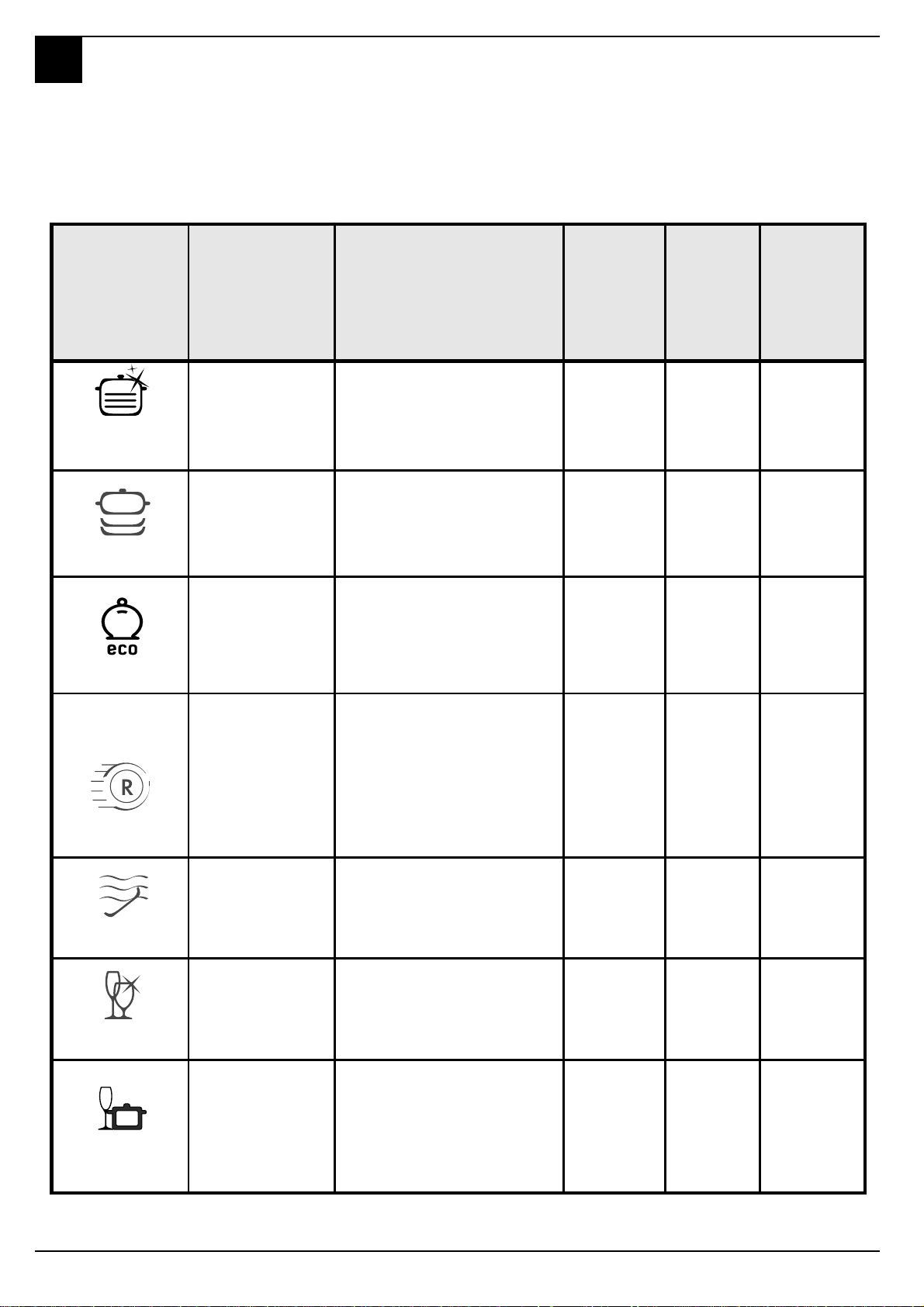

Programme Chart

Select the most suitable programme for the type of dishes and how dirty they are. To select the wash programme see the chart below:

Auto Wash Cycle: the dishwasher is equipped with a Sensor System that measures how dirty the dishes are and decides the most
suitable programme for the load, setting the optimal cycle length, number of rinses and water level. This provides a more efficient and
economic wash cycle.

: DVKF\FOH

GXUDWLRQ



PDUJLQ

Z LWK RXW

H[WU D

GU\LQJ

&\FOH

&\FOHVHOHFWLRQ

LQVWUXFWLRQV

&\FOHGHVFULSWLRQ

'H WHUJHQW

IRU

SUHZDVK

ZD VK

5LQVH$LG

$XWR

6XSHU: DVK

$XWR 1R UPD O

$XWR

5DSLG

Very dirty dishes,
pots and pans (not to
be used with delicate
items).

No rmally dirty
dishes, pots and
pans. Standard daily
cycle.

Environment ally-frie n­dly cycle, with low
energy consumption
le ve ls, s u it a ble for
normally dirty pa ns
and dishes.

Economic and fast
cycle to be used for
slightly dirt y d ishe s .
Run cycle
immediately after use.
Witho ut drying
except when the
extra d rying op tion
has been selected.

Pre - wa sh with hot water at 4 0 °C
Wash at 65°C.
2 Rins es with cold water
Rinse with hot wate r a t 70 °C .
Drying.

Wash at 50°C.
Cold Rinse
Rinse with hot wate r a t 70 °C .
Drying.

2 Cold pre- washes
Wash at 50°C
Hot rinse at 6 5°C
Drying

Short wash at 47°C
Hot rinse at 6 2°C

 JU

JU

 JU

JU









(with the

extra

d rying)









Pre- wash of dishes,
pots and pans while
w a it in g for t h e loa d

6RDN

&U\VWD O &D UH

$XWR

'XR:DVK

To optimise wash performance and save on energy, try yo use the dishwasher with a full wash load. If it takes some time to fill
your dishwasher, use the soak cycle to avoid caked on food and build up of bad odours.

to b e c o mpleted a fter
the subsequent meal.

S pecial c y cle t o be
used for delicate
item s , w h ich are
mor e s e nsitive to high
temperatures.

Was h differ ent iat e d
on the two ra ck s
delicate for gla ssware
and glasses o n the
upper rack and heavy
duty for the pans on
the lower rack.

Short cold wash to prevent food
residue from drying on the dishes.

Wash at 52°C
Rinse at 45°C
Hot rinse at 6 5°C
Drying

Cold pre-wash
Wash at 52°C
Lukewarm rinse at 45 °C
Hot rinse at 6 5°C
Drying

JU

 JU





8







ISHWASHER

D

Before Using your Dishwasher

Adjusting the water softener.

Y our dishwasher can adjust its salt
consumption according to the hard­ness of the water in your home.
This way, you can optimise and
customise your dishwasher's salt
consumption.
To adjust salt consumption, do as
follows:

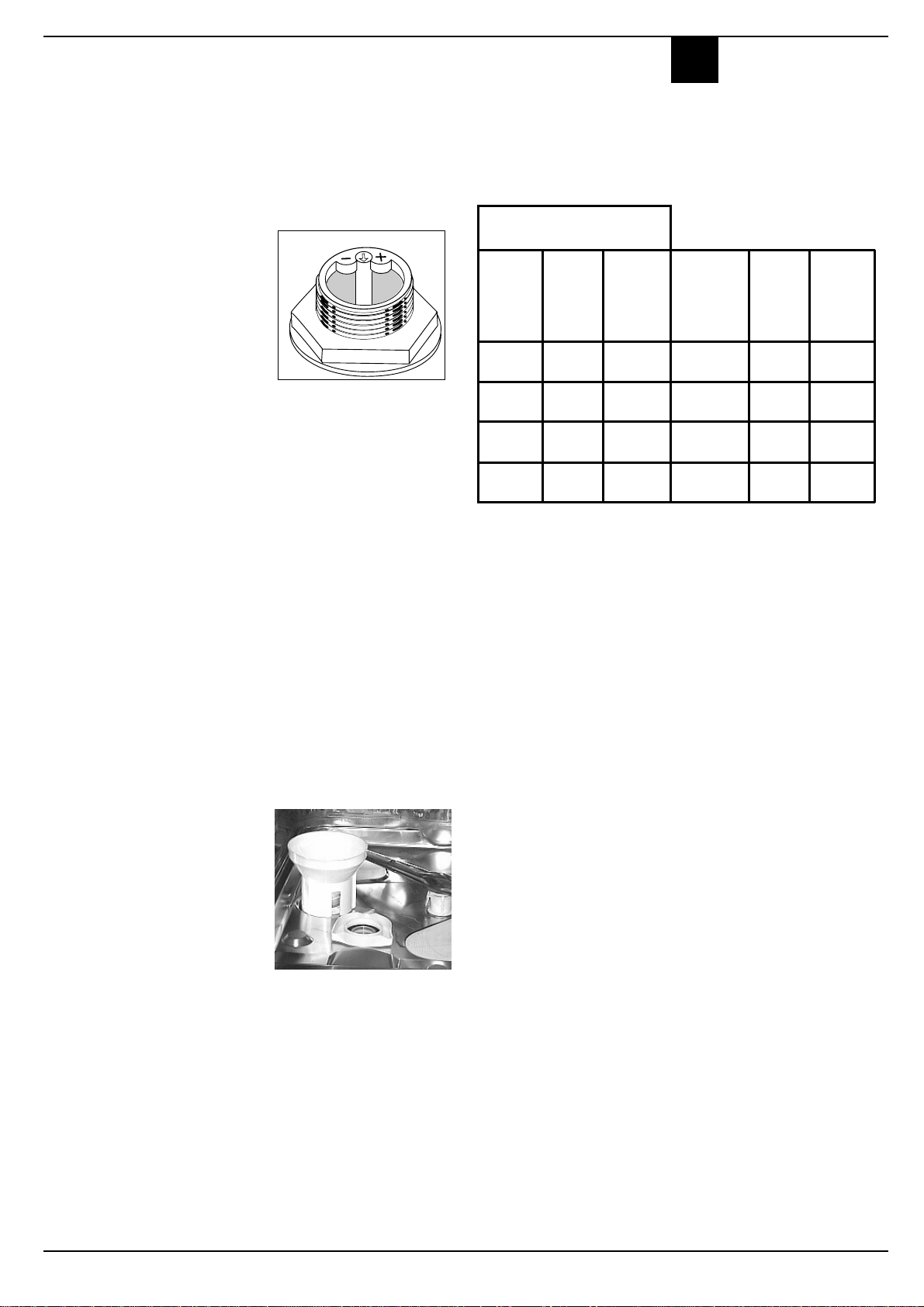

1. Unscrew the salt container cap

2. There is an arrow on the neck

of the container (see figure): if
necessary , turn the arrow anti­clockwise from the "-" setting

to the "+" setting.
Select the arrow position
depending on the water
hardness, referring to the table.

Salt

Filling the salt container.

Always use salt which is intended
for dishwasher use.
The salt container is situated
underneath the lower basket, fill it
up as follows:

1.Pull out the lower basket

completely, unscrew and

remove the container cap

2. If it is the first time you add the

salt, first fill the container up with

water (you won't have to do this

again next time)

3. Put the dishwasher funnel on the

hole and pour in approximately

two kilos of salt. It is normal that

some water comes out of the

container.

4. Screw the cap back in place

carefully.

When should I load the salt?

The salt container should be filled
up when the low salt indicator light
"S" flashes. Once you have loaded
the salt for the first time, it is normal
that the low salt indicator light stays
on or flashes for about 5 consecu­tive cycles.

Water Hardness

Clarke

degrees

0 - 14 0 - 17 0 -1,7 / 0 /

14 - 36 18 - 44 1,8 - 4,4 "-" 20 60

36 - 71 45 - 89 4,5 - 8,9 MED 40 40

>71 > 89 > 8,9 "+" 60 25

°fH mmol/l

To prevent rust from forming,

load the salt just before

beginning a wash cycle.

Salt

Selector
position

home is? Ask the

supplies water in

consu­mption

(grams/­cycle)

You don't know

how hard the

water in your

company that

your area.

Autono­my

(cycles\2­kg)

9

ISHWASHER

D

Before Using your Dishwasher

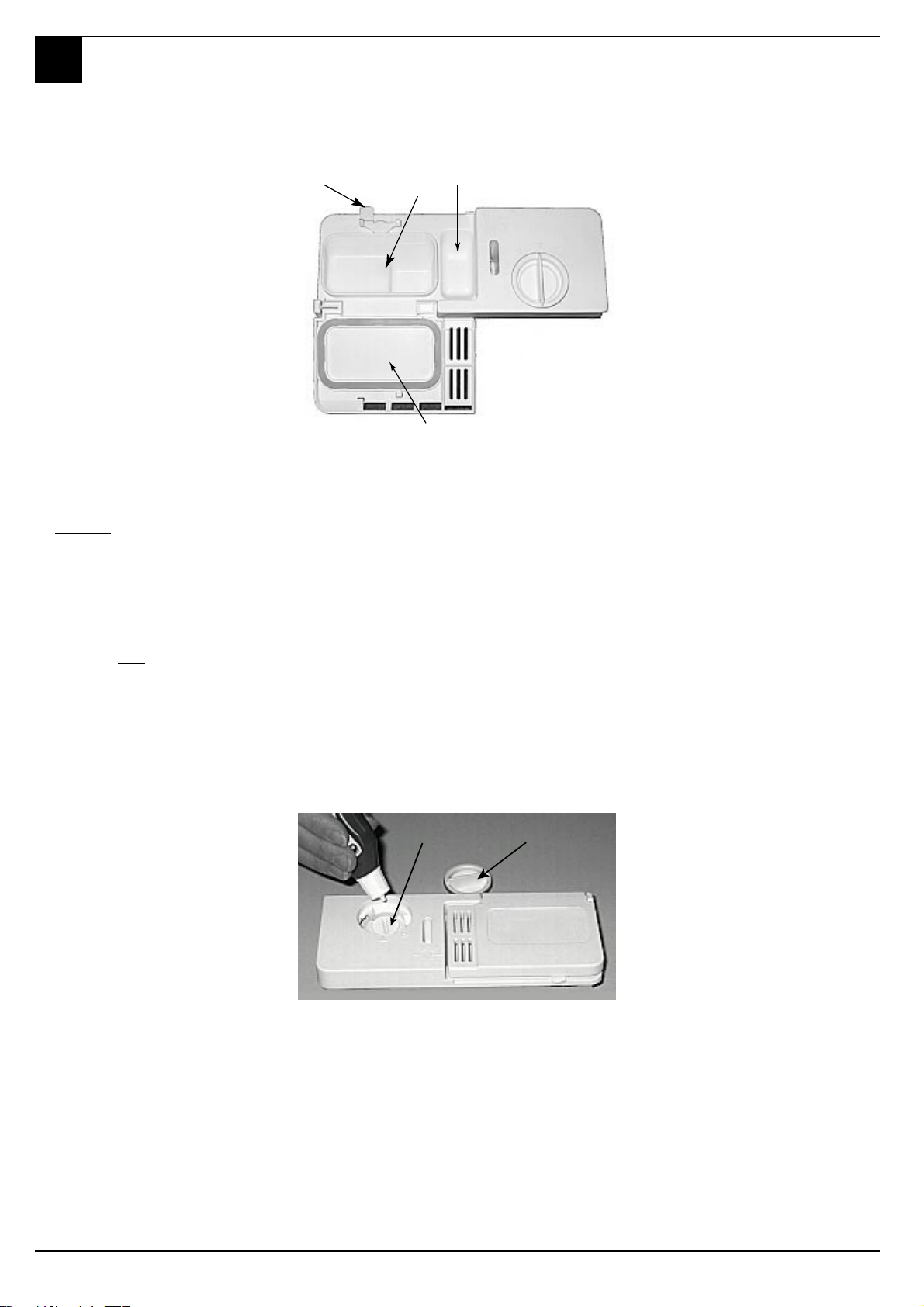

The detergent

Adding detergent

To open lid A, press button B.
The detergent should be put into the
two containers C and D.
If using a tablet, put it in container
"D".
Now you can close the lid: press it
down until you hear it click.

If it won't close

Check whether there is any
detergent residue on the edges of
the dispenser. Remove the excess.

Warning

Three-in-one dishwasher tablets are now available on the market, and combine detergent, salt and rinse aid all in one.
If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the
formation of white streaks on your dishes or on the interior of the appliance.
Using a three-in-one product means it is no longer necessary to put rinse aid into the relevant container.
If you want to achieve perfectly dry dishes, you may add rinse aid as long as the dosage adjuster is set to no.2.
In any case, please read the manufacturer's instructions on the packet.
If you use only these products, it is normal for the salt and rinse aid indicator lights to flash permanently after a certain number of
cycles.

B

C

D

A

• Use the right amount of
detergent (see programme
chart).

• Store your detergent and rinse
aid in a cool, dry place, safely
away from children.

Rinse aid.

Rinse aid makes dishes sparkle
more as it improves their drying. The
rinse aid container is situated on the
inside of the door. You should fill it
up when the rinse aid indicator “T”
lights up on the control panel.

Adding rinse aid.

To open the dispenser, turn cap C
anticlockwise. Take care when you
pour in the rinse aid to avoid it
overflowing. You can regulate the
amount of rinse aid used by the
dishwasher, move the adjuster F
which you will find under lid C.

F

You can choose from six different positions.
It is normally set to 4.

C

- The amount of rinse aid
needs to be increased if the
dishes appear dull or you can
see circular stains.

- The amount of rinse aid
needs to be reduced if the
dishes are sticky or you can
see white streaks.

10

Loading your Dishwasher

ISHWASHER

D

First of all.

Before placing dishes in the baskets,
remove all course food remains. This
avoids blocking the filter, which
would reduce the efficiency of the
wash.
If saucepans and frying pans are
very dirty, allow them to soak before
being washed.
To make it easier to load your dishes,
pull the baskets out.

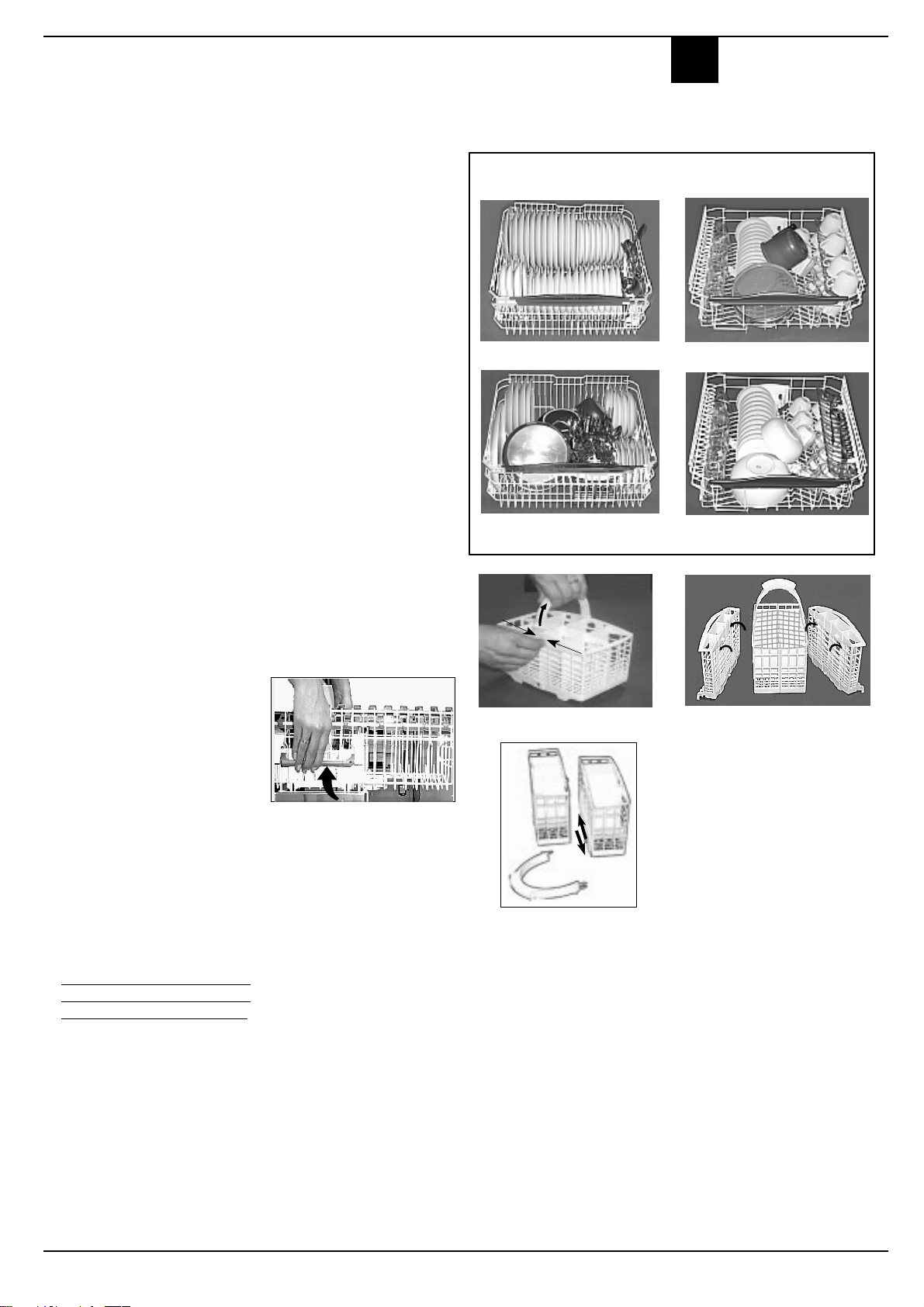

Multisystem baskets

The dishwasher is fitted with upper,
lower and cutlery baskets. They
provide greater flexibility for loading
dishes, making them more suitable
for your specific needs.

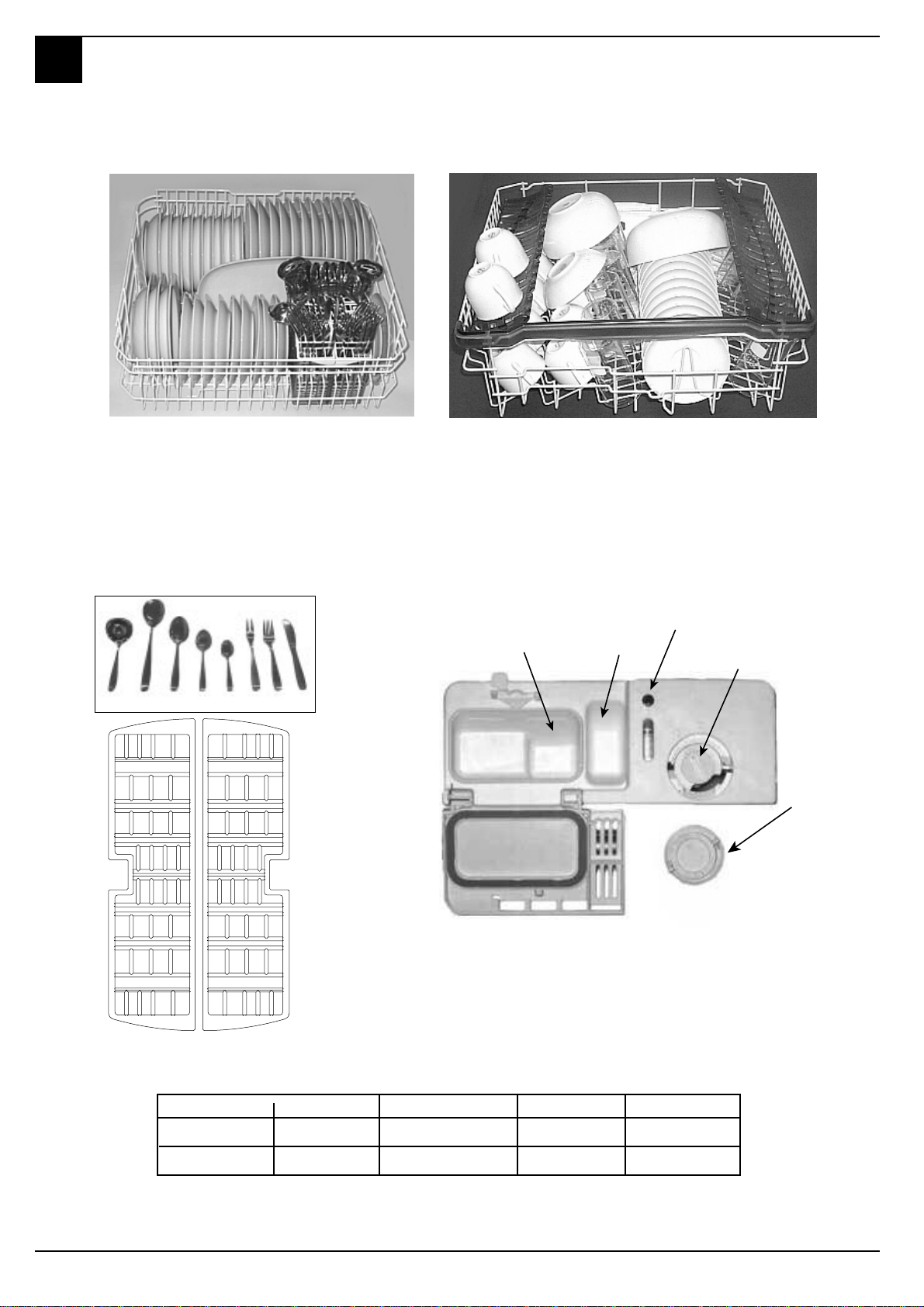

What goes into the lower
basket?

We recommend you place the most
difficult dishes to wash into the lower
basket: saucepans, lids, soup
dishes and plates (a load example
is shown in the photo).

• Serving dishes and large lids:

place them on the sides of the
basket.

• Saucepans, salad bowls: must
always be placed upside down

• Very deep dishes: place them
obliquely, thus allowing water to
run down them and cleaning
them better

• Glasses and cups: position
them as shown in load example
photo.

The cutlery basket may be split into
two parts by pulling out the handle.
When you only have a little cutlery
to wash you can use just half the
basket, save space for other
crockery or place the other half in
the upper basket instead (see
figures A and B).
Knives and utensils with sharp
blades or tips should be positioned
with the sharp parts at the bottom.
This basket is equipped with two
removable grids. Insert the cutlery
one by one into the slots, with the
handles at the bottom. Position them
so that they don’t touch.
In this specific model, the cutlery
basket is fitted with two detachable
side compartments, as shown in
figure A1, which can be hooked on
either the upper or lower basket as
required.

What goes into the upper
basket?

Place delicate and lightweight
dishes in the upper basket: glasses,
tea cups and coffee cups, saucers
and plates - shallow salad bowls,
slightly dirty frying pans and
shallow pans.
Position lightweight dishes in such a
way as to avoid their being moved
by the spray of water.
The dishwasher can also be
equipped with one or two tip up
compartments onto which you can
place mugs and cups, as well as
long sharp knives and serving
cutlery.

After loading the dishes, remember
to check that the spray arms can
turn freely without hitting against
any dishes.

How to adjust the upper
basket.

The upper basket can be set in high
or low position to enable you to
organise your dishes effortlessly.

Fig.C

There are two handles on the sides
of the upper basket, use these to
adjust its height (see fig.C).

What can I Wash

• Cutlery and tableware made from wood or part wood - They may become faded and unsightly in appearance.

• Avoid washing horn handled and bronze cutlery in the machine.

• Delicate/decorative glassware and vases, special antique or irreplaceable china - the decorative patterns

printed on these items will not be dishwasher proof.

• Plastic objects that are not resistant to hot water.

• Copper and Pewter utensils. Aluminium and Sliver objects.

• Some types of glass can become opaque in appearance after they have been washed too many times in a

dishwasher.

• Highly absorbent materials such as sponges and towels should never be placed in a dishwasher.

• If in any doubt, check with the manufacturer on items suitability for dishwasher’s.
WARNING: Dishes or cutlery soiled with tobacco ash, wax, lubricating grease or paint should not be put

in the dishwasher.

Our recommendation: In future, only purchase table or kitchenware that has been confirmed - dishwasher proof.

lower basket

Items not suitable for the dishwasher:

Load examples

A

B

upper basket

A1

11

ISHWASHER

D

Care and Cleaning

Unplug the appliance.

Before carrying out any cleaning or
maintenance on the dishwasher,
always remove the plug from the
electricity socket.

After every wash.

When the wash cycle has ended,
always remember to turn off the
water supply tap and to leave the
appliance door ajar. This way,
moisture and bad odours will not be
trapped inside.

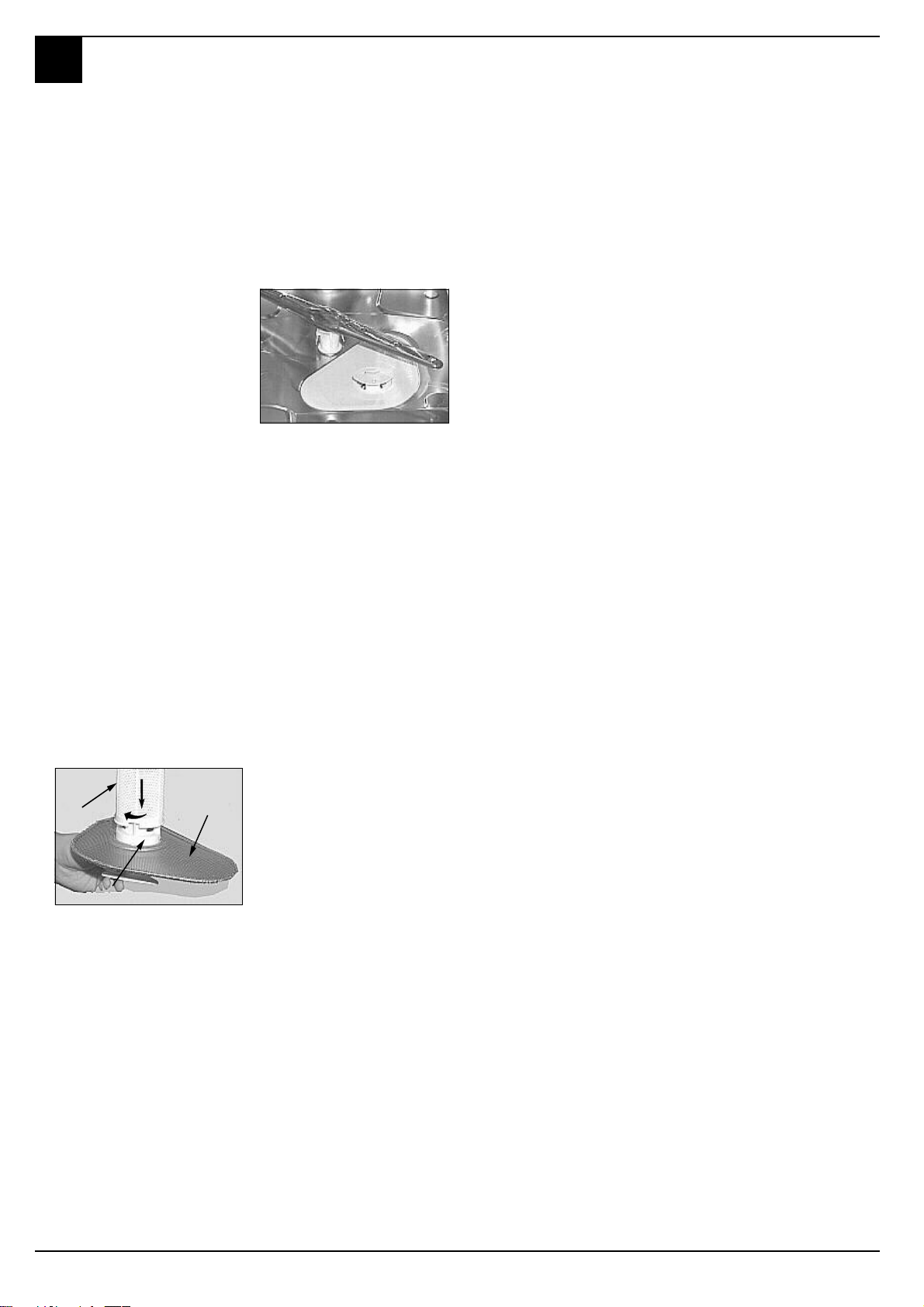

The filter assembly

• If you want consistent good

results from your dishwasher, you
need to clean the filter assembly.

•

Remove the larger food particles

trapped inside the cup “C” and the
semi-circular filter A after each
wash; pull the cup handle upwards
to remove them. Just rinse them
under running water.

• The entire filter assembly should
be cleaned thoroughly once a
month: cup C + semi-circular filter
A + cylindrical filter B. Rotate filter
“B” anticlockwise to remove it.
For cleaning, use a non metallic
brush.

1

B

2

A

Cleaning the spray arms.

Food residue may become
encrusted onto the spray arms and
block the holes where water comes
out. Check the spray arms regularly
and clean them once in a while.

DO NOT use solvents or abrasives
to clean the exterior and rubber parts
of your appliance, do not use
solvents or abrasive cleaning
products. Use a cloth dampened
with lukewarm soapy water only.
If there are any stains on the surface
of the appliance interior, use a cloth
dampened with water and a little
white vinegar, or a cleaning product
specifically made for dishwashers.

The seals.

One of the factors that cause
unpleasant odours to form inside the
dishwasher is food that remains
trapped in the seals. Periodic
cleaning using a damp sponge will
prevent this from occurring.

Going away

If the dishwasher is not going to be
used for some time, carry out the
following:

• run a cycle with the dishwasher
empty.

• switch off at the electrical socket
and unplug.

• turn off the water supply tap,
disconnect the inlet hose and
allow to drain.

• fill the rinse aid dispenser.

• leave the door ajar, to prevent the

build up of unpleasant odours
inside the dishwasher.

Before using the dishwasher after a
long break, plug in and switch on at
the electrical socket. Reconnect the
inlet hose and turn on the water
supply tap. Check there are no
deposits of rust inside the water
pipe, if there are allow water to run
from the supply tap for a few
minutes.

Disconnecting the dishwasher.

When disconnecting the dishwasher
it is important that tasks are carried
out in the correct sequence.

• switch off at the mains and remove
the plug from the socket.

• turn off the water supply.

• disconnect drain and water inlet

hose.

• pull out the dishwasher, carefully,
withdrawing hoses at the same
time.

C

Reassemble the filter parts (as
shown in the figure) and reinsert
the whole assembly into the
dishwasher. Position it into its
housing and press downwards.
The dishwasher is not to be used
without filters. Improper
replacement of the filters may re­duce the efficiency of the wash and
even damage your dishwasher.

12

Moving the appliance.

Drain water from the dishwasher.
Secure all loose parts. Only
transport in an upright position.

• If not kept upright during transport,
any water remaining inside may
seep into the control module and
cause subsequent errors with
programme functions.

ISHWASHER

D

Troubleshooting

Caution

- Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable
equipment damage, as well as danger to the user.

- The dishwasher must first be disconnected from the electricity supply before any repairs or other work can be carried out.
Switch off at the mains socket and water supply and remove the plug.

Resolving minor problems yourself.

Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having
to call out a service engineer. Not only does this save costs but it also means the appliance is available for use again
that much sooner. The following list of common occurences and their remedies should help you identify the causes of
most problems.

If the dishwasher won't
start, check...

■ Is the dishwasher plugged in at
the electricity socket and
switched on?

■ Is there a power failure, check
other appliances.

■ Check the fuse.

■ Is the water supply tap turned

on?

■ Is the water inlet hose connected
properly?

■ Is the pressure of the water
supply sufficient?

■ Is the inlet hose kinked?

■ Is the filter on the water supply

hose blocked?

■ Is the dishwasher door not closed
properly?

If water remains inside the
dishwasher, check...

■ the drain hose is not kinked.

■ the drain syphon is not

obstructed.

■ the dishwasher filters are not
clogged.

If the dishes are not being
cleaned properly, check...

■ the correct amount of detergent
has been added.

■ there is regenerating salt in the
salt container.

■ the dishes have been loaded
correctly.

■ the selected programme is
suitable for the type of dishes and
the degree of soiling.

■ all filters are clean and positioned
correctly.

■ the spray arm nozzles are not
obstructed.

■ there is nothing obstructing the
rotation of the spray arms.

If the dishes fail to dry or
remain dirty, check...

■ there is rinse aid inside the rinse
aid container.

■ the rinse aid dispenser setting is
correct.

■ the detergent being used is of
good quality and has not lost its
effectiveness (for example,
through incorrect storage, with
the box left open).

If the dishes show signs of
streaking, staining etc.
check...

■ the rinse aid dispenser setting is
not set too high.

If there are visible traces
of rust inside the tank,
check...

■ the cap off the salt container is
securely closed and that the
water softner setting is correct.

■ the correct amount of detergent
is being used. Certain detergents
can be more corrosive than
others.

■ the tank is made of steel and
therefore any rust marks are due
to external elements (fragments
of rust from the tank pipes, pots,
cutlery etc.) Special products are
commercially available to remove
such marks.

Error messages

Your dishwasher is equipped with a
safety system which is able to de­tect operating faults.
You will know if there are any faults
if codes start flashing on the display.
Take a note of the codes, turn the
appliance off and call Hotpoint Serv­ice for technical assistance.

Tap off alarm

If the H2O code is flashing, it means
you have forgotten to turn the water
tap on.
Turn the appliance off at the ON­OFF button, turn on the water tap
and wait approximately 20 seconds
before turning the appliance back
on. The wash cycle will start up
again after a few minutes.

Clogged filter alarm

If the appliance is blocked and the
code "A05" is flashing, this means
the filter is clogged by large particles
of food residue. Turn the knob to
OFF, clean the filter thoroughly and
reposition it in its seat, then turn the
appliance back on. The wash cycle
will start up as normal after a few
seconds.

Water load solenoid valve
malfunction alarm

If the code "A02" flashes,TURN the
dishwasher OFF AND BACK ON
AGAIN after one minute. If the alarm
persists, first turn off the water tap
to avoid any flooding and then cut
off the electricity supply and call
for technical assistance.

If after all the checks, the appli­ance still does not operate or the
problem persists, call Hotpoint
Service (see KEY CONTACTS,

back page) and inform them of:

- the type of problem

- the abbreviation of the model
name (Mod.) and the relative num­bers (S/N) written on the rating plate

located on the inner edge of
the door.

Switch off at the mains socket
and remove the plug. Turn
off the water supply.

13

ISHWASHER

D

Load for 12 Standard Settings tests (upper rack at top position)

INFORMATION FOR TEST LABS

Loading the detergent

The cleaning detergent should be introduced into the
two containers “Comp.2” and “Comp.3”. "(see table

at the end of the page).

7

8

5

5

5

5

3

5

2

64

1

55555

5

This basket is
equipped with two

5

3

3

3

3

5

removable grids:
insert the cutlery

3

7

8

4

3

4

3

1

4

1

1

3

1

11

4

3

1

1

4

1

1

3

1

1

4

3

4

3

7

6

4

one by one into
the slots, with the
handles at the
bottom. Position
them so that they
don't touch.

Loading the Rinse Aid

The amount of rinse aid used for each cycle can be
regulated by turning the dose adjuster ‘F’ which you
will find under lid ‘C’.There are 6 different settings;
the normal dosage is setting 5.

D

Comp.2

Comp.3

F

C

14

2

2

4

4

2

22

2

4

2

4

2

2

2

2

2

door side

Cycle

EN 50242

IEC/ DIN

Press the extra dry button, if existing.

*

Eco

Eco+extra dry

Total detergent

30 gr.

*

30gr.

Comp.2

25

30

Comp.3

5

After Sales Service

"No company is better positioned to offer an after sales service on a

Hotpoint appliance than us - the manufacturer"

As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive

parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of

free

replacement parts for the first 5 years when fitted by a Hotpoint

engineer. When the 12 months parts and labour guarantee expires we offer the following after sales

service options:

Repair Service and Information Help Desk

UK: 08709 066066

www.theservicecentre.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the Model number and the Serial number of your appliance

Available 364 days a year with a fast, effective and value for money service. We have the largest

white goods repair service in the UK with over 1200 of our own fully trained engineers. All repairs

include a parts and labour guarantee for 12 months from the date of the repair.

If you require any information or have any questions about your appliance, our operators are on

hand with help and advice.

All this ensures that you will receive the best available after sales service possible.

Extended Warranties

UK: 08709 088 088

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Whether you have just one or a number of Hotpoint appliances in your kitchen, we offer two service

cover plans to give you total peace of mind.

l Repair Protection Plan - FREE service repairs for a single Hotpoint appliance during the

period of cover.

l Kitchen Cover - FREE service repairs for all your Hotpoint appliances less than 8

years old.

Genuine Parts and AccessoriesUK: 08709 077 077

www.theservicecentre.co.uk

Republic of Ireland: [phone]

A wide range of genuine parts and accessories are available from our hotline or through our web

site.

Genuine parts and accessories, extended warranties and service repairs are all

available on our web-site at:

www.theservicecentre.co.uk

15

Guarantee

"Satisfaction guaranteed or your money back"

We give you a unique 'satisfaction guaranteed' promise - valid for 90 days - after you have

purchased your Hotpoint appliance. If there is a technical problem simply call Hotpoint Repair

service or visit our web-site at www.theservicecentre.co.uk and where necessary, we will arrange

for an engineer to call. If the technical problem is not resolved under this guarantee, we will

replace your machine or, if you prefer, give you your money back.

All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free
replacement parts for the first 5 years (except microwaves, selected integrated appliances and
cooker hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint
engineer.

Guarantee terms and conditions

Your guarantee is only applicable in the United Kingdom or Republic of Ireland and is subject to
the following provisions that your appliance:

l Has been installed and used correctly in accordance with this instruction booklet.
l Has been used solely for domestic purposes and is located on domestic premises (ie. not

for commercial or trade use).

l Has been properly connected to a suitable electrical supply voltage as stated on the

appliance rating plate.

l Has not been subject to misuse, accident, modified or repaired by anyone other than one of

our own service engineers.

For pre purchase information on any other Hotpoint product call: 08701 50 60 70

or visit: www.hotpoint.co.uk

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality
recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance.
Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket and
the door cannot be locked shut.

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be
collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact
on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old
appliance.

Disposal of old electrical appliances

16

Notes

ISHWASHER

D

17

ISHWASHER

D

Notes

18

Notes

ISHWASHER

D

19

Key Contacts

After Sales Service

Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in

both the appliances and services we offer.

Repair Service and Information Desk

UK: 08709 066 066

(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)

www.theservicecentre.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the following information:

Model number:

Serial number:

Extended Warranties

UK: 08709 088 088

(Open 8 to 8 Mon - Sun)

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Genuine Parts and Accessories

UK: 08709 077 077

(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)

www.theservicecentre.co.uk

Republic of Ireland: [phone]

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB.

P-195047867.02

July 2005
