Hotpoint BD62 BD52 User Manual

Instructions

BD62
BD52

Before you operate your new

Hotpoint Double Oven

Please read these instructions fully.

ENSURE THAT THE OVEN IS INSTALLED BY A QUALIFIED ELECTRICIAN
FOLLOWING THE INSTRUCTIONS BELOW.

1. Your oven should not be located adjacent to a gas hob/heater or eye level
grill as flames from the burners could cause damage to your oven.

2. For your own safety and to get the best results from your oven it is important
to read through this Handbook before using your oven for the first time
including the Always and Never on pages 8 and 9.

Electrical Requirements

● For your own safety, we recommend that your cooker is installed by a

competent person – such as one who is registered with NICEIC (National
Inspection Council for Electrical Installation Contracting). The cooker should
be installed in accordance with the latest Edition of the IEE Regulations.

WARNINGS – INCORRECT INSTALLATION COULD AFFECT THE

● THE INSTALLER MUST check that the voltage shown on the rating plate
corresponds with the house electricity supply.

● The oven must be supplied via a suitable double pole isolating switch,
having a contact separation of at least 3 mm in all poles placed in a readily
accessible position adjacent to the unit.

● The maximum loading for your oven is 5.3kW.

● If the oven is to be wired into a connector unit this may be positioned

behind the oven provided the following requirements are met:
i) The connector unit must not project from the wall more than 25 mm.
ii) The top of the connector must not be more than 350 mm above the

base of the oven recess.

● After unpacking the oven stand it on the packing base in order to avoid
damage.

SAFETY OF THE OVEN.
– THIS APPLIANCE MUST BE EARTHED.
– BEFORE CONNECTING OR INSTALLING THE OVEN THE

ELECTRICITY SUPPLY MUST BE SWITCHED OFF.

Electrical Connections

●

Remove the terminal cover at the rear base of the oven. Pass the cable through the
cable clamp and connect to the appropriate terminals provided.
Allow sufficient cable so that the oven can be set down on the floor whilst still
connected up. Tighten the screws on the cable clamp and replace the terminal
cover. Make mains connections.
This appliance conforms to EN55014 regarding suppression of Radio and Television
reception interference.
Where a double oven is used a 32 amp double pole control switch should be used to
feed the unit using a suitable rated cable. We recommend that a
PVC insulated twin and earth cable conforming to B.S. 6004.

minimum of 4mm

● Where a hob is fitted adjacent to an oven then a 45 amp Double Pole control switch

should be used to feed both units via separate suitably rated cables.
We recommend that a minimum of 4mm2PVC insulated twin and earth cable
conforming to B.S. 6004.

WARNING: CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH THE
APPLIANCE OR TAMPER WITH THE CONTROLS.

2

2

PLEASE READ THIS BOOKLET CAREFULLY.

Contents Page

Before you operate your new Hotpoint Double Oven 2
Electrical Requirements 2
Installation Instructions 4-7
For Your Safety - Always 8

Never 9
The main parts of your Double Oven 10
The cooking systems in your Double Oven 11
Before using your Oven for the first time 12
Temperature Conversion Scale 12
Controls 13-14
The Automatic Oven Timer 15-20
Grilling 21-22
Top Oven - Conventional Cooking 23
Top Oven Temperature Charts 24-25
Main Oven - Fan Grilling 26
Main Oven - Fan Grilling Roasting Chart 27
Main Oven - Fan Only 28
Main Oven - Conventional and Fan oven 29
Main Oven - Fan Oven Cookery Notes 30-31
Main Oven Temperature Charts 32-33
Circulaire Roasting 34
Circulaire Roasting Chart 35
The Slow Cook Setting 36-37
Main Oven Grilling 38
Care and Cleaning 39-41
If Something Goes Wrong 42-43
Hotpoint Service Cover 44
Key Contacts Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important
details on the safe and proper use of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind,
make sure this Book is also provided so the new owner can become familiar with the
appliance and safety warnings.

3

Installation Instructions

Ensure that the electricity supply
is turned off before installing
your appliance.

IMPORTANT
DO NOT LIFT OVEN BY THE
DOOR HANDLES.

This equipment is designed
specifically for domestic purposes
and Hotpoint Limited cannot accept
responsibility if used for any other
type of application.

All electrical installations must be
carried out by a NICEIC registered
installer.

WARNING: THIS APPLIANCE

MUST BE EARTHED.

1. General

The appliance is designed for
mounting at a safe level into an
open housing which must be
secured to the backing wall.

2. Oven Unit Housing Cabinets

a. The oven unit housing cabinet

dimensions must comply with
Fig. 4. (See page 7.)

b. An air gap of 50 mm minimum

must be provided at the rear
of any top or bottom
cupboards or shelves. (See Fig.
1 page 6.)

c. Ventilation must be

unobstructed, ie. from
adjacent cabinetry. This can be
done by either raising the base
of the cabinets using the
adjusting feet (or spacers) or
alternatively by providing a
slot in the cabinet plinth to the
dimensions shown overleaf.

d. The air gap at the rear allows

the warmed air to pass out of
the inner cabinet space, but
where it is intended to fit

cupboards above the oven unit
to ceiling height it is essential
that the warmed air is
exhausted through the front
of the cabinet Fig. 1. (See page

6.)

e. If an oven unit is installed

adjacent to a tall cabinet,
steam escaping from the oven
when the door is opened could
condense on, and perhaps
stain, the adjacent surface. To
prevent permanent staining,
the adjacent surface should be
made of a material that is
heat resistant and easy to
clean.
Adjacent tall cabinets should
not be deeper than the oven
housing cabinet.

IMPORTANT

It is essential that the lower
cupboard is constructed in the
manner illustrated see pages 6 and
7 ie. having side, back and roof
panels so joined as to provide no
apertures which could permit
access to the oven unit when
installed .

3. Final Installation
a. Using a spirit level, check that

the housing cabinet is level
from side to side and from
front to back in its installed
position.

b. Correct any unevenness by

placing wooden packing under
the bottom of the cabinet.
Make sure that the cabinet
rests firmly on the cabinet
floor without rocking

c. Before the oven is fitted, the

cabinet must be firmly secured
to the backing wall for
stability.

4

Installation Instructions

d. The oven unit should now be

lifted (by 2 adults) into the
cabinet and pushed fully home.

e. Finally the oven unit must be

secured to the cabinet by
means of the four pozi wash
head screws, two through
each side trim.

f. REMOVE ALL PACKING

MATERIAL FROM THE GRILL
AND OVEN INTERIOR.

List of Loose Items

4 x Pozi Wash Head No. 6 x
15mm screws.

5

Installation Instructions (cont'd)

875mm

560mm

Fig. 2

exc. handle

577mm

887mm

550mm

597mm

Ventilation Slot

here if cabinet

fits to ceiling

min. area

51mm x 457mm

Ventilation Slot

Ventilation Slot

here if cabinet

doesn't fit to ceiling

50mm

Air Gap

Fig. 1

50mm

Air Gap

6

Fig. 4

560mm min

574mm max

projections

work and other

*550mm min

* excluding pipe

560mm

878mm if

trim is to

overlap top

shelf

edge of

887mm

Fig. 3

Viewed down through cabinet

Oven Door

screws

(4 supplied)

No. 6 x 15mm

7

For Your Safety, Always ...

Please read through before
operating your appliance.

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

Have your appliance
installed by
a competent engineer or
electrical contractor.

Ensure the appliance has
been properly earthed.

Remove all transportation
packing from inside the
oven/grill before switching
on for the first time.

Make sure you understand
the controls prior to using
them.

Keep children away from
the oven at all times when
oven/grilling as surfaces
will get extremely hot.

Remember that the oven
and utensils will be very hot
when in use.

Take care when opening
the door. Let the steam
and hot air escape before
removing the food.

Use dry quality oven gloves
for removing hot food
utensils from the oven/grill.

Select the correct shelf
position before turning the
oven or grill on.

Turn off the electricity
supply at the wall switch
before cleaning.

Ensure poultry is
thoroughly defrosted
before cooking well.

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

Check all controls on the
appliance are switched off
before retiring to bed or
after use.

Keep ventilation slots clear
of obstructions.

Reset the oven timer to
Manual after completing an
Automatic Cooking
Programme.

Take care on warm days
when using the oven for
delayed automatic cooking
as certain foods can spoil.

Use a thick cloth to protect
your fingers when replacing
the oven lamp.

Refer servicing to a
qualified appliance service
engineer.

Follow the guide lines for
successful defrosting when
using the fan only mode.

8

For Your Safety, Never ...

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

Leave children playing
unsupervised where the
oven is installed and in use.

Attempt to grill with the
grill/oven oven door
closed.

Allow children to sit or
stand on any part of the
appliance.

Store food stuffs in the
same cabinet as the oven.

Store items above an
oven that children may
attempt to reach.

Operate the oven with the
inner glass panel
removed.

Remove the oven shelves
when the oven is hot.

Use water to extinguish
oil or fat fires.

Use the oven/grill as a
space heater.

Cover oven interior and
shelves with aluminium
foil.

Heat up unopened food
containers as pressure
can build up causing the
container to burst.

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

NEVER

Attempt to clean the
oven until the mains
supply has been switched
off and the oven is cool.

Defrost the meat and
poultry by warming
through in the oven.

Store any aerosols/
flammable liquids etc. in
adjacent cabinetry.

Store anything which
might catch fire in or near
the oven.

Operate the grill when
the ovens are set to
cook automatically.

touch any heating
elements inside the oven,
the appliance becomes
hot during use.

Use steam cleaners.

9

The main parts of your Double Oven

WARNING: DO NOT TOUCH THE GLASS DOORS WHEN THE OVEN IS IN USE AS THESE
AREAS CAN BECOME HOT.

Stay clean
Liner

Rod
Shelf

Oven
Light

Oven
Fan

Stay clean
Liner

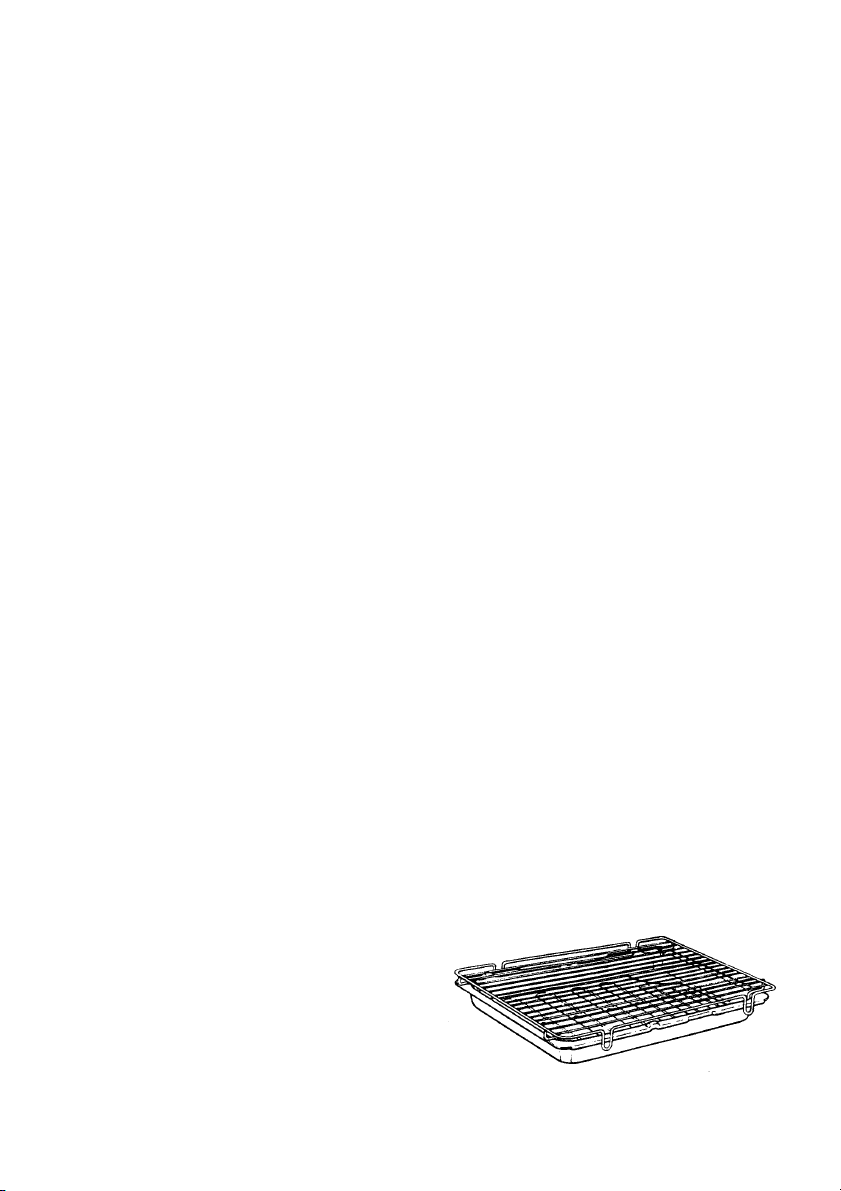

Meat pan and
Roasting rack

Grill Control

Top Oven

Temperature Control /

Grill Select

Top
Oven
Pilot

Timer

Main Oven

Temperature

Control

Main Oven

Pilot

Multifunction
Selector

Grill
Element

Oven Light

Grill Pan, Anti-splash
tray and Food support

Top Oven
Door

Fan Grill
Element

Oven
Shelves

Rating Plate

Inner
Door
Glass

NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as

overheating and damage may result.

10

Main Oven
Door

The Cooking Systems in your Double Oven

Your new oven is equipped with
three different cooking systems:

1. Conventional Heating

1

2

3

(Top Oven) - with upper and
lower heat. This system is
particularly suitable for roasting
and baking on one shelf only.

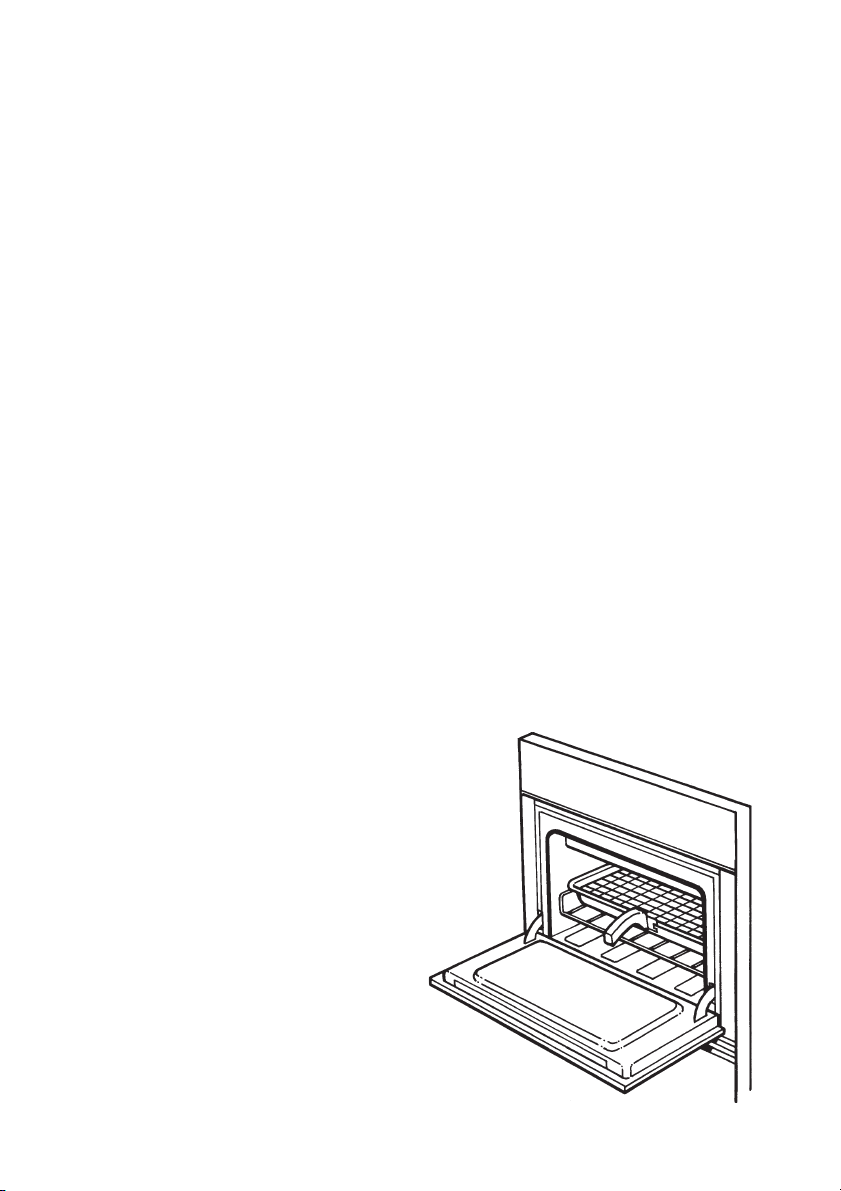

2. Grilling (Top Oven) - Has a full
width, fully controllable grill. The
grill also has an economy setting
which enables you to use just the
left section.

NOTE: The oven door should
be open when grilling.

(See page 21.)

3. Fan Cooking (Lower Oven) ­the fan oven operates by
constantly blowing heated air
from an element wrapped around
the fan into the oven. This gives
improved efficiency and, in
general, enables the use of lower
temperatures for cooking. It also
means that there is less need to

be particular about shelf
positions and that you can bake
at more than one level
simultaneously (Batch Baking).

It should be noted that at the end of a cooking period there may be a
momentary puff of steam when the oven door is opened. This will disperse in a
few seconds and is a perfectly normal characteristic of an oven with a good
door seal.

11

Before Using the
Oven for the First Time

Make sure the electricity supply
is switched ON.

Please note that when the double
oven is used for the first time a
slight odour may be emitted due to
the ‘burning off’ of any temporary
finish on oven fittings and elements
and the removal of moisture
absorbed by the insulation. The
odour will cease after a short period
of use.
To remove the ‘new smell’, heat up
the empty oven for 30 minutes
keeping the door closed.

Ensure that the room is well
ventilated (eg, open a window or
door or use an extractor fan) and
that persons who may be sensitive
to the odour avoid any fumes. It is
suggested that any pets be
removed from the room until the
new smell has ceased.
Turn the selector switch to fan oven
function, then turn oven thermostat
to MAX. Also turn Top Oven/Grill
selector to MAX.
The oven temperature thermostat
lights will come on as well as the
interior light, oven fan and cooling
fan.

Temperature Conversion Scale

The chart below gives details of
comparisons of oven settings for
gas conventional ovens and fan oven
in degrees ˚F and ˚C

12

GAS

MARK

1

2

/
1
2
3
4
5
6
7
8
9

CONVENTIONAL

OVEN

˚F ˚C

250 120
275 140
300 150
325 160
350 180
375 190
400 200
425 220
450 230
475 240

FAN

OVEN

˚C

100
120
130
140
160
170
180
200
210
220

The Controls

Top Oven Pilot

❍

Grill

Control

IMPORTANT
Before using your oven in the
ordinary way, ALWAYS make
sure that the timer has been set
to MANUAL operation. Unless
this is done, the main oven cannot
heat up. Before seeking assistance,
make sure this is done (refer to
oven timer operation).

Multifunction Selector

Rotate the control knob in either
direction to the required function.
Many of the functions will also
require the main oven thermostat
to be set before the oven will heat
up.

Main Oven Temperature Control

This is used in addition to the
multifunction selector. This is used
for the functions: fan oven, fan grill,
half grill and full grill and
conventional oven.
Turn the control clockwise to set the
oven thermostat to the required
temperature.
If the timer is set correctly and the
selector switch set to a suitable
function an indicator light will
illuminate. This will remain on until
the oven reaches the required
temperature. This light will then
cycle on and off as the thermostat
maintains control of the oven
temperature.

❍

Top Oven

Temperature Control /

Grill Selector

Timer

Top Oven Temperature Control

Turn the control clockwise to set
the top oven thermostat to the
required temperature. An indicator
light will illuminate. This will remain
on until the oven reaches the
required temperature. This light will
then cycle on and off as the
thermostat maintains control of the
oven thermostat.

Grill Control

The grill control is designed to
provide variable heat control of
either both grill elements on
together or the single left-hand grill
element only. Turn the top oven
control clockwise past the
temperature settings to the half
grill or full grill settings, depending
on which you require. To set the grill
power, turn the grill control to any
setting 1-6. After use always return
the controls to their off position
"O".

Cooling Fan

A gentle flow of air will be blown
below the control panel when any
control is used. In some instances
this will continue after switching
off. This helps to keep the control
panel and knobs cool.

After use Always return the
controls to their off ‘O’ position.

Main Oven Pilot

❍

Main Oven

Temperature

Control

❍

Multifunction

Selector

13

Multifunction Selector Switch

The Multifunction selector switch is
used when operating the main oven.
With the exception of the O
position the main oven light will
remain on when this selector switch
is used.

Off

With the selector in this position the
main oven will not heat up. The
timer will still operate.

Fan Oven

The oven fan and a rear element are
controlled when this function is
selected.
Use the main oven thermostat
control to set the required
temperature.

Conventional Oven

Top and base elements are
controlled when this function is
selected.
Use the main oven thermostat to
set the required temperature.

Full Grill

Both left and right hand grill
elements will be on in this position.
Use the oven thermostat control to
set the required temperature.

Oven door must be open

Fan Grill

The oven fan and fan grill element
are controlled when this function is
selected.
Use the oven thermostat control to
set the required temperature.

Oven door must be closed for fan
grilling.

Fan Only

The oven fan will operate when this
function is selected.
The oven thermostat control must
be set in the off position.

Light Only

This function switches on the oven
light only.

for grilling.

Half Grill

With this function selected only the
left hand side of the grill will be on.
Use the oven thermostat control to
set the required temperature.

Oven door must be open

14

for grilling.

Oven Timer Operation

The oven timer offers you the following
features:

1. Time of Day

2. Automatic Cooking

3. Minute Minder

Automatic Cooking

The ovens can be controlled
automatically.

Guidance on automatic cooking

1. Select foods which will take the
same time to cook.

2. Set the oven timer so that the food
has just finished or is just about to
finish cooking on your return to the
oven. This will ensure the food has
not cooled down and does not
require reheating before serving.

3. Food should be as cold as possible
when it goes into the oven, ideally
straight from the refrigerator.
Frozen meat and poultry should be
thawed thoroughly before it is put in
the oven.

4. We advise that warm food should
never be placed in the oven if
there is to be a delay period. Stews
prepared by frying the meat and
vegetables should be cooked as
soon as possible.

5. We advise dishes containing left­over cooked poultry or meat, for
example Shepherds Pie, should not
be cooked automatically if there is to
be a delay period.

6. Stews and joints should be cooked
by the long slow method, so
that the delay period is kept to a
minimum.

7. On warm days, to prevent harmful
bacterial growth in certain foods (ie
poultry, joints, etc) the delayed start
should be kept to a minimum.

8. Wine or beer may ferment and
cream may curdle during the
delay period, so it is best to add
these ingredients just before
serving.

9. Foods which discolour should be
protected by coating in fat or
tossing in water to which lemon
juice has been added, prior to
placing food in the oven.

10. Dishes containing liquid should not
be filled too full to prevent
boiling over.

11. Food should be well sealed (but
not airtight) in a container to
prevent the loss of liquid during
cooking. Aluminium foil gives a
good seal.

12. Ensure food is cooked thoroughly
before serving.

15

Know your Timer

CLOCKFACE

The timer incorporates a 24 hour clock.

Ensure the correct time of day is always set, before using your cooker.

SYMBOLS

A ‘bell’ symbol will light up when you select a Minute Minder Period and will
remain lit for the period set.
At the end of the Minute Minder Period, the timer will emit an audible tone and
the ‘bell’ symbol will disappear.

The ‘cookpot’ symbol will light up either:–
– When the timer is in manual mode, or
– During the actual Cook Period.

‘AUTO’ will light up:–
– When the timer is first turned on it will flash. It will go out when a time of day

is set or when the timer is set to manual.
The ‘AUTO’ symbol will flash at the end of an Auto Cooking programme to indicate
that the programme has finished.

(When the ‘AUTO’ symbol is flashing, to return the oven to Manual operation,
turn the oven controls off, ensure that the correct time of day is set, and press
the “Manual” button – The ‘AUTO’ symbol will go out).

TIMER FUNCTION BUTTONS

Minute Minder
Button

Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.

For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.

AUTO COOKING PROGRAMME

Cook Period Button

End Time Button

Manual Button

“+” and “–” Buttons

16

Cook Period is the actual length of time for which, the timer will switch the oven(s) on
as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).

The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The

timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear
a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.

Notes:

- When setting an Auto Cooking programme you will need to set the oven
control(s) to the required temperature(s) when you set the timer.

- If an Auto Cooking programme has been set the oven(s) will only operate during
the pre-programmed time.

Needs to be pressed to cancel an Auto Cooking programme and return the oven(s) to
Manual operation.

Used to adjust the various timer function settings.

Electronic Clock & Automatic Oven Timer
Operation

SETTING THE TIME OF DAY

Step 1 Make sure all oven controls are turned Off.

Step 2 Check the electricity supply to the cooker is turned on.

Step 3 When switched on the display will show 0.00 and the Auto symbol,

flashing intermittently.

Step 4 Press & hold in both the Cook Period & End Time buttons together.

Step 5 With the Cook Period & End Time buttons still held in, press either the “+”

or “–” buttons to set the correct time of day.

Step 6 Release all the buttons simultaneously.

THE TIME OF DAY IS NOW SET.

To change the time of day repeat Steps 4, 5 & 6 above.

Note: You cannot adjust the time of day if the timer has been set for an

Auto Cooking Programme.

SETTING THE MINUTE MINDER

Step 1 Ensure the time of day is set correctly.

Step 2 Press and hold the Minute Minder button.

Step 3 With the Minute Minder button held in, set the required Minute Minder

period using the “+” and “–” buttons. A ‘bell’ symbol will light up.

Release all buttons and the timer display will revert back to the time of day.
The ‘bell’ symbol will remain lit to signify that a Minute Minder period has been
set.

At the end of the set time an audible tone will be heard, and the ‘bell’ symbol will
disappear.

Step 4 To cancel the audible tone press the Minute Minder button.

Note 1 When the Minute Minder has been set, the time remaining can be checked at any

time by simply pressing the Minute Minder button.

Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by

pressing and holding the Minute Minder button and then at the same time
pressing the “–” button until 0.00 appears in the display window.

17

Electronic Clock & Automatic Oven Timer
Operation

AUTO COOKING PROGRAMMES

There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically

(b) To set timer to switch on immediately and OFF automatically after a set cook period.

a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY

This allows you to cook at a specified time for a chosen period before the oven switches
off Automatically.

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Step 3 Press and hold in the Cook Period button.

The display will read 0.00 with the ‘cookpot’ symbol lit.

Step 4 With the Cook Period button still held in, set the required Cook Period

using the “+” and “–” buttons.

Release the buttons and the timer display will revert to the time of day with the
‘Auto’ symbol and ‘cookpot’ symbol lit.

Step 5 Press and hold in the End Time button.

The display will read the earliest possible end time for the Cook Period
that you have set above.
The ‘Auto’ symbol and ‘cookpot’ symbol will be lit.

Step 6 With the End Time button still held in, use the “+” and “–” buttons to set

the ‘End Time’ (i.e. The time you require the oven to switch off).

Release all the buttons and the timer will revert back to the time of day.

The ‘Auto’ symbol will remain lit to signify that an Auto Cooking Programme has
been set. The ‘cookpot’ symbol will go out.

Step 7 Turn the oven control(s) to the required temperature, and if necessary

select the appropriate oven function.

18

At the end of the Automatic Cook Period the Auto Symbol will flash and an
intermittent bleeping sound will be heard.
The audible tone will continue unless cancelled.
The ‘Auto’ symbol will continue to flash until the timer is returned to Manual
operation (see below).

Step 8 Press the Manual button, the audible tone will be cancelled and the

oven(s) will be returned to Manual.

Step 9 Turn the oven control(s) to the OFF position.

Electronic Clock & Automatic Oven Timer
Operation

Note 1 When cooking automatically the Cook Period can be checked at any time by simply

pressing the Cook Period button.

Note 2 When cooking automatically the End Time can be checked at any time by simply

pressing the End Time button.

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET COOK

PERIOD

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven

NOTE: The Cookpot symbol disappears

function.

Step 4 Press & hold in the Cook Period button, the display will read 0.00 and the

‘cookpot’ symbol will light up.

With the Cook Period button still held in set the required Cook Period using the
“+” and “–” buttons. Example: 1hr 30 minutes (as shown).

Note: Cook Period is the length of time the food requires to cook.

Step 5 Release all buttons.

The timer display will revert to the time of day with the ‘Auto’ symbol lit &
‘cookpot‘ symbol remaining lit.

At the end of the Cook Period the ‘Auto’ symbol will flash and an intermittent
audible tone will be heard.
The audible tone will continue until cancelled. The ‘Auto’ symbol will continue to
flash until the timer is returned to Manual operation (see below).

Step 6 Press the Manual button. The audible tone will be cancelled and the

oven(s) will be returned to Manual.

Step 7 Turn the oven control(s) to the OFF position.

19

Electronic Clock & Automatic Oven Timer
Operation

TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.

Step 1 Turn the oven control(s) to the OFF position.

Step 2 Press the Manual button to return the oven(s) to “Manual” operation.

The ‘Auto’ symbol will go out.

Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing

OTHER NOTES ON TIMER OPERATION

1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook

2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time

3. Having set a Cook Period and End Time an electronic device stores the information. The device within the

4. When setting an Auto Cooking Programme and a mistake is made, to clear:–

5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’, it is likely that the electricity supply to

6. To set each function always press and hold the required function button and at the same time press “+” or

the Cook Period button.

Period button.

button.

timer will switch the oven(s) on and off at the required times.

(a) Press & release the Manual button.
(b) Start the sequence again.

the oven has been interrupted. Reset the timer to the correct time of day.

Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated
and completely cooked.

“–” buttons.

20

Grilling in the Top Oven

Keep young children away from
the appliance when the grill is in
use as the surfaces get extremely
hot.
Grilling should NOT be
undertaken with the Grill/Top
Oven door closed. (See below)

Never: Line the grill pan with

aluminium foil.
The grill control provides variable

heat control of the grill element and
will only operate once the oven
control has been set to a grill
position (fully clockwise).

The grill regulator is designed to
provide variable heat control of
either the twin grill elements on
together or the single left-hand grill
element only, depending on which
mode you select:

To select twin grill, first turn the
Top Oven/Grill Selector clockwise to
Full Grill.
The heat can now be adjusted by
setting the grill regulator.

To select single grill turn the Top
Oven/Grill Selector clockwise to Half
Grill.

Food which requires browning only
should be placed under the hot grill
directly on the shelf in the first or
second runner from the bottom of
the oven, according to the depth of
the dish.

Care should be taken when
removing the grill pan during or
directly after use.

After use, always return both
controls anticlockwise to the OFF
position.

NOTE: The grill pan must be
cleaned after every use. Excess
fat build up in the bottom of the
pan could cause a fire hazard.

The heat can now be adjusted by
setting the grill regulator.

Please note that the Grill will not
operate unless the Top Oven/Grill
Selector is in a grill position.
After use, turn both controls
ANTI-CLOCKWISE to their off
positions.

Grill Procedure

Ensure oven timer is set to Manual.
Pre-heat the grill at setting 6 for
approximately 1 minute.
When toasting/grilling, the rod shelf
is placed in either the second or
third runner position from base. The
grill pan is placed on the shelf and
pushed back as far as possible to
correctly position it under the grill
element.
Leave the control at 6 for toast, and
for sealing and fast cooking of
foods. For thicker foods requiring
longer cooking, turn the switch to a
lower setting after the initial sealing
on both sides at 6.
The thicker the food, the lower the
control should be set.

21

Grill Chart

Shelf

Position

from base

of oven

3 or 2

3 or 2

2

2
3
3

3 or 2

3 or 2

3 or 2

Setting

Setting 6

Setting 6 for 4 minutes
then reduce to Setting 5

Setting 6 for 6-8
minutes then reduce to
Setting 4 or 5

Setting 6

Setting 4

Setting 4

Setting 6

Food

Toasting of Bread
Products

Small cuts of meat
– Sausages, Bacon

Chops, etc.
Gammon Steaks

Fish

Whole
Fillets
Fingers

Pre-cooked Potato
Products

Pizzas

Browning of Food
eg. Cauliflower
Cheese

Pre-heat

for one
minute

Setting 6

None

None

None
None
None

None

None

Setting 6

Fixing the Grill Pan Handle

Fix the grill pan handle securely in
position before use.
The grill pan handle is detachable
from the pan, to facilitate cleaning
and storage.
The handle fits onto the grill pan
edge with the small recess, Fig. 5.

Approximate
Cooking Time

3-5 minutes

10-15 minutes

25-30 minutes

6-8 minutes
10-15 minutes
10-15 minutes

10-12 minutes

10-12 minutes

5-10 minutes

Pan to be used

Grill pan and food

support

Grill pan, anti-

splash tray and

grid

Grill pan, anti-

splash tray and

food support

Grill pan and food

support

Grill pan and food

support

Grill pan and grid

Dish placed

directly on the

shelf

Tilt the handle over the recess and
slide it towards the centre, Fig. 6
Ensure the handle is fully located
Fig. 7.
Insert the washer and fixing screw
and tighten fully to ensure handle is
secured .

Fig. 5

Recess

Always fit the screw prior to use.

22

Fig. 6 Fig. 7

Cooking in the Top Oven –
Conventional Cooking

The Top Oven can be used to cook
small quantities of food or used in
conjunction with the Main Oven to
provide additional cooking space
so often necessary when
entertaining.
The oven is designed so that the
grill element operates at a reduced
heat output (element will not glow),
combined with a heating element
situated underneath the floor of
the oven.

Do not place items directly onto
the floor of the oven.

To ensure even cooking of the food
it is important that cooking utensils
are positioned correctly on the oven
shelf directly beneath the element.
(As a guide, the front of the
utensil should be approximately
100 mm/4 in from the front of the
shelf.)
There are two cooking positions, the
shelf placed on runner 1 or 2 (from
the base).

Food or utensils must never be
placed directly on the floor of the
oven.

There should always be at least
25mm (1 in) between the top of the
food and the grill element.
Do not use utensils larger than
300mm x 230mm (12in x 9in).
Larger utensils should be used in
the Main oven.

Operation

To heat the oven, turn the Top
Oven/Grill Selector clockwise,
selecting the required temperature
between 100˚C (200˚F) and 220˚C
(425˚F) as recommended in the Top
Oven Temperature Charts. The Top
Oven indicator light will immediately
come on and remain on until the oven

reaches the required temperature.
The indicator light will then
automatically go off and on during
cooking as the thermostat
maintains
the correct temperature. If the
indicator light doesn’t come on
when the control knob is turned,
check that the oven timer is set to
Manual as described in ‘Oven Timer
Operation'.

Cooking Meat/Poultry in the Top
Oven

The Top Oven is most useful for the
longer slower cooking required for
cheaper cuts of meat – casserole
cooking, pot roasting, braising etc.
Small joints of meat up to 1.5 kg
(3 Ib), or poultry, up to 3.6 kg (8 Ib)
in weight can be roasted in a small
meat pan in the Top Oven, but
should preferably be ‘slow roasted’
or covered with a lid of aluminium
foil (one or two incisions in the top
of the foil will allow the meat or
poultry to brown).
Larger joints of meat, and poultry
weighing more than 3.6 kg (8 Ib),
should be roasted in the Main
Oven.

Do not use the Main Oven meat
pan or the grill pan as a meat pan
in the Top Oven as air circulation
will be seriously restricted.

Top Oven as a Warming
Compartment for Plates and
Dishes

Place the plates and dishes on the
shelf that has been positioned on
runner 1 of the oven and turn on the
Top Oven thermostat to 100˚C for
10-15 minutes.
DO NOT use the grill control.

23

8-10

15-20

Time in mins.

20-25

15-20

12-15

75-90

45-50

on size

Depending

40-45

on use

Dependent

20-25

40-50

105-135

45-50

180-240

˚C

210/220

Temperature

Yes

Pre-

heat

Oven

Position in

Runner 1 from

bottom of oven.

10-15

Time in mins.

Top Oven Cooking Fan Oven Cooking

˚C

210/220

Temperature

Oven Temperature Charts – Baking

Yes

Pre-

heat

170/180

160/170

Runner 1.

Runner 1 from

bottom of oven.

20-25

180/190

Yes

Runner 1 from

20-30

170/180

Yes

170/190

180/200

140/150

Yes

Yes

Runner 1.

Runner 1 from

bottom of oven.

bottom of oven.

20-25

10-15

60-75 7 inch

180/190

200/210

150/160

Yes

Yes

Yes

130/140

190/200

190/200

Runner 1.

Runner 1 from

Runner 1 from

bottom of oven.

on size

on recipe

Time Dependent

Time Dependent

Time Dependent

140/150

190/200

200/210

Yes

Yes

Yes

180/190

190/200

Yes

Yes

Runner 2 from

bottom of oven.

on recipe

Runner 2 from

bottom of oven.

bottom of oven.

30-40

20-30

190/200

200/210

Yes

Yes

130/140

140/150

Runner 1.

Runner 1.

40-50

90-120

140/150

150/160

Yes

Yes

80-90

200/210

No

Yes

Runner 1.

Runner 2 from

30-45

150-180

100

200/210

Yes

Yes

bottom of oven.

24

Baking

Food

Scones

Small Cakes

Victoria Sandwich

Sponge Sandwich

(fatless)

Swiss Roll

Semi-rich Fruit

cakes

Rich Fruit Cakes

Shortcrust Pastry

Puff Pastry

Yorkshire Pudding

Individual Yorkshire

Puddings

Milk Pudding

Baked Custard

Bread

Meringues

Note: If soft margarine is used for cake making, temperatures recommended by the manufacturers should be followed. Temperatures recommended in this chart

refer to cakes made with block margarine only.

Time (approx.)

(1lb) + 20 mins extra

20-25 mins per 450g

(1lb) + 25 mins extra

25-30 mins per 450g

(1lb) + 25 mins extra

20-30 mins per 450g

(1lb) + 25 mins extra

25-30 mins per 450g

13-15 mins per 450g

(1lb) + 20 mins extra

18-20 mins per 450g

C

o

C

o

1

450g at 150

allow 12 mins per

(1 lb) at 150/160

- 2 Hrs

2

/
1

˚C

Temperature

Pre-

heat

Meat

Oven

Position in

Time (approx.)

Top Oven Cooking Fan Oven Cooking

Oven Temperature Charts – Meat

35 mins per 450g (1 lb) +

160/180

No

Beef

160/180

No

Lamb

(1 lb)

35 mins over.

35-40 mins per 450g

40 mins per 450g (1 lb)

160/180

No

Pork

160/170

No

Veal

from

bottom

Runner 1

of oven.

+ 40 mins over

(1 lb) + 40 mins over

40-45 mins per 450g

40 mins per 450g (1 lb)

160/180

No

Chicken/ Turkey

up to 4kg (8 lb)

(1 lb)

40-45 mins per 450g

No

Turkey 4 to 5.5kg

(8 to 12 lb)

over 5.5kg (12 lb)

(1 lb)

(1 lb) + 25 mins over

25-30 mins per 450g

25-30 mins per 450g

140-150

No

Casserole Stews

hrs

2

/

1

2-2

˚C

Temperature

Pre-

heat

Meat

Meat

190/200

170/180

Yes

Yes

Beef/ Lamb

(slow roasting)

Beef/ Lamb

(foil covered)

170/180

190/200

Yes

Yes

Pork

(slow roasting)

Pork

(foil covered)

170/180

190/200

Yes

Yes

Veal

(slow roasting)

Veal

(foil covered)

170/180

190/200

Yes

Yes

Poultry/Game

(slow roasting)

Poultry/Game

(foil covered)

150

Yes

Casserole

Cooking

If using aluminium foil, never: 1. Allow foil to touch sides of oven. 2. Cover oven interior with foil. 3. Cover shelves with foil.

Medium: 70˚C Pork: 90˚C

The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the thickest part of a

joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer will indicate when the required internal temp has

been reached.

Beef - Rare: 60˚C Lamb: 80˚C Poultry: 90˚C

25

Well Done: 75˚C Veal: 75˚C

Main Oven – Fan Grilling

Fan grilling is a combination of heat
from the grill element and the oven fan
circulating the hot air around the food.
Joints of meat and poultry will be
browned as if they were cooked on a
rotisserie or spit but more economically
as the door left closed.
If required, fan grilling can be timed
using the Oven Auto timer.
Follow the timer instructions before
selecting fan grill and the required
temperature.

If Manual fan grilling is required always
ensure the timer is set to Manual.
Do not use the oven without the
removable oven roof in position with its
front flange facing downwards.

Operating Instruction

1. Open the oven door.

2. Select the correct shelf position, as
stated in chart.

3. Turn the selector switch to the Fan
grill position.

4. Turn the oven thermostat control to
the required temperature (see Fan
Grilling Roasting Chart).

5. Position the meat pan centrally
under the grill elements.

6. Close the oven door.

7. After use always return both
controls to the off position.

8. If the oven timer was used, reset to
Manual.

As with the fan oven cooking there is no
need to pre-heat the oven – yet another
economy feature. Also you can cook
more than one thing at a time – even up
to 4 small chickens.

General Recommendations

Most types of meat and poultry cooked
by this method will have an all over
brownness and crispness on the outside.
The only exceptions are very lean joints,
such as veal, which, because of its low
fat content, is better cooked using
conventional heating.

1. Always place the pan on the shelf
position recommended. (See Chart).

2. There is no need to preheat the oven
before cooking and all fan grilling
should be carried out with the oven
door closed, this saves energy.
The cooking temperatures and times
are calculated from a cold oven.

3. After rinsing and drying meat, place
on the food roasting support rack
over the pan supplied.

4. Position meat in oven as
recommended in the roasting chart.

5. Fan grilling is ideally suited for
cooking all types of poultry and larger
joints of meat (e.g. stuffed, rolled
joints and legs of pork and lamb).
Results will be as if you had cooked
the food on a rotisserie. If you use
frozen meat or poultry it must be
completely defrosted before it is
cooked.

6. When cooking a joint always grill it
with the fat side uppermost in order
to crisp it. For bigger joints or where
there is little bone, grill at the lower
temperature given in the table and
cook for a longer time per kg.

7. When cooking any type of poultry,
start grilling the underside
uppermost and turn breast
uppermost about a third to halfway
through the cooking period. If cooking
stuffed poultry allow slightly longer
cooking time.

Temperatures

These will be similar to those used for
the more traditional form of
roasting but the guide will give you an
indication of which temperature to set
the Thermostat. But remember that
because of the way the oven is heated
this is a more economical way of
roasting.

26

Meat pan and
roasting rack

Main Oven - Fan Grilling Roasting Chart

Shelf positions are counted from the base upwards ie: lowest shelf position is 1.

Type of Meat

or Poultry

PORK
Pork Chop - thick 170 25 Dependent on size Season. Grill on shelf

Gammon Steaks 160 30 Dependent on size Grill on shelf position 3

Pork - any type of joint 1.0 160-170 60-70 45 105-120 Score fat with sharp knife

LAMB
Lamb chop - thick 170 25 Dependent on size Season. Grill on shelf

Lamb - any type of joint 1.0 160-170 30-40 45 78-88 Score fat. Season with

BEEF
Beef - joints which have 1.0 170-180 40-50 20 60-70 Season. If joint preferred
an outside layer of fat 1.5 170-180 40-50 20 80-90 rare grill for the shorter
eg. Rib, Rolled, Sirloin 2.0 160-170 40-50 20 100-110 time. If preferred well done

CHICKEN 1.0 180 30 30 60 Season and brush over with

Chicken joints less than 180 30 30 60 Shelf 1.

DUCK 1.5 180 30 30 75 Dry thoroughly and lightly

GOOSE up to 4 170-190 40 40 - Can be stuffed.

TURKEY up to 5 170 - - 150-165 Season and brush over with

GAME
Grouse Any 170-180 30-50 - - Well hung meat will require
Partridge Any 170-180 40-50 - - less cooking time. Grill on
Pheasant Any 170-180 40-50 - - position 1.

Beefburgers 450g(lb) 170 25mins per Shelf 3.

Sausages 450g (lb) 170 25mins per Shelf 3.

Bacon 450g (lb) 170 25mins per Shelf 3.

Mixed Grill 170 30 4 pieces of steak, sausages,

Weight

kg

1.5 150-170 60-70 45 130-150 and rub on salt. Pork

2.0 140-150 65-75 50 180-230 should always be

2.5 140-150 65-75 50 220-240 thoroughly cooked. So

over 2.5 140 70-75 50 - overcook rather than

1.5 160-170 35-40 45 90-110 pepper and rosemary. If you

2.0 150-160 35-45 50 120-140 prefer the lamb pink

2.5 150-160 40-45 50 150-170 choose the shorter time

over 2.5 150 45-50 50 - Grill on shelf position 1.

2.5 160-170 45-50 30 140-150 grill for the longer time.

over 2.5 160 45-50 40 - Grill on shelf position 1.

1.5 180 30 30 75 melted butter to give nicely

2.0 170 35 30 100 browned skin. Grill on shelf

2.5 170 35 30 115 position 1.

over 2.5 160-170 40 30 -

1kg each

2.0 180 30 30 90 salt. Grill on shelf position 1.

2.5 180 35 30 115-130

4-5 160-170 45 40 - Grill on shelf position 1

6-8 150 - - 165-175 melted butter to give nicely

Temp

˚C

Plus Extra

Time

(min/kg)

450g (lb)

450g (lb)

450g (lb) Roll up bacon before cooking.

Time (mins)

Total Cooking Time

(mins)

Tips

position 3. Turn over after
15 mins.

Turn after 15 mins.

undercook. Grill on shelf
position 1.

position 3. Turn over after
15 mins.

browned skin. Grill on shelf
position 1

Prick sausages before cooking.

chops, bacon, tomatoes &
mushrooms. Cook sausages,
chops, bacon for 10 mins. add
steak, cook for further 20 mins.

27

Main Oven - Fan Only

The oven has a fan only position,
which can be used to assist
defrosting by circulating unheated
air around the food.

Time to defrost will depend on type
and size of the food and the room
temperature.

Operating Procedure

1. Turn the selector switch to the
fan only position.

2. After use always return the
control to the off position and
close the oven door.

DO NOT turn the oven thermostat
control on.
DO NOT defrost meat and poultry
by warming the food through.

Foods ideally suited for fan
defrosting (without heat) are those
which are normally served cold, e.g.
cream/cream cakes, butter cream
filled cakes, gateaux, cheese cakes,
iced cakes, quiches, pastries,
biscuits, bread croissants, fruit and
many delicate frozen foods.

If fish, meat and poultry are to be
“fan only” defrosted then where
possible the items should be thin e.g.
fish fillets, peeled shrimp, cubed or
ground meat, sliced meat, thin
chops, steaks or liver.

The items should be placed so the
maximum amount of surface area is
exposed to the circulating air and
turned regularly to ensure even
defrosting.

Fan defrosting without heating is
only suitable for meat and poultry
joints up to a maximum weight of

1.8kg (4 lb).

It is important to wash both roast
and cooking utensils before cooking
immediately after defrosting.

28

It is vitally important to strictly
adhere to the basic principles of
food handling and hygiene to
prevent the possibility of bacterial
growth.

Main Oven - Conventional Oven

Important

NEVER line the shelves, the floor or
the sides of the oven with aluminium
foil as overheating and damage may
result.

The oven is heated by elements at
the top of the oven and underneath
the floor of the oven.

Food should not be placed on the
floor of the oven.

Do not use the oven without the
removable oven roof in position
with its front flange facing
downwards.

Main Oven - Fan Oven

Operating Procedure

1. Ensure Oven Timer is set to
Manual.

2. Position rod shelf as
recommended in the chart for
food being cooked.

3. Position food centrally under grill
element.

4. Turn the selector switch to the

conventional oven position.

5. Turn the oven thermostat
control to the required
temperature setting (see oven
temperature charts).
The oven light will remain on.
The oven indicator light will
remain on until the oven reaches
the set temperature. This light
will then automatically cycle on
and off during cooking as the
oven temperature is controlled.

6. After use always return both
controls to the off position and
close the oven door.

Important

NEVER line the shelves, the floor or
the sides of the oven with aluminium
foil as overheating and damage may
result.

The oven is heated by elements at
the rear of the oven.
A fan at the rear of the oven
operates to circulate heated air
within the oven.

Do not use the oven without the
removable oven roof in position
with its front flange facing
downwards.

Operating Procedure

1. Ensure Oven Timer is set to Manual.

2. Turn the selector switch to the fan
oven position.

3. Turn the oven thermostat control to
the required temperature setting
(see oven temperature charts).
The oven light will remain on.
The oven indicator light will remain on
until the oven reaches the set
temperature. This light will then
automatically cycle on and off during
cooking as the oven temperature is
controlled.

4. After use always return both
controls to the off position and close
the oven door.

29

Main Oven - Fan Oven Cookery Notes

Since a fan oven heats up more
quickly, and generally cooks food at
a lower temperature than a
conventional oven, pre-heating the
oven is often unnecessary. However,
foods such as bread, scones
Yorkshire pudding, do benefit from
being placed in a pre-heated oven.

The charts are a guide only, giving
approximate cooking temperatures
and times. To suit personal taste
and requirements, it may be
necessary to increase or decrease
temperatures by 10˚C.

Because the fan oven cooks so
efficiently, we recommend that
when cooking any recipes not
designed for a fan oven, you reduce
the temperature by about 25˚C and
the time by about 10 minutes in
the hour. If large quantities are
being cooked it will be necessary to
increase the cooking time somewhat
to compensate for the extra
oven load.

Unless otherwise indicated in the
charts, food is placed in a cold
oven, i.e. without pre-heating. If
food is placed in an already hot oven,
the suggested cooking time should
be reduced, depending on the type
and quantity of food being cooked.

Oven Positions

Since the distribution of heat in the
fan oven is very even, most foods
will cook satisfactorily on any shelf
position, but the shelves should be
evenly spaced:

To ensure even circulation do not
use meat pans larger than 390 x
300mm (15ins x 12ins) and baking
trays no larger than 330 x 255mm
(13ins x 10ins), these should be
positioned centrally on the oven
shelf.

– Do not fit shelves upside down.

– Never use more than 3 shelves in

the oven as air circulation will be
restricted.

– Food or cooking utensils should

not be placed on the floor of the
oven.

To avoid unnecessary cleaning, rod
shelves which are not in use should
be removed from the oven.

It should be noted that at the end of
a cooking period there may be a
momentary puff of steam when the
oven door is opened, this will
disperse in a few seconds and is a
perfectly normal characteristic of
an oven with a good door seal.

30

Main Oven - Fan Oven Cookery Notes

Temperature and Time

The oven is provided with two shelves. A
third is available as an optional extra,
contact Genuine Parts & Accessories
Hotline (see back page) for further
information.
If three shelves are used to cook large
quantities of food for home freezing or
parties, it may be necessary to increase
the cooking times given in the charts by
a few minutes, to allow for the loss of
heat due to the extra time taken to load
the oven, and the larger mass of food.
Baking trays should allow an equal gap
on all sides of the oven.

To prepare meat and poultry for
Roasting in your Fan Oven

(a) Wipe the meat or poultry, dry well

and weigh it. Meat which has for
been stored in a refrigerator should
be allowed to come to room
temperature before cooking, and
frozen meat or poultry must be
completely defrosted before
placing in the oven.

(b) The weight of any stuffing used

should be added before
calculating the cooking time.

(c) Place meat/poultry in the main

oven meat pan supplied with your
cooker. Small joints weighing less
than 1.75kg (31/2 lbs) should be
roasted in a smaller meat pan/tin –
or they may be ‘pot roasted’ – a
small joint or a large meat pan
causes unnecessary oven
splashing and evaporation of meat
juices.

(d) Additional fat should not be added,

except for veal, very lean meat or
poultry which can either be ‘larded’
with fat bacon or brushed very
sparingly with cooking oil or
melted fat.

(e) Beef, lamb, mutton and poultry

may be dusted lightly with seasoned
flour to give a crisp outer surface.
The skin of duck and goose should
be pricked to release excess fat
during cooking, and the rind of pork
should be scored, brushed lightly
with oil, and rubbed with salt to give
crisp crackling.

(f) Meat and poultry wrapped in, or

covered with a tent of aluminium foil
will be juicy and tender. Roasting
bags offer the same advantages.
Always follow the manufacturer’s
pack instructions, and remember to
reduce the temperatures given
for conventional ovens by
approximately 25˚C and the time
by approximately 10 minutes per
hour.

(g) Potatoes for roasting only require

to be brushed with cooking oil or
melted fat.

(h) It is not necessary to baste when

roasting in an electric oven and
stock or liquid should not be
added to the meat pan since this
only causes unnecessary soiling,
steam and condensation.

Frozen Meat and Poultry

Joints of meat and whole birds
should be defrosted slowly,
preferably in a domestic
refrigerator (allowing 5-6 hours per
450g,1 lb), or at room temperature
(allowing 2-3 hours per 450g, 1 lb).

Frozen meat or poultry must be
completely defrosted before placing
in the oven.

It is essential to wash thoroughly
and cook meat and poultry
immediately after defrosting.

31

Time (approx.)

(1lb) + 20 mins extra

20-25 mins per 450g

(1lb) + 25 mins extra

25-30 mins per 450g

(1lb) + 25 mins extra

20-30 mins per 450g

(1lb) + 25 mins extra

25-30 mins per 450g

12-14 mins per 450g

(1lb) + 20 mins extra

18-20 mins per 450g

C

o

- 2 Hrs

2

/

at 150

1

1

450g (1lb) and roast

(1lb) at plus 12 mins extra

*For every 450g (1lb) over

5.5kg (12lb) allow 10 mins per

˚C

160/180

160/180

160/180

160/170

160/180

or 150

150-160

140-150

Temperature

heat

Meat

No

Beef

Pre-

Oven

Position in

Main Oven Temperature Chart

Time (approx.)

35 mins per 450g (1 lb) +

No

Lamb

(1 lb)

35 mins over.

35-45 mins per 450g

+ 40 mins over

40 mins per 450g (1 lb)

No

Pork

No

Veal

of oven.

Runner 3

from bottom

No

Chicken/ Turkey

(1 lb)

40-45 mins per 450g

40-45 mins per 450g

(1 lb) + 40 mins over

40 mins per 450g (1 lb)

No

up to 4kg (8 lb)

Turkey 4 to 5.5kg

(8 to 12 lb)

1

(1 lb)

25-30 mins per 450g

25-30 mins per 450g

(1 lb) + 25 mins over

No

Casserole Stews

hrs

2

/
2-2

˚C

190/200

170/180

170/180

Temperature

It is not necessary to pre-heat the fan oven before roasting. Note: Where times are stated, they are approximate only.

Conventional Oven Fan Oven

Pre-

Meat

heat

Yes

Yes

Beef/ Lamb

(slow roasting)

Beef/ Lamb

(foil covered)

190/200

Yes

Yes

Pork

(slow roasting)

Pork

(foil covered)

32

170/180

190/200

Yes

Yes

Veal

(slow roasting)

Veal

(foil covered)

170/180

190/200

Yes

Yes

Poultry/Game

(slow roasting)

Poultry/Game

(foil covered)

150

Yes

Casserole

Cooking

If using aluminium foil, never: 1. Allow foil to touch sides of oven. 2. Cover oven interior with foil. 3. Cover shelves with foil.

Medium: 70˚C Pork: 90˚C

The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the thickest part of a

joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer will indicate when the required internal temp has

been reached.

Beef - Rare: 60˚C Lamb: 80˚C Poultry: 90˚C

Well Done: 75˚C Veal: 75˚C

Time

9-12 mins. approx.

approx.

approx.

15-20 mins.

20-25 mins.

approx

approx.

12-15 mins

15-20 mins.

1

1

hrs.

2

/

- 1

4

/
1

approx.

Depending

on size.

Depending

on size.

Depending

on size

40-50 mins.

approx.

20-25 mins.

- 2 hrs.

2

/

approx.

1

1

approx.

35-45 mins.

approx.

30-35 mins.

approx.

3-4 hrs. approx.

˚C

170/180

160/170

170/190

210/220

180/200

Temperature

No

No

Yes

Pre-

heat

Shelf

Position

Yes

3rd from bottom

2nd from bottom

3rd from bottom

Yes

3rd from bottom

3rd from bottom

Time

15-25 mins.

180

Yes

20-30 mins.

160

Yes

10-15 mins.

˚C

Note: Where times are stated, they are approximate only.

Main Oven Temperature Chart

Conventional Oven Fan Oven

220

Temperature

Yes

Pre-

heat

8-12 mins.

15-20 mins.

170/180

190/200

Yes

Yes

140/150

130/140

No

No

2nd or 3rd

2nd or 3rd

from bottom

2nd from bottom

hrs. 7”

4

/

1

1

150/160

Yes

Depending

Depending on

recipe and size

130/140

Yes

190/200

190/200

No

No

2nd or 3rd

from bottom

from bottom

on use

on use

Depending

180/190

190/200

Yes

Yes

180/190

190/200

130/140

Yes

3rd from bottom

40-45 mins.

190/200

Yes

No

Yes

3rd from bottom

2nd from bottom

-2 hrs.

4

/

3

1

20-30 mins.

200/210

140/150

Yes

Yes

140/150

No

3rd from bottom

40-50 mins.

130/140

Yes

80-90

200/210

No

Yes

3rd from bottom

3rd from bottom

hrs.

2

/

1

3 -3

25-35 mins.

80/90

190/200

Yes

Yes

Baking

Food

Scones

Small Cakes

Victoria Sandwich

Sponge Sandwich

(Fatless)

Swiss Roll

Semi-rich Fruit

cakes

Rich Fruit Cakes

Shortcrust Pastry

Puff Pastry

Yorkshire Pudding

Individual Yorkshire

Puddings

Milk Pudding

Baked Custard

Bread

Meringues

recommended in this chart refer to cakes made with block margarine or butter only.

Note: If soft tub margarine is used for cake making, we would recommend using the all in one method and to reduce the temperature by 10˚C. Temperatures

33

Main Oven - Circulaire Roasting

CIRCULAIRE ROASTING

Circulaire roasting - food is placed on the roasting rack, this allows the oven fan
to circulate the hot air around the food, making it suitable for thin foods, such
as chops, steaks, sausages as well as meat joints and poultry, as it will cook both
sides at the same time. it is possible to cook on any shelf position, as the
temperature in the oven is evenly distributed. Also, the oven heats up more
quickly and generally will cook food at a lower temperature than a conventional
oven, so pre-heating is not necessary for most foods. For a guide on “cooking
times” and “cooking temperatures” see “Circulaire Roasting Chart”. If required,
circulaire roasting can be timed using the Oven Timer. Follow the timer
instructions before selecting Fan Oven function and the required temperature.
Note: It is also possible to cook food on the roasting rack on one shelf, while
cooking different types of food at the same temperature, on other shelf
positions (three shelves maximum).

Operating Instructions:

STEP 1. Ensure the Oven Timer is set to manual.

STEP 2. Turn the control knob (B) clockwise to the fan oven function.

STEP 3. After use, turn controls (A) and (B) to the Off (O) position.

Note: At the end of a cooking period there may be a momentary puff of steam when the
door is opened. This will disperse in a few seconds and is a perfectly normal
characteristic of an oven with a good door seal.

Ensure that the oven shelf is in the position you require.
Place the food centrally on the roasting rack.
Position the roasting rack on top of the grill/meat pan.
Place the grill/meat pan centrally on the oven shelf.
Ensure the oven door is fully closed.

Turn the control knob (A) clockwise and select the required cooking
temperature. The pilot light (
on until the oven reaches the required temperature. The light will then
automatically go off and on during cooking as the oven thermostat
maintains the correct temperature.

●) will immediately come on and will remain

34

Circulaire Roasting Chart

Type of Meat & Poultry

BEEF

Beef - any type of joint

PORK

Pork - any type of joint

Pork - chops

LAMB

Lamb - any type of joint

Lamb - chops

CHICKEN / TURKEY

Up to 4kg (8lb)

STEAKS

GAMMON STEAKS

SAUSAGES

Temperature
˚C

160 - 180˚C

160 - 180˚C

170˚C

160 - 180˚C

170˚C

160 - 180˚C

170˚C

170˚C

170˚C

20 - 25 mins / 450g (1lb)
+ 20 mins extra

25 mins / 450g (1lb)
+ 25 mins extra

30 - 45 minutes

25 mins / 450g (1lb)
+ 25 mins extra

20 - 30 minutes

18 - 20 mins / 450g (1lb)
+ 20 mins extra

30 - 45 minutes

30 - 45 minutes

30 - 45 minutes

Time

Approximate

PLACE FOOD ON
ROASTING RACK,

THEN POSITION

ABOVE THE MEAT

PAN.

Note: The above chart is only a guideline. The times and temperatures may be increased
or decreased depending on personal taste.

35

The Slow Cook Setting

Your Multifunction oven has a ‘slow
cooking’ facility.
This is used for slow cooking,
keeping food warm and warming
plates for short periods.

Some Advantages of Slow Cooking
are:-

The oven stays cleaner because
there is less splashing.

Timing of food is not as critical, so
there is less fear of overcooking.

Fully loading the oven can be very
economical.

Cooking times can be extended in
some cases by up to 2hrs. for late
comers.

Bearing in mind these advantages, it
makes sense to cook larger
quantities of food than required and
store them in a freezer to be used
cold or for re-heating.

It is important to follow the
guidelines given for preparing food
using the ‘Slow’ setting.

Operating Procedure

1. Ensure Oven Timer is set to

Manual.

2. Turn the selector switch to the

fan oven position.

3. Turn the oven thermostat control

to temperature setting S. The oven
light will remain on.
The oven indicator light will remain
on until the oven reaches the
set temperature. This light will
then automatically cycle on and off
during cooking as the oven
temperature is controlled.

4. After use always return both

controls to the off position and
close the oven door.

Slow cooking can only be used with
the selector switch set to fan oven
position and the oven temperature
control to temperature setting ‘S’.

36

Using The Slow Cook Setting

Points to bear in mind when
preparing food:-

1. Make sure all dishes will fit into the
oven before preparing the food.

2. All dishes cooked by the Slow Cook
setting should be cooked for a
minimum of 6 hours. They will 'hold'
at this setting for a further hour but
marked deterioration in appearance
will be noticed in some cases.

3.

Joints of meat and poultry should be
cooked at fan oven 170˚C
before turning to the Slow Cook
setting.

4. Meat over 2.7 Kg. (6 lbs) and poultry
over 2 Kg. (4 lbs 8oz) are unsuitable
for the Slow Cook setting.

5. Always stand covered joints on a
rack over the meat tin, to allow good
air circulation.

6. Pork joints can only be cooked, if an
internal temperature of at least
88˚C is reached. This can be tested
using a meat thermometer.

7. This method is unsuitable for
stuffed meat and poultry.

8. Always bring soups, casseroles and
liquids to the boil before putting in
the oven.

9. When casseroles are used, cover the
food first with foil and then the lid to
prevent loss of moisture.

10. Always thaw frozen food completely
before cooking.

11. Root vegetables will cook better if
cut into small even sized pieces.

12. Always adjust the seasoning and
thickenings at the end of the cooking
time.

13. Egg and fish dishes need only 1-5
hours cooking and should be
observed from time to time.

14. Dried red kidney beans must be
boiled for a minimum of ten minutes
after soaking, before inclusion in any
dish.

for 30 mins

Storage and Re-heating of Food

1. If food is to be frozen or not
served immediately, cool it in a
clean container as quickly as
possible.

2. Thaw frozen food completely in
the refrigerator before re­heating.

3. Re-heat food thoroughly and
quickly either on the hotplate or
in the fan oven, 170˚C and then
serve immediately.

4. Only re-heat food once.

37

Main Oven Grilling

DO NOT allow young children near
the appliance when the grill is in use
as the surfaces can get extremely
hot.

GRILLING SHOULD NEVER BE
UNDERTAKEN WITH THE DOOR
CLOSED.

Do Not line the grill pan with aluminium
foil.
Ensure that the grill pan is cleaned after
every use. Excess fat build-up in the
bottom of the pan could cause a fire
hazard.
Preheat the grill on the required setting
for 5 minutes

Door position for grilling:

Grilling Procedure:

1. Open the oven door and position the

rod shelf as recommended in the
grilling chart (see below) for the food
being cooked.

2. Turn the multifunction selector

switch to Half Grill or Full Grill and
then turn the Main Oven temperature
control to the required setting to
pre-heat for approximately 5
minutes.

3. Position the grill pan centrally under

the grill element and push back as far
as the location stops on the rod
shelf.

4. Leave the oven thermostat at setting

230˚C for toast and for fast cooking
of foods. For thicker foods requiring
longer cooking turn the thermostat
to a lower setting, after initial sealing
on both sides at 230˚C. The thicker
the food, the lower the thermostat
should be set.
If excessive smoke is emitted, reduce
the setting.

5. After use always return both controls

to their OFF (O) position.

Food

Toasting of bread
products

Small cuts of meat,
sausages, bacon etc.

Chips, gammon steaks etc.

Fish:
Whole / Fillets
Fingers

Pizza’s

Browning of food

38

Shelf Position
from base of oven

6

5 or 6

5

5
6

5

5

Temp ˚C

230

230 for 4- 6 mins then

reduce to setting 170

230 for 6- 8 mins then

reduce to setting 170

170
230

170

230

Cooking TimeSetting Required

2-5 mins

10-20 mins

20-30 mins

15-20 mins
10-15 mins

10-15 mins

5-10 mins

Care and Cleaning

TURN OFF THE MAIN SWITCH
BEFORE CLEANING.

Before switching on again, ensure
that all controls are in the OFF
position.

Cleaning the Exterior

The outside of both ovens can be
cleaned, when cooled down, using a
cloth which has been rinsed in
warm soapy water. The oven can
then be wiped down with a clean
dry cloth. Never use an abrasive
powder as this will damage the
surface.

Lower Oven

Remove the rod shelves and meat
pan. Use a fine steel wool soap
pad to remove stubborn stains
from the rod shelves, meat pan
and the floor of the oven. Refer to
the instruction opposite for
cleaning the ‘Stay Clean’ panels.
Do not use aerosol cleaners on
this oven as they could adversely
affect the fan motor unit, and
cannot be wiped off the fan blade.

Decorative Trims

It is advisable to clean the decorative
trims regularly to prevent any build up
of soiling which may detract from the
appearance of the Cooker. The
recommended method of cleaning
is to wipe over the trims with a soft
cloth wrung out in warm water, or mild
non-abrasive cleaner. (If in doubt try
the cleaner on a small area of trim
which is not noticeable in normal use),
then after wiping with a cloth wrung
out in clear water, dry with a soft
clean cloth.

Door & control panel trims

Regularly wipe with a clean damp
cloth and polish with a clean dry
cloth.

Do not use scouring pads or
abrasive cleaners/powders which
may scratch the surface. Under
no circumstances should
abrasive cleaning materials be
used.

Top Oven

Use a fine steel wool soap pad to
remove stubborn stains from the
rod shelves, grill pan and floor and
roof of the oven.

Stay Clean Oven Liners

Refer to the instructions below
for cleaning the following Stay
Clean panels; Oven – side and rear
panels.

How Stay Clean Oven Liners
Work

The surfaces of the Stay Clean
oven liners are treated on the
mottled face with a special
vitreous enamel which absorbs
cooking soils. At temperatures of
220˚C (425˚F) or above, the
special surface enables these
soils to be slowly destroyed. The
higher the temperature, the more
effective it is. In most cases
normal cooking operations at this
temperature will permit this
cleaning operation to proceed
during cooking .
However if higher cooking
temperatures are not used
regularly, it may be necessary, in
order to prevent heavy soiling, to
run the oven without meat pan, at
maximum setting for a couple of
hours in Fan Oven mode ONLY. This
may be necessary once a month or
every two or three
months depending on the type and
amount of oven cooking.

39

Care and Cleaning

It should not normally be
necessary to clean the Stay Clean
panels with water. If the user
feels it is desirable to do so, wash
them down in warm, soapy water,
followed by rinsing with clear
water: Do not use biological/

enzyme washing powder, harsh
abrasives or oven chemical
cleaners of any kind. Replacement

oven liners arE available should you
require them, from your nearest
Hotpoint Service Centre (see back
page).

Replacement of Oven Lamp

WARNING: ISOLATE THE COOKER
FROM THE SUPPLY BEFORE
REPLACING THE LAMP, TO AVOID
ELECTRIC SHOCK.

Open the oven door and remove
the rod shelves. Grip the light
glass dome, unscrew anti­clockwise and lift out. Reach into
the aperture with fingers, and
unscrew the faulty lamp anti­clockwise (15W 300˚C SES) which
can be obtained from your
nearest Hotpoint Service Centre.
Fit replacement lamp, and refit
dome. When screwing and
unscrewing the faulty lamp use a
thick cloth to protect your fingers
should the lamp break.

WARNING: ISOLATE COOKER
FROM SUPPLY BEFORE
REMOVING DOOR.

Oven Door Removal Main (Lower)
Oven

The door is removable to facilitate
occasional cleaning of heavy
soiling from the oven floor and
from the door itself.

Please note that the door is heavy
and care should be taken not to
pinch your fingers during the
removal and replacement.
To remove, open the door fully
and, using a coin or screwdriver,
turn the two discs clockwise.
Slightly close the door, unhook the
lower hinge fingers, then pull the
door away from the oven front
frame.
To replace, insert the lower
fingers and the hooked ends of
the door stays, ensuring that the
slots in the lower fingers engage
with the front frame.
Fully open the door and turn the
discs anti-clockwise to their
normal working positions.
Close the door - the hinge will now
lock into position.

40

Care and Cleaning

Take particular care not to damage the inner surface of the door inner glass
that is coated with a heat reflective layer. Do not use scouring pads, or
abrasive powder, which will scratch the glass. Ensure that the glass panel is
not subjected to any sharp mechanical blows.

Stubborn stains can be removed by using a fine steel wool pad.
the inner glass panel may be cleaned, while still warm, without removing it from
the door. After cleaning, rinse and dry with a soft cloth.

CLEANING THE DOORS

SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors, except take care
to support the weight of the inner glass when removing and refitting.

DROP DOWN DOORS
Remove the door inner glass as follows.

1. Open the door fully and unscrew the two screws securing the glass
panel so that the securing brackets can be turned. There is no need to
remove the screws completely.

2. Turn the brackets so that the glass can be removed and cleaned at the
sink (Fig. 1.)

For slight soiling

Fig. 1.

3. The inside of the outer door glass can now be cleaned while still fitted
to the cooker.

NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS
IN POSITION.

Refit the door inner glass as follows.

1. NOTE: The inner door glass has a special reflective coating on one side.
Replace the door inner glass so that the statement: “IMPORTANT THIS
FACE TOWARDS THE OVEN” can be read from the inner side of the
door.

2. Turn the two securing brackets back to
their original position to retain the glass
and tighten the screws. (Fig. 2.)

Fig. 2.

41

If something goes wrong...

Before calling a Service Engineer, please check through the following lists.

THERE MAY BE NOTHING WRONG.

Slight odour or small
amount of smoke when
grill / oven used first
time

Nothing Works

Timer Display shows
"0:00" with "Auto"
Flashing

Main oven and Top ovens
do not work, but the grill
works

Top oven and grill do not
work, but Main oven
works.

Grill does not work

This is normal and should cease after a short period.

If you find that the timer display is blank, then it is likely that
there is no electricity supply to your oven. Check:

(i) That the main cooker wall is switched on.
(ii) Other appliances, to see if you have had a power cut.
(iii) The main circuit breaker for the property.

The power supply to your oven has possibly been
interrupted, but has now come back on again. Reset the
timer to the correct day and "Manual" operation using the
instructions given in the timer section of the book.

Your timer may be set for an Auto Cooking programme:
Check the timer to see whether "Auto" is lit or flashing. If it
is then please follow the instructions given in the Timer
section of this book to return the timer to Manual operation.

Operating the cooker under the following conditions may
cause a safety device to operate:
(a) Grilling with the door closed - Always grill with the door

fully open

(b) Grilling for an excessively long period at maximum

setting - see Grilling guide.
Switch off appliance and allow to cool for approx 30
mins. Switch the cooker back on and check that the Grill
/ Top oven is now operating.

Ensure that the top oven control is set to the Full or Half
grill position and set the grill control to the required setting.

Grill keeps turning on and
off

Timer buzzer / bleeper
operates continually

Oven temperatures too
high or low

Oven does not cook
evenly

42

When the Grill control is operating at less than its maximum
setting, the Grill will cycle on and off, this is normal and not
a fault.

The bleeper will stop automatically after several minutes. To
cancel, press the minute minder button to silence.

Check temperature and shelf positions are as recommended
in the Oven Temperature Charts.
It may be necessary to increase or decrease the
recommended temperature slightly to suit your taste.

Check:
(a) Temperature and shelf positions are as recommended

in the Oven Temperature Charts.

(b) Oven utensils being used allow sufficient air flow around

them.

If something goes wrong...

Grilling is uneven

Oven lamp does not work

Condensation on the wall
at the rear of the cooker.

Steam / Condensation in
the oven after use.

If you have been through the above list and there is still a problem,

DISPOSAL OF YOUR PRODUCT

To minimise the risk of injury to children please dispose of your product carefully and
safely. Remove all doors and lids (where fitted). Remove the mains cable (where fitted)
by cutting off flush with the appliance and always ensure that no plug is left in a
condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the
disposal of your product.

Ensure that Grill pan has been positioned as stated in the
Grilling section of this book.

The oven lamp is not covered by the guarantee. The part is
easily changed (see the section on oven lamp replacement).
A new lamp may be obtained from Genuine Parts &
Accessories (see Back Page).

Steam and / or condensation may appear from the vent at
the rear of the appliance when using an oven particularly for
foods with a high water content e.g. frozen chips, roast
chicken etc. This is normal, and any excess should be wiped
off.

Steam is a by - product of cooking any food with a high
water contact. To help minimise always:
a) Try to avoid leaving food in the oven to cool after

being cooked.

b) Use a covered container, wherever possible.

contact Service (see Back Page).

43

Hotpoint Service Cover

Satisfaction Guaranteed or Your
Money Back

Hotpoint gives you a unique ‘Satisfaction
Guaranteed’ promise – valid for ninety days after
you have purchased your Hotpoint product. If there is a
technical problem with your Hotpoint appliance, just call
Hotpoint Service (see back page). If necessary we will
arrange for an engineer to call. If the technical problem is
not resolved under this Guarantee, Hotpoint will replace
your appliance or, if you prefer, give you your money back.
Your statutory rights are not affected, and the Guarantee is
additional and subject to the terms of Hotpoint’s Five Year
Parts Guarantee.

Hotpoint’s Free Five Year Guarantee

From the moment your appliance is delivered
Hotpoint guarantees it for FIVE YEARS.

• In the Five Years all replacement parts are FREE

provided that they are fitted by our own
Service Engineer. During the first year our
Engineer’s time and labour is also free.

• Our guarantee covers loss of food in our

refrigeration and freezer products up to £250
during the first year, subject to verification by
one of our engineers.

• After the first year we will charge for our

Engineer’s time and labour. We do, however,
operate a range of Service Plans (see opposite)
which, for an annual payment, enables you to
cover any repair costs which may be necessary.

• All our service repairs are guaranteed for

twelve months in respect of our labour and any
parts fitted.

• The appliance must be used in the United

Kingdom, and must not be tampered with or
taken apart by anyone other than our own
Service Engineers.

• You may, however, buy parts which can be

safely fitted without specialist knowledge or
equipment. The correct fitting of such parts,
provided they are genuine Hotpoint spares, will
not affect your Guarantee. Parts are available
from our Hotpoint Spares Centres (see back
page).

• Our guarantee does not cover the cost of any

repair, or loss of food in refrigeration products,
due to power failure, accidents or misuse. Nor
does it cover the cost of any visits to advise
you on the use of your appliance. Please read
thoroughly the instruction book supplied with
this appliance.

• If at any time during the Guarantee period we

are unable to repair your appliance, we will
refund any repair costs paid to us in the
previous twelve months. We will also offer you
a new appliance at a reduced charge instead of
a repair.

• Our Guarantee is in addition to and does not

affect your legal rights.

• Should you need independent advice on your

consumer rights, help is available from your
Consumer Advice Centre, Law Centre, Trading
Standards Department and Citizens Advice
Bureau.

• All Hotpoint servicing is carried out by our own

Service Organisation located throughout the
United Kingdom and Eire. We will be happy to
deal with any problems which you may have.

44

Hotpoint’s Extended Warranties

Whether you have just one or a number of Hotpoint
appliances in your kitchen, Hotpoint has a range of
Service Plans to give you complete peace of mind. They
enable you to extend your one year labour guarantee so
that you can have repairs completed FREE during the
membership period.

Service Cover

We offer a number of payment methods; cheque, credit
card or you can spread the cost and pay by direct debit
(full details can be obtained on Free phone 0800

716356). This covers you for all repairs during the period
of cover, which can be from 1 to 4 years. Service Cover
also includes loss of food, up to the value of £250, in
refrigeration appliances. There is also an option of
Service Cover with Maintenance at an additional cost.
This includes an annual Electrical and Safety check and
replacement of any parts as necessary.

Kitchen Cover

An annual payment covers you for all repairs for all your
Hotpoint appliances which are less than ten years old. It
also covers the cost of loss of food up to £250 in our
refrigeration and freezer products. There is also the
option of Kitchen Cover with Maintenance at an
additional cost. Any additional Hotpoint appliances
purchased after you have joined Hotpoint Kitchen Cover
will automatically be included during the annual period
of cover without further charge.

Appliance Registration

To ensure that you have the opportunity to benefit from
any of the above Service Schemes and other offers you
should complete and return immediately the Appliance
Registration Form/Questionnaire supplied with this
appliance. Full details and costs of our Service Schemes,
together with an application form, will be sent to you at
the end of the first year of the guarantee.

Annual Safety/Maintenance Checks

Hotpoint strongly recommends that all its
appliances are regularly checked for electrical and
mechanical safety, whether or not they are covered by a
Service Plan. Worn door gaskets or hoses may cause a
leak on an appliance, which could become dangerous if
neglected.

Proof of Purchase

For future reference please attach your purchase receipt
to this booklet and keep it in a safe place.

Spares and Accessories

Spares and accessories can be ordered from your local
Hotpoint Spares Centre (see back page), using the order
form enclosed.
NOTE: Our Engineers will use every effort to avoid
damage to floor coverings and adjacent units when
carrying out repairs/service work, but in locations where
the Engineer advises you that it will be impossible to
move appliances without risk of
damage, he will only proceed with your approval
that no liability is accepted.

Key Contacts

After Sales Service

Over 1100 trained specialists, directly employed by us, ensure that you can have

complete confidence in both the appliances and services we offer.

Repair Service and Information Help Desk

UK: 08709 066 066

Monday to Friday, 8am to 7.30pm

Saturday, 8.30am to 5.30pm

Sunday, 9.30am to 3.30pm

www.hotpointservice.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the following information:

Model number

Serial number

Extended Warranties

UK: 08709 088 088

Monday to Sunday, 8am to 8pm

www.hotpointservice.co.uk

Republic of Ireland: 1850 502 200

Genuine Parts and Accessories

Monday to Friday, 8.30am to 5pm

Republic of Ireland: [phone]

Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB

PRINTED BY SIMLEX .FOUR ASHES, WOLVERHAMPTON. 01/2005 Part no. 195045079.01

UK: 08709 077 077

Saturday, 8.30am to 12noon

www.hotpointservice.co.uk

www.hotpoint.co.uk
