Electrical Connection
For Your Safety
Installation
Getting to know your Dishwasher
The Controls
How to use your Dishwasher
Programme Chart
Before Using your Dishwasher
Loading your Dishwasher

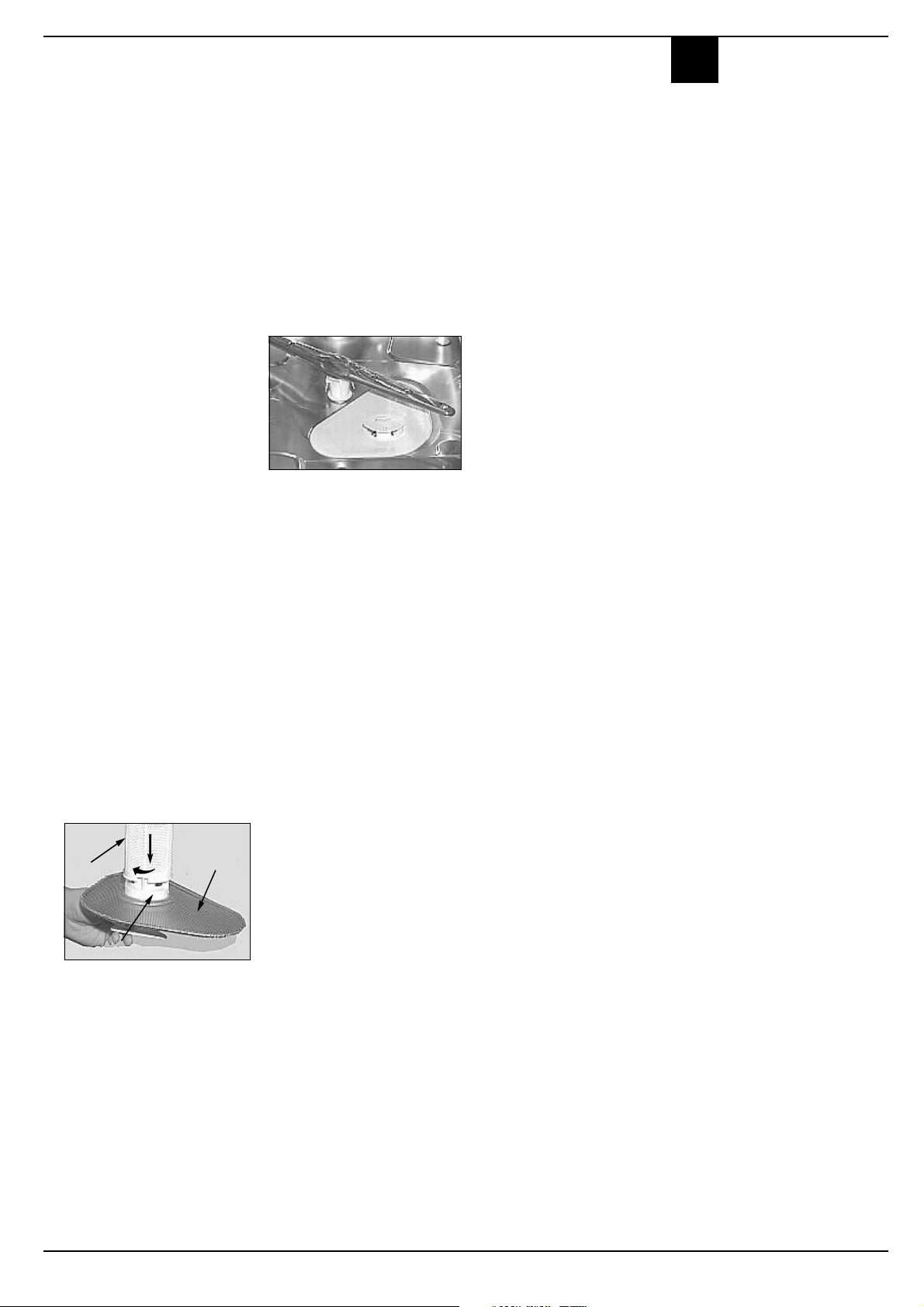

Care and Cleaning
Troubleshooting
Information for Test Labs
After Sales Service
Hotpoint Guarantee
Notes
Key Contacts
4
5
6
7
7
8
9
10-11
12
13
14
15
16
17
18-19
Back Cover
Retention of this Instruction Book
This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the
appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also
provided so the new owner can become familiar with the appliance and safety warnings.
If the Book is lost or damaged a copy may be obtained from:
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB.
3
1509)50-4
D
Electrical Connection
WARNING: This appliance must be earthed.
Fuses
Your appliance comes fitted with a plug and a 13A fuse. If you need to
replace the fuse, only those rated at 13A and ASTA approved to
BS1362 should be used. If you lose the fuse cover, a replacement
may be obtained from your local authorised Service Centre or
Electrical company. Correct replacement is identified by colour coding
or the marking on base of plug.
WARNING: DO NOT use the plug unless the fuse cover is fitted.
Changing the Plug
Cut off and dispose of the supplied plug if it does not fit your socket.
WARNING: To avoid a shock hazard DO NOT insert the
discarded plug into a socket anywhere else.
IMPORTANT: WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
Green/Yellow -Earth
Blue-Neutral
Brown-Live
If you change the plug, the colour of the wires in the mains lead may
not correspond with the terminal markings in the plug, which if not
coloured, could be:
EARTH‘E’ or
NEUTRAL‘N’
LIVE‘L’
Changing the Mains Lead
A lead can be ordered from Hotpoint Service
UK: 08709 066 066 or
Republic of Ireland: 1850 302 220
If you have damaged the existing lead or require a longer one a
charge will be made. It is strongly advised that this work is carried out
by a qualified electrician.
If the domestic wiring includes a residual current-operated circuit
breaker, ensure that it conforms to the latest regulations.
Safety Information
At the time of delivery...
All functions of your dishwasher have been thoroughly tested at the
factory. A small number of water marks may have been left as a
result, they will disappear when the appliance is used for the first time.
WARNING: The dishwasher must not be connected to
the electricity supply while installation is being
carried out.
-This appliance should only be connected to a 230/240V AC
-Use the dishwasher solely in a domestic environment.
-DO NOT stand or place heavy objects on the door when it is
If your family includes children...
-DO NOT allow children to play with the appliance or tamper
-Keep detergents and rinse aids away from children. Keep
CAUTION:
The dishwasher meets the requirements set out by the regulations in
force concerning safety and electrical equipment.
Any technical checks should be conducted exclusively by a trained
and authorised technician: Repairs carried out by unaithorised
persons will invalidate the guarantee, as well as posing a potential
hazard to the user.
The manufacturer declines all responsibility for damage to persons
or property resulting from failure to observe the above precautions,
from tampering with even a single component or from the use of nonoriginal spare parts.
source, via a properly installed earthed socket.
open, this could damage the door or cause the appliance to tip
forward.
with its controls.
children away from the open door of a dishwasher, there could
still be some detergent left inside.
4
1509)50-4
D
For your Safety
This manual forms an integral part of the appliance. It must always be kept handy for reference. Read through all the
instructions contained in this manual before using the dishwasher.
Installation must be performed by a qualified technician, in compliance with the regulations in force, including the
prevention and elimination of radio frequency interference.
The dishwasher is designed for washing and drying dishes, any other use shall be considered improper. The
manufacturer declines all responsibility for uses other than those described above.
1. Seperate the various
packaging materials and
dispose of safely - DO
NOT leave discarded
packaging material
around the home.
2. After removing the
packaging, check to
make sure your
appliance is intact. If in
doubt, contact a
qualified professional.
3. DO NOT use extension
leads and multiple
plugs. If the electricity
supply wire is not long
enough, then have it
replaced with one of the
correct length and
remember that it should
be free of bends or
dangerous kinks.
4. If the supply cord is
damaged, it must be
replaced by the
manufacturer, its service
agent in order to avoid
a hazard.
5. The mains plug must be
easily accessible after
installation.
6. If the appliance is not
operating properly or if
maintenance operations
are necessary,
disconnect the
dishwasher from the
mains power supply
(unplug it!).
7. DO NOT install
outdoors, not even if the
area is covered by a
roof: it is extremely
dangerous to leave it
exposed to rain and
thunderstorms.
8. If installed on a
carpeted or covered
floor, ensure that the
openings on the
underside are not
obstructed.
9. Do not touch the heating
element during or
straight after a wash
cycle.
10. If the appliance
malfunctions, turn off
the water inlet tap and
disconnect the plug
from the wall socket.
Then read the section
entitled
"Troubleshooting". If
you cannot resolve the
problem, then call
Hotpoint Service (see
KEY CONTACTS, back
page).
11. The door should not be
left in the open position
since this could
present a tripping
hazard.
The dishwasher is intended for use by adults. DO NOT
allow children to come near or play with the controls.
Keep children away from detergents and clear of the
dishwasher door when open.
Keep all packaging material away from children.
1. DO NOT use solvents, such as alcohol or turpentine
which may cause an explosion.
2. DO NOT load dishes to wash that are soiled with ash,
wax or paints.
3. DO NOT lean, sit or stand on any part of the dishwasher
- this could cause injury and/or damage the appliance.
4. DO NOT drink any water residues from inside the
dishwasher.
The rating plate, featuring
the technical data, serial
number and markings, is
visibly positioned on the
inner edge of the door.
DO NOT remove the rating
plate.
5
1509)50-4
D
Installation
Choose where you want to
install your dishwasher, you
can place it so that its sides
or back panel are side by
side with furniture or up
against the wall. (See the
built-in instructions for the
measures). The dishwasher
is provided with water
supply and drain hoses,
which can be directed
towards the left or right to facilitate appropriate
installation.
Levelling.
Once the appliance is
positioned, adjust the feet
by screwing them in or out
depending on how high you
want it and to level it so that
it is horizontal. Make sure
that it is not inclined more
than 2 degrees. If the
appliance is level, it will
help ensure its correct
operation.
Height Adjustment
Insert the appliance into the
cutout and then adjust the
height using the screws
located on the front bottom
part of the machine. Use a
screwdriver to turn the
screws in the clockwise or
anti-clockwise direction to
increase or decrease the
height respectively.
Adjusting the back Feet
Insert the appliance into the
cutout and then adjust the
height using the screws
located on the front bottom
part of the machine. Use a
screwdriver to turn the
screws in the clockwise or
anti-clockwise direction to
increase or decrease the
height respectively.
Cold water connection
Connect the cold water
supply hose, and making
sure that it is fastened
tightly in place. If the water
hoses are new or have been
out of use for an extended
period of time, let the water
run to make sure it is clear
and free of impurities before
making the connection. If
this precaution is not taken,
the water inlet could get
blocked, causing damage to
your dishwasher.
It is strongly recommended
to use a new hose to
connect the dishwasher to
the water supply line, and
the old hose-set should not
be reused. Asking to
specilized shop or an
authorized service
technician (see Service).
Condensation-proof tape.
On some models, a
transparent condensationproof adhesive tape has
been provided.
It should be stuck onto the
lower side of your wooden
worktop to protect it from the
formation of condensation.
When not provided, this tape
can be requested as a spare
part from authorised
retailers.
Anti-flooding protection
Your dishwasher is provided
with a special system which
blocks the water supply in
the event of leaks inside the
appliance.
Drain hose connection
WARNING: Connect your
dishwasher drain hose to
pipes which connect to the
foul drain system and not to
surface water drains.
IMPORTANT: For the correct
operation of your
dishwasher, it is essential to
comply with the following
information:-
Standpipe:
Ensure that the hose is not
pushed too far down the
standpipe.
If the end of your drain hose
is fitted with ‘retaining flaps’,
ensure they are inserted fully
into the standpipe. This will
prevent the pipe from
jumping out during
installation and use.
DO NOT position the
standpipe near an electrical
outlet.
ENSURE that the drain hose
is not kinked and it is routed
as shown in the diagram.
The standpipe should have
a bore of at least 38mm (11/
2”). It should be installed as
shown, have a trap fitted and
must discharge into the
same drain system as your
household sink.
It MUST NOT be connected
to a surface water drain.
Sink Waste System:
For under sink drainage:
Before connecting the drain
hose, remove any internal
restrictions - This will
prevent a build up of debris
which could cause a
blockage.
Remove any restrictions
from the waste spigot and
ensure that the sealing bung
is removed. The hose
should be routed, such that
it is raised to a minimum
height of 800mm (31/2”).
NOTE: Ensure the sink
outlet pipe has a minimum
diamtere of 32mm.
1. Untie the end of the
GREY drainage hose from
the rear of the appliance.
2. Reposition the ‘Hooked
End Support’ as required
along the GREY drainage
hose.
3. If fitting an under sink
waste disposal unit, cut
out the membrane, bung or
blanking plug.
Ensure the drain hose is
securely attached, to
prevent it coming away
while the machine is in use
and causing a flood.
6
