Disimballo e livellamento
Collegamenti idraulici ed elettrici
Primo ciclo di lavaggio
Dati tecnici
Istruzioni per l’installatore
Descrizione della lavabiancheria e avviare
un programma, 6-7
Pannello di controllo
Spie
Avviare un programma
Programmi, 8
Tabella dei programmi
Personalizzazioni, 9
Impostare la temperatura
Impostare la centrifuga
Funzioni
Detersivi e biancheria, 10
Cassetto dei detersivi
Ciclo candeggio
Preparare la biancheria
Capi particolari
Sistema bilanciamento del carico
I
Precauzioni e consigli, 11
Sicurezza generale
Smaltimento
Apertura manuale dell’oblò
Manutenzione e cura, 12
Escludere acqua e corrente elettrica
Pulire la lavabiancheria
Pulire il cassetto dei detersivi
Curare oblò e cestello
Pulire la pompa
Controllare il tubo di alimentazione dell’acqua
Anomalie e rimedi, 13
Assistenza, 14
Assistenza Attiva 7 giorni su 7
1
Installazione
! È importante conservare questo libretto per poterlo con-
I
sultare in ogni momento. In caso di vendita, di cessione o
di trasloco, assicurarsi che resti insieme alla lavabiancheria
per informare il nuovo proprietario sul funzionamento e sui
relativi avvertimenti.
! Leggere attentamente le istruzioni: ci sono
importanti informazioni sull’installazione, sull’uso
e sulla sicurezza.
Disimballo e livellamento
Disimballo
1. Disimballare la lavabiancheria.
2. Controllare che la lavabiancheria non abbia
subìto danni nel trasporto. Se fosse danneggiata
non collegarla e contattare il rivenditore.
3. Rimuovere le 4 viti di
protezione per il trasporto
e il gommino con il relativo
distanziale, posti nella parte
posteriore (vedi figura).
Un accurato livellamento dà stabilità alla macchina ed
evita vibrazioni, rumori e spostamenti durante il funzionamento. In caso di moquette o di un tappeto, regolare i
piedini in modo da conservare sotto la lavabiancheria uno
spazio sufficiente per la ventilazione.
Collegamenti idraulici ed elettrici
Collegamento del tubo di alimentazione dell’acqua
1. Collegare il tubo di
alimentazione avvitandolo
a un rubinetto d’acqua
fredda con bocca filettata
da 3/4 gas (vedi figura).
2. Collegare il tubo di
alimentazione alla lavabiancheria
avvitandolo all’apposita
presa d’acqua, nella parte
posteriore in alto a destra
(vedi figura).
4. Chiudere i fori con i tappi di plastica in dotazione.
5. Conservare tutti i pezzi: qualora la lavabiancheria debba
essere trasportata, dovranno essere
rimontati.
! Gli imballaggi non sono giocattoli per bambini.
Livellamento
1. Installare la lavabiancheria su un pavimento piano e rigido, senza appoggiarla a muri, mobili o altro.
2. Se il pavimento non fosse
perfettamente orizzontale,
compensare le irregolarità
svitando o avvitando i piedini
anteriori (vedi figura); l’angolo
di inclinazione, misurato sul
piano di lavoro, non deve
superare i 2°.
3. Fare attenzione che nel tubo non ci siano né pieghe né
strozzature.
! La pressione idrica del rubinetto deve essere compresa
nei valori della tabella Dati tecnici
(vedi pagina a fianco).
! Se la lunghezza del tubo di alimentazione non fosse
sufficiente, rivolgersi a un negozio specializzato o a un
tecnico autorizzato.
! Non utilizzare mai tubi già usati.
! Utilizzare quelli in dotazione alla macchina.
2
Collegamento del tubo di scarico
65 - 100 cm
Collegare il tubo di scarico, senza piegarlo, a una
conduttura di scarico o a
uno scarico a muro posti
tra 65 e 100 cm da terra;
! Non usare prolunghe e multiple.
! Il cavo non deve subire piegature o compressioni.
! Il cavo di alimentazione deve essere sostituito solo da
tecnici autorizzati.
Attenzione! L’azienda declina ogni responsabilità qualora
queste norme non vengano rispettate.
Primo ciclo di lavaggio
I
oppure appoggiarlo al
bordo di un lavandino o
di una vasca, legando la
guida in dotazione al
rubinetto (vedi figura).
L’estremità libera del tubo
di scarico non deve rimanere immersa nell’acqua.
! È sconsigliato usare tubi di prolunga; se indispensabile,
la prolunga deve avere lo stesso diametro del tubo originale e non superare i 150 cm.
Collegamento elettrico
Prima di inserire la spina nella presa della corrente, accertarsi che:
• la presa abbia la messa a terra e sia a norma
di legge;
• la presa sia in grado di sopportare il carico
massimo di potenza della macchina, indicato nella
tabella Dati tecnici (vedi a fianco);
• la tensione di alimentazione sia compresa nei
valori indicati nella tabella Dati tecnici (vedi a fianco);
• la presa sia compatibile con la spina della
lavabiancheria. In caso contrario sostituire la
presa o la spina.
! La lavabiancheria non va installata all’aperto, nemmeno
se lo spazio è riparato, perché è molto pericoloso lasciarla esposta a pioggia e temporali.
! A lavabiancheria installata, la presa della corrente deve
essere facilmente raggiungibile.
Dopo l’installazione, prima dell’uso, effettuare un ciclo di
lavaggio con detersivo e senza biancheria impostando il
programma 1.
Dati tecnici
Modello
Dimensioni
Capacità
Collegamenti
elettrici
Collegamenti
idrici
Velocità di centrifuga
Programmi di
controllo secondo la direttive
1061/2010 e
1015/2010
AWM 108
larghezza cm 59,5
altezza cm 81,5
profondità cm 54,5
da 1 a 7 kg
Vedi targhetta caratteristiche tecniche
applicata sulla macchina
pressione massima 1 MPa (10 bar)
pressione minima 0,05 MPa (0,5 bar)
capacità del cesto 52 litri
sino a 1000 giri al minuto
programma 6; temperatura 60°C e
40°C.
Questa apparecchiatura è conforme
alle seguenti Direttive Comunitarie:
- 2004/108/CE (Compatibilità
Elettromagnetica)
- 2006/95/CE (Bassa Tensione)
- 2002/96/CE
3
Istruzioni per l’installatore
Tur seite
I
Applicazione del pannello in legno alla porta e inserimento della macchina nei mobili:
Nel caso in cui, dopo il montaggio del pannello in legno, sia
necessario spedire la macchina per l’installazione finale, consigliamo di lasciarla nel suo imballo originale. A questo scopo
l’imballo è stato realizzato in modo da permettere il montaggio
del pannello di legno sulla macchina senza disimballare completamente il prodotto (vedi figure sottostanti).
Il pannello di legno che copre la facciata non deve essere di
spessore inferiore a 18 mm e può essere incernierato sia sul
lato destro che sinistro. Per ragioni di praticità d’uso della macchina consigliamo lo stesso senso di apertura dell’oblò con le
cerniere applicate sul lato sinistro.
Accessori montaggio portina (Fig. 1-2-3-4-5).
N° 2 Supporti cerniera
Fig. 1
N° 1 MagneteN° 1 Riscontro magnete
Fig. 3Fig. 4
Fig. 2
N° 2 cerniere
A
C
E
B
D
N° 1 Tassello in gomma
Fig. 5
- n° 6 viti autofilettanti l = 13 mm “tipo A”.
- n° 2 viti metriche testa svasata l = 25 mm “tipo B”; per il
fissaggio del riscontro magnete al mobile.
- n° 4 viti metriche l = 15 mm “tipo C”; per il montaggio dei
supporti cerniera al mobile.
- n° 4 viti metriche l = 7 mm “tipo D”; per il montaggio delle
cerniere ai supporti.
Montaggio dei particolari sulla facciata della macchina.
- Montare i supporti cerniera alla facciata posizionando il
foro indicato da una freccia nella fig. 1 verso l’interno della
facciata interponendo un distanziale (fig. 4/B), utilizzando le
viti tipo C.
- Montare il riscontro magnete dalla parte opposta in alto
interponendo due distanziali (fig. 4/B) utilizzando le due viti
tipo B.
N° 4 Distanziali
Fig. 4/B
4
Uso della maschera di foratura.
570
min
815
540
595
820 ÷ 900
600 min
L
I
H
G
M
- Per tracciare le posizioni dei fori sul lato sinistro del pannello,
allinerare la maschera di foratura al lato superiore e sinistro del
pannello facendo riferimento alle linee tracciate alle estremità.
- Per tracciare le posizioni dei fori sul lato destro del pannello,
allinerare la maschera di foratura al lato superiore e destro del
pannello.
- Con una fresa di adeguate dimensioni realizzare le quattro
sedi che dovranno alloggiare le due cerniere, il tassello di gomma e il magnete.
Montaggio dei particolari sul pannello di legno (Antina).
- Inserire le cerniere nelle sedi predisposte (la parte mobile della
cerniera deve trovarsi verso l’esterno del pannello) e fissarle con
4 viti del tipo A.
- Inserire il magnete nella sede in alto dalla parte opposta alle
cerniere e fissarlo con due viti tipo B.
- Inserire il tassello in gomma nella sede in basso.
Il pannello è ora pronto per essere montato sulla macchina.
Montaggio del pannello alla macchina.
Inserire il nasello della cerniera indicato dalla freccia nella fig. 2
nella sede del supporto cerniera spingere il pannello verso la
facciata della macchina e fissare le due cerniere con le due viti
tipo D.
Fissaggio della guida zoccolo.
Se la macchina è installata ad una estremità della cucina componibile montare una o entrambe le guide zoccolo come indicato in fig. 8, regolandone la profondità in funzione della posizione
dello zoccolo e se necessario fissarlo alle stesse (fig. 9).
Per montare la guida zoccolo agire cone segue (fig. 8):
Fissare la squadretta P con la vite R, infilare la guida zoccolo Q
nell’apposita asola e una volta posizionata nel punto desiderato
bloccarla alla squadretta P con la vite R.
Inserimento della macchina nei mobili.
- Spingere l’apparecchio nell’apertura allineandola con gli altri
mobili (fig. 6).
- Agire sui piedini di regolazione per portare la macchina all’altezza desiderata.
- Per regolare la posizione del pannello in legno in senso verticale ed orizzontale, agire sulle viti C e D come indicato in fig. 7.
Importante: chiudere la parte inferiore della facciata con lo
zoccolo a battuta sul pavimento.
I
Fig. 8Fig. 9
Accessori in dotazione per la regolazione in altezza.
Alloggiate nel coperchio di polistirolo (fig. 10) si trovano:
2 traverse (G); 1 listello (M)
all’interno del cestello si trovano:
4 piedini supplementari (H)
4 viti (I)
4 viti (R)
4 dadi (L)
2 guide zoccolo (Q)
Fig. 10
Regolazione in altezza della macchina.
La macchina può essere regolata in altezza (da 815 mm a 835
mm) agendo sui 4 piedini.
Se si desidera portarla ad un’altezza superiore a quella sopraindicata, arrivando fino a 870 mm, occorre utilizzare i seguenti
accessori:
le 2 traverse (G); i 4 piedini (H); le 4 viti (I); i 4 dadi (L), quindi agire
come segue (fig. 11):
togliere i 4 piedini originali, posizionare una traversa G nella parte
anteriore della macchina, fissarla con le viti I (avvitandole nei fori
dove erano montati i piedini originali) quindi inserire i nuovi pedini H.
Ripetere la stessa operazione nella parte posteriore della macchina.
A questo punto regolando i piedini H la macchina può essere
abbassata o alzata da 835 mm a 870 mm.
Una volta raggiunta l’altezza desiderata bloccare i dadi L alla
traversa G.
Per regolare la macchina ad un’altezza compresa tra 870 mm e
900 mm occorre montare il listello M regolando i piedini H fino
all’altezza desiderata. Per inserire il listello agire come segue:
allentare le tre viti N poste nella parte anteriore della copertura
Top, inserire il listello M come indicato nella fig. 12, quindi bloc-
care le viti N.
C
D
C
Fig. 6Fig. 7
Fig. 11Fig. 12
5
Descrizione della lavabiancheria e
avviare un programma
Pannello di controllo
I
Cassetto dei detersivi
ACCENSIONE/
Tasto
SPEGNIMENTO
PROGRAMMI
Manopola
TEMPERATURA
Manopola
SPIE AVANZAMENTO CICLO/
PARTENZA RITARDATA
Manopola
CENTRIFUGA
Tasti con spie
FUNZIONE
Spia
OBLÒ
BLOCCATO
Tasto con spia
AVVIO/
PAUSA
Cassetto dei detersivi: per caricare detersivi e additivi
(vedi “Detersivi e biancheria”).
Tasto ACCENSIONE/SPEGNIMENTO: per accendere e
spegnere la lavabiancheria.
Manopola PROGRAMMI: per impostare i programmi. Durante il programma la manopola resterà ferma.
Tasti FUNZIONE: per selezionare le funzioni disponibili. La
spia relativa alla funzione selezionata rimarrà accesa.
Manopola CENTRIFUGA: per impostare la centrifuga o
escluderla (vedi “Personalizzazioni”).
Manopola TEMPERATURA: per impostare la temperatura
o il lavaggio a freddo (vedi “Personalizzazioni”).
SPIE AVANZAMENTO CICLO/PARTENZA RITARDATA: per seguire lo stato di avanzamento del programma di
lavaggio.
La spia accesa indica la fase in corso.
Se è stata impostata la funzione “Partenza Ritardata”, indicheranno il tempo mancante all’avvio del programma (vedi
pagina a fianco).
Tasto AVVIO/PAUSA: per avviare i programmi o inter-
romperli momentaneamente.
N.B.: per mettere in pausa il lavaggio in corso, premere
questo tasto, la spia relativa lampeggerà con colore
arancione mentre quella della fase in corso sarà accesa
fissa. Se la spia OBLÒ BLOCCATO sarà spenta, si
potrà aprire l’oblò.
Per far ripartire il lavaggio dal punto in cui è stato
interrotto, premere nuovamente questo tasto.
Modalità di stand by
Questa lavatrice, in conformità alle nuove normative
legate al risparmio energetico, è dotata di un sistema
di autospegnimento (stand by) che entra in funzione
dopo circa 30 minuti nel caso di non utilizzo. Premere
brevemente il tasto ACCENSIONE/SPEGNIMENTO e
attendere che la macchina si riattivi.
Consumo in off-mode: 1 W
Consumo in Left-on: 1 W
Spia OBLÒ BLOCCATO: per capire se l’oblò è apribile (vedi pagina a fianco).
6
Spie
Le spie forniscono informazioni importanti.
Ecco che cosa dicono:
Spie fase in corso
Una volta selezionato e avviato il ciclo di lavaggio desiderato, le spie si accenderanno progressivamente per indicarne
lo stato di avanzamento:
I
Partenza ritardata
Se è stata attivata la funzione “Partenza ritardata” (vedi
“Personalizzazioni”), dopo avere avviato il programma, ini-
zierà a lampeggiare la spia relativa al ritardo selezionato:
Col trascorrere del tempo verrà visualizzato il ritardo residuo con il lampeggio della spia relativa:
Trascorso il ritardo selezionato la spia lampeggiante si
spengnerà e avrà inizio il programma impostato.
Lavaggio
Risciacquo
Centrifuga
Scarico
Fine lavaggio
Tasti funzione e relative spie
Selezionando una funzione la spia relativa si illuminerà.
Se la funzione selezionata non è compatibile con il programma impostato la spia relativa lampeggerà e la funzione non
verrà attivata.
Nel caso venga impostata una funzione incompatibile con
un’altra precedentemente selezionata rimarrà attiva solo
l’ultima scelta.
Spia oblò bloccato
La spia accesa indica che l’oblò è bloccato per impedire
aperture accidentali; per evitare danni è necessario attendere che la spia si spenga prima di aprire l’oblò.
N.B.: se è attiva la funzione “Partenza Ritardata” l’oblo non
si può aprire, per aprirlo mettere la macchina in pausa premendo il tasto AVVIO/PAUSA.
! Il lampeggio veloce della spia AVVIO/PAUSA (arancione)
contemporaneo a quello delle funzioni segnala un’anomalia
(vedi “Anomalie e rimedi”).
Avviare un programma
1. Accendere la lavabiancheria premendo il tasto ACCENSIONE/SPEGNIMENTO. Tutte le spie si accenderanno per qualche
secondo, poi rimarranno accese le spie ralative alle impostazioni del programma selezionato e pulserà la spia AVVIO/PAUSA.
2. Caricare la biancheria e chiudere l’oblò.
3. Impostare con la manopola PROGRAMMI il programma desiderato.
4. Impostare la temperatura di lavaggio (vedi “Personalizzazioni”).
5. Impostare la velocità di centrifuga (vedi “Personalizzazioni”).
6. Versare detersivo e additivi (vedi “Detersivi e biancheria”).
7. Selezionare le funzioni desiderate.
8. Avviare il programma premendo il tasto AVVIO/PAUSA e la spia relativa rimarrà accesa fissa di colore verde.
Per annullare il ciclo impostato mettere la macchina in pausa premendo il tasto AVVIO/PAUSA e scegliere un nuovo ciclo.
9. Al termine del programma si illuminerà la spia . La spia OBLÒ BLOCCATO si spegnerà indicando che l’oblò è apribile.
Estrarre la biancheria e lasciare l’oblò socchiuso per far asciugare il cestello.
Spegnere la lavabiancheria premendo il tasto ACCENSIONE/SPEGNIMENTO.
7
Programmi
Tabella dei programmi
I
Descrizione del Programma
Programmi
Programmi Speciali
Sanitary: Bianchi estremamente sporchi.
6
6
Sanitary (1-2): Bianchi e colorati resistenti molto sporchi.60° 1000-
6
Sanitary (2): Bianchi e colorati resistenti poco sporchi.40° 1000-
Buonanotte: Colori delicati poco sporchi.
7
Ciclo Baby: Colori delicati molto sporchi.
8
Camicie
9
Seta/Tende: Per capi in seta, viscosa, lingerie.
10
Lana: Per lana, cachemire, ecc.
11
Programmi Giornalieri
Cotone: Bianchi e colorati resistenti molto sporchi.
1
Cotone Colorati (3): Bianchi poco sporchi e colori delicati.
2
Sintetici: Colori resistenti molto sporchi.
3
Sintetici (4): Colori resistenti molto sporchi.
3
Mix 30': Per rinfrescare rapidamente capi poco sporchi
4
(non indicato per lana, seta e capi da lavare a mano).
Mix 15': Per rinfrescare rapidamente capi poco sporchi
5
(non indicato per lana, seta e capi da lavare a mano).
Programmi Parziali
A
Risciacquo-1000--
B
Risciacquo Delicato-800--
C
Centrifuga-1000---7---16
D
Centrifuga Delicata-800---3---12
E
Scarico-0---7---2
La durata del ciclo indicata sul display o sul libretto è una stima calcolata in base a condizioni standard. Il tempo effettivo può variare in base a numerosi fattori quali la
temperatura e la pressione dell’acqua in ingresso, la temperatura ambiente, la quantità di detersivo, la quantità ed il tipo di carico, il bilanciamento del carico, le opzioni
aggiuntive selezionate.
Temp.
Per tutti Test Institutes:
1) Programma di controllo secondo la direttiva 1061/2010: impostare il programma 6 con una temperaura di 60°C e 40°C.
Questo ciclo è adatto per pulire un carico di cotone normalmente sporco ed è il più efficiente in termini di consumo combinato di energia e di acqua, da usare su capi lavabili a 60 °C e a 40°C.
La temperatura effettiva di lavaggio può differire da quella indicata.
2) Programma cotone lungo: impostare il programma 6 con una temperatura di 40°C.
3) Programma cotone corto: impostare il programma 2 con una temperatura di 40°C.
4) Programma sintetico lungo: impostare il programma 3 con una temperatura di 40°C.
Sanitary (programma 6). Un programma igienizzante ad alte temperature che prevede l’uso della candeggina con temperature
superiori a 60°C.
Per candeggiare versare la candeggina i detersivi e gli additivi nei relativi scomparti (vedi paragrafo “Cassetto dei detersivi”).Buonanotte (programma 7). E’ un ciclo silenzioso che può lavorare di notte quando la tariffa energetica è ridotta. Il programma è studiato per capi sintetici e di cotone. Alla fine del ciclo la macchina si ferma con l’acqua in vasca; per effettuare
la centrifiga e lo scarico premere il tasto AVVIO/PAUSA, altrimenti dopo 8 ore la macchina effettuerà automaticamente
la centrifuga e lo scarico dell’acqua.
Ciclo Baby (programma 8). Programma in grado di asportare lo sporco tipico dei bambini garantendo la rimozione del
detersivo dai panni onde evitare allergie alla pelle delicata dei bambini. Il ciclo è stato studiato per ridurre la carica batterica utilizzando una maggior quantità di acqua e ottimizzando l’effetto di additivi specifici igenizzanti aggiunti al detersivo.
Al temine del lavaggio la macchina effettuerà delle lente rotazioni del cestello per evitare la creazione di pieghe; per terminare il ciclo premere il tasto AVVIO/PAUSA.
Mix 30’ (programma 4) è studiato per lavare capi leggermente sporchi in poco tempo: dura solo 30 minuti e fa così risparmiare energia e tempo. Impostando il programma (4 a 30°C) è possibile lavare insieme tessuti di diversa natura (esclusi
lana e seta) con un carico massimo di 3 kg.
Mix 15’ (programma 5) è studiato per lavare capi leggermente sporchi in poco tempo: dura solo 15 minuti e fa così risparmiare energia e tempo. Impostando il programma (5 a 30°C) è possibile lavare insieme tessuti di diversa natura (esclusi
lana e seta) con un carico massimo di 1,5 kg.
8
Personalizzazioni
Impostare la temperatura
Ruotando la manopola TEMPERATURA si imposta la temperatura di lavaggio (vedi Tabella programmi).
La temperatura si può ridurre sino al lavaggio a freddo ( ).
La macchina impedirà automaticamente di impostare una temperatura maggiore a quella massima prevista per ogni programma.
Impostare la centrifuga
Ruotando la manopola CENTRIFUGA si imposta la velocità di centrifuga del programma selezionato.
Le velocità massime previste per i programmi sono:
Programmi Velocità massima
Cotone 1000 giri al minuto
Sintetici 800 giri al minuto
Lana 800 giri al minuto
Seta solo scarico
La velocità di centrifuga può essere ridotta, oppure esclusa selezionando il simbolo .
La macchina impedirà automaticamente di effettuare una centrifuga maggiore a quella massima prevista per ogni programma.
Funzioni
Le varie funzioni di lavaggio previste dalla lavabiancheria permettono di ottenere la pulizia e il bianco desiderati.
Per attivare le funzioni:
1. premere il tasto relativo alla funzione desiderata;
2. l’accensione della spia relativa segnala che la funzione è attiva.
Nota: Il lampeggio veloce della spia indica che la funzione relativa non è selezionabile per il programma impostato.
I
Partenza ritardata
Ritarda l’avvio della macchina sino a 12 ore.
Premere più volte il tasto fino a far accendere la spia relativa al ritardo desiderato. Alla quinta pressione del tasto la funzione si
disattiverà.
N.B.: Una volta premuto il tasto AVVIO/PAUSA, si può modificare il valore del ritardo solo diminuendolo.
! E’ attivo con tutti i programmi.
Stira Facile
Selezionando questa funzione, il lavaggio e la centrifuga saranno opportunamente modificati per ridurre la formazione di
pieghe. Al temine del ciclo la lavabiancheria effettuerà delle lente rotazioni del cestello;
la spia della funzione STIRA FACILE e quella di AVVIO/PAUSA lampeggeranno (arancione) e la spia si illumina. Per
terminare il ciclo si dovrà premere il tasto AVVIO/PAUSA o il tasto STIRA FACILE.
Nel programma Seta la macchina terminerà il ciclo con la biancheria in ammollo, la spia della funzione STIRA FACILE e
quella di AVVIO/PAUSA lampeggeranno (arancione) e la fase RISCIACQUO rimarrà accesa fissa.
Per scaricare l’acqua e poter rimuovere il bucato sarà necessario premere il tasto AVVIO/PAUSA o il tasto STIRA FACILE.
! Non è attivabile sui programmi 4, 5, 6, 7, 8, 11, C, D, E.
Extra Risciacquo
Selezionando questa funzione si aumenta l’efficacia del risciacquo, e si assicura la massima rimozione del detersivo. E’ utile
per pelli particolarmente sensibili.
! Non è attivabile sui programmi 4, 5, C, D, E.
Super Lavaggio
Grazie all’utilizzo di una maggior quantità d’ acqua nella fase iniziale del ciclo e all’impiego di maggior tempo, tale
funzione garantisce un lavaggio di alte performance.
! Non è attivabile sui programmi 4, 5, 6, 10, 11, A, B, C, D, E.
9
Detersivi e biancheria
M
AX
1
3
2

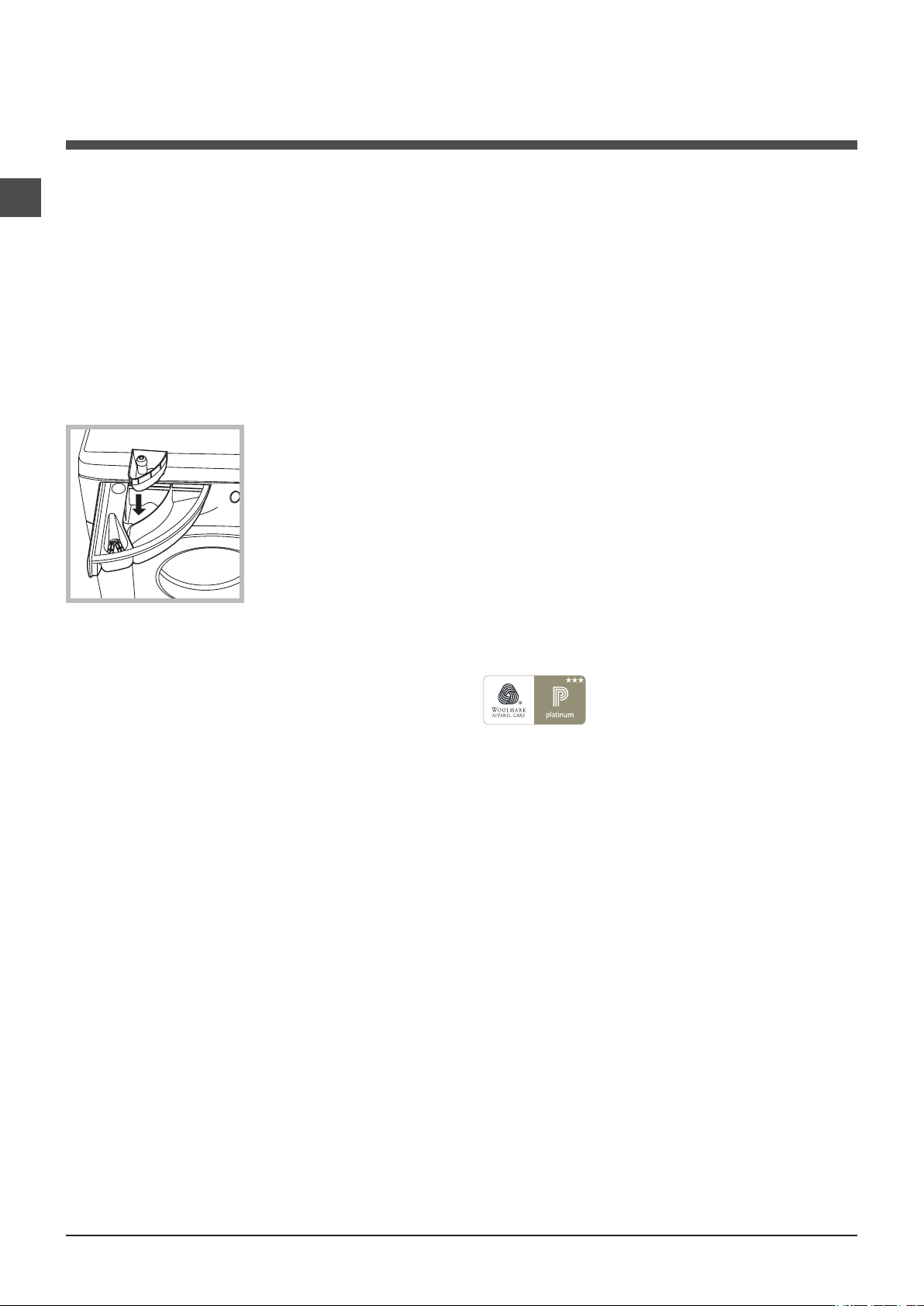

Cassetto dei detersivi
I
Il buon risultato del lavaggio dipende anche dal corretto
dosaggio del detersivo: eccedendo non si lava in modo più
efficace e si contribuisce a incrostare le parti interne della
lavabiancheria e a inquinare l’ambiente.
! Usare detersivi in polvere per capi in cotone bianchi e per il
prelavaggio e per lavaggi con temperatura superiore a 60°C.
! Seguire le indicazioni riportate sulla confezione di detersi-
vo.
! Non usare detersivi per il lavaggio a mano, perché formano
troppa schiuma.
Estrarre il cassetto dei detersivi e inserire il detersivo o
l’additivo come segue.
vaschetta 1: Detersivo per lavaggio
(in polvere o liquido)
Il detersivo liquido va versato solo prima dell’avvio.
vaschetta 2: Additivi (ammorbidente, ecc.)
L’ammorbidente non deve fuoriuscire dalla griglia.
vaschetta aggiuntiva 3: Candeggina
Quanto pesa la biancheria?
1 lenzuolo 400-500 gr.
1 federa 150-200 gr.
1 tovaglia 400-500 gr.
1 accappatoio 900-1.200 gr.
1 asciugamano 150-250 gr.
Capi particolari
Camicie: utilizzare l’apposito programma 9 per lavare
camicie di diversi tipo di tessuto e colore.
Ne garantisce la massima cura minimizzando la
formazione delle pieghe.
Seta: utilizzare l’apposito programma 10 per lavare tutti i
capi in seta. Si consiglia l’utilizzo di un detersivo specifico
per capi delicati.
Tende: si raccomanda di piegarle e sistemarle dentro una
federa o un sacchetto a rete. Utilizzare il programma 10.
Lana: Il ciclo di lavaggio “Lana” di questa lavatrice
Hotpoint-Ariston è stato testato e approvato dalla
Woolmark Company per il lavaggio di capi in lana
classificati come “lavabili a mano”, purché il lavaggio
venga eseguito nel rispetto delle istruzioni riportate
sull’etichetta dell’indumento e delle indicazioni fornite dal
produttore dell’elettrodomestico. Hotpoint-Ariston è la
prima marca di lavatrici ad aver ottenuto dalla Woolmark
Company la certificazione Woolmark Apparel Care Platinum per le sue prestazioni di lavaggio e il consumo di
acqua ed energia. (M1126)
Ciclo candeggio
Il candeggio può essere effettuato solo con i programmi 1, 2, 6.
Versare la candeggina nella vaschetta aggiuntiva 3, il detersivo
e l’ammorbidente nelle rispettive vaschette, quindi impostare
uno dei programmi soprariportati.
E’ indicato solo per capi in cotone molto sporchi.
Preparare la biancheria
• Suddividere la biancheria secondo:
- il tipo di tessuto / il simbolo sull’etichetta.
- i colori: separare i capi colorati da quelli bianchi.
• Vuotare le tasche e controllare i bottoni.
• Non superare i valori indicati, riferiti al peso della
biancheria asciutta:
Tessuti resistenti: max 7 kg
Tessuti sintetici: max 3 kg
Tessuti delicati: max 2 kg
Lana: max 1,5 kg
Sistema bilanciamento del carico
Prima di ogni centrifuga, per evitare vibrazioni eccessive
e per distribuire il carico in modo uniforme, il cestello
effettua delle rotazioni ad una velocità leggermente
superiore a quella del lavaggio. Se al termine di ripetuti
tentativi il carico non fosse ancora correttamente
bilanciato la macchina effettua la centrifuga ad una
velocità inferiore a quella prevista. In presenza di
eccessivo sbilanciamento la lavabiancheria effettua
la distribuzione anzichè la centrifuga. Per favorire
una migliore distribuzione del carico e il suo corretto
bilanciamento si consiglia di mescolare capi grandi e
piccoli.
10
Precauzioni e consigli
! La lavabiancheria è stata progettata e costruita in conformi-
tà alle norme internazionali di sicurezza. Queste avvertenze
sono fornite per ragioni di sicurezza e devono essere lette
attentamente.
Sicurezza generale
• Questo apparecchio è stato concepito esclusiva-
mente per un uso di tipo domestico.
• L’apparecchio non deve essere utilizzato da persone
(bambini compresi) con capacità fisiche, sensoriali o mentali ridotte e con esperienze e conoscenze insufficienti, a
meno che tale utilizzo non avvenga sotto la supervisione
o le istruzioni di una persona responsabile della loro sicurezza. I bambini devono essere sorvegliati per garantire
che non giochino con l’apparecchio.
• Non toccare la macchina a piedi nudi o con le
mani o i piedi bagnati o umidi.
• Non staccare la spina dalla presa della corrente
tirando il cavo, bensì afferrando la spina.
• Non aprire il cassetto dei detersivi mentre la
macchina è in funzione.
• Non toccare l’acqua di scarico, che può
raggiungere temperature elevate.
• Non forzare in nessun caso l’oblò: potrebbe
danneggiarsi il meccanismo di sicurezza che
protegge da aperture accidentali.
• In caso di guasto, in nessun caso accedere ai
meccanismi interni per tentare una riparazione.
• Controllare sempre che i bambini non si avvicinino
alla macchina in funzione.
• Durante il lavaggio l’oblò tende a scaldarsi.
• Se dev’essere spostata, lavorare in due o tre
persone con la massima attenzione. Mai da soli
perché la macchina è molto pesante.
• Prima di introdurre la biancheria controlla che il
cestello sia vuoto.
Il simbolo del cestino barrato è riportato su tutti i prodotti
per ricordare gli obblighi di raccolta separata.
Per ulteriori informazioni, sulla corretta dismissione
degli elettrodomestici, i detentori potranno rivolgersi al
servizio pubblico preposto o ai rivenditori.
Apertura manuale dell’oblò
Nel caso non sia possibile aprire l’oblò a causa della mancanza
di energia elettrica e volete stendere il bucato, procedere
come segue:
1. togliere la spina dalla presa di corrente.
2. verificate che il livello dell’acqua all’interno della macchina
sia inferiore rispetto all’apertura dell’oblò; in caso contrario
togliere l’acqua in eccedenza attraverso il tubo di scarico
raccogliendola in un secchio.
3. utilizzando la linguetta indicata in figura tirare verso
l’esterno fino a liberare il tirante in plastica dal fermo; tirarlo
successivamente verso il basso e contemporaneamente
aprire l’oblò.
I
Smaltimento
• Smaltimento del materiale di imballaggio:
attenersi alle norme locali, così gli imballaggi potranno
essere riutilizzati.
• La direttiva Europea 2002/96/CE sui rifiuti di apparecchia-
ture elettriche ed elettroniche, prevede che gli elettrodomestici non debbano essere smaltiti nel normale flusso
dei rifiuti solidi urbani. Gli apparecchi dismessi devono
essere raccolti separatamente per ottimizzare il tasso di
recupero e riciclaggio dei materiali che li compongono
ed impedire potenziali danni per la salute e l’ambiente.
11
Manutenzione e cura
1
2
Escludere acqua e corrente elettrica
I
• Chiudere il rubinetto dell’acqua dopo ogni lavaggio. Si limita
così l’usura dell’impianto idraulico della lavabiancheria e si
elimina il pericolo di perdite.
• Staccare la spina della corrente quando si pulisce la lava-
biancheria e durante i lavori di manutenzione.
Pulire la lavabiancheria
La parte esterna e le parti in gomma possono essere puliti
con un panno imbevuto di acqua tiepida e sapone. Non
usare solventi o abrasivi.
Pulire il cassetto dei detersivi
Sfilare il cassetto sollevandolo e tirandolo verso l’esterno
(vedi figura).
Lavarlo sotto l’acqua corrente; questa pulizia va effettuata
frequentemente.
Per accedere alla precamera:
1. svitare il coperchio
ruotandolo in senso
antiorario (vedifigura): è
normale che fuoriesca un
po’ d’acqua;
2. pulire accuratamente l’interno;
3. riavvitare il coperchio.
Controllare il tubo di alimentazione
dell’acqua
Controllare il tubo di alimentazione almeno una volta
all’anno. Se presenta screpolature e fessure va sostituito:
durante i lavaggi le forti pressioni potrebbero provocare
improvvise spaccature.
! Non utilizzare mai tubi già usati.
Curare oblò e cestello
• Lasciare sempre socchiuso l’oblò per evitare che
si formino cattivi odori.
Pulire la pompa
La lavabiancheria è dotata di una pompa autopulente che
non ha bisogno di manutenzione. Può però succedere che
piccoli oggetti (monete, bottoni) cadano nella precamera
che protegge la pompa, situata nella parte inferiore di essa.
! Assicurarsi che il ciclo di lavaggio sia terminato e staccare
la spina.
12
Anomalie e rimedi
Può accadere che la lavabiancheria non funzioni. Prima di telefonare all’Assistenza (vedi “Assistenza”), controllare che non si
tratti di un problema facilmente risolvibile aiutandosi con il seguente elenco.
Anomalie:
La lavabiancheria
non si accende.
Il ciclo di lavaggio
non inizia.
La lavabiancheria non carica
acqua (lampeggia velocemente la
spia della prima fase di lavaggio).
La lavabiancheria carica e scarica
acqua di continuo.
Possibili cause / Soluzione:
• La spina non è inserita nella presa della corrente, o non abbastanza
da fare contatto.
• In casa non c’è corrente.
• L’oblò non è ben chiuso
• Il tasto ACCENSIONE/SPEGNIMENTO non è stato premuto.
• Il tasto AVVIO/PAUSA non è stato premuto.
• Il rubinetto dell’acqua non è aperto.
• Si è impostato un ritardo sull’ora di avvio (PARTENZA RITARDATA,
vedi “Personalizzazioni”).
• Il tubo di alimentazione dell’acqua non è collegato al rubinetto.
• Il tubo è piegato.
• Il rubinetto dell’acqua non è aperto.
• In casa manca l’acqua.
• Non c’è sufficiente pressione.
• Il tasto AVVIO/PAUSA non è stato premuto.
• Il tubo di scarico non è installato fra 65 e 100 cm da terra (vedi “Installazione”).
• L’estremità del tubo di scarico è immersa nell’acqua (vedi “Installazione”).
• Lo scarico a muro non ha lo sfiato d’aria.
Se dopo queste verifiche il problema non si risolve, chiudere il rubinetto dell’acqua, spegnere la lavabiancheria e chiamare l’Assistenza. Se l’abitazione si trova
agli ultimi piani di un edificio, è possibile che si verifichino fenomeni di sifonaggio, per cui la lavabiancheria carica e scarica acqua di continuo. Per eliminare
l’inconveniente sono disponibili in commercio apposite valvole anti-sifonaggio.
I
La lavabiancheria non scarica
o non centrifuga.
La lavabiancheria vibra
molto durante la centrifuga.
La lavabiancheria perde acqua.
La spia AVVIO/PAUSA (arancione) e
le spie delle funzioni lampeggiano
velocemente.
Si forma troppa schiuma.
• Il programma non prevede lo scarico: con alcuni programmi occorre
avviarlo manualmente.
• È attiva la funzione STIRA FACILE: per completare il programma
premere il tasto AVVIO/PAUSA (“Personalizzazioni”).
• Il tubo di scarico è piegato (vedi “Installazione”).
• La conduttura di scarico è ostruita.
• Il cestello, al momento dell’installazione, non è stato sbloccato
correttamente (vedi “Installazione”).
• La lavabiancheria non è in piano (vedi “Installazione”).
• La lavabiancheria è stretta tra mobili e muro (vedi “Installazione”).
• Il tubo di alimentazione dell’acqua non è ben avvitato (vedi “Installazione”).
• Il cassetto dei detersivi è intasato (per pulirlo vedi “Manutenzione e cura”).
• Il tubo di scarico non è fissato bene (vedi “Installazione”).
• Spegnere la macchina e togliere la spina dalla presa, attendere circa 1 minuto quindi riaccenderla.
Se l’anomalia persiste, chiamare l’Assistenza.
• Il detersivo non è specifico per lavabiancheria (deve esserci la
dicitura “per lavatrice”, “a mano e in lavatrice”, o simili).
• Il dosaggio è stato eccessivo.
13
Assistenza
Prima di contattare l’Assistenza:
I
• Verificare se l’anomalia può essere risolta da soli (vedi “Anomalie e rimedi”).
• Riavviare il programma per controllare se l’inconveniente è stato ovviato;
• In caso negativo, contattare il Numero Unico 199.199.199*.
! Non ricorrere mai a tecnici non autorizzati.
Comunicare:
• il tipo di anomalia;
• il modello della macchina (Mod.);
• il numero di serie (S/N).
Queste informazioni si trovano sulla targhetta applicata nella parte posteriore della lavabiancheria e nella parte anteriore
aprendo l’oblò.
Assistenza Attiva 7 giorni su 7
In caso di necessità d’intervento chiamare il Numero Unico Nazionale 199.199.199*.
Un operatore sarà a completa disposizione per fissare un appuntamento con il Centro Assistenza Tecnico
Autorizzato più vicino al luogo da cui si chiama.
È attivo 7 giorni su 7, sabato e domenica compresi, e non lascia mai inascoltata una richiesta.
*
* Al costo di 14,25 centesimi di Euro al minuto (iva inclusa) dal Lun. al Ven. dalle 08:00 alle 18:30, il Sab. dalle 08:00 alle 13:00 e di 5,58 centesimi di
Euro al minuto (iva inclusa) dal Lun. al Ven. dalle 18:30 alle 08:00, il Sab. dalle 13:00 alle 08:00 e i giorni festivi, per chi chiama da telefono fisso.
Per chi chiama da radiomobile le tariffe sono legate al piano tariffario dell’operatore telefonico utilizzato.
Le suddette tariffe potrebbero essere soggette a variazione da parte dell’operatore telefonico; per maggiori informazioni consultare il sito www.
aristonchannel.com.
14
Instructions for use
WASHING MACHINE
GB
English
AWM 108
Contents
Installation, 16-17-18-19
Unpacking and levelling
Connecting the electricity and water supplies
The first wash cycle
Technical data
Instructions for the fitter
Description of the washing machine
and starting a wash cycle, 20-21
Control panel
Indicator lights
Starting a wash cycle
Wash cycles, 22
Table of wash cycles
Personalisation, 23
Setting the temperature
Setting the spin speed
Functions
Detergents and laundry, 24
Detergent dispenser drawer
Bleach cycle
Preparing the laundry
Garments requiring special care
Load balancing system
GB
Precautions and tips, 25
General safety
Disposal
Opening the porthole door manually
Care and maintenance, 26
Cutting off the water or electricity supply
Cleaning the washing machine
Cleaning the detergent dispenser drawer
Caring for the door and drum of your appliance
Cleaning the pump
Checking the water inlet hose
Troubleshooting, 27
Service, 28
15
Installation
GB
! This instruction manual should be kept in a safe place for
future reference. If the washing machine is sold, transferred
or moved, make sure that the instruction manual remains
with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital infor-
mation relating to the safe installation and operation of the
appliance.
Unpacking and levelling
Unpacking
1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been
damaged during the transportation process. If it has been
damaged, contact the retailer and do not proceed any
further with the installation process.
3. Remove the 4 protective
screws (used during transportation) and the rubber
washer with the corresponding spacer, located on the
rear part of the appliance
(see figure).
4. Close off the holes using the plastic plugs provided.
5. Keep all the parts in a safe place: you will need them
again if the washing machine needs to be moved to another location.
Levelling the machine correctly will provide it with stability,
help to avoid vibrations and excessive noise and prevent it
from shifting while it is operating. If it is placed on carpet or
a rug, adjust the feet in such a way as to allow a sufficient
ventilation space underneath the washing machine.
Connecting the electricity and water
supplies
Connecting the water inlet hose
1. Connect the supply pipe
by screwing it to a cold
water tap using a ¾ gas
threaded connection (see
figure).
Before performing the connection, allow the water to
run freely until it is perfectly
clear.
2. Connect the inlet hose
to the washing machine by
screwing it onto the corresponding water inlet of the
appliance, which is situated on the top right-hand
side of the rear part of the
appliance (see figure).
3. Make sure that the hose is not folded over or bent.
! Packaging materials should not be used as toys for
children.
Levelling
1. Install the washing machine on a flat sturdy floor, without
resting it up against walls, furniture cabinets or anything
else.
2. If the floor is not perfectly
level, compensate for any
unevenness by tightening or
loosening the adjustable front
feet (see figure); the angle
of inclination, measured in
relation to the worktop, must
not exceed 2°.
16
! The water pressure at the tap must fall within the values
indicated in the Technical details table (see next page).
! If the inlet hose is not long enough, contact a specialised
shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.
65 - 100 cm
Connecting the drain hose
Connect the drain hose,
without bending it, to a drainage duct or a wall drain
located at a height between
65 and 100 cm from the
floor;
! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by autho-
rised technicians.
Warning! The company shall not be held responsible in the
event that these regulations are not respected.
The first wash cycle
GB
alternatively, rest it on
the side of a washbasin
or bathtub, fastening the
duct supplied to the tap
(see figure). The free end
of the hose should not be
underwater.
! We advise against the use of hose extensions; if it is
absolutely necessary, the extension must have the same
diameter as the original hose and must not exceed 150 cm
in length.
Electrical connections
Before plugging the appliance into the electricity socket,
make sure that:
• the socket is earthed and complies with all applicable
laws;
Once the appliance has been installed, and before you use
it for the first time, run a wash cycle with detergent and no
laundry, using the wash cycle 1.
Technical data
Model
Dimensions
Capacity
Electrical
connections
AWM 108
width 59.5 cm
height 81,5 cm
depth 54,5 cm
from 1 to 7 kg
please refer to the technical data plate
fixed to the machine
• the socket is able to withstand the maximum power load
of the appliance as indicated in the Technical data table
(see opposite);
• the power supply voltage falls within the values indicated
in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing
machine. If this is not the case, replace the socket or the
plug.
! The washing machine must not be installed outdoors,
even in covered areas. It is extremely dangerous to leave
the appliance exposed to rain, storms and other weather
conditions.
! When the washing machine has been installed, the elec-
This appliance conforms to the following
EC Directives:
- 2004/108/EC (Electromagnetic Compatibility)
- 2006/95/EC (Low Voltage)
- 2002/96/EC
17
GB
Tur seite
Instructions for the fitter
Mounting the wooden panel onto the door and inserting the machine into cabinets:
In the case where the machine must be shipped for final
installation after the wooden panel has been mounted, we
suggest leaving it in its original packaging. The packaging was
designed to make it possible to mount the wooden panel
onto the machine without removing it completely (see figures
below).
The wooden panel that covers the face of the machine must
not be less than 18 mm in thickness and can be hinged on
either the right or left. For the sake of practicality when using
the machine, we recommend that the panel be hinged on the
same side as the door for the machine itself - the left.
Door Mounting Accessories (Fig. 1-2-3-4-5).
N° 2 Hinge Supports
Fig. 1
N° 1 MagnetN° 1 Magnet plate
Fig. 3Fig. 4
Fig. 2
N° 2 Hinges
A
C
E
B
D
N° 1 Rubber plug
Fig. 5
- No. 6 type A self-threading screws, l =13 mm.
- No. 2 type B metric, countersunk screws, l =25; for fastening the magnet plate to the cabinet.
- No. 4 type C metric screws, l =15 mm; for mounting the
hinge supports to the cabinet.
- No. 4 type D metric screws, l =7 mm; for mounting the
hinges on the supports.
Mounting the Parts onto the Face of the Machine.
- Fit the hinge supports to the appliance front panel, positioning
the hole marked with an arrow in fig. 1 so that it is on the inner
side of the front panel. Fit a spacer (fig. 4/B) between the
surfaces using type C screws.
- Fit the magnet plate at the top of the opposite side, using
type B screws to fix two spacers (fig. 4/B) between the plate
and the surface.
Fig. 4/B
N° 4 Spacers
18
Using the Drilling Template.
570
min
815
540
595
820 ÷ 900
600 min
L
I
H
G
- To trace the positions of the holes on the left-hand side of
the panel, align the drilling template to the top left side of the
panel using the lines traced on the extremities as a reference.
- To trace the positions of the holes on the right-hand side of
the panel, align the drilling template to the top right side of the
panel.
- Use an appropriately sized router to mill the holes for the two
hinges, the rubber plug and the magnet.
Mounding the Parts onto the Wooden Panel (Door).
- Insert the hinges into the holes (the movable part of the hin-
ge must be positioned facing away from the panel) and fasten
them with the 4 type A screws.
- Insert the magnet into the top hole on the opposite side of
the hinges and fasten it with the two type B screws.
- Insert the rubber plug into the bottom hole.
The panel is now ready to be mounted onto the machine.
Mounting the Panel into the machine.
Insert the nib of the hinge (indicated by the arrow in fig. 2) into
the hole for the hinge and push the panel towards the front of
the machine. Fasten the two hinges with the type D screws.
GB
Fig. 8Fig. 9
Accessories provided for the height adjustment.
The following can be found inside the polystyrene lid (fig. 10): 2
crossbars (G), 1 strip (M)
the following can be found inside
the appliance drum:
4 additional feet (H),
4 screws (I),
4 screws (R),
4 nuts (L),
2 plinth guides (Q)
Fastening the plinth guide.
If the machine is installed at the end of a set of modular
cabinets, mount either one or both of the guides for the base
molding (as shown in fig. 8). Adjust them for depth based on
the position of the base molding, and, if necessary, fasten the
base to the guides (fig. 9).
This is how to assemble the plinth guide (fig. 8):
Fasten angle P using screw R, insert plinth guide Q into the
special slot and once it is in the desired position, lock it in
place using angle P and screw R.
Inserting the machine into the Cabinet.
- Push the machine into the opening, aligning it with the cabi-
nets (fig. 6).
- Regulate the adjustable feet to raise the machine to the
appropriate height.
- To adjust the position of the wooden panel in both the
vertical and horizontal directions, use the C and D screws, as
shown in fig. 7.
Important: close the lower part of the appliance front by
ensuring that the plinth rests against the floor.
Fig. 10
Adjusting the appliance height.
The height of the appliance can be adjusted (from 815 mm to
835 mm), by turning the 4 feet.
Should you require the appliance to be placed higher than the
above height, you need to use the following accessories to raise
it to up to 870 mm:
the two crossbars (G); the 4 feet (H); the 4 screws (I); the 4 nuts
(L) then perform the following operations (fig. 11):
remove the 4 original feet, place a crossbar G at the front of the
appliance, fastening it in place using screws I (screwing them in
where the original feet were) then insert the new feet H.
Repeat the same operation at the back of the appliance.
Now adjust feet H to raise or lower the appliance from 835
mm to 870 mm.
Once you have reached the desired height, lock nuts L onto
crossbar G.
To adjust the appliance to a height between 870 mm and
900 mm, you need to mount strip M, adjusting feet H to the
required height.
Insert the strip as follows:
loosen the three screws N situated at the front of the Top cover
of the appliance, insert strip M as shown in fig. 12, then fasten
screws N.
C
M
D
C
Fig. 6Fig. 7
Fig. 11Fig. 12
19
Description of the washing
machine and starting a wash cycle
GB
Control panel
Detergent dispenser drawer
ON/OFF
button
WASH CYCLE
knob
TEMPERATURE
knob
SPIN SPEED
knob
FUNCTION
buttons with
indicator lights
WASH CYCLE PROGRESS/
DELAY TIMER indicator lights
DOOR
LOCKED
indicator light
START/
PAUSE
button with
indicator light
Detergent dispenser drawer: used to dispense
detergents and washing additives (see “Detergents and laundry”).
ON/OFF button: switches the washing machine on and
off.
WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.
FUNCTION buttons with indicator light: used to select the
available functions. The indicator light corresponding to the
selected function will remain lit.
TEMPERATURE knob: sets the temperature or the cold
wash cycle (see “Personalisation”).
SPIN SPEED knob: sets the spin speed or exclude the
spin cycle completely (see “Personalisation”).
WASH CYCLE PROGRESS/DELAY TIMER
light
s: used to monitor the progress of the wash cycle.
The illuminated indicator light shows which phase is in
progress.
If the Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next
page).
indicator
DOOR LOCKED indicator light: indicates whether the
door may be opened or not (see next page).
START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.
N.B. To pause the wash cycle in progress, press this
button; the corresponding indicator light will flash orange,
while the indicator light for the current wash cycle phase
will remain lit in a fixed manner. If the DOOR LOCKED
indicator light is switched off, the door may be opened.
To start the wash cycle from the point at which it was interrupted, press this button again.
Standby mode
This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system
which is enabled after about 30 minutes if no activity is
detected. Press the ON-OFF button briefly and wait for the
machine to start up again.
Consumption in off-mode: 1 W
Consumption in Left-on: 1 W
20
Indicator lights
The indicator lights provide important information.
This is what they can tell you:
Wash cycle phase indicator lights
Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which
phase of the cycle is currently in progress.
GB
Delayed start
If the DELAY TIMER function has been activated (see “Personalisation”), after the wash cycle has been started the
indicator light corresponding to the selected delay period
will begin to flash:
As time passes, the remaining delay will be displayed and
the corresponding indicator light will flash:
Once the set delay has elapsed, the flashing indicator light
will switch off and the selected wash cycle will begin.
Wash
Rinse
Spin
Drain
End of wash cycle
Function buttons and corresponding indicator
lights
When a function is selected, the corresponding indicator
light will illuminate.
If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash
and the function will not be activated.
If a function which is incompatible with another function
selected previously, only the most recent selection will
remain active.
Door locked indicator light
If this indicator light is on, the appliance door is locked to
prevent it from being opened accidentally; to avoid any
damage, wait for the indicator light to switch off before you
open the appliance door.
N.B. If the DELAY TIMER function is activated, the door
cannot be opened; pause the machine by pressing the
START/PAUSE button if you wish to open it.
! If the START/PAUSE indicator light (orange) flashes
rapidly at the same time as the function indicator light, this
indicates a problem has occurred (see “Troubleshooting”).
Starting a wash cycle
1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then
only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will
flash.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see “Personalisation”).
5. Set the spin speed (see “Personalisation”).
6. Measure out the detergent and washing additives (see “Detergents and laundry”).
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed
manner, in green.
To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
9. At the end of the wash cycle the indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi-
cating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries
completely.
Switch the washing machine off by pressing the ON/OFF button.
Mix 30': To refresh lightly soiled garments quickly (not suitable for wool,
4
silk and clothes which require washing by hand).
Mix 15': To refresh lightly soiled garments quickly (not suitable for wool,
5
silk and clothes which require washing by hand).
Partials wash cycles
A
Rinse-1000--
B
Light rinse -800--
C
Spin-1000---7---16
D
Light spin-800---3---12
E
Drain no spin-0---7---2
The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water
temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.
For all Test Institutes:
1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 6 with a temperature of 60°C and 40°C.
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for
garments which can be washed at 60°C and 40°C. The actual washing temperature may differ from the indicated value.
2) Long wash cycle for cottons: set wash cycle 6 with a temperature of 40°C.
3) Short wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.
4) Long wash cycle for synthetics: set wash cycle 3 with a temperature of 40°C.
temp.
Max.
speed
(°C)
(rpm)
40° 600-
30° 800-
30° 800-
Ble-
ach
Wash
Fabric
softe-
ner
(kg)
Max. load
7---190
7621,31658195
7621,00372190
4---290
2---120
2---70
1---55
1,5---70
7---135
7620,665490
3440,9347110
3440,574695
3710,153530
1,5710,193115
7---36
3---31
Energy
Residual
dampness %
kWh
consumption
lt
Total water
Cycle
duration
Specials wash cycles
Sanitizing cycle (wash cycle 6). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour the
bleach, the detergent and the additives into the relevant compartments (see paragraph entitled “Detergent dispenser drawer”).
Goodnigt cycle (wash cycle 7). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash
cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum;
to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain
the water automatically after 8 hours.
Baby cycle (wash cycle 8). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that
all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been
designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting
additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation
of creases; to end the cycle press the START/PAUSE button.
Mix 30’ (wash cycle 4) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore
saves both energy and time. By selecting this wash cycle (4 at 30°C), it is possible to wash different fabrics together (except
for wool and silk items), with a maximum load of 3 kg.
Mix 15’(wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore
saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together (except
for wool and silk items), with a maximum load of 1.5 kg.
22
Personalisation
Setting the temperature
Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).
The temperature may be lowered, or even set to a cold wash ( ).
The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value
set for each wash cycle.
Setting the spin speed
Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.
The maximum spin speeds available for each wash cycle are as follows:
The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .
The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed
set for each wash cycle.
Functions
The various wash functions available with this washing machine will help to achieve the desired results, every time.
To activate the functions:
1. Press the button corresponding to the desired function;
2. the function is enabled when the corresponding indicator light is illuminated.
Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the
selected wash cycle.
GB
Delay timer
This timer delays the start time of the wash cycle by up to 12 hours.
Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button
is pressed, the function will be disabled.
N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.
! This option is enabled with all programmes.
Easy iron
By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases.
At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE
indicator lights will flash (orange) and the phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.
For the Silk (10) wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE
indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry
may be removed, press the START/PAUSE button or the EASY IRON button.
! This function may not be used in conjunction with wash cycles 4, 5, 6, 7, 8, 11, C, D, E.
Extra rinse
By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly
useful for sensitive skin.
! This function may not be used in conjunction with wash cycles 4, 5, C, D, E.
Super Wash
Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this
function offers a high-performance wash.
! This function may not be used in conjunction with wash cycles 4, 5, 6, 10, 11, A, B, C, D, E.
23
Detergents and laundry
M
AX
1
3
2
GB
Detergent dispenser drawer
Good washing results also depend on the correct dose of
detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause
build up on the inside of your appliance and contribute to
environmental pollution.
! Use powder detergent for white cotton garments, for
pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! Do not use hand washing detergents because these
create too much foam.
Open the detergent dispenser drawer and pour
in the detergent or washing
additive, as follows.
compartment 1: Detergent for the wash cycle
(powder or liquid)
Liquid detergent should only be poured in immediately
prior to the start of the wash cycle.
compartment 2: Additives (fabric softeners, etc.)
The fabric softener should not overflow the grid.
extra compartment 3: Bleach
How much does your laundry weigh?
1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g
Garments requiring special care
Shirts: use special wash cycle 9 to wash shirts in various
fabrics and colours.
It guarantees maximum care is taken of the garments and
minimises the formation of creases.
Silk: use special wash cycle 10 to wash all silk garments.
We recommend the use of special detergent which has
been designed to wash delicate clothes.
Curtains: fold curtains and place them in a pillow case or
mesh bag. Use wash cycle 10.
Wool: The wool wash cycle on this Hotpoint-Ariston machine
has been tested and approved by The Woolmark Company
for washing wool garments labelled as hand washable
provided that the garments are washed according to the
instructions on the garment label and those issued by the
manufacturer of this washing machine. Hotpoint-Ariston is
the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its washing
performance and consumption of energy and water. (M1126)
Bleach cycle
Bleaching may only be performed in conjunction with wash
cycles 1, 2, 6.
Pour the bleach into extra compartment 3; pour the detergent and softener into the corresponding compartments,
then select one of the abovementioned wash cycles.
This option is recommended only for very soiled cotton
garments.
Preparing the laundry
• Divide the laundry according to:
- the type of fabric/the symbol on the label
- the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight
of the laundry when dry:
Durable fabrics: max. 7 kg
Synthetic fabrics: max. 3 kg
Delicate fabrics: max. 2 kg
Wool: max. 1.5 kg
Load balancing system
Before every spin cycle, to avoid excessive vibrations and
to distribute the load in a uniform manner, the drum rotates
continuously at a speed which is slightly greater than the
washing rotation speed. If, after several attempts, the load
is not balanced correctly, the machine spins at a reduced
spin speed. If the load is excessively unbalanced, the
washing machine performs the distribution process instead
of spinning. To encourage improved load distribution and
balance, we recommend small and large garments are
mixed in the load.
24
Precautions and tips
! This washing machine was designed and constructed in
accordance with international safety regulations. The following information is provided for safety reasons and must
therefore be read carefully.
General safety
• This appliance was designed for domestic use only.
• This appliance is not intended for use by persons (inclu-
ding children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concer-
ning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that
they do not play with the appliance.
• Do not touch the machine when barefoot or with wet or
damp hands or feet.
• Do not pull on the power supply cable when unplugging
the appliance from the electricity socket. Hold the plug
and pull.
• Do not open the detergent dispenser drawer while the
machine is in operation.
• Do not touch the drained water as it may reach extreme-
ly high temperatures.
• Never force the porthole door. This could damage the
safety lock mechanism designed to prevent accidental
opening.
• If the appliance breaks down, do not under any circum-
stances access the internal mechanisms in an attempt
to repair it yourself.
• Always keep children well away from the appliance while
it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two
or three people and handle it with the utmost care. Never
try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make
sure the drum is empty.
Consumers should contact their local authority or retailer
for information concerning the correct disposal of their old
appliance.
Opening the porthole door manually
In the event that it is not possible to open the porthole
door due to a powercut, and if you wish to remove the
laundry, proceed as follows:
1. remove the plug from the electrical socket.
2. make sure the water level inside the machine is lower
than the door opening; if it is not, remove excess water
using the drain hose, collecting it in a bucket.
3. pull outwards using the tab as indicated in the figure,
until the plastic tie-rod is freed from its stop position; pull
downwards and open the door at the same time.
GB
Disposal
• Disposing of the packaging materials: observe local regu-
lations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment, requires that old household
electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must
be collected separately in order to optimise the recovery
and recycling of the materials they contain and reduce the
impact on human health and the environment. The crossed
out “wheeled bin” symbol on the product reminds you of
your obligation, that when you dispose of the appliance it
must be separately collected.
25
Care and maintenance
1
2
GB
Cutting off the water and electricity
supplies
• Turn off the water tap after every wash cycle. This will
limit wear on the hydraulic system inside the washing
machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and du-
ring all maintenance work.
Cleaning the washing machine
The outer parts and rubber components of the appliance
can be cleaned using a soft cloth soaked in lukewarm
soapy water. Do not use solvents or abrasives.
Cleaning the detergent dispenser drawer
Remove the dispenser by
raising it and pulling it out
(see figure).
Wash it under running water; this operation should be
repeated frequently.
To access the pre-chamber:
1. unscrew the lid by rotating it anti-clockwise (seefigure): a little water may
trickle out. This is perfectly
normal;
2. clean the inside thoroughly;
3. screw the lid back on.
Checking the water inlet hose
Check the inlet hose at least once a year. If there are any
cracks, it should be replaced immediately: during the wash
cycles, water pressure is very strong and a cracked hose
could easily split open.
! Never use second-hand hoses.
Caring for the door and drum of your
appliance
• Always leave the porthole door ajar in order to prevent
unpleasant odours from forming.
Cleaning the pump
The washing machine is fitted with a self-cleaning pump
which does not require any maintenance. Sometimes,
small items (such as coins or buttons) may fall into the prechamber which protects the pump, situated in its bottom
part.
! Make sure the wash cycle has finished and unplug the
appliance.
26
Troubleshooting
Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure
that the problem cannot be not solved easily using the following list.
Problem:
The washing machine does not
switch on.
The wash cycle does not start.
The washing machine does not
take in water (the indicator light for
the first wash cycle stage flashes
rapidly).
The washing machine continuously
takes in and drains water.
Possible causes / Solutions:
• The appliance is not plugged into the socket fully, or is not making contact.
• There is no power in the house.
• The washing machine door is not closed properly.
• The ON/OFF button has not been pressed.
• The START/PAUSE button has not been pressed.
• The water tap has not been opened.
• A delayed start has been set (see “Personalisation”).
• The water inlet hose is not connected to the tap.
• The hose is bent.
• The water tap has not been opened.
• There is no water supply in the house.
• The pressure is too low.
• The START/PAUSE button has not been pressed.
• The drain hose is not fitted at a height between 65 and 100 cm from the floor
(see “Installation”).
• The free end of the hose is under water (see “Installation”).
• The wall drainage system is not fitted with a breather pipe.
If the problem persists even after these checks, turn off the water tap, switch
the appliance off and contact the Assistance Service. If the dwelling is on one of
the upper floors of a building, there may be problems relating to water drainage,
causing the washing machine to fill with water and drain continuously. Special
anti-draining valves are available in shops and help to avoid this inconvenience.
GB
The washing machine does not
drain or spin.
The washing machine vibrates a lot
during the spin cycle.
The washing machine leaks.
The START/PAUSE indicator light
(orange) and the function indicator
lights flash rapidly.
There is too much foam.
• The wash cycle does not include draining: some wash cycles require the drain
phase to be started manually.
• The EASY IRON function has been activated: To complete the wash cycle,
press the START/PAUSE button (“Personalisation”).
• The drain hose is bent (see “Installation”).
• The drainage duct is clogged.
• The drum was not unlocked correctly during installation (see “Installation”).
• The washing machine is not level (see “Installation”).
• The washing machine is trapped between cabinets and walls (see “Installation”).
• The water inlet hose is not screwed on properly (see “Installation”).
• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).
• The drain hose is not fixed properly (see “Installation”).
• Switch off the machine and unplug it, wait for approximately 1 minute and
then switch it back on again.
If the problem persists, contact the Technical Assistance Service.
• The detergent is not suitable for machine washing (it should display the text
“for washing machines” or “hand and machine wash”, or the like).
• Too much detergent was used.
27
Service
GB
Before calling for Assistance:
• Check whether you can solve the problem alone (see “Troubleshooting”);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the
guarantee certificate.
! Always request the assistance of authorised technicians.
Have the following information to hand:
• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).
This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the
front of the appliance by opening the door.
28
Mode d’emploi
LAVE-LINGE
FR
Français
AWM 108
Sommaire
Installation, 30-31-32-33
Déballage et mise à niveau
Raccordements eau et électricité
Premier cycle de lavage
Caractéristiques techniques
Instructions pour l’installateur
Description du lave-linge et démarrage
d’un programme, 34-35
Bandeau de commandes
Voyants
Démarrage d’un programme
Programmes, 36
Tableau des programmes
Personnalisations, 37
Sélection de la température
Sélection de l’essorage
Fonctions
Produits lessiviels et linge, 38
Tiroir à produits lessiviels
Cycle blanchissage
Triage du linge
Linge ou vêtements particuliers
Système d’équilibrage de la charge
FR
Précautions et conseils, 39
Sécurité générale
Mise au rebut
Ouverture manuelle du hublot
Entretien et soin, 40
Coupure de l’arrivée d’eau et du courant
Nettoyage du lave-linge
Nettoyage du tiroir à produits lessiviels.
Entretien du hublot et du tambour
Nettoyage de la pompe
Contrôle du tuyau d’arrivée de l’eau
Anomalies et remèdes, 41
Assistance, 42
29
Installation
FR
! Conserver ce mode d’emploi pour pouvoir le consulter à
tout moment. En cas de vente, de cession ou de déménagement, veiller à ce qu’il suive toujours le lave-linge pour
que son nouveau propriétaire soit informé sur son mode
de fonctionnement et puisse profiter des conseils correspondants.
! Lire attentivement les instructions: elles fournissent des
conseils importants sur l’installation, l’utilisation et la sécurité de l’appareil.
Déballage et mise à niveau
Déballage
1. Déballer le lave-linge.
2. Contrôler que le lave-linge n’a pas été endommagé
pendant le transport. S’il est abîmé, ne pas le raccorder et
contacter le vendeur.
3. Enlever les 4 vis de
protection servant au transport, le caoutchouc et la
cale, placés dans la partie
arrière (voir figure).
Une bonne mise à niveau garantit la stabilité de l’appareil
et évite qu’il y ait des vibrations, du bruit et des déplacements en cours de fonctionnement. Si la machine est
posée sur de la moquette ou un tapis, régler les pieds de
manière à ce qu’il y ait suffisamment d’espace pour assurer une bonne ventilation.
Raccordements eau et électricité
Raccordement du tuyau d’arrivée de l’eau
1. Reliez le tuyau d’alimentation en le vissant à un robinet
d’eau froide à embout fileté
3/4 gaz (voir figure).
Faire couler l’eau jusqu’à ce
qu’elle soit limpide et sans
impuretés avant de raccorder.
2. Raccorder le tuyau
d’arrivée de l’eau au lavelinge en le vissant à la prise
d’eau prévue, dans la partie
arrière en haut à droite (voir figure).
4. Boucher les trous à l’aide des bouchons plastique
fournis.
5. Conserver toutes ces pièces: il faudra les remonter en
cas de transport du lave-linge.
! Les pièces d’emballage ne sont pas des jouets pour
enfants.
Mise à niveau
1. Installer le lave-linge sur un sol plat et rigide, sans l’ap-
puyer contre des murs, des meubles ou autre.
2. Si le sol n’est pas parfaitement horizontal, visser
ou dévisser les pieds de
réglage avant (voir figure)
pour niveler l’appareil; son
angle d’inclinaison, mesuré
sur le plan de travail, ne doit
pas dépasser 2°.
3. Attention à ce que le tuyau ne soit pas plié ou écrasé.
! La pression de l’eau doit être comprise entre les valeurs
indiquées dans le tableau des Caractéristiques techniques
(voir page ci-contre).
! Si la longueur du tuyau d’alimentation ne suffit pas,
s’adresser à un magasin spécialisé ou à un technicien
agréé.
! N’utiliser que des tuyaux neufs.
! Utiliser ceux qui sont fournis avec l’appareil.
30
65 - 100 cm
Raccordement du tuyau de vidange
Raccorder le tuyau d’évacuation, sans le plier, à un
conduit d’évacuation ou
à une évacuation murale
placés à une distance du
sol comprise entre 65 et
100 cm;
! N’utiliser ni rallonges ni prises multiples.
! Le câble ne doit être ni plié ni trop écrasé.
! Le câble d’alimentation ne doit être remplacé que par
des techniciens agréés.
Attention! Nous déclinons toute responsabilité en cas de
non-respect des normes énumérées ci-dessus.
Premier cycle de lavage
FR
ou bien l’accrocher à un
évier ou à une baignoire, dans ce cas, fixer le
support en plastique fourni
avec l’appareil au robinet
(voir figure). L’extrémité
libre du tuyau d’évacuation
ne doit pas être plongée
dans l’eau.
! L’utilisation d’un tuyau de rallonge est absolument
déconseillée mais si on ne peut faire autrement, il faut
absolument qu’il ait le même diamètre que le tuyau original
et sa longueur ne doit pas dépasser 150 cm.
Branchement électrique
Avant de brancher la fiche dans la prise de courant, s’assurer que:
• la prise est bien reliée à la terre et est conforme aux
réglementations en vigueur;
• la prise est bien apte à supporter la puissance maximale
de l’appareil indiquée dans le tableau des Caractéristiques techniques (voir ci-contre);
• la tension d’alimentation est bien comprise entre les
valeurs figurant dans le tableau des Caractéristiques
techniques (voir ci-contre);
• la prise est bien compatible avec la fiche du lave-linge.
Autrement, remplacer la prise ou la fiche.
! Le lave-linge ne doit pas être installé dehors, même à
l’abri, car il est très dangereux de le laisser exposé à la
pluie et aux orages.
! Après installation du lave-linge, la prise de courant doit
être facilement accessible.
Avant la première mise en service de l’appareil, effectuer
un cycle de lavage avec un produit lessiviel mais sans linge
et sélectionner le programme 1.
Caractéristiques techniques
Modèle
Dimensions
Capacité
Raccordements
électriques
Raccordements
hydrauliques
Vitesse
d’essorage
Programmes de
contrôle selon
les directives
1061/2010 et
1015/2010
AWM 108
largeur 59,5 cm
hauteur 81,5 cm
profondeur 54,5 cm
de 1 à 7 kg
Voir la plaque signalétique appliquée
sur la machine
Cet appareil est conforme aux Directives Communautaires suivantes:
- 2004/108/CE (Compatibilité
électromagnétique)
- 2002/96/CE
- 2006/95/CE (Basse Tension)
31
FR
Tur seite
Instructions pour l’installateur
Application du panneau d’habillage en bois sur la
porte et montage du machine à laver à l’intérieur des
éléments:
Au cas où, après le montage du panneau en bois, il faudrait
expédier la machine pour son installation finale, nous vous conseillons de la laisser dans son emballage d’origine. L’emballage
a été justement réalisé de manière à permettre le montage du
panneau en bois sur la machine sans déballer complètement le
produit (voir figures ci-dessous).
Le panneau en bois couvrant la façade ne doit pas avoir
plus de 18 mm d’épaisseur, il peut être articulé tant à droite
qu’à gauche. Pour plus de facilité d’emploi, nous conseillons
d’adopter le même sens d’ouverture que pour le hublot dont
les charnières sont montées sur le côté gauche.
Accessoires montage porte (Fig.1-2-3-4-5).
N°2 Supports charnière
Fig. 1
N°1 AimantN°1 Butoir aimant
Fig. 3Fig. 4
Fig. 2
N°2 Charnière
A
C
B
D
N°1 Cheville en
caoutchouc
Fig. 5
- 6 vis autotaraudeuses l = 13 mm “type A”.
- 2 vis métriques à tête évasée l = 25 mm “type B”; pour
fixation du butoir aimant au meuble.
- 4 vis métriques l = 15 mm “type C”; pour montage des
supports charnière au meuble.
- 4 vis métriques l = 7 mm “type D”; pour montage des charnières aux supports.
Montage des pièces sur la façade de la machine.
- Montez les supports de la charnière sur la façade, en
positionnant le trou indiqué par une flèche dans la fig. 1 vers
l’intérieur de la façade et interposez une cale (fig. 4/B). Utilisez
les vis type C.
- Montez le butoir aimant du côté opposé en haut et interposez
deux cales (fig. 4/B). Utilisez les deux vis type B.
N°4 Cales
Fig. 4/B
E
32
Utilisation du gabarit de forage.
570
min
815
540
595
820 ÷ 900
600 min
L
I
H
G
- Pour marquer l’emplacement des trous sur le côté du
panneau, alignez le gabarit de perçage avec le côté supérieur
gauche du panneau en vous servant des lignes tracées aux
extrémités.
- Pour marquer l’emplacement des trous sur le côté droit du
panneau, alignez le gabarit de perçage avec le côté supérieur
droit du panneau.
- Réalisez à l’aide d’une fraise appropriée les quatre emplace-
ments où devront trouver place les deux charnières, la cheville
en caoutchouc et l’aimant.
Montage des pièces sur le panneau en bois (Porte).
- Montez les charnières aux emplacements prévus (la partie
mobile de la charnière doit se trouver vers l’extérieur du panneau) et fixez-les à l’aide de 4 vis type A.
- Montez l’aimant à son emplacement en haut, à l’opposé des
charnières et fixez-le au moyen de deux vis type B.
- Montez la cheville en caoutchouc à sa place en bas.
Le panneau est à présent prêt, vous pouvez le monter sur la
machine.
Montage du panneau sur la machine.
Introduisez l’ergot de la charnière indiqué par la flèche fig. 2 dans
le logement du support charnière, poussez le panneau vers la
façade de la machine et fixez les deux charnières à l’aide des
deux vis type D.
Fixation du support de la base.
Si la machine est installée à une extrémité de la cuisine
intégrée, montez une ou les deux glissières du socle comme illustré fig. 8 en réglant leur profondeur en fonction de la
position du socle et, au besoin, fixez-le à ces dernières fig. 9.
Pour monter le support de la base, procédez comme suit (fig.
8): Fixez l’équerre P à l’aide de la vis R, insérez le support
de la base Q dans la fente prévue et après l’avoir dûment
positionné bloquez-le à l’aide de l’équerre d’assemblage P et
de la vis R.
Montage de la machine à l’intérieur des éléments.
- Poussez la machine à travers l’ouverture en l’alignant aux
autres meubles (fig. 6).
- Servez-vous des pieds de réglage pour amener la machine à
la hauteur désirée.
- Pour régler la position du panneau en bois à la verticale et à l’hori-
zontale, servez-vous des vis C et D comme illustré fig. 7.
Important: fermez la partie inférieure de la façade, la base
touchant au sol.
FR
Fig. 8Fig. 9
Accessoires fournis pour le réglage de la hauteur.
Vous trouverez à l’intérieur du couvercle en polystyrène (fig. 10): 2
traverses (G); 1 listel (M);
et à l’intérieur du tambour :
4 pieds supplémentaires (H),
4 vis (I),
4 vis (R),
4 écrous (L),
2 supports pour la base (Q)
Fig. 10
Réglage de la machine en hauteur.
La machine peut être réglée en hauteur (de 815 mm à 835
mm) à l’aide de ses 4 pieds.
Si vous souhaitez l’amener à une hauteur supérieure à celle qui
est indiquée plus haut, c’est à dire jusqu’à 870 mm, utilisez les
accessoires suivants :
les 2 traverses (G); les 4 pieds (H); les 4 vis (I); les 4 écrous (L)
puis procédez comme suit (fig. 11):
démontez les 4 pieds originaux, positionnez une traverse G dans
la partie avant de la machine, fixez-la à l’aide des vis I (en les
vissant dans les trous où étaient fixés les pieds originaux) puis
montez les nouveaux pieds H.
Procédez de même dans la partie arrière de la machine.
Vous pouvez alors régler les pieds H pour élever ou abaisser la
machine de 835 mm à 870 mm.
Après avoir atteint la hauteur désirée, bloquez les écrous L à
la traverse G.
Pour régler la machine à une hauteur comprise entre 870 mm
et 900 mm, montez le listel M et réglez les pieds H jusqu’à la
hauteur souhaitée.
Pour monter le listel, procédez comme suit:
desserrez les trois vis N situées dans la partie avant du couvercle, montez le listel M comme illustré fig. 12 et serrez les vis N.
C
M
D
C
Fig. 6Fig. 7
Fig. 11Fig. 12
33
Description du lave-linge et
démarrage d’un programme
FR
Bandeau de commandes
Tiroir à produits lessiviels
Touche MARCHE/
ARRÊT
PROGRAMMES
TEMPÉRATURE
Bouton
ESSORAGE
Bouton
Touches avec voyants
FONCTION
Voyants DÉROULEMENT
CYCLE/DÉPART DIFFÉRÉ
Bouton
Voyant
HUBLOT
VERROUILLÉ
Touche avec voyant
MARCHE/
PAUSE
Tiroir à produits lessiviels: pour charger les produits
lessiviels et les additifs (voir “Produits lessiviels et linge”).
Touche MARCHE/ARRÊT: pour allumer ou éteindre le
lave-linge.
Bouton PROGRAMMES: pour sélectionner les programmes. Pendant le programme, le bouton ne tournera pas.
Touches avec voyants FONCTION: pour sélectionner
les fonctions disponibles. Le voyant correspondant à la
fonction sélectionnée restera allumé.
Bouton TEMPÉRATURE: pour sélectionner la températu-
re ou un lavage à froid (voir “Personnalisations”).
Bouton ESSORAGE: pour sélectionner l’essorage ou le
supprimer (voir “Personnalisations”).
Voyants DÉROULEMENT CYCLE/DÉPART DIFFÉRÉ:
pour suivre le stade d’avancement du programme de
lavage.
Le voyant allumé indique la phase de lavage en cours.
Si la fonction “Départ différé” (départ différé) a été sélectionnée, ils indiquent le temps restant jusqu’au démarrage
du programme (voir page ci-contre).
Touche avec voyant MARCHE/PAUSE: pour démarrer les
programmes ou les interrompre momentanément.
N.B.: pour effectuer une pause du lavage en cours, appuyer sur cette touche, le voyant correspondant se mettra à
clignoter en orange tandis que celui de la phase en cours
restera allumé fixe. Si le voyant HUBLOT VERROUILLÉ
est éteint, on peut ouvrir la porte.
Pour faire redémarrer le lavage exactement de l’endroit où
il a été interrompu, appuyer une nouvelle fois sur la touche.
Stand-by
Ce lave-linge, conformément aux nouvelles normes en
vigueur dans le domaine de l’économie d’énergie, est
équipée d’un système d’extinction automatique (veille)
activé après environ 30 minutes d’inutilisation. Appuyez
brièvement sur la touche MARCHE/ARRÊT et attendre que
la machine soit réactivée.
Consommation en off-mode : 1 W
Consommation en Left-on : 1 W
Voyant HUBLOT VERROUILLÉ: indique si la porte est
verrouillée (voir page ci-contre).
34
Voyants
Les voyants fournissent des informations importantes.
Voilà ce qu’ils signalent:
Voyants phase en cours
Une fois que le cycle de lavage sélectionné a démarré,
les voyants s’allument progressivement pour indiquer son
stade d’avancement:
FR
Départ différé
Si la fonction “Départ différé” a été activée (voir “Personnalisations”), le voyant correspondant au temps sélectionné se
mettra à clignoter, après avoir lancé le programme :
Au fur et à mesure que le temps passe, le temps restant
est affiché avec clignotement du voyant correspondant.
Quand le temps sélectionné touche à sa fin, le voyant
clignotant s’éteint et le programme sélectionné démarre.
Lavage
Rinçage
Essorage
Vidange
Fin de Lavage
Touches fonction et voyants correspondants
La sélection d’une fonction entraîne l’allumage du voyant
correspondant.
Si la fonction sélectionnée est incompatible avec le programme sélectionné, le voyant correspondant se met à
clignoter et la fonction n’est pas activée.
En cas de sélection d’une fonction incompatible avec une
autre précédemment sélectionnée, la seule à être activée
sera celle choisie en dernier.
Voyant hublot verrouillé:
Le voyant allumé indique que le hublot est verrouillé pour
empêcher toute ouverture accidentelle. Pour éviter d’endommager l’appareil, attendre que le voyant cesse de
clignoter avant d’ouvrir la porte.
N.B: si la fonction DÉPART DIFFÉRÉ est activée, le hublot
ne s’ouvre pas. Pour l’ouvrir il faut appuyer sur la touche
MARCHE/PAUSE qui met l’appareil en pause.
! Un clignotement rapide du voyant MARCHE/PAUSE
(orange) simultané à celui des fonctions signale une anomalie (voir “Anomalies et remèdes”).
Démarrage d’un programme
1. Allumer le lave-linge en appuyant sur la touche MARCHE/ARRÊT. Tous les voyants s’allumeront pendant quelques secon-
des, ne resteront ensuite allumés que les voyants correspondant aux sélections du programme en cours et le voyant MARCHE/PAUSE se mettra à clignoter.
2. Charger le linge et fermer le hublot.
3. Sélectionner à l’aide du bouton PROGRAMMES le programme désiré.
4. Sélectionner la température de lavage (voir “Personnalisations”).
5. Sélectionner la vitesse d’essorage (voir “Personnalisations”).
6. Verser les produits lessiviels et les additifs (voir “Produits lessiviels et linge”).
7. Sélectionner les fonctions désirées.
8. Appuyer sur la touche MARCHE/PAUSE pour démarrer le programme, le voyant correspondant vert restera allumé en fixe.
Pour annuler le cycle sélectionné, appuyer sur la touche MARCHE/PAUSE pour placer l’appareil en pause et choisir un nouveau cycle.
9. A la fin du programme, le voyant s’allume. Le voyant HUBLOT VERROUILLÉ s’éteint pour signaler que le hublot peut
être ouvert. Sortir le linge et laisser le hublot entrouvert pour faire sécher le tambour.
Eteindre le lave-linge en appuyant sur la touche MARCHE/ARRÊT.
35
Programmes
FR
Tableau des programmes
Produits lessi-
Description du Programme
Programmes
Programmes Spécial
Anti-bactérien: blancs extrêmement sales.
6
6
Anti-bactérien (1-2): blancs et couleurs résistantes très sales.60° 1000-
6
Anti-bactérien (2): blancs et couleurs résistantes très sales.40° 1000-
Bonne Nuit: couleurs délicates peu sales.
7
Bébé: couleurs délicates très sales.
8
Chemises
9
Soie/Voilages: pour linge en soie, viscose, lingerie.
10
Laine: pour laine, cachemire, etc.
11
Programmes Quotidien
Coton: blancs et couleurs résistantes très salesi.
1
Coton (3): blancs peu sales et couleurs délicates.
2
Synthétique: couleurs résistantes très sales.
3
Synthétique (4): couleurs résistantes peu sales.
3
MIX 30': pour rafraîchir rapidement du linge peu sale
4
(ne convient pas pour la laine, la soie et le linge à laver à la main).
MIX 15': pour rafraîchir rapidement du linge peu sale
5
(ne convient pas pour la laine, la soie et le linge à laver à la main).
Cycle
A
Rinçage-1000--
B
Rinçage délicat-800--
C
Essorage-1000---7---16
D
Essorage délicat-800---3---12
E
Vidange-0---7---2
La durée du cycle indiquée sur l’écran ou dans la notice représente une estimation calculée dans des conditions standard. Le temps effectif peut varier en fonction de nombreux facteurs tels que :
température et pression de l’eau en entrée, température ambiante, quantité de lessive, quantité et type de charge, équilibrage de la charge, options supplémentaires sélectionnées.
Temp.
maxi.
Vitesse
maxi
(tours
(°C)
minute)
90° 1000
40° 80040° 80040° 60030° 040° 800-
60°1000
40° 1000
60°80040°800-
30° 800-
30° 800-
Pour tous les instituts qui effectuent ces tests :
1) Programme de contrôle selon la norme 1061/2010: sélectionner le programme 6 et une température de 60°C et 40°C.
Ce cycle convient au lavage d’une charge de coton normalement sale et c’est le plus performant en termes de consommation d’eau et d’énergie, l’utiliser pour du linge lavable à 60°C et 40°C. La
température effective de lavage peut différer de la température indiquée.
2) Programme coton long: sélectionner le programme 6 et une température de 40°C.
3) Programme coton court: sélectionner le programme 2 et une température de 40°C.
4) Programme synthétique long: sélectionner le programme 3 et une température de 40°C.
Anti-bactérien (programme 6). Un programme hautes températures qui prévoit l’utilisation de produits javelisés à des températures
supérieures à 60°C. Pour blanchir, verser le produit javelisé, les lessives et les additifs dans les compartiments correspondants
(voir paragraphe “Tiroir à produits lessiviels”).Bonne nuit (programme 7). C’est un cycle silencieux qui permet de faire fonctionner le lave-linge la nuit quand le tarif d’électricité est plus bas. Ce programme est spécialement conçu pour les synthétiques et le coton. A la fin du cycle l’appareil s’arrête,
cuve pleine. Pour procéder à l’essorage et à la vidange, appuyer sur la touche MARCHE/PAUSE, à défaut, l’appareil procédera
automatiquement au bout de 8 heures à l’essorage et à la vidange de l’eau.
Bébé (programme 8). Programme spécial, idéal pour le lavage des vêtements d’enfants souvent très sales, il élimine toute trace
de lessive du linge pour protéger leur peau délicate et éviter tout risque d’allergie. Spécialement conçu pour diminuer la charge
bactérienne, ce cycle utilise une plus grande quantité d’eau et optimise l’effet des additifs désinfectants spécifiques ajoutés à
la lessive. En fin de lavage, l’appareil fait tourner le tambour lentement pour éviter de froisser le linge. Pour compléter le cycle
appuyer sur la touche MARCHE/PAUSE.
Mix 30’ (programme 4) spécialement conçu pour laver du linge peu sale en un rien de temps: il ne dure que 30 minutes et permet ainsi de faire des économies d’énergie et de temps. La sélection de ce programme (4 à 30°C) permet de laver ensemble
des textiles différents (sauf laine et soie) en ne dépassant pas 3 kg de charge.
Mix 15’ (programme 5) spécialement conçu pour laver du linge peu sale en un rien de temps: il ne dure que 15 minutes et permet ainsi de faire des économies d’énergie et de temps. La sélection de ce programme (5 à 30°C) permet de laver ensemble
des textiles différents (sauf laine et soie) en ne dépassant pas 1,5 kg de charge.
36
Personnalisations
Sélection de la température
Tourner le bouton TEMPÉRATURE pour sélectionner la température de lavage (voir Tableau des programmes).
La température peut être abaissée jusqu’au lavage à froid ( ).
La machine interdira automatiquement toute sélection d’une température supérieure à la température maximale prévue pour
chaque programme.
Sélection de l’essorage
Tourner le bouton ESSORAGE pour sélectionner la vitesse d’essorage du programme sélectionné.
Les vitesses maximales prévues pour les programmes sont:
Programmes Vitesse maximale
Coton 1000 tours/minute
Synthétiques 800 tours/minute
Laine 800 tours/minute
Soie vidange seule
La vitesse d’essorage peut être réduite ou l’essorage supprimé en sélectionnant le symbole .
La machine interdira automatiquement tout essorage à une vitesse supérieure à la vitesse maximale prévue pour chaque
programme.
Fonctions
Les différentes fonctions de lavage prévues par le lave-linge permettent d’obtenir la propreté et le blanc souhaités.
Pour activer les fonctions:
1. appuyer sur la touche correspondant à la fonction désirée;
2. l’allumage du voyant correspondant signale que la fonction est activée.
Remarque: Le clignotement rapide du voyant signale que la fonction correspondante n’est pas disponible pour le programme
sélectionné.
FR
Départ différé
Pour différer la mise en marche de la machine jusqu’à 12 heures.
Appuyer plusieurs fois de suite sur la touche jusqu’à ce que le voyant correspondant au retard souhaité s’allume. A la cinquième
pression sur la touche, la fonction se désactive.
N.B: Après avoir appuyé sur la touche MARCHE/PAUSE, le retard programmé ne peut être modifié que pour le diminuer.
! Il est activé avec tous les programmes.
Repassage facile
En cas de sélection de cette fonction, le lavage et l’essorage seront dûment modifiés pour réduire le froissage. En fin de
cycle, le lave-linge fait tourner le tambour lentement, le voyant de la fonction REPASSAGE FACILE et celui de MARCHE/PAUSE se mettent à clignoter (orange), la phase reste allumée en fixe. Pour compléter le cycle, il faut appuyer sur la touche
MARCHE/PAUSE ou sur la touche REPASSAGE FACILE.
Pour le programme Soie (10) l’appareil arrive au bout du cycle en laissant le linge tremper, le voyant de la fonction REPASSAGE FACILE et celui de MARCHE/PAUSE se mettent à clignoter (orange), la phase RINCAGE reste allumée en fixe. Pour
vidanger l’eau et pouvoir sortir le linge, il faut appuyer sur la touche MARCHE/PAUSE ou sur la touche REPASSAGE FACILE.
! Cette option n’est pas activable avec les programmes 4, 5, 6, 7, 8, 11, C, D, E.
Super rinçage
La sélection de cette fonction permet d’augmenter l’efficacité du rinçage et d’éliminer toute trace de lessive. Elle est très utile
en cas de peaux particulièrement sensibles.
! Cette option n’est pas activable avec les programmes 4, 5, C, D, E.
Super lavage
Grâce à l’utilisation d’une plus grande quantité d’eau au cours de la phase initiale du cycle et à l’emploi de davantage de
temps, cette fonction permet d’obtenir un lavage très performant.
! Cette option n’est pas activable avec les programmes 4, 5, 6, 10, 11, A, B, C, D, E.
37
Produits lessiviels et linge
M
AX
1
3
2
FR
Tiroir à produits lessiviels
Un bon résultat de lavage dépend aussi d’un bon dosage
de produit lessiviel: un excès de lessive ne lave pas mieux,
il incruste l’intérieur du lave-linge et pollue l’environnement.
! Utiliser des lessives en poudre pour du linge en coton
blanc et en cas de prélavage et de lavages à une température supérieure à 60°C.
! Respecter les indications figurant sur le paquet de lessive.
! Ne pas utiliser de lessives pour lavage à la main, elles
moussent trop.
Sortir le tiroir à produits
lessiviels et verser la lessive
ou l’additif comme suit.
bac 1: Lessive lavage (en poudre ou liquide)
Verser la lessive liquide juste avant la mise en marche.
bac 2: Additifs (assouplissant, etc.)
L’assouplissant ne doit pas déborder de la grille.
bac supplémentaire 3: Produit javelisé
Cycle blanchissage
Combien pèse le linge ?
1 drap 400-500 g
1 taie d’oreiller 150-200 g
1 nappe 400-500 g
1 peignoir 900-1200 g
1 serviette éponge 150-250 g
Linge ou vêtements particuliers
Chemises: sélectionner le programme 9 approprié au lavage
de chemises de couleurs et textiles différents.
Il en prend le plus grand soin en réduisant le froissage.
Soie: sélectionner le programme de lavage spécial 10 pour
vêtements en soie. Il est conseillé d’utiliser une lessive spéciale pour linge délicat.
Rideaux: pliez-les bien et glissez-les dans une taie d’oreiller
ou dans un sac genre filet. Sélectionner le programme 10.
Laine: Le cycle de lavage « Laine » de ce lave-linge
Hotpoint-Ariston a été testé et approuvé par la société
Woolmark Company pour le lavage d’articles en laine
classés comme « lavables à la main », à condition que
le lavage soit effectué conformément aux instructions
indiquées sur l’étiquette du vêtement et aux indications
fournies par le fabricant de l’électroménager. HotpointAriston est la première marque de lave-linge à avoir obtenu
la certification Woolmark Apparel Care - Platinum délivrée
par la société Woolmark Company pour ses performances
de lavage et pour sa consommation d’eau et d’énergie.
(M1126)
Le blanchissage n’est possible qu’avec les programmes 1,
2, 6.
Verser le produit javelisé dans le bac supplémentaire 3, la
lessive et l’assouplissant dans les bacs correspondants,
puis sélectionner un des programmes sus-indiqués.
Conseillé en cas de linge en coton très sale.
Triage du linge
• Trier correctement le linge d’après:
- le type de textile / le symbole sur l’étiquette.
- les couleurs: séparer le linge coloré du blanc.
• Vider les poches et contrôler les boutons.
• Ne pas dépasser les valeurs indiquées correspondant au
poids de linge sec :
Textiles résistants: 7 kg max.
Textiles synthétiques: 3 kg max.
Textiles délicats: 2 kg max.
Laine: 1,5 kg max.
Système d’équilibrage de la charge
Avant tout essorage, pour éviter toute vibration excessive et répartir le linge de façon uniforme, le lave-linge fait
tourner le tambour à une vitesse légèrement supérieure
à la vitesse de lavage. Si au bout de plusieurs tentatives,
la charge n’est toujours pas correctement équilibrée,
l’appareil procède à un essorage à une vitesse inférieure
à la vitesse normalement prévue. En cas de déséquilibre
excessif, le lave-linge préfère procéder à la répartition du
linge plutôt qu’à son essorage. Pour une meilleure répartition de la charge et un bon équilibrage, nous conseillons
de mélanger de grandes et petites pièces de linge.
38
Précautions et conseils
! Ce lave-linge a été conçu et fabriqué conformément aux nor-
mes internationales de sécurité. Ces consignes sont fournies
pour des raisons de sécurité, il faut les lire attentivement.
Sécurité générale
• Cet appareil est conçu pour un usage domestique.
• Cet appareil n’est pas destiné à être utilisé par des personnes (enfants compris) dont les capacités physiques,
sensorielles ou mentales sont réduites ou qui ne disposent
pas des connaissances ou de l’expérience nécessaires,
à moins qu’elles n’aient été formées et encadrées pour
l’utilisation de cet appareil par une personne responsable
de leur sécurité. Surveiller les enfants pour s’assurer qu’ils
ne jouent pas avec l’appareil.
• Ne jamais toucher l’appareil si l’on est pieds nus et si les
mains sont mouillées ou humides.
• Ne jamais tirer sur le câble pour débrancher la fiche de la
prise de courant.
• Ne pas ouvrir le tiroir à produits lessiviels si la machine est
branchée.
• Ne pas toucher à l’eau de vidange, elle peut atteindre des
températures très élevées.
• Ne pas forcer pour ouvrir le hublot: le verrouillage de sécurité qui protège contre les ouvertures accidentelles pourrait
s’endommager.
• En cas de panne, éviter à tout prix d’accéder aux mécanismes internes pour tenter une réparation.
• Veiller à ce que les enfants ne s’approchent pas de l’appareil pendant son fonctionnement.
• Pendant le lavage, le hublot a tendance à se réchauffer.
• Deux ou trois personnes sont nécessaires pour déplacer
l’appareil avec toutes les précautions nécessaires. Ne
jamais le déplacer tout seul car il est très lourd.
• Avant d’introduire le linge, s’assurer que le tambour est
bien vide.
Ouverture manuelle du hublot
A défaut de pouvoir ouvrir la porte hublot à cause d’une
panne de courant pour étendre le linge, procéder comme suit:
1. débrancher la fiche de la prise de courant.
2. s’assurer que le niveau de l’eau à l’intérieur de l’appareil
se trouve bien au-dessous de l’ouverture du hublot, si ce
n’est pas le cas vider l’eau en excès à travers le tuyau de
vidange dans un seau.
3. se servir de la languette indiquée, tirer vers soi jusqu’à
ce que le tirant en plastique se dégage de son cran d’arrêt;
tirer ensuite vers le bas et ouvrir l’hublot en même temps.
FR
Mise au rebut
• Mise au rebut du matériel d’emballage: se conformer aux
réglementations locales de manière à ce que les emballages puissent être recyclés.
• La Directive Européenne 2002/96/EC sur les Déchets
des Equipements Electriques et Electroniques, exige que
les appareils ménagers usagés ne soient pas jetés dans
le flux normal des déchets municipaux. Les appareils
usagés doivent être collectés séparément afin d’optimiser
le taux de récupération et le recyclage des matériaux qui
les composent et réduire l’impact sur la santé humaine et
l’environnement. Le symbole de la ‘’poubelle barrée’’ est
apposée sur tous les produits pour rappeler les obligations
de collecte séparée. Les consommateurs devront contacter les autorités locales ou leur revendeur concernant la
démarche à suivre pour l’enlèvement de leur vieil appareil.
39
Entretien et soin
1
2
FR
Coupure de l’arrivée d’eau et du courant
• Fermer le robinet de l’eau après chaque lavage. Cela
réduit l’usure de l’installation hydraulique du lave-linge et
évite tout danger de fuites.
• Débrancher la fiche de la prise de courant lors de tout
nettoyage du lave-linge et pendant tous les travaux d’entretien.
Nettoyage du lave-linge
Pour nettoyer l’extérieur et les parties en caoutchouc,
utiliser un chiffon imbibé d’eau tiède et de savon. N’utiliser
ni solvants ni abrasifs.
Nettoyage du tiroir à produits lessiviels.
Soulever le tiroir et le tirer
vers soi pour le sortir de son
logement (voir figure).
Le laver à l’eau courante;
effectuer cette opération
assez souvent.
Pour accéder à cette préchambre:
1. dévisser le couvercle en
le tournant dans le sens
inverse des aiguilles d’une
montre (voirfigure): il est
normal qu’un peu d’eau
s’écoule;
2. nettoyer soigneusement l’intérieur;
3. revisser le couvercle.
Contrôle du tuyau d’arrivée de l’eau
Contrôler le tuyau d’alimentation au moins une fois par an.
Procéder à son remplacement en cas de craquèlements
et de fissures: car les fortes pressions subies pendant le
lavage pourraient provoquer des cassures.
! N’utiliser que des tuyaux neufs.
Entretien du hublot et du tambour
• Il faut toujours laisser le hublot entrouvert pour éviter la
formation de mauvaise odeurs.
Nettoyage de la pompe
Le lave-linge est équipé d’une pompe autonettoyante
qui n’exige aucune opération d’entretien. Il peut toutefois
arriver que de menus objets (pièces de monnaie, boutons)
tombent dans la préchambre qui protège la pompe, placée
en bas de cette dernière.
! S’assurer que le cycle de lavage est bien terminé et
débrancher la fiche.
40
Anomalies et remèdes
Il peut arriver que le lave-linge ne fonctionne pas bien. Avant d’appeler le Service de dépannage (voir “Assistance”), contrôler
s’il ne s’agit pas par hasard d’un problème facile à résoudre à l’aide de la liste suivante.
Anomalies:
Le lave-linge ne s’allume pas.
Le cycle de lavage ne démarre pas.
Il n’y a pas d’arrivée d’eau (le
voyant de la première phase de
lavage clignote rapidement).
Le lave-linge prend l’eau et vidange
continuellement.
Causes / Solutions possibles:
• La fiche n’est pas branchée dans la prise de courant ou mal branchée.
• Il y a une panne de courant.
• Le hublot n’est pas bien fermé.
• La touche MARCHE/ARRÊT n’a pas été enfoncée.
• La touche MARCHE/PAUSE n’a pas été enfoncée.
• Le robinet de l’eau n’est pas ouvert.
• Un départ différé a été sélectionné (voir “Personnalisations”).
• Le tuyau d’arrivée de l’eau n’est pas raccordé au robinet.
• Le tuyau est plié.
• Le robinet de l’eau n’est pas ouvert.
• Il y a une coupure d’eau.
• La pression n’est pas suffisante.
• La touche MARCHE/PAUSE n’a pas été enfoncée.
• Le tuyau de vidange n’est pas installé à une distance du sol comprise entre 65
et 100 cm (voir “Installation”).
• L’extrémité du tuyau de vidange est plongée dans l’eau (voir “Installation”).
• L’évacuation murale n’a pas d’évent.
Si après ces vérifications, le problème persiste, fermer le robinet de l’eau,
éteindre la machine et appeler le service Assistance. Si l’appartement est situé
en étage dans un immeuble, il peut y avoir des phénomènes de siphonnage qui
font que le lave-linge prend et évacue l’eau continuellement. Pour supprimer cet
inconvénient, on trouve dans le commerce des soupapes spéciales anti-siphonnage.
FR
Le lave-linge ne vidange pas et
n’essore pas.
Le lave-linge vibre beaucoup pendant l’essorage.
Le lave-linge a des fuites.
Le voyant MARCHE/PAUSE (orange)
ainsi que les voyants des fonctions
clignotent rapidement.
Il y a un excès de mousse.
• Le programme ne prévoit pas de vidange: pour certains programmes, il faut la
faire partir manuellement.
• La fonction REPASSAGE FACILE est activée: pour compléter le programme, appuyer sur la touche MARCHE/PAUSE (“Personnalisations”).
• Le tuyau de vidange est plié (voir “Installation ”).
• La conduite d’évacuation est bouchée.
• Le tambour n’a pas été débloqué comme il faut lors de l’installation du lavelinge (voir “Installation”).
• Le lave-linge n’est pas posé à plat (voir “Installation”).
• Le lave-linge est coincé entre des meubles et le mur (voir “Installation”).
• Le tuyau d’arrivée de l’eau n’est pas bien vissé (voir “Installation”).
• Le tiroir à produits lessiviels est bouché (pour le nettoyer voir “Entretien et soin”).
• Le tuyau de vidange n’est pas bien fixé (voir “Installation”).
• Eteindre l’appareil et débrancher la fiche de la prise de courant, attendre 1
minute environ avant de rallumer.
Si l’anomalie persiste, appeler le service d’assistance.
• Le produit de lavage utilisé n’est pas une lessive spéciale machine (il faut qu’il y ait
l’inscription “pour lave-linge”, “main et machine”, ou autre semblable).
• La quantité utilisée est excessive.
41
Assistance
FR
Avant d’appeler le service après-vente:
• Vérifier si on ne peut pas résoudre l’anomalie par ses propres moyens (voir “Anomalies et Remèdes”);
• Remettre le programme en marche pour contrôler si l’inconvénient a disparu;
• Autrement, contacter le Centre d’Assistance technique agréé au numéro de téléphone indiqué sur le certificat de garantie.
! Ne jamais s’adresser à des techniciens non agréés.
Communiquer:
• le type de panne;
• le modèle de l’appareil (Mod.);
• son numéro de série (S/N).
Ces informations se trouvent sur la plaque signalétique apposée à l’arrière du lave-linge et à l’avant quand on ouvre la porte
hublot.
42
Bedienungsanleitungen
WASCHVOLLAUTOMAT
DE
Deutsch
AWM 108
INHALTSVERZEICHNIS
Installation 44-45-46-47
Auspacken und Aufstellen
Wasser- und Elektroanschlüsse
Erster Waschgang
Technische Daten
Anleitungen für den Installateur
Beschreibung des Waschvollautomaten
und Starten eines Waschprogramms 48-49
Bedienblende
Kontrollleuchten
Starten eines Waschprogramms
Waschmittelschublade
Bleichen
Vorsortieren der Wäsche
Besondere Wäscheteile
Unwuchtkontrollsystem
DE
Vorsichtsmaßregeln und Hinweise 53
Allgemeine Sicherheit
Entsorgung
Manuelles Öffnen der Gerätetür
Reinigung und Pflege 54
Abstellen der Wasser- und Stromversorgung
Reinigung des Gerätes
Reinigung der Waschmittelschublade
Pflege der Gerätetür und Trommel
Reinigung der Pumpe
Kontrolle des Wasserzulaufschlauchs
Störungen und Abhilfe 55
Kundendienst 56
43
Installation
DE
! Es ist äußerst wichtig, diese Bedienungsanleitung sorg-
fältig aufzubewahren, um sie jederzeit zu Rate ziehen zu
können. Sorgen Sie dafür, dass sie im Falle eines Umzugs
oder einer Übergabe an einen anderen Benutzer das Gerät
stets begleitet, damit auch der neue Inhaber die Möglichkeit hat, diese zu Rate zu ziehen.
! Lesen Sie die Hinweise bitte aufmerksam durch, sie lie-
fern wichtige Informationen hinsichtlich der Installation, des
Gebrauchs und der Sicherheit.
Auspacken und Aufstellen
Auspacken
1. Gerät auspacken.
2. Sicherstellen, dass der Waschvollautomat keine Transportschäden erlitten hat. Im Falle einer Beschädigung
Gerät bitte nicht anschließen, sondern den Kundendienst
anfordern.
3. Die 4 Transportschutzschrauben herausschrauben und die an der
Geräterückwand befindlichen Distanzstücke aus
Gummi entfernen (siehe Abbildung).
Eine präzise Nivellierung verleiht dem Gerät die erforderliche Stabilität, durch die Vibrationen, Betriebsgeräusche
und ein Verrücken des Gerätes vermieden werden. Bei
Teppichböden müssen die Stellfüße so reguliert werden,
dass ein ausreichender Freiraum zur Belüftung unter dem
Waschvollautomaten gewährleistet ist.
Wasser- und Elektroanschlüsse
Anschluss des Zulaufschlauches
1. Schrauben Sie den
Wasserschlauch an einen
Kaltwasserhahn mit ¾-ZollGewindeanschluss an (siehe Abbildung).
Lassen Sie das Wasser vor
dem Anschluss so lange
auslaufen, bis klares Wasser
austritt.
2. Das andere Ende des
Schlauches an den oben
rechts am Rückteil des
Waschvollautomaten befindlichen Wasseranschluss
anschließen (siehe Abbil-dung).
4. Die Öffnungen mittels der mitgelieferten Abdeckungen
verschliessen.
5. Sämtliche Teile aufbewahren: Sollte der Waschautomat
erneut transportiert werden, müssen diese Teile wieder
eingesetzt werden.
! Verpackungsmaterial ist kein Spielzeug für Kinder.
Nivellierung
1. Der Waschvollautomat muss auf einem ebenen, festen,
schwingungsfreien Untergrund aufgestellt werden ohne diesen
an Wände, Möbel etc. direkt anzulehnen.
2. Sollte der Boden nicht
perfekt eben sein, müssen
die Unebenheiten durch Anbzw. Ausdrehen der vorderen Stellfüße ausgeglichen
werden (siehe Abbildung),
der auf der Arbeitsfläche zu
ermittelnde Neigungsgrad
darf 2° nicht überschreiten.
3. Der Schlauch darf hierbei nicht eingeklemmt oder abgeknickt werden.
! Der Wasserdruck muss innerhalb der Werte liegen, die in
der Tabelle der technischen Daten angegeben sind (siehe
nebenstehende Seite).
! Sollte der Zulaufschlauch nicht lang genug sein, dann
wenden Sie sich bitte an einen Fachhändler oder an einen
autorisierten Fachmann.
! Verwenden Sie niemals bereits gebrauchte Schläuche.
! Verwenden Sie die Schläuche, die mit dem Gerät geliefert
wurden.
44
65 - 100 cm
Anschluss des Ablaufschlauches
Schließen Sie den Ablaufschlauch ohne ihn dabei
abzuknicken an einen
geeigneten Abfluss an. Die
Mindestablaufhöhe beträgt 65
- 100 cm (gemessen vom
Boden), oder hängen Sie
diesen mittels des Schlauchhalters gesichert in ein
Becken oder Wanne ein;
! Verwenden Sie bitte keine Verlängerungen oder Mehrfa-
chstecker.
! Das Netzkabel darf nicht gebogen bzw. eingeklemmt
werden.
! Das Versorgungskabel darf nur durch autorisierte Fa-
chkräfte ausgetauscht werden.
Achtung! Der Hersteller übernimmt keinerlei Haftung, sollten diese Vorschriften nicht genau beachtet werden.
DE
Befestigen Sie diesen
mittels des mitgelieferten
Schlauchhalters z.B. an
einen Wasserhahn (siehe Abbildung). Das freie Ablaufschlauchende darf nicht
unter Wasser positioniert
werden.
! Verlängerungsschläuche sollten nicht eingesetzt werden.
Sollte dies unvermeidlich sein, muss die Verlängerung denselben Durchmesser des Originalschlauchs aufweisen und
darf eine Länge von 150 cm nicht überschreiten.
Stromanschluss
Vor Einfügen des Netzsteckers in die Steckdose ist sicherzustellen, dass:
• die Steckdose über eine normgerechte Erdung verfügt;
• die Steckdose die in den Technischen Daten
angegebenen Höchstlast des Gerätes trägt (siehe
nebenstehende Tabelle);
• die Stromspannung den in den Technischen Daten
angegebenen Werten entspricht (siehe nebenstehende Tabelle);
• die Steckdose mit dem Netzstecker des
Waschvollautomaten kompatibel ist. Andernfalls
muss der Netzstecker (oder die Steckdose) ersetzt
werden.
! Der Waschvollautomat darf nicht im Freien installiert
werden, auch nicht, wenn es sich um einen geschützten
Platz handelt. Es ist gefährlich, das Gerät Gewittern und
Unwettern auszusetzen.
! Die Steckdose sollte nach installiertem Gerät leicht
zugänglich sein.
Erster Waschgang
Lassen Sie nach der Installation bzw. vor erstmaligem
Gebrauch erst einen Waschgang (mit Waschmittel) ohne
Wäsche durchlaufen. Stellen Sie hierzu das Waschprogramm 1 ein.
Technische Daten
Modell
Abmessungen
Fassungsvermögen
Elektroanschlüsse
Wasseranschlüsse
Schleudertouren
Prüfprogramme gemäß der
Richtlinien
1061/2010 und
1015/2010
Montage des Holzpaneels auf die Tür und Einfügen
der maschine in die Möbel:
Falls nach der Montage des Holzpaneels eine Versendung zur
End-Installation der Maschine notwendig ist, empfehlen wir,
die Maschine in ihrer ursprünglichen Verpackung zu belassen.
Die Verpackung ist deshalb so beschaffen, daß eine Anbringung des Holzpaneels auf die Maschine möglich ist, ohne
dabei die Verpackung ganz entfernen zu müssen (siehe untere Abbildung).
Die Stärke des die Frontseite bedeckenden Holzpaneels darf
18 mm nicht unterschreiten und das Paneel kann sowohl auf
der rechten als auch auf der linken Seite montiert werden. Aus
praktischen Gründen empfehlen wir eine Montage in derselben Öffnungsrichtung wie die des Einfüllfensters, d.h. mit auf
der linken Seite montierten Scharnieren.
Montagezubehör für die Tür (Abb. 1-2-3-4-5).
N° 2 Scharnierhalterung
Abb. 1
Abb. 2
N° 2 Scharnier
A
C
B
D
N° 1 Magnet
Abb. 3Abb. 4
N° 1 Gummidübel
Abb. 5
- 6 selbsteinschneidende Schrauben l = 13 mm “Typ A”.
- 2 metrische Senkkopfschrauben l = 25 mm “Typ B”; zur
Befestigung des Magnetan-schlags am Gehäuse.
- 4 metrische Schrauben l = 15 mm “Typ C”; zur Anbringung
der Scharnierhalterungen am Gehäuse.
- 4 metrische Schrauben l = 7 mm “Typ D”; zur Anbringung
der Scharniere an den Halterungen.
N° 1 Magnetanschlag
N° 4 Distanzstücke
Abb. 4/B
Montage der Einzelteile auf die Maschine-nvorderseite.
- Montieren Sie die Scharnierhalterungen an der Front, dabei
wird die Bohrung (siehe Pfeil auf Abb. 1) nach innen zur Front
positioniert und ein Distanzstück eingelegt
(Abb. 4/B), verwenden Sie Schrauben vom Typ C.
- Montieren Sie das Magnetgegenstück auf der gegenüber liegenden Seite oben und legen Sie zwei Distanzstücke ein (Abb.
4/B) verwenden Sie die beiden Schrauben vom Typ B.
E
46
Gebrauch der Bohrschablone.
570
min
815
540
595
820 ÷ 900
600 min
L
I
H
G
a) Zur Positionsmarkierung der Bohrungen auf der linken Seite
des Paneels, legen Sie die Bohrmaske oben links am Paneel an
und halten Sie sich an die an den Enden markierten Linien. b)
Zur Positionsmarkierung der Bohrungen auf der rechten Seite
des Paneels, legen Sie die Bohrmaske oben rechts am Paneel
an. c) Mit einem Fräser von entsprechender Größe die vier Sitze fräsen, die die zwei Scharniere, den Gummidübel und den
Magnet aufnehmen sollen.
Montage der Einzelteile auf das Holzpaneel (Tür).
- Setzen Sie die Scharniere in die vorgesehenen Sitze ein (das
bewegliche Scharnierteil muß auf die Außenseite des Scharniers
weisen) und befestigen Sie sie mit den 4 Schrauben des Typs A.
- Setzen Sie den Magnet in den Sitz ein, und zwar oben von der
den Scharnieren entgegensetzten Seite und befestigen Sie ihn
mit zwei Schrauben den Typs B.
- Setzen Sie den Gummidübel in den Sitz unten ein.
Das Paneel kann nun auf die maschine montiert werden.
Montage des Paneels auf die maschine.
Setzen Sie die von dem Pfeil in abb. 2 angegebene Scharniernase in den Sitz der Scharnierhalterung ein, drücken Sie das
Paneel gegen die Frontseite der maschine und befestigen Sie
die beiden Scharniere mit den Schrauben des Typs D.
Befestigung der Sockelführung
Wenn die maschine am Ende einer Küchenzeile installiert werden
soll, montieren Sie eine oder beide Sockelführungen wie in abb. 8 angegeben, passen Sie deren Tiefe der Sockelposition an und
wenn nötig, befestigen Sie den Sockel an denselben (abb. 9).
Zur Montage der Sockelführung verfahren Sie wie folgt (Abb.
8): Befestigen Sie das Winkelstück P mittels der Schraube R,
setzen Sie die Sockelführung Q in den entsprechenden Schlitz
ein, bringen Sie diese in die gewünschte Lage und befestigen
Sie sie daraufhin mittels der Schraube R an dem Winkelstück P.
Einfügen der maschine in das Möbel.
- Schieben Sie die maschine in die Öffnung und passen Sie sie
der Möbelfront an (abb. 6).
- Regulieren Sie die verstellbaren Füße auf die gewünschte Höhe
der maschine.
- Drehen Sie die Schrauben C und D wie in abb. 7 angegeben,
um die Position des Holzpaneels in vertikaler und horizontaler
Richtung einzustellen.
Wichtig: Schließen Sie den unteren Teil der Frontseite durch den
Sockel, und zwar so, dass letzterer mit dem Boden abschließt.
Abb. 8
Abb. 9
Beiliegendes Zubehör zur Höhenregulierung.
Im Polystyroldeckel (Abb. 10) befinden sich folgende Teile:
2 Querstreben (G); 1 Leiste (M)
In der Wäschetrommel befinden sich:
4 zusätzliche Stellfüße (H),
4 Schrauben (I),
4 Schrauben (R),
4 Schraubenmuttern (L),
2 Sockelführungen (Q)
Abb. 10
Höhenregulierung des Waschvollautomaten.
Mit Hilfe der 4 Stellfüße kann die Höhe des Gerätes reguliert
werden (von 815 mm bis 835 mm). Sollte diese Höhe jedoch
nicht ausreichen, kann das Gerät durch Einsatz nachfolgenden
Zubehörs bis auf eine Höhe von 870 mm gebracht werden:
2 Querstreben (G); 4 Stellfüße (H); 4 Schrauben (I); 4 Schrau-
benmuttern (L), Verfahren Sie hierzu wie folgt (Abb. 11):
Nehmen Sie die 4 ursprünglich montierten Stellfüße ab, legen Sie
eine Querstrebe G am Vorderteil des Gerätes an und befestigen
Sie dieses mittels der Schrauben I (schrauben Sie diese in die
Löcher ein, in denen sich die ursprünglich montierten Stellfüße
befanden), setzen Sie daraufhin die neuen Stellfüße H ein.
Verfahren Sie auf gleiche Weise am hinteren Teil des Gerätes.
Durch Einstellen der Füße H kann das Gerät nun auf eine Höhe
von 835 mm bis 870 mm gebracht werden.
Nach Erreichen der gewünschten Höhe befestigen Sie die
Schraubenmuttern L an der Querstrebe G.
Zur Einstellung des Gerätes auf eine Höhe von 870 mm bis
900 mm ist die Leiste M anzubringen, regulieren Sie daraufhin
die Stellfüße H bis auf die gewünschte Höhe.
Die Leiste wird wie folgt eingesetzt:
Lösen Sie die drei an der vorderen Deckelblende befindlichen
Schrauben N, setzen Sie die Leiste M so wie auf Abb. 12 veranschaulicht ein und ziehen Sie die Schrauben N wieder an.
DE
C
M
D
Abb. 6Abb. 7
C
Abb. 11Abb. 12
47
Beschreibung des Waschvollautomaten
und Starten eines Waschprogramms
DE
Bedienblende
Waschmittelschublade
Taste EIN/AUS
PROGRAMME
TEMPERATUREN
Wählschalter
SCHLEUDERN
Wählschalter
Wählschalter
Tasten mit
Kontrollleuchten
FUNKTIONEN
Kontrollleuchten
PROGRAMMABLAUF/
STARTZEITVORWAHL
Kontrollleuchte
GERÄTETÜR
GESPERRT
Taste mit
Kontrollleuchte
START/
PAUSE
Waschmittelschublade: für Waschmittel und Zusätze
(siehe „Waschmittel und Wäsche“).
Taste EIN/AUS: Zum Ein- und Ausschalten Ihres Waschvollautomaten.
Wählschalter PROGRAMME: Zur Wahl der Waschprogramme. Während des Programmablaufs bleibt der Schalter feststehend.
Tasten mit Kontrollleuchten FUNKTIONEN: Zur Einstellung der verfügbaren Funktionen. Die der gewählten
Einstellung entsprechende Kontrollleuchte bleibt eingeschaltet.
Wählschalter SCHLEUDERN: oder um das Schleudern
auszuschliessen (siehe „Personalisierungen“).
Wählschalter TEMPERATUREN: Zur Einstellung der
Waschtemperatur oder einer Kaltwäsche (siehe „Persona-lisierungen“).
Kontrollleuchten PROGRAMMABLAUF/STARTZEI-TVORWAHL: Zur Kontrolle des Waschprogrammablaufs.
Die eingeschaltete Kontrollleuchte zeigt die laufende Programmphase an.
Wurde die Funktion “Startzeitvorwahl” eingestellt, zeigen
sie die bis zum Start noch verbleibende Zeit an (siehe
Nebenseite).
Kontrollleuchte GERÄTETÜR GESPERRT: Diese Taste
zeigt an, ob die Gerätetür geöffnet werden kann oder nicht
(siehe Nebenseite).
Taste mit Kontrollleuchte START/PAUSE: Mittels dieser
Taste werden die Waschprogramme gestartet oder kurz
unterbrochen.
NB: Durch Drücken dieser Taste, kann das Waschprogramm zeitweilig unterbrochen werden (Pause). Die
entsprechende Kontrollleuchte schaltet auf orangefarbenes
Blinklicht, die Kontrollleuchte der bestehenden Programmphase dagegen schaltet auf Dauerlicht. Sobald die Kontrollleuchte GERÄTETÜR GESPERRT erlischt, kann die
Gerätetür geöffnet werden.
Um das Programm an der Stelle, an der es unterbrochen
wurde, wieder in Gang zu setzen, drücken Sie diese Taste
erneut.
Funktion Standby
Zur Erfüllung der neuen Richtlinien zum Energieverbrauch
ist diese Waschmaschine mit einem automatischen Ausschaltsystem (Standby) ausgestattet, das nach 30 Minuten
des Nichtgebrauchs in Funktion tritt. Drücken Sie kurz
die Taste EIN/AUS und warten Sie, bis sich die Maschine
wieder einschaltet.
Verbrauch in Off-Betrieb: 1 W
Verbrauch in Left-On: 1 W
48
Kontrollleuchten
Die Kontrollleuchten liefern wichtige Hinweise.
Sie signalisieren:
Startzeitvorwahl
Wurde die Funktion „Startzeitvorwahl”(siehe „Personalisierungen“) aktiviert, und das Programm in Gang gesetzt,
schaltet die Kontrollleuchte, die der eingestellten Zeitverschiebung entspricht, auf Blinklicht:
Nach und nach wird die bis zum effektiven Start noch
verbleibende Zeit eingeblendet, die entsprechende Kontrollleuchte blinkt:
Nach Ablauf der vorgewählten Zeit erlischt die Kontrollleuchte und das gewählte Waschprogramm startet.
Laufende Programmphase
Wurde das Waschprogramm gewählt und gestartet,
leuchten die Kontrollleuchten nach und nach auf, und
zeigen so den jeweiligen Programmstand an.
Hauptwäsche
Spülen
Schleudern
Abpumpen
Ende des Waschgangs
Funktionstasten und entsprechende Kontrollleuchten
Nach der Wahl einer Funktion leuchtet die entsprechendeTaste auf.
Ist die gewählte Funktion nicht vereinbar mit dem eingestellten Programm, schaltet die entsprechende Kontrollleuchte auf Blinklicht und die Funktion wird nicht aktiviert.
Wird eine Funktion eingestellt, die zu der bereits eingestellten nicht zugeschaltet werden kann, bleibt nur die zuletzt
gewählte aktiv.
Kontrollleuchte Gerätetür gesperrt:
Ist diese Kontrollleuchte eingeschaltet, bedeutet dies, dass
die Gerätetür gesperrt ist, um ungewolltes Öffnen zu vermeiden; warten Sie, bis die Leuchte erlischt, bevor Sie die
Gerätetür öffnen, um Schäden zu vermeiden.
NB: Die Gerätetür kann nicht geöffnet werden, wenn die
Funktion “Startzeitvorwahl” aktiviert wurde. Um sie zu
öffnen, drücken Sie die Taste START/PAUSE.
DE
! Das rasche Blinken der Kontrollleuchte START/PAUSE
(orangefarben) bei gleichzeitigem Blinken der Funktionsleuchten signalisiert eine Gerätestörung (siehe „Störungen und Abhilfe“).
Starten eines Waschprogramms
1. Schalten Sie das Gerät über die EIN/AUS-Taste ein. Sämtliche Kontrollleuchten leuchten für einige Sekunden auf, dann
bleiben die Kontrollleuchten der Einstellungen des ausgewählten Programms eingeschaltet und die Kontrollleuchte START/
PAUSE schaltet auf Blinklicht.
2. Füllen Sie die Wäsche ein, und schließen Sie die Gerätetür.
3. Stellen Sie mittels des Wählschalters PROGRAMME das gewünschte Programm ein.
4. Stellen Sie die Waschtemperatur ein (siehe „Personalisierungen“).
5. Stellen Sie die Schleuderstufe ein (siehe „Personalisierungen“).
6. Füllen Sie Waschmittel und Zusätze ein (siehe „Waschmittel und Wäsche“).
7. Wählen Sie die gewünschten Funktionen.
8. Setzen Sie das Programm in Gang. Drücken Sie hierzu die Taste START/PAUSE. Die entsprechende Kontrollleuchte bleibt
eingeschaltet (grünes Dauerlicht).
Um die Waschprogramm-Einstellung rückgängig zu machen, muss das Gerät auf Pause geschaltet werden. Drücken Sie
hierzu die Taste START/PAUSE. Wählen Sie daraufhin das neue Programm.
9. Nach Ablauf des Waschprogramms leuchtet die Kontrollleuchte auf. Die Kontrollleuchte TÜR GESPERRT erlischt, was
bedeutet, dass die Gerätetür geöffnet werden kann. Nehmen Sie die Wäsche aus der Maschine und lassen Sie die Gerätetür
leicht offen stehen, damit die Trommel trocknen kann.
Schalten Sie den Waschvollautomaten durch Drücken der EIN/AUS-Taste aus.
49
DE
Waschprogramme
Programmtabelle
Max.
Beschreibung des Programms
Wasch-
programme
Spezialprogramme
6
Hygiene zyklus: stark verschmutzte Weißwäsche. 90° 1000
6
Hygiene zyklus (1-2): stark verschmutzte Weiß- und farbechte Buntwäsche. 60° 1000-
6
Hygiene zyklus (2): leicht verschmutzte Weiß- und farbechte Buntwäsche.40° 1000-
Mix 30': zum kurzen Auffrischen leicht verschmutzter Wäsche
4
(nicht geeignet für Wolle, Seide und Handwäsche).
Mix 15': zum kurzen Auffrischen leicht verschmutzter Wäsche
5
(nicht geeignet für Wolle, Seide und Handwäsche).
Teilprogramme
A
Spülen-1000--
B
Sanftes Spülen-800--
C
Schleudern-1000---7---16
D
Sanftes Schleudern-800---3---12
E
Abpumpen-0---7---2
Die auf dem Display und in der Bedienungsanleitung genannte Zyklusdauer wird ausgehend von Standardbedingungen berechnet. Die effektiv benötigte Zeit kann aufgrund zahlreicher Faktoren wie Temperatur und Druck des Zulaufwassers, Raumtemperatur, Waschmittelmenge, Art, Menge und Verteilung der Waschladung sowie der
gewählten Zusatzfunktionen variieren.
Für alle Testinstitute:
1) Prüfprogramm gemäß 1061/2010: Programm 6 und eine Temperatur von 60°C und 40°C einstellen.
Dieser Zyklus ist für den Waschvorgang von normal schmutziger Baumwollwäsche geeignet; es ist der wirksamste in Bezug auf den kombinierten EnergieWasser-Verbrauch; für bei 60°C und 40°C zu waschende Wäsche zu verwenden. Die effektive Waschtemperatur kann von der angegebenen abweichen.
2) Langes Baumwollprogramm: Programm 6 und eine Temperatur von 40°C einstellen.
3) Kurzes Baumwollprogramm: Programm 2 und eine Temperatur von 40°C einstellen.
4) Langes synthetikprogramm: Programm 3 und eine Temperatur von 40°C einstellen.
Hygiene zyklus (Programm 6). Ein Programm zur Hygienisierung bei hohen Temperaturen, welches Bleichmittel und eine Waschtemperatur von mehr als 60°C vorsieht.Geben Sie das Bleichmittel, das Waschmittel und die Zusätze in die entsprechenden
Kammern (siehe Absatz „Waschmittelschublade“).
Gute Nacht (Programm 7). Ein Flüsterprogramm, das nachts und demnach bei verbilligtem Nachttarif arbeiten kann. Das Programm wurde für Wäsche aus Kunstfasern und Baumwolle konzipiert. Nach Ablauf des Waschgangs stoppt die Maschine, ohne
das Wasser abzupumpen. Um die Schleuder und den Wasserablauf in Gang zu setzen drücken Sie die Taste START/PAUSE,
andernfalls setzt die Maschine nach Ablauf von 8 Stunden die Schleuder automatisch in Gang und pumpt das Wasser ab.
Baby (Programm 8). Dieses Programm ist in der Lage, die durch Kinder verursachten, typischen Flecken zu beseitigen, und
die Waschmittel optimal auszuspülen, um Allergien an der empfindlichen Kinderhaut zu vermeiden. Dieser Zyklus wurde konzipiert, um Bakterienvorkommen zu reduzieren, dank des Einsatzes einer erheblich größeren Wassermenge und Optimierung
spezifischer, hygienisierender Waschmittelzusätze.
Am Ende des Waschgangs erfolgen einige langsame und sanfte Trommelumdrehungen, um Knitterbildung zu vermeiden. Drücken Sie abschließend die Taste START/PAUSE.
Mix 30‘ (Programm 4) Kurzprogramm für die tägliche Wäsche leicht verschmutzter Teile: in nur 30 Minuten, zur Einsparung von
Zeit und Energie. Stellen Sie dieses Waschprogramm (4 bei 30°C) ein, dann können, bei einer maximalen Lademenge von 3
kg, Gewebe unterschiedlicher Art (mit Ausnahme von Wolle und Seide) zusammen gewaschen werden.
Mix 15‘ (Programm 5) Kurzprogramm für die Wäsche leicht verschmutzter Teile: in nur 15 Minuten, zur Einsparung von Zeit
und Energie. Stellen Sie dieses Waschprogramm (5 bei 30°C) ein, dann können, bei einer maximalen Lademenge von 1,5 kg,
Gewebe unterschiedlicher Art (mit Ausnahme von Wolle und Seide) zusammen gewaschen werden.
50
Personalisierungen
Temperatureinstellung
Drehen Sie den Wählschalter „TEMPERATUREN“, um die Waschtemperatur einzustellen (siehe Programmtabelle).
Die Temperatur kann bis auf Kaltwäsche ( ) herabgesetzt werden.
Der Waschvollautomat verhindert automatisch die Einstellung einer höheren Schleuderstufe, sollte diese die für das jeweilige
Programm vorgeschriebene Höchstgeschwindigkeit übersteigen.
Schleudereinstellung
Durch Drehen des Wählschalters SCHLEUDER wird die Schleudergeschwindigkeit des gewählten Waschprogramms eingestellt.
Folgende Höchstgeschwindigkeiten sind für die einzelnen Programme vorgesehen:
Die Schleudergeschwindigkeit kann herabgesetzt werden. Durch Wahl des Symbols kann die Schleuder gänzlich ausgeschlossen werden.
Der Waschvollautomat verhindert automatisch ein stärkeres Schleudern, sollte dieses die für das jeweilige Programm vorgeschriebene Höchstgeschwindigkeit übersteigen.
Funktionen
Die verschiedenen Waschfunktionen, die Ihnen Ihr Waschvollautomat bietet, ermöglichen es Ihnen, hygienisch saubere und
weiße Wäsche zu erhalten, die Ihren Wünschen entspricht.
Aktivierung der Funktionen:
1. Drücken Sie die Taste, die der gewünschten Funktion entspricht.
2. Das Aufleuchten der entsprechenden Kontrollleuchte zeigt an, dass die Funktion aktiviert wurde.
Anmerkung: Sollte die Kontrollleuchte jedoch auf rasches Blinklicht schalten, dann bedeutet dies, dass die Funktion zu dem
eingestellten Programm nicht zugeschaltet werden kann.
DE
Startzeitvorwahl
Der Start des Waschprogramms kann bis zu 12 Stunden verschoben werden.
Drücken Sie die Taste mehrmals, bis die der gewünschten Zeitverschiebung entsprechende Kontrollleuchte aufleuchtet. Ein
fünfter Tastendruck deaktiviert die Funktion.
NB: Ist die Taste START/RESET einmal gedrückt, kann der gewählte Zeitverschiebungswert nur noch herabgesetzt werden.
! Obiges gilt für alle Programme.
Bügelleicht
Wird diese Funktion eingestellt, werden Waschgang und Schleuder entsprechend geändert, um Knitterbildung zu vermeiden.
Am Ende des Waschgangs erfolgen langsame Umdrehungen der Trommel; die Kontrollleuchte der Funktion BÜGELLEICHT
und die der Funktion START/PAUSE blinken (orangefarben), die der Phase bleibt auf Dauerlicht eingeschaltet. Um den
Waschgang abzuschließen, drücken Sie die Taste START/PAUSE oder die Taste BÜGELLEICHT.
Wird das Programm Seide eingestellt, unterbricht Ihr Gerät das Programm, ohne das Wasser abzupumpen. Ihre Wäsche
bleibt so im letzen Aufwaschwasser liegen, die Kontrollleuchte der Funktion BÜGELLEICHT und die der Funktion START/
PAUSE blinken (orangefarben), die der Phase SPÜLEN bleibt auf Dauerlicht eingeschaltet. Zum Abpumpen des Wassers und
um die Wäsche herausnehmen zu können, muss die Taste START/PAUSE, oder die Taste „BÜGELLEICHT“ gedrückt werden.
! Diese Funktion kann zu den Programmen 4, 5, 6, 7, 8, 11, C, D, E nicht zugeschaltet werden.
Extra Spülgang
Wählen Sie diese Funktion, wird die Spülwirkung erhöht, und somit ein optimales Ausspülen des Waschmittels garantiert.
Dies ist besonders angezeigt bei sehr empfindlicher Haut bzw. Waschmittelallergien.
! Diese Funktion kann zu den Programmen 4, 5, C, D, E nicht zugeschaltet werden.
Super wash
Dank der Erhöhung der Wassermenge sowie der Waschdauer in der Anfangsphase des Waschvorgangs, garantiert diese
Funktion beste Waschergebnisse.
! Diese Funktion kann zu den Programmen 4, 5, 6, 10, 11, A, B, C, D, E nicht zugeschaltet werden.
51
Waschmittel und Wäsche
M
AX
1
3
2
DE
Waschmittel und Wäsche
Ein gutes Waschergebnis hängt auch von einer korrekten
Waschmitteldosierung ab: Eine zu hohe Dosierung bedeutet nicht unbedingt reinere Wäsche, sie trägt nur dazu bei,
die Maschineninnenteile zu verkrusten und die Umwelt zu
belasten.
! Waschmittel in Pulverform für Baumwollweißwäsche, für
die Vorwäsche und für Waschprogramme bei Temperaturen über 60°C verwenden.
! Bitte befolgen Sie den auf der Waschmittelverpackung
angegebenen Anweisungen.
! Verwenden Sie keine Handwaschmittel, sie verursachen
eine zu hohe Schaumbildung.
Schublade herausziehen
und Waschmittel oder Zusätze wie folgt einfüllen:
In Kammer 1: Waschmittel für die Hauptwäsche
(Waschpulver oder Flüssigwaschmittel)
Flüssigwaschmittel nur kurz vor dem Start einfüllen.
In Kammer 2: Zusätze (Weichspüler usw.)
Der Weichspüler darf das Gitter nicht übersteigen.
Zusätzliche Kammer 3: Bleichmittel
Wie schwer ist Wäsche?
1 Betttuch 400-500 gr
1 Kissenbezug 150-200 gr
1 Tischdecke 400-500 gr
1 Bademantel 900-1.200 gr
1 Handtuch 150-250 gr
Besondere Wäscheteile
Oberhemden: wählen Sie das Spezialprogramm 9 zum
Waschen von Oberhemden jeglicher Gewebeart und
Farbe.
Es gewährleistet höchste Pflege und weitgehende Vermeidung von Faltenbildung.
Seide: wählen Sie das Spezialprogramm 10 zum Wa-
schen aller Kleidungs- bzw. Wäschestücke aus Seide. Es
empfiehlt sich der Einsatz von Feinwaschmittel.
Gardinen: gardinen zusammengefaltet in einem Kissenbezug oder in einem netzartigen Beutel waschen. Stellen
Sie das Programma 10 ein.
Wolle: Das Waschprogramm „Wolle” dieser Waschmaschine Hotpoint-Ariston wurde von der Woolmark
Company für die Wäsche von mit „Handwäsche“ gekennzeichneten Wollkleidungsstücken getestet und anerkannt,
vorausgesetzt die Wäsche erfolgt gemäß der Anweisungen
auf Etikett des Kleidungsstück und den Angaben des Herstellers des Haushaltsgeräts. Hotpoint-Ariston ist die erste
Waschmaschinenmarke, die von der Woolmark Company
die Zertifizierung Woolmark Apparel Care - Platinum für
ihre Waschleistungen und den Verbrauch von Wasser und
Energie erhalten hat. (M1126)
Bleichen
Bleichen ist nur bei den Programmen 1, 2, 6 möglich.
Füllen Sie das Bleichmittel in die Dosierkammer 3 ein, und
das Waschmittel und den Weichspüler in die entsprechenden Dosierkammern. Stellen Sie dann eines der obigen
Programme ein.
Diese Funktion eignet sich nur für stark verschmutzte
Baumwollwäsche.
Vorsortieren der Wäsche
• Sortieren Sie die Wäsche nach:
- Gewebeart / Waschetikettensymbol.
- und Farben: Buntwäsche von Weißwäsche trennen.
• Entleeren Sie alle Taschen.
• Das angegebene Gewicht, das sich auf die maximale
Ladung an Trockenwäsche bezieht, sollte nicht überschritten werden:
Widerstandsfähige Gewebe: max 7 kg
Kunstfasergewebe: max 3 kg
Feinwäsche: max 2 kg
Wolle: max 1,5 kg
Unwuchtkontrollsystem
Um starke Vibrationen oder eine Unwucht beim Schleudern zu vermeiden, verfügt das Gerät über ein Schleuderunwuchtsystem. Die Waschladung wird durch eine
erhöhte Rotation der Trommel als die des WAschgangs ausbalanciert. Sollte die Wäscheladung nach Ablauf mehrerer
Versuche immer noch nicht korrekt verteilt sein, schleudert
das Gerät die Wäsche bei einer niedrigeren Geschwindigkeit als die der vorgesehenen Schleudergeschwindigkeit.
Sollte die Wäsche extrem ungleichmäßig verteilt sein, führt
das Gerät anstelle des Schleudergangs einen Wäscheverteilungs-Zyklus durch. Um eine optimale Verteilung der
Wäscheladung und somit eine korrekte Auswuchtung zu
fördern, sollten große und kleine Wäscheteile gemischt
eingefüllt werden.
52
Vorsichtsmaßregeln und
Hinweise
! Der Waschvollautomat wurde nach den strengsten inter-
nationalen Sicherheitsvorschriften entworfen und gebaut.
Nachstehende Hinweise werden aus Sicherheitsgründen
geliefert und sollten aufmerksam gelesen werden.
Allgemeine Sicherheit
• Dieses Gerät wurde ausschließlich für den Einsatz im pri-
vaten Haushalt konzipiert.
• Dieses Gerät ist nicht zur Verwendung durch Personen
(einschließlich Kinder) mit eingeschränkten körperlichen,
geistigen oder sensorialen Fähigkeiten oder ohne ausreichende Erfarhung und Kenntnis geeignet, es sei denn,
sie werden durch eine für ihre Sicherheit verantwortliche
Person beaufsichtigt und eingewiesen. Kinder müssen
beaufsichtigt werden, um sicherzustellen, dass sie nicht
mit dem Gerät spielen.
• Berühren Sie das Gerät nicht, wenn Sie barfuß sind, und
auch nicht mit nassen oder feuchten Händen oder Füßen.
• Ziehen Sie den Gerätestecker nicht am Kabel aus der
Steckdose, sondern nur am Netzstecker selbst.
• Öffnen Sie die Waschmittelschublade nicht, wenn das Gerät
in Betrieb ist.
• Berühren Sie nicht das Ablaufwasser, es könnte sehr heiß
sein.
• Öffnen Sie die Gerätetür nicht mit Gewalt: Der Sicherheits-
Schließmechanismus könnte hierdurch beschädigt werden.
• Bei etwaigen Störungen versuchen Sie bitte nicht, Innenteile
selbst zu reparieren.
• Halten Sie Kinder stets von dem in Betrieb befindlichen
Gerät fern.
• Während des Waschgangs kann die Gerätetür sehr heiß
werden.
• Muss das Gerät versetzt werden, sollten hierfür zwei oder
drei Personen verfügbar sein. Versetzen Sie es niemals
allein, das Gerät ist äußerst schwer.
• Bevor Sie die Wäsche einfüllen, stellen Sie bitte sicher, dass
die Wäschetrommel leer ist.
Gemeinden wenden, um mehr Informationen über die korrekte Entsorgung ihrer Elektrohaushaltsgeräte zu erhalten.
Manuelles Öffnen der Gerätetür
Sollte die Gerätetür aufgrund eines Stromausfalls nicht
geöffnet werden können, gehen Sie wie folgt vor, um die
Wäsche entnehmen und somit aufhängen zu können:
1. Ziehen Sie den Netzstecker aus der Steckdose.
2. Stellen Sie sicher, dass der Wasserstand im Innern des
Gerätes die Gerätetür nicht übersteigt, andernfalls lassen
Sie das überschüssige Wasser, so wie auf der Abbildung
veranschaulicht, durch den Ablaufschlauch in einen Eimer
ablaufen.
3. Befreien Sie mithilfe der auf der Abbildung veranschaulichten Zunge (nach vorne ziehen) die Kunststoff-Spannvorrichtung aus der Arretierung; ziehen Sie letztere dann
nach unten und öffnen Sie gleichzeitig die Gerätetür.
DE
Entsorgung
• Entsorgung des Verpackungsmaterials: Befolgen Sie die
lokalen Vorschriften, Verpackungsmaterial kann wiederverwertet werden.
• Gemäß der Europäischen Richtlinie 2002/96/EC über
Elektro- und Elektronik-Altgeräte dürfen ElektrohaushaltsAltgeräte nicht über den herkömmlichen Haushaltsmüllkreislauf entsorgt werden. Altgeräte müssen separat
gesammelt werden, um die Wiederverwertung und das
Recycling der beinhalteten Materialien zu optimieren
und die Einflüsse auf die Umwelt und die Gesundheit zu
reduzieren. Das Symbol „durchgestrichene Mülltonne“
auf jedem Produkt erinnert Sie an Ihre Verpflichtung,
dass Elektrohaushaltsgeräte gesondert entsorgt werden
müssen. Endverbraucher können sich an Abfallämter der
53
Reinigung und Pflege
1
2
DE
Abstellen der Wasser- und Stromversorgung
• Drehen Sie den Wasserhahn nach jedem Waschvorgang
zu. Hierdurch wird der Verschleiß der Wasseranlage
verringert und Wasserlecks vorgebeugt.
• Ziehen Sie den Netzstecker aus der Steckdose, bevor
Sie Ihren Waschvollautomaten reinigen.
Reinigung des Gerätes
Die Gehäuseteile und die Teile aus Gummi können mit
einem mit warmer Spülmittellauge angefeuchteten Tuch
gereinigt werden. Vermeiden Sie Löse- und Scheuermittel
Reinigung der Waschmittelschublade
Heben Sie die Schublade
leicht an und ziehen Sie
sie nach vorne hin heraus
(siehe Abbildung).
Spülen Sie sie regelmäßig
unter fließendem Wasser
gründlich aus.
Zugang zur Vorkammer:
1. Drehen Sie den Deckel
gegen den Uhrzeigersinn
ab (sieheAbbildung): es ist
ganz normal, wenn etwas
Wasser austritt;
2. Reinigen Sie das Innere gründlich;
3. Schrauben Sie den Deckel wieder auf.
Kontrolle des Wasserzulaufschlauchs
Kontrollieren Sie den Zulaufschlauch mindestens einmal im
Jahr. Weist er Risse bzw. Brüche auf, muss er ausgetauscht werden. Der starke Druck während des Waschprogramms könnte zu plötzlichem Platzen führen.
! Verwenden Sie niemals bereits gebrauchte Schläuche.
Pflege der Gerätetür und Trommel
• Lassen Sie die Gerätetür stets leicht offen stehen, um die
Bildung unangenehmer Gerüche zu vermeiden.
Reinigung der Pumpe
Ihr Gerät ist mit einer selbstreinigenden Pumpe ausgerüstet, eine Wartung ist demnach nicht erforderlich. Es könnte jedoch vorkommen, dass kleine Gegenstände (Münzen,
Knöpfe) in die zum Schutz der Pumpe dienende Vorkammer (befindlich unter der Pumpe) fallen.
! Vergewissern Sie sich, dass der Waschgang abgeschlos-
sen ist und ziehen Sie den Netzstecker heraus.
54
Störungen und Abhilfe
Bei Funktionsstörung: Bevor Sie sich an den Technischen Kundendienst wenden (siehe „Kundendienst“), vergewissern Sie
sich zuerst, ob es sich nicht um eine Kleinigkeit handelt, die Sie selbst beheben können. Ziehen Sie hierzu nachstehendes
Verzeichnis zu Rate.
Störungen:
Der Waschvollautomat schaltet sich
nicht ein.
Der Waschgang startet nicht.
Der Waschvollautomat lädt kein
Wasser. Die Kontrollleuchte der
ersten Waschphase blinkt (rasches
Blinklicht).
Der Waschvollautomat lädt laufend
Wasser und pumpt es laufend ab.
Mögliche Ursachen / Lösungen:
• Der Stecker steckt nicht in der Steckdose, oder nicht so, dass der Kontakt hergestellt wird.
• Der Strom ist ausgefallen.
• Die Gerätetür wurde nicht vorschriftsmäßig geschlossen.
• Die EIN/AUS-Taste wurde nicht gedrückt.
• Die Taste START/PAUSE wurde nicht gedrückt.
• Der Wasserhahn ist nicht aufgedreht.
• Es wurde ein verzögerter Start gewählt (siehe „Personalisierungen“).
• Der Zufuhrschlauch ist nicht am Wasserhahn angeschlossen.
• Der Schlauch ist geknickt.
• Der Wasserhahn ist nicht aufgedreht.
• Es ist kein Wasser da.
• Der Druck ist unzureichend.
• Die Taste START/PAUSE wurde nicht gedrückt.
• Der Ablaufschlauch befindet sich nicht auf der vorgeschriebenen Höhe, d.h. 65 – 100 cm
vom Boden (siehe „Installation“).
• Das Schlauchende liegt unter Wasser (siehe „Installation”).
• Der Abfluss der Hausinstallation wurde nicht mit einer Entlüftungsöffnung versehen.
Konnte die Störung durch diese Kontrollen nicht behoben werden, dann drehen Sie den
Wasserhahn zu, schalten das Gerät aus und fordern den Kundendienst an. Falls Sie in einer
der obersten Etagen eines Gebäudes wohnen, kann es vorkommen, dass sich im Syphon
ein Vakuum bildet, und der Waschvollautomat ständig Wasser ansaugt und wieder abpumpt.
Zur Lösung dieser Probleme bietet der Handel spezielle Syphonventile.
DE
Der Waschvollautomat pumpt nicht
ab und schleudert nicht.
Der Waschvollautomat vibriert zu
stark während des Schleuderns.
Der Waschvollautomat ist undicht.
Die Kontrollleuchte START/PAUSE
(orangefarben) und die Funktionsleuchten blinken (rasches Blinklicht).
Es bildet sich zu viel Schaum.
• Das Programm siehe kein Abpumpen vor: Bei einigen Programmen muss es von
Hand eingestellt werden.
• Die Funktion BÜGELLEICHT wurde aktiviert: zur Beendung des Programms Taste
START/PAUSE drücken (siehe „Personalisierungen“).
• Der Ablaufschlauch ist geknickt (siehe „Installation“).
• Die Ablaufleitung ist verstopft.
• Die Trommel wurde bei der Installation nicht korrekt befreit (siehe „Installation“).
• Der Waschvollautomat steht nicht eben (siehe „Installation“).
• Der Waschvollautomat steht zu eng zwischen der Wand und einem Möbel (siehe „Installation“).
• Der Zulaufschlauch wurde nicht ordnungsgemäß aufgeschraubt (siehe „Installation“).
• Die Waschmittelschublade ist verstopft (zur Reinigung siehe „Wartung und Pflege“).
• Der Ablaufschlauch ist nicht korrekt befestigt (siehe „Installation“).
• Schalten Sie das Gerät aus und ziehen Sie den Netzstecker; warten Sie daraufhin
ca. 1 Minute und schalten Sie es wieder ein.
Bleibt die Störung bestehen, kontaktieren Sie bitte den Kundendienst.
• Das Waschmittel ist für Waschmaschinen nicht geeignet (es muss mit der Aufschrift „Für
Waschmaschinen“, „Für Handwäsche und Waschmaschinen“ usw. versehen sein.
• Es wurde zu hoch dosiert.
55
Kundendienst
195093872.01
01/2012-Xerox Fabriano
DE
Bevor Sie sich an den Kundendienst wenden:
• Sollten einige Kontrollen vorab selbst durchgeführt werden (siehe „Störungen und Abhilfe“);
• Starten Sie daraufhin das Programm erneut, um sicherzustellen, dass die Störung auch wirklich behoben wurde;
• Ist dies nicht der Fall, dann kontaktieren Sie den autorisierten Kundendienst unter der auf dem Garantieschein befindlichen Telefonnummer.
! Wenden Sie sich auf keinen Fall an nicht autorisierte Techniker.
Geben Sie bitte Folgendes an:
• die Art der Störung;
• das Maschinenmodell (Mod.);
• die Seriennummer (S/N).
Diese Daten entnehmen Sie bitte dem auf der Rückseite des Waschvollautomaten und auf der Vorderseite (Gerätetür
öffnen) befindlichen Typenschild.
56
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
