Hotpoint ARSF 100 User Manual

Instructions for use

WASHING MACHINE

English,1

ARSF 100

Polski,13

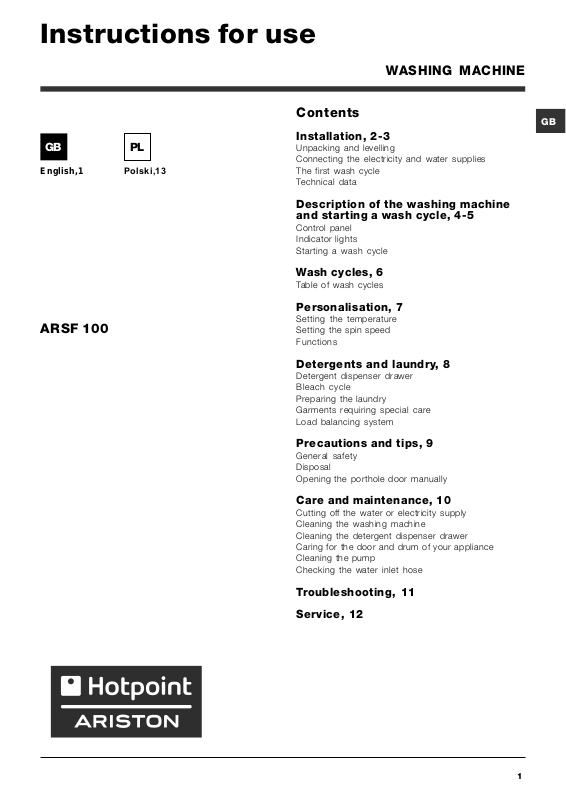

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the washing machine and starting a wash cycle, 4-5

Control panel Indicator lights Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature Setting the spin speed Functions

Detergents and laundry, 8

Detergent dispenser drawer Bleach cycle Preparing the laundry Garments requiring special care Load balancing system

Precautions and tips, 9

General safety Disposal Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 11

Service, 12

Installation

 This instruction manual should be kept in a safe

place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

 Read these instructions carefully: they contain vital

information relating to the safe installation and operation of the appliance.

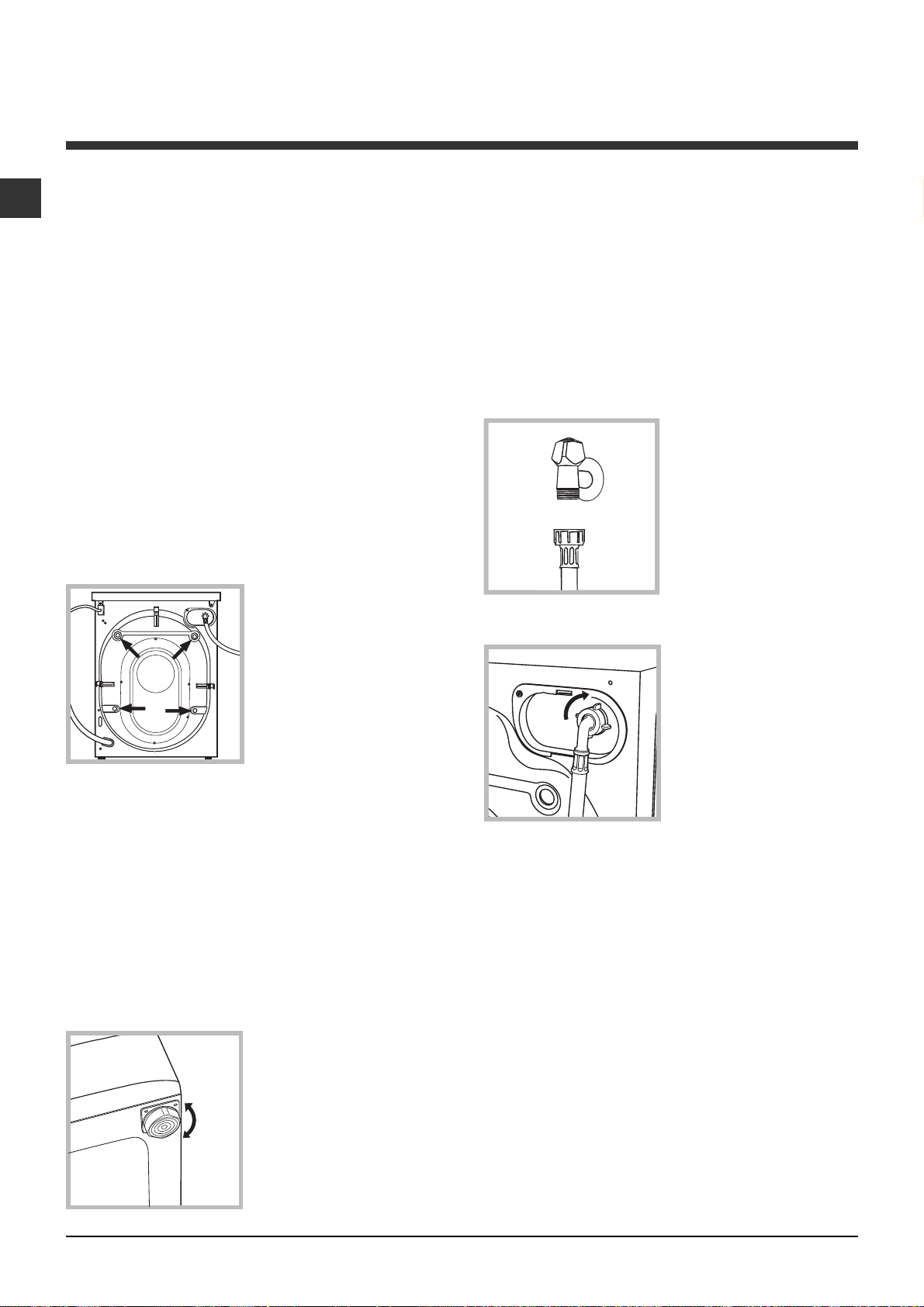

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a ¾ gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

 Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

 The water pressure at the tap must fall within the

values indicated in the Technical details table (see next page).

 If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

 Never use second-hand hoses.

 Use the ones supplied with the machine.

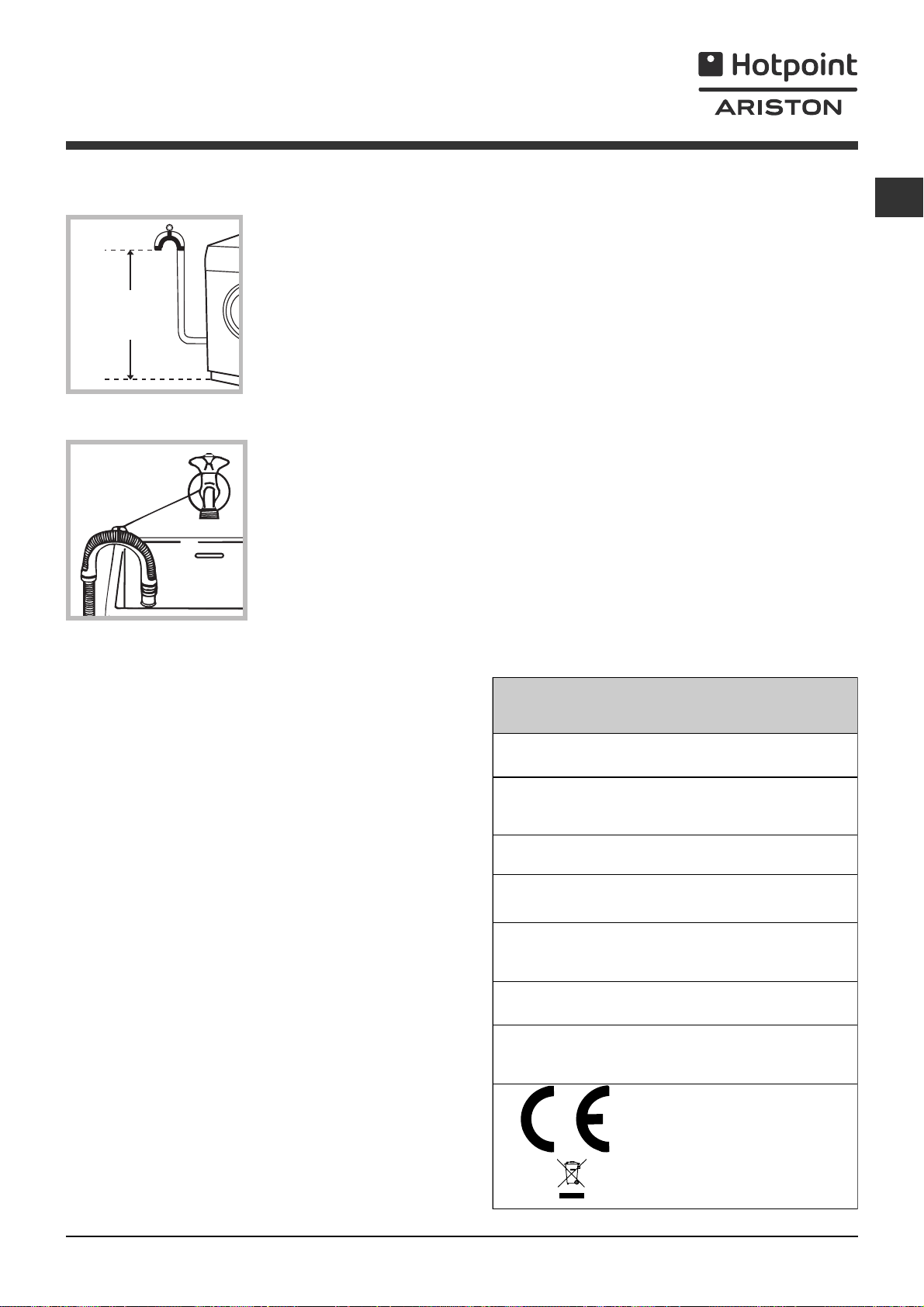

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

 Do not use extension cords or multiple sockets.

 The cable should not be bent or compressed.

 The power supply cable must only be replaced by

authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

 We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

 the socket is earthed and complies with all

applicable laws;

 the socket is able to withstand the maximum power

load of the appliance as indicated in the Technical data table (see opposite);

 the power supply voltage falls within the values

indicated in the Technical data table (see opposite);

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 1.

Technical data

Model

Dimensions

Capacity

Electrical

connections

Water connections

Spin speed

ARSF 100

width 59.5 cm height 85 cm depth 40 cm

from 1 to 4,5 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 40 litres

up to 1000 rotations per minute

 the socket is compatible with the plug of the

washing machine. If this is not the case, replace the socket or the plug.

 The washing machine must not be installed

outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

 When the washing machine has been installed, the

electricity socket must be within easy reach.

Energy rated programmes

according to regulation EN 60456

programme 6; temperature 60°C; using a load of 4,5 kg.

This appliance conforms to the following EC Directives:

- 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

- 2006/95/EC Low Voltage)

- 2002/96/EC

Description of the washing machine and starting a wash cycle

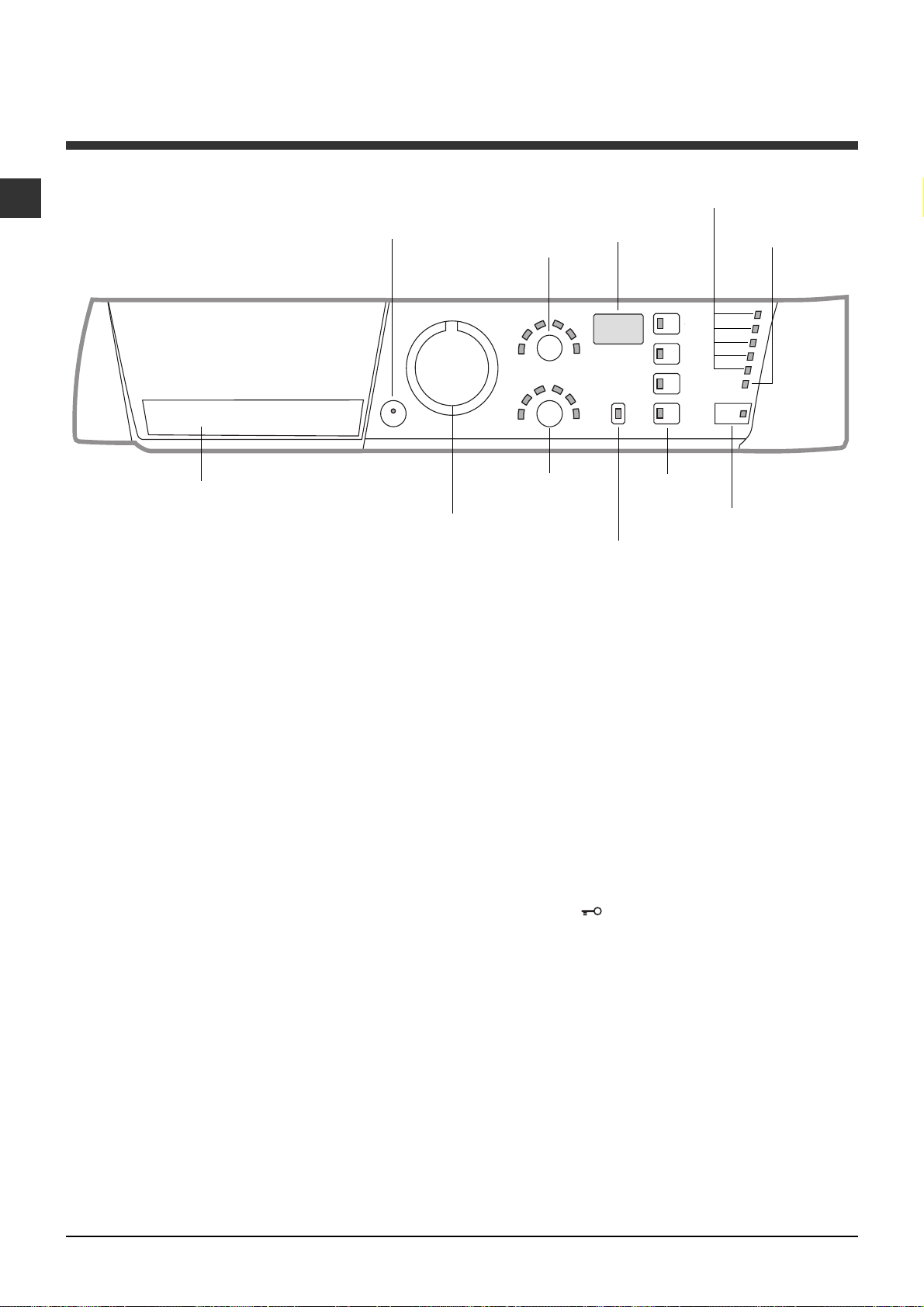

Control panel

button with indicator

ON/OFF

light

Detergent dispenser drawer

WASH CYCLE

TEMPERATURE

SPIN SPEED

knob

WASH CYCLE PROGRESS

DISPLAY

button

CONTROL PANEL LOCK

button with indicator light

indicator lights

FUNCTION

buttons with indicator lights

DOOR LOCKED

indicator light

START/PAUSE

button with indicator light

Detergent dispenser drawer: used to dispense detergents and washing additives (see Detergents and laundry). There is a key which provides a summary of the available wash cycles inside the detergent dispenser drawer; this may be consulted at any time.

ON/OFF button with indicator light: switches the machine on and off. If the indicator light is illuminated, this indicates that the machine is switched on.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

SPIN SPEED button: sets the spin speed or exclude the spin cycle completely (see Personalisation).

TEMPERATURE button: sets the temperature or the cold wash cycle (see Personalisation).

DISPLAY: indicates the time remaining for the selected wash cycle and, if a delayed start has been programmed, the time remaining until the start of the wash cycle.

CONTROL PANEL LOCK button with indicator light: activates or deactivates the control panel lock.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

WASH CYCLE PROGRESS

monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles. N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED door may be opened. To start the wash cycle from the point at which it was interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after a few minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

indicator light is switched off, the

indicator light

s: used to

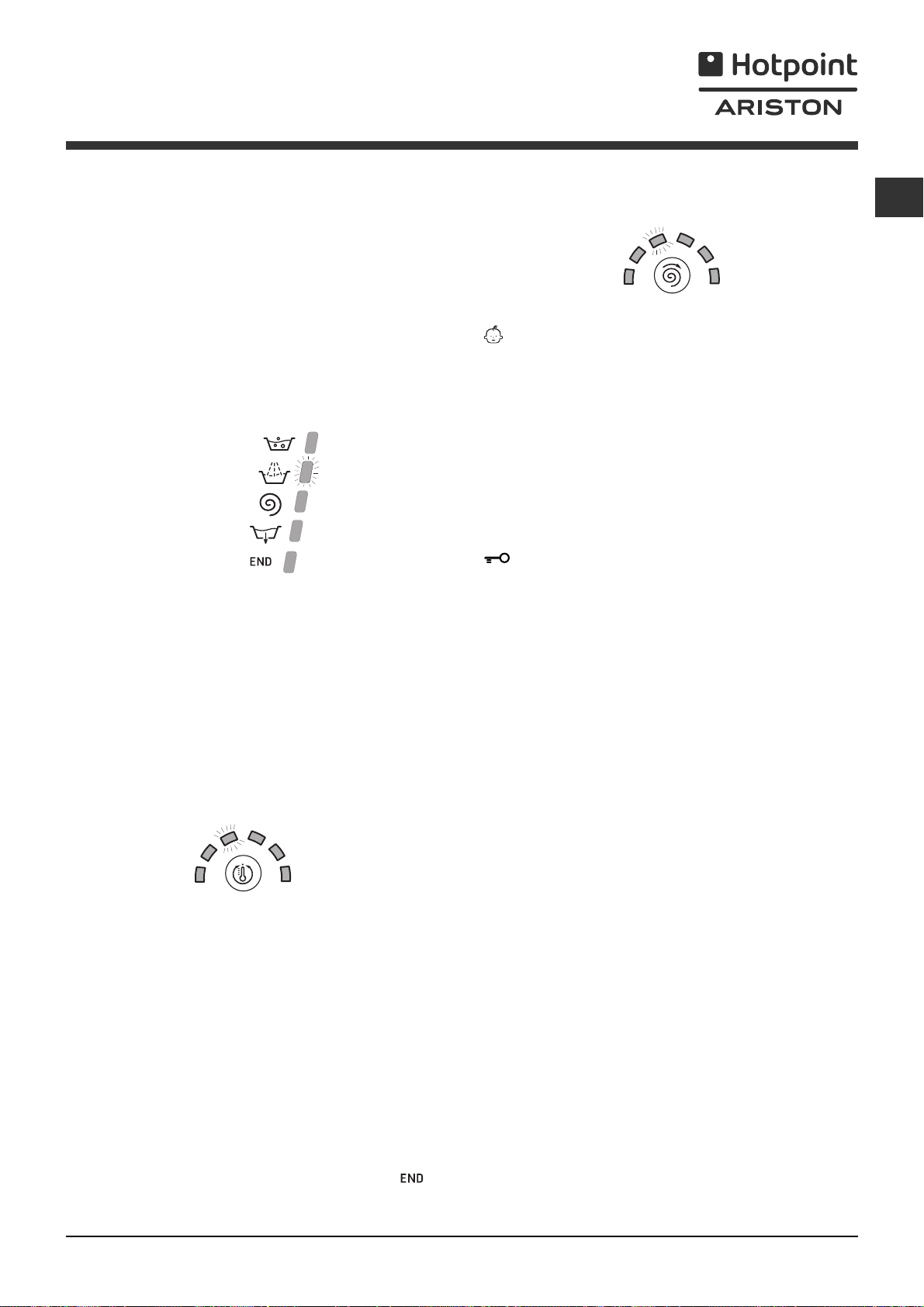

Indicator lights

The indicator lights provide important information. This is what they can tell you:

Wash cycle phase indicator lights

As the WASH CYCLE knob is rotated, the indicator lights illuminate, indicating the stages which will be performed by the machine in accordance with the selected wash cycle.

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Wash

Rinse

Spin Drain no spin End of wash cycle

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash, a sound signal will be emitted and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

Starting a wash cycle

Temperature indicator light

When a temperature value is selected, the corresponding indicator light will illuminate.

Spin indicator light

When a spin value is selected, the corresponding indicator light will illuminate.

Control panel lock indicator light

To activate the control panel lock, press and hold the button for approximately 2 seconds. When the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

Door locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off before you open the appliance door. N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

 If the START/PAUSE indicator light (orange) flashes

rapidly at the same time as the function indicator light, this indicates a problem has occurred (see Troubleshooting).

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/ PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see Personalisation).

5. Set the spin speed (see Personalisation).

6. Measure out the detergent and washing additives (see Detergents and laundry).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit

in a fixed manner, in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

indicator light will switch on. The DOOR LOCKED indicator light will switch

Wash cycles

Table of wash cycles

Max

Description of the wash cycle

Wash cycles

Special cycles

Sanitizing cyc le:

Sanitizing cycle (1):

Goodnigt cycle:

Baby cycle:

Shirts

Silk /Curtains:

Wool:

For wool, cashmere, etc.

1 2 3 3

A B C D E

Everyday wash cycles (Daily)

Cotton:

Heavily soiled whites and resistant colours.

Cotton (2):

Coloured Cottons (3):

Synthetics resistents:

Synthetics delicates: Mix 30':

To refresh lightly soiled garments quickly (not suitable for wool,

silk and clothes which require washing by hand).

Mix 15':

To refresh lightly soiled garments quickly (not suitable for wool,

silk and clothes which require washing by hand).

Partials wash cycles

Rinse - 1000 - Light Rinse - 800 - Spin - 1000 - - - 4,5 Light spin - 800 - - - 2,5 Drain no spin - 0 - - - 5

Extremely soiled whites.

Heavily soiled whites and resistant colours.

Lightly soiled delicate colours.

Heavily soiled delicate colours.

For garments in silk and viscose, lingerie.

Heavily soiled whites and delicate colours.

Lightly soiled whites and delicate colours. Heavily soiled resistant colours.

Lightly soiled resistant colours.

temp.

Max.

speed

(°C)

(rpm)

90° 1000 60° 1000 40° 800 40° 800 40° 600 30° 0 40° 600 -

60° 1000 40° 1000 40° 1000 60° 800 40° 800 -

30° 800 -

Detergents

Bleach Wash

Fabric

softener

ll l

Max.

load

(kg)

4,5 4,5

3 2 2

1 1

4,5 4,5 4,5 2,5 2,5

1,5

4,5 2,5

Cycle

duration

The duration of the wash cycles can be checked on the display.

The information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 6 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 1 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

Special wash cycles

Sanitizing cycle (wash cycle 6). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled Detergent dispenser drawer). Goodnight cycle (wash cycle 7). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours. Baby cycle (wash cycle 8). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press the START/PAUSE button. Mix 30 (wash cycle 4) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (4 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg. Mix 15 (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Personalisation

Setting the temperature

By pressing the TEMPERATURE button to set the wash temperature (see Table of wash cycles). The temperature may be lowered, or even set to a cold wash ( The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the spin speed

By pressing the SPIN SPEED button to set the spin speed for the selected wash cycle. The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm Synthetics 800 rpm Wool 600 rpm Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated. Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in

conjunction with the selected wash cycle.

Delay timer

To set a delayed start for the selected wash cycle, press the button repeatedly until the desired delay time is displayed (this may be between 1 hour and 24 hours). To disable the function press the button until the text N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

is displayed.

 This option is enabled with all programmes.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash.

 This function may not be used in conjunction with wash cycles 4, 5, 6, 10, 11, A, B, C, D, E.

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

 This function may not be used in conjunction with wash cycles 4, 5, C, D, E.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/ PAUSE indicator lights will flash (orange) and the the START/PAUSE button or the EASY IRON button. For the Silk wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/ PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

phase will remain lit in a fixed manner. To end the cycle, press

 This function may not be used in conjunction with wash cycles 4, 5, 6, 7, 8, 11, C, D, E.

Detergents and laundry

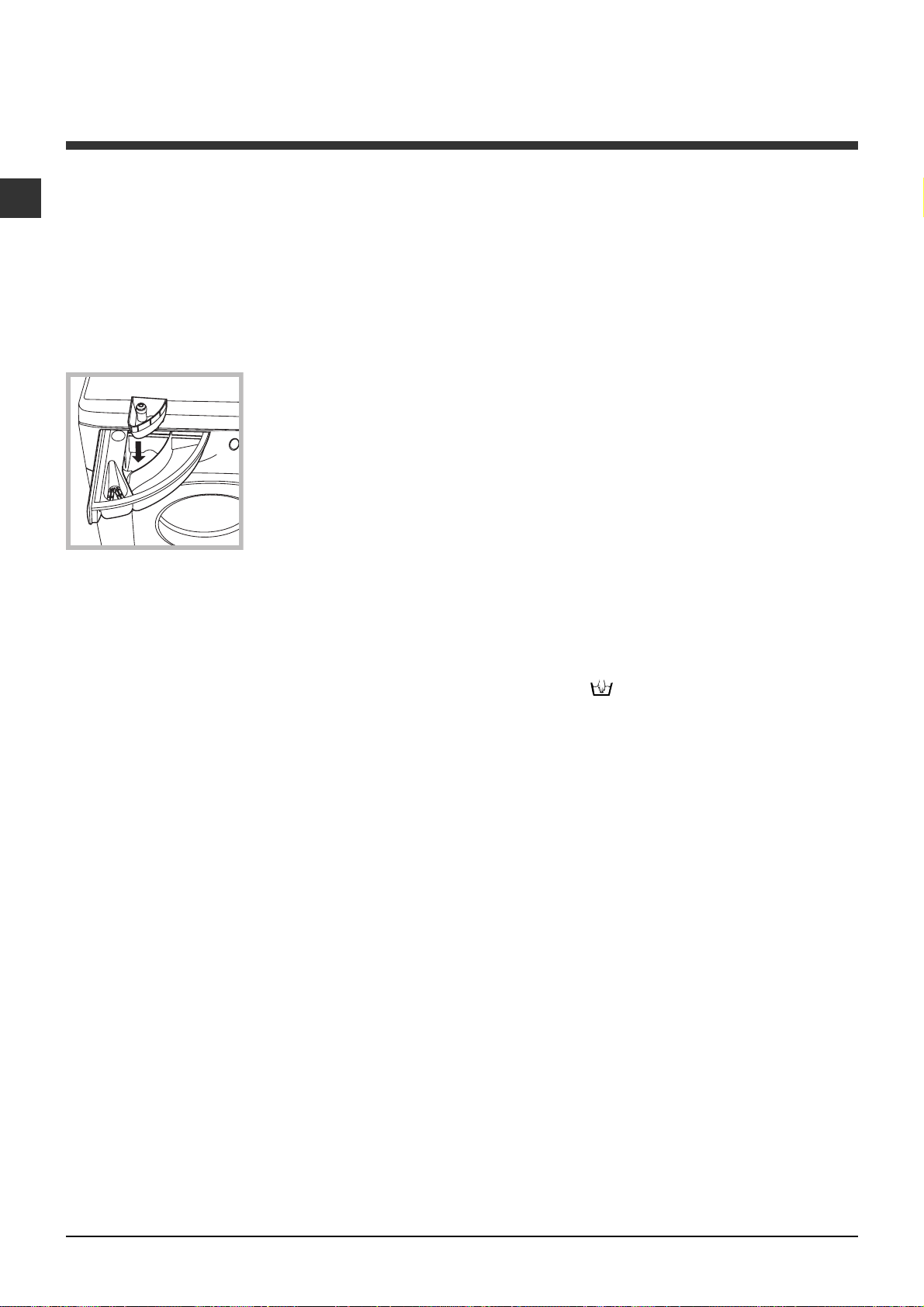

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

 Do not use hand washing detergents because these

create too much foam.

Open the detergent

MAX

compartment 1: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 2: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 3: Bleach

dispenser drawer and pour in the detergent or washing additive, as follows.

Bleach cycle

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Garments requiring special care

Shirts: use special wash cycle 9 to wash shirts in

various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases. Silk: use special wash cycle 10 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 10. Wool: Hotpoint/Ariston is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state hand wash only

on the label. Wash cycle 11 therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1 kg) and guarantees optimal performance.

Bleaching may only be performed in conjunction with wash cycles 1, 2, 6. Pour the bleach into extra compartment 3; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles. This option is recommended only for very soiled cotton garments.

Preparing the laundry

 Divide the laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from

whites  Empty all garment pockets and check the buttons.  Do not exceed the listed values, which refer to the

weight of the laundry when dry:

Durable fabrics: max. 4,5 kg

Synthetic fabrics: max. 2.5 kg

Delicate fabrics: max. 2 kg

Wool: max. 1 kg

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

+ 16 hidden pages
