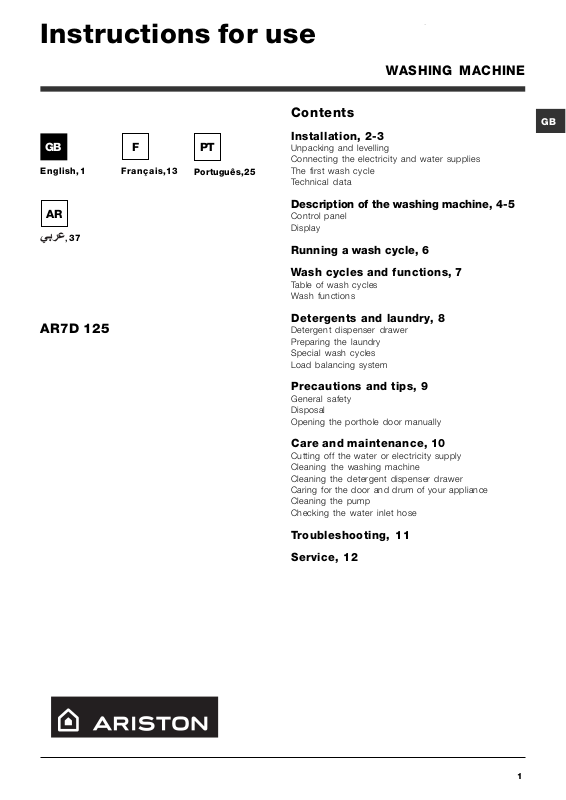

Hotpoint AR7D 125 User Manual

Instructions for use

WASHING MACHINE

						Contents
								GB
						Installation, 2-3
GB		F		PT
						Unpacking and levelling
						Connecting the electricity and water supplies
English,1		Français,13		Português,25		The first wash cycle
						Technical data

AR

, 37

Description of the washing machine, 4-5

Control panel Display

Running a wash cycle, 6

Wash cycles and functions, 7

Table of wash cycles Wash functions

AR7D 125	Detergents and laundry, 8
	Detergent dispenser drawer
	Preparing the laundry
	Special wash cycles
	Load balancing system

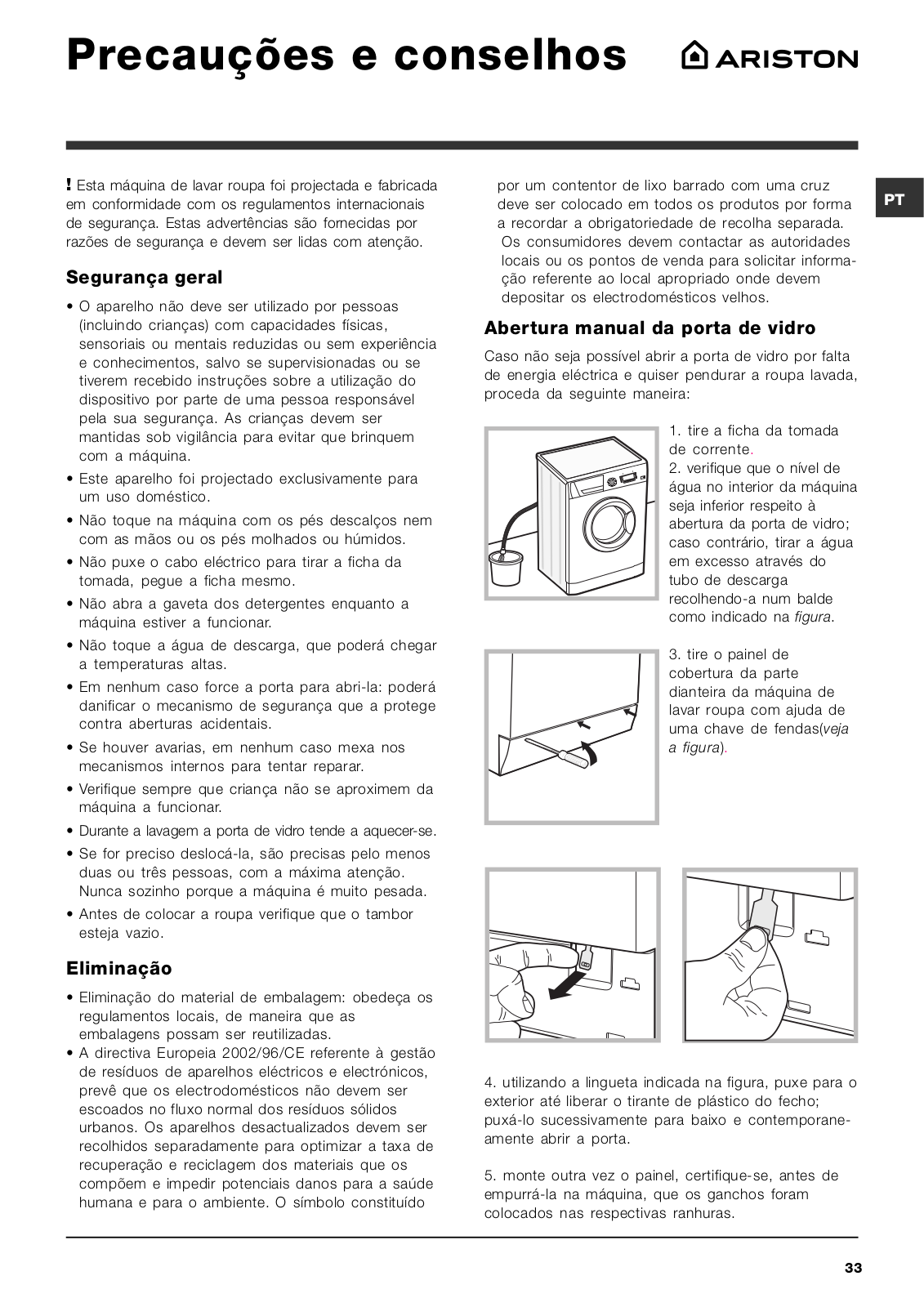

Precautions and tips, 9

General safety

Disposal

Opening the porthole door manually

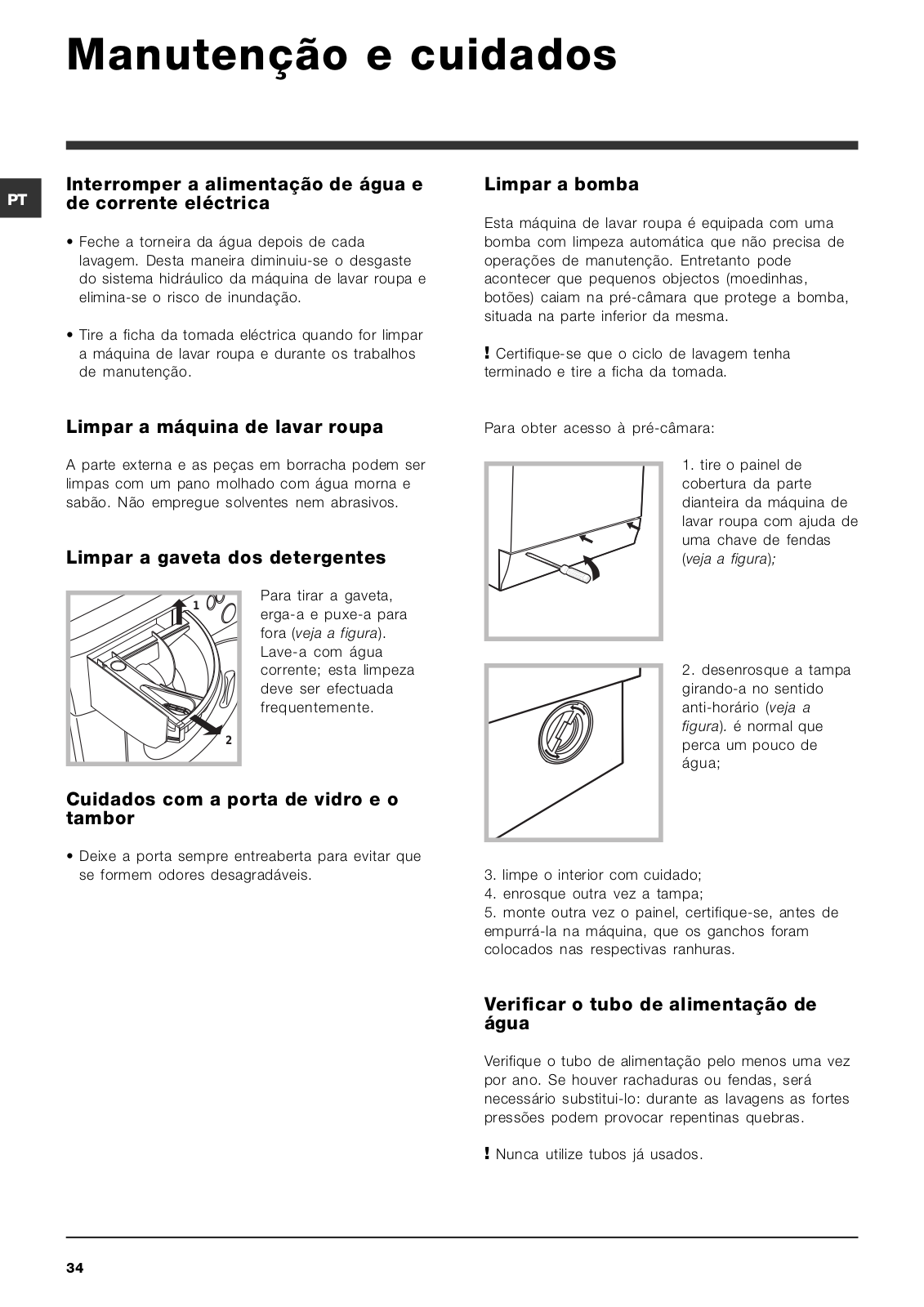

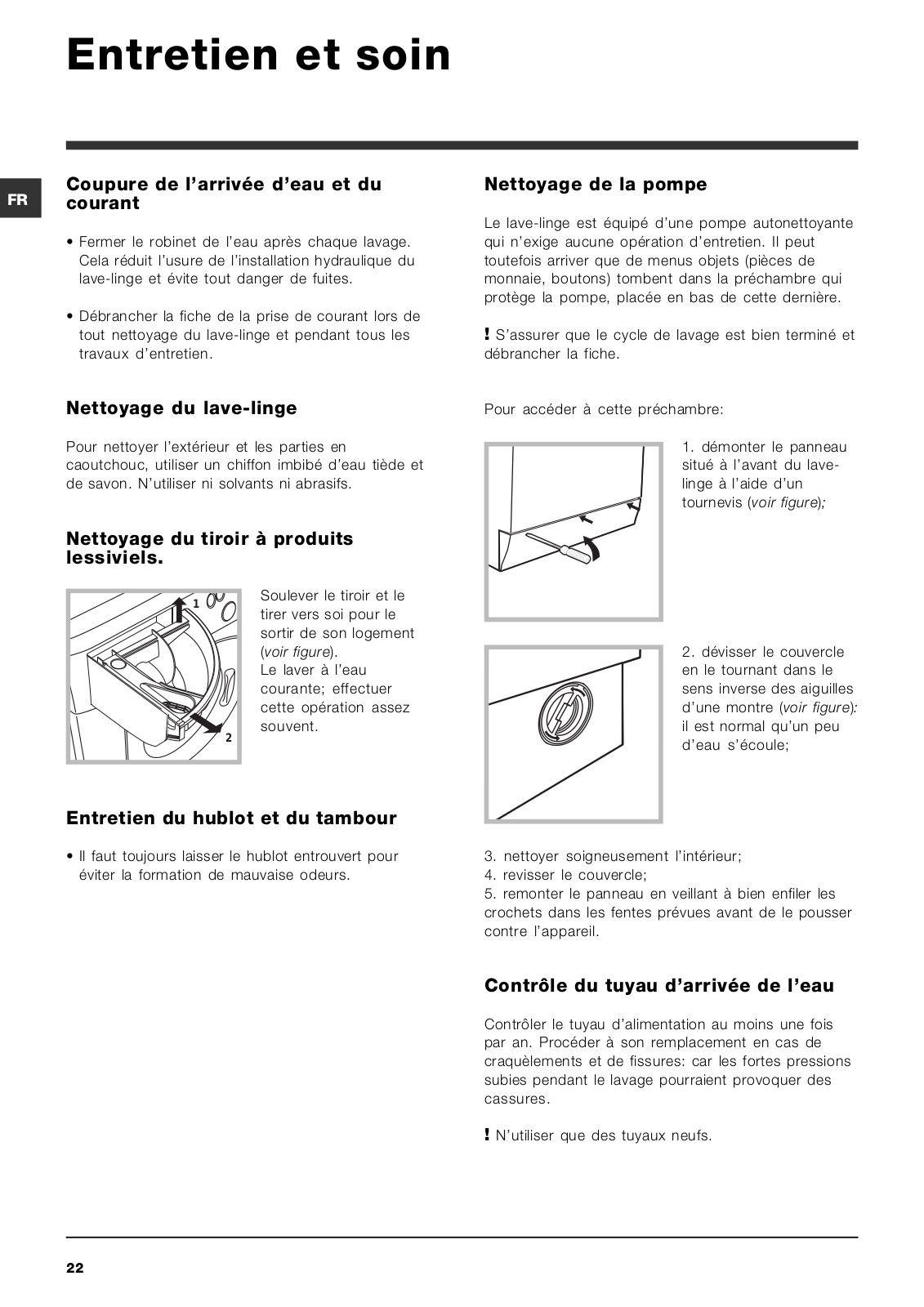

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

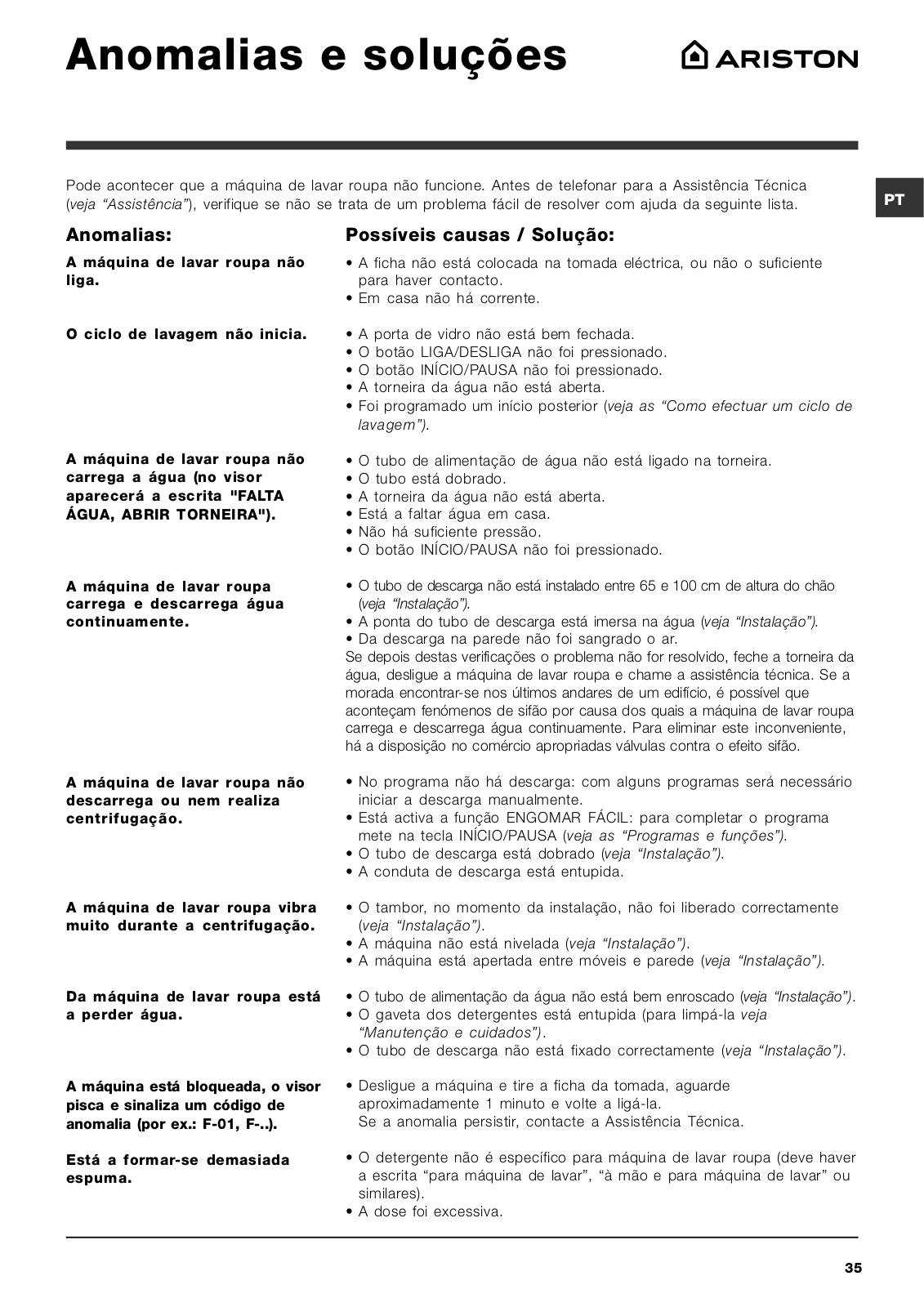

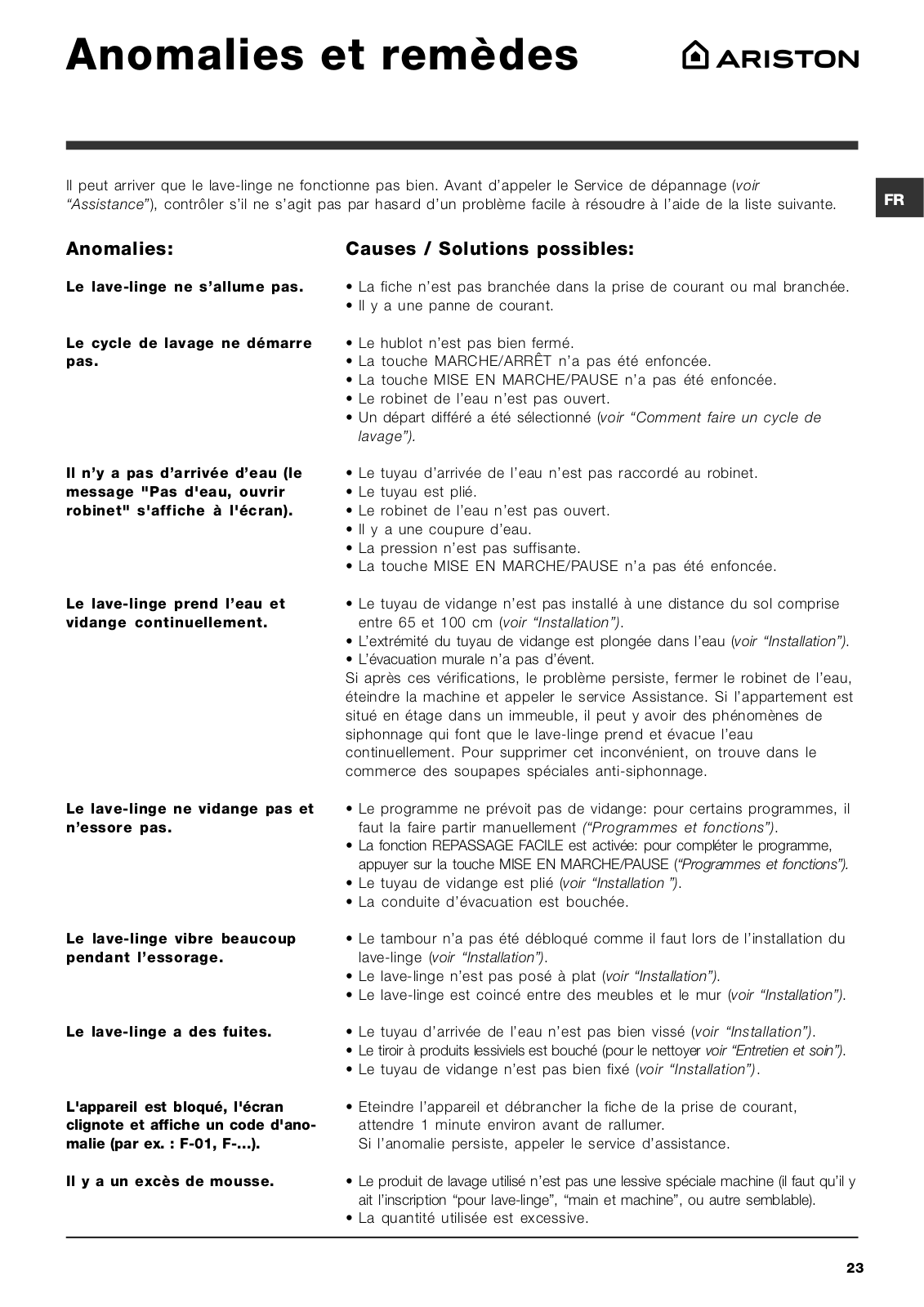

Troubleshooting, 11

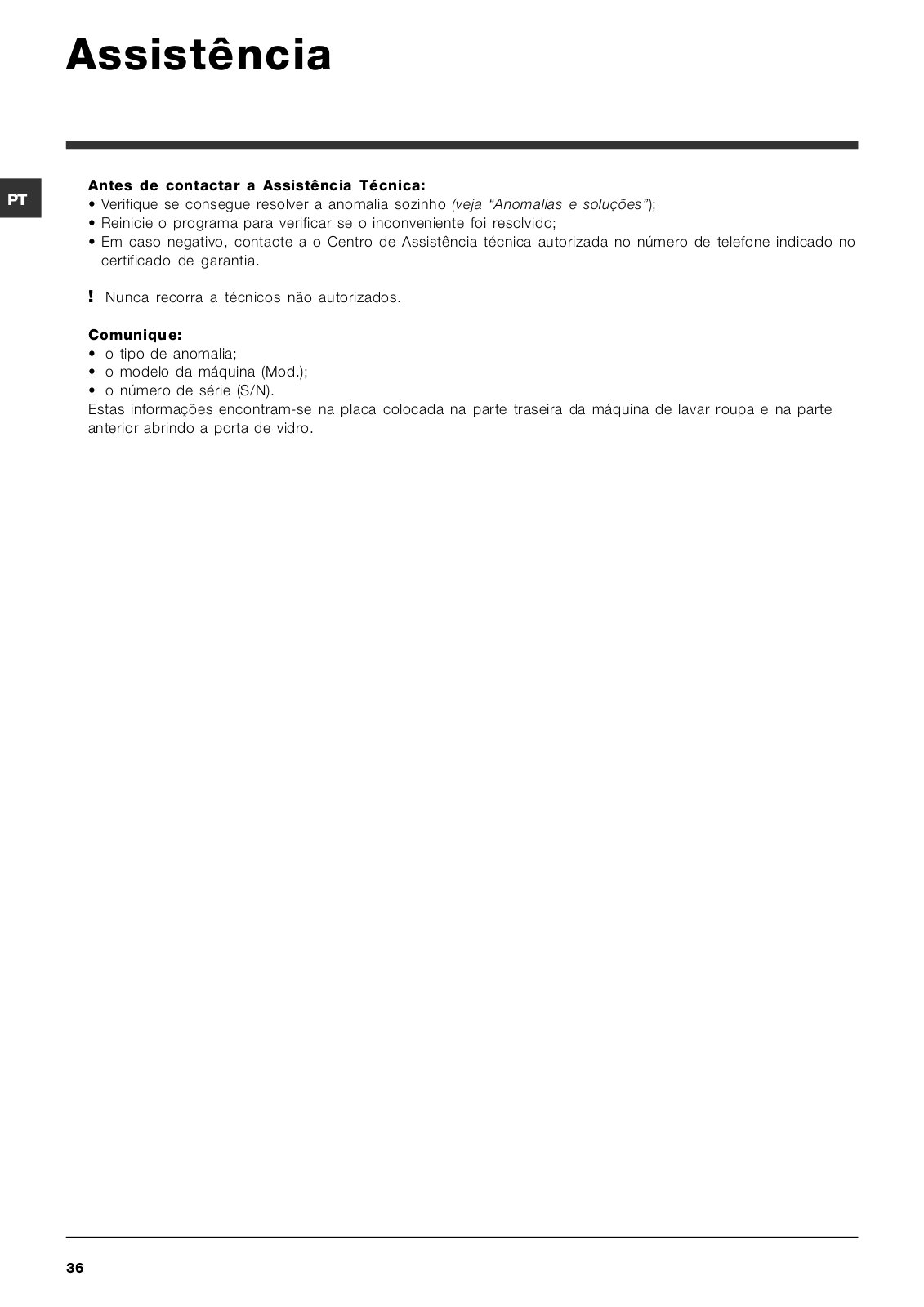

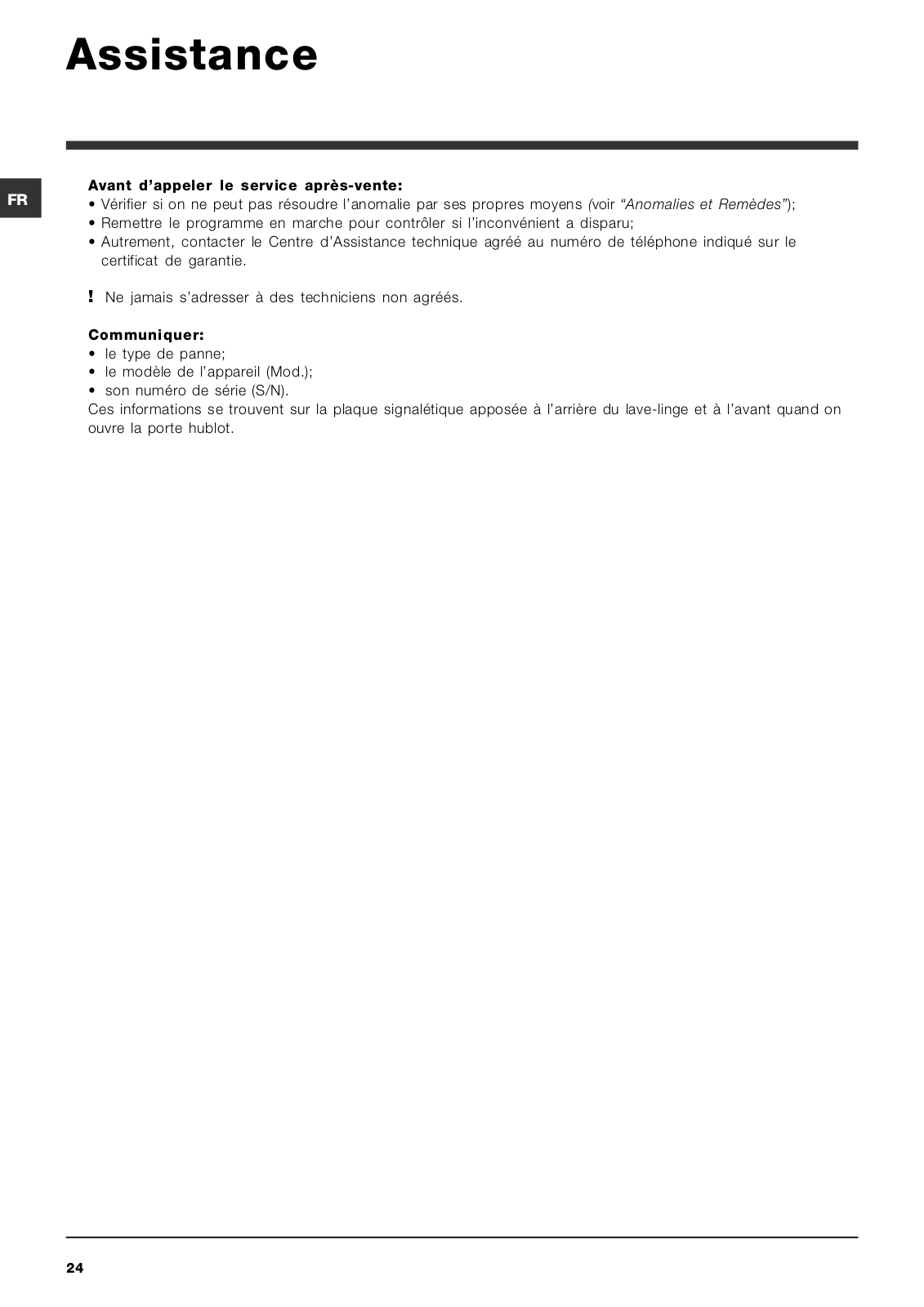

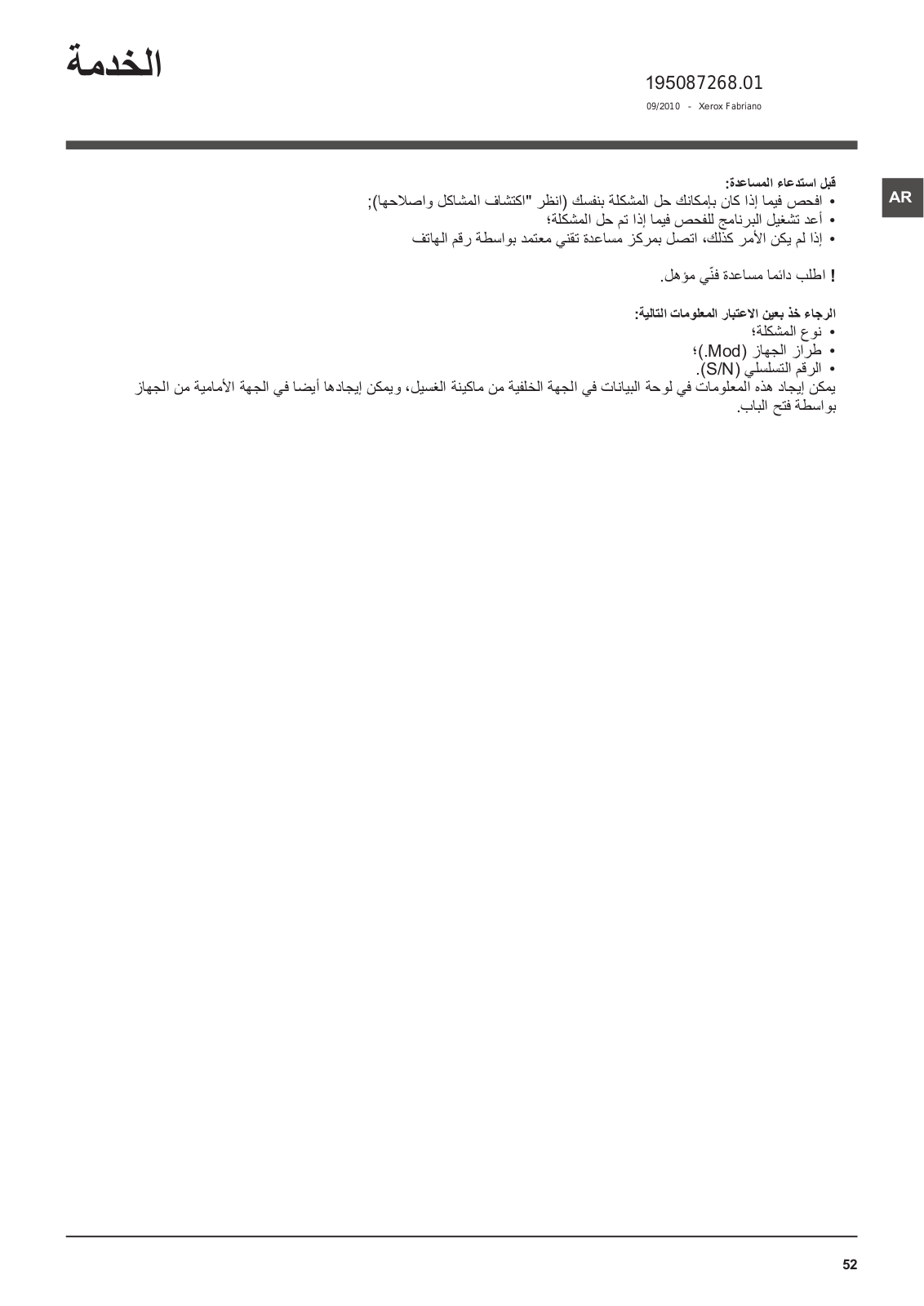

Service, 12

1

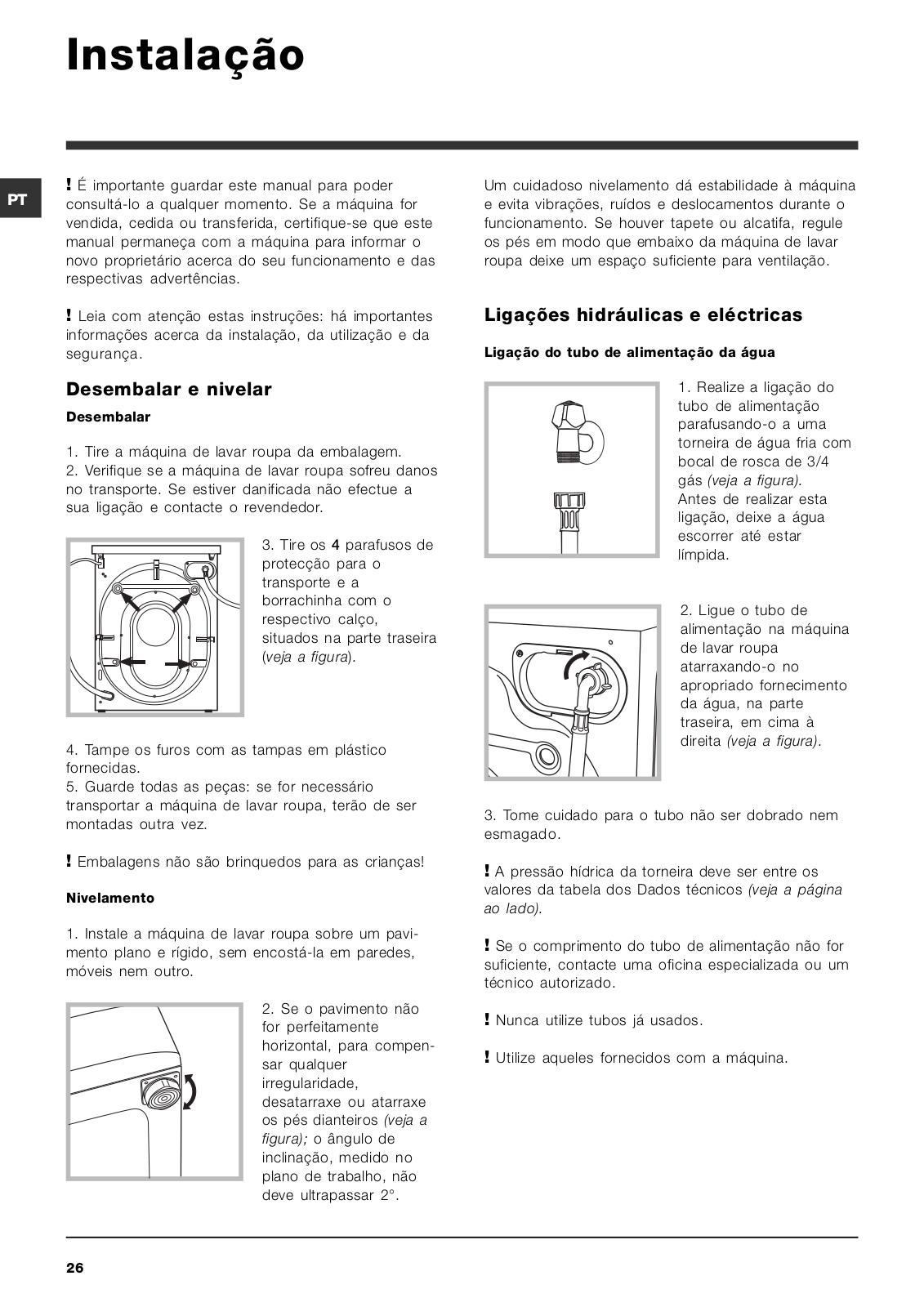

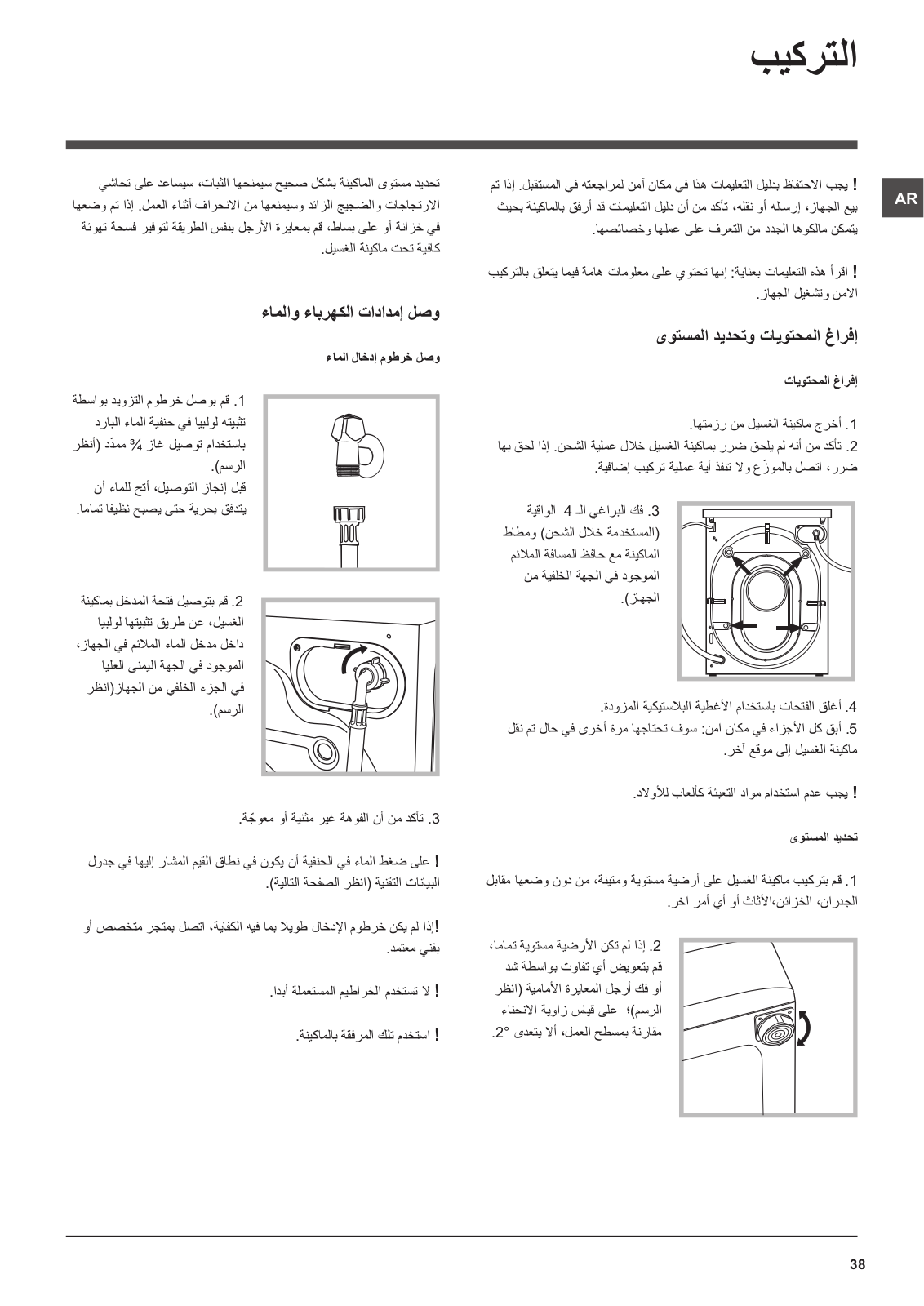

Installation

This instruction manual should be kept in a safe GB place for future reference. If the washing machine is

sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1.Remove the washing machine from its packaging.

2.Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4.Close off the holes using the plastic plugs provided.

5.Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a 3/4 gas threaded connection

(see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).

If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

Never use second-hand hoses.

Use the ones supplied with the machine.

2

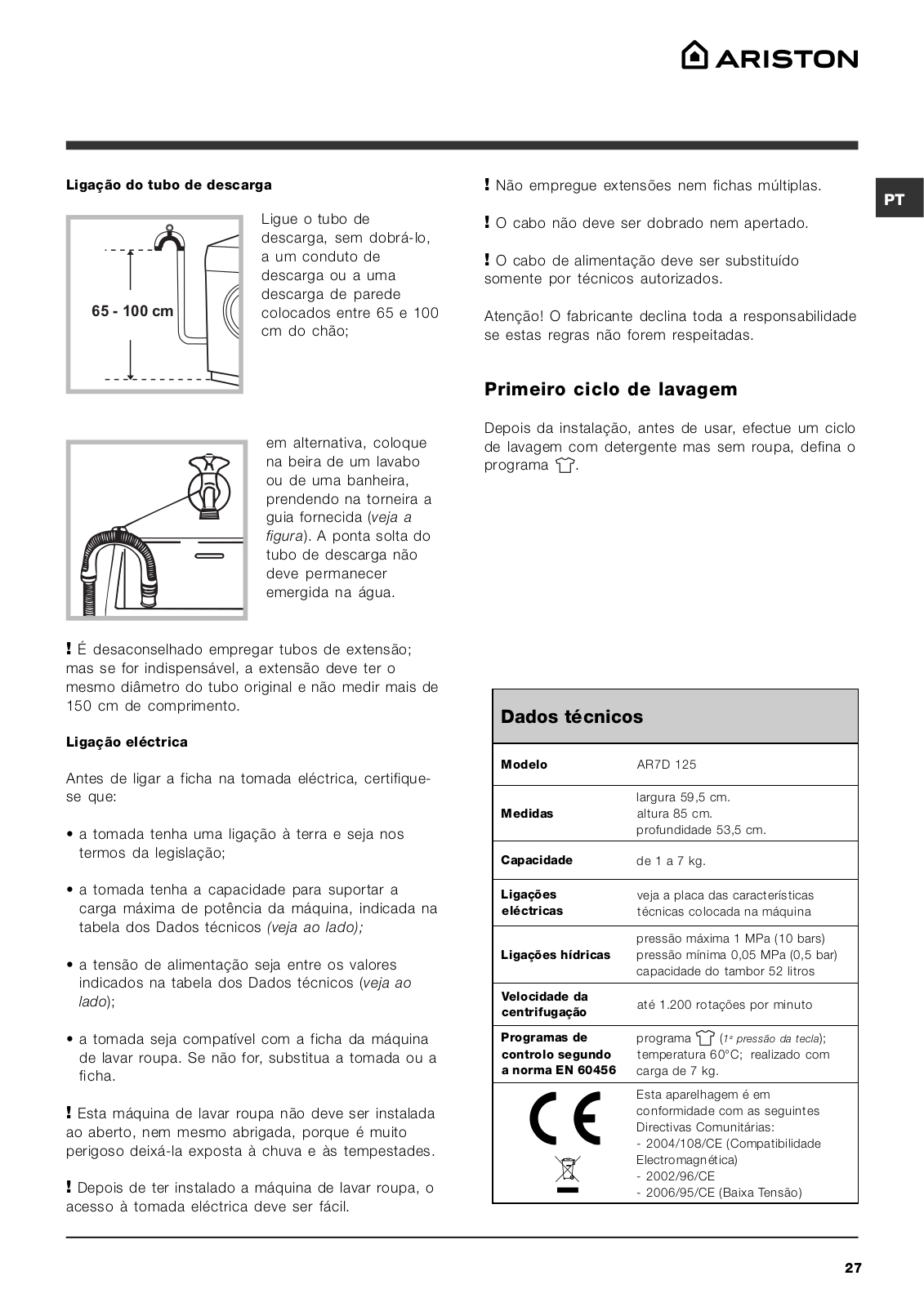

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

•the socket is earthed and complies with all applicable laws;

•the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);

•the power supply voltage falls within the values indicated in the Technical data table (see opposite);

•the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

When the washing machine has been installed, the electricity socket must be within easy reach.

Do not use extension cords or multiple sockets.

GB

The cable should not be bent or compressed.

The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle .

Technical data

Model	AR7D 125
	width 59.5 cm
Dimensions	height 85 cm
	depth 53,5 cm
Capacity	from 1 to 7 kg
Electrical	please refer to the technical data
connections	plate fixed to the machine
	maximum pressure 1 MPa (10 bar)
Water connections	minimum pressure 0.05 MPa (0.5 bar)
	drum capacity 52 litres
Spin speed	up to 1200 rotations per minute
Energy rated
programmes	programme	(1st press of the
according to	button); temperature 60°C;
regulation	using a load of 7 kg.
EN 60456

This appliance conforms to the following EC Directives:

-2004/108/EC (Electromagnetic Compatibility)

-2002/96/EC

- 2006/95/EC (Low Voltage)

3

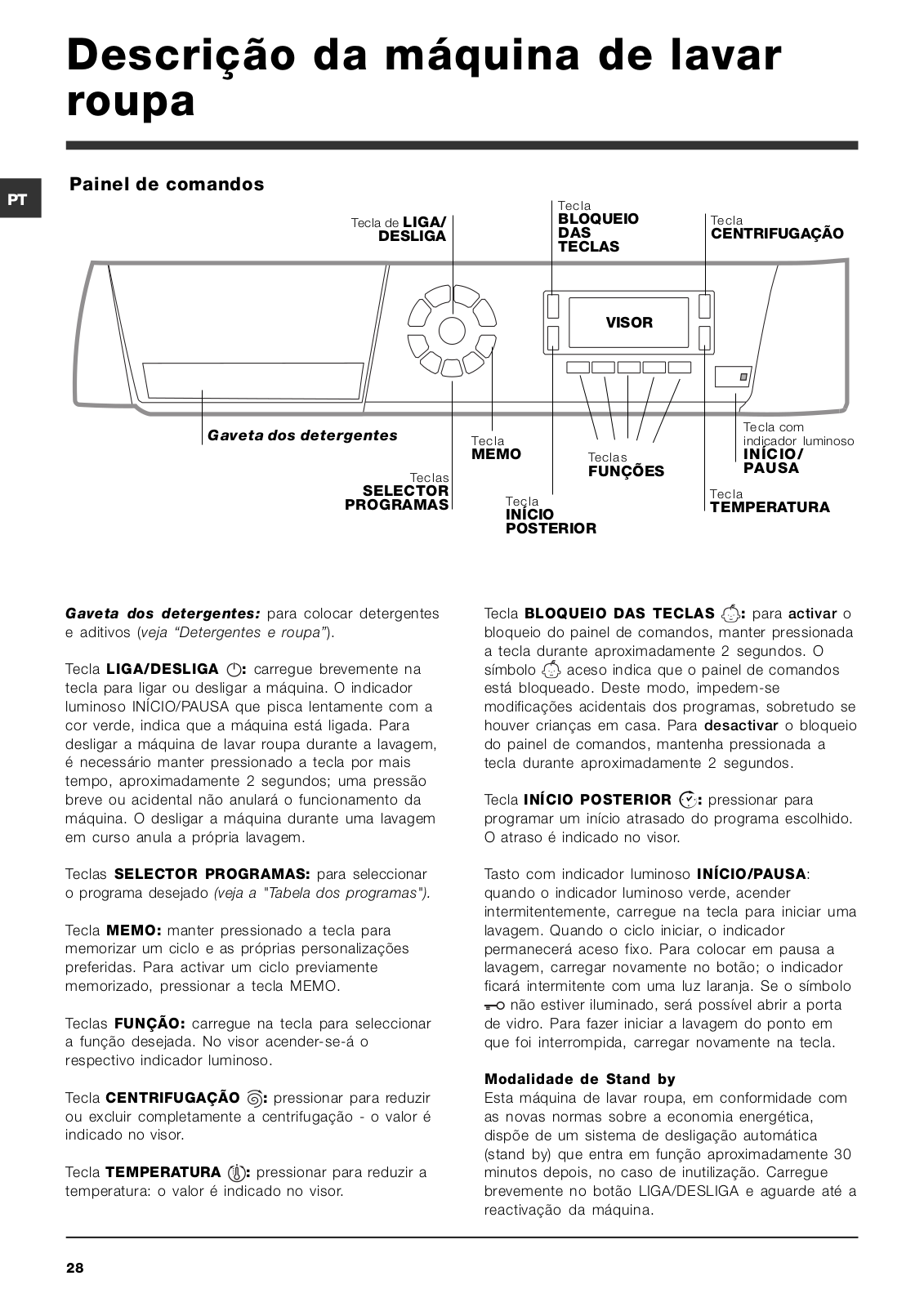

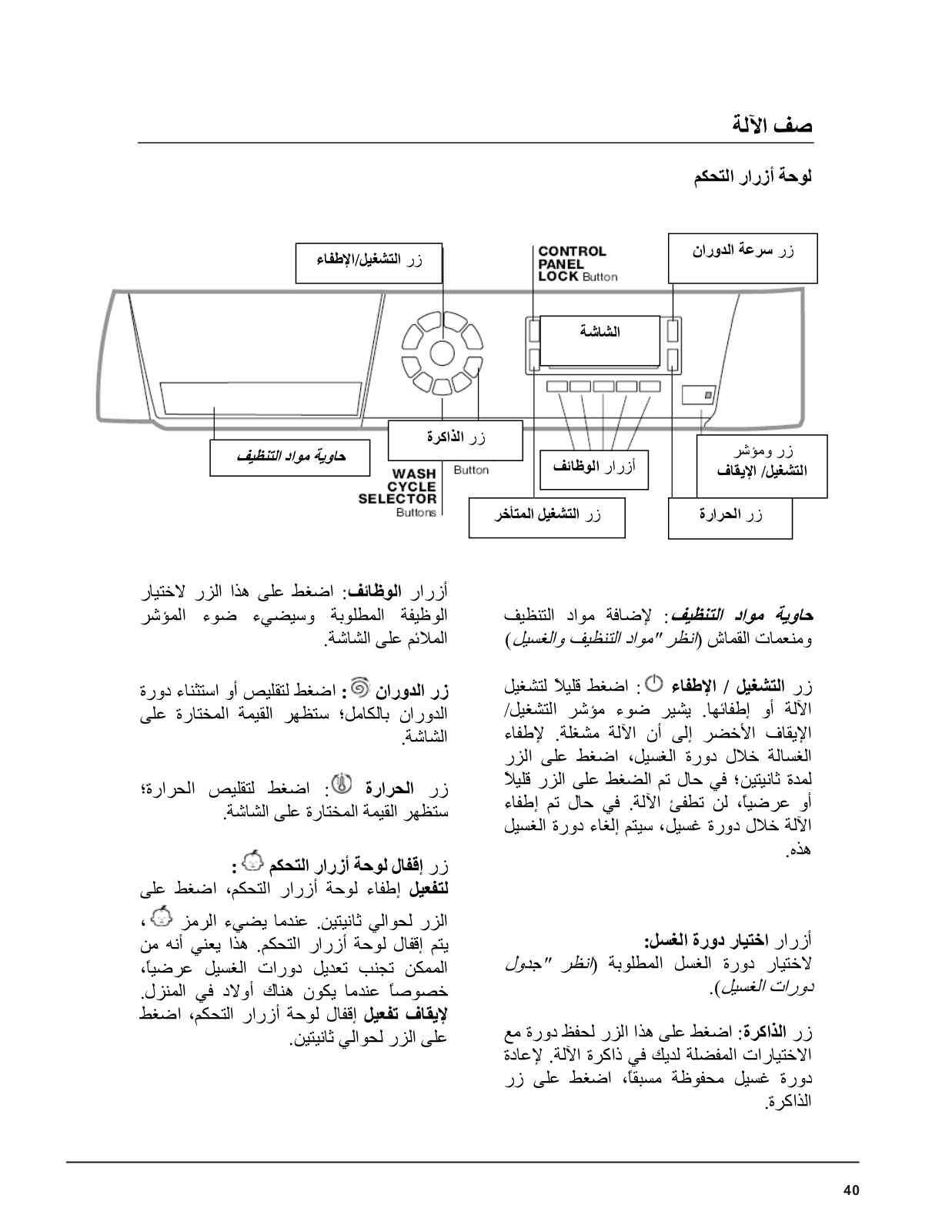

Description of the washing machine

Control panel

GB

ON/OFF			CONTROL	SPIN SPEED
			PANEL
button				Button
			LOCK Button

DISPLAY

								START/
Detergent dispenser
			MEMORY
								PAUSE
drawer
		WASH	Button			FUNCTION
								button with
						buttons
		CYCLE						indicator light
	SELECTOR
					DELAYED
		Buttons						TEMPERATURE
					START Button			Button

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”).

ON/OFF button : press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR buttons: used to set the desired wash cycle (see "Table of wash cycles").

MEMORY button: press and hold the button to store a cycle with your own set of preferences in the memory of the machine. To recall a previously stored cycle, press the MEMO button.

FUNCTION buttons: press the button to select the desired function. The corresponding indicator light on the display will switch on.

SPIN button : press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button : press to decrease the temperature: the value will be shown on the display.

CONTROL PANEL LOCK button : to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

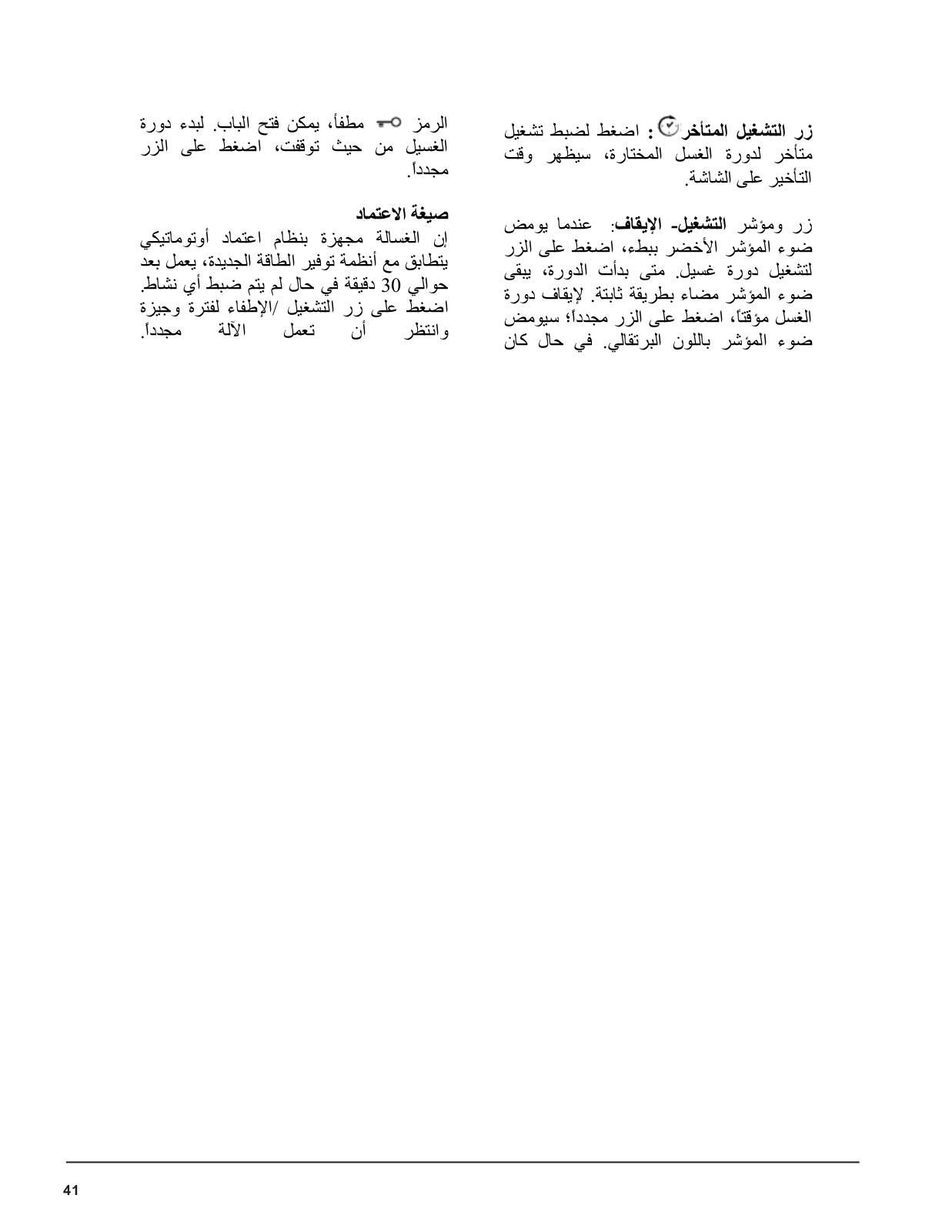

DELAYED START button : press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

4

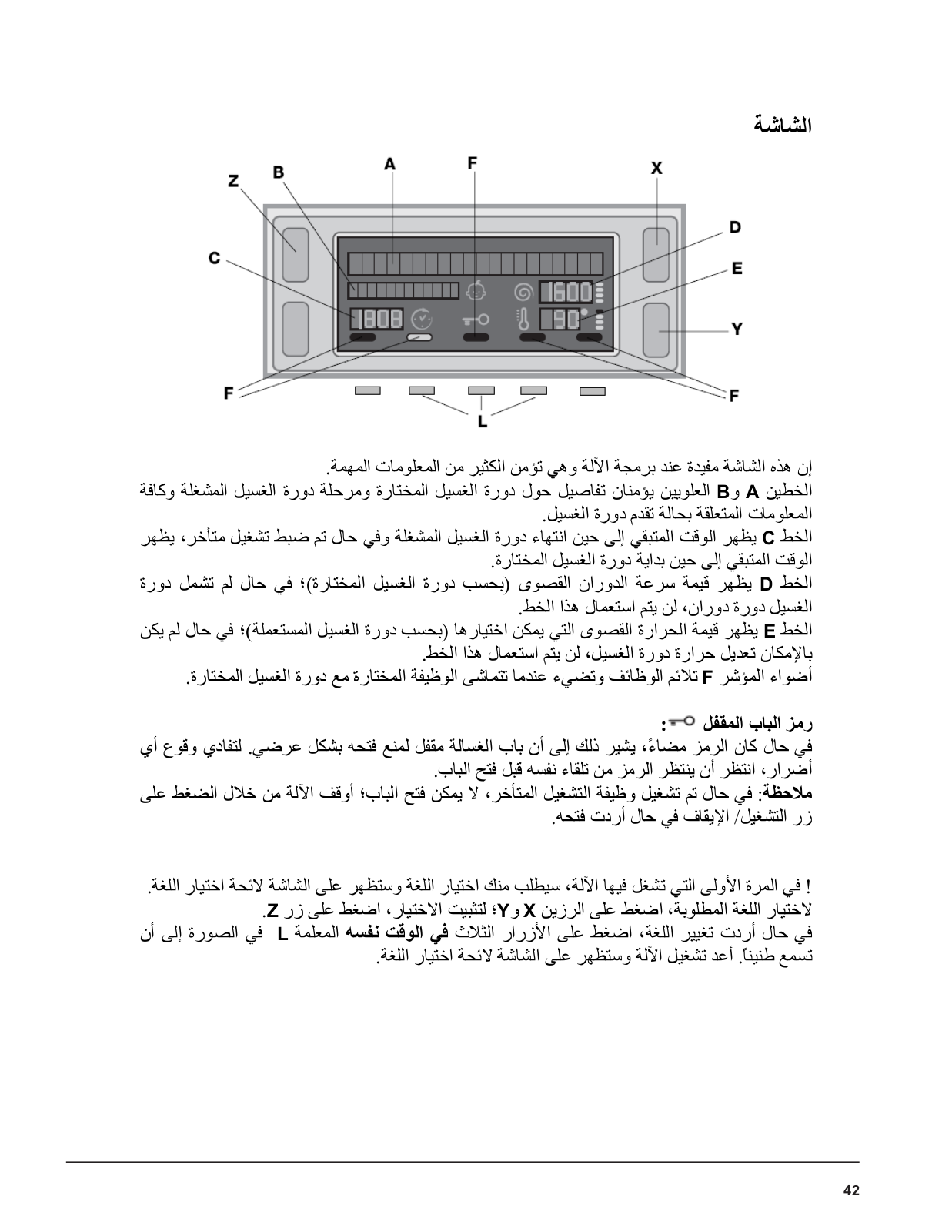

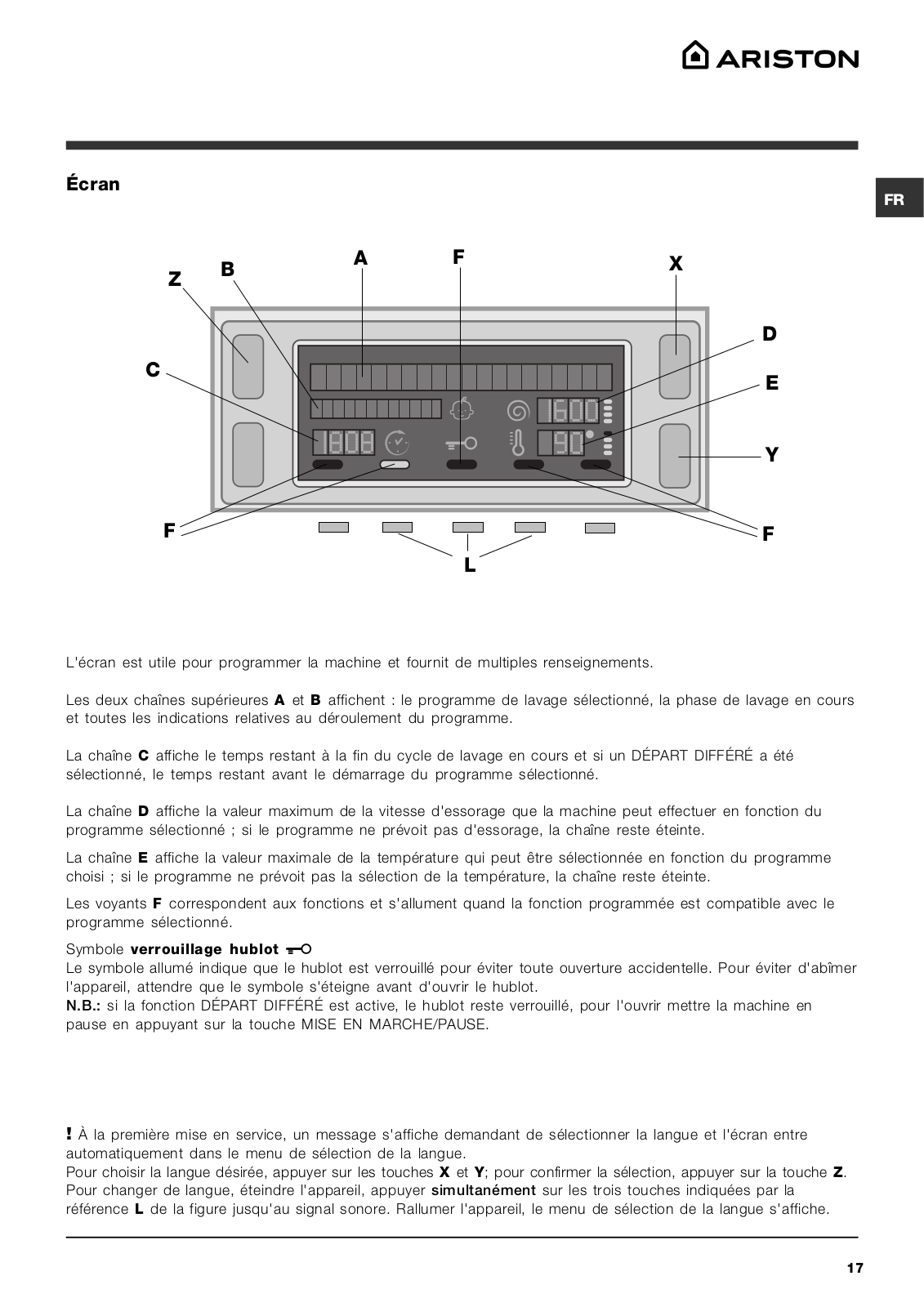

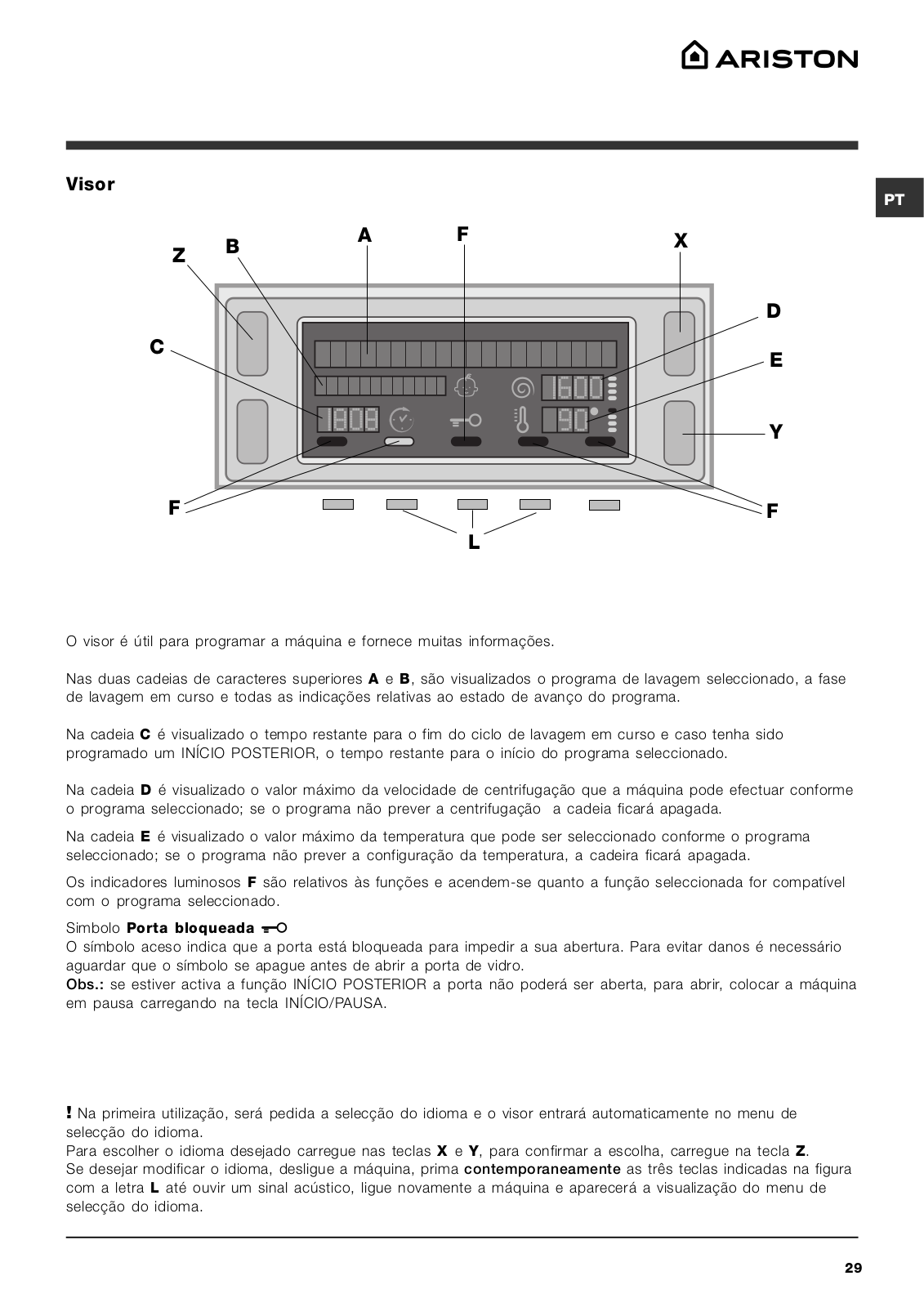

Display

GB

Z B A F X

D

C

E

Y

F

F

L

The display is useful when programming the machine and provides a great deal of information.

The two upper strings A and B provide details of the wash cycle selected, the wash cycle phase in progress and all information relating to the progress status of the wash cycle.

String C shows the time remaining until the end of the wash cycle in progress and, if a DELAYED START has been set, the time remaining until the start of the selected wash cycle.

String D shows the maximum spin speed value (this depends on the selected wash cycle); if the wash cycle does not include a spin cycle, the string remains unused.

String E shows the maximum temperature value which may be selected (this depends on the wash cycle used); if the temperature of the wash cycle cannot be modified, the string remains unused.

Indicator lights F correspond to the functions and light up when the selected function is compatible with the set wash cycle.

Door locked symbol

If the symbol is lit, this indicates that the washing machine door is blocked to prevent it from being opened accidentally. To prevent any damage from occurring, wait for the symbol to switch itself off before opening the appliance door.

N.B.: if the DELAYED START function has been activated, the door cannot be opened; pauses the machine by pressing the START/PAUSE button if you wish to open it.

The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

To select the desired language press the X and Y buttons; to confirm the selection press the Z button.

If you wish to change the selected language, simultaneously press and hold all the three buttons marked with an L in the figure, until you hear a beep. Switch the machine on again; the language selection menu will be displayed.

5

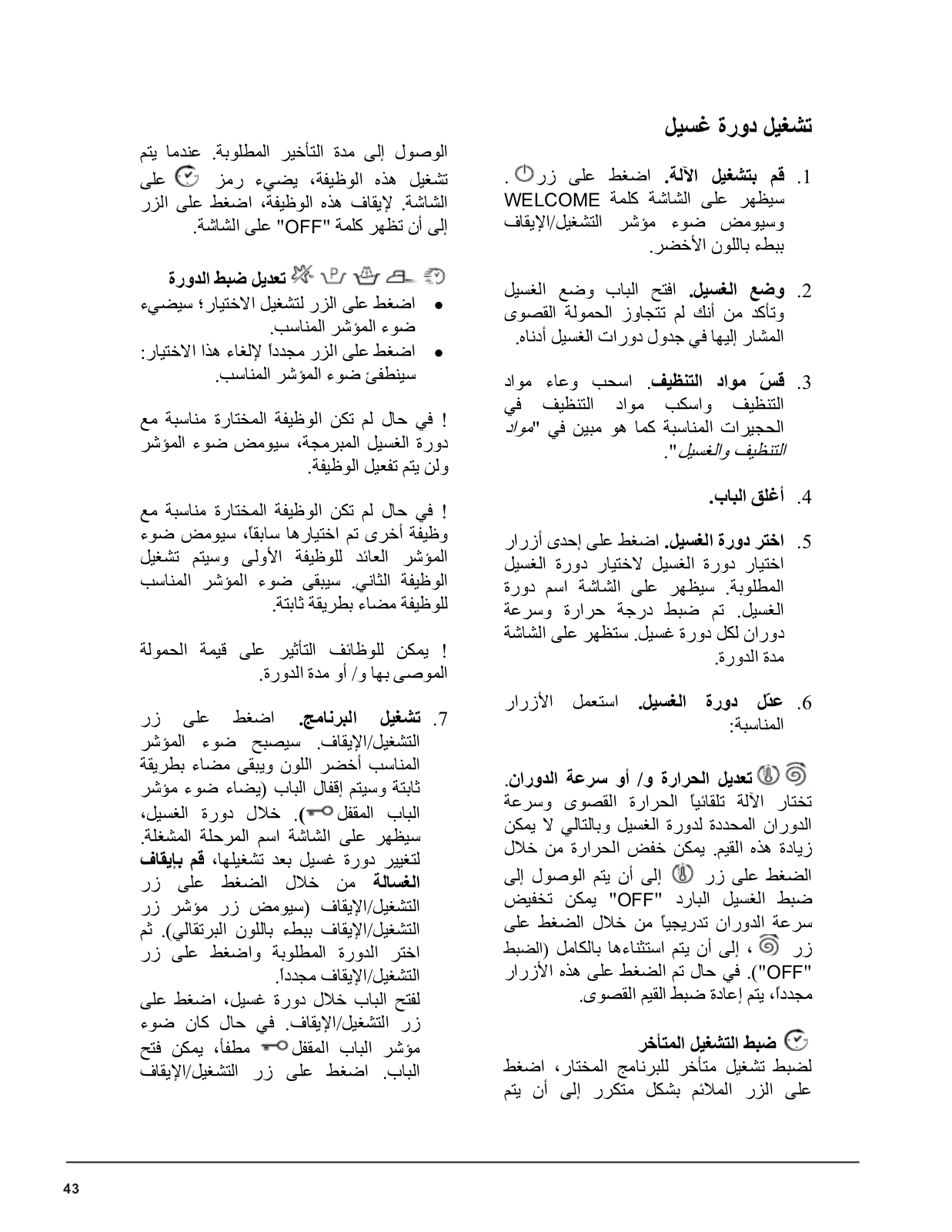

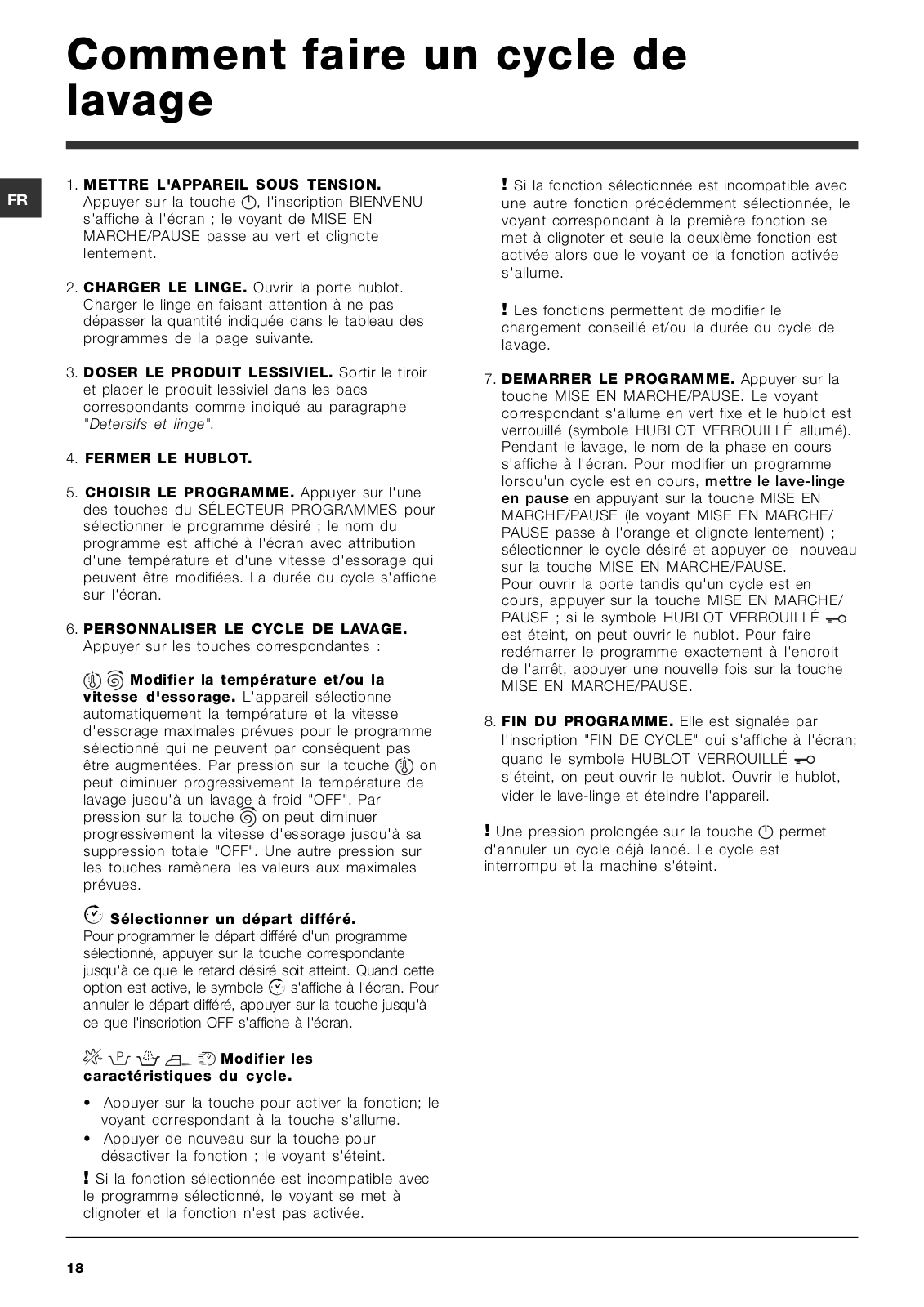

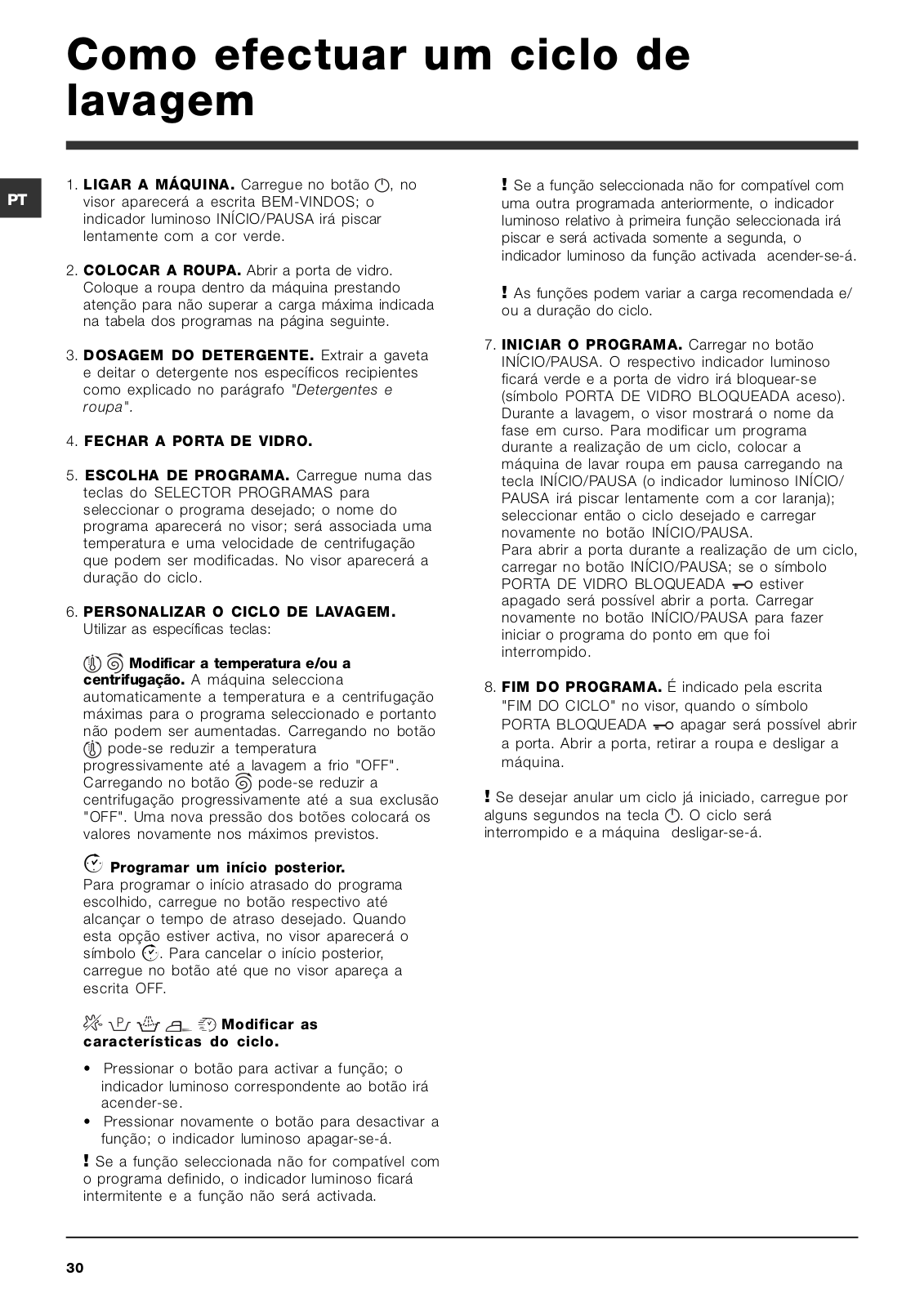

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the

GB button; the text WELCOME will appear on the display and the START/PAUSE indicator light will flash slowly in a green colour.

2.LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.

3.MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in

"Detergents and laundry".

4.CLOSE THE DOOR.

5.SELECT THE WASH CYCLE. Press one of the WASH CYCLE SELECTOR buttons to select the required wash cycle; the name of the wash cycle will appear on the display. A temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.

6.CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically selects the maximum temperature and spin speed set for the selected wash cycle; these values cannot therefore be increased. The temperature can be decreased by pressing the button, until the cold wash "OFF" setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the symbol lights up on the display. To remove the delayed start function press the button until the text "OFF" appears on the display.

Modifying the cycle settings.

•Press the button to enable the function; the indicator light corresponding to the button will switch on.

•Press the button again to disable the function; the indicator light will switch off.

If the selected function is not compatible with the programmed wash cycle, the indicator light will flash and the function will not be activated.

If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled function will remain lit.

The functions may affect the recommended load value and/or the duration of the cycle.

7.START THE PROGRAMME. Press the START/ PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and

the door will be locked (the DOOR LOCKED symbol will be on). During the wash cycle, the name of the phase in progress will appear on the display. To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/ PAUSE button again.

To open the door while a cycle is in progress, press

the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

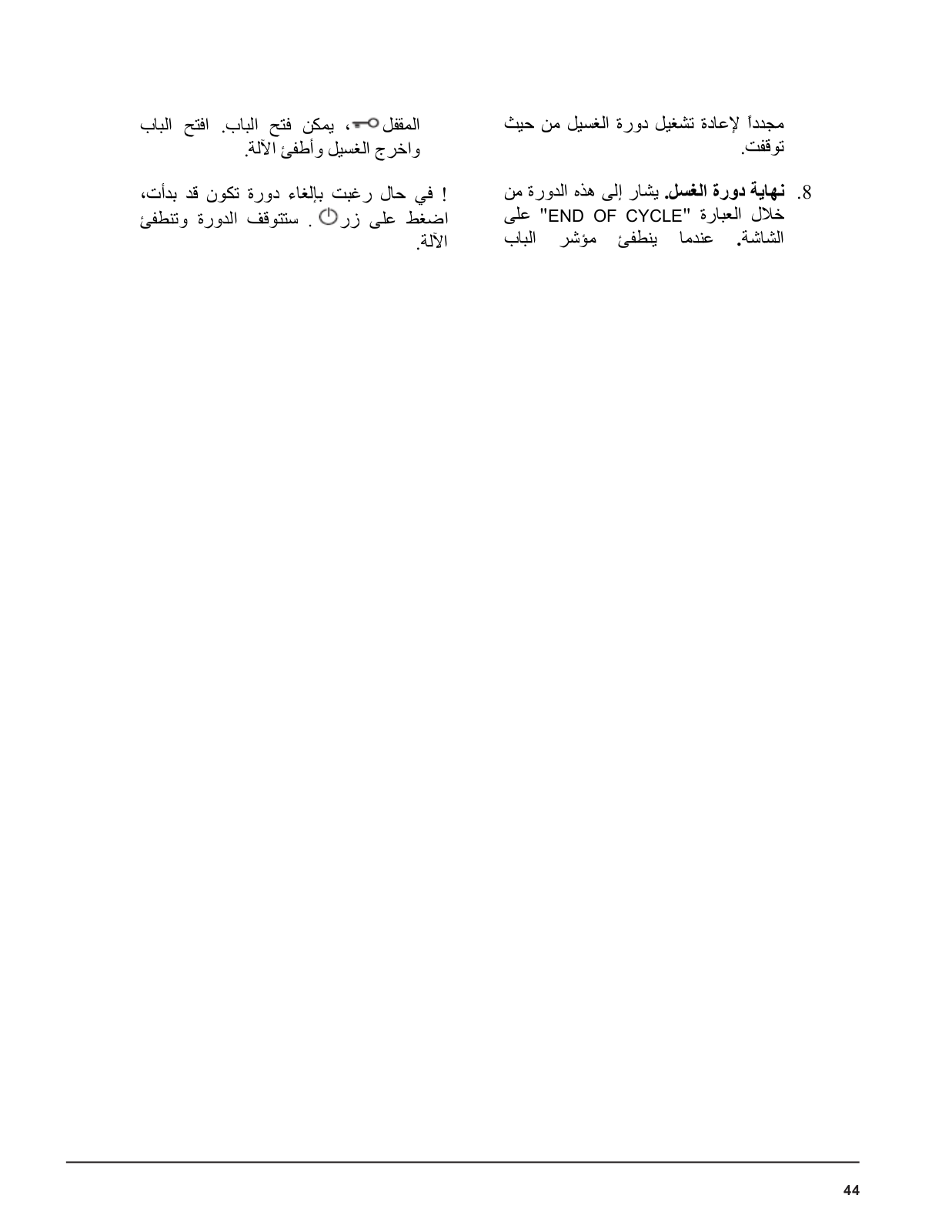

8.THE END OF THE WASH CYCLE. This will be indicated by the text "END OF CYCLE" on the

display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

If you wish to cancel a cycle which has already begun, press and hold the button. The cycle will be stopped and the machine will switch off.

6

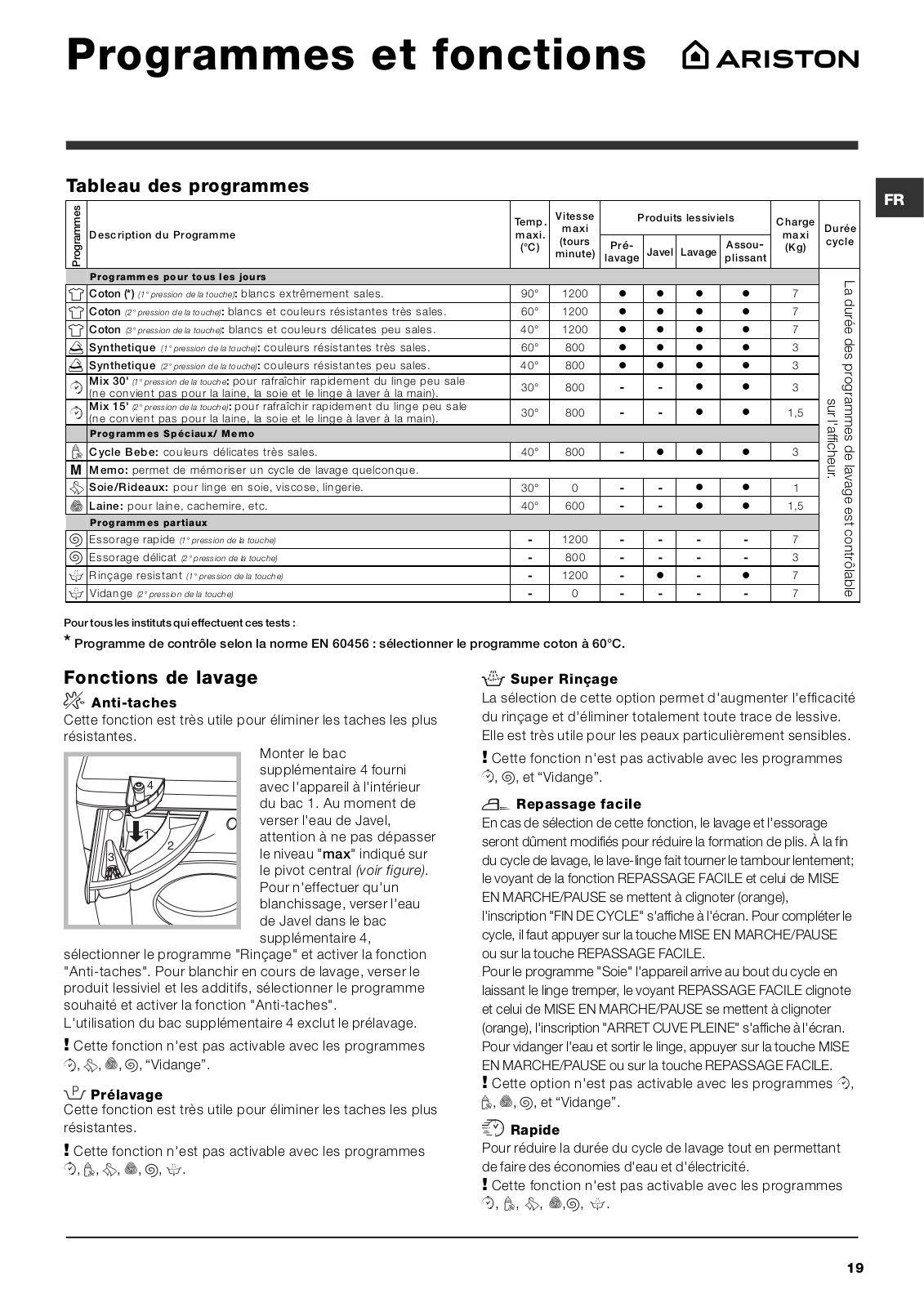

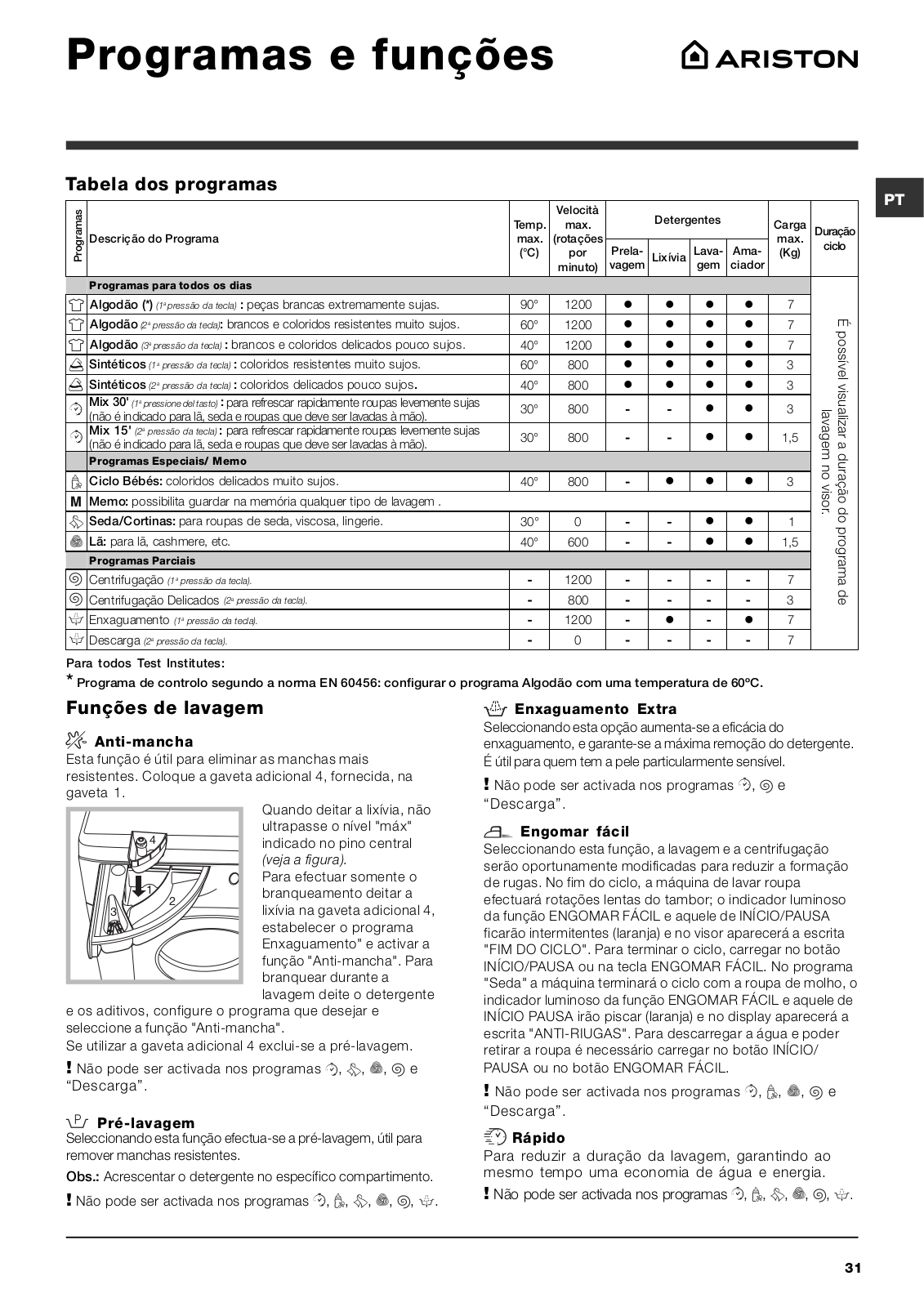

Wash cycles and functions

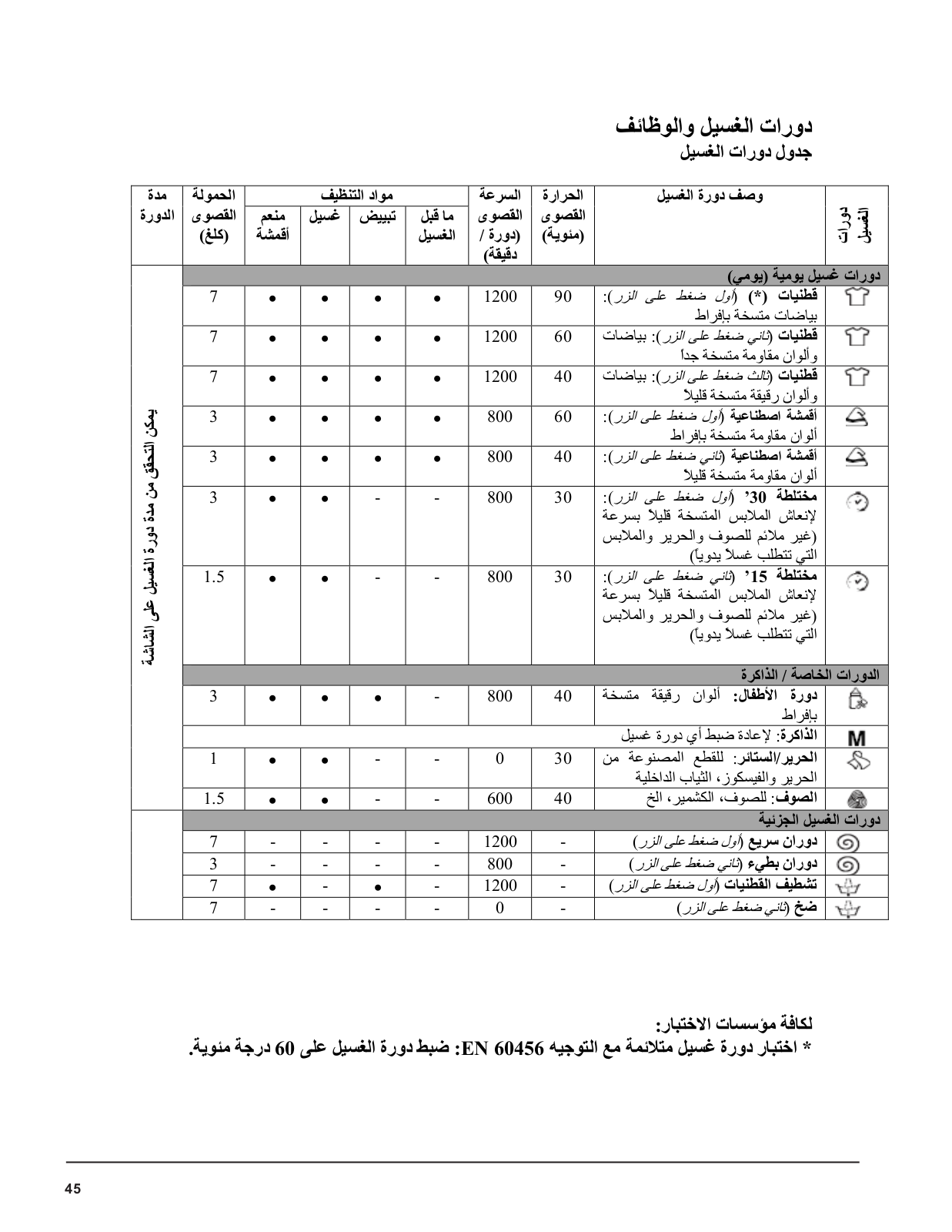

Table of wash cycles

cycles		Max.	Max.		Detergents			Max.
									Cycle
	Description of the wash cycle	temp.	speed					load
Wash		(°C)	(rpm)				Fabric	(kg)	duration
				Prewash	Bleach	Wash
							softener
	Everyday wash cycles (Daily)
	Cotton (*) (1st press of th e bu tton): extremely soiled whites.	90°	1200	l	l	l	l	7		The
	Cotton (2nd press of the button): heavily soiled whites and resistant colours.	60°	1200	l	l	l	l	7
	Synthetics (2nd press of the button): lightly soiled resistant colours.	40°	800	l	l	l	l	3		duration
	Cotton (3rd press of the button): lightly soiled whites and delicate colours.	40°	1200	l	l	l	l	7
	Synthetics (1st press of the button): heavily soiled resistant colours.	60°	800	l	l	l	l	3
										of
	Mix 30' (1st press of th e bu tton): to refresh lightly soiled garments quickly (not	30°	800			l	l	3
	suitable for wool, silk and clothes which require washing by hand).			-	-					the
									on
	Mix 15' (2nd press of the button) : to refresh lightly soiled garments quickly (not	30°	800			l	l	1,5
	suitable for wool, silk and clothes which require washing by hand).			-	-				.displaythe	cycleswash
	Special cycles / Memory
	Baby cycle: heavily soiled delicate colours.	40°	800	-	l	l	l	3
M	Memory: allows for any wash cycle to be stored.
										can
	Silk/Curtains: for garments in silk and viscose, lingerie.	30°	0	-	-	l	l	1
	Wool: for wool, cashmere, etc.	40°	600	-	-	l	l	1,5		be
	Partial wash cycles
										checked
	Fast Spin (1st press of th e bu tton)	-	1200	-	-	-	-	7
	Slow spin (2nd press of th e bu tton)	-	800	-	-	-	-	3
	Rinse cottons (1st press of th e bu tton)	-	1200	-	l	-	l	7
	Pump out (2nd press of th e bu tton)	-	0	-	-	-	-	7

For all Test Institutes:

* Test wash cycle in compliance with regulation EN 60456: set wash cycle with a temperature of 60°C.

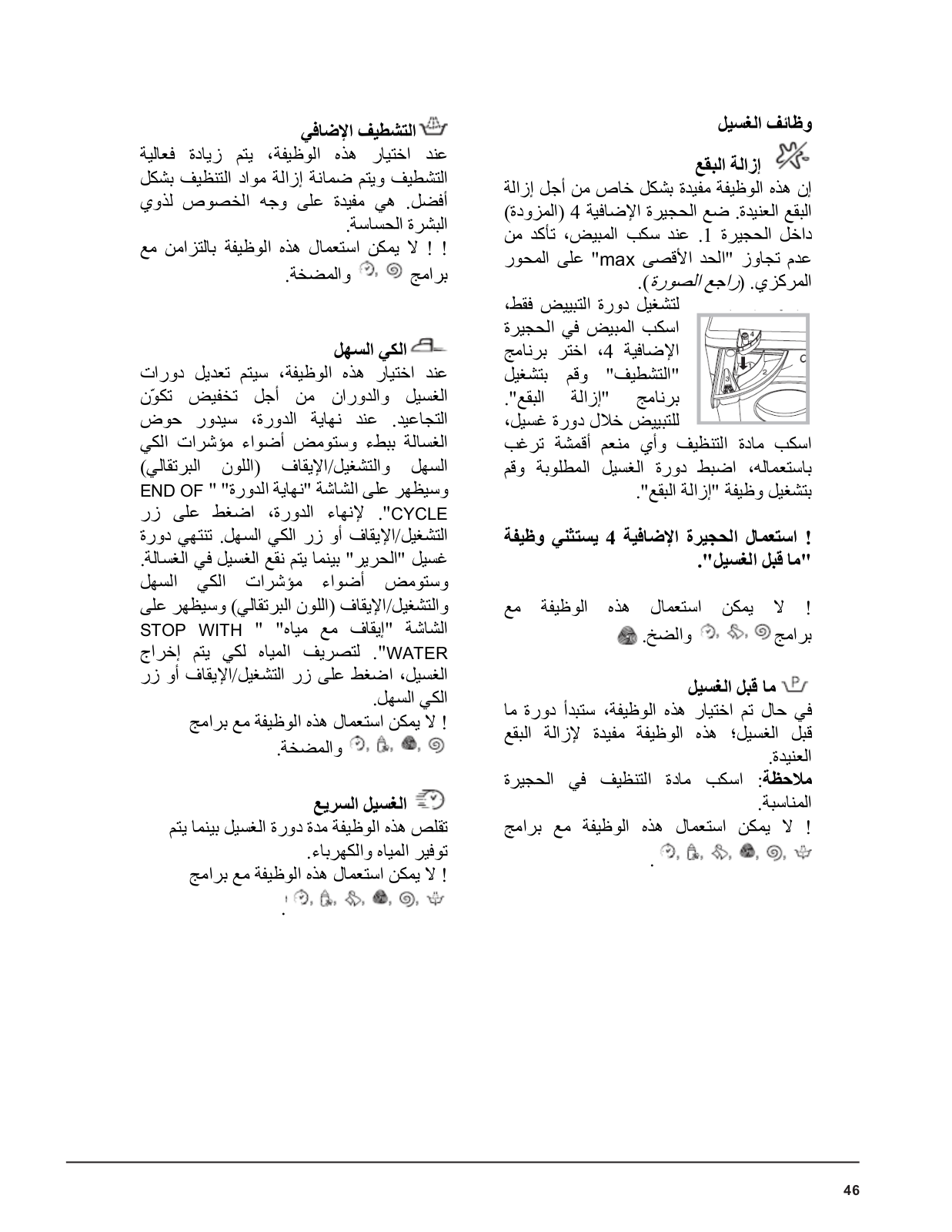

Wash functions

Stain removal

This function is particularly useful for the removal of stubborn stains. Place extra compartment 4 (supplied) into compartment 1. When pouring in the bleach, be careful not to exceed the "max" level marked on the central pivot (see figure).

		To run the bleach cycle on
	MAX 4	its own, pour the bleach
		into extra compartment 4,
		set the "Rinse"
	1	programme and activate
		the "Stain removal"
	2
	3	programme. To bleach
		during a wash cycle, pour
		in the detergent and any
		fabric softener you wish to
		use, set the desired wash
	cycle and enable the "Stain removal" function.
	The use of extra compartment 4 excludes the
	“Pre-wash” function.

It cannot be used with the , , , and “Pump out” programmes.

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

It cannot be used with the , , , , , programmes.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

It cannot be used in conjunction with the , and “Pump out” programmes.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the text "END OF CYCLE" will appear on the display. To end the cycle, press the START/PAUSE button or the EASY IRON button.

The "silk" wash cycle ends with the laundry being left to soak in the machine; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the text "STOP WITH WATER" will appear on the display. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

It may not be used with the , , , and “Pump out” programmes.

Fast wash

Reduces the duration of the wash cycle, while making it possible to save water and electricity.

It cannot be used with the , , , , , programmes.

GB

7

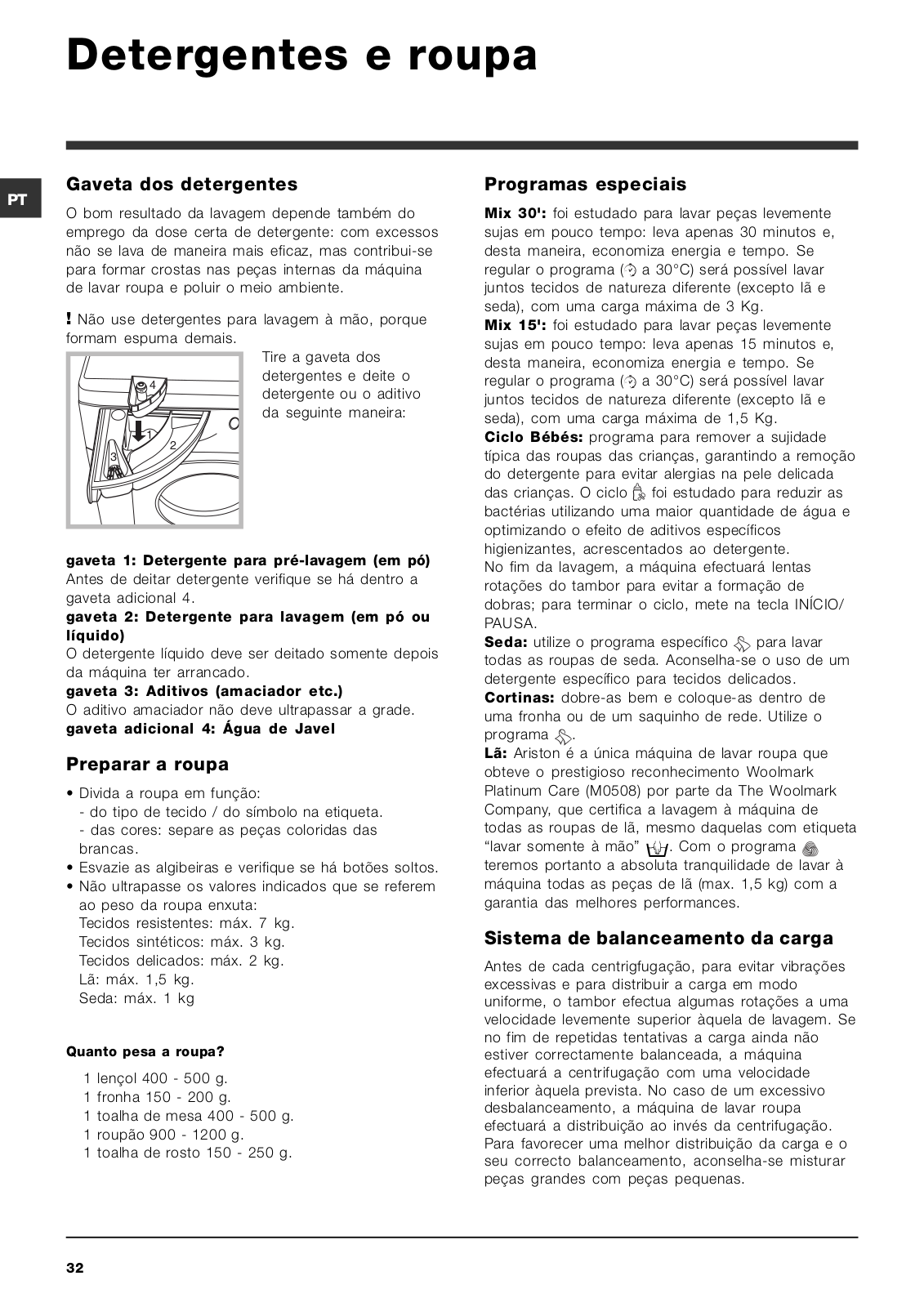

Detergents and laundry

Detergent dispenser drawer

GB

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

Do not use hand washing detergents because these create too much foam.

MAX	4
	1
3	2

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid. extra compartment 4: Bleach

Preparing the laundry

•Divide the laundry according to:

-the type of fabric/the symbol on the label

-the colours: separate coloured garments from whites.

•Empty all garment pockets and check the buttons.

•Do not exceed the listed values, which refer to the weight of the laundry when dry:

Durable fabrics: max. 7 kg Synthetic fabrics: max. 3 kg Delicate fabrics: max. 2 kg Wool: max. 1,5 kg

Silk: max. 1 kg

How much does your laundry weigh?

1sheet 400-500 g

1pillow case 150-200 g

1tablecloth 400-500 g

1bathrobe 900-1200 g

1towel 150-250 g

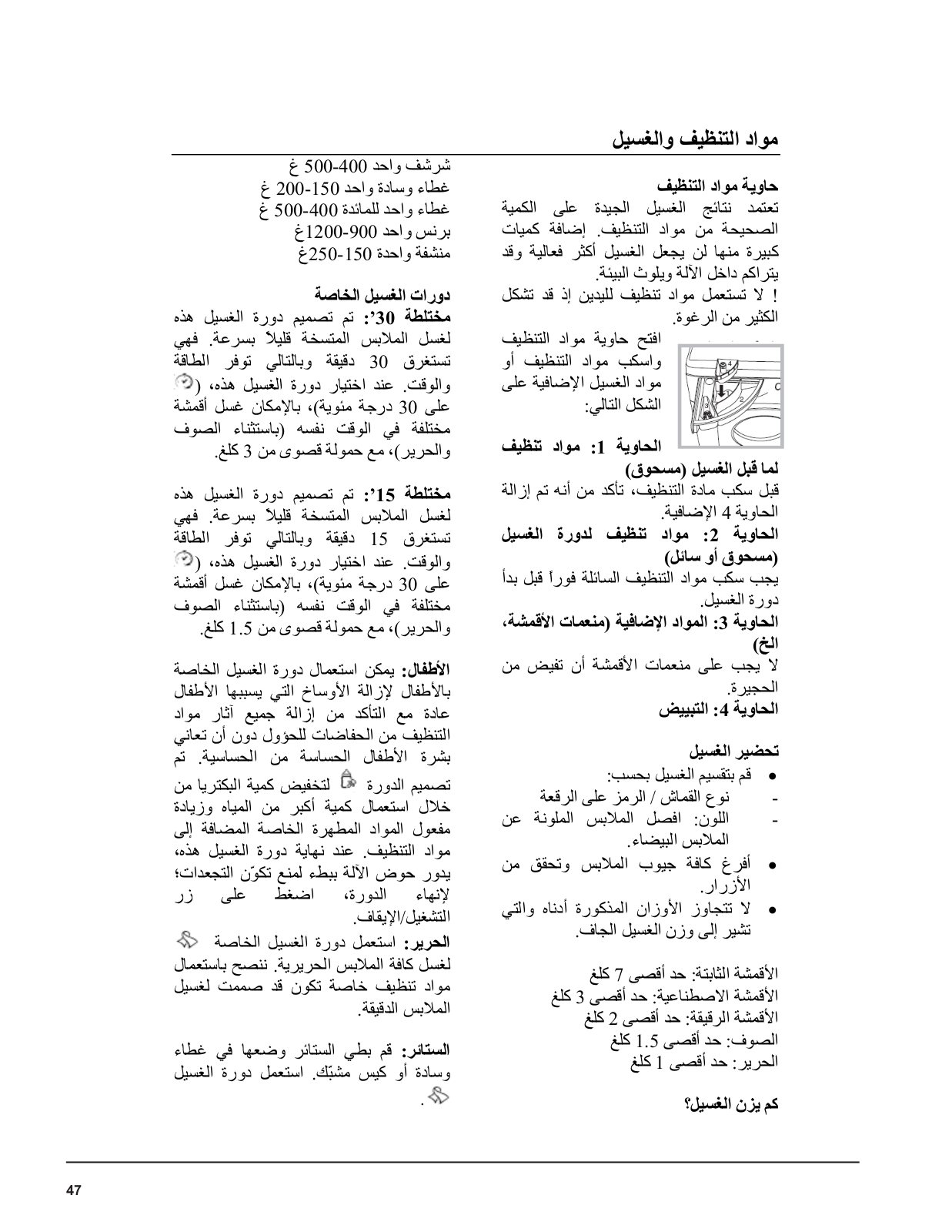

Special wash cycles

Mix 30’: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle ( at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg.

Mix 15’: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle ( at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Baby cycle: this wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press the START/PAUSE button.

Silk: use special wash cycle to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle .

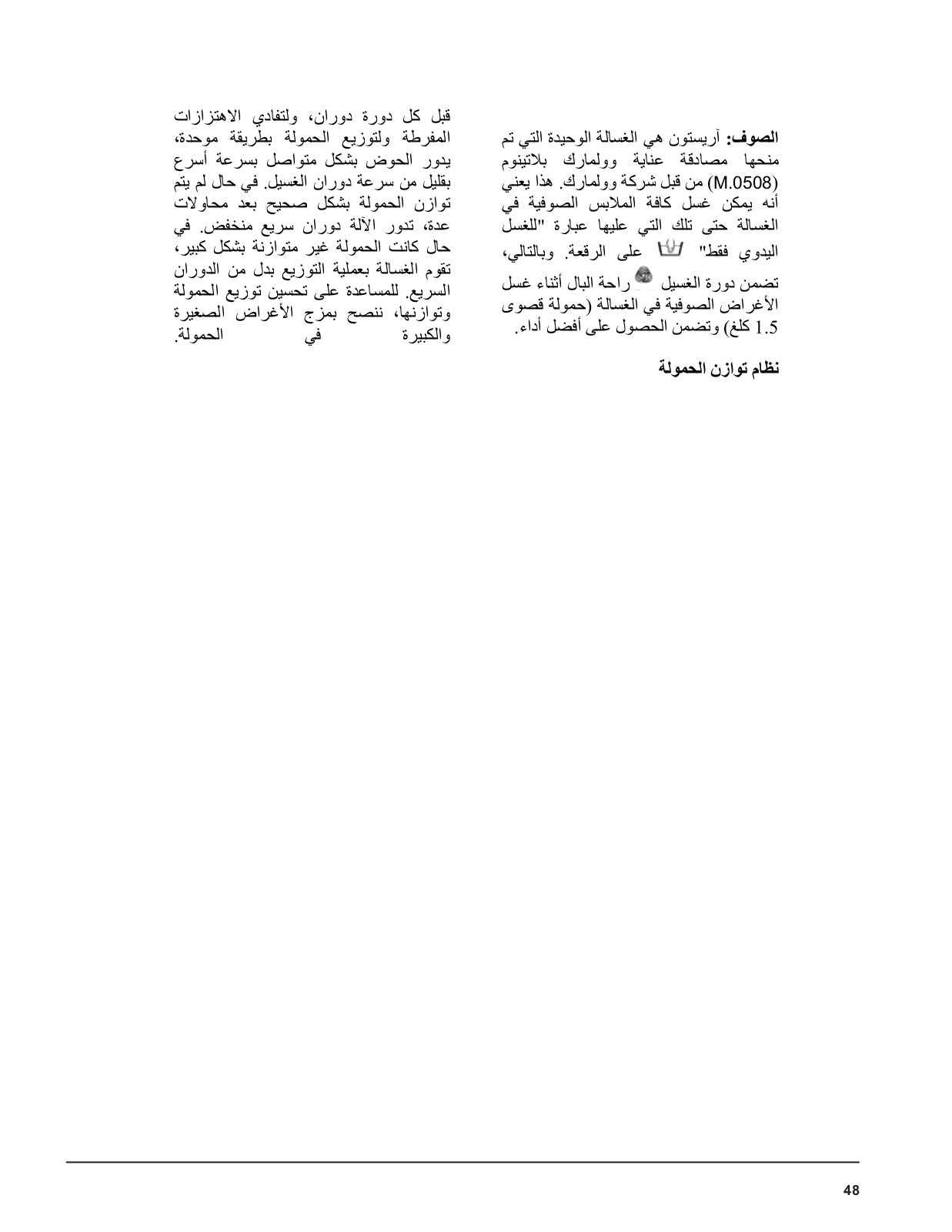

Wool: Ariston is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state “hand wash only”

on the label. Wash cycle therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1,5 kg) and guarantees optimal performance.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

8

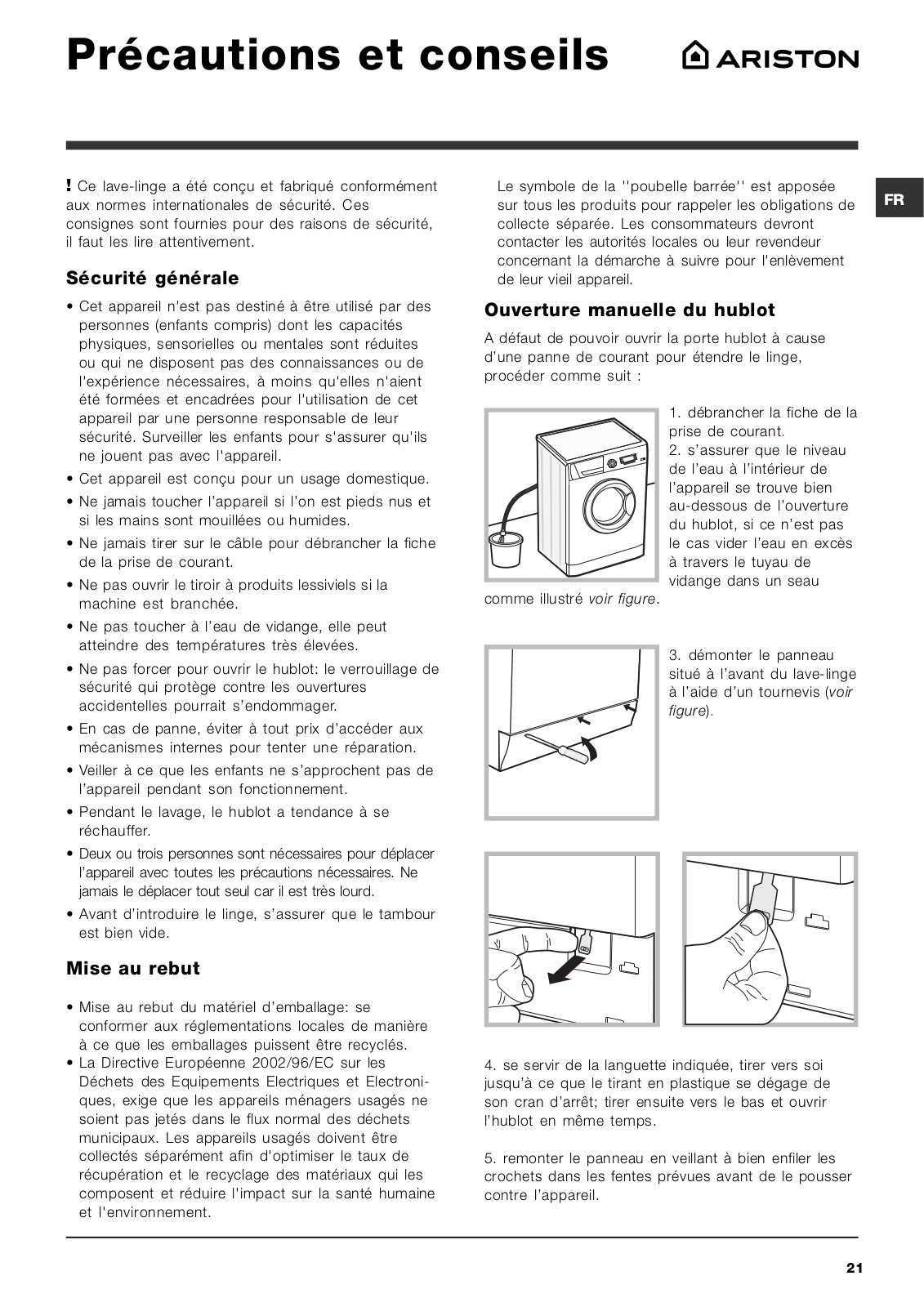

Precautions and tips

This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

•This appliance was designed for domestic use only.

•Do not touch the machine when barefoot or with wet or damp hands or feet.

•Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

•Do not open the detergent dispenser drawer while the machine is in operation.

•Do not touch the drained water as it may reach extremely high temperatures.

•Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.

•If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.

•Always keep children well away from the appliance while it is operating.

•The door can become quite hot during the wash cycle.

•If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

•Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

•Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.

•The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when GB you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

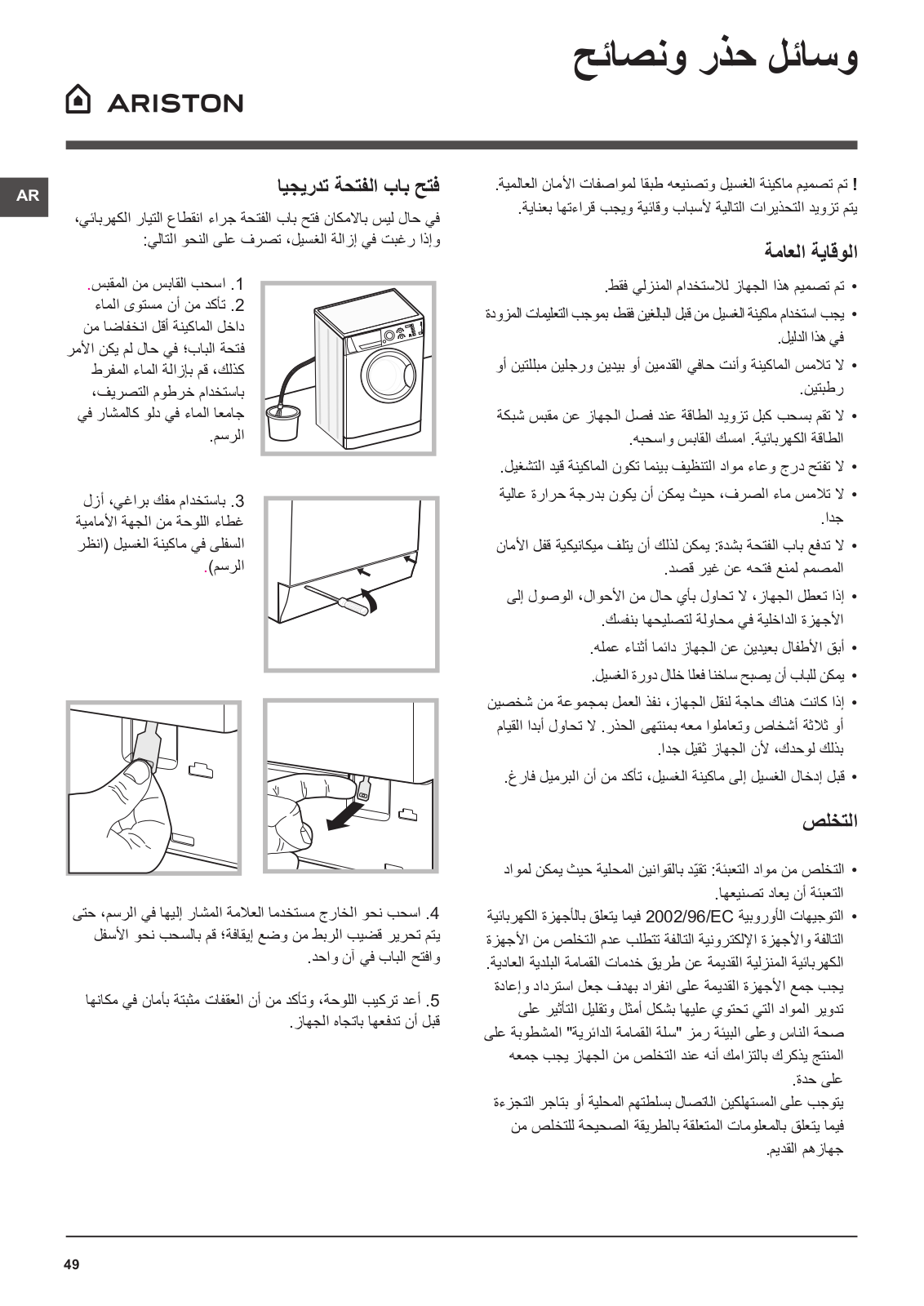

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

2. make sure the water

level inside the machine is

lower than the door 20 opening; if it is not, remove

excess water using the drain hose, collecting it in a

bucket as indicated in the figure.

3. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

4.pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

5.reposition the panel, making sure the hooks are securely in place before you push it onto the

appliance.

9

Care and maintenance

Cutting off the water and electricity GB supplies

•Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.

•Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

1

2

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

•Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

3.clean the inside thoroughly;

4.screw the lid back on;

5.reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Never use second-hand hoses.

10

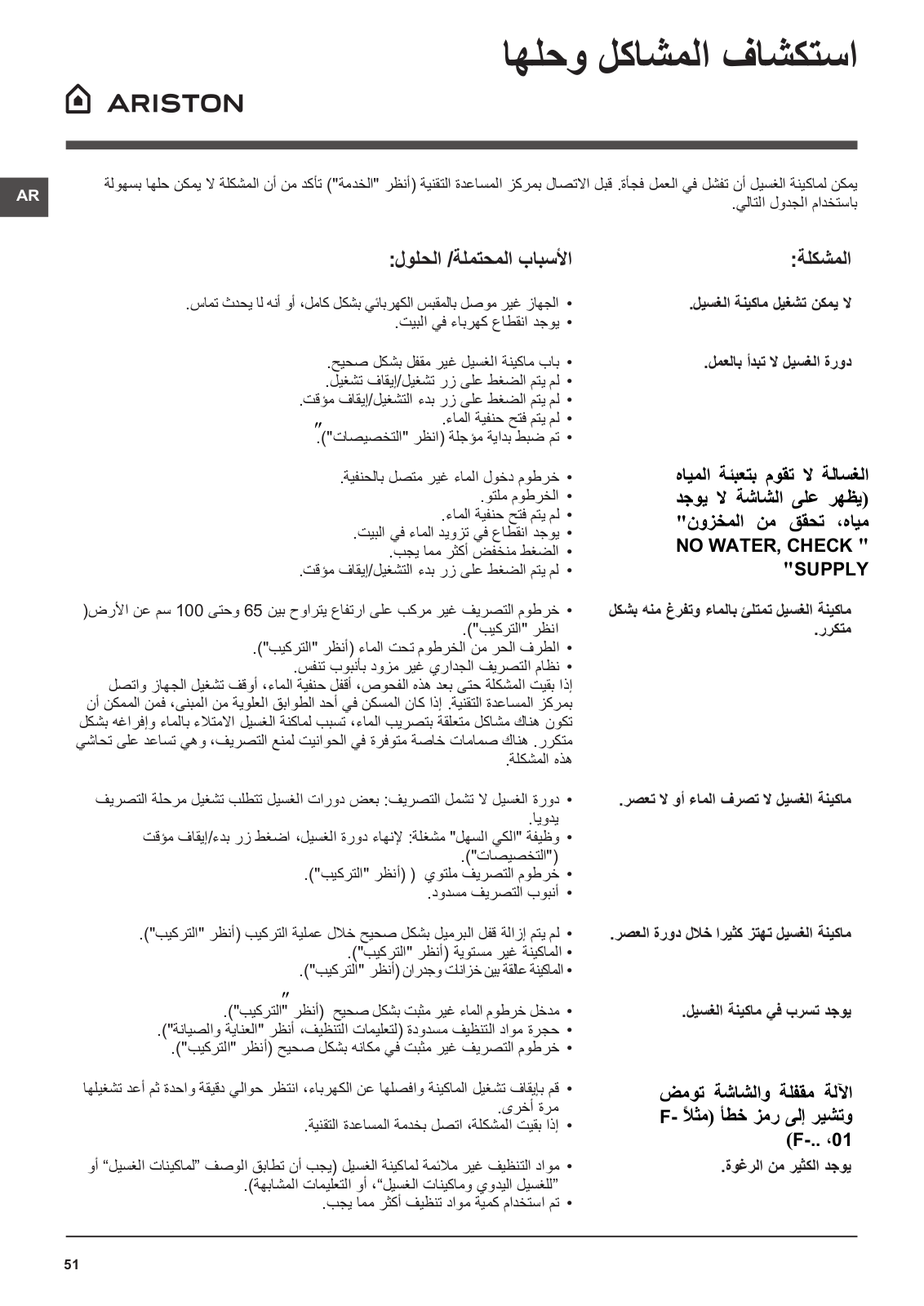

Troubleshooting

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”),

make sure that the problem cannot be not solved easily using the following list.		GB
Problem:	Possible causes / Solutions:

The washing machine does not switch on.

The wash cycle does not start.

•The appliance is not plugged into the socket fully, or is not making contact.

•There is no power in the house.

•The washing machine door is not closed properly.

•The ON/OFF button has not been pressed.

•The START/PAUSE button has not been pressed.

•The water tap has not been opened.

•A delayed start has been set (see “Running a wash cycle”).

The washing machine does not take in water (the text "NO WATER, CHECK SUPPLY" appears on the display).

•The water inlet hose is not connected to the tap.

•The hose is bent.

•The water tap has not been opened.

•There is no water supply in the house.

•The pressure is too low.

•The START/PAUSE button has not been pressed.

The washing machine continuously takes in and drains water.

•The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).

•The free end of the hose is under water (see “Installation”).

•The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The washing machine does not drain or spin.

•The wash cycle does not include draining: some wash cycles require the drain phase to be started manually (see “Wash cycles and functions”).

•The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (see “Wash cycles and functions”).

•The drain hose is bent (see “Installation”).

•The drainage duct is clogged.

The washing machine vibrates a • The drum was not unlocked correctly during installation (see “Installation”). lot during the spin cycle. • The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

The washing machine leaks. • The water inlet hose is not screwed on properly (see “Installation”).

•The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).

•The drain hose is not fixed properly (see “Installation”).

The machine is locked and the display flashes, indicating an error code (e.g. F-01, F-..).

There is too much foam.

•Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

•The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).

•Too much detergent was used.

11

Service

Before calling for Assistance:

GB	• Check whether you can solve the problem alone (see “Troubleshooting”);
	• Restart the programme to check whether the problem has been solved;
	• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number
	provided on the guarantee certificate.
	Always request the assistance of authorised technicians.

Have the following information to hand:

•the type of problem;

•the appliance model (Mod.);

•the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

12

Mode d’emploi

LAVE-LINGE

						Sommaire
								FR
						Installation, 14-15
	FR
						Déballage et mise à niveau
						Raccordements eau et électricité
	Français
						Premier cycle de lavage
						Caractéristiques techniques
						Description du lave-linge, 16-17
						Bandeau de commandes
						Écran
						Comment faire un cycle de lavage, 18
						Programmes et fonctions, 19
						Tableau des programmes
						Fonctions de lavage

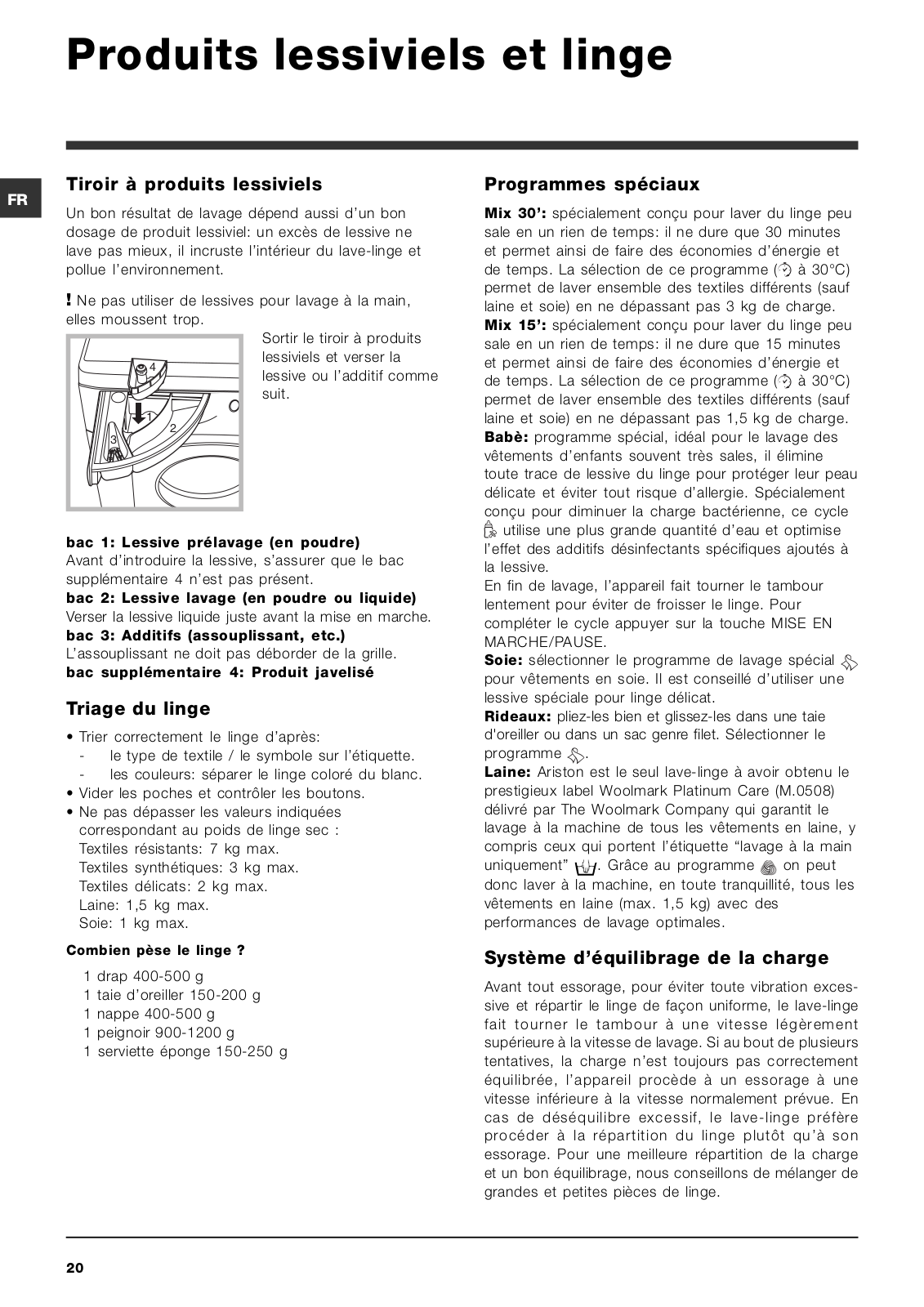

	AR7D 125					Produits lessiviels et linge, 20
						Tiroir à produits lessiviels
						Triage du linge
						Programmes spéciaux
						Système d’équilibrage de la charge
						Précautions et conseils, 21
						Sécurité générale
						Mise au rebut
						Ouverture manuelle de la porte hublot
						Entretien et soin, 22
						Coupure de l’arrivée d’eau et du courant
						Nettoyage du lave-linge
						Nettoyage du tiroir à produits lessiviels.
						Entretien du hublot et du tambour
						Nettoyage de la pompe
						Contrôle du tuyau d’arrivée de l’eau
						Anomalies et remèdes, 23
						Assistance, 24

13

Installation

Conserver ce mode d’emploi pour pouvoir le FR consulter à tout moment. En cas de vente, de

cession ou de déménagement, veiller à ce qu’il suive toujours le lave-linge pour que son nouveau propriétaire soit informé sur son mode de fonctionnement et puisse profiter des conseils correspondants.

Lire attentivement les instructions: elles fournissent des conseils importants sur l’installation, l’utilisation et la sécurité de l’appareil.

Déballage et mise à niveau

Déballage

1.Déballer le lave-linge.

2.Contrôler que le lave-linge n’a pas été endommagé pendant le transport. S’il est abîmé, ne pas le raccorder et contacter le vendeur.

3. Enlever les 4 vis de protection servant au transport, le caoutchouc et la cale, placés dans la partie arrière (voir figure).

4.Boucher les trous à l’aide des bouchons plastique fournis.

5.Conserver toutes ces pièces: il faudra les remonter en cas de transport du lave-linge.

Les pièces d’emballage ne sont pas des jouets pour enfants.

Mise à niveau

1. Installer le lave-linge sur un sol plat et rigide, sans l’appuyer contre des murs, des meubles ou autre.

2. Si le sol n’est pas parfaitement horizontal, visser ou dévisser les pieds de réglage avant

(voir figure) pour niveler l’appareil; son angle d’inclinaison, mesuré sur le plan de travail, ne doit pas dépasser 2°.

Une bonne mise à niveau garantit la stabilité de l’appareil et évite qu’il y ait des vibrations, du bruit et des déplacements en cours de fonctionnement. Si la machine est posée sur de la moquette ou un tapis, régler les pieds de manière à ce qu’il y ait suffisamment d’espace pour assurer une bonne ventilation.

Raccordements eau et électricité

Raccordement du tuyau d’arrivée de l’eau

1. Reliez le tuyau d'alimentation en le vissant à un robinet d'eau froide à embout fileté 3/4

gaz (voir figure).

Faire couler l’eau jusqu’à ce qu’elle soit limpide et sans impuretés avant de raccorder.

2. Raccorder le tuyau d’arrivée de l’eau au lave-linge en le vissant à la prise d’eau prévue, dans la partie arrière en haut à droite (voir figure).

3. Attention à ce que le tuyau ne soit pas plié ou écrasé.

La pression de l’eau doit être comprise entre les valeurs indiquées dans le tableau des Caractéristiques techniques (voir page ci-contre).

Si la longueur du tuyau d’alimentation ne suffit pas, s’adresser à un magasin spécialisé ou à un technicien agréé.

N’utiliser que des tuyaux neufs.

Utiliser ceux qui sont fournis avec l’appareil.

14

Raccordement du tuyau de vidange

65 - 100 cm

Raccorder le tuyau d’évacuation, sans le plier, à un conduit d’évacuation ou à une évacuation murale placés à une distance du sol comprise entre 65 et 100 cm;

ou bien l’accrocher à un évier ou à une baignoire, dans ce cas, fixer le support en plastique fourni avec l’appareil au robinet (voir figure). L’extrémité libre du tuyau d’évacuation ne doit pas être plongée dans l’eau.

L’utilisation d’un tuyau de rallonge est absolument déconseillée mais si on ne peut faire autrement, il faut absolument qu’il ait le même diamètre que le tuyau original et sa longueur ne doit pas dépasser 150 cm.

Branchement électrique

Avant de brancher la fiche dans la prise de courant, s’assurer que:

•la prise est bien reliée à la terre et est conforme aux réglementations en vigueur;

•la prise est bien apte à supporter la puissance maximale de l’appareil indiquée dans le tableau des Caractéristiques techniques (voir ci-contre);

•la tension d’alimentation est bien comprise entre les valeurs figurant dans le tableau des Caractéristiques techniques (voir ci-contre);

•la prise est bien compatible avec la fiche du lavelinge. Autrement, remplacer la prise ou la fiche.

Le lave-linge ne doit pas être installé dehors, même à l’abri, car il est très dangereux de le laisser exposé à la pluie et aux orages.

Après installation du lave-linge, la prise de courant doit être facilement accessible.

N’utiliser ni rallonges ni prises multiples.

FR

Le câble ne doit être ni plié ni trop écrasé.

Le câble d’alimentation ne doit être remplacé que par des techniciens agréés.

Attention! Nous déclinons toute responsabilité en cas de non-respect des normes énumérées ci-dessus.

Premier cycle de lavage

Avant la première mise en service de l’appareil, effectuer un cycle de lavage avec un produit lessiviel mais sans linge et sélectionner le programme .

Caractéristiques techniques

	Modèle	AR7D 125
		largeur 59,5 cm
	Dimensions	hauteur 85 cm
		profondeur 53,5 cm
	Capacité	de 1 à 7 kg
	Raccordements	Voir la plaque signalétique appliquée
	électriques	sur la machine
	Raccordements	pression maximale 1 MPa (10 bar)
		pression minimale 0,05 MPa (0,5 bar)
	hydrauliques
		capacité du tambour 52 litres
	Vitesse	jusqu'à 1200 tours minute
	d'essorage
	Programmes de	programme	(1° pression de la
	contrôle selon la	touche); température 60°C;
	norme EN 60456	effectué avec une charge de 7 kg.

Cet appareil est conforme aux

Directives Communautaires suivantes:

-2004/108/CE (Compatibilité électromagnétique)

-2002/96/CE

- 2006/95/CE (Basse Tension)

15

Description du lave-linge

Bandeau de commandes

FR

Touche			Touche		Touche
MARCHE/ARRÊT			VERROUILLAGE		ESSORAGE
			TOUCHES

Écran

Tiroir à produits lessiviels

Touches

SÉLECTEUR

PROGRAMMES

Tiroir à produits lessiviels: pour charger les produits lessiviels et les additifs (voir “Produits lessiviels

et linge”).

Tasto MARCHE/ARRÊT : appuyer brièvement sur la touche pour allumer ou éteindre l'appareil. Le voyant vert MISE EN MARCHE/PAUSE clignotant lentement indique que la machine est allumée. Pour éteindre le lave-linge en cours de lavage, appuyer sur la touche pendant au moins 2 secondes de suite ; une pression brève ou accidentelle n'entraîne pas l'arrêt de l'appareil. L'arrêt de l'appareil pendant un lavage annule le lavage en cours.

Touches SÉLECTEUR PROGRAMMES: pour sélectionner le programme désiré (voir "Tableau des

programmes").

Touche MEMO: maintenir la touche enfoncée pour mémoriser un cycle et les personnalisations préférées. Pour retourner à un cycle précédemment mémorisé, appuyer sur la touche MEMO.

Touches FONCTION: appuyer sur la touche pour sélectionner la fonction désirée. Le voyant correspondant s'affiche à l'écran.

Touche ESSORAGE : appuyer sur cette touche pour diminuer la vitesse de l'essorage ou pour le supprimer complètement - la valeur correspondante s'affiche à l'écran.

Touche TEMPERATURE : appuyer pour diminuer la température : la valeur correspondante est affichée à l'écran.

				Touche avec
Touche				voyant MISE
MEMO			Touches	EN MARCHE/
			FONCTION	PAUSE
				Touche
	Touche			TEMPÉRATURE

DÉPART

DIFFÉRÉ

Touche VERROUILLAGE TOUCHES : pour activer le verrouillage des commandes, garder la touche enfoncée pendant environ 2 secondes. Le symbole allumé indique que le bandeau de commandes est verrouillé. Ceci permet d'éviter toute modification involontaire des programmes, surtout s'il y a des enfants à la maison. Pour désactiver le verrouillage des commandes, garder la touche enfoncée pendant environ 2 secondes.

Touche DÉPART DIFFÉRÉ : appuyer sur cette touche pour sélectionner un départ différé pour le programme choisi. Le retard est affiché à l'écran.

Touche avec voyant MISE EN MARCHE/PAUSE: quand le voyant vert clignote lentement, appuyer sur la touche pour démarrer un lavage. Une fois le cycle lancé, le voyant passe à l'allumage fixe. Pour activer une pause de lavage, appuyer à nouveau sur la touche ; le voyant passe à l'orange et se met à clignoter. Si le symbole n'est pas allumé, il est possible d'ouvrir le hublot. Pour faire redémarrer le lavage exactement à l'endroit de l'arrêt, appuyer une nouvelle fois sur la touche.

Stand-by

Ce lave-linge, conformément aux nouvelles normes en vigueur dans le domaine de l'économie d'énergie, est équipée d'un système d'extinction automatique (veille) activé après environ 30 minutes d'inutilisation. Appuyez brièvement sur la touche MARCHE/ARRÊT et attendre que la machine soit réactivée.

16
