Hotpoint 4D X T/HA User Manual

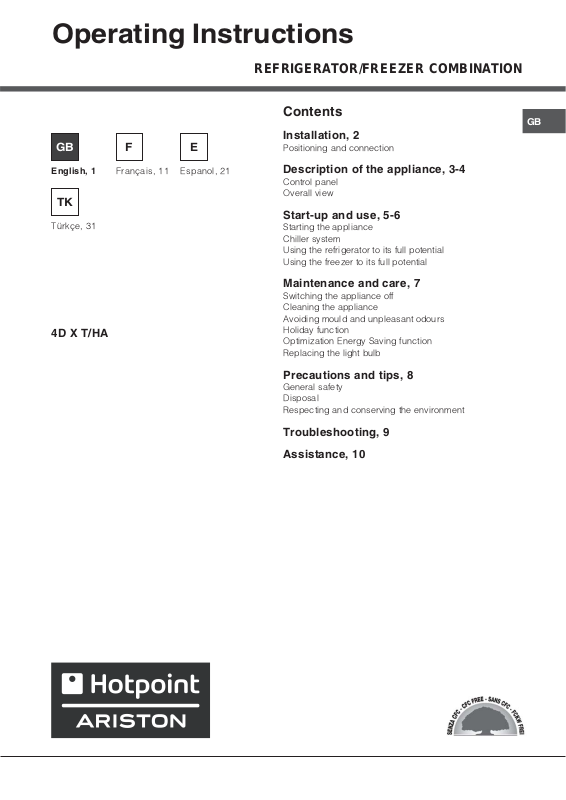

Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
GB F
English, 1
TK
Türkçe, 31
4D X T/HA
Français, 11
E
Espanol, 21
Contents
GB
Installation, 2
Positioning and connection
Description of the appliance, 3-4
Control panel
Overall view
Start-up and use, 5-6
Starting the appliance
Chiller system
Using the refrigerator to its full potential
Using the freezer to its full potential
Maintenance and care, 7
Switching the appliance off
Cleaning the appliance
Avoiding mould and unpleasant odours
Holiday function
Optimization Energy Saving function
Replacing the light bulb
Precautions and tips, 8
General safety
Disposal
Respecting and conserving the environment
Troubleshooting, 9
Assistance, 10
Installation
GB
! Before placing your new appliance into operation
please read these operating instructions carefully.
They contain important information for safe use, for
installation and for care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
Positioning and connection
Positioning
1. Place the appliance in a well-ventilated humidityfree room.
2. Do not obstruct the rear fan grills. The compressor
and condenser give off heat and require good
ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top
part of the appliance and any furniture above it, and
at least 12 cm between the sides and any furniture/
side walls.
4. Ensure the appliance is away from any sources of
heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between
the appliance and the wall behind it, fit the spacers
supplied in the installation kit, following the
instructions provided.
Electrical connections
After the appliance has been transported, carefully
place it vertically and wait at least 3 hours before
connecting it to the electricity mains. Before inserting
the plug into the electrical socket ensure the following:
The appliance is earthed and the plug is compliant
with the law.
The socket can withstand the maximum power of the
appliance, which is indicated on the data plate
located on the bottom left side of the fridge (e.g. 150
W).
The voltage must be in the range between the
values indicated on the data plate located on the
bottom left side (e.g. 220-240V).
The socket is compatible with the plug of the
appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (see Assistance).
Do not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should
these safety measures not be observed.
Levelling
1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the
refrigerator by tightening or loosening the front feet.
2
Description of the
appliance
Control panel
REFRIGERATOR
OPERATION
Knob
SUPER COOL
Indicator light
SUPER COOL
Button
POWER
Indicator light
SUPER FREEZE
Indicator light
GB
FREEZER
OPERATION
Knob
SUPER FREEZE
Button
REFRIGERATOR OPERATION Knob
to regulate the temperature of the refrigerator
compartment.
is the optimal temperature for energy saving
levels.
is the holiday function (see Maintenance and
care).
OFF switches the refrigerator off.
SUPER COOL
of the refrigerator compartment rapidly. When it is
pressed, the SUPER COOL indicator light
illuminates (see Start-up and use).
SUPER COOL Yellow indicator light (rapid cooling)
illuminates when the SUPER COOL button is
pressed.
POWER Indicator light illuminates when the
appliance is connected to the electricity network.
(quick cool) to lower the temperature
SUPER FREEZE button (rapid freezing) to freeze
fresh food. When it is pressed, the SUPER FREEZE
indicator light illuminates (see Start-up and use).
If pressed for at least 9 seconds, this activates the
Optimization Energy Saving function (see Care
and maintenance).
SUPER FREEZE Yellow indicator light (rapid
freezing) illuminates when the SUPER FREEZE
button is pressed.
FREEZER OPERATION Knob
to regulate the temperature of the freezer
compartment.
is the optimal temperature for energy saving
levels.
switches the appliance off, including the
refrigerator.
! The indicator lights are also used to indicate an
unusual temperature increase in the freezer
compartment (see Troubleshooting).
3
Description of the
appliance
GB
Overall view
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.
Control panel
Removable
multipurpose
SHELVES
CAN RACK
FRUIT and
VEGETABLE bin
LAMP
(see Maintenance)
Removable
multipurpose
SHELVES
BOTTLE shelf
FREEZER and
STORAGE
compartment
Levelling FEET
BOTTLE shelf
Varies by number and/or position.
4
Start-up and use
Starting the appliance
! Before starting the appliance, follow the
installation instructions (see Installation).
! Before connecting the appliance, clean the
compartments and accessories well with lukewarm
water and bicarbonate.
! The appliance comes with a motor protection control
system which makes the compressor start
approximately 8 minutes after being switched on. The
compressor also starts each time the power supply is
cut off whether voluntarily or involuntarily (blackout).
1. Set the FREEZER OPERATION knob on
2. Insert the plug into the socket and ensure that the
green POWER indicator light illuminates.
3. Turn the FREEZER OPERATION knob to an average
value and press the SUPER FREEZE button (rapid
freezing): the SUPER FREEZE indicator light will
illuminate. Once the refrigerator has reached the
optimal temperature, the indicator light goes out and
you can begin food storage.
4. Turn the REFRIGERATOR OPERATION knob to an
average value. After a few hours you will be able to
put food in the refrigerator.
.
Using the refrigerator to its full
potential
Use the REFRIGERATOR OPERATION knob to adjust
the temperature (see Description).
Press the SUPER COOL button (rapid cooling) to
lower the temperature quickly. For example, when
you place a large number of new food items inside a
fridge the internal temperature will rise slightly. The
function quickly cools the groceries by temporarily
reducing the temperature until it reaches the ideal
level.
Place only cold or lukewarm foods in the compartment,
not hot foods (see Precautions and tips).
Remember that cooked foods do not last longer than
raw foods.
Do not store liquids in open containers. They will
increase humidity in the refrigerator and cause
condensation to form.
SHELVES: with or without grill. Due to the special
guides the shelves are removable and the height
is adjustable, allowing easy storage of large
containers and food.
GB
Chiller system
No Frost
It is recognisable by
aeration cells located
on the back walls of the
compartments.
The No Frost system
circulates cold air
continuously to collect
humidity and prevent
ice and frost formation.
The system maintains
an optimal humidity level in the compartment,
preserving the original quality of the food, preventing
the food from sticking together and making defrosting
a thing of the past. Do not block the aeration cells by
placing food or containers in direct contact with the
refrigerating back panel. Close bottles and wrap food
tightly.
FRUIT and VEGETABLE bin
The salad crispers fitted inside the fridge have been
specially designed for the purpose of keeping fruit
and vegetables fresh and crisp. Open the humidity
regulator (position B) if you want to store food in a less
humid environment, or close it (position A) to store
food in a more humid environment.
A
B
5
GB
Using the freezer to its full potential
Use the FREEZER OPERATION knob to adjust the
temperature (see Description).
Do not re-freeze food that is defrosting or that has already
been defrosted. These foods must be cooked and eaten
(within 24 hours).
Fresh food that needs to be frozen must not come into
contact with food that has already been defrosted.
Do not place glass bottles which contain liquids, and
which are corked or hermetically sealed in the freezer
because they could break.
The maximum quantity of food that may be frozen daily is
indicated on the plate containing the technical properties
located on the bottom left side of the refrigerator
compartment (for example: Kg/24h: 4).
To freeze (if the freezer is already operating):
press the rapid freezing SUPER FREEZE button
(corresponding yellow indicator light illuminates), insert
the food and close the door. The function is disabled
automatically after 24 hours or when optimal
temperatures have been reached (indicator light goes
out);
ICE DEVICE
After pouring water in the special
ice cups, place them in their places
in the ice device. After about 2
hours, the ice cubes will be ready.
In order to get the ice cubes, it will
be sufficient to turn the two
buttons to the right. The ice cubes
will fall in to the tray below, ready
to be used.
! to avoid blocking the air circulation inside the freezer
compartment, it is advisable not to obstruct the
ventilation holes with food or containers.
! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the
freezer door. This will help maintain the temperature
inside the freezer, ensuring that foods are conserved for
at least 9 -14 hours.
6
Maintenance and care
Switching the appliance off
During cleaning and maintenance it is necessary to
disconnect the appliance from the electricity supply:
1. set the FREEZER OPERATION knob on
2. pull the plug out of the socket
! If this procedure is not followed, the alarm may
sound. This alarm does not indicate a malfunction. To
restore normal operation, it is sufficient to set the
FREEZER OPERATION knob on the desired value. To
disconnect the appliance, follow point 1 and 2.
Cleaning the appliance
The external and internal parts, as well as the
rubber seals may be cleaned using a sponge that
has been soaked in lukewarm water and
bicarbonate of soda or neutral soap. Do not use
solvents, abrasive products, bleach or ammonia.
The removable accessories may be soaked in
warm water and soap or dishwashing liquid. Rinse
and dry them carefully.
The back of the appliance may collect dust which
can be removed by delicately using the hose of a
vacuum cleaner set on medium power. The
appliance must be switched off and the plug must
be pulled out before cleaning the appliance.
During the cleaning of the slide rails for the drawers
in the freezer compartment, it may happen that the
automatic drawer closure mechanism is
deactivated. To reactivate it, simply close the
drawer a little more forcefully than is usually
necessary.
Holiday function
To minimise energy usage when on holiday, it is not
necessary to switch the appliance off. The appliance
has a function which allows it to maintain the
temperature of the refrigerator compartment at
approximately 15°C (which can also be used to
conserve make-up and beauty products). The freezer
temperature must be set to the minimum value in order
to preserve the food.
To enable the function: set the REFRIGERATOR
OPERATION knob on
A double acoustic signal informs you when it has
been enabled. A single acoustic signal informs you
when it has been disabled.
.
Optimization Energy Saving function
If you are going on holiday but would like the
operating temperature performance of the product to
remain unchanged, you can use the Optimization
Energy Saving function. This function maximises the
energy saved. It is activated by setting the knobs to I
CARE, then pressing and holding the Super Freeze
button for at least 9 seconds; the Super Freeze
indicator light will begin to flash, signalling the
activation of this function.
The Optimization Energy Saving function may also
be deactivated by pressing the Super Freeze button
again. The corresponding indicator light will stop
flashing, thereby signalling that the original operating
conditions have been restored.
In humid environments, when the Optimization
Energy Saving function is activated, slight
condensation may form on the door of the appliance;
normal operating conditions are restored when the
function is deactivated.
GB
Avoiding mould and unpleasant odours
The appliance is manufactured with hygienic
materials which are odour free. In order to maintain
an odour free refrigerator and to prevent the
formation of stains, food must always be covered or
sealed properly.
If you want to switch the appliance off for an
extended period of time, clean the inside and leave
the doors open.
Replacing the light bulb
To replace the light bulb in the refrigerator
compartment, pull out the plug from the electrical
socket. Follow the
instructions below.
Access the light bulb by
removing the cover as
indicated in the
diagram.
2
1
Replace it with a similar
light bulb within the
power range indicated
on the cover (15 W).
7
Precautions and tips
GB
! The appliance was designed and manufactured in
compliance with international safety standards. The
following warnings are provided for safety reasons and
must be read carefully.
This appliance complies with the following
Community Directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and
subsequent amendments;
-89/336/EEC of 03.05.89 (Electromagnetic
Compatibility) and subsequent amendments;
- 2002/96/CE..
General safety
The appliance was designed for domestic use inside the
home and is not intended for commercial or industrial use.
The appliance must be used to store and freeze food
products by adults only and according to the instructions
in this manual.
The appliance must not be installed outdoors, even in
covered areas. It is extremely dangerous to leave the
appliance exposed to rain and storms.
Do not touch the appliance with bare feet or with wet or
moist hands and feet.
Do not touch the internal cooling elements: this could
cause skin abrasions or frost/freezer burns.
When unplugging the appliance always pull the plug from
the mains socket, do not pull on the cable.
Before cleaning and maintenance, always switch off the
appliance and disconnect it from the electrical supply. It is
not sufficient to set the temperature adjustment knobs on
OFF (appliance off) to eliminate all electrical contact.
In the case of a malfunction, under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause
injury or further malfunctioning of the appliance.
Do not use utensils other than the scraper provided, or
electrical equipment which is not of the type specified by
the manufacturer, inside the frozen food storage
compartments.
Do not put ice cubes taken directly from the freezer into
your mouth.
Do not allow children to tamper with the controls or play
with the appliance. Under no circumstance should they be
allowed to sit on the bins or to hang from the door.
Keep packaging material out of the reach of children! It can
become a choking or suffocation hazard.
When closing the refrigerator doors, pay attention to the
position of the upright (see figure).
Make sure that excessive volumes
of food are not placed in the upper
part of the freezer compartment, in
the space reserved for the ice tray
(where present).
Disposal
Observe local environmental standards when
disposing packaging material for recycling
purposes.
The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), requires
that old household electrical appliances must not be
disposed of in the normal unsorted municipal waste
stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of the
materials they contain and reduce the impact on
human health and the environment. The crossed out
wheeled bin symbol on the product reminds you of
your obligation, that when you dispose of the
appliance it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct
disposal of their old appliance.
Respecting and conserving the
environment
Install the appliance in a fresh and well-ventilated
room. Ensure that it is protected from direct sunlight
and do not place it near heat sources.
Try to avoid keeping the door open for long periods
or opening the door too frequently in order to
conserve energy.
Do not fill the appliance with too much food:
cold air must circulate freely for food to be preserved
properly. If circulation is impeded, the compressor
will work continuously.
Do not place hot food directly into the refrigerator.
The internal temperature will increase and force the
compressor to work harder and will consume more
energy.
Defrost the appliance if ice forms (see Maintenance).
A thick layer of ice makes cold transference to food
products more difficult and results in increased
energy consumption.
Regularly check the door seals and wipe clean to
ensure they are free of debris and to prevent cold air
from escaping (see Maintenance).
8
Troubleshooting
Malfunctions:
The green POWER indicator light does
not illuminate.
The motor does not start.
The indicator lights are on but the light is
dim.
a) The alarm sounds.
b) The alarm sounds and the two yellow
indicator lights flash.
c) The alarm sounds and the two yellow
indicator lights as well as the green one
flash.
Heating
is excessive
+ buzzer
Heating
danger
+ buzzer
Possible causes / Solutions:
The plug has not been inserted into the electrical socket, or not far enough
to make contact, or there is no power in the house.
The appliance comes with a motor protection control (see Start-up and use).
Pull out and reverse the plug before putting it back in the socket.
a) The refrigerator door has remained open for more than two minutes (the
buzzer will stop sounding when you shut the door) or the correct switchingoff procedure was not followed (see Maintenance).
b) The temperature in the freezer is too high. Check the quality of the food
products and dispose if necessary.
c) The temperature in the freezer has reached a dangerous level. The food
must be disposed immediately.
b/c) In both these cases the freezer will maintain a temperature of about 0°C
so that the food does not re-freeze.
To turn off the acoustic signal open and close the refrigerator door. To
restore normal operation bring the FREEZER OPERATION knob setting
to
(off) and turn the appliance on again.
GB
The green POWER indicator light flashes.
The refrigerator and the freezer do not
cool well.
The food inside the refrigerator is
beginning to freeze.
The motor runs continuously.
The appliance makes a lot of noise.
The back wall of the refrigerator unit is
covered in frost or droplets of water
The appliance is not operating correctly. Contact the Technical Assistance
Centre.
The doors do not close properly or the seals are damaged.
The doors are opened too frequently.
The OPERATION knobs are not on the correct setting (see Description).
The refrigerator or the freezer have been over-filled.
The REFRIGERATOR OPERATION knob is not on the correct setting (see
Description).
The food is in contact with the back inside wall of the refrigerator.
The SUPER FREEZE button has been pressed (rapid freezing): the yellow
SUPER FREEZE light is on or flashing (see Description).
The door is not closed properly or is continuously opened.
The outside ambient temperature is very high.
The thickness of the frost exceeds 2-3 mm (see Maintenance).
The appliance has not been installed on a level surface (see Installation).
The appliance has been installed between cabinets that vibrate and make
noise.
The internal refrigerant makes a slight noise even when the compressor is
off. This is not a defect, it is normal.
This shows the appliance is operating normally.
9
Assistance
195067710.01
04/2008
GB
Before calling for Assistance:
Check if the malfunction can be solved on your own (see Troubleshooting).
If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service
Centre
model serial number
Communicating:
type of malfunction
appliance model (Mod.)
serial number (S/N)
This information can be found on the data
plate located on the bottom left side of the
refrigerator compartment.
Gross
Bruto
Brut
TI
75
Test
P.S-I.
RG 2330
Mod.
220 - 240 V- 50 Hz 150 W
340
Total
Gross
Bruto
Brut
Compr.
R 134 a
Syst.
kg 0,090
Kompr.
Made in Italy 13918
93139180000 S/N 704211801
Net
Util
Utile
Pressure
HIGH-235
LOW 140
Cod.
Gross
Bruto
Brut
Fuse
W
A
Freez. Capac
Poder de Cong
4,0
kg/24 h
Max 15 w
Class
Clase
Classe
N
Never call on unauthorized technicians and always refuse spare parts which are not originals.
10
Mode demploi
COMBINE REFRIGERATEUR/CONGELATEUR
GB F
English, 1
TK
Türkçe, 31
4D X T/HA
Français, 11
E
Espanol, 21
Sommaire
F
Installation, 12
Mise en place et raccordement
Description de lappareil, 13-14
Tableau de bord
Vue densemble
Mise en marche et utilisation, 15-16
Mise en service de lappareil
Système de refroidissement
Pour profiter à plein de votre réfrigérateur
Pour profiter à plein de votre congélateur
Entretien et soins, 17
Mise hors tension
Nettoyage de lappareil
Contre la formation de moisissures et de mauvaises
odeurs
Fonction holiday
Fonction Optimization Energy Saving
Remplacement de lampoule déclairage
Précautions et conseils, 18
Sécurité générale
Mise au rebut
Economies et respect de lenvironnement
Anomalies et remèdes, 19
Assistance, 20
Installation
! Conservez ce mode demploi pour pouvoir le
F
consulter à tout moment. En cas de vente, de cession
ou de déménagement, veillez à ce quil suive
lappareil pour informer le nouveau propriétaire sur
son fonctionnement et lui fournir les conseils
correspondants.
! Lisez attentivement les instructions : elles
contiennent des conseils importants sur linstallation,
lutilisation et la sécurité de votre appareil.
Mise en place et raccordement
Mise en place
1. Placez lappareil dans une pièce bien aérée et non
humide.
2. Ne bouchez pas les grilles daération arrière : le
compresseur et le condensateur produisent de la
chaleur et exigent une bonne aération pour bien
fonctionner et réduire la consommation délectricité.
3. Prévoir au moins 10 cm entre le haut de lappareil et
les meubles installés au-dessus et au moins 12 cm
entre les côtés et les meubles/parois latérales.
4. Installez lappareil loin de sources de chaleur
(rayons directs du soleil, cuisinière électrique).
5. Pour maintenir une distance optimale entre le
produit et la paroi arrière, montez les cales
despacement comprises dans le kit dinstallation et
suivez les instructions de la notice spécialement
prévue.
Raccordement électrique
Après le transport, placez lappareil à la verticale et
attendez au moins 3 heures avant de le raccorder à
linstallation électrique. Avant de brancher la fiche
dans la prise de courant, assurez-vous que :
la prise est bien munie dune terre conforme à la loi;
la prise est bien apte à supporter la puissance
maximale de lappareil, indiquée sur la plaquette
signalétique placée à lintérieur du compartiment
réfrigérateur en bas à gauche (ex. 150 W);
la tension dalimentation est bien comprise entre les
valeurs indiquées sur la plaquette signalétique,
placée en bas à gauche (ex.220-240 V);
la prise est bien compatible avec la fiche de
lappareil.
En cas dincompatibilité, faites remplacer la fiche
par un technicien agréé (voir Assistance); nutilisez
ni rallonges ni prises multiples.
! Après installation de lappareil, le câble électrique et
la prise de courant doivent être facilement
accessibles.
! Le câble ne doit être ni plié ni excessivement
écrasé.
! Il doit être contrôlé prériodiquement et ne peut être
remplacé que par un technicien agréé (voir
Assistance).
! Nous déclinons toute responsabilité en cas de
non respect des normes énumérées ci-dessus.
Mise à niveau
1. Installez lappareil sur un sol plat et rigide.
2. Si le sol nest pas parfaitement horizontal, vissez ou
dévissez les petits pieds avant pour bien niveler
lappareil.
12
Loading...
