Hotone Ampero Footswitch User manual

MomentaryFootswitch

Opareting Guide

ForAmpero & Ampero One

DE SI GN I NS PI RAT IO N

The contents of this manual are subject to change without notice.

Preface

This operating guide is for how to set the Ampero Switch on Ampero or Ampero One. On both units, Ampero Switch is connected and set in the
same way, so the following steps will take Ampero as an example.
If you want to set the Ampero Switch to control other device, please refer to the related contents of your device manual.

How to connect

Connect one end of the TRS jack to Ampero Switch and the other end to the EXP 2 / FS jack of Ampero with the provided TRS cable.

1

1/4"(6.35mm)StereoCable

How to set up

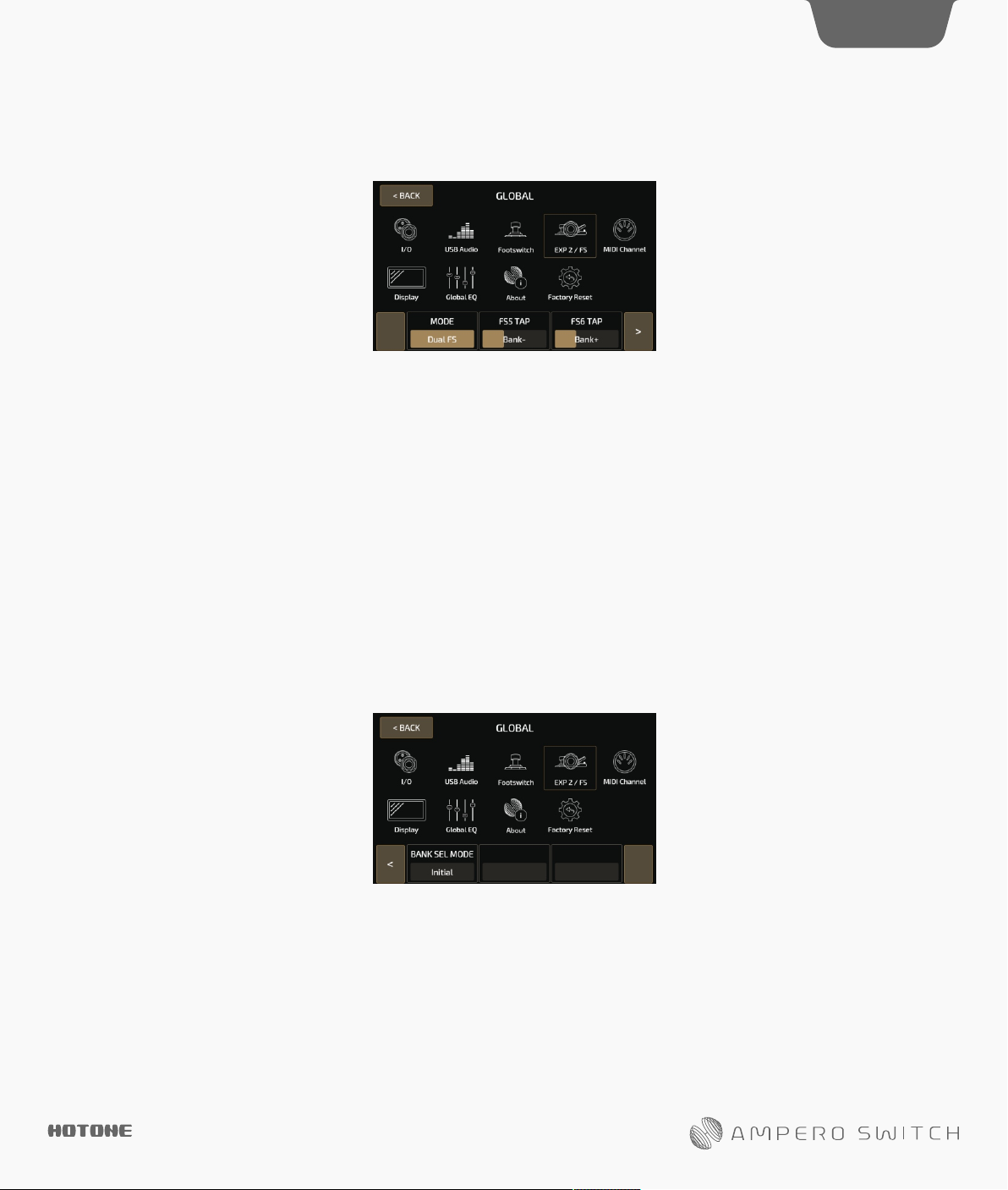

1. In the main menu, click “GLOBAL” and then “EXP2/FS. Set “MODE” to “Dual FS” in the selection panel.

TRS

DES IGN INS PIRATI ON

How to set up

2. “FS5 TAP” and “FS6 TAP” in the selection panel will become editable (“FS4 TAP”, “FS5 TAP” in Ampero One). The default is set to bank-/+.

3. “FS5 TAP” corresponds to Ampero Switch Footswitch A and “FS6 TAP” corresponds to Ampero Switch Footswitch B. They can be set up as
follows:

Looper Rec/Play: Record/play loop phrases
Looper Stop: Stops looper playback
Looper: Enter/exit looper menu
Drum On/Off: Drum rhythm play/stop
Drum: Enter/exit drum menu
Tuner: Enter/exit tuner
Bank+/-: Change banks by toggling up or down
Tap Tempo: Tap tempo function
Patch+/-: Change patches by toggling up or down
EXP On/Off: Switching built-in expression pedal on/off
FX1, FX2, AMP, NR, CAB, EQ, FX3, DLY, RVB On/Off: Turn on/off each effect block

2

4. “EXP2/FS” selection panel next page has a “BANK SEL MODE” option.

You can select Ampero’s bank select mode when using Ampero Switch as a bank switcher. “Bank Sel Mode” lets you select from two modes: Initial
and Wait.

In Initial mode, Ampero will jump to a new patch immediately after switching a bank.
In Wait mode, when switching banks, the patch you’re using won’t be changed (footswitch LEDs on Ampero will keep flashing by
default) until you tap a footswitch again to confirm your selection.

Reminder: When using Ampero Switch as a bank switcher in Wait mode, please set Ampero or Ampero One’s three footswitches tap function to
“Patch1”, “Patch2”, “Patch3” for the best possible user experience (This is the default setting of Ampero. Ampero One users can set it by
themselves).
