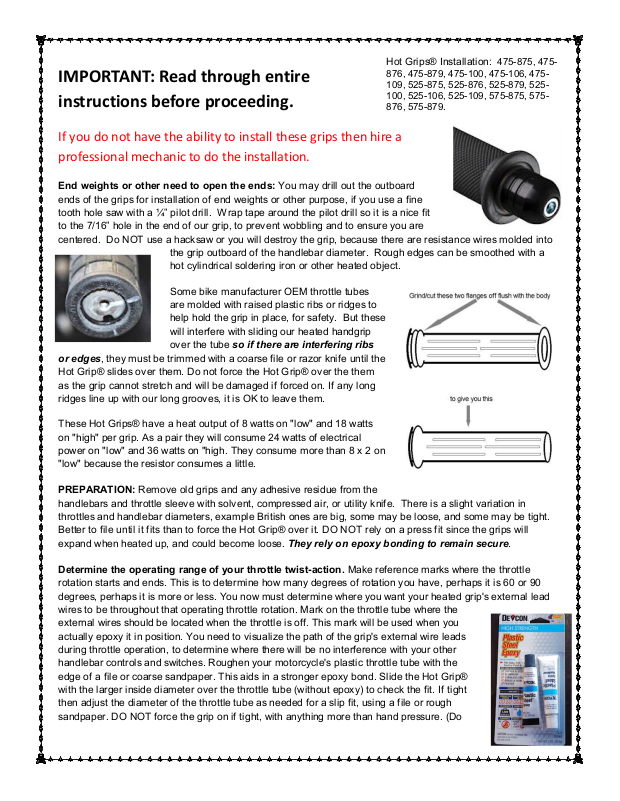

Hot Grips® Installation:

475-875, 475­876, 475-879, 475-100, 475-106, 475­109, 525-875, 525-876, 525-879, 525­100, 525-106, 525-109, 575-875, 575­876, 575-879.

IMPORTANT: Read through entire

instructions before proceeding.

If you do not have the ability to install these grips then hire a

professional mechanic to do the installation.

End weights or other need to open the ends: You may drill out the outboard
ends of the grips for installation of end weights or other purpose, if you use a fine
tooth hole saw with a ¼” pilot drill. Wrap tape around the pilot drill so it is a nice fit
to the 7/16” hole in the end of our grip, to prevent wobbling and to ensure you are
centered. Do NOT use a hacksaw or you will destroy the grip, because there are resistance wires molded into

the grip outboard of the handlebar diameter. Rough edges can be smoothed with a
hot cylindrical soldering iron or other heated object.

Some bike manufacturer OEM throttle tubes
are molded with raised plastic ribs or ridges to
help hold the grip in place, for safety. But these
will interfere with sliding our heated handgrip

over the tube so if there are interfering ribs
or edges, they must be trimmed with a coarse file or razor knife until the
Hot Grip® slides over them. Do not force the Hot Grip® over the them
as the grip cannot stretch and will be damaged if forced on. If any long
ridges line up with our long grooves, it is OK to leave them.

These Hot Grips® have a heat output of 8 watts on "low" and 18 watts
on "high" per grip. As a pair they will consume 24 watts of electrical
power on "low" and 36 watts on "high. They consume more than 8 x 2 on
"low" because the resistor consumes a little.

PREPARATION: Remove old grips and any adhesive residue from the
handlebars and throttle sleeve with solvent, compressed air, or utility knife. There is a slight variation in
throttles and handlebar diameters, example British ones are big, some may be loose, and some may be tight.
Better to file until it fits than to force the Hot Grip® over it. DO NOT rely on a press fit since the grips will
expand when heated up, and could become loose. They rely on epoxy bonding to remain secure.

Determine the operating range of your throttle twist-action. Make reference marks where the throttle
rotation starts and ends. This is to determine how many degrees of rotation you have, perhaps it is 60 or 90
degrees, perhaps it is more or less. You now must determine where you want your heated grip's external lead
wires to be throughout that operating throttle rotation. Mark on the throttle tube where the
external wires should be located when the throttle is off. This mark will be used when you
actually epoxy it in position. You need to visualize the path of the grip's external wire leads
during throttle operation, to determine where there will be no interference with your other
handlebar controls and switches. Roughen your motorcycle's plastic throttle tube with the
edge of a file or coarse sandpaper. This aids in a stronger epoxy bond. Slide the Hot Grip®
with the larger inside diameter over the throttle tube (without epoxy) to check the fit. If tight
then adjust the diameter of the throttle tube as needed for a slip fit, using a file or rough
sandpaper. DO NOT force the grip on if tight, with anything more than hand pressure. (Do

NOT force it on by hitting it with a hammer or block of wood, or it will collapse and be ruined !!! )

EPOXY: We recommend only slow curing (generally considered 6+ hours, or overnight) two-part epoxy
because it is usually rated at 250 degrees F. The quicker curing epoxy is generally rated at 200 degrees F or
lower. Do NOT use silicone sealant, crazy glue, at 200 degrees F. Do NOT use other types of adhesives. Do
NOT use silicone sealant, crazy glue, superglue, other superglue, other cyanoacrylate adhesives, weather-strip
adhesives, or anything else. Just use two-part epoxy of the type we recommend. There are many brands out
there, and some of them are DURO, DEVCON, JB WELD, BORDEN, etc. Most are available at auto parts
stores, hardware stores, and often found in “Big Box Store” hardware or automotive departments. (The reason
we do not want you to use anything other than epoxy is because of the temperature
these grips may reach in service, and because other types of adhesives rely on
solvent evaporation, which may take a very long time. Most other adhesives will
soften with elevated temperatures, and you don't want these grips to loosen while
riding.) Excessive epoxy as seen in photo can be easily thinned with rolled pencil.

After you have pre-determined your grip's external wire orientation in relation to the
throttle housing and throttle tube, then you can proceed to use the epoxy. Mix the
epoxy per the manufacturer's instructions. It is important to mix in the correct ratio or
the epoxy will be weakened. Use a long slender object such as a pencil to get the
epoxy spread evenly on the exterior of the throttle sleeve on the motorcycle, BUT NOT INSIDE THE GRIP.
The pencil can be rolled around the throttle sleeve to ensure the layer of epoxy is even or uniform thickness.
DO NOT PUT EPOXY IN THE GRIP INTERIOR , instead allow the epoxy on the throttle sleeve to find it's way
inside the grip as it is pushed on. The epoxy will mesh with the inside ribs, locking the grip in place once the
epoxy cures. While aligning the external black wires, push the right grip on the throttle tube fully, and you
should clear away epoxy as it is slid on if it builds up excessively as the grip moves fully into position.
IMPORTANT: DO NOT PULL THE GRIP OFF at this point because then the epoxy will gum up the throttle
action. Again make sure you have enough clearance so no friction or interference will exist with the throttle
housing. This is extremely important, since once the epoxy cures, you won't be able to adjust later.

If You Are In A Hurry, it is OK to quicken the cure by temporarily wiring the two grips in "parallel" as shown in
our wiring diagram, and applying 12 volts using a car battery or battery charger capable of at least 3 amps.
Caution: Heated curing epoxy can give off fumes so work with adequate ventilation or do the epoxy curing

outdoors. 45 minutes will do it, and do not leave the grips heated unattended. Let it cool
for another 15-20 minutes. That heat will have accelerated the cure from the normal 6-8
hours down to about an hour. If the epoxy hasn't cured you may need to give it heat
again. If the second time doesn't cure it, then you probably mixed the epoxy in the
wrong ratio, which prevents the epoxy from curing. Do NOT test the epoxy bond while it
is curing by twisting the grip. If you want to check if the epoxy had cured, check it at the
area where a tiny amount of epoxy has squeezed out next to the inboard end of the grip.
Wait until the epoxy is very hard.

If working in the cold, preheating the epoxy in a hot cup of water will soften the epoxy

and make it easier to mix and to spread, and also preheating the handlebar end with a
heat gun or hair dryer will help in the same way. Epoxy will set up QUICKLY when pre-warmed- plan
accordingly and only mix enough for one grip at a time. Follow
similar instructions as above when installing the left clutch grip,
although the installation is easier since there is no throttle
movement to worry about.

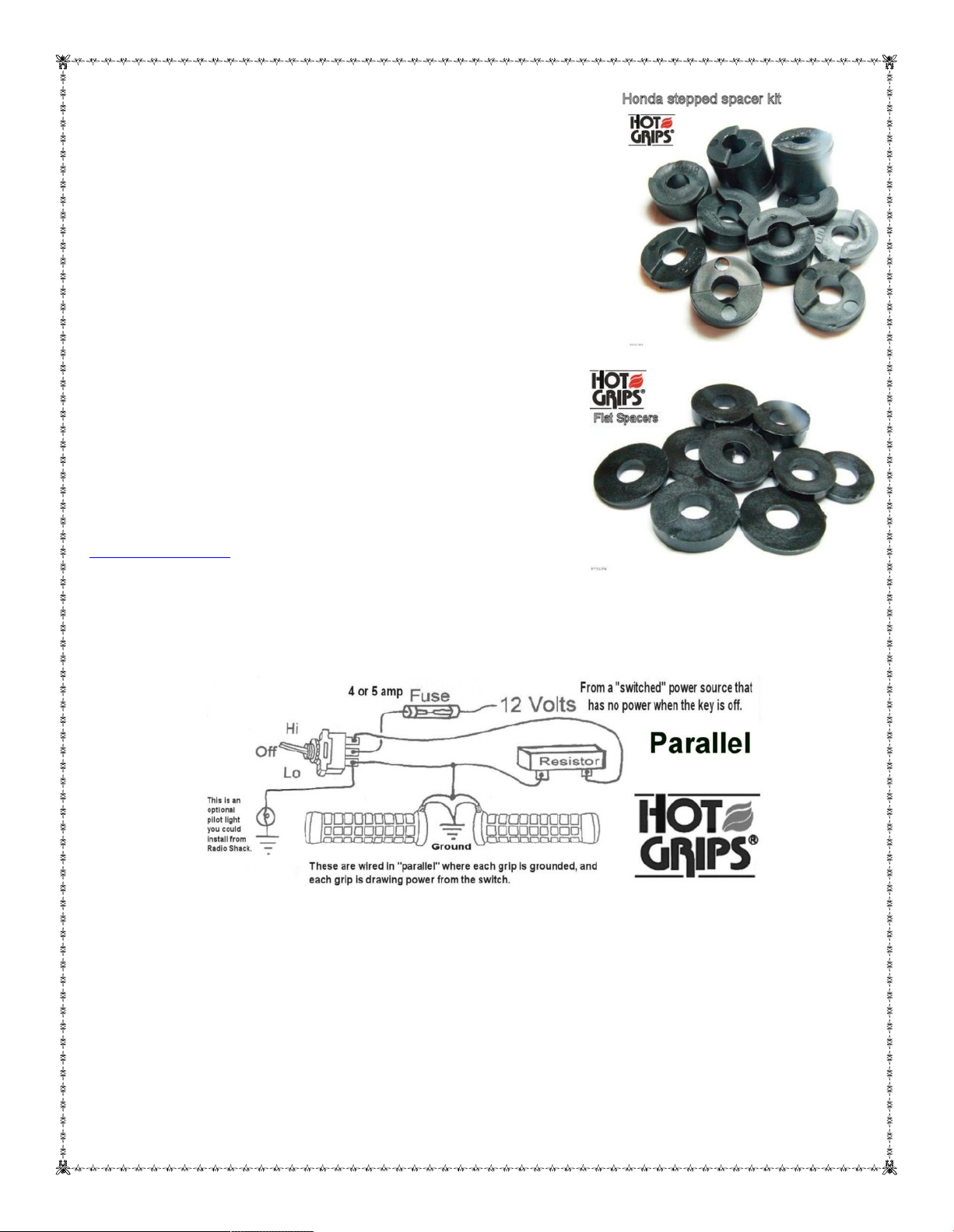

WIRING: Follow our wiring diagram, there is no polarity to the two

external wires coming from each grip, no positive nor negative. IMPORTANT: Hot Grips® for THIS model are
wired in "Parallel", meaning each grip gets 12 v olts. Your ground connection is important, so scrape the paint
off directly under the contact point you make. Ground shouldn't be to the handlebars as some are rubber
mounted and perhaps electrically isolated from your system. Steering head bearing grease can create electrical
resistance, another reason to ground back at the main frame. The wires should be secured to the handlebars,
however it is important to form a gentle 180 degree loop from the throttle side grip to the handlebar to minimize
strain on the wires during throttle operation. The bigger the radius of the loop the longer the wire will last. 3"
radius would be good. Determine the spacing you need on the throttle tube so that there is no interference or
friction with the throttle housing. Make a mark on the throttle sleeve for when you later use epoxy.

These two Hot Grips® must be wired in "parallel". Connect one of the two conductors from each grip to positive
12 volts coming off the switch as illustrated, and each remaining wire to ground. Pilot light (not supplied with kit)
could be a Radio Shack Part #272-345 , #272-334A or #272-331C , and can be installed if you want it. Wire it
for 12 v. in parallel as indicated and ground one of the leads of the pilot lamp. 12 volt LEDs are available at
Radio Shack or much better deal on eBay.

Hi-Off-Lo SWITCH: Locate a suitable site for your switch accessible for your left
hand and drill a 1/2" or 13 mm hole in a safe convenient location that does not
interfere with anything on the motorcycle. Consider where you can easily get to the
underside of the switch. The wiring diagram IS CORRECT, though the switch hookup
may appear backwards. When you move toggle to “Hi” it connects the center brass
terminal to the diagonally opposite brass terminal.

RESISTOR: Mount the resistor securely in an area where it can give off some heat. It only functions on “Low”
heat, and warms up about 8 watts during "low" heat operation. Ideally mount it on a "pad" of silicone sealant on

a metal area and mount it in open air. Secure it with common nylon wire
ties as nylon can take the heat. The resistor may be located any distance
away from the switch or grips, however do not leave the resistor dangling
by it's lead wires, or they will ev entually fail. You can use any extra lead
wire from the grips to wire the resistor. Solder all connections as a
precaution against copper oxidation in the future.

POWER SOURCE: Most motorcycles come with an accessory electrical terminal, Ask your motorcycle dealer's
service department if in doubt. Often your owner's manual will include a wiring diagram, and may hav e
information on where to obtain power for accessories. You should use a 4,

5, or 6

amp fuse (not included).
(The grips draw 3 amps on high). If the power circuit you are using shares power with another device then that
fuse will need to be adjusted higher accordingly. Wire into an accessory terminal if available
or into a power lead that will not be left "hot" or energized when the ignition is shut off.
Otherwise leaving the heated grips on while the engine is off will drain the battery as
quickly as if you left your headlight on. Solder all connections to prevent copper
oxidation in the future. Do NOT use the crimp-on terminals or 3M Scotch-Lok tap-in type
if you want your connections to remain reliable. They tend to oxidize and corrode over
time and create later problems. Cover all exposed connections with electrical tape.

HEAT CONTROL: The Hot Grips® do not automatically regulate their heat output, and
rely on the rider to adjust the heat by moving to "lo" or center-off switch position if the grips get too hot. The
grips should not be left on when unattended as they may get too hot. In an unregulated electrical system the
heat output may be greater than 9 watts on low and 18 watts on high per grip. These wattage figures assume
a voltage regulator is in use. Be sure to check and correct for any interference with vehicle controls and prop­er throttle operation and throttle return before starting or operating motorcycle. Pulse-Width-Modulator totally

variable heat controls are available. We have 2 models at the website,
buy on eBay, etc. Plans exist on-line to even build yourself.

Re-Fitting your Handlebar End-Weights: When refitting your handlebar

end-weights, space them outward as needed to prevent any friction on the

throttle tube or throttle grip. Hopefully you ordered flat style spacers or

Honda step-spacers as needed from our website. If not, you can use washers

or drilled out appropriate diameter coins.

Future Troubleshooting: Can be minimized if you do NOT take shortcuts

with your connections during installation. We also have troubleshooting tips

on our website.

Protected under one or more of the following patents:

USA: 4,471,209 4,937,429 4,990,753 - Canada 1,299,621

Hot Grips® Mfg., Inc. -166 Methodist Hill Rd. - Plainfield, NH
03781 USA

Tel. [phone] - email: [e-mail]

www.hotgrips.com
