1967-1976 Dodge De mon

1112

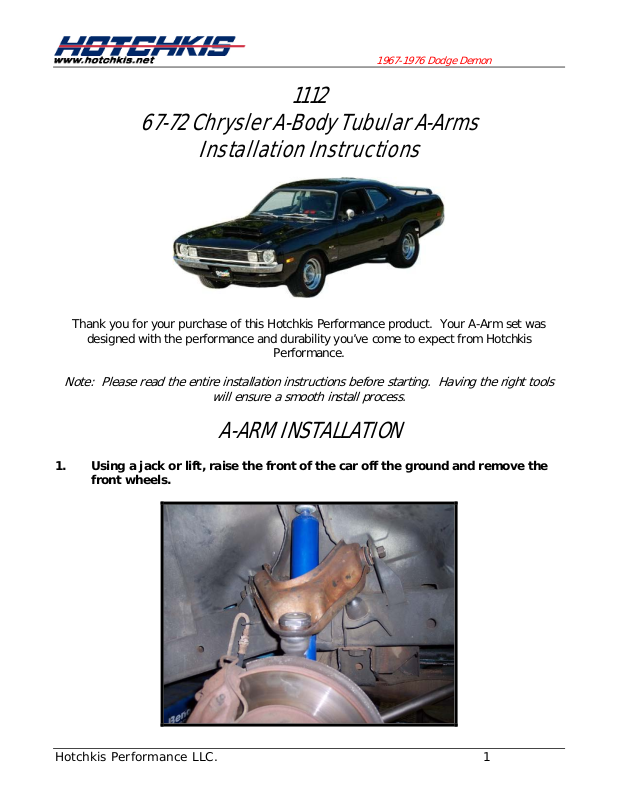

67-72 Chrysler A-Body Tubular A-Arms

Installation Instructions

Thank you for your purchase of this Hotchkis Performance product. Your A-Arm set was

designed with the performance and durability you’ve come to expect from Hotchkis

Performance.

Note: Please read the entire installation instructions before starti ng. Having the right tools

will ensure a smooth install process.

A-ARM INSTALLATION

1. Using a jack or lift, raise the front of the car off the ground and remove the
front wheels.

Hotchkis Performanc e LLC. 1

2. Remove the cotter pin from the ball joint and loosen the castle nut.

1967-1976 Dodge De mon

NOTE: Do not completely remove the ca stle nut. Loosen the nut until it reaches the
end of the bolt.

3. With the castle nut loose, hit the upright mount with a hammer until the
spindle & the rest of the suspension pop loose from the A-Arm ball joint.

HIT HERE

Hotchkis Performanc e LLC. 2

1967-1976 Dodge De mon

4. Support the suspension with a floor jack to relieve the pressure from the
castle nut. Remove the castle nut.

5. Unbolt the two cam bolts where the A-Arm is connected to the frame.

NOTE: Be sure to mark the cams on the bolts so you can get them back in the right
place when you install them.

6. Remove stock A-Arm.
