4013 74-81 Camaro / Firebird
Please read the following key points b efore installing this kit.
1 – Before performing the subframe connector installation, the vehicle must be completely
assembled with all body and component parts installed (e.g. fenders, hood, quarterpanels,
trunk, full interior, engine, glass, etc.). Basically, the subframe connectors should be one of
the last components installed on your vehicle. Reason being is you want the vehicle settled
with all of it’s own final weight. The car’s body is always in constant tension, with forces
pushing or pulling within the chassis & body. You want to make sure these forces don’t
change after you install the subframe connectors. For example, if you installed subframe
connectors before installing the engine and body panels this may result in having misaligned
fenders, door panels and/or hood later on. The car must be in its final state before the
subframe connectors are installed.
2 – The subframe connectors must be installed on an alignment rack or floor ramps (all 4
wheels). The vehicle must be sitting on its wheels at ride height in order to install the
subframe connectors. Do not use a two-post lift, as this will load the chassis/body in the
wrong points causing the chassis to t weak.
Hotchkis Performance LLC . 1
4013 74-81 Camaro / Firebird
4013
Subframe Connectors 74-81 Camaro / Firebird
Thank you for your purchase from our new line of F-Body parts.
Please call us at (877) 4NO - ROLL if you have any questions
regarding the service or installation of your Hotchkis products.
Subframe Connectors
Your new subframe connectors will increase the overall rigidity of your chassis and
improve handling and response. These engineered components connect the rear frame
rails with the front subframe to simul ate a complete full frame chassis.
:
70-74 F-body Connectors Shown
Notes
Before You Start
Hotchkis Performance LLC . 2
:
The subframe connector is essentially a Weld-In component, effectively connecting
itself to the front subframe and rear frame rails. However, you may choose to
bolt-in the front connection to allow front subframe removal if need be. Hardware for
the bolt-in procedure is included.
The installation of these subframe connectors will require you to grind and weld. It is
recommended that a trained professional install this product. Always wear eye
protection when grinding or welding. : Please read the entire manual before starting. All
images will depict the driver side installation.
4013 74-81 Camaro / Firebird
1. Raise Vehicle
It is best to install the subframe connectors at ride height. To do this properly, please
use a 4-Post lift or alignment ra c k. Disconnect the negative battery cable.
2. Prepare Subframe Pieces for Welding
Subframe pieces come fully powder coated so you will want to first prep them for the
welding process. Sa nd the rear mounts of the subframe connector. Make sure you file
inside the rosette weld holes also.
3. Remove Screws
Remove the screws th at hold the brake/fuel lines a gainst the body
…
Hotchkis Performance LLC . 3
4. Mark Area to Be Sanded
Position the subframe into p lace and mark the area in the rear that will need to be
sanded down to prepare the surface for welding.
4013 74-81 Camaro / Firebird
5. Remove Old Bushings
Unscrew and remove all old bushing pieces. You will not need these pieces any longer,
so you are free to discard them if you wish.
Hotchkis Performance LLC . 4
6. Install New Bushings
Place the thin washer and top bushing on top of the frame and then slide the sleeve
into place. Install the bottom bushing and thick washer next, slide the supplied bolt up
and tighten.
4013 74-81 Camaro / Firebird
Hotchkis Performance LLC . 5
7. Prepare for Welding
Use a screw jack to hold the subframe connector in place. Make sure you protect any
lines that might possibly be in the line of fir e of the welding process.
4013 74-81 Camaro / Firebird
8. Weld Frame
Weld the subframe into plac e using the pre-drilled holes for rosette welds and also
along the edges of the subframe that come in contact with the frame.
Hotchkis Performance LLC . 6
9. Paint and Replace Lines
After welds have cooled down, spray paint any areas exposing raw metal to protect
from rusting. Then put all lines ba ck into place and tighten.
10. Drill Holes & Install Bolts
On the front end of the subframe connector, mark the center of each hole and drill a
hole through the frame. Use a ½” drill bit to get the hole in the frame to the same size
as the hole in the connector, big enough for the supplied bolts to fit. Install bolts and
fully tighten.

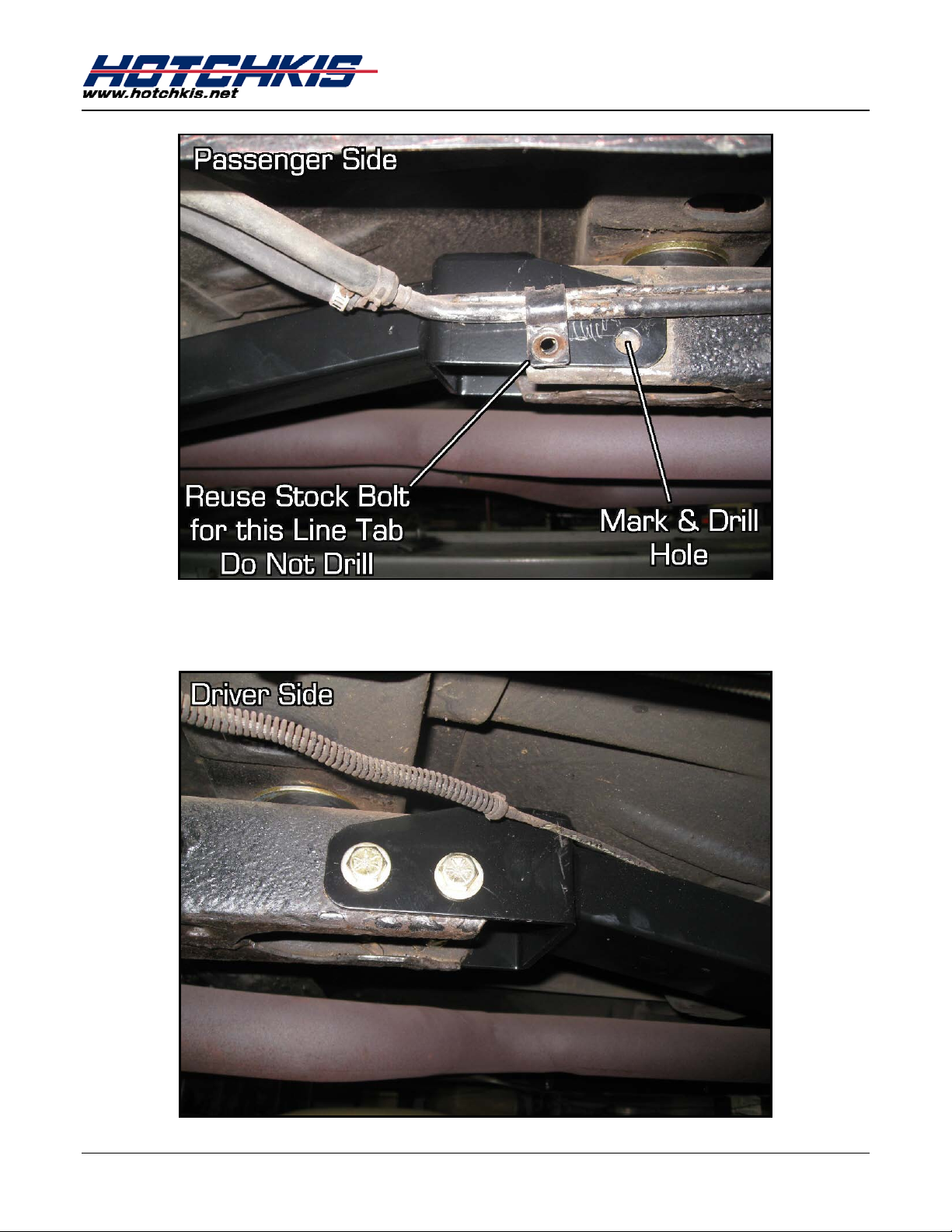

Passenger Side:
4013 74-81 Camaro / Firebird
Hotchkis Performance LLC . 7
4013 74-81 Camaro / Firebird
Note: The Driver Side does not have this Line Tab. Mark & drill the hole in
the same manner as the rest of the holes.
Hotchkis Performance LLC . 8
4013 74-81 Camaro / Firebird
11. Double Check
Double check all of the hardware and you are finished.
Hotchkis Performance LLC . 9
