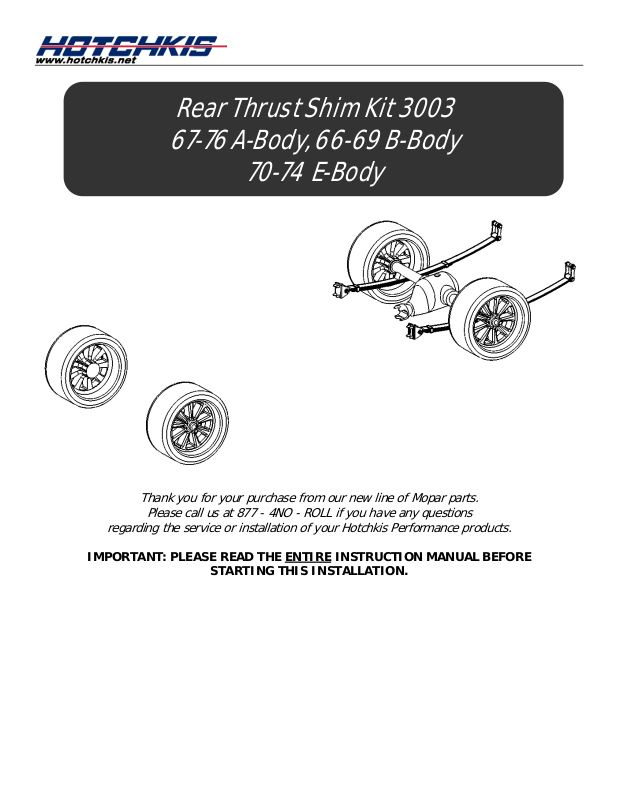

Rear Thrust Shim Kit 3003
70-74 E-Body
67-76 A-Body, 66-69 B-Body
Thank you for your purchase from our new line of Mopar parts.
Please call us at 877 - 4NO - ROLL if you have any questions
regarding the service or instal lation of your Hotchkis Performanc e products.
IMPORTANT: PLEASE READ THE ENTIRE
STARTING THIS INSTALLATION.
INSTRUCTION MANUAL BEFORE
1. Measure Alignment
The vehicle will need to be measured to determine whether or not the thrust angle requires
adjustment. It is best to have t hi s performed by a 4-wheel wheel alignment professional.
Thrust angle is a common measurement observed i n m ost alignment shops. If your vehicle
requires thrust adjustment, t hen please proceed to the following steps using the Hotc hki s
Thrust Shim Kit.
Terms:
Geometric Centerline: When observing the vehicle in plan view, this is an ima ginary line that
runs through the center of the front wheels and rear wheels
Thrust Direction: When observing the vehicle in plan view, the thrust direction follows an
imaginary line that runs throug h the center of the rear wheels and points in
the direction the rear wheels propel the vehicle. In live axle vehicles, thrust
is typically parallel with the direction of the rear wheels.
Thrust Angle: The angular difference b etween the Geometric Centerline and the Thrust
Direction. The thrust angle is positive when it points to the right and negative
when pointed to the left. The goal is to have this angle to be zero.
2. Raise the Vehicle
Raise the vehicle and safely secure it o n jack stands. Make sure to support the rear of the
vehicle on the chassis rather than the differential.
3. Support the Differen t i al
Place a jack underneath the rear differential pumpkin and apply jacking forc e until the weight
of the differential is relieved. This will allow you to disconnect the front leaf spring mount
without fighting any unwant ed preloads.
4. Install the Shims
Begin unbolting the 4 nuts that secure the front leaf spring mount to the chassis on the side
that requires shimming. Once mount i s so m ew hat detached from the chassis, you can slide in
the amount of shims you require. T he kit comes with 6 shims @ 1/32” thickness.
5. Reinstall Leaf Spring Mount
Reinstall the leaf spring mount in the same manner as removal.
Continued to next page…
6. Recheck Thrust Angle
Lower the vehicle back to ride heig ht and recheck the thrust angle. Repeat this proc ess of
adding or removing shims until you have zero thrust ang l e.
Hotchkis Performance LLC
Return Policy & Limited Warra nty
Effective December 1, 2010 all Hotchkis products must be registered to qualify for warranty at
www.hotchkis.net or via t he mail-in warranty card, included with the product, within 30 days of the
original purchase date.
IMPORTANT: This warranty supersedes all other warranties included with this product.
Return Policy
We want you to be completely satisfied with your Hotchkis Performance product. For products, presenting signs of
shipping damage please contact the freight carrier immediately. All our products are guaranteed to be free from
manufacturer’s def ec ts . If your or der arr ives wit h a manufacture def ec t, pl ease contact our Cust omer Service Department
at (562) 907-7757. You will be ass igned a R eturned Goods Authorizat ion Num ber (RGA) . The pac kage you return m ust
show the RGA on the out side of the package, include the original invoic e and be shipped prepaid to our facility. The
product has to be unused and in its original packaging materials. Exchanges or refunds made after 30 days will be
subject to a 20% restocking charge. If you purchased your Hotchkis Performance product from an authorized
dealer, you are still covered by this return policy. All returns however, should be made to your dealer, not to
Hotchkis Performance directly.
Limited Warranty
Hotchkis Performance offers a Limited Warranty against defects in materials and workmanship for the term of 36 months
(3 years) from the date of purchase of this product. This Warranty only applies to the original retail purchaser who retains
ownership of the vehicle on which the product was originally installed. If the product is determined to be defective,
Hotchkis Performance will repair, replace or refund the purchase price of the defective product at Hotchkis Performance's
sole discretion, which shall fully satisfy and discharge any and all warranty claims. Any repaired or replaced product will
be returned to the sender excluding the cost of freight.
www.hotchkis.net or via the mail-in warranty card, included with the product, within 30 days of the original
purchase date.
Products must be registered to qualify for warranty at
Exclusions from Warranty
Items offered but not manuf actured by Hotchkis Performanc e are warranted accor ding to the manufacturer's terms and
are not covered by this limited warranty. Hotchkis Performance shall not be responsible for any labor, removal,
installation, re-installation or maintenance costs. This warranty does not cover the cosmetic finish or plating of any
product or any normal wea r and tear to any product inc luding, but not limited to bus hings, brackets , end-links, hardw are,
steering components, shocks or springs. In addition, this warranty does not apply to any products that have been:
Improperly installed or installed by someone other than a qualified, licensed auto mechanic experienced in the
installation and removal of suspension products;
Improperly serviced, misused, or modified, altered or subjected to abuse, negligence, accident or collision; Installed in any vehicle that has been modified; Installed on any vehicle that has carried loads in excess of automobile manufacturer suggested weight limits; or Installed on any vehicle that has been subject to abnormal or excessive use, including rallying, racing, or racing-type
activities or off-road use.
Limitation of Warranty
This limited warranty is the entire and only warranty for the products and may not be modified or supplem ented by any
other person or company in any form . Any description of the products, by anyone, is f or the sole purpose of identifying
them and is not part of the basis of the barga in, and d oes not constitute a war ranty that th e products wil l conform to that
description. The statem ents of any salesperso n do not constitute part of this limited warrant y and cannot be r elied upon
as a warranty.
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE HEREOF. ANY IMPLIED WARRANTIES ARE DISCLAIMED TO THE
FULLEST EXTENT PERMITTED BY LAW. THIS WARRANTY DOES NOT COVER CONSEQUENTIAL
