25405 COMPETITION E ND LINK KIT
2002-UP ACURA RSX, 2004 Subaru STi
Thank you for your purchase from our line of competition parts. Please call us at (877) 4NO-ROLL if you have any questions
regarding the service or installation of your Hotchkis products.
Special Note: Our new & improved end links are now maintenance free. So there are no grease
fittings needed. Pictures in this manual shows the previous design with grease fittings.
INSTALLATION OF HOTCHKIS FRONT ENDLINKS
(Step 1) Remove the stock end links from the vehicle. Install your new Hotchkis end links in the same manner as the
picture below. Don’t forget to place the provided washer before each nylock nut. The jam nut installed on your end
links should be loose during installation. This will allow you to position the ball joint studs correctly.
(Step 2) Use a 9/16” wrench and a 3/16” allen wrench to tighten the nylock nuts for each stud. (Tip: If
possible, try using a “ratcheting wrench” to speed up the process.)
(Step 3) Next, center the ball joints to avoid possible binding. Once they are positioned, tighten the jam
nut using an 11/16” wrench. Use vise grips to hold the female ball joint to avoid spinning.
(Step 4) (Subaru owners skip this step) In some cases, if the vehicle is lowered (1.5” or more) you may
need to clearance the sheet metal edge shown in the following picture. This will prevent the ball joint stud
from interfering with the edge.
Use a hammer to bend the edge inboard as shown in the following picture.
You are finished with the front end link installation! Make sure to re-check all hardware tightness after the
first 100 miles, or if you hear a knocking sound from the front.
INSTALLATION OF HOTCHKIS REAR ENDLI NKS
The end links in the rear of the vehicle are the same as the front set. Don’t worry about mixing up the sets.
Install the rear set of end links in the same manner as the front set. Check the pictures below for an
example of how to install the end links.
Again, make sure to re-check all hardware tightness after the first 100 miles, or if you hear a knocking
sound from the rear.
You are now finished with the entire installation.

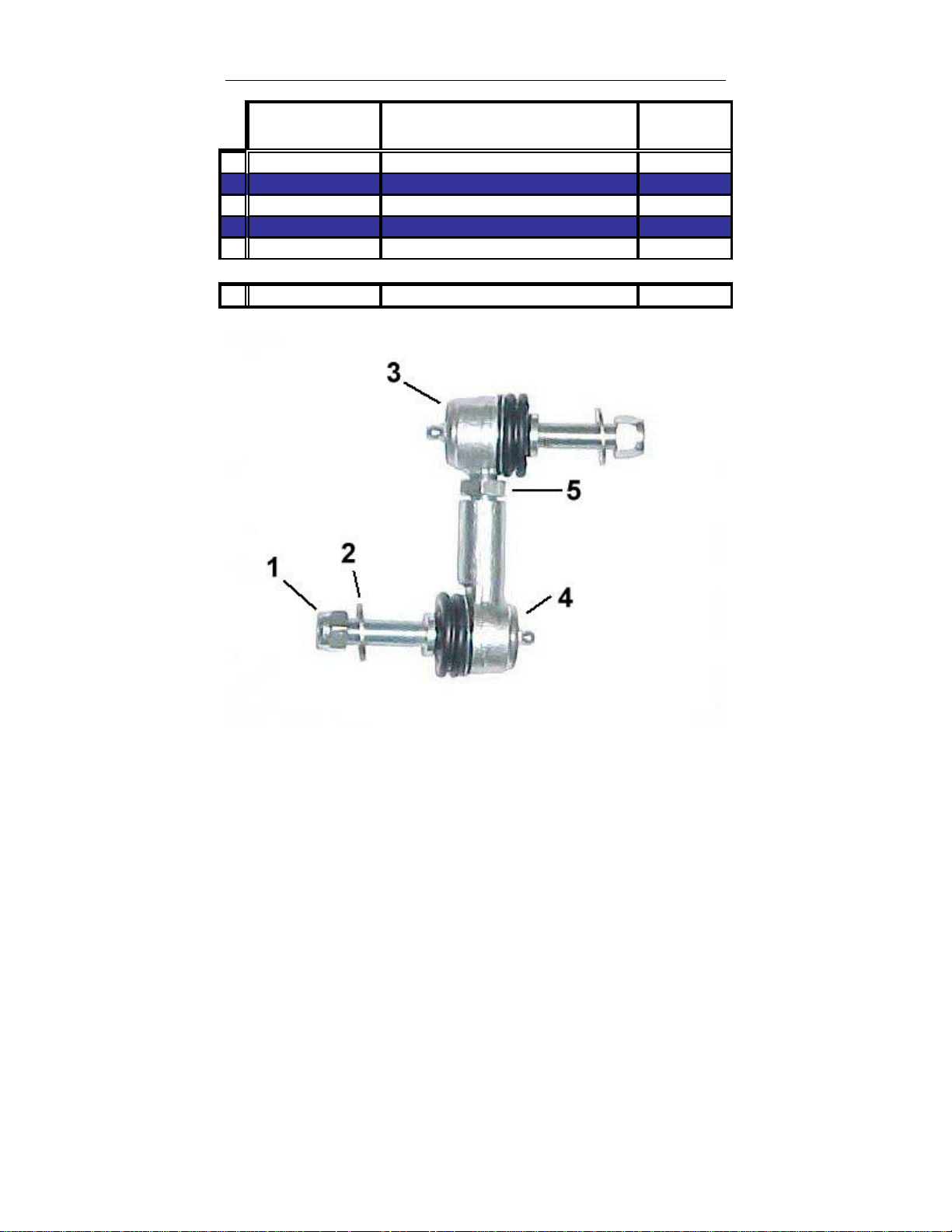

Acura RSX/Subaru STi Competition End Link set, Parts list
per kit
Items Not Pictured
Hotchkis P/N Item Description
1 n/a 3/8"-24 Nylock Nut 8
2 n/a 3/8" AN Washer 8
3 25490001 Male Ball Joint 4
4 25490002 Female Ball Joint 4
5 n/a 1/2" Jam Nut 4
Quantity
6 n/a Instruction Set 1
Competition and street sway bar kits!
Visit Hotchkis on the web at www.hotchkis.net or
Call (562) 907-7757 to order!
