22104R
Adjustable Rear Sway Bar Kit
Rear Bar Installation
1. Take note of the current stock sway bar installation.
2. Drive onto a 4-post lift or alignment rack. You may also drive the rear of the
vehicle onto floor ramps if a lift isn’t available. Installation of this kit is easier if
the weight of the car is on it’s wheels
3. Remove the stock sway bar endlinks.
4. Remove the four bolts holding the sway bar to the axle U-Bolts.
5. Remove the factory sway bar and U-bolts from the vehicle.
93+ F-Body rear & front sway bar
2204_inst.doc
Page 1 of 8
6. Using the included white silicone grease, lube the inside of the urethane
15/16” sway bar bushings. (The silicone grease can be cleaned up with
WD40.)
7. Install the urethane bushings on the bar. Place the bushing’s bracket over top
the bushing.
8. Attach the swaybar to the axle using the new Hotchkis U-bolts and brackets.
Note: The new brackets may have only one side of the bracket engaged on
the axle tab. Do not fully tighten the axle U-bolts at this point.
93+ F-Body rear & front sway bar
2204_inst.doc
Page 2 of 8
9. Insert the new end links through the frame bracket and install the
bushing/washer/nut on the top finger-tight. The end link length is adjustable.
Adjust the length of the end link by spinning the ball joint in or out on the
threaded rod. Adjust the length until the rod shows approximately 12 threads
from the jam nut to the stop. This is a good initial length to start off with.
Fully tighten the jam nut.
93+ F-Body rear & front sway bar
2204_inst.doc
Page 3 of 8
The bar has 3 stiffness holes on each side. The hole closest to the end is the
softest setting. Choose a setting based on your handling needs. Insert the
ball joint stud into the sway bar end hole. Secure the ball joint end using the
supplied washer and nylock nut. Fully tighten this nut.
Next, fully tighten the nut on top of the end link completely
93+ F-Body rear & front sway bar
2204_inst.doc
Page 4 of 8

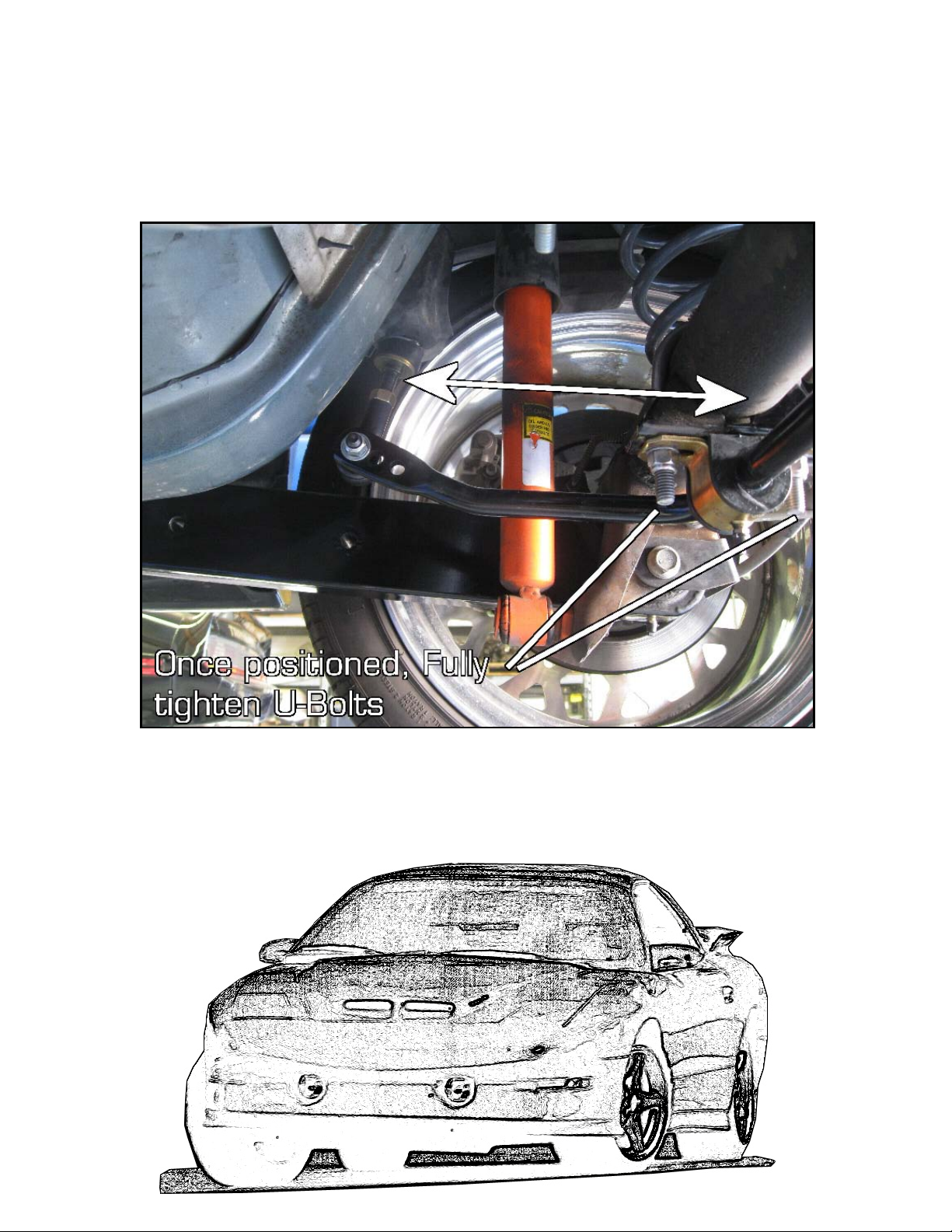

10. The bushing brackets attached to the axle tubes have slots and the fore/aft
position can be adjusted slightly. Adjust the position so that the end link is
as upright as possible. For example, if you have the end links attached to
the softest setting (closest to the end), you’ll want to shift the bushing
brackets towards the rear of the vehicle as much as possible. Once you are
in position, tighten the U-bolts completely.
11. Double check that all fasteners are tightened.
Your installation is finished. Enjoy your new sway bars!
93+ F-Body rear & front sway bar
2204_inst.doc
Page 5 of 8
