Hotchkis 1901F User Manual

1901F
1964-1972 GM A-Body

Small Block Front Coils

Special Note
Please read the following special note regarding your new Hotchkis Coil Springs before
attempting this ins tall.
Although our coils were designed to drop a typical stock GM A-Body by 1”, we have observed that this ride height drop is not 100% consistent due to variations of engine modification (e.g. Aluminum heads) and other different components that affect the vehicles weight.
Our coils generally sit either perfect or higher than desired. So, our springs will never be too low straight from the box. This will leave room for the installer to play with the ride height by cutting the bottom end of the spring if the ride height is too high for your application.
than 1 full coil off.
perform just the same. You do not have to worry about weakening or over-stre ssing th e spring after cutting.
Notes for Cutting the Spring:
- First check to see if the coil spring drops your car at a desired ride height straight from the box. If so, you do not have to cut them.
- Measure the fender to ground distance and estimate how much more you would like to drop it.
- Once the coil is removed, measure the free length of the coil before you cut anything.
- Do Not cut more than 1 full coil.

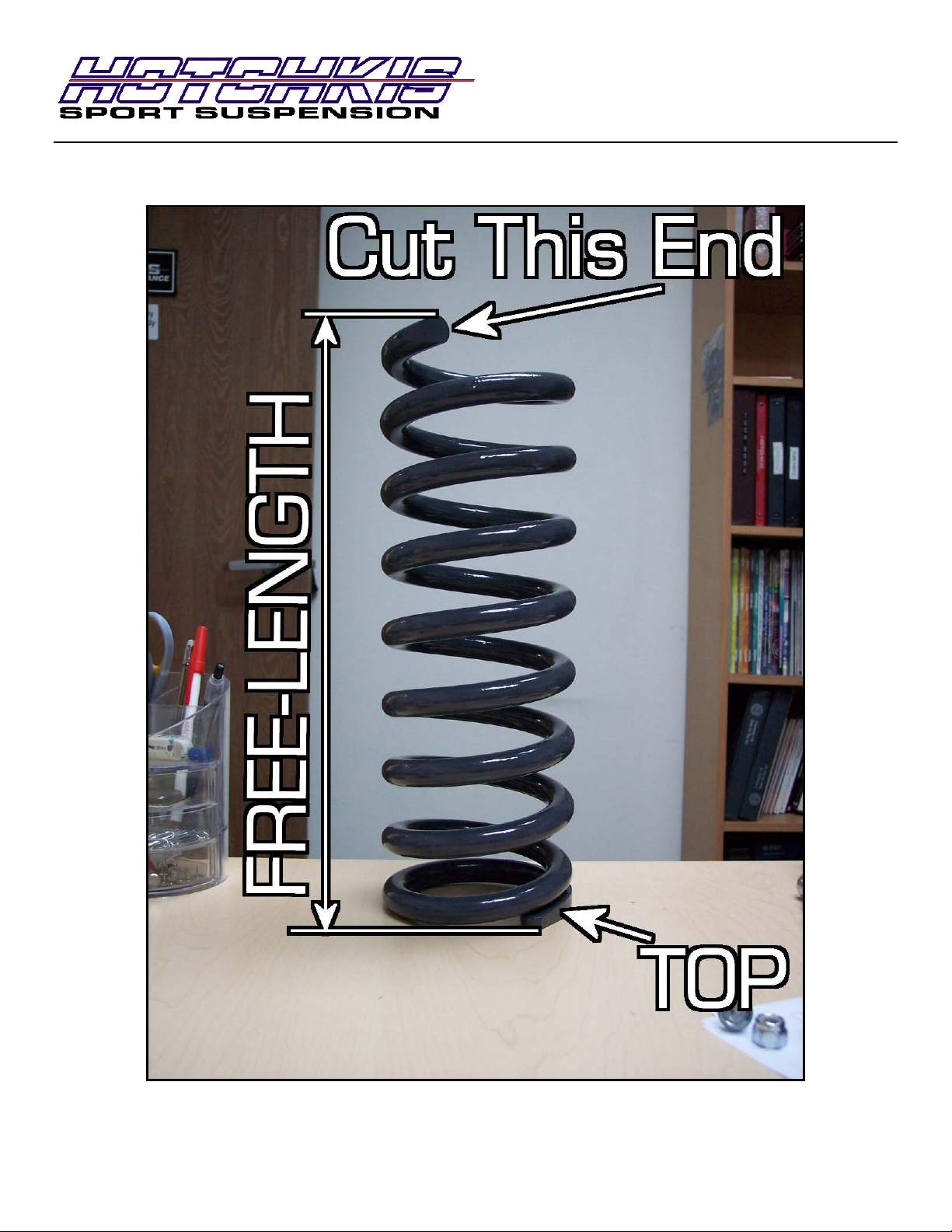

- T he spring/A-arm motion ratio is approximately 2:1, so for every 1 inch of Free-Length you cut off the spring the car will lower 2”. This is only an approximation. We suggest you cut the spring conservatively. So for example, if you want to lower the car more by 1”, you may want to cut t he spring’s Free-Length by 3/8” or 7/16”. If you need to cut more, than cut more. What you don’t want to do is cut too much and have the car sit too low. Please see the picture on the next page for descriptions on what end to cut and what we specify as the Free-Length of the spring. Warning: Springs can not be returned once they are cut, so please take your time and cut in small increments.
- You will have to re-install the spring each time to verify the new ride height.
- Make sure when installing the springs that the top of the coil is seated properly and the lower end is indexed in the lower control arm bucket. Failure to do so m ay result in inaccurate ride heights and will ap pear to be too high.
- Always use safety glasses to protect your eyes when cutting the coils.
- This is a trial and error procedure, so please be patient.
- Do not damage any other coils during cutting.
- Please see the following page for more detail.
Reducing the amounting of coils will slightly increase the spr ing rate, but the spring will
We recommend that you do not exceed cutting more
--------------------------------------Page 1 of 5------------------------------------------
- Warranty may be void if any problems arise due to installation error.
Installation Note: The Flat surface of the spring is installed in the Top Pocket.
