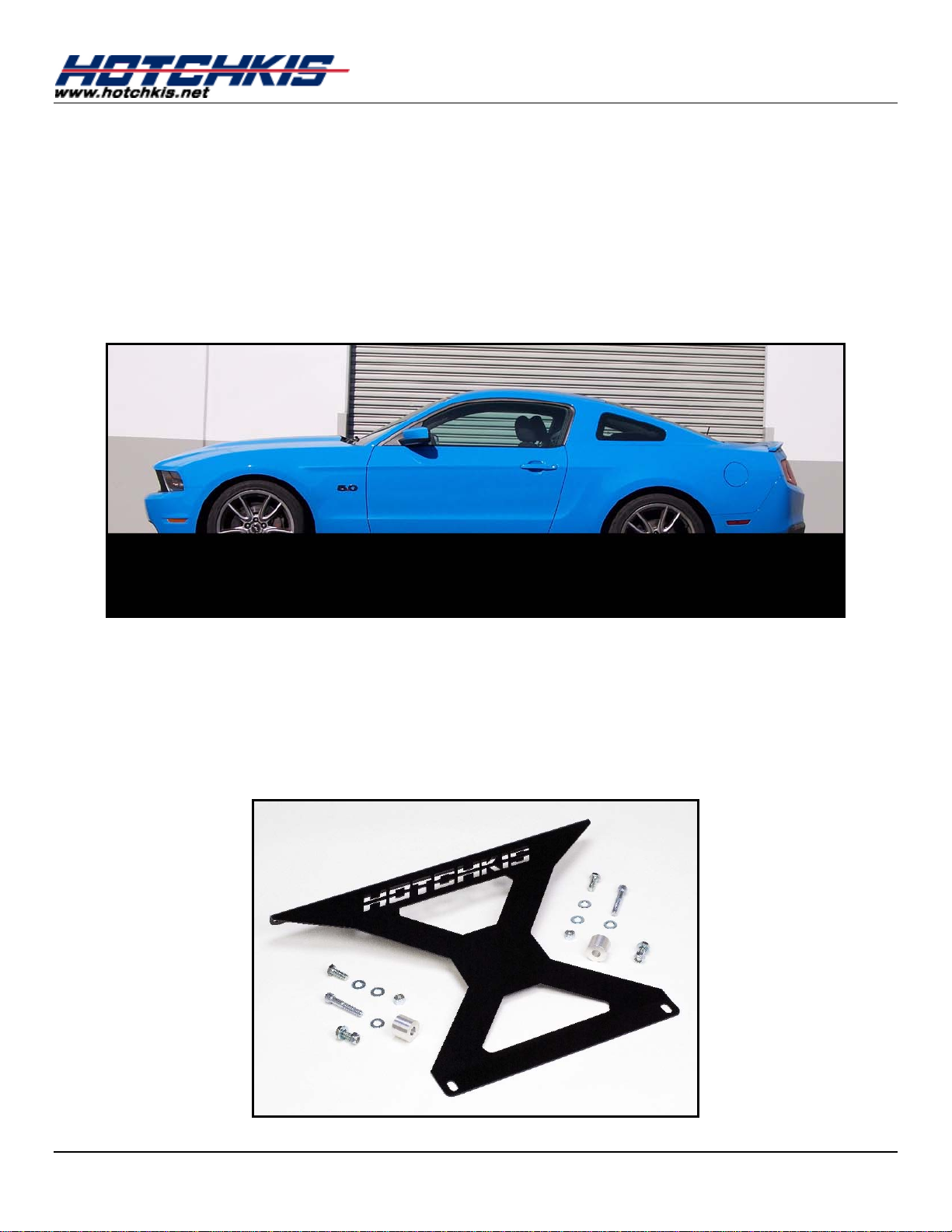

Hotchkis 1416 User Manual

05-Current Ford Mustang

1416 Underbody Brace

05-Current Mustang V6/GT

Installation Instructions

Thank you for your purchase of this Hotchkis Performance product. Your Underbody Brace set was

designed with the performance and durability you’ve come to expect from Hotchkis Performance.

Note: Please read the entire installation instructions before starting. Having the right tools will

ensure a smooth install process.

Hotchkis Performanc e LLC. 1

05-Current Ford Mustang

UNDER BODY BRACE INSTALLATION

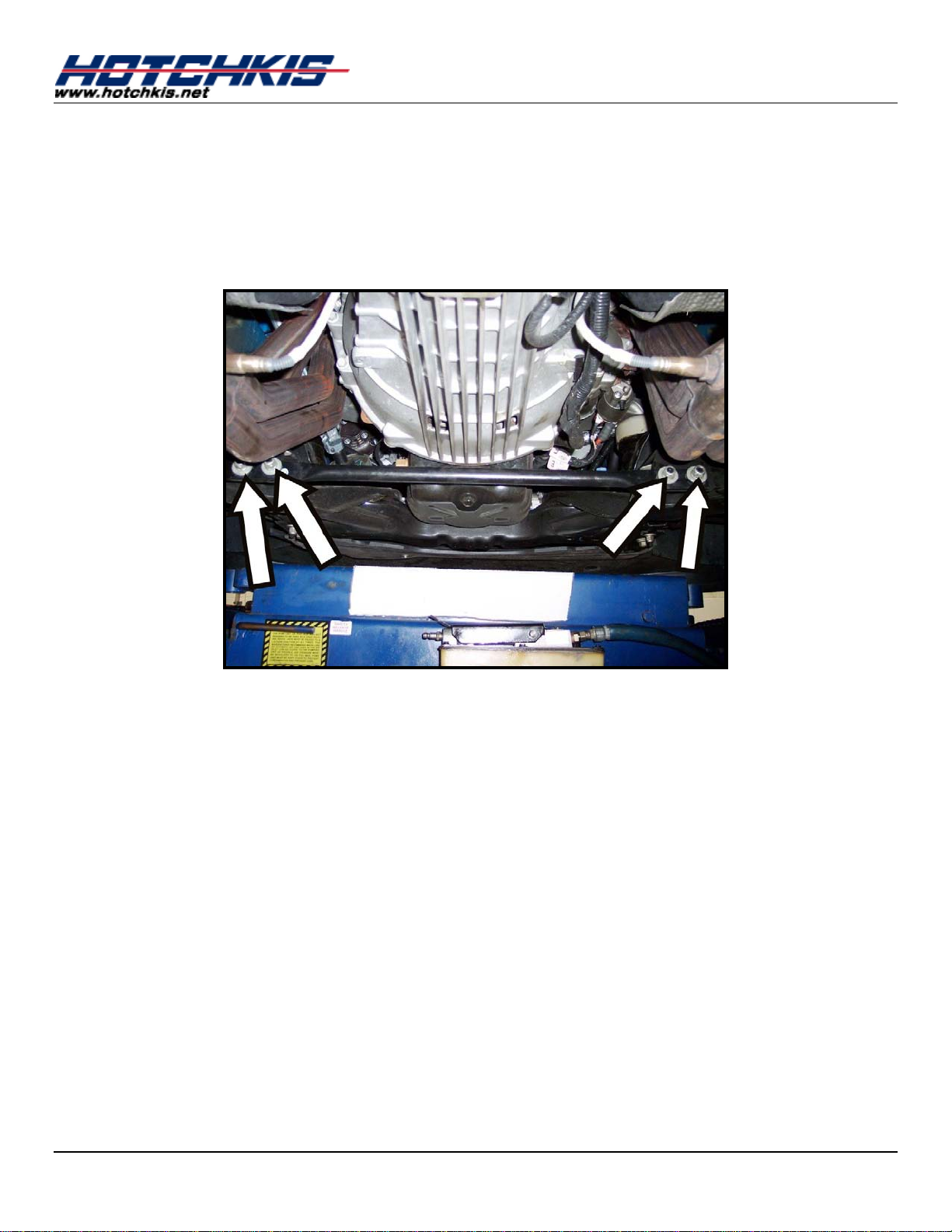

1. Safely raise the vehicle and unbolt the stock center bar.

NOTE: This is the only stock part that needs to be removed before installation. If it is a later
model Mustang where there studs, the nut s will be used in the installation. I f there are holes
instead of studs, use the supplied hardware.

2. Install the new under brace by hand tightening the four (4) nuts/bolts. If only

holes are there use supplied 12mm X 30mm bolts, nylock nuts, and washers.

NOTE: Do not ti ghten these bolts yet. Just start the bolts in t h e h oles so that the brace is
supported. This will make it easier to bolt up the rear section.

Hotchkis Performanc e LLC. 2

05-Current Ford Mustang

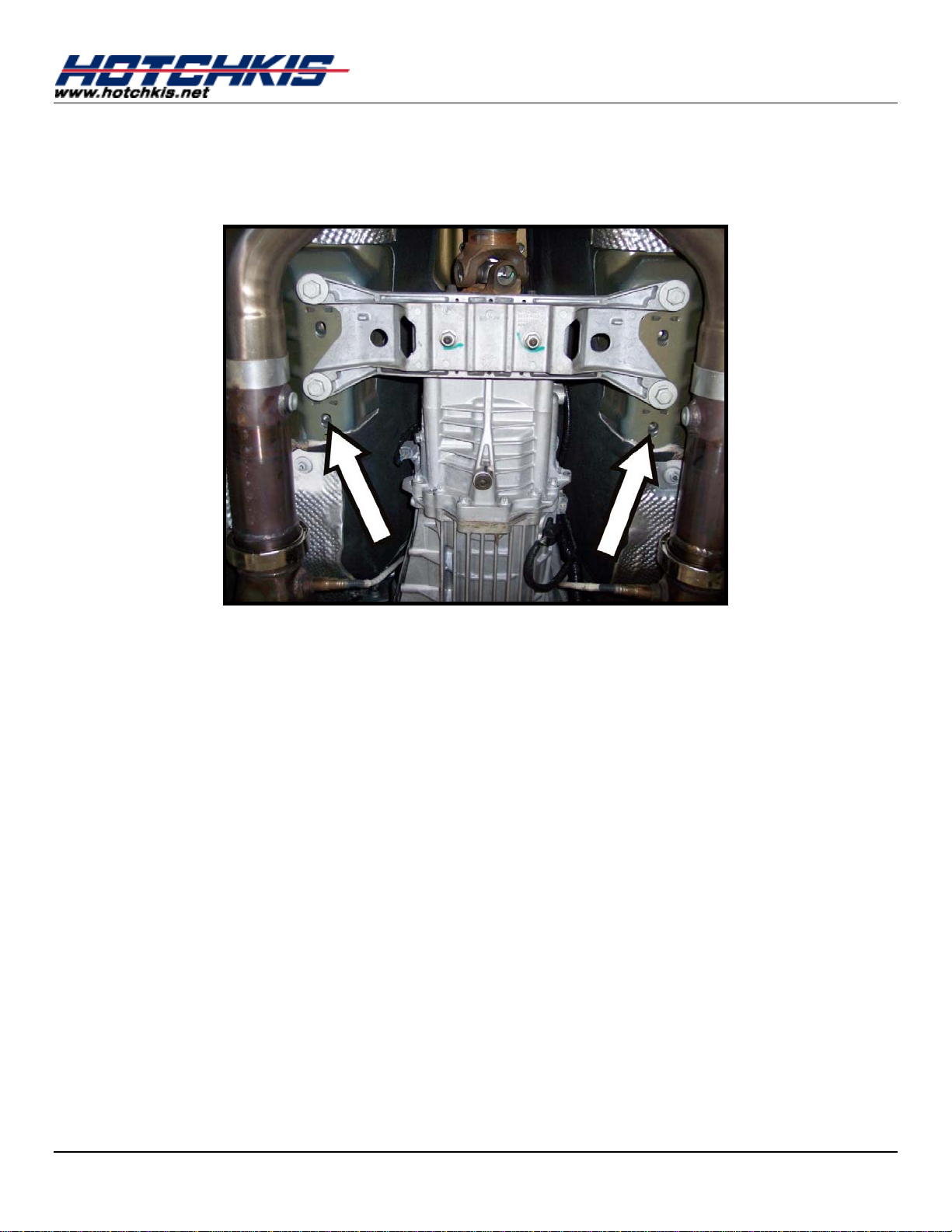

3. Now bolt the rear bracket onto the located in front of the main rear transmission
cross member. Use the supplied aluminum spacer, bolt and washer. The aluminum
spacer goes between the brace and the chassis for proper positioning.

4. Fully tighten the two (2) rear mounting bolts and the four (4) front mounting
nuts/bolts and you are finished.

Hotchkis Performanc e LLC. 3
