REAR FRAME MOUNT BRACE
67-69 GM CAMARO/FIREBIRD
Installation of Hotchkis Rear Sway Bar
1967-1969 GM F Bod y
1415
Thank you for your purchase of this Hotchkis Performance product.
Note: Please read the entire installation instructions before starting. Having the right tools will ensure a smooth
install process. This part is intended to be installed with the Hotchkis Rear Sway bar kit 2207/R. However, you
may install this part with or without the sway bar kit. This instruction manual shows the installation of both the
REAR FRAME MOUNT BRACE and the HOTCHKIS 2207 SWAY BAR KIT together.
1R. Remove the lower rear seat cushion. If the cushion won’t pull up easily, use a long
screwdriver to push and release the small b ar that is clipped in the bracket. Remove
the two bolts that hold the back part o f the seat to the body and lift the upper cushion
to remove it from the vehicle. This will allow you to access the floor pans.
Hotchkis Performanc e LLC. 1
1967-1969 GM F Bod y
2R. Jack up the vehicle and properly support with jack stands or lift jacks. Make sure the
rear end is supported with the vehicle’s load on the leaf springs. This is to ensure you
install the rear bar in the proper position.
3R. Take the 7/8” bushings and grease the inner surface with the included white silicon
grease.
4R. Install the bushings on the ba r . (4) Place the bracket over top of the bushing. (5)
5R. After you determine there’s enough clearance for the bar, note the approximate
location of the sway bar axle bushings.
Hotchkis Performanc e LLC. 2
1967-1969 GM F Bod y
6R. Take a screwdriver and carefully pry up the brake line to allow the U-Bolt to drop down
over the axle. (7)
7R. Install the U-Bolts on the axle and slip the axle bracket over the U-Bolt on the bottom
side of the axle. Use m asking or duct tape to secure them. Place the sway bar
assembly under the axle and slip the U-bolt legs through the sway bar brackets. Place
washers and nylock nuts on the U-Bolt. Snugly fasten the nylock nuts a bit, but do not
fully tighten at this time.
Hotchkis Performanc e LLC. 3
8R. Remove the screw and clip that holds the fuel line located on the frame rail of the
passenger side to allow for the chassis brace to slide into place. ’68 cars may need to
drill out rivet style line tabs.
1967-1969 GM F Bod y
Hotchkis Performanc e LLC. 4
1967-1969 GM F Bod y
9R. Lift chassis brace up and over the back side of the rear axle and position it up against
the body pan and chassis as shown below.
NOTE:
We have noticed on rare occasions that the brace is too narrow on some chassis’. If
there is more than an 1/8” of gap between the brace and the frame rails, then please
use the special spacer shims (part # 23490019) included in your kit to rectify the
tolerance issue.
Hotchkis Performanc e LLC. 5

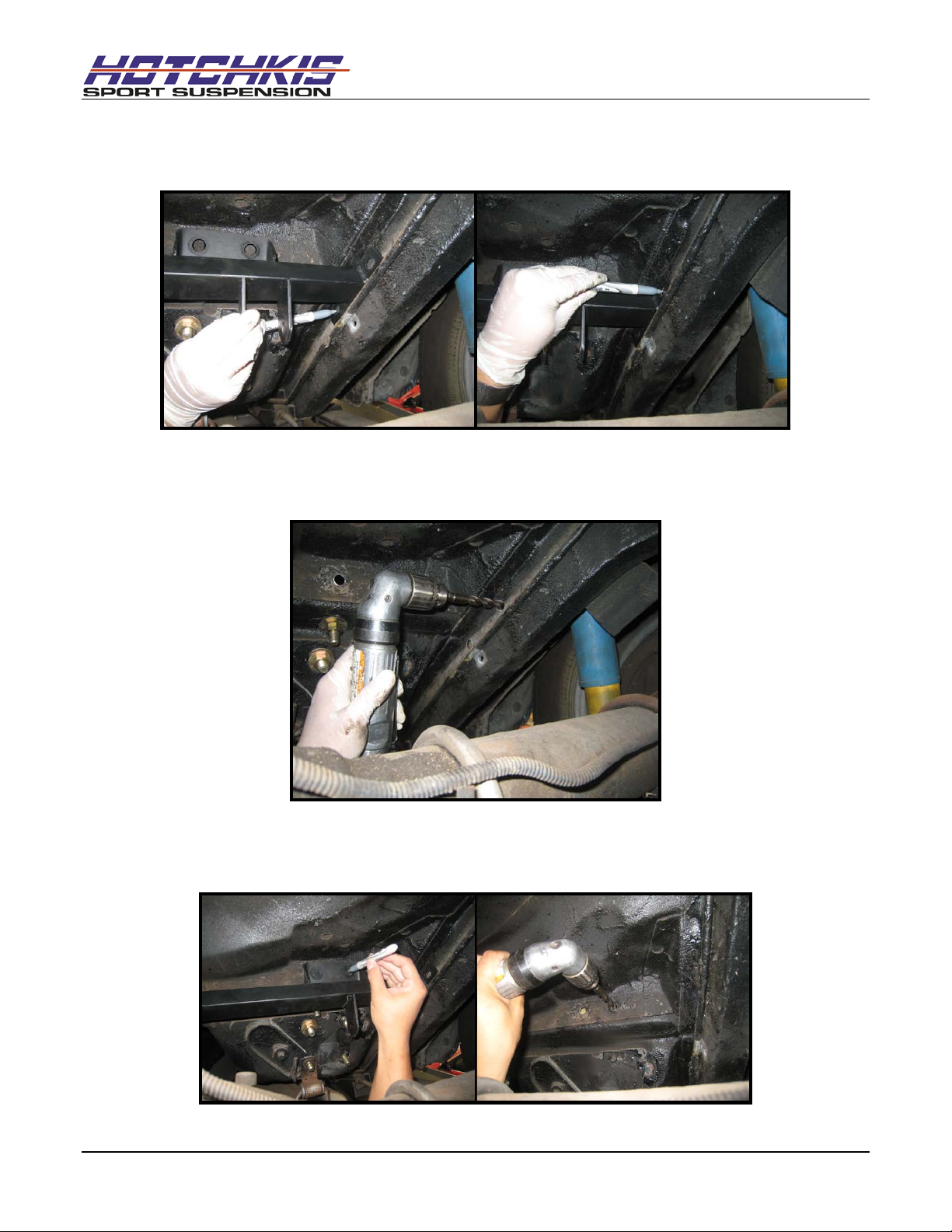

10R. Once you have the chassis brace in place, mark the spots where you will drill the holes
to secure the brace. Do this on both sides.
11R. Remove the chassis brace and using a 7/16” drill bit, drill the 4 holes that you just
marked.
1967-1969 GM F Bod y
12R. Place chassis brace back into p lac e and mark the remaining 4 holes for drilling as shown
below. After marking the holes, remove brace and using a 7/16” drill bit, drill the holes.
Hotchkis Performanc e LLC. 6
13R. Using the 1718 Hardware kit, pull out the U-Bolts and coat the threading with the Anti-
Seize Lubricant.
Feed one end of the U-Bolt through one of the holes on either end of the chassis brace
and maneuver it into the backside of t he other hole as shown below.
1967-1969 GM F Bod y
Place washers and nylock nuts on the U-Bolt. Tighten one side of the U-Bolt partially,
and then tighten the other side of the U-Bolt partially alternating back and forth until
fully tightened to guarantee the bolt is tightened properly.
Hotchkis Performanc e LLC. 7
Special Note:
You may reuse the fuel line tab by rotating it 180° and use the same bolt
hole that mount ed it. ’68 cars ma y need to purcha se Adel Clamps from yo ur
local auto parts st ore a nd use o ne of t he u-bo lt studs as a mo unting fa stener.
Sandwich the Adel Clamp between Hotchkis brace tab and the nylock
nut/washer. Make sure the Adel clamp is the correct size for you fuel tube
and can be mounted with a 3/8” hardware.
14R. From inside the car, insert the supplied 7/16” bolts into the 4 holes drilled in step 12R.
You will need one person inside the car to hold the bolts with a wrench while you
tighten up the nuts from the bottom .
1967-1969 GM F Bod y
15R. Grease the sides of both dog bone style end links.
Hotchkis Performanc e LLC. 8
16R. Using the T1712 Hardware kit, take the longer (3”) bolts and attach the dog bone end
link to the bar on the INSIDE of the bar. There are two different washer types included
in the bolt kit, use the large diameter washer up against the dog bone, and the small
one against the sway bar. Tighten the bolt to the point where you can just rotate the
end link on the bolt.
1967-1969 GM F Bod y
17R. Slide the other end of the dog bone style end link up in between the brackets on the
chassis brace. Check for exhaust clearance in this area. If necessary, you may have to
have the exhaust pipes re-bent to provide clearance for the new sway bar assembly.
Any competent exhaust shop can handle this modification easily. If clear, use the
shorter (2.75”) bolt with a small washer on each side of the bracket to complete the
assembly and fully tighten.
Hotchkis Performanc e LLC. 9
18R. Fully tighten the other end of the dog bone style end links which were left loose in step
16R.
1967-1969 GM F Bod y
19R.
Double Check all Hardware
Double check and make sure all hardware is full tightened before driving the vehicle.
You are finished with the rear sway bar kit.
Hotchkis Performanc e LLC. 10
