HotBrick VPN Client User Manual

HotBrick VPN Client

User Manual

HotBrick VPN Client User Manual Property of HotBrick — 2005

2

Table of Content

1 INTRODUCTION 3
2 INSTALL 3

2.1 Software installation 3

2.2 Evaluation Period 4

3 SOFTWARE MANIPULATION 4

3.1 System Tray 4

3.2 Hidden User interface 5

3.3 Main window 5

4 CONFIGURATION 7

4.1 USB Mode 7

4.2 Configuration Wizard 9

4.3 Tunnel configuration (main window) 11

4.4 Authentication or Phase 1 12

4.5 IPSec Configuration or Phase 2 14

4.6 Certificate management 15

4.7 Global Parameters 16

4.8 Configuration management 17

4.9 Tunnel management (Connections) 17

4.10 Configuration tools 18

4.11 Console 19

5 UNINSTALL 20

5.1 Software uninstall 20

6 TROUBLESHOOTINGS ERRO! INDICADOR NÃO DEFINIDO.
7 CONTACTS 20

HotBrick VPN Client User Manual Property of HotBrick — 2005

3

1 Introduction

HotBrick VPN client is a complete IPSec VPN s olution for all Windows versions. It provides full IKE support
(preshared keying and X509 certificates) and Nat Traversal. It is compatible with most of the currently available
IPSec gateways and also operates as a peer-to-peer VPN in a “point – to – multiple" mode, wit hout a gateway
or server.

HotBrick VPN Client provides 3DES, DES and AES encryption and MD5 and SHA authentication.

• Our IPSec client is the result of many years of experience in network security and Windows network driver
development, as well as extensive research in relat ed areas.

• Our IKE implementation is based on the OpenBSD 3.1 implementation (ISAKMPD), thus providing best com­patibility with existing IPSec routers and gateways.

Our offer is specially designed to target OEM clients and System I ntegrators. We provid e a fully functional VPN
Client solution to complete existing offers. Our IPS ec VPN Client can b e re-branded and source code license is
available on demand.

The VPN IPSec Client completes our range of network s ecurity prod ucts and lik e all our prod ucts is easy to use
and to install.

HotBrick VPN IPSec Client is compatible with all current Windows versions: 9x, ME, NT4, 2000, XP.

2 Install

2.1 Software installation

HotBrick VPN client installation is a classical Windows installation that do es not require specific information.
After completing the installation, you will be asked to re boot your computer.

Caution

: On Windows NT, 2000 and XP, you must have administrator rights. If it is not the case, the installation

stops after the language choice with an error message.

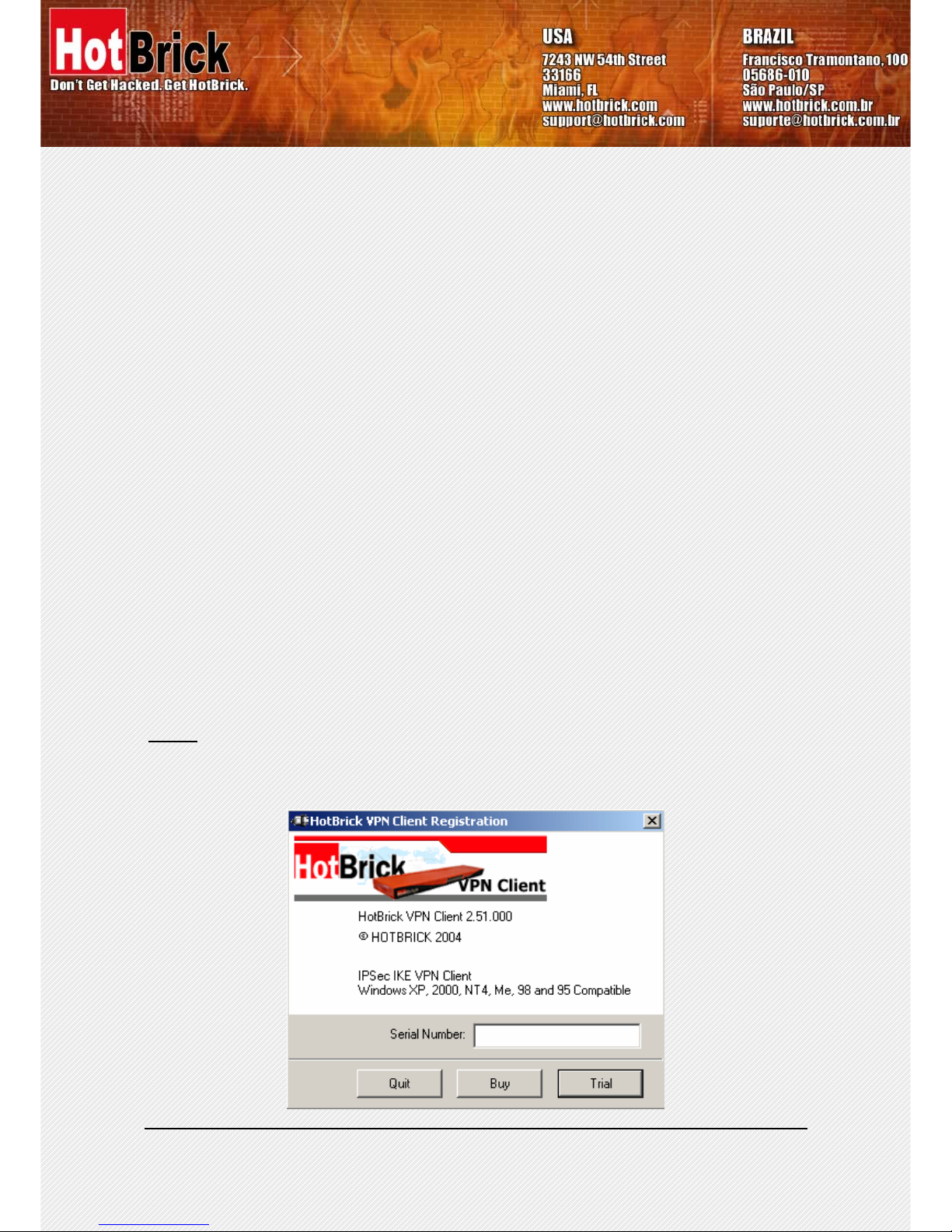

After reboot and session login, a window appears for a license number request.

HotBrick VPN Client User Manual Property of HotBrick — 2005

4

The license number is a string with hexadecimal characters as "0123456789ABCDEF0123". An error message
warns user if this value is false.

If the License number is correct, HotBrick VPN Clie nt is activated. You can then find a green/red icon in the
taskbar. Right and left click give access to the configuration user interface and “Quit” command.

Shortcuts

: After software installation, HotBrick VPN window can be launched:

• from user desktop, by double-clicking on HotBrick VPN shortcut

• from VPN Client icon available in the taskbar

• from menu Start > Programs > HotBrick > VPN > HotBrick VPN

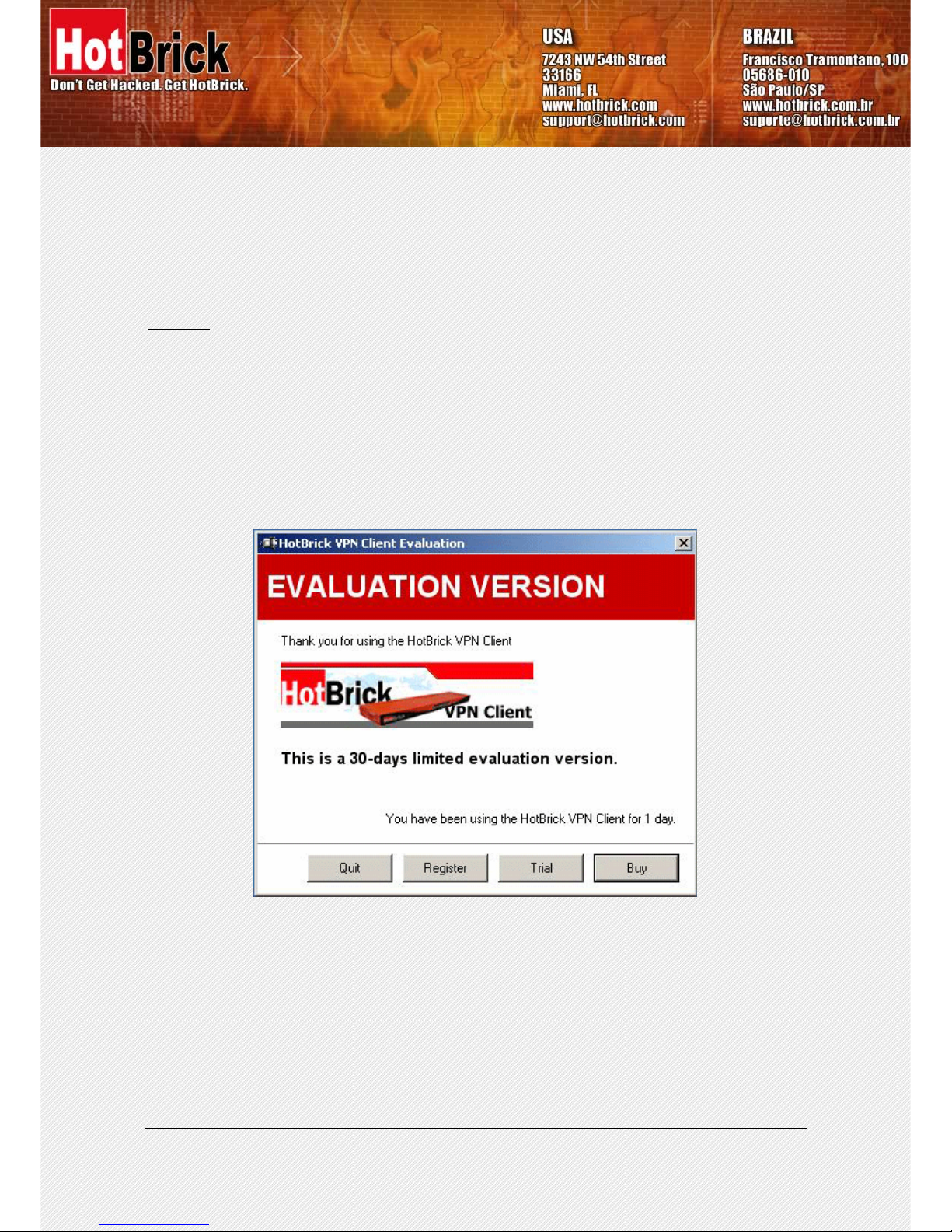

2.2 Evaluation Period

It is possible to use HotBrick IPSec VPN Client during the evaluation period (i.e. limited to 30 d ays) by clicking
on "Trial" button. When the IPSec VPN Client is on "Evaluation" mo de, the register window appears at each
boot of the client.

3 Software manipulation

HotBrick VPN Client is fully autonomous and can start and stop tunnels without user intervent ion, dependin g on
traffic to certain destinations. However it requires configuration.

The VPN Client configuration is defined in a c onfi gurati o n file. The softw are user inte rface all ow s creati ng, modi­fying, saving, exporting or importing the configurations.

HotBrick VPN Client User Manual Property of HotBrick — 2005

5

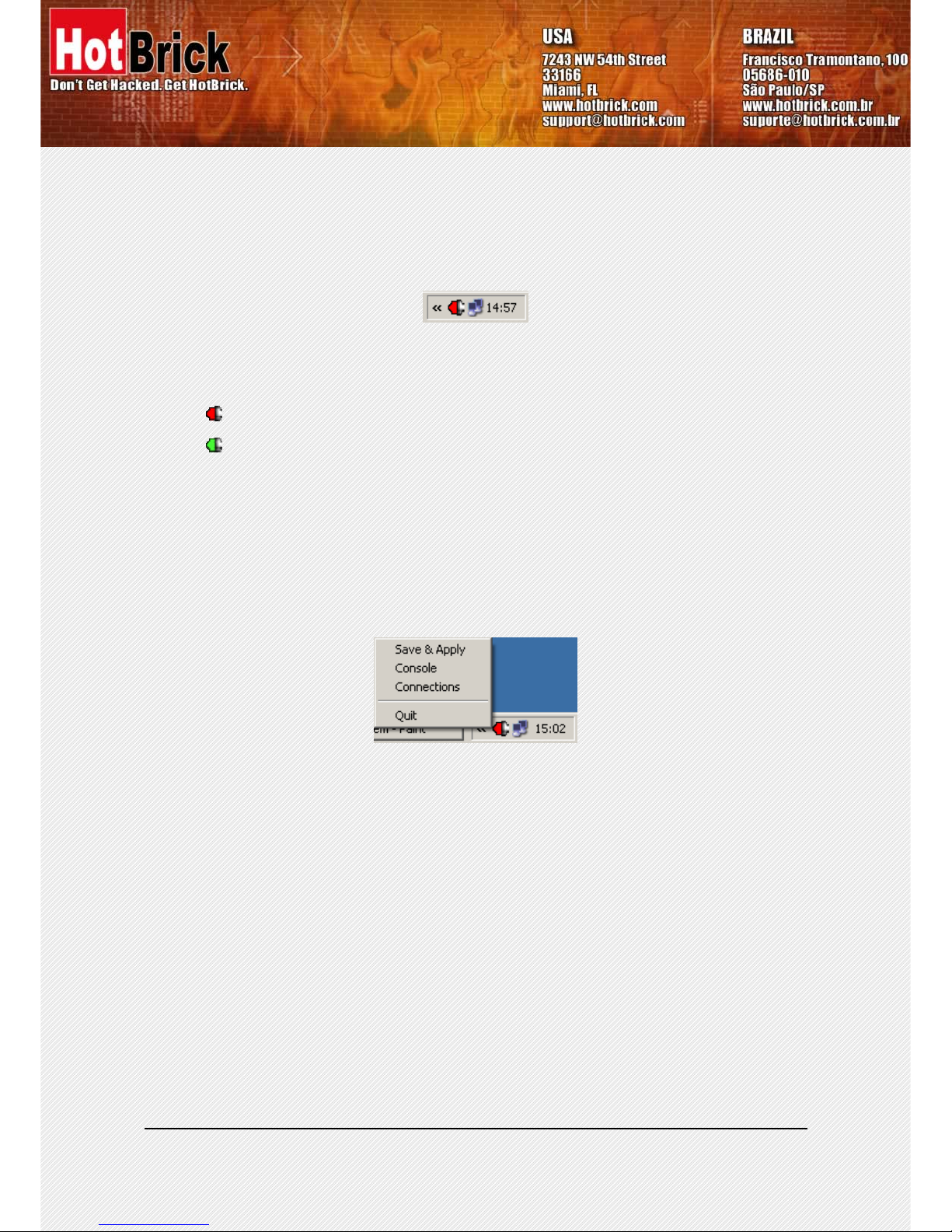

3.1 System Tray

The configuration user interface can be launch via a do uble click o n application ic on (Desktop or Wind ows Start
menu) or by single click on application icon in system tray. Once launched, the VPN Client software shows an
icon in the system tray that indicates whether a tunnel is op ened or not, using color code.

3.1.1 Color code is the following

Red icon: no VPN tunnel is established
Green icon: at least one VPN tunnel is established

Tool tips over VPN Client icon shows the connection status of the VPN tunnel:

• "Tunnel tunnelname" when one or more tunnels are established

• "Wait VPN ready..." when the IKE service is reinitializing

• "HotBrick VPN Client" when the client is up but with no established tunnel.

A left-button click on VPN icon opens configuration user i nterface. A right-button click shows the following m en u:

• "Quit" will close established VPN tunnels, stops the configuration user interface.

• "Save & Apply" will close established VPN tunnels and reopen all the VPN tunnels.

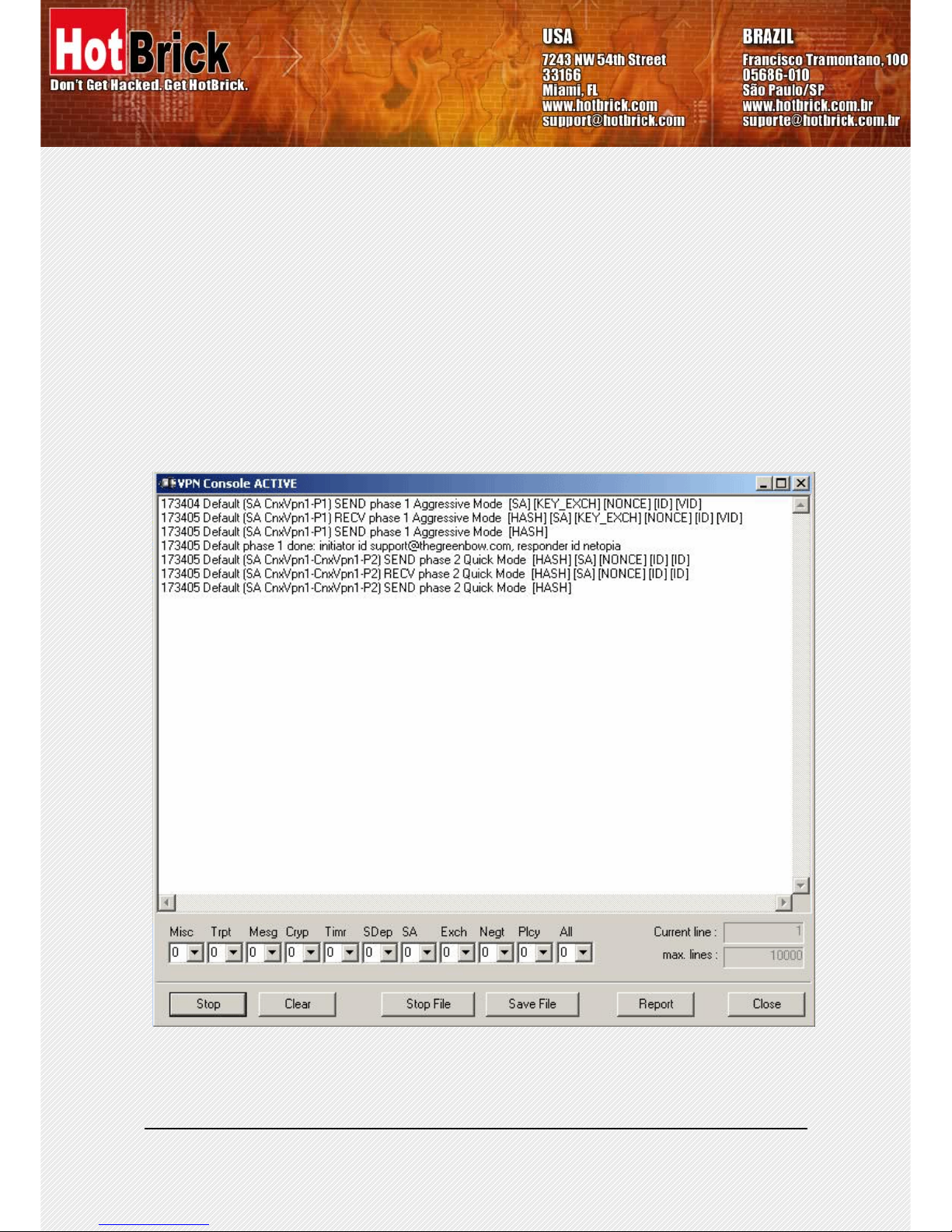

• "Console" shows log window.

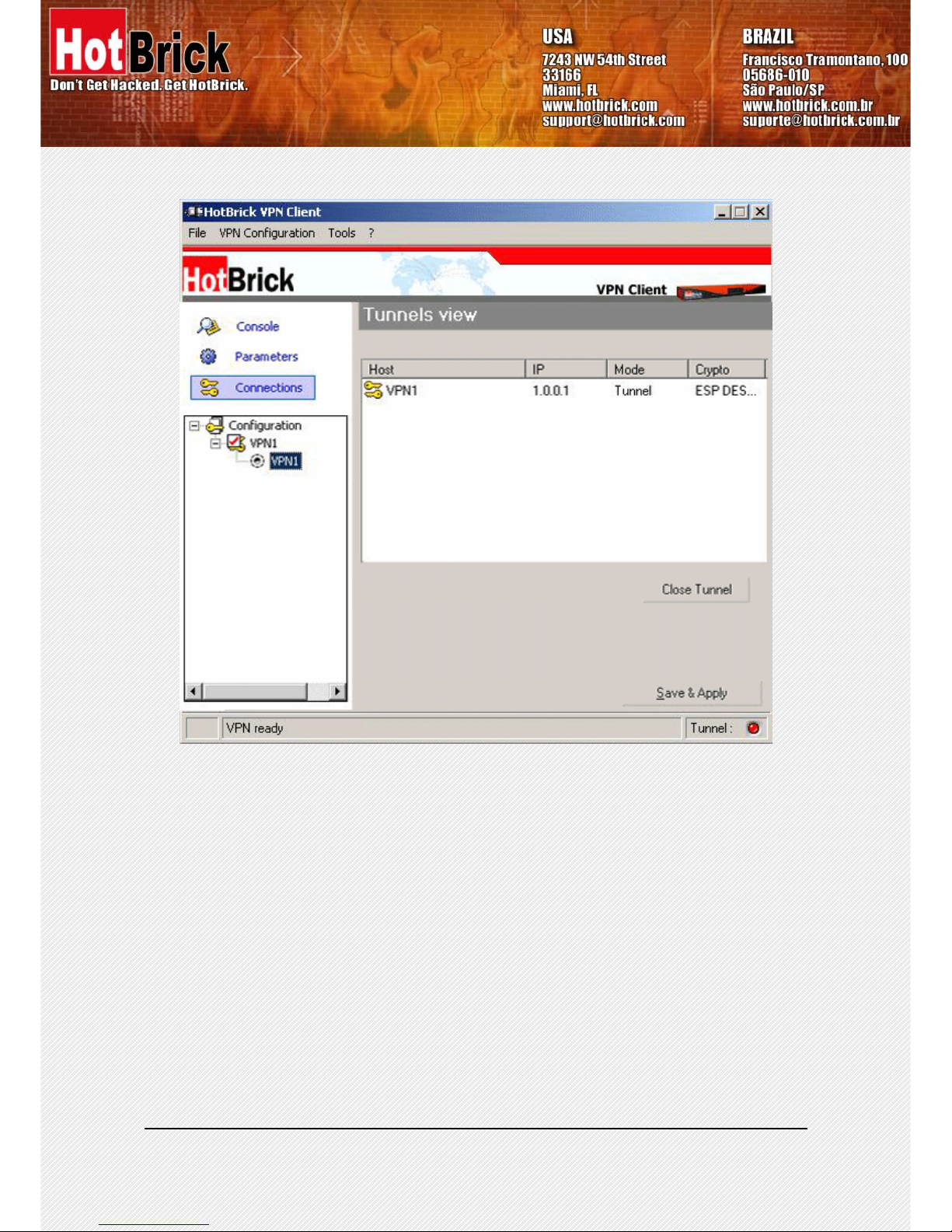

• "Connections" opens the list of already established VPN tunnels. You ca n configure tunn els to open up aut o-

matically when the software starts.

3.2 Hidden User interface

The configuration user interface c an be hidden t o the end user. W e provide configuratio n tools for IT managers
that prevent the end user from changing their configurati on. Access to the configuration user interface can be
restricted with configuration tool VPNHIDE. See section 4.10.3 page 18.

In that case, the Main window can not be opened and showed by double-clicking on desktop ic on, by selecting
Start menu. Right-click over the icon in taskbar is limited to "Consol e" access:

HotBrick VPN Client User Manual Property of HotBrick — 2005

6

3.3 Main window

The main window is made of several elements:

• A tree list window (left column ) that contains all the IKE and IPSec configuration

• Three buttons '”Console”, “Parameters” et “Connections” (left column)

• A configuration wind ow (right column) that shows the associated tree level.

3.3.1 Main menus

• “File” menu is used for s aving and loading a configuration. With this menu, y ou can import or export

VPN configuration.

• 'Configuration' menu contai ns all actions from tree control right-click menu

• 'Configuration' menu gives also access to the configuration wizard.

• 'Tools' menu contains 'Console' and 'Connections' choice.

HotBrick VPN Client User Manual Property of HotBrick — 2005

7

• '?' menu gives access to online help and window 'About'.

3.3.2 Status bar

The status bar displays several information:

• The “USB Token box” (left si de) indicates whether the “US B mode” is set “On” or “Off” (see also sec-

tion 4.1 page 7). In case it is set “On”, “USB” will appear.

• The “central box” giv es some information about VPN Client Software status (e.g. “opening tunnel in

progress”, “saving configuration rules in progress”, “VPN client start up in progress”, …)

• The “light box” (right side) gi ves some information a bout tunnels (e.g. red li ght means at least one tun-

nels is open, green light means no tunnel open, gray light means VPN Client restart pending)

3.3.3 Window 'About'

The 'About' window provides the VPN Client software v ersion. There is also an URL to our web site.

4 Configuration

You’ll find a set of useful VPN Client configuration documen ts available for each of the V PN Client gateway we
support. Please go to our knowledge base on our website: http://www.hotbrick.com.br/vpnclient_list.htm

4.1 USB Mode

The VPN Client 2.5 brings the capability to secure tunnel security elements by the use of a USB Stick.
Once the "USB mode" is set “On”, you just need to insert the USB stick to automatic ally open tunnels. And you

just need to unplug the USB stick to automatically close all esta blished tunnels. In that mode, no tunne l can be
opened.

When you select “USB mode”, the tunnel security elements contained into the configuration are stored onto the
USB stick the first time you plug it in.

HotBrick VPN Client User Manual Property of HotBrick — 2005

8

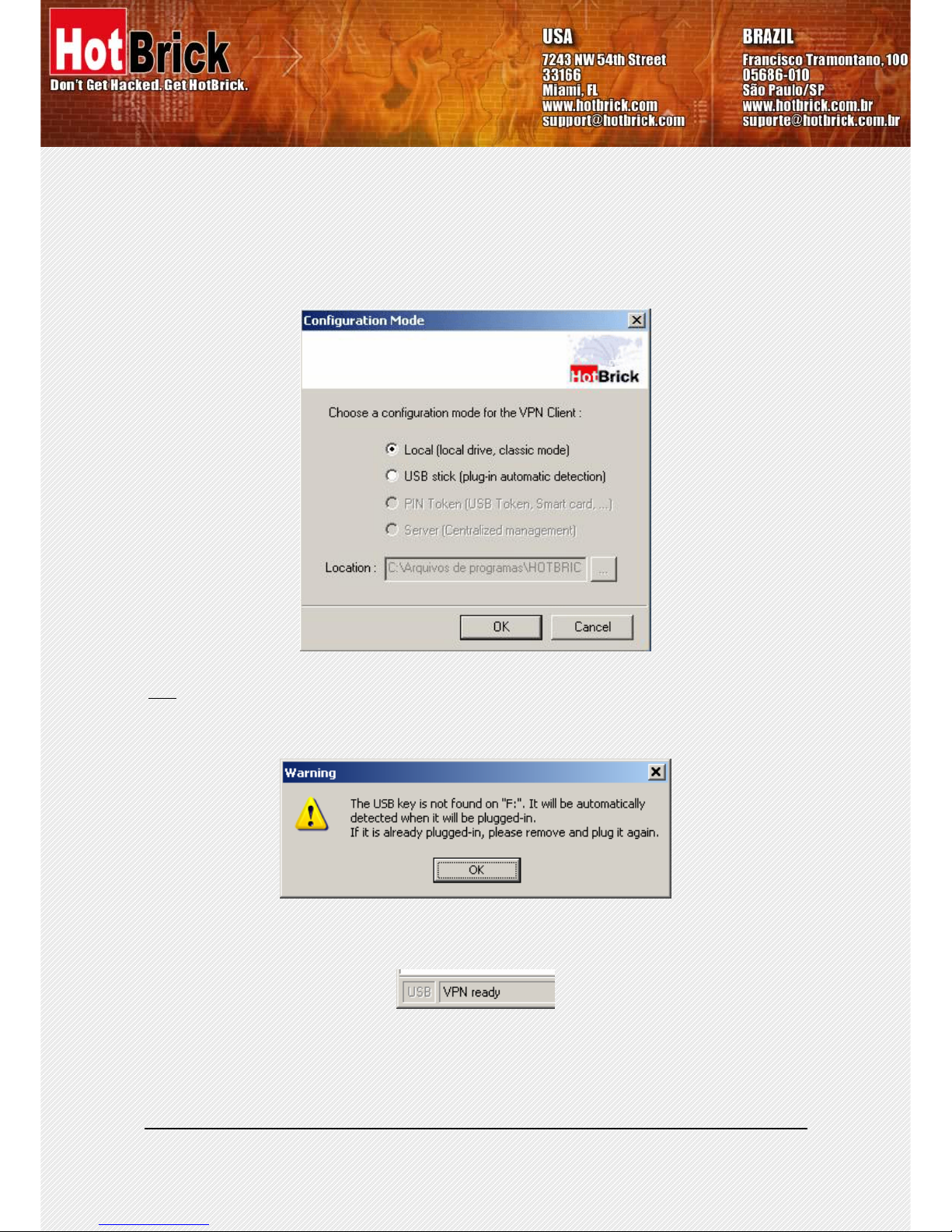

4.1.1 How to set “USB mode" on?

• Select menu File > Configuration Mode

• Select USB Stick

• Optional: indicates the drive of the USB stick if you’ve plugged it in

Note: At this stage, if an USB stick containing a VPN configur ation with tunnel security elements is already
plugged in, the associated drive will be automatic ally recognized. Please note als o that this is not necessary to
insert a USB Stick during this step. In case n o USB Stick is plug ged in, the foll owing pop window will inf orm the
user:

Once USB mode is set on, the “USB token box” (stat us bar) shows “USB”. The text is gray (i. e. see below) if no
USB stick is plugged in. The text is plain when a USB Stick is plugged in.

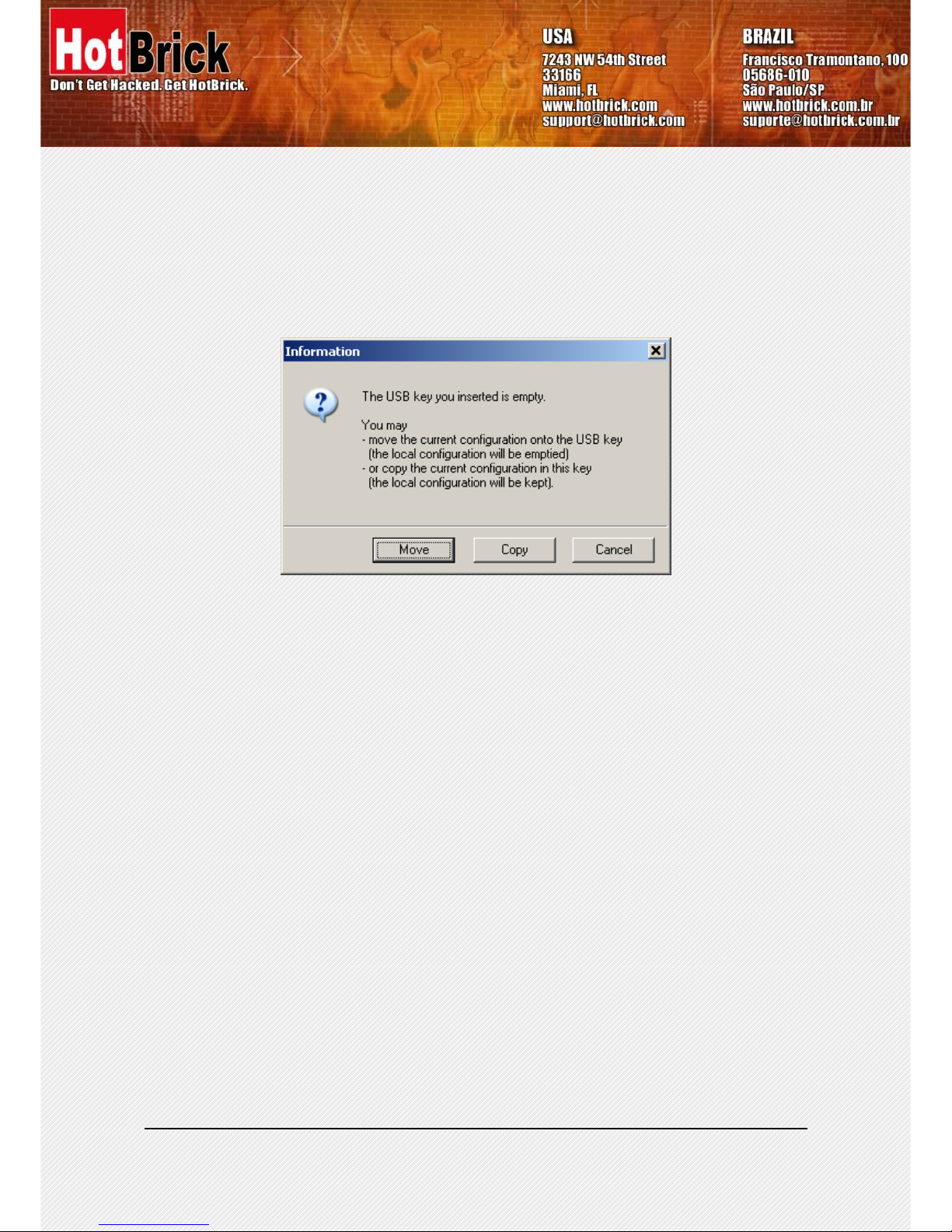

4.1.2 How to enable the USB Stick?

When you insert a new USB stick, the IPSec VPN Client automatically pr opose to enable the US B stick through
the following options:

HotBrick VPN Client User Manual Property of HotBrick — 2005

9

• Copying the configuration onto the USB stick: the VPN cli ent will copy the configuration ont o the USB

Stick and leave a copy in the computer. This is used by IT managers to enable multiple USB Sticks for
multiple users.

• Moving the configuration ont o the USB stick: the VPN client wi ll copy the configuration ont o the USB

Stick and remove all configuration information from the c omputer. This method is used to secure a
computer once VPN configuration completed setup.

4.1.3 How to open tunnels automatically when an USB stick is plugged in?

Each and every tunnel must be configured individually:

• Select one tunnel by clicking on IPSec Configuration (Phase 2) in the tree list window (see section 4.5)

• Set the mode "Auto open when USB stick plugged in" on

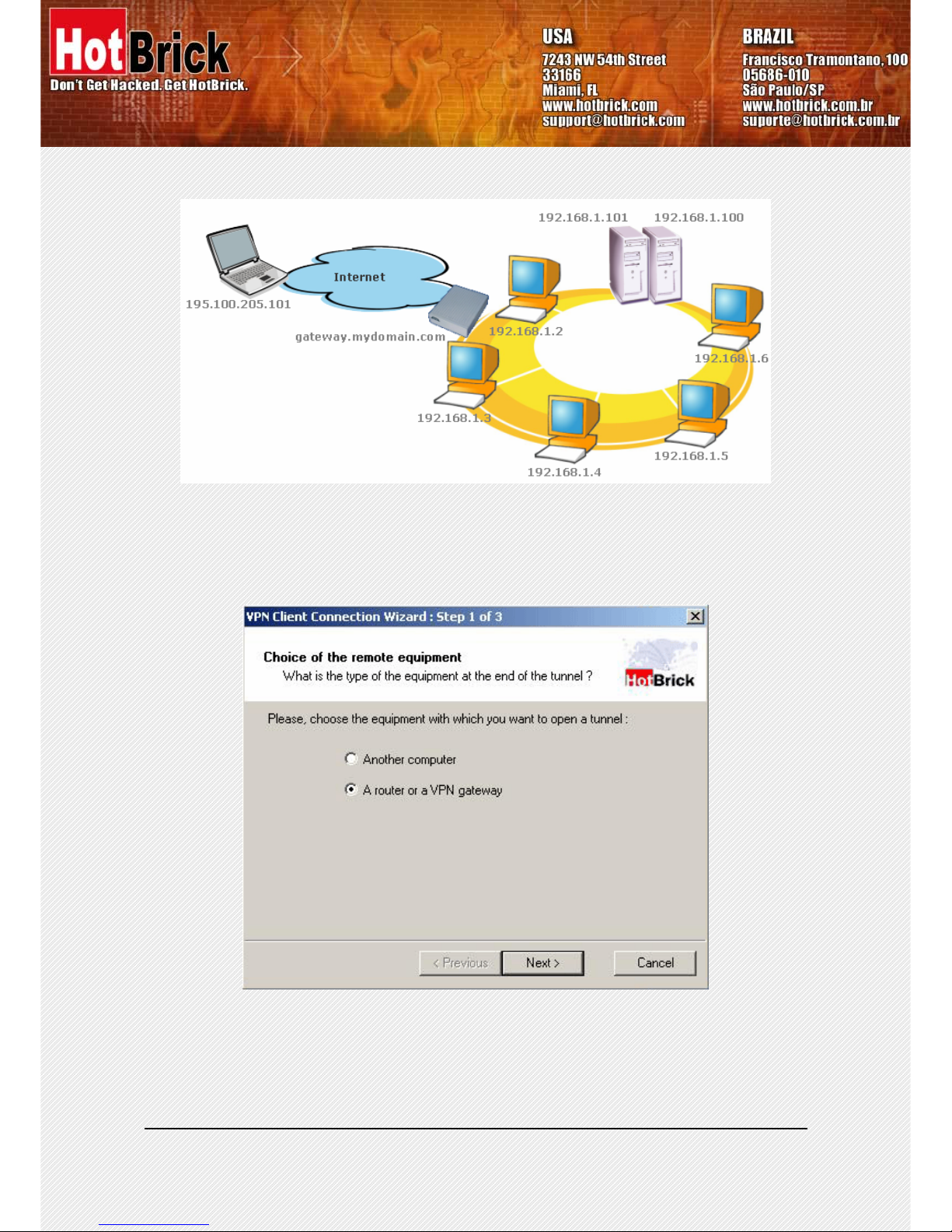

4.2 Configuration Wizard

HotBrick IPSec VPN client integrates a Configuratio n Wizard that allows the creation of VPN configuration i n
three easy steps.

This wizard is designed for remote computers that need to get connected to a corporate LAN through a VPN
gateway. Let take the following example:

• The remote computer has a dynamically provided public IP address.

• It tries to connect the Corporate LAN behind a VPN gateway that has a DNS address

"gateway.mydomain.com".

• The Corporate LAN a ddress is 192.168.1.xxx. E.g. the rem ote computer wants to reach a server with

the IP address: 192.168.1.100.

HotBrick VPN Client User Manual Property of HotBrick — 2005

10

For configuring this connection, open wizard's win dow by selecting menu "Configuration > Wizard"

4.2.1 Step 1 of 3

You specify the type of the equipment at the end of the tunnel: VPN gateway.

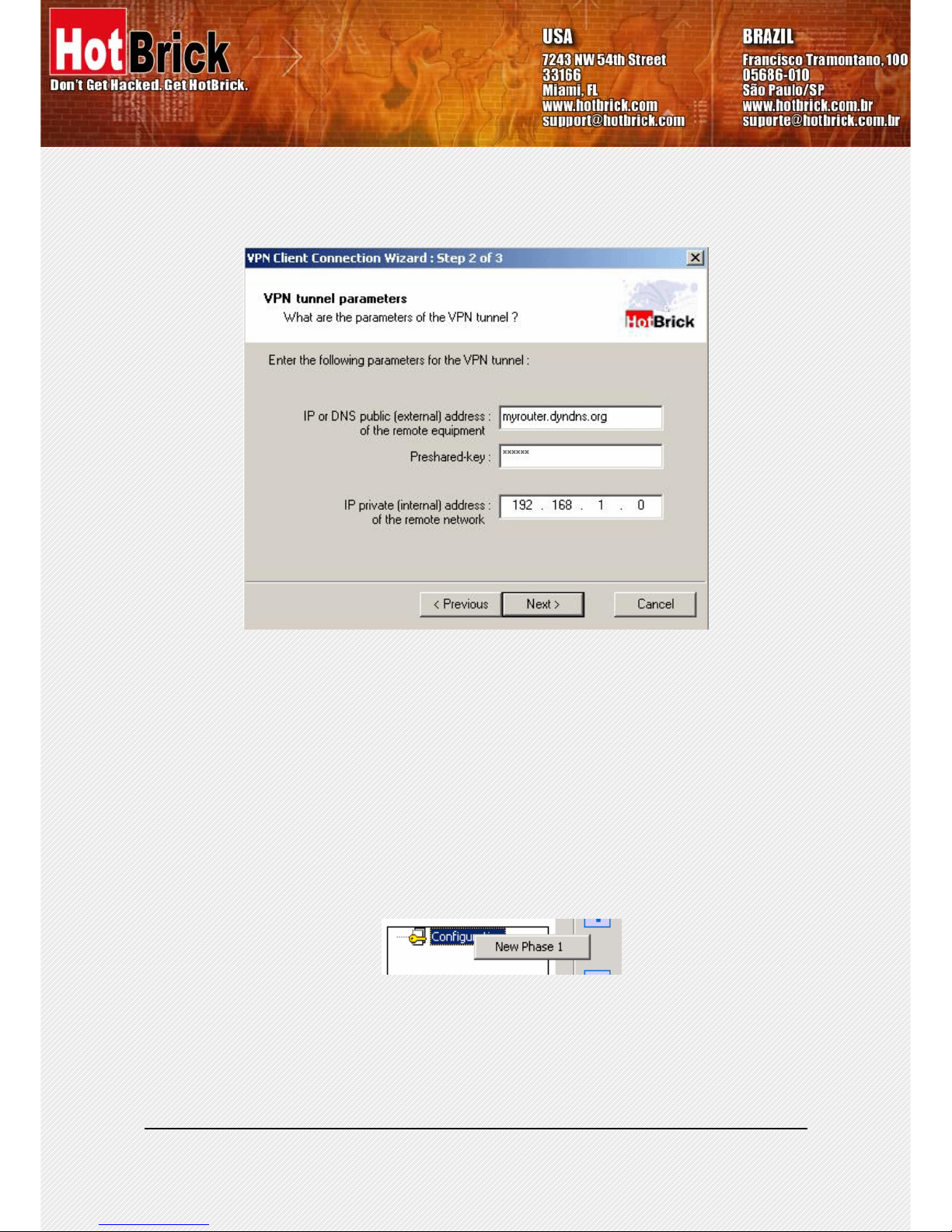

4.2.2 Step 2 of 3

You must specify the following information:

• the public (network side) address of the gateway

HotBrick VPN Client User Manual Property of HotBrick — 2005

11

• the preshared key you will use for this tunnel (this preshared key must be the same in the gateway)

• the IP address of your company LA N (e.g. specify 192.168.1.0)

4.2.3 Step 3 of 3

The third step summaries your configuration. Other p arameters may be further configured directly vi a the main
interface (e.g. Certificates, virtual IP address, etc...)

4.3 Tunnel configuration (main window)

4.3.1 How to create a tunnel?

To create a VPN tunnel from the main window (without usi ng configuration wizard), you must follo w the follow­ing steps:

1. Right-click on 'Configuration' in the tree list window and select "New Phase 1”

2. Configure Authentication Phase (Phase 1)

3. Right-click on the new Phase 1 in the tree control and select “Add Phase 2 ”

HotBrick VPN Client User Manual Property of HotBrick — 2005

12

4. Configure IPSec Phase (Phase 2)

5. Once the parameters are set, click on “Save & Apply” to take i nto account the new configuration .
That way the IKE service will run with the new parameters

6. Click on “Open Tunnel” for establishing the IPSec VPN tunnel (only in “IPSec C onfiguration” win­dow)

4.3.2 Several Authentication or IPSec Configuration Phases

Several Authentication Phases can be conf igured. Therefore, one computer can est ablish IPSec VPN connec­tions with several gateways or other computers (peer to pee r).

Similarly, several IPSec Configuration (phas e 2) can be created for a same Authentication Phase (Phas e 1).

4.3.3 Active or Non Active phase

A phase can be either “active” or “non active”. If a phase is “non active”, its settings will not be applied. This
feature can be used with a configuration composed of several VPN tunnels that do not need to be enabled si­multaneously.

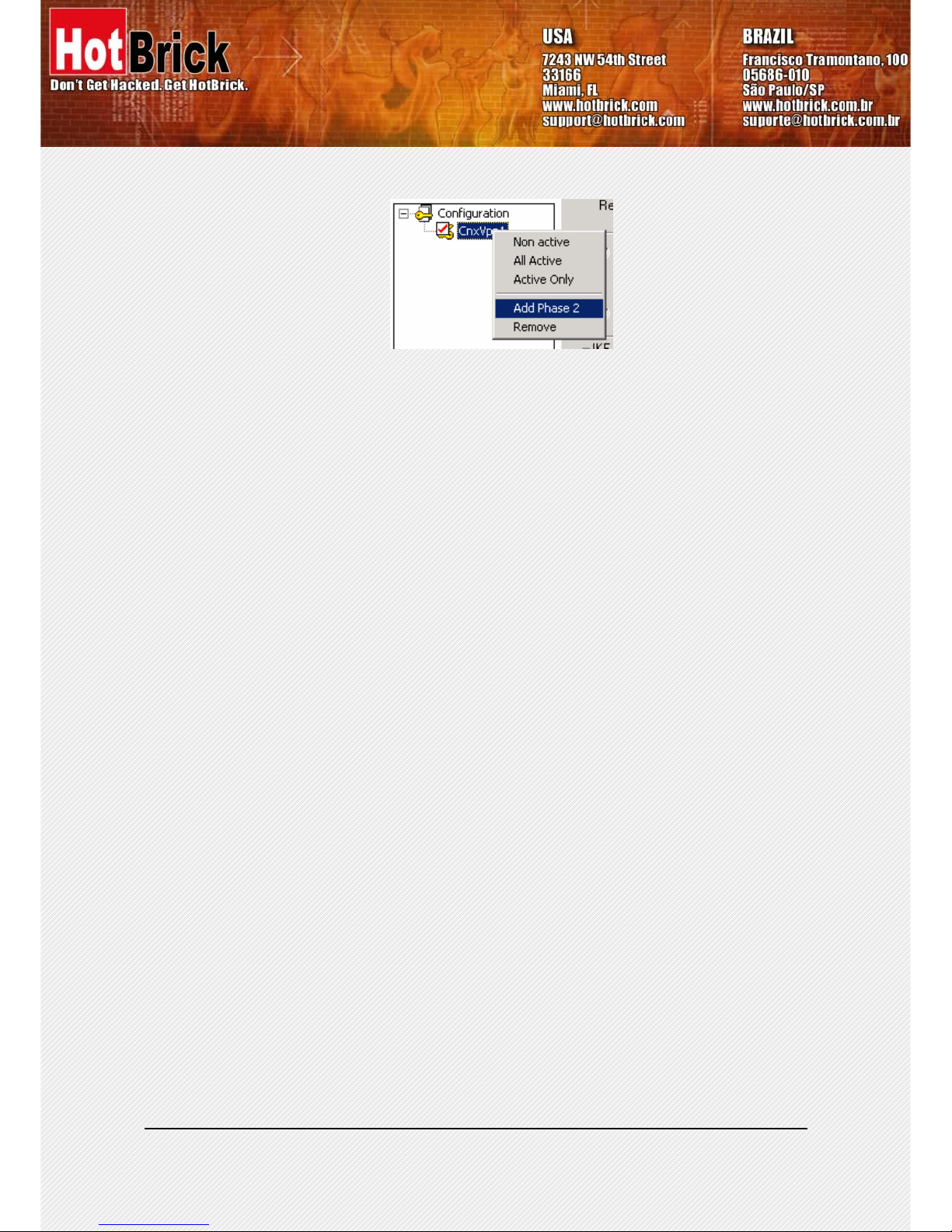

Changing “active” to “non-activate” state for a specific Phase can be achieved by a right-click on the phase
name:

• Active (or Non active) Enable or disable the phase

• All active Enable all phases

• Active Only Disable every phase except the phase selected with th e mouse.

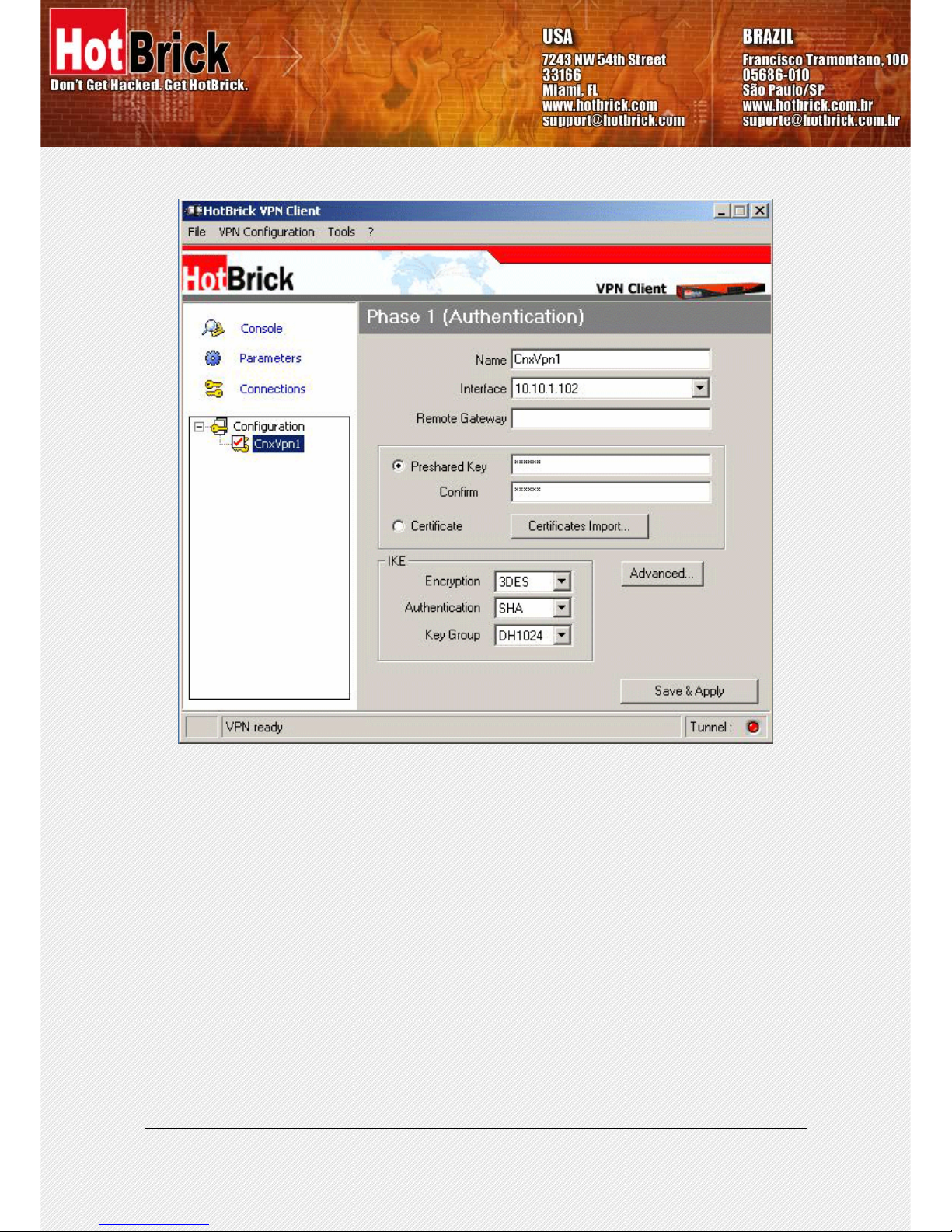

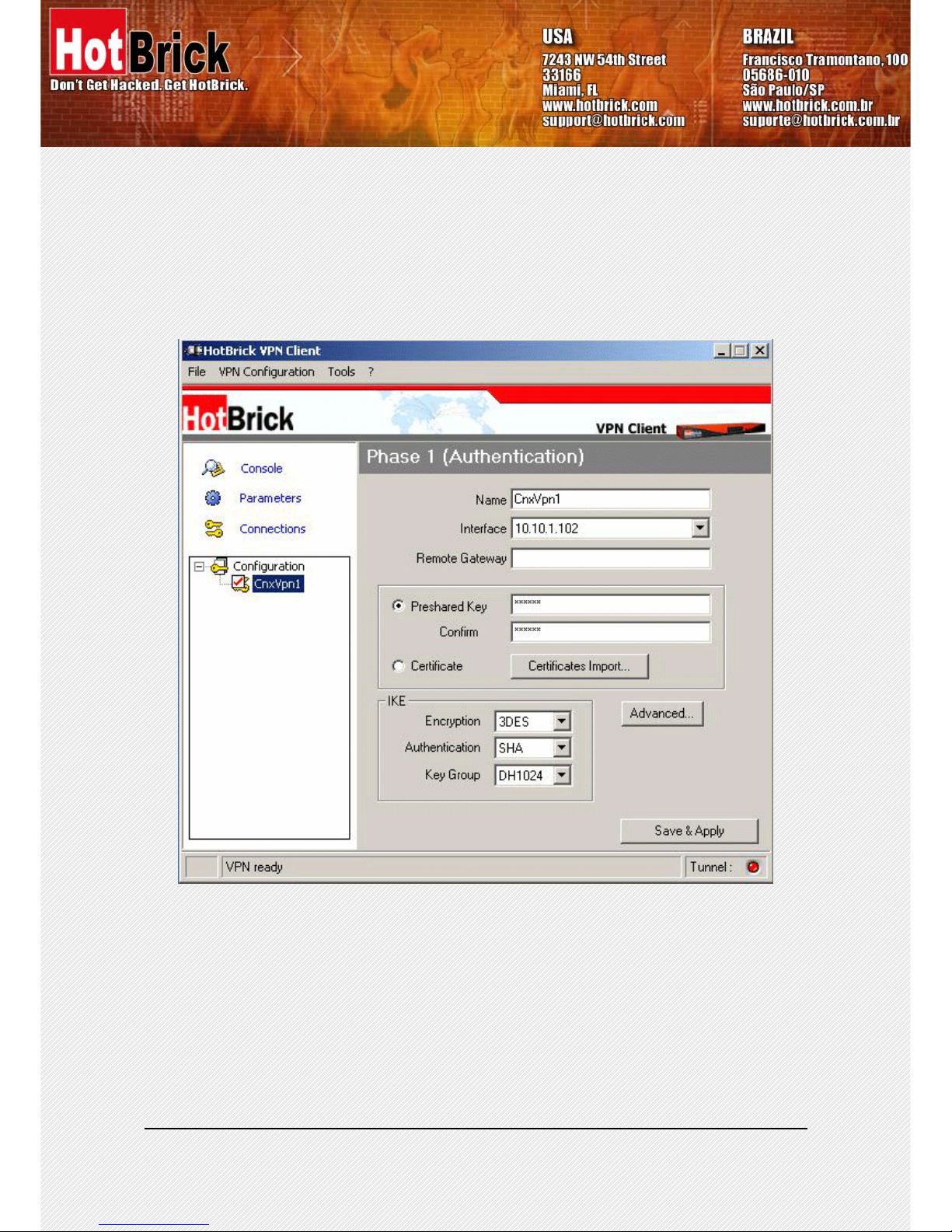

4.4 Authentication or Phase 1

'Authentication' window will concern settings for Auth entication Phase or P hase 1. It is also called IKE Negotia­tion Phase.

HotBrick VPN Client User Manual Property of HotBrick — 2005

13

HotBrick VPN Client User Manual Property of HotBrick — 2005

14

4.4.1 Settings description

Once the parameters are set, click on “Save & Apply” to save and to take into account the new configuration.

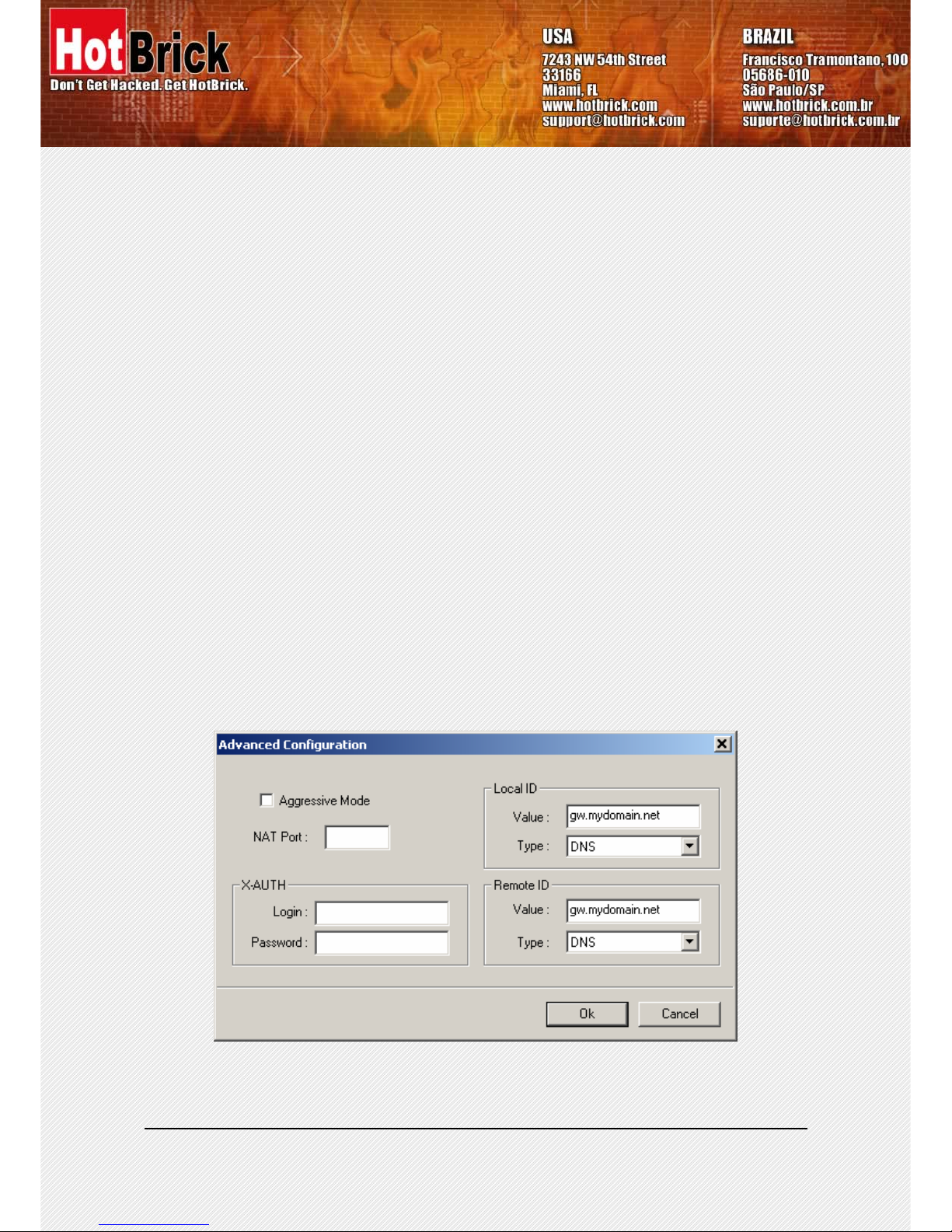

4.4.2 Advanced configuration ("Advanced" Button)

Name

Label for Authentication phase use d only the configuration user interf ace. This
value is never used during IKE negotiation. It is possible to cha nge th is na me at
any time and read it in the tree control. Two Phase 1 c an not have the same
name.

Interface

IP address of the network interface of the computer, through whic h VPN con­nection is established. If the IP address may change (whe n it is received dy­namically by an ISP), select "*".

Remote Gateway

IP address or DNS address of the remote gateway (in our example: gate­way.mydomain.com). This field is mandatory.

Pre-shared key

Password or key shared with the remote gateway.

Certificate

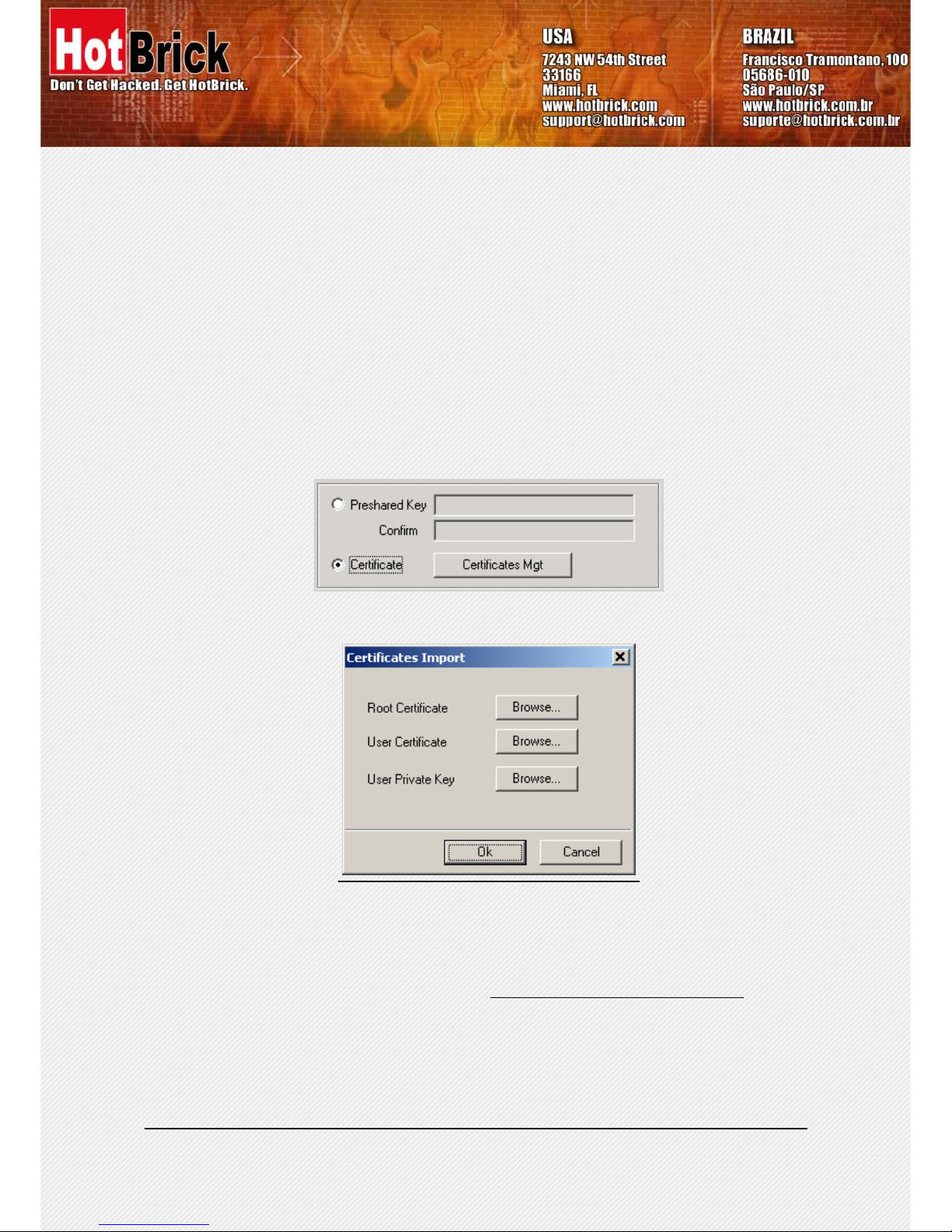

X509 certificate used by the VPN client (see certificate configuration).

IKE encryption

Encryption algorithm used during Authentication phase (3DES, AES ...).

IKE authentication

Authentication algorithm used during Authentication phase (MD5, SHA ...).

IKE key group

Diffie-Hellman key length.

HotBrick VPN Client User Manual Property of HotBrick — 2005

15

4.4.3 Settings description

Aggressive Mode

If checked, the VPN client will used aggressive mode as negotiation mode wit h
the remote gateway

Nat port

Negotiation port for IKE. Default value is 500.

Local ID

Local ID is the identity the VPN client is sending duri ng Phase 1 to VPN gate­way.

This identity can be:

•1 an IP address (type = IP address), for example: 195.100.205.101

•2 an domain name (type = DNS), e.g. mydomain.com

•3 an email address (type = Email), e.g. [e-mail]

•4 a string (type = KEY ID), e.g. 123456

•5 a certificate issuer (type=DER ASN1 DN) (see Certificat es configura-

tion)

If this identity is not set, VPN client's IP address is used.

Remote ID

Remote ID is the identity the VPN client is expecting to rec eive during Phase 1
from the VPN gateway. This identity can be:

•6 an IP address (type = IP address), for example: 80.2.3.4

•7 an domain name (type = DNS), e.g. gateway.mydomain.com

•8 an email address (type = Email), e.g. admin@mydomain.c om

•9 a string (type = KEY ID), e.g. 123456

•10 a certificate issuer (type=DER ASN1 DN) (see Certificates configura-

tion)

If this identity is not set, VPN gateway's IP address is used.

X-AUTH

Here are specified the login and password of an X-AUTH IPSec negotiation.

HotBrick VPN Client User Manual Property of HotBrick — 2005

16

4.5 IPSec Configuration or Phase 2

HotBrick VPN Client User Manual Property of HotBrick — 2005

17

4.5.1 Settings description

Name

Label for IPSec Configuration only used by the VPN client. This parameter is
never transmitted during IPSec Negotiation. It is possible to change this na me at
any time and read it in the tree list window. Two Phases can not have the sa me
name.

VPN Client address

Virtual IP address used by the client inside the remote LAN: The comp uter will
appear in the LAN with this IP address.

It is important this IP address not to belong to the remote LAN (e.g., in the
example, you should avoid an IP address like 192.168.1.10)

Address type

The remote endpoint may be a LAN or a single computer. In the first case choose
"Subnet address". Choose "Single address" otherwise.

When choosing "Subnet address", the two fields "Remote LAN address" and
"Subnet mask" became available.

When choosing "Single address", only the field "R emote host address" is avail­able.

Remote address

This field may be "Remote host address" or "Rem ote LAN ad dress" depe nding of
the address type. It is the remote IP address, or LAN network address of the
gateway, that opens the VPN tunnel.

Subnet mask

Subnet mask of the remote LAN. Only availabl e when address type is equal to
"Subnet address".

ESP encryption

Encryption algorithm negotiated during IPSec phase (3DES, AES, ...)

ESP authentication

Authentication algorithm negotiated during IPSec phase (MD5, SHA, ...)

ESP mode

IPSec encapsulation mode : tunnel or transport

PFS group

Diffie-Hellman key length.

Auto open when Client
starts

If checked, this option allows a tunnel to be automatically opened when the VPN
Client starts.

Note: as the VPN Client may also start during the boot (see section VPN
Tools), tunnels can be configured to be opened automatically during the
boot of the computer.

Auto open when USB stick
plugged in

If checked, this option allows a tunnel to b e automatically opened when a USB
stick is inserted (see chapter "USB mode").

Open Tunnel

This button allows opening directly the tunnel without usi ng a ping for example.

HotBrick VPN Client User Manual Property of HotBrick — 2005

18

4.6 Certificate management

HotBrick IPSec VPN Client uses X509 certificates with PEM format. This kind of certificates is created with
OpenSSL, not with HotBrick VPN Client.

In order to use X509 Certificates with HotBrick IPSec VPN client, you must have the following items:

• Root certificate

• User certificate

• Private key of the user certificate

The private key must not be encrypted. X509 certificates are used during Phase 1.

4.6.1 How configuring IPSec VPN Client with certificates?

1. Select radio button “Certificate” in the 'Authentication' window and click on “Certificates M gt”

2. Click on “Browse” and select the appropriate files.

3. Open “Advanced button” and fill Local ID with:

• Type = "DER_ASN1_DN".

• Value = subject user certificate ("Subject:") content like "C=FR, ST=Paris, L=Paris,

O=HotBrick, OU=Internal OpenSSL CA, CN=exemple/Email=support@h otbrick.com

".

HotBrick VPN Client User Manual Property of HotBrick — 2005

19

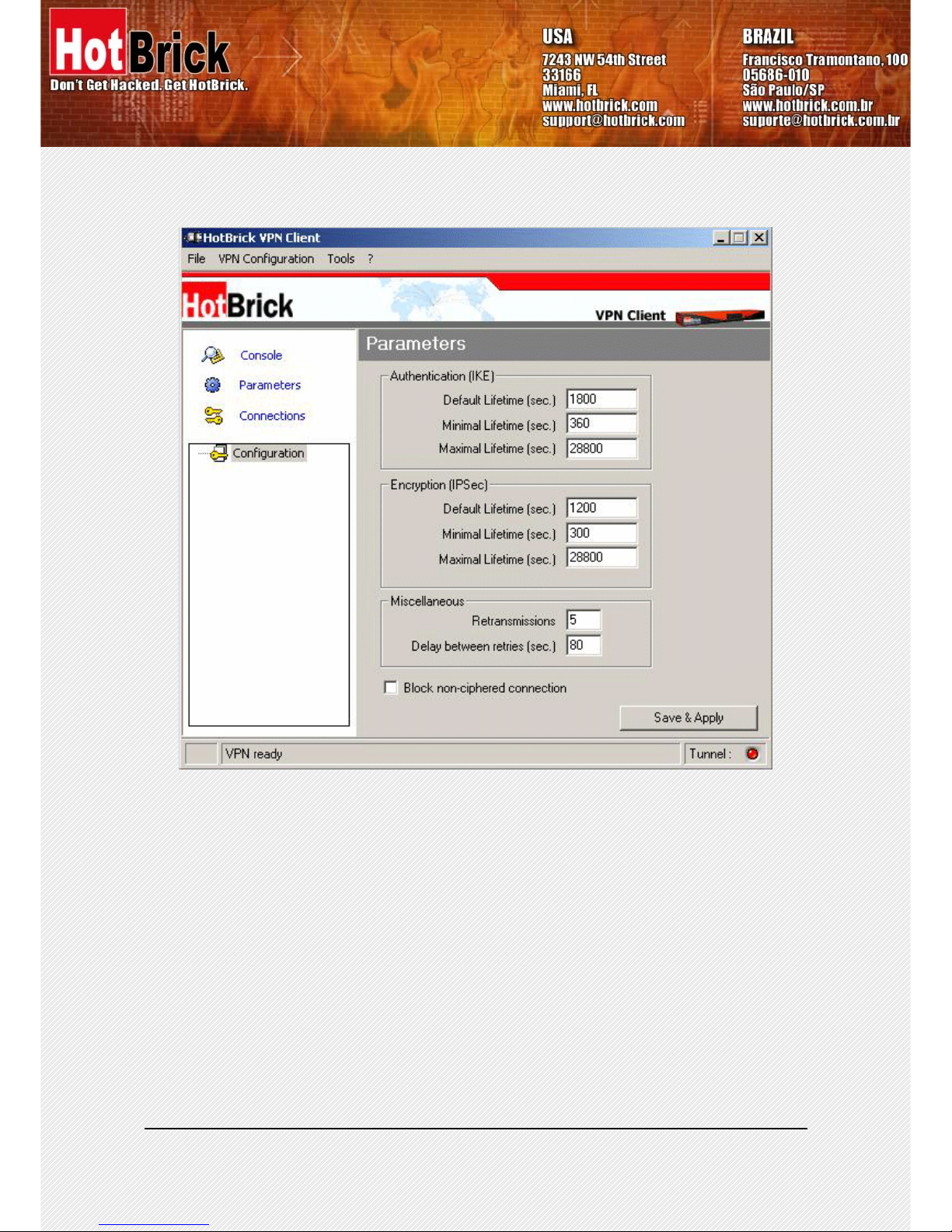

4.7 Global Parameters

HotBrick VPN Client User Manual Property of HotBrick — 2005

20

4.7.1 Settings description

Once the parameters are set, click on “Save & Apply” to save and to take into account the new configuration.

4.8 Configuration management

4.8.1 How to Import or Export an IPSec VPN configuration

HotBrick VPN Client can import or export a VPN Conf iguration. With this feature, IT managers can prepare a
configuration and deliver it to other users.

• Importing a configuration, select "File > Load configuration".

• Exporting a configuration, select "File > Save configuration".

All configuration files will have a ".tgb" extension.
You can open and modify an exported configuration file (extens ion .tgb) with any word processing e.g . Notepad

and re import it again. This is other way f or IT manager s to customize VPN config urations befor e dispatchi ng to
end users.

4.9 Tunnel management (Connections)

“Connections” screen shows opened VPN tunnels and this interface can be used to close them.
To close a tunnel, select one tunnel in the tunnel list and click on "Close tunnel".

IKE default lifetime

Default lifetime for IKE rekeying.

IKE minimal lifetime

Minimal lifetime for IKE rekeying.

IKE maximal lifetime

Maximal lifetime for IKE rekeying.

IPSec minimal lifetime

Default lifetime for IPSec rekeying.

IPSec maximal lifetime

Maximal lifetime for IPSec rekeying.

IPSec minimal lifetime

Minimal lifetime for IPSec rekeying.

Retransmissions

How many times a message should be retransmitted before giving up.

Delay between retries

Waiting time in an exchange before giving up a negotiation

Block non-ciphered connec­tion

When this option is checked, only encrypted traffic is authorized.

HotBrick VPN Client User Manual Property of HotBrick — 2005

21

4.10 Configuration tools

4.10.1 Stopping IPSec VPN Client: option "/stop"

HotBrick VPN Client can be stopped at any time by the command line:

• " [path]\vpnconf.exe /stop " where [path] is the client installation directory.
If there are several active tunnels, they will close properly.
This feature can be used, for example, in a script that launches the VPN Client after establishing a dialup con-

nection and exit it just before the disconnection.

4.10.2 IPSec VPN Client Startup mode: VPNSTART

VpnStart.exe is a configuration tool that sets up the client st artup mode.
HotBrick VPN Client can start with 3 different modes:

• During PC boot: this mode can be used for secure remote action

HotBrick VPN Client User Manual Property of HotBrick — 2005

22

• At Windows login ("login" mode)

• Launched by user or from a s cript ("manual" mode)

4.10.3 Hiding IPSec VPN Client configuration user interface: VPNHIDE

VpnHide.exe is a configuration tool that hides HotBrick Client VPN interface. It can be us ed by IT managers for
preventing end-user from modifying configuration settings.

In "invisible" mode, the window interface is never shown.

4.11 Console

The “Console” window is available fr om icon menu that c an be found in the taskbar or from “Cons ole” button in
the configuration user interface. This window can be used to analyze VPN tunnels. This tool is particularly useful
for IT managers in setting up their network.

HotBrick VPN Client User Manual Property of HotBrick — 2005

23

Most of the time log level set to 0 is largely enough for resolving configuration issues.

5 Uninstall

5.1 Software uninstall

HotBrick IPSec VPN Client can be uninstalled:

• from Windows Control Panel by selecting "Add/Remove de programs"

6 Troubleshooting

You will be able to find all troubleshooting issues , listed in a Troubleshoot ing Document on our we bsite. Please
have a look at: http://www.hotbrick.com/support_detail.asp?tipo=2

.

Button Description

Start / Stop

Start / Stop printing log

Clear

Clear console window content

Save File

Save logs in a file

Stop File

Stop saving logs in a file

Report

Print VPN configuration and IKE internal state.

Label Name Description

Misc Misc log level for configuration reading or dump of low level messages
Trpt Transport log level for UDP transport mode
Msg Message log level for IKE decode
Cryp Crypto log level and dump for crypto material exchanged
Timr Timer log level about timers
Sdep Sysdep log level about IKE interface from/to IPSec
SA SA log level for SA management
Exch Exchange log level about IKE exchanges (very useful)
Nego Negotiation log leve l about phase 1 and phase 2 negotiation
Plcy Policy not used
All All Apply the same log level to all subsystems

HotBrick VPN Client User Manual Property of HotBrick — 2005

24

7 Contacts

Information and update are available at: www.HotBrick.com.
Technical support is available by email: [e-mail]

.

End of Document
