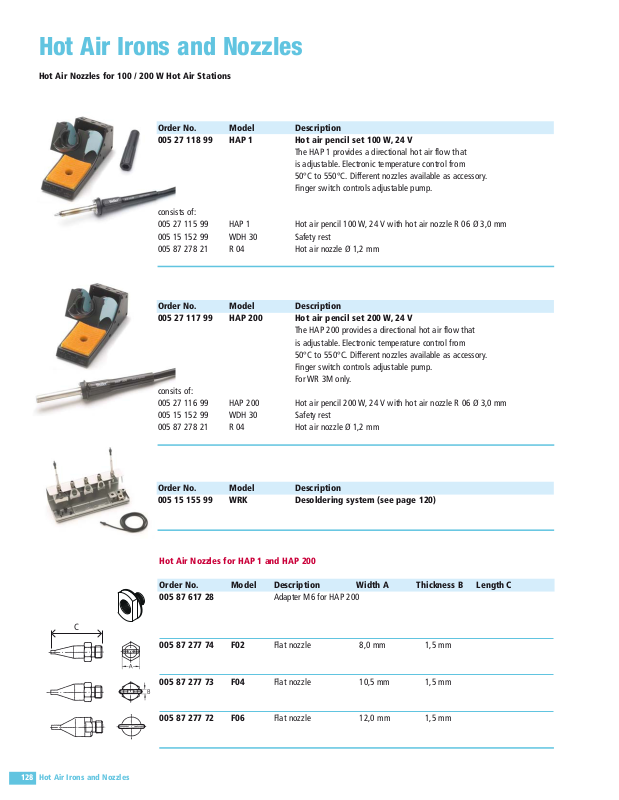

Hot Air Irons and Nozzles
Hot Air Irons and Nozzles
Hot Air Nozzles for 100 / 200 W Hot Air Stations
Order No. Model Description
005 15 155 99 WRK
Desoldering system (see page 120)
Order No. Model Description
005 27 118 99 HAP 1
Hot air pencil set 100 W, 24 V
The HAP 1 provides a directional hot air flow that
is adjustable. Electronic temperature control from
50°C to 550°C. Different nozzles available as accessory.
Finger switch controls adjustable pump.
consists of:
005 27 115 99
HAP 1
Hot air pencil 100 W, 24 V with hot air nozzle R 06 Ø 3,0 mm
005 15 152 99
WDH 30
Safety rest
005 87 278 21
R 04
Hot air nozzle Ø 1,2 mm
Hot Air Nozzles for HAP 1 and HAP 200
Order No. Model Description Width A Thickness B Length C
005 87 617 28
Adapter M6 for HAP 200
005 87 277 74 F02 Flat nozzle 8,0 mm 1,5 mm
005 87 277 73 F04 Flat nozzle 10,5 mm 1,5 mm
005 87 277 72 F06 Flat nozzle 12,0 mm 1,5 mm
Order No. Model Description
005 27 117 99 HAP 200
Hot air pencil set 200 W, 24 V
The HAP 200 provides a directional hot air flow that
is adjustable. Electronic temperature control from
50°C to 550°C. Different nozzles available as accessory.
Finger switch controls adjustable pump.
For WR 3M only.
consits of:
005 27 116 99
HAP 200
Hot air pencil 200 W, 24 V with hot air nozzle R 06 Ø 3,0 mm
005 15 152 99
WDH 30
Safety rest
005 87 278 21
R 04
Hot air nozzle Ø 1,2 mm
