Hoshizaki American, Inc. B-300SF, B-500SF, B-700SF, B-800SF, B-900SF Part Manual

Download
ITEM NUMBER: ISSUED:
REVISED:
71214
OCT. 9, 2000
HOSHIZAKI STORAGE BIN
MODEL B-300SF
B-500SF B-700SF B-800SF B-900SF
P ARTS LIST
B-300SF L-5 JUNE, 2001
M-5 DEC., 2001 N-5 DEC. 2002
B-500SF L-5 JUNE, 2001
M-5 DEC., 2001 N-5 DEC. 2002
B-700SF L-5 SEPT., 2001
M-5 DEC., 2001 N-5 DEC. 2002
B-800SF L-5 SEPT., 2001
M-5 DEC., 2001 N-5 DEC. 2002
B-900SF L-5 JUNE, 2001
M-5 DEC., 2001 N-5 DEC. 2002
2
MATERIAL ABBREVIATIONS
ALUMINUM AL = Aluminum
COPPER CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene AC = Polyacetal EVA = Ethylene vinyl acetate PA = Polyamide = Nylon PC = Polycarbonate PE = Polyethylene PES = Polyester PETP = Polyethylene terephthalate = Tetlon PP = Polypropylene PS = Polystyrene PTFE = Polytetrafluoroethylene = Teflon PUR = Polyurethane PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile EPDM = EP rubber NBR = Nitrile butadiene rubber NR = Natural rubber NP = Neoprene SI.R = Silicone rubber SY.R = Synthetic rubber EPH = Epichlorohydrin
STEEL
G.S = Galvanized steel S.S = Stainless steel PS = Plated steel PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
"K" is the tenth in alphabetical order with "I" by "o" (interchangeable) skipped. So, "K" indicates "2000".
x = Part deleted and replaced
part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code. order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably in a year, this number advances.
3

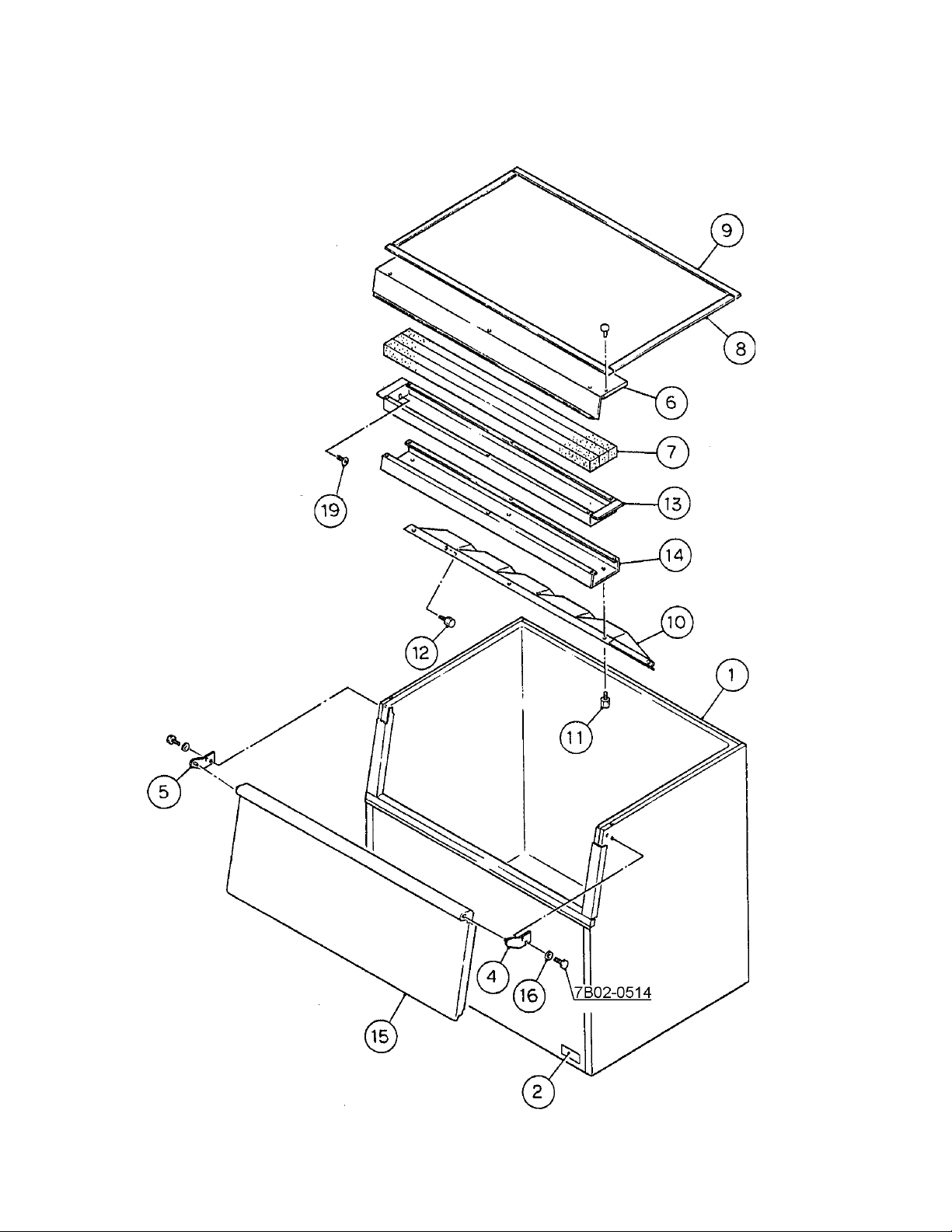

HA B-300SF
A. BIN ASSEMBLY
L-5, M-5, N-5
4
MODEL: B-300SF TITLE: A. BIN ASSEMBLY
INDEX
NO.
1 BIN BODY - 1A0648A03 1 1 1
2 NAMEPLATE PES FILM 4A2580-03 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(3) SS 3A0156-01 1 1 1
7 INSULATION(C3) PS FORM 437687-01 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC, L=554 4A0808L01 2 2 2
10 BAFFLE(3) PS 104391-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 2 2 2
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 - - -
14 FRONT FRAME COVER(3) ABS 324617-01 1 1 1
15 BIN DOOR - 3A2087G04 1 1 1
16 WASHER SS 4A0198-01 4 4 4
17 WASHER - 4A0928-01 2 2 2
DESCRIPTION
MATERIAL OR MODEL NUMBER
PART
NUMBER
L-5 M-5 N-5
REQUIRED NUMBER
5
HA B-500SF
A. BIN ASSEMBLY
L-5, M-5, N-5
6
MODEL
INDEX
NO.
1 BIN BODY - 1A0648A05 1 1 1
2 NAMEPLATE PES FILM 4A2580-05 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(5) SS 3A0157-01 1 1 1
7 INSULATION(C2) PS FORM 437687-02 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC, L=757 4A0808L01 2 2 2
10 BAFFLE(5) PS 104322-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 2 2 2
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(5) - 3A0420-01 1 1 1
14 FRONT FRAME COVER(5) ABS 324625-01 1 1 1
15 BIN DOOR - 3A2087G05 1 1 1
16 WASHER SS 4A0198-01 4 4 4
17 - - -
18 - - -
19 HEX HEAD TAPPING SCREW #8, ¾”
DESCRIPTION
: B-500SF
MATERIAL OR MODEL NUMBER
NUMBER
7B03
: A. BIN ASSEMBLY
TITLE
PART
L-5 M-5 N-5
I08834
2 2 2
REQUIRED NUMBER
7
HA B-700, 800, 900SF
A. BIN ASSEMBLY
L-5, M-5, N-5
8
MODEL: B-700SF TITLE: A. BIN ASSEMBLY
INDEX
NO.
1 BIN BODY - 1A0648A07 1 1 1
2 NAMEPLATE PES FILM 4A2580-07 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(7) SS 3A0158-01 1 1 1
7 INSULATION(C7) PS FORM 437687-03 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC,
10 BAFFLE(7) PS 104323-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 3 3 3
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(7) SS 3A0446-01 1 1 1
14 FRONT FRAME COVER(7) ABS 3A0155-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19 - - -
20 BIN DOOR PE 3A2087G01 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾”
DESCRIPTION
MATERIAL OR MODEL NUMBER
L=1112.5
PART
NUMBER
4A0808L01 2 2 2
08834
7B03
I
L-5 M-5 N-5
2 2 2
REQUIRED NUMBER
9
MODEL: B-800SF TITLE: A. BIN ASSEMBLY
INDEX
NO.
1 BIN BODY - 1A0648A09 1 1 1
2 NAMEPLATE PES FILM 4A2580-09 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(8) SS 2A0106-01 1 1 1
7 INSULATION(C8) PS FORM 437687-05 3 3 3
8 GASKET PVC,L=630 4A0808L01 2 2 2
9 GASKET
10 BAFFLE(8) PS 105012-01 1 1 1
11 THUMBSCREW ABS,SS 415949G01 4 4 4
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(8) SS 3A0447-01 1 1 1
14 FRONT FRAME COVER(8) ABS 325510-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19 - - -
20 BIN DOOR PE 3A2087G02 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾”
DESCRIPTION
MATERIAL OR MODEL NUMBER
PVC,L=1214.5
PART
NUMBER
4A0808L01 2 2 2
I08834
7B03
L-5 M-5 N-5
2 2 2
REQUIRED NUMBER
10
MODEL
INDEX
NO.
1 BIN BODY - 1A0648A11 1 1 1
2 NAMEPLATE PES FILM 4A2580-11 1 1 1
3 - - -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER(9) SS 2A0107-01 1 1 1
7 INSULATION(C9) PS FORM 437687-04 3 3 3
8 GASKET PVC,L=630 4A0808L01 2 2 2
9 GASKET PVC,L=1316 4A0808L01 2 2 2
10 BAFFLE(9) PS 104324-02 1 1 1
11 THUMBSCREW ABS,SS 415949G01 4 4 4
12 THUMBSCREW ABS,SS 434168G01 2 2 2
13 FRONT FRAME(9) SS 3A0447-02 1 1 1
14 FRONT FRAME COVER(9) ABS 324619-01 1 1 1
15 - - -
16 - - -
17 WASHER SS 4A0198-01 4 4 4
18 - - -
19 - - -
20 BIN DOOR PE 3A2087G03 1 1 1
21 HEX HEAD TAPPING SCREW #8, ¾”
DESCRIPTION
: B-900SF
MATERIAL OR MODEL NUMBER
7B03
: A. BIN ASSEMBLY
TITLE
PART
NUMBER
L-5 M-5 N-5
I08834
2 2 2
REQUIRED NUMBER
11
MODEL: B-300SF TITLE: B. ACCESSORIES
INDEX
NO.
1 ADJUSTABLE LEG
2 INSTRUCTION SHEET/LEGS PAPER 434803-01 1 1 1
3 SCOOP - 4A2246-01 1 1 1
4 LEG PROTECTOR - 3A0134-01 4 4 4
DESCRIPTION
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
4A2526-01 4 4 4
L-5 M-5 N-5
REQUIRED NUMBER
MODEL
INDEX
NO.
1 LEG
2 INSTRUCTION SHEET/LEGS PAPER 434803-01 1 1 1
3 SCOOP - 4A2246-01 1 1 1
DESCRIPTION
: B-500, 700, 800, 900SF
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
4A2525-01 4 4 4
: B. ACCESSORIES
TITLE
REQUIRED NUMBER
L-5 M-5 N-5
12
MODEL: B-300SF TITLE: C. PACKAGING
INDEX
NO.
1 PALLET - 3A1829-01 1 1 1
2 WOOD BLOCK B - 4A0004-02 2 2 2
3 SIDE PROTECTOR - 4A2304-01 2 2 2
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK – FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-02 1 1 1
7 PACKAGE LABEL – F - 4A2578-01 4 4 4
8 WOOD BLOCK C - 4A0004-03 2 2 2
9 SIDE PROTECTOR - 4A2304-03 2 2 2
DESCRIPTION
PACKAGING
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
1A0649A02
REQUIRED NUMBER
L-5 M-5 N-5
1 1 1
MODEL: B-500SF TITLE: C. PACKAGING
INDEX
NO.
PACKAGING
1 PALLET - 3A1829-02 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK – FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-03 1 1 1
7 PACKAGE LABEL – F - 4A2578-01 4 4 4
DESCRIPTION
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
1A0649A03
REQUIRED NUMBER
L-5 M-5 N-5
1 1 1
13
MODEL
INDEX
NO.
PACKAGING
1 PALLET - 3A1829-03 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK – FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-04 1 1 1
7 PACKAGE LABEL – F - 4A2578-01 4 4 4
DESCRIPTION
: B-700SF
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
1A0649A04
: C. PACKAGING
TITLE
REQUIRED NUMBER
L-5 M-5 N-5
1 1 1
MODEL
INDEX
NO.
PACKAGING
1 PALLET - 3A1829-04 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK – FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-05 1 1 1
7 PACKAGE LABEL – F - 4A2578-01 4 4 4
DESCRIPTION
: B-800SF
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
1A0649A05
: C. PACKAGING
TITLE
REQUIRED NUMBER
L-5 M-5 N-5
1 1 1
14
MODEL
INDEX
NO.
1 PALLET - 3A1829-05 1 1 1
2 WOOD BLOCK B - 4A0004-02 4 4 4
3 SIDE PROTECTOR - 4A2304-01 4 4 4
4 CORNER POST - 3A0782-02 4 4 4
5 FOAM BLOCK – FRONT - 4A0059-08 2 2 2
6 CARTON - 2A2010-06 1 1 1
7 PACKAGE LABEL – F - 4A2578-01 4 4 4
DESCRIPTION
PACKAGING
:
B-900SF TITLE: C. PACKAGING
MATERIAL OR MODEL NUMBER
-
PART
NUMBER
1A0649A06
REQUIRED NUMBER
L-5 M-5 N-5
1 1 1
15
