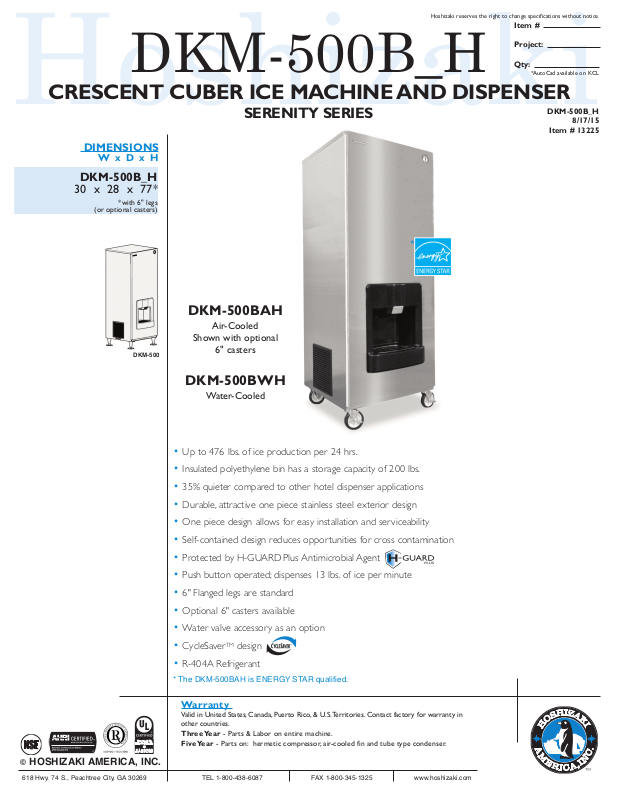

CRESCENT CUBER ICE MACHINE AND DISPENSER
SERENITY SERIES
DIMENSIONS
W x D x H
DKM-500B_H
30 x 28 x 77*
with 6" legs
*
or optional casters)
(
*
Qty:
*AutoCad available on KCL
DKM-500B_H
8/17/15
Item # 13225
DKM-500BAH
Air-Cooled
Shown with optional
KM-500
D
6" casters
DKM-500BWH
Water-Cooled
• Up to 476 lbs. of ice production per 24 hrs.
• Insulated polyethylene bin has a storage capacity of 200 lbs.
• 35% quieter compared to other hotel dispenser applications
• Durable, attractive one piece stainless steel exterior design
• One piece design allows for easy installation and serviceability
• Self-contained design reduces opportunities for cross contamination
• Protected by H-GUARD Plus Antimicrobial Agent
• Push button operated; dispenses 13 lbs. of ice per minute
• 6" Flanged legs are standard
• Optional 6" casters available
• Water valve accessory as an option
• CycleSaver
• R-404A Refrigerant
* The DKM-500BAH is ENERGY STAR qualified.
TM
design
Warranty
Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in
other countries.
Three Year - Parts & Labor on entire machine.
Five Year - Parts on: hermetic compressor, air-cooled fin and tube type condenser.
© HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Peachtree City, GA 30269 TEL 1-800-438-6087 FAX 1-800-345-1325 www.hoshizaki.com
DKM-500B_H CRESCENT CUBER ICE MACHINE AND DISPENSER
1
1/2
”
1/2
”
1
1/8
”
SERENITY SERIES
DIMENSIONS
W x D x H
DKM-500B_H
30 x 28 x 77*
Hoshizaki
IR-CO OL E D
A
Water Temp˚ F.
70˚
80˚
90˚
Air Temp˚ F.
WAT E R-COOL ED
Water Temp˚ F.
70˚
80˚
90˚
Air Temp˚ F.
TO R AGE BI N S
S
Model Number Application Capacity AHRI-Rated Capacity
DKM-500BAH 200 lbs.
DKM-500BWH 200 lbs. 140 lbs.
50˚
76
4
467
464
50˚
448
443
442
70˚
464
449
436
70˚
442
434
427
*with 6" legs
(or optional casters)
90˚
434
411
401
90˚
420
404
400
140 lbs.
• Air-cooled
Water-cooled
•
UTILIT Y C O N S U MPTION
otable
Ice Production
Model Number
DKM-500BAH
DKM-500BWH
SPECI FI C ATIONS
Model Number
DKM-500BAH
DKM-500BWH
*KM CUBE DI M E N S I O NS
*approximate size, image not to scale
ELECT RI C A L&PL U M B I N G / D KM-500B _H
• 115V/60/1
• 1/2" FPT Water Inlet
• 3/4 " FPT x2 Drain
• Icemaker Water Supply Line: Minimum 1/4” Nominal ID Copper Water
Tubing or Equivalent
• Icemaker Drain Line: Minimum 3/4” Nominal ID Hard Pipe or Equivalent
Water-Cooled Model (Lines Must Be Independent of Icemaker)
• Condenser Water Supply Line: Minimum 1/4" Nominal ID Copper Water
Tubing or Equivalent
• Condenser Drain/Return Line: Minimum 1/4" Nominal ID Hard Pipe
(open drain system) or Copper Water Tubing (closed loop system) or
Equivalent
© HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Peachtree City, GA 30269 TEL 1-800-438-6087 FAX 1-800-345-1325 www.hoshizaki.com
per Cycle
Lbs.
7
7.5
Condenser
Air-Cooled
Water-Cooled
Cubes
360
360
KWH per
100 LBS.
90/70
6.5
5.2
Min. Circuit
Ampacity
70/50
5.6
5.0
20
20
P
Water Gallons
per 100 lbs.
22.4
29.9
Shipping
Weight
410 lbs.
372 lbs.
FRONT VIEW (Air-Cooled Unit)
SIDE VIEW (Air-Cooled Unit)
O P ER AT I N G L I MI T S
• Ambient Temp Range 45 - 100˚F
• Water Temp Range 45 - 90˚F
• Water Pressure 10 - 113psig
• Voltage Range 104 - 127V
TOP VIEW
SERV I C E
• Panels easily removed and all components
accessible for service.
• Removable/cleanable air filter.
(Air-Cooled model only)
REAR VIEW (Air-Cooled Unit)
REAR VIEW (Water-Cooled Unit)
Printed in U.S.A.
