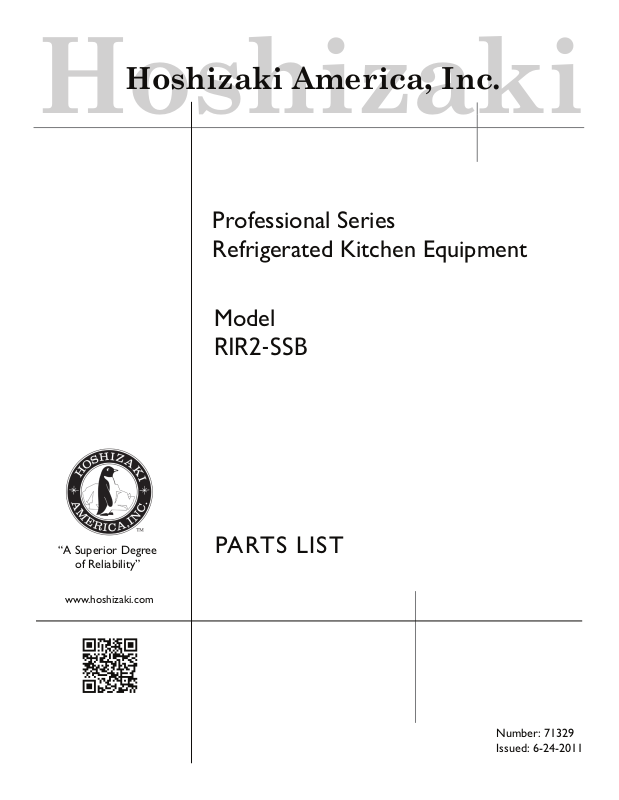

Page 1
Hoshizaki
Hoshizaki America, Inc.
Professional Series
Refrigerated Kitchen Equipment
Model
RIR2-SSB
“A Superior Degree
of Reliability”
www.hoshizaki.com
PARTS LIST
Number: 71329
Issued: 6-24-2011
Page 2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Roll-In Assembly ................................................................................................................ 4
B. Refrigeration Circuit ........................................................................................................... 6
C. Control Box Assembly ....................................................................................................... 9
D. Upper Panel & Control Panel Assemblies ....................................................................... 10
E. Door-Right Hinged ........................................................................................................... 12
F. Door-Left Hinged .............................................................................................................. 14
G. Accessories & Packaging ................................................................................................ 16
2
Page 3
Auxiliary Codes
RIR2-SSB A-5 July 2011
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "5" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
3
Page 4
A. Roll-In Assembly
RIR2-SSB
A-5
8
3
9
18
16
17
15
12
5146
2
13
11
10
For left door, see
section "F"
4
7
For right door, see
section "E"
4
7a
1
For ramps, see
section "G"
Page 5
Title: A. Roll-In Assembly Models: RIR2-SSB
Index
No. Description
Roll-In Assembly
Order Assembly Parts Individually
1 Vertical Mullion (includes item
2)
2 Strike Plate 4A4590-01 2
3 Corner Cover (top) 3A1751-01 4
4 Shaved Corner Cover (bottom) 3A4731G01 4
5 Nameplate 2A4523-03 1
6 Nameplate Cover 4A3727-01 1
7 Taper Collar 4H0171-01 4
7a Countersunk Screw 5×20, SS 7C42-0520 4
8 Display Label 3A5788-01 1
9 Door Switch 3A1826-01 2
10 Air Distributor 1A1865-01 1
11 Air Distributor Bracket 3A6862G01 1
12 Outer Rack Guide 3A4707-01 2
13 Center Rack Guide 3A5515-02 2
14 Light Plate 3A4732-01 2
15 Light Socket 4A4443-01 2
16 Light Bulb 4A4444-01 2
17 Light Cover 3A4733-01 2
18 Air Baffle 2A5229-21 1
Material or
Model Number Part Number
1A1846A01 1
2A5228G01 1
Required Number
A-5
5
Page 6

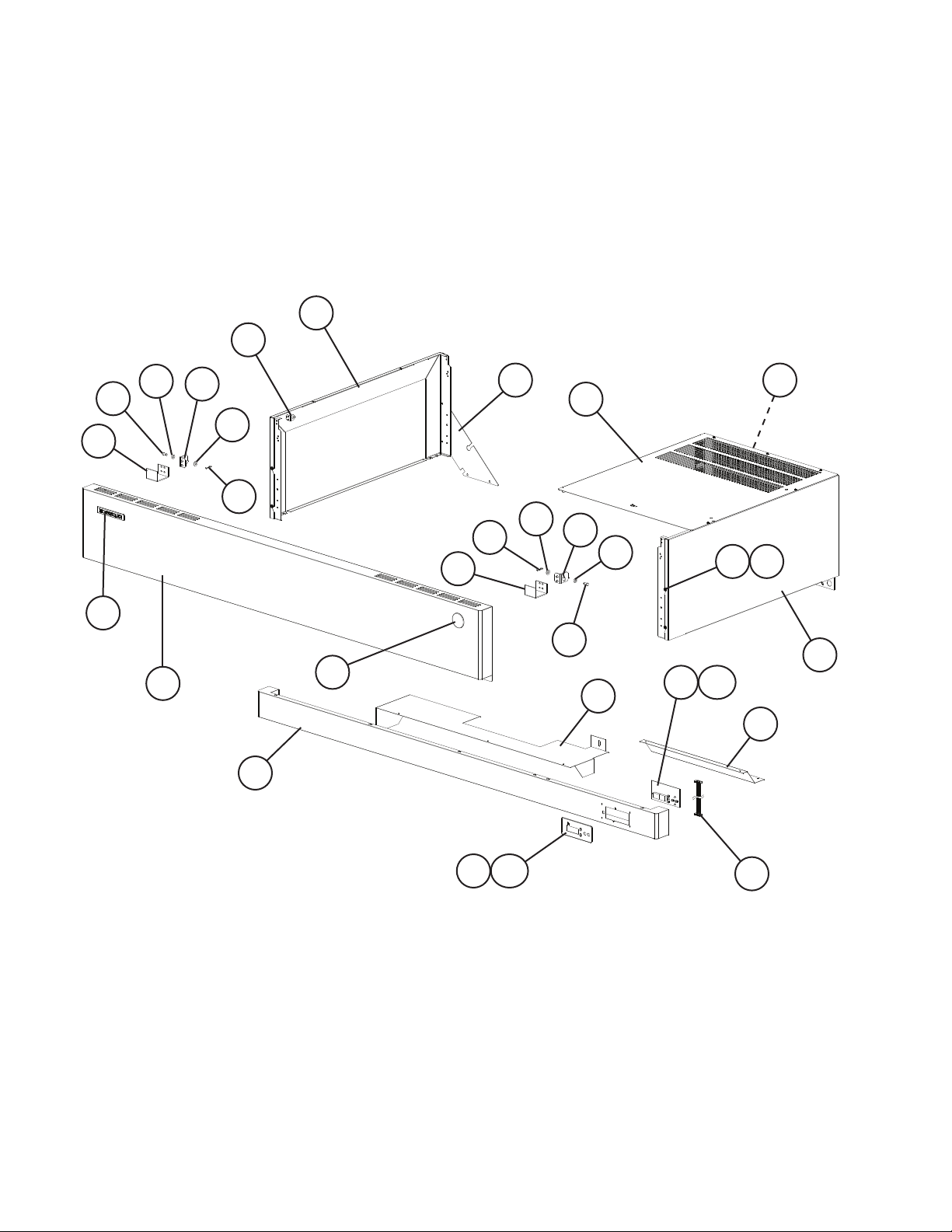

B. Refrigeration Circuit
RIR2-SSB
A-5
22a 22b
22
10
21
41
42
21a
20
12
19
39
36
40
24
23
35
30
29
3
4
2b
2a
2
1 1a
32
33
31
2c
1b
34
38
5
7
6
16
8
16a
37
14
9
15
18
17
13
11
26
25
6
27
28
Page 7
Title: B. Refrigeration Circuit Model: RIR2-SSB
Index
No. Description
Refrigeration Circuit
Order Assembly Parts Individually
1 Compressor Base 2A1145G01 1
1a Hex Head Bolt 8×70 7B01-0870 2
1b Flat Washer M8 7W21-0800 2
2 Compressor 2A1295-01 1
2a Grommet 434403-01 4
2b Spacer 434404-01 4
2c Bolt 8×45 437889-01 4
3 Expansion Valve Bulb Holder 3A0107-01 1
4 Clamp 443461-01 1
5 Catch Latch 4A3987-01 4
6 Cabinet Thermistor Mount
Bracket
7 Cabinet Thermistor Clip
Bracket
8 Cabinet Thermistor 4A1429-01 1
9 Evaporator Drain Pipe 3A0143-01 1
10 Wiring Label 2A2349-01 1
11 Condenser Base 2A1217-01 1
12 Condenser Shroud 3A6861G01 1
13 Condenser 2A0261-01 1
14 Condenser Fan Bracket 3A1564-01 1
15 Condenser Fan Motor
(includes mounting screws)
16 Condenser Fan Blade 3A0436-01 1
16a Hex Nut 4A1345-01 1
17 Condenser Filter Retainer 4A2138-01 1
18 Condenser Filter 3A0277-02 1
19 R404A Label 4A0960-01 1
20 Evaporator Fan Shroud 1A1274-03 1
21 Evaporator Fan Blade 3A0436-01 1
21a Hex Nut 4A1345-01 1
22 Evaporator Fan Motor
Assembly (includes fan motor
bracket)
22a Lock Washer 4A0459-01 3
22b T2 Screw 4×8, SS 7P32-0408 3
23 Evaporator Drain Pan 2A0200-02 1
24 Condensate Coil Strap 3A0413-03 1
25 Overow Drain Fitting w/Nut 4A2182-01 1
26 Rubber Gasket 413854-03 1
27 Silicone Hose L=350 7730I3812 1
28 Elbow 4A0711-01 1
29 Condensate Coil 2A1856-01 1
30 Clogged Filter Thermostat 4A0484-01 1
31 Drier Bracket 4A4281-01 1
32 Drier 4A0924-01 1
33 High-Pressure Switch 4A2516-02 1
Material or
Model Number Part Number
1A1452A01 1
433964-01 1
433920-01 1
4A0408-01 1
4A0411-01 1
Required Number
A-5
7
Page 8
Title: B. Refrigeration Circuit Model: RIR2-SSB
Index
No. Description
34 Evaporator 2A1382-01 1
35 Right Evaporator Shroud
Bracket
36 Left Evaporator Shroud
Bracket
37 Thermistor Clip 320418-01 1
38 Defrost Thermistor 4A1428-01 1
39 Expansion Valve 4A1711-01 1
40 Expansion Valve Cover 4A4646-01 1
41 Evaporator Case Cover
(includes item 42)
42 Draw Latch 4A3988-01 4
Material or
Model Number Part Number
4A0545-01 1
4A0548-01 1
2A4326A01 1
Required Number
A-5
8
Page 9
C. Control Box Assembly
RIR2-SSB
A-5
15
14
16
17
12
11
10
9
3
2
4
Title: C. Control Box Assembly Model: RIR2-SSB
Index
No. Description
Control Box Assembly
Order Assembly Parts Individually
1 Start Relay 4A1709-01 1
2 Strap 434580-01 1
3 Start Capacitor 3A1142-01 1
4 Power Cord 4A0520-01 1
5 Control Board 2A2862-24 1
6 Board Support 4A0336-03 6
7 Ground Screw 433304-02 1
8 Compressor Relay 4A1307-01 1
9 Terminal Block 4A2619-01 1
10 Control Transformer 3A1759-01 1
11 Switch Bracket 2A1032-02 1
12 Power Switch 4A0424-01 1
13 Perimeter Heater Switch 4A0418-01 1
14 Control Box Cover 2A1031-01 1
15 Power Switch Label 4A2196-01 1
16 Perimeter Heater Switch Label 4A1039-01 1
17 Display Information Label 3A1413-01 1
Material or
Model Number Part Number
2A4391A01 1
A-5
13
6
5
8
1
7
Required Number
9
Page 10
D. Upper Panel & Control Panel Assemblies
RIR2-SSB
A-5
1
4
5
14
11
8
6
12
10
9
10
9
5
3
17
13
7
11
8
19
22
2a
19a
1516
2b
2
21
18
10
18a
20
Page 11
Title: D. Upper Panel & Control Panel Assemblies Model: RIR2-SSB
Index
No. Description
Upper Panel Assembly
Order Assembly Parts Individually
1 Side Top Frame 2A4487-01 2
2 Side Top Panel 2A4488-01 2
2a Taper Collar 4H0171-01 4
2b Countersunk Screw 5×20, SS 7C42-0520 4
3 Front Panel 1A1869-01 1
4 Hinge Bracket 4A2306-01 2
5 Hinge Channel 4A2170-01 2
6 Left Front Panel Hinge 4A2153-01 1
7 Right Front Panel Hinge 4A2154-01 1
8 Clevis Pin 8907-0102 2
9 Cotter Pin 8907-0103 2
10 Flat Washer 4A0655-03 2
11 Hinge Spacer 4A2473-01 2
12 Top Cover 2A1118-02 1
13 Penguin Label 456246-02 1
14 Emblem 4A0560-01 1
15 Rear Cover 2A1117-01 1
16 Frame Gusset 4A3856-01 1
Control Panel Assembly
Order Assembly Parts Individually
17 Control Panel 1A1868-01 1
18 Display Board Mount 3A0823-01 1
18a Palnut 4A1398-01 6
19 Display Board 2A0883-01 1
19a Nylon Screw 4A1397-01 4
20 Ribbon Cable 4A1106-02 1
21 Display Board Cover 3A5517-01 1
22 Wire Cover 2A5230-01 1
Material or
Model Number Part Number
2A5231A01 1
3A5516A01 1
Required Number
A-5
11
Page 12
E. Door-Right Hinged
Full Solid: RIR2-SSB
A-5
9
10
5
4
7
6
3
3a
8
15a
15
12
16
11
17
14
12
14a
12
9
13
2a
2
1a
1
Page 13
Title: E. Door-Right Hinged Model: Full Solid: RIR2-SSB
Index
No. Description
Door-Right Hinged; Full Solid
Order Assembly Parts Individually
1 Door Hinge Bracket (LR) 3A5132G01 1
1a Countersunk Screw 5×20, SS 7C42-0520 2
2 Female Hinge Bottom Plate (R) 4A0441-01 1
2a Stop Plate Screw 4A0483-01 1
3 Door Hinge Bracket (UR) 3A1580-01 1
3a Countersunk Screw 5×20, SS 7C42-0520 3
4 Hinge Lock Washer 4A0553-01 1
5 Hinge Pivot Pin 4A2179-01 1
6 Hinge Stop Pin 4A2180-01 1
7 Hinge Bushing Cover 4A0445-01 1
8 Hinge Tension Screw 4A0446-01 1
9 Truss Head Screw (ll screws) 5×10, SS 7C32-0510 9
10 Door Switch Bracket 4A4430-01 1
11 Door Assembly
(includes items 12 through 17)
12 Foam Pad 4A2257-01 2
13 Hinge Bottom Bushing (R) 4A0439-01 1
14 Male Hinge Bottom Plate (R) 4A0440-01 1
14a Countersunk Screw 5×20, SS 7C42-0520 2
15 Hinge Spring Cartridge (R) 4A0438-01 1
15a Countersunk Screw 5×20, SS 7C42-0520 2
16 Three-Sided Door Gasket 2A4482-01 1
17 Sweep Gasket 3A4704-01 1
Material or
Model Number Part Number
2A4759A01 1
1A1624G01 1
Required Number
A-5
13
Page 14
F. Door-Left Hinged
Full Solid: RIR2-SSB
A-5
5
6
4
7
8
12
15
3
15a
3a
10
9
11
16
14
13
14a
12
2
2a
9
1
1a
17
14
Page 15
Title: F. Door-Left Hinged Model: Full Solid: RIR2-SSB
Index
No. Description
Door-Left Hinged; Full Solid
Order Assembly Parts Individually
1 Door Hinge Bracket (LL) 3A5131G01 1
1a Countersunk Screw 5×20, SS 7C42-0520 2
2 Female Hinge Bottom Plate (L) 4A0441-02 1
2a Stop Plate Screw 4A0483-01 1
3 Door Hinge Bracket (UL) 3A1581-01 1
3a Countersunk Screw 5×20, SS 7C42-0520 3
4 Hinge Lock Washer 4A0553-01 1
5 Hinge Pivot Pin 4A2179-01 1
6 Hinge Stop Pin 4A2180-01 1
7 Hinge Bushing Cover 4A0445-01 1
8 Hinge Tension Screw 4A0446-01 1
9 Truss Head Screw (ll screws) 5×10, SS 7C32-0510 9
10 Door Switch Bracket 4A4430-01 1
11 Door Assembly
(includes items 12 through 17)
12 Foam Pad 4A2257-01 2
13 Hinge Bottom Bushing (L) 4A0439-02 1
14 Male Hinge Bottom Plate (L) 4A0440-02 1
14a Countersunk Screw 5×20, SS 7C42-0520 2
15 Hinge Spring Cartridge (L) 4A0438-02 1
15a Countersunk Screw 5×20, SS 7C42-0520 2
16 Three-Sided Door Gasket 2A4482-01 1
17 Sweep Gasket 3A4704-01 1
Material or
Model Number Part Number
2A4760A01 1
1A1626G01 1
Required Number
A-5
15
Page 16
G. Accessories & Packaging
RIR2-SSB
A-5
3
2
Title: G. Accessories & Packaging Model: RIR2-SSB
Index
No. Description
1 Instruction Manual 91A3ME10C 1
2 Ramp 2A4832-01 2
3 Ramp Filler Bracket 4A4591-01 2
Packaging 1A1870A01
Material or
Model Number Part Number
Required Number
A-5
16
