Parts List
Stackable Crescent cuber
Models
KM-1301SAJ-E
hoshizakiamerica.com
Number: 71413
Issued: 5-8-2018
Revised: 9-14-2018
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly & Refrigeration Circuit .............................................................................. 4
B. Water Circuit ...................................................................................................................... 6
C. Control Box Assembly ....................................................................................................... 9
D. Accessories & Labels .......................................................................................................11
2
Auxiliary Codes
KM-1301SAJ-E
H-0 April 2018
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "0" and this number advances for each
change.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
IMPORTANT
IEC standards require that the clamping means of earthing terminals be
adequately secured against accidental loosening and that accessible metal parts
of the icemaker which may become live in the event of an insulation fault be
permanently and reliably connected to an earthing terminal within the icemaker or
to the earthing contact of the icemaker inlet. This is accomplished in this icemaker
through the use of stainless steel lock washers.
3
A. Main Assembly & Refrigeration Circuit
KM-1301SAJ-E
H-0
5
9
10
29 30
15
27
14
24 26
12
14a
34
35
28
16
33
31
32
25 26
13
11
6
13a
17 19
8a
3
18 19
4a
4
20 21
22 23
2
7
8
1
4
Title: A. Main Assembly & Refrigeration Circuit Model: KM-1301SAJ-E
Index
No. Description
1 Front Panel 2A2224-02 1
2 Gasket L=1219 mm 4A0808L02 1
3 Air Filter 2A2063G01 4
4 Louver 1A0548-01 4
4a Push Retainer 4A2414-01 12
5 Top Panel 2A2255-01 1
6 Right Side Panel 2A2226G01 1
7 Control Box Cover 3A2386-01 1
8 Front Insulation 324215G01 1
8a Thumbscrew 415949G12 1
9 Top Insulation 324216G01 1
10 Spacer 324321-01 1
11 Junction Box Cover 4A1767-01 1
12 Main Transformer 4A5262-01 1
13 Mechanical Bin Control 2A4393G01 1
13a Thumbscrew 415949G12 2
14 Bin Control Mounting Bracket 3A5726-01 1
14a Thumbscrew 415949G12 2
Material or
Model Number Part Number
Main Assembly
H-0
Required Number
Refrigeration Circuit
15 Compressor 4A1749-03 1
16 Condenser 2A7966-01 1
17 Left Evaporator Bank HS-0208 2A8124G01 1
18 Right Evaporator Bank HS-0209 2A8124G01 1
19 Separator Hook 324152-01 8
20 Thermostatic Expansion Valve 4A1482-01 2
21 Thermostatic Expansion Valve
Cover
22 Thermostatic Expansion Valve
Bulb Holder
23 Clamp 443461-02 2
24 Hot Gas Valve Body 4A3978-01 1
25 Liquid Line Valve Body 4A3276-01 1
26 Valve Coil 4A3277-01 2
27 Check Valve 4A1373-01 2
28 High-Pressure Switch 463180-01 1
29 Thermistor 429006-03 1
30 Thermistor Holder 427430-01 1
31 Fan Motor 4A3158-01 1
32 Fan Motor Capacitor 5MFD,
250VAC
33 Fan Blade 4A0197-01 1
34 Strainer 441569-02 1
35 Drier 4A1113-01 1
3A0944-01 2
3A0107-01 2
443192-02 1
5
B. Water Circuit
KM-1301SAJ-E
H-0
15
13
16
17
1819
14
10
28
41
25
27
34
24
23
26
15
11
12
39
40
29
33
1
22
30
32
31
35 36
2
7a
20
38
37
21

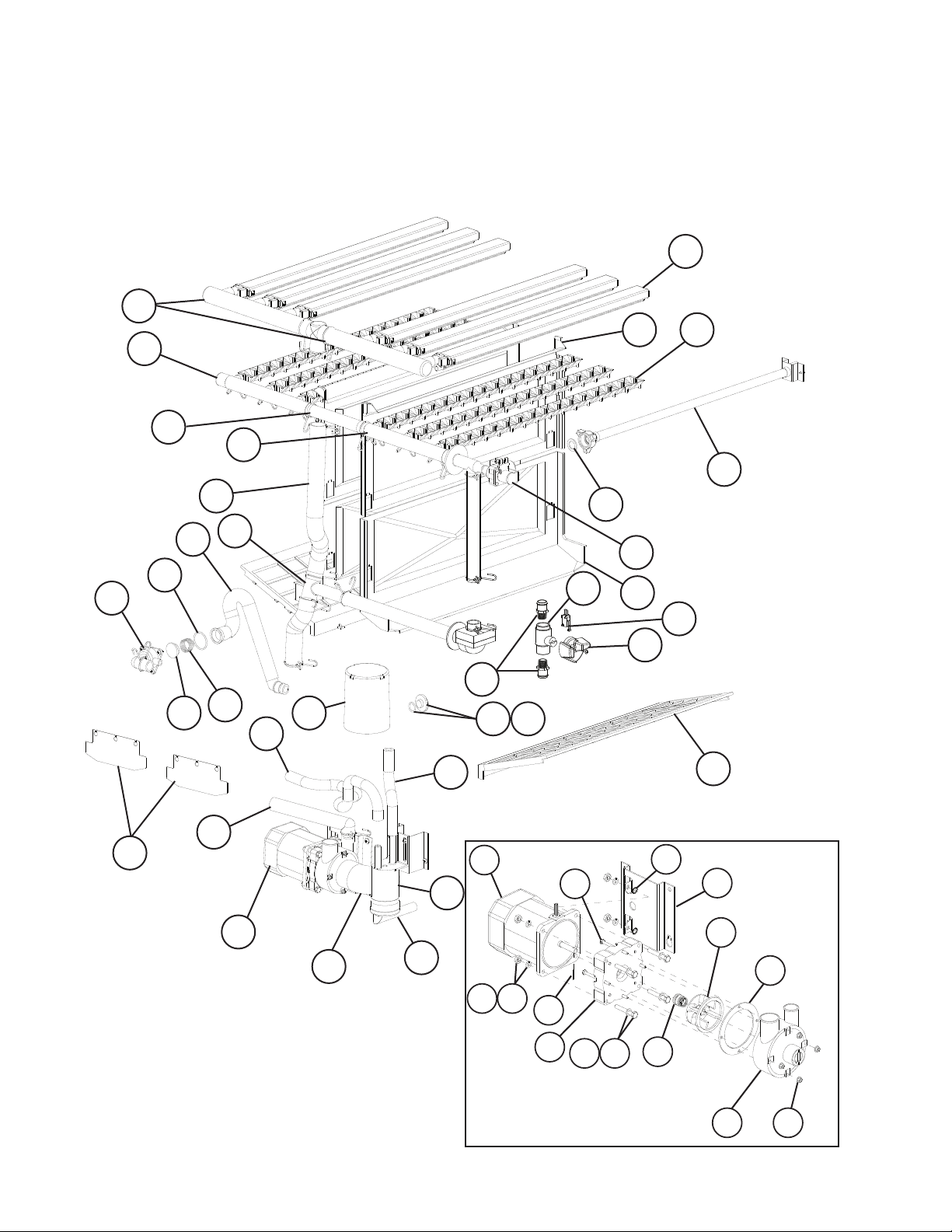

Pump Motor Assembly
3a
9
6
5
3d 3e
6
8
3
3b 3c
4
7
7b
Title: B. Water Circuit Model: KM-1301SAJ-E
Index
No. Description
1 Pump Motor Assembly
(includes items 2 through 8)
2 Pump Motor 2U0106-01 1
3 Pump Motor Flange 215662-01 1
3a Tooth Washer 7R22-0600 2
3b Hex Bolt 6×40, SS 7B02-0640 4
3c Flat Washer 7W22-0600 4
3d Split Lock Washer 7L22-0600 4
3e Hex Nut 7N12-0600 4
4 Mechanical Seal 4A3820-01 1
5 Packing 428547-01 1
6 Impeller 334706G01 1
7 Pump Housing 213687-01 1
7a Hex Bolt 4×55, SS 7B02-0455 4
7b Hex Flange Nut 7J02-0400 4
8 Pin 4A0648-01 1
9 Pump Motor Bracket 323904-01 1
10 Water Supply Pipe 4A5216G04 1
11 Rubber Gasket 413854-03 1
12 Inlet Water Valve 4A5251-02 1
13 Distributor Hose A 439266-01 1
14 Distributor Hose B 439239-01 1
15 Distributor Hose C (Tee) 439238-01 1
16 Joint Pipe 439297-01 1
17 Spray Tube 437049G01 6
18 Spray Guide 2A4282-02 6
19 Separator A 213622-01 2
20 Separator B 2A0100-01 2
21 Cube Guide 214243-01 2
22 Hose A 435091-01 1
23 Hose B 436599-01 1
24 Vinyl Hose L=520 mm 7716-2732 1
25 O-Ring 7611-G035 1
26 Drain Valve Spring 322110-01 1
27 Drain Valve Seat 433705-01 1
28 Drain Valve Housing 323613-01 1
29 Overow Cap 323978-01 1
30 Float Switch Connector 426799-04 1
31 Float Switch 4A3624-01 1
32 Silicone Hose L=140 mm 7730I3896 1
33 Silicone Hose L=390 mm 7730I3896 1
34 Drain Hose 324757-01 1
35 Drain Plug 309246-01 1
36 Drain Plug O-Ring 7611-P015 1
37 Cleaning Valve Handle 215383-01 1
38 Cleaning Valve Micro Switch 4A2546-01 1
39 Cleaning Valve Ball Valve 439293-01 1
40 Cleaning Valve Male Adopter 325826-01 2
41 Splash Guard 4A6116-01 2
Material or
Model Number Part Number
S-0862 215692A04 1
Required Number
H-0
7
Title: B. Water Circuit Model: KM-1301S_H-E
Index
No. Description
Hose Clamp 13.5 mm 427443-07 6
Hose Clamp 25 mm 427443-03 9
Hose Clamp 32 mm 427443-09 6
Material or
Model Number Part Number
Required Number
H-0
Hose Clamps
8
C. Control Box Assembly
KM-1301SAJ-E
H-0
4
7
12
1a
1
5
8
9
11
X10 X11 X12
6
3
2
10
9
Title: C. Control Box Assembly Model: KM-1301S_H-E
Index
No. Description
1 Control Board 2A7664-02 1
1a Control Board Support 4A0336-03 4
2 Run Capacitor 35MFD,
3 Start Capacitor 160MFD,
4 Start Relay 4A1107-13 1
5 Pump Motor Capacitor 15.0MFD,
6 Relay
X10 - Pump Motor Relay
X11 - Control Relay
X12 - Slush Control Relay
7 Control Transformer 3A0172-01 1
8 Fuse Holder 4A5443-01 1
9 Fuse AGC-10A,
10 Control Switch 4A2436-01 1
11 Bin Control Wire Harness 4A5197G01 1
12 Compressor Relay 4A3140-01 1
Material or
Model Number Part Number
3A2005-12 1
440VAC
4A1094-01 1
330VAC
4A2128-02 1
250VAC
406132-07 3
4A0893-07 1
250VAC
Required Number
H-0
10
D. Accessories & Labels
KM-1301SAJ-E
H-0
1
2
Title: D. Accessories & Labels Model: KM-1301SAJ-E
Index
No. Description
1 Hoshizaki Emblem Label 4A0560-01 1
2 Penguin Label 475552L02 1
3 Universal Brace 4A0363-01 2
3a Hex Bolt 5×12, SS 7B02-0512 4
Material or
Model Number Part Number
11
Required Number
H-0
