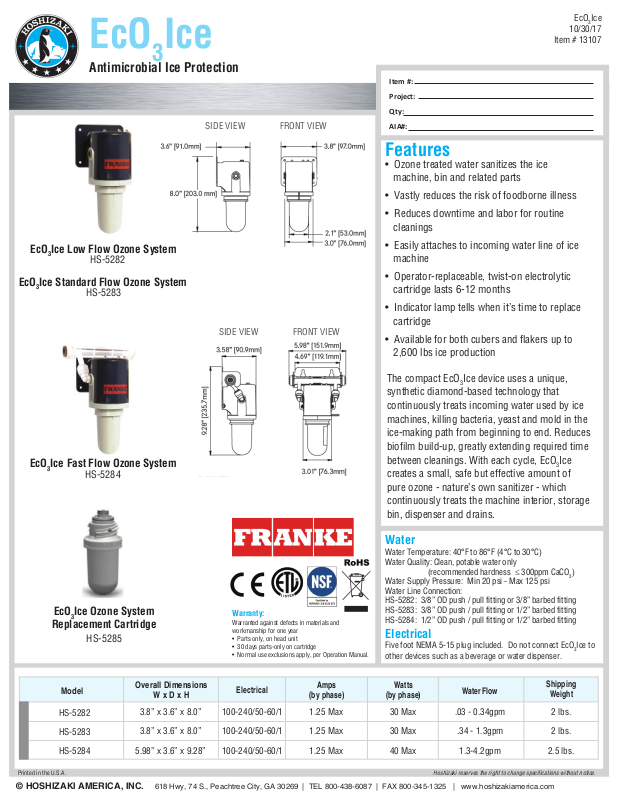

Hoshizaki HS5283 Specifications

EcO3Ice

Antimicrobial Ice Protection

SIDE VIEW FRONT VIEW

EcO3Ice

10/30/17

Item # 13107

Item #:

Project:

Qty:

AIA#:

Features

• Ozone treated water sanitizes the ice
machine, bin and related parts

• Vastly reduces the risk of foodborne illness

• Reduces downtime and labor for routine
cleanings

EcO3Ice Low Flow Ozone System

HS-5282

EcO3Ice Standard Flow Ozone System

HS-5283

EcO3Ice Fast Flow Ozone System

HS-5284

SIDE VIEW FRONT VIEW

• Easily attaches to incoming water line of ice
machine

• Operator-replaceable, twist-on electrolytic
cartridge lasts 6-12 months

• Indicator lamp tells when it’s time to replace
cartridge

• Available for both cubers and flakers up to
2,600 lbs ice production

The compact EcO3Ice device uses a unique,
synthetic diamond-based technology that
continuously treats incoming water used by ice
machines, killing bacteria, yeast and mold in the
ice-making path from beginning to end. Reduces
biofilm build-up, greatly extending required time
between cleanings. With each cycle, EcO

Ice

3

creates a small, safe but effective amount of
pure ozone - nature’s own sanitizer - which
continuously treats the machine interior, storage
bin, dispenser and drains.

EcO3Ice Ozone System

Replacement Cartridge

HS-5285

Model

HS-5282

HS-5283

HS-5284

Printed in the U.S.A.

© HOSHIZAKI AMERICA, INC.

Water

Water Temperature: 40°F to 86°F (4°C to 30°C)
Water Quality: Clean, potable water only
(recommended hardness ≤ 300ppm CaCO
Water Supply Pressure: Min 20 psi - Max 125 psi
Water Line Connection:
HS-5282: 3/8” OD push / pull fitting or 3/8” barbed fitting

Warranty:

Warranted against defects in materials and
workmanship for one year

• Parts only, on head unit

• 30 days parts-only on cartridge

• Normal use exclusions apply, per Operation Manual.

Overall Dimensions

W x D x H

3.8” x 3.6” x 8.0”

3.8” x 3.6” x 8.0”

5.98” x 3.6” x 9.28”

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL [phone] | FAX [phone] | www.hoshizakiamerica.com

Electrical

100-240/50-60/1

100-240/50-60/1

100-240/50-60/1

Amps

(by phase)

1.25 Max

1.25 Max

1.25 Max

HS-5283: 3/8” OD push / pull fitting or 1/2” barbed fitting
HS-5284: 1/2” OD push / pull fitting or 1/2” barbed fitting

Electrical

Five foot NEMA 5-15 plug included. Do not connect EcO3Ice to
other devices such as a beverage or water dispenser.

Watts

(by phase)

30 Max

30 Max

40 Max

Water Flow

.03 - 0.34gpm

.34 - 1.3gpm

1.3-4.2gpm

Hoshizaki reserves the right to change specifications without notice.

3

Shipping

Weight

2 lbs.

2 lbs.

2.5 lbs.

)

EcO3Ice

Antimicrobial Ice Protection

EcO3Ice

10/30/17

Item # 13107

Model

Number

HS-5282

HS-5283

HS-5284

Description

Flow Rate

(Gal. per min.)

Low Flow

(.34 GPM)

Standard Flow

(1.3 GPM)

Fast Flow

(4.2 GPM)

Undercounter

KMs

AM-50B

KM-61B
KM-101B
KM-151B

KM-201B
KM-260B

N/A

KM Cubers IM Cubers Flakers

&Cubelets

N/A

KM-340M

KML-325M, 500M

KMD-410M

DKM-500B

KM

515M*, 600M, 650M,

901M*, 1301S,

1340M, 1601M,

1601S, 1900S,

2200S, 2600S

KMD

460M, 530M,

850M, 901M

KML-700M

KMS

822M, 830M, 1122M,

1401M, 2000M

KMH-2000S

N/A

IM-200BAA
IM-500SAA

N/A

All Models N/A

N/A

N/A

DCMs

N/A

N/A

Replacement

HS-5285

Cartridge

(1) One each

* Call Hoshizaki Technical Support 800-233-1940 for Eco3Ice model selection for ice
machines not listed above or KM-515MAH/KM-901MAH manufactured in or before 2012.
Manufacturing date available by decoding model serial number (see Hoshizaki parts list
and auxiliary codes for detail).
